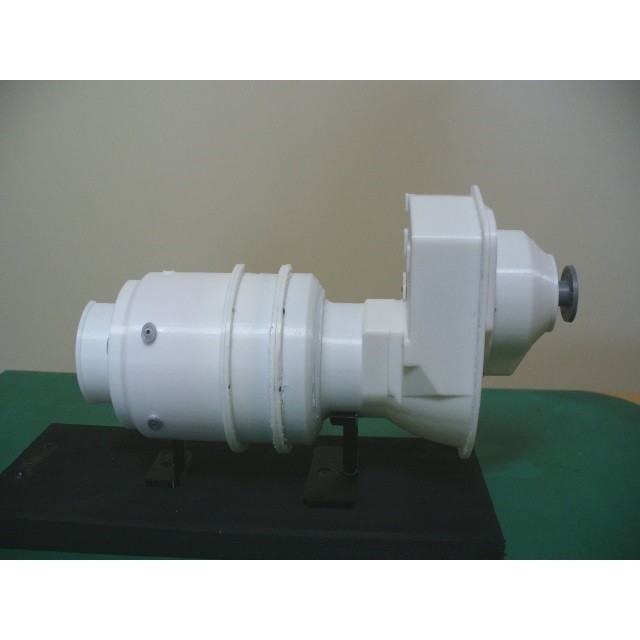

Turboprop Engine, for Business Aircraft, Cutaway

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 21.4k views
  • 35 likes
  • 29 downloads

3D model description

This is a model of the Turboprop Engine for Business Aircraft, etc.
Engine of this class has many features other than the large size jet (fan) engine.
- Smaller size
- Higher RPM
- Lighter weight
These features make the complex air flow and configuration.

There are two types of this class engine;
- Direct drive

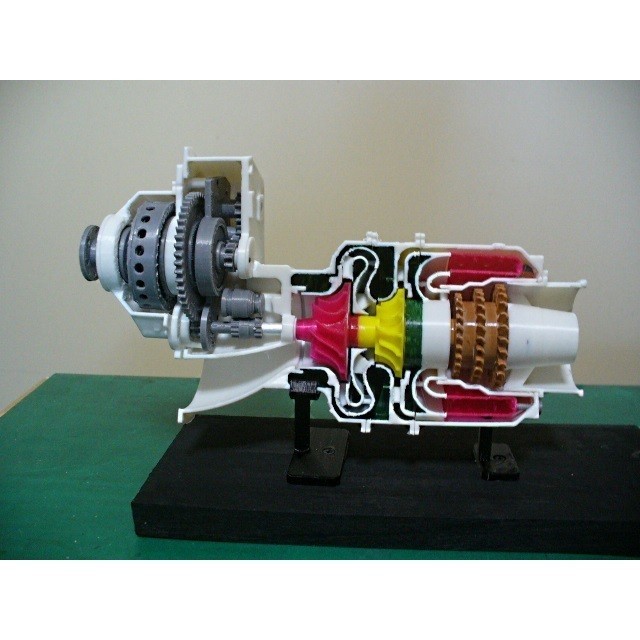

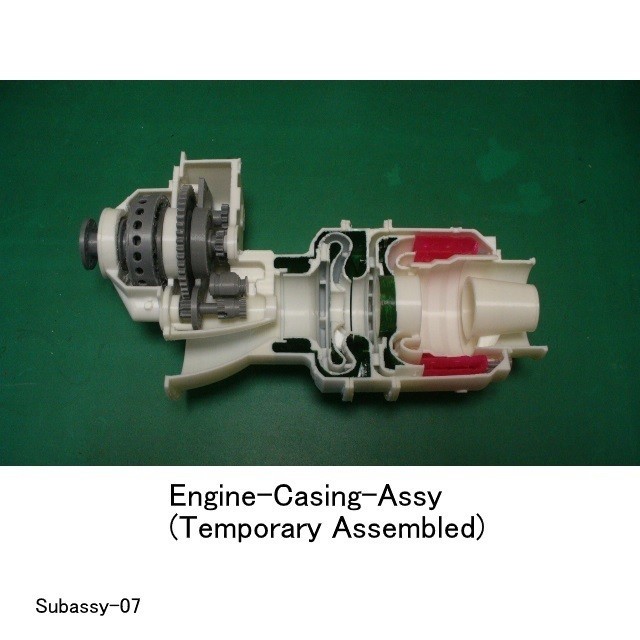

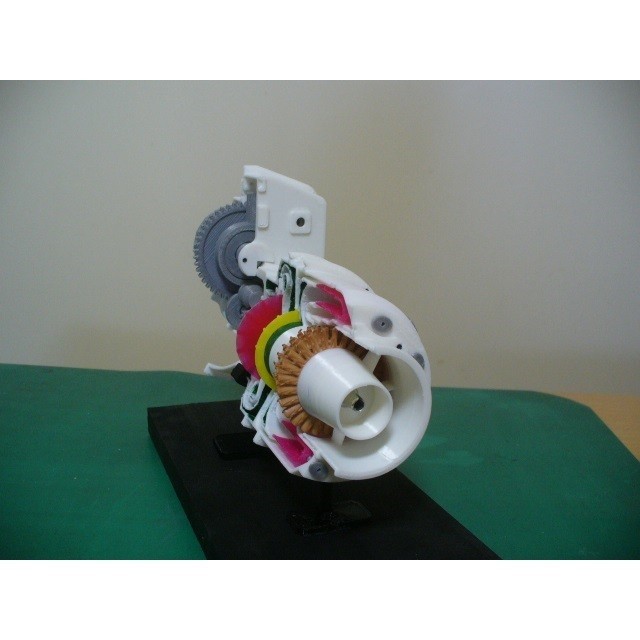

This cutaway model is the direct drive type.
- Free turbine

Features of this model are;

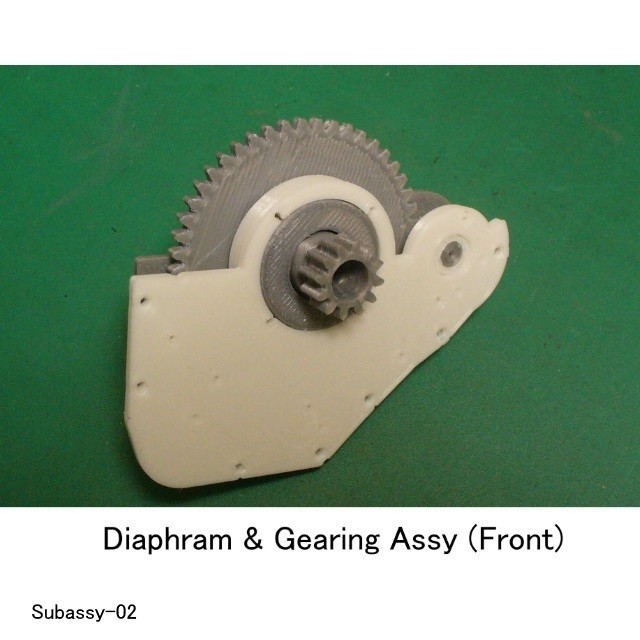

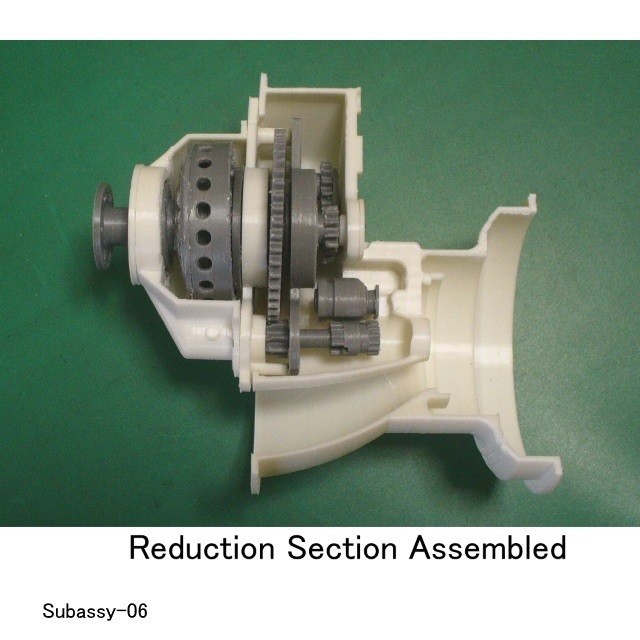

①. Integral-type Reduction Gear Box with an Air Intake
②. High Ratio Reduction Gears (including Planetary)
③. 2 stages Centrifugal Compressor (Impeller)
④. Reverse Flow Combustion Chamber
⑤. Axial stage Turbine
⑥. For the bearings (BRG), the printable dummy BRG are prepared to reduce cost instead of the metal ball bearing.

Download files includes;
-files: STL Files (44 items)

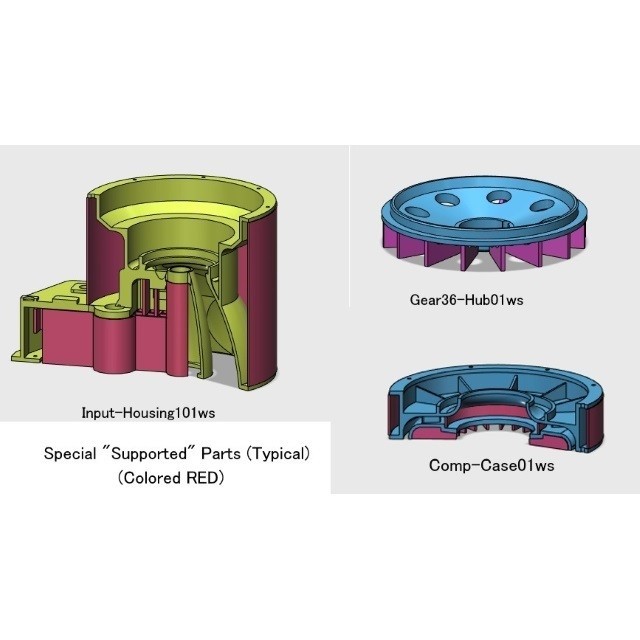

STL file name: "ws" of last 2 digits means "With Support" which special designed.
-images: Parts Breakdown for assembly Aid
-Excel (Zip) File: Parts List

Purchase Parts Information;
-Aluminum Tubes
See Parts List

-Screws
Micro screws M1.4x3.5L - Appox. 45 ea - Direct screw-in to 1 mm dia hole (No nut)
Screws M2 x ** - See Parts List

Assembly Points
- Standard Skill (such as Drilling, Tapping, Filing, Tightening, Painting and Gluing etc) is needed and perseverance too.

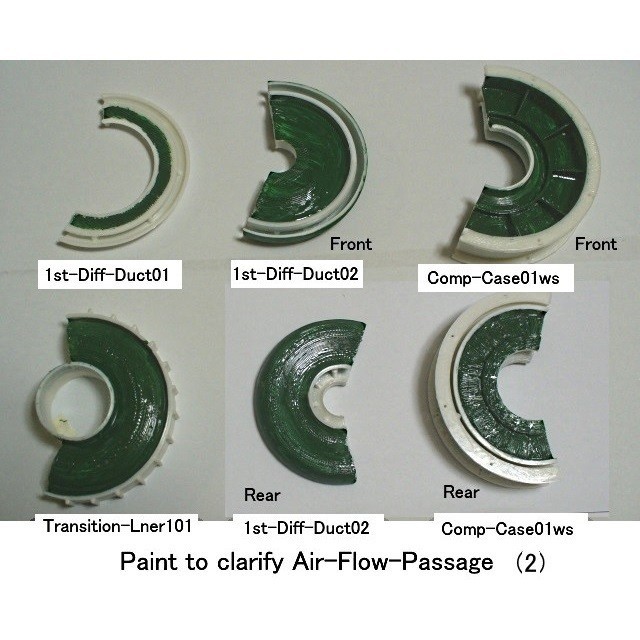

- If you want to clarify the air flow passage, the back side surfaces are painted before glueing and/or assembly.(See Photos)

Total Net Print Time: Approx. 40HR
- (Estimated as case of PLA, 0.4mm Nozzle, 0.2mm Layer Height, 40% infill and No raft and support)
Especially, Input-Housing101ws.stl needs about 10 hours to print.
Note: When at actual print, each parameter may be adjusted by your experience.

I do hope your success!!

[Update 2017.12.15]

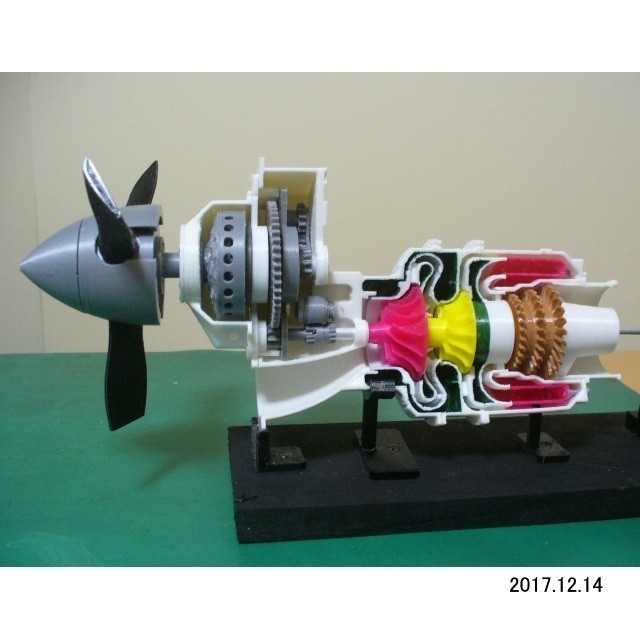

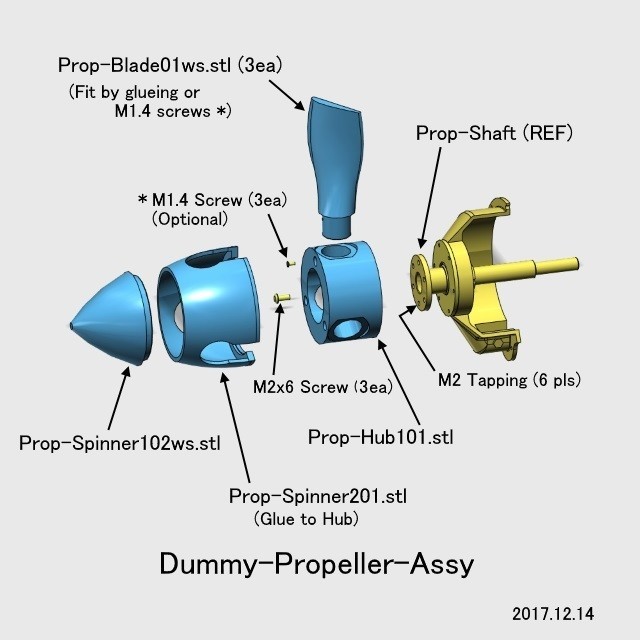

For "Dummy Propeller Assy", related STL files (4), photo and image are added.
[update 2018.07.12]
Revised Description only.


3D printing settings

3D printing settings
Raft, Support, Layer Height, Infill: Depending on your experience.
But the parts having gear, small shaft and thin portion: 100% infill is recommended.
My models were printed by "idbox" using with 0.4 nozzle, 1.75 PLA.

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • 12-Imp-Spacer-03-01.stl
    • 1st-Diff-Duct01.stl
    • 1st-Diff-Duct02.stl
    • 1st-Imp-Shrd01.stl
    • 1st-Impeller01.stl
    • 2nd-Impeller01.stl
    • C-Chamber101.stl
    • Comp-Case01ws.stl
    • Comp-Turb-Spacer101a.stl
    • Comp-Turb-Spacer101b.stl

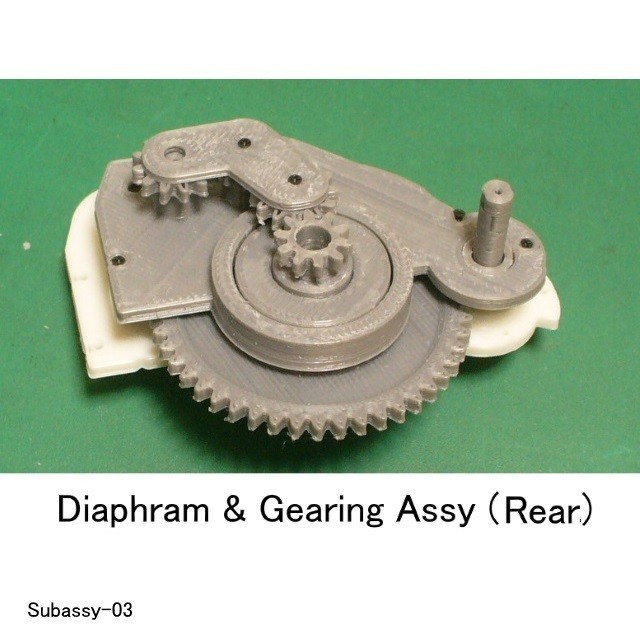

    • Diaphram-Frt101.stl
    • Diaphram-Rr-Plate01.stl
    • Diaphram-Rr201ws.stl
    • Dummy-BRG-10-6-01.stl
    • Dummy-BRG-12-6-01.stl
    • Dummy-BRG-5-25-01.stl
    • Dummy-BRG-5-5-01.stl
    • Dummy-BRG-5-5F-01.stl
    • Exh-Duct-Cap01ws.stl
    • Exhaust-Duct201ws.stl
    • Front-Case01ws.stl
    • Front-Cover01.stl
    • Fuel-Nozzle01.stl
    • GEAR48-Spacer01.stl
    • Gear-Carrier01.stl
    • Gear-Carrier01a.stl
    • Gear-Carrier02.stl
    • Gear-Sun01.stl
    • Gear10-03-05-01.stl
    • Gear12-03-05-01.stl
    • Gear36-Hub01ws.stl
    • Gear36-Ring01.stl
    • Gear48-03-12-101.stl
    • HSP-Coupling201.stl
    • HSP08-05-01.stl
    • Input-Housing101ws.stl
    • Parts-List001.zip
    • Plenum-Case101ws.stl
    • Prop-Blade101ws.stl
    • Prop-Hub101.stl
    • Prop-Shaft01.stl
    • Prop-Spinner102ws.stl
    • Prop-Spinner201.stl
    • Stand-Front01.stl
    • Stand-Rear01.stl
    • Torque-Sensor01.stl
    • Transition-Liner101.stl
    • Turbine-Case101.stl
    • Turbine-Rotor01ws.stl

    Learn more about the formats

  • Last update: 2018/07/12 at 06:27
  • Publication date: 2017/11/28 at 03:05

Copyright

©

Tags

Creator

Retired Aircraft Engine Engineer
Aichi, Japan
"Aircraft Engine Museum by 3D Printer Models"
http://www7b.biglobe.ne.jp/~konchan77/
