TURBOPROP ENGINE ASSEMBLY MANUAL (Option)

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 4.3k views
  • 7 likes
  • 31 downloads

3D model description

The following creations related TURBOPROP ENGINE have been uploaded now.
(1) TURBOPROP ENGINE
https://cults3d.com/en/3d-model/tool/turboprop-engine
(2) TURBOPROP ENGINE MODIFIED PARTS
https://cults3d.com/en/3d-model/tool/turboprop-engine-modified-parts
(3) TURBOPROP ENGINE MODIFIED PARTS [No.2]
https://cults3d.com/en/3d-model/tool/turboprop-engine-modified-parts-no-2
(4) TURBOPROP ENGINE MODIFIED PARTS [No.3]
https://cults3d.com/en/3d-model/tool/turboprop-engine-modified-parts-no-3

Each creations include the assembly instruction for the experienced person of the plasitic model.
This time, I have prepared the detailed Assembly Manual as an option for those who want to build this engine with a small amount of money.
Outline of Assembly Manual is;

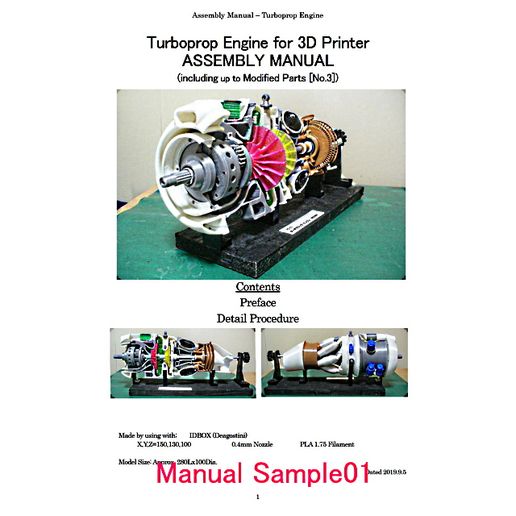

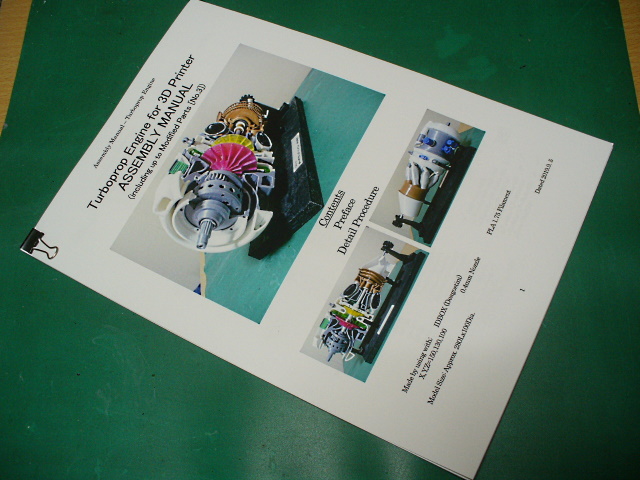

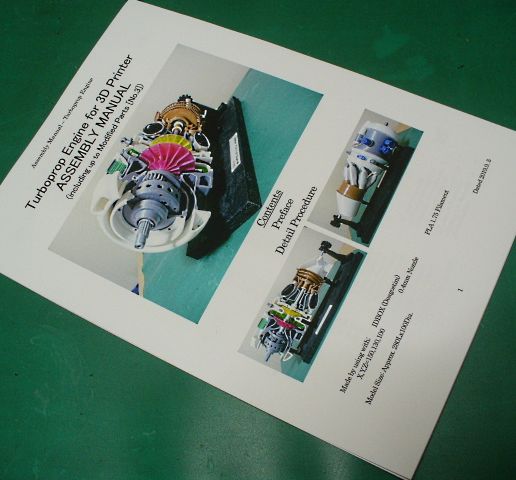

A. Assembly Manual (PDF format, total 26 pages)
The detail assembly manual including "Parts-List" and "Detail Assembly procedure" are prepared based on "Standard Skill (Filing, Drilling, Tapping and painting)".

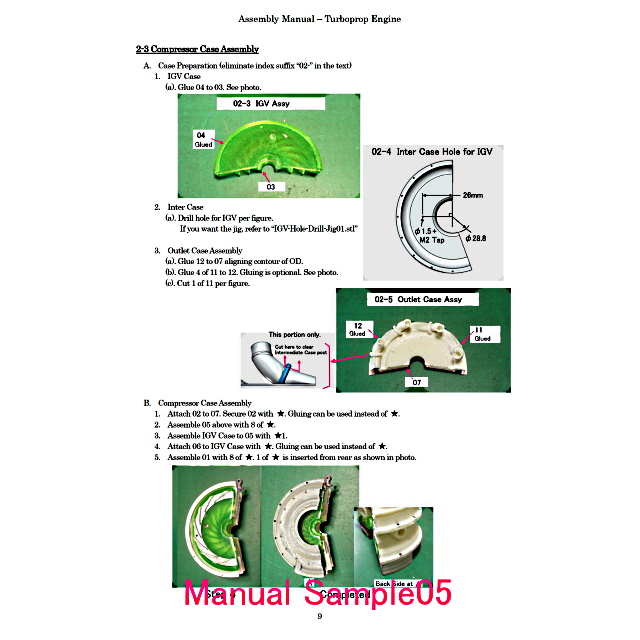

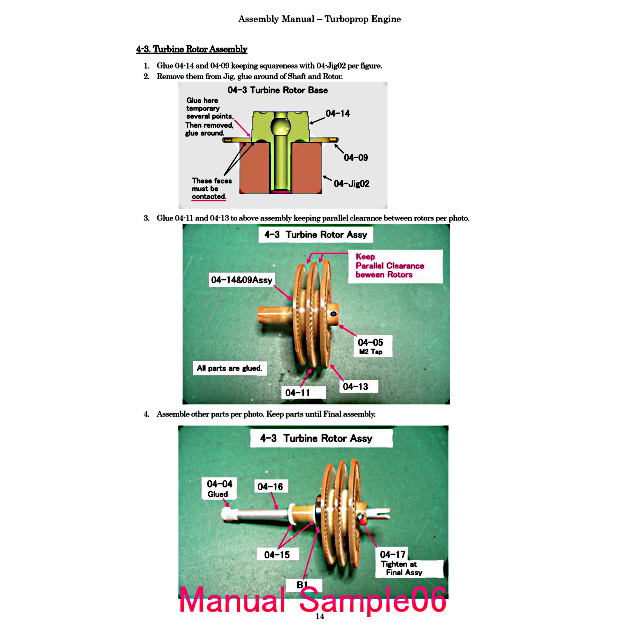

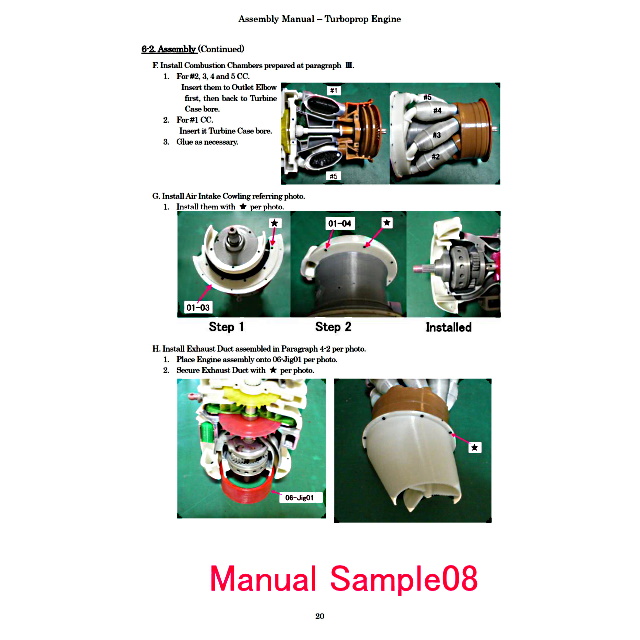

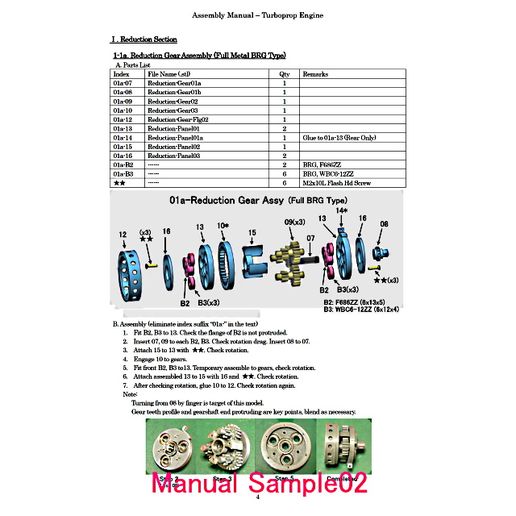

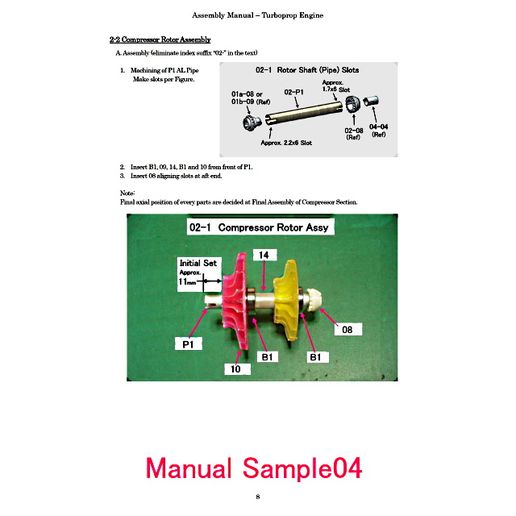

Many images (Figure and Photo) are used in this Manual about 57 to understand easily.
Same Index No. for STL files at the above creations are used in this Manual.

[Index: Detail Procedure]
Ⅰ. Reduction Section
1-1a. Reduction Gear Assembly (Full Metal BRG Type)
1-1b. Reduction Gear Assembly (Less Metal BRG Type)
1-2. Reduction Section Assembly6
Ⅱ. Compressor Section
2-1. Parts List
2-2. Compressor Rotor Assembly
2-3. Compressor Case Assembly
2-4. Compressor Assembly
Ⅲ Intermediate & Combustion Chamber Section
3-1. Parts List
3-2. Combustion Chambers
3-3. Intermediate Case Assembly
Ⅳ. Turbine & Exhaust Section
4-1. Parts List
4-2. Exhaust Duct Assembly
4-3. Turbine Rotor Assembly
4-4. Turbine Case Assembly
4-5. Turbine Assembly
Ⅴ. Accessory Section
5-1 Parts List
5-2 Accessory Preparation
Ⅵ. Final Assembly
6-1 Parts List
6-2 Assembly
Ⅶ. Stand and Tools
7-1 Parts List
7-2 Assembly
[Appendix] Parts Alphabetical Index

B. Download STL files;
- Please download all STL files from the creations listed "Above URLs".

C. Purchase Parts Information;
- Please refer the individual creations listed "Above URLs" and/or refer the parts list in this Manual.

I do hope this is very helpful to your making.


3D printing settings

See related creations.

3D printer file information


Copyright

©

Tags

Creator

Retired Aircraft Engine Engineer
Aichi, Japan
"Aircraft Engine Museum by 3D Printer Models"
http://www7b.biglobe.ne.jp/~konchan77/
