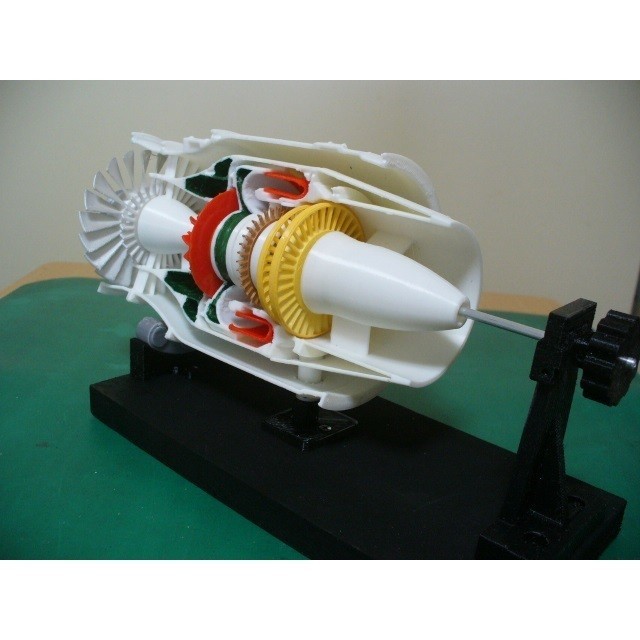

P0-Engine-Assy02.jpg STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
P0-Engine-Assy03.jpg STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download

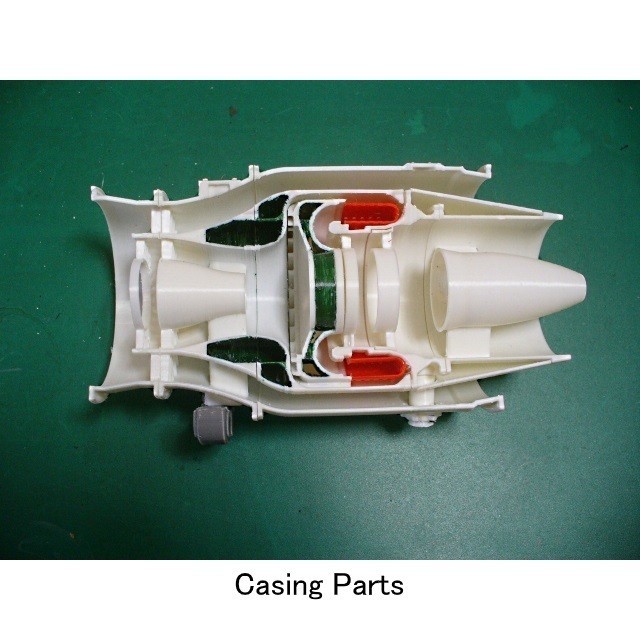

P1-Casing-Assy01.JPG STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download

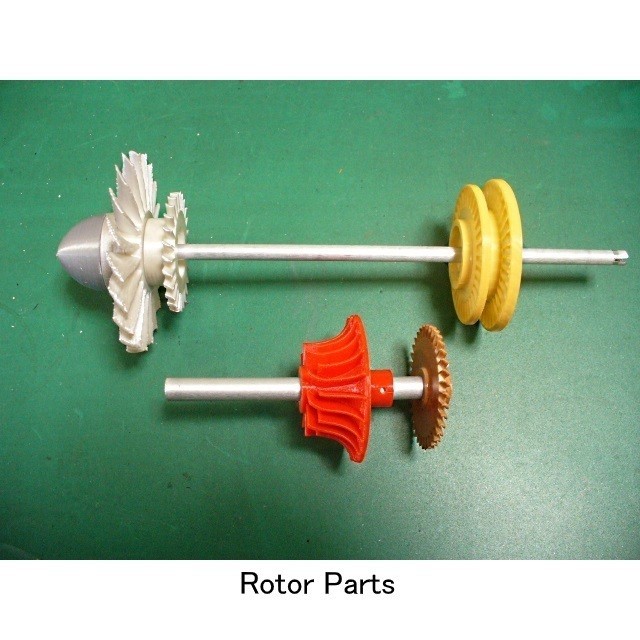

P1-Rotor-Assy01.jpg STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
01-Rotating-Parts01.jpg STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
02-Casing-Parts01.jpg STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
03-Stand-Parts01.jpg STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
C-Chamber01.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Dummy-BRG-5mm01.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Dummy-BRG-7mm01.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Exhaust-Case101ws.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Fan-Duct-Bst01ws.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Fan-Duct-Inner201ws.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Fan-Duct-Rr01ws.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Fan-Rotor01ws.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Fan-Tube-Cover101ws.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Front-Case201ws.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Gas-Gene-Case101ws.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Gear-Box101ws.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Impeller101.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Impeller-Rr-Spacer01.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
LPC-01-Bst01ws.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Rotate-Tool02.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Rotate-Tool04.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Rotate-Tool103.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Spacer-HPT01.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Spinner01ws.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Stand-Front01.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Stand-Rear01.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Trans-Liner101ws.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Turb-HP-Rotor01.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Turbine-Case101ws.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Turb-LP1-Rotor01.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Turb-LP2-Rotor01.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Turb-LP-Spacer01.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Turb-Mid-Stator01.stl STL file Turbofan Engine, for Business Aircraft, Cutaway・3D print design to download
Share
Add to
Make
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

konchan77

konchan77

3D model description

This is a model of the Turbofan Engine for Business Aircraft, etc.
Engine of this class has many features other than the large size jet (fan) engine.
- Smaller size
- Higher RPM
- Lighter weight
These features make the complex air flow and configuration.

Features of this model are;
①. Full length fan duct
②. Fan has boost stage LP compressor
③. Single stage Centrifugal HP Compressor (Impeller)
④. Reverse Flow Combustion Chamber
⑤. Axial stages Turbine
⑥. For the bearings (BRG), the printable dummy BRG are prepared to reduce cost instead of the metal ball bearing.

Download files includes;
-files: STL Files (29 items)
STL file name: "ws" of last 2 digits means "With Support" which special designed.

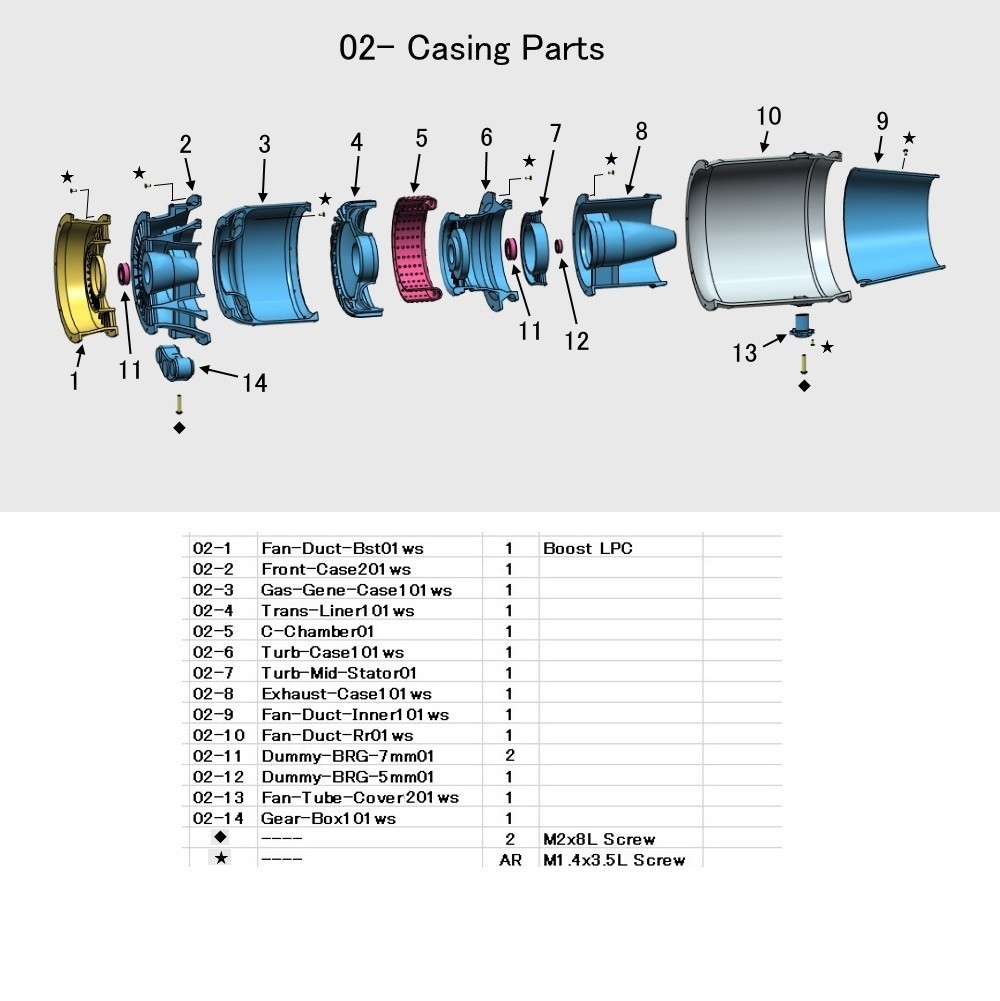

-images: Parts Breakdown for assembly Aid

Purchase Parts Information;
-Aluminum Tubes
See each assy images

-Screws
Micro screws M1.4x3.5L - Appox. 34 ea - Direct screw-in to 1 mm dia hole (No nut)
Screws M2 x *** - See each assy images

Assembly Points
- Standard Skill (such as Drilling, Tapping, Filing, Tightening, Painting and Gluing etc) is needed and perseverance too.
- If you want to clarify the air flow passage, the back side surfaces are painted before assembly.(See Photos)

Total Net Print Time: Approx. 40HR
- (Estimated as case of PLA, 0.4mm Nozzle, 0.2mm Layer Height, 40% infill and No raft and support)
Especially, Input-Housing101ws.stl needs about 10 hours to print.
Note: When at actual print, each parameter may be adjusted by your experience.

I do hope your success!!

3D printing settings

3D printing settings
Raft, Support, Layer Height, Infill: Depending on your experience.
But the parts having blade/vane, small shaft and thin portion: 100% infill is recommended.
My models were printed by "idbox" using with 0.4 nozzle, 1.75 PLA.

3D printer file information

  • Design number: 20653
  • 3D design format: STL Folder details Close
    • C-Chamber01.stl
    • Dummy-BRG-5mm01.stl
    • Dummy-BRG-7mm01.stl
    • Exhaust-Case101ws.stl
    • Fan-Duct-Bst01ws.stl
    • Fan-Duct-Inner201ws.stl
    • Fan-Duct-Rr01ws.stl
    • Fan-Rotor01ws.stl
    • Fan-Tube-Cover101ws.stl
    • Front-Case201ws.stl
    • Gas-Gene-Case101ws.stl
    • Gear-Box101ws.stl
    • Impeller-Rr-Spacer01.stl
    • Impeller101.stl
    • LPC-01-Bst01ws.stl
    • Rotate-Tool02.stl
    • Rotate-Tool04.stl
    • Rotate-Tool103.stl
    • Spacer-HPT01.stl
    • Spinner01ws.stl
    • Stand-Front01.stl
    • Stand-Rear01.stl
    • Trans-Liner101ws.stl
    • Turb-HP-Rotor01.stl
    • Turb-LP-Spacer01.stl
    • Turb-LP1-Rotor01.stl
    • Turb-LP2-Rotor01.stl
    • Turb-Mid-Stator01.stl
    • Turbine-Case101ws.stl
