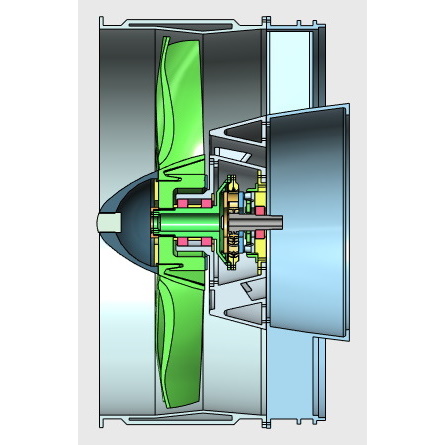

00-Fan-Module-Assy07.jpg STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
11-Carrier-Sun-Assy01.jpg STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print

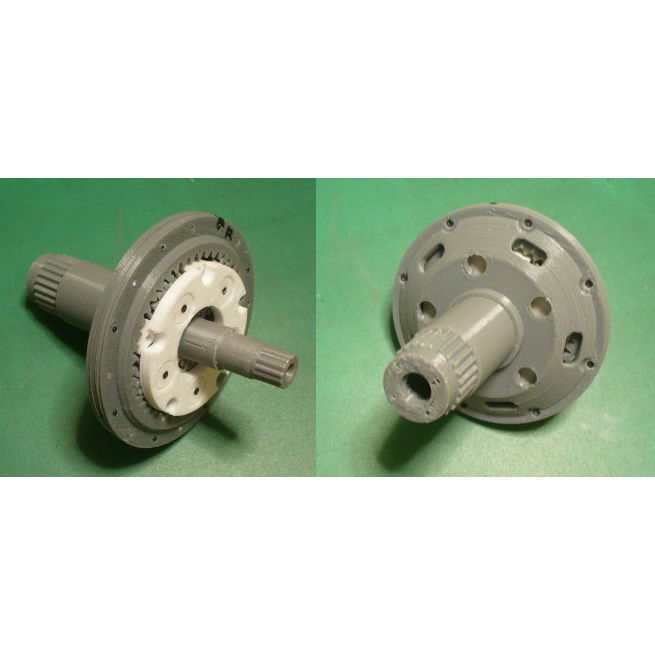

13-Ring-Gear-Fan-Shaft-Assy01.jpg STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print

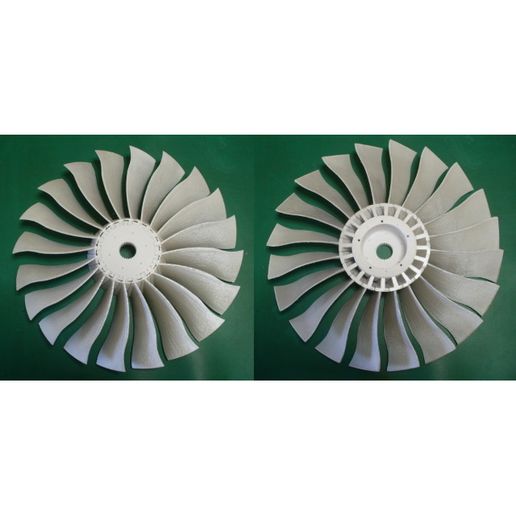

21-Fan-Rotor-Assy01.jpg STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
Manual-Sample01.jpg STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
Manual-Sample02.jpg STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
Manual-Sample03.jpg STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
Manual-Sample04.jpg STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
Manual-Sample05.jpg STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
Engine-Status20191112.jpg STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Fan-Blade-CW201mws.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Fan-Disk-CW101.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Fan-Disk-CW102.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Fan-Duct101.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Fan-Duct-Frt-Cut101.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Fan-Duct-Frt-Cut102.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Fan-Duct-Frt-Cut103.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Fan-Duct-Rr-Cut101.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Fan-Duct-Rr-Cut102.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Fan-Duct-Rr-Cut103.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Fan-Duct-Shim101.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Fan-Frame101ws.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Fan-Frame-Cut01ws.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Fan-Frame-Cut02ws.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Fan-Frame-Cut03ws.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Fan-Frame-Cut04ws.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Fan-SFT-Spacer030.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Fan-SFT-Spacer090.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Fan-SFT-Spacer095.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Fan-SFT-Stop01.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Fan-Shaft-H01ws.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-FDG-Carrier-F101.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-FDG-Carrier-R101.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-FDG-Carrier-R102ws.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-FDG-Frt-Case02.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-FDG-Frt-Case101ws.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-FDG-Gear15-H101.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-FDG-Oil-Manif301ws.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-FDG-Ring45-H01ws.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-FDG-Ring45-H02ws.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-FDG-Rr-Panel-H201ws.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-FDG-TQ-Frame401.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Spin-Mark01.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Spinner01.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Spinner02.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Stand-Fan-Frame01.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Stand-Fan-Frame02.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Stand-FDG01.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Tool-Fan-Frame01.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-Fan-Blade-CW202mws.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-FDG-Sun-H01.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
18N-LPC-Inlet-Case201ws.stl STL file Geared Turbofan Engine (GTF), 10 inch Fan Module・Model to download and 3D print
Share
Add to
Make
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

konchan77

konchan77

3D model description

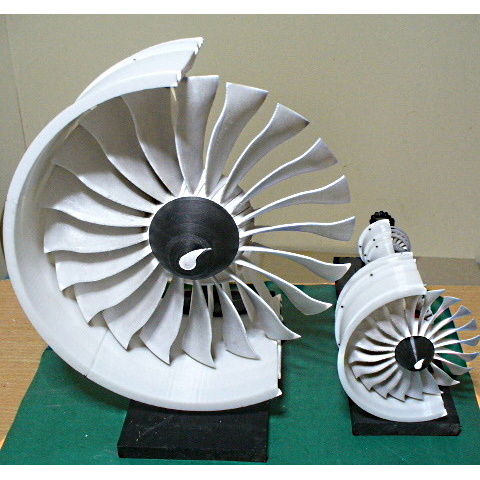

I made the small geared turbofan (GTF) model having 4 inches Fan before.
https://cults3d.com/en/3d-model/tool/jet-engine-geared-turbofan-gtf

This time I challenged the lager model having 10 inches Fan using with my small printer.
This is not just the scale up model, all parts newly re-designed to rotate by small motor.
As first phase, “Fan Module” is uploaded.
In near future, “Engine Module (Gas Generator) will be uploaded.

A. The features of “Fan Module” are as follows.

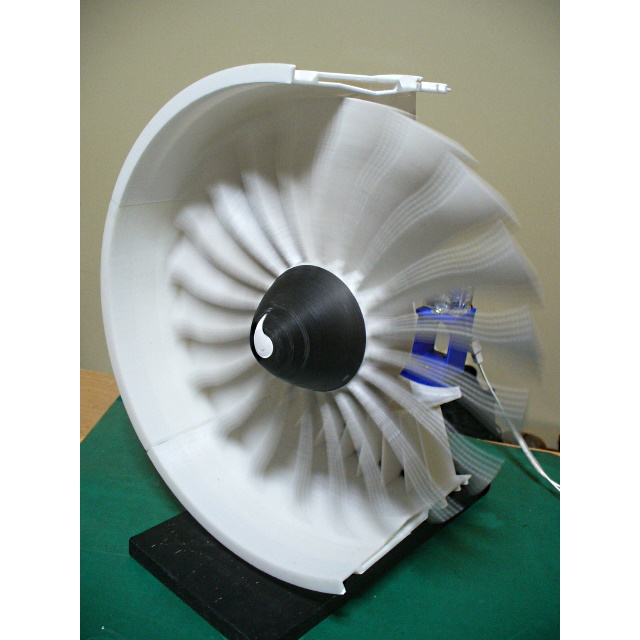

① 10 inches Diameter Fan Rotor, Assembly type

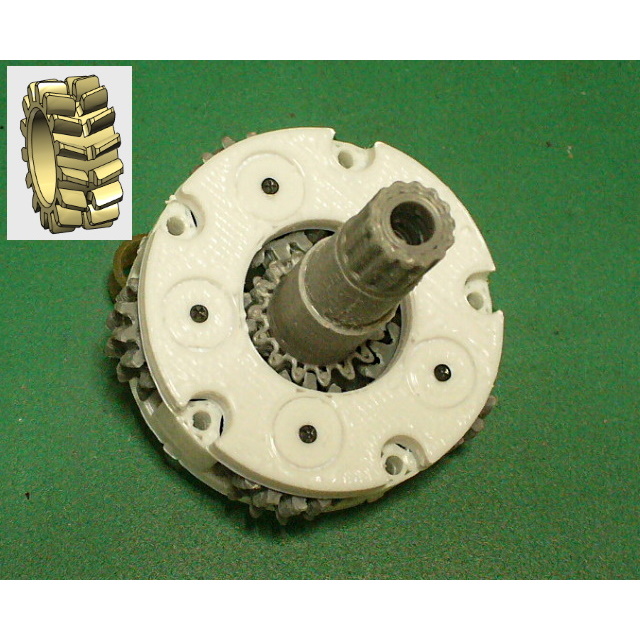

② Double-Helical Type Fan Drive Gearbox (FDG) ( 5 Pinions, 1/3 Ratio)
③ Fully Metal Bearings are used for Rotational Model (turned by 3V Battery)
④ Separated Large Size Parts for 150mm Size Printer

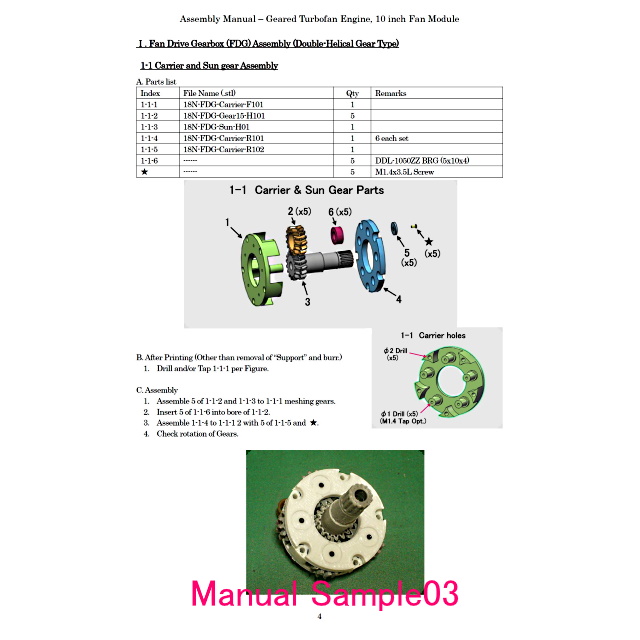

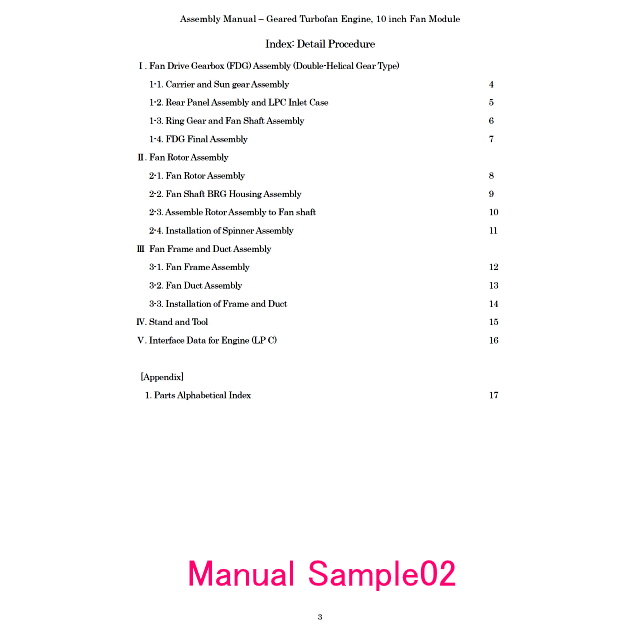

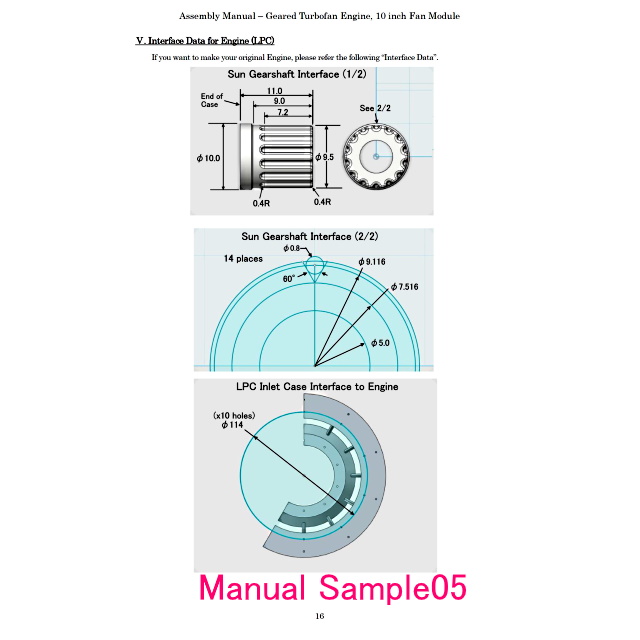

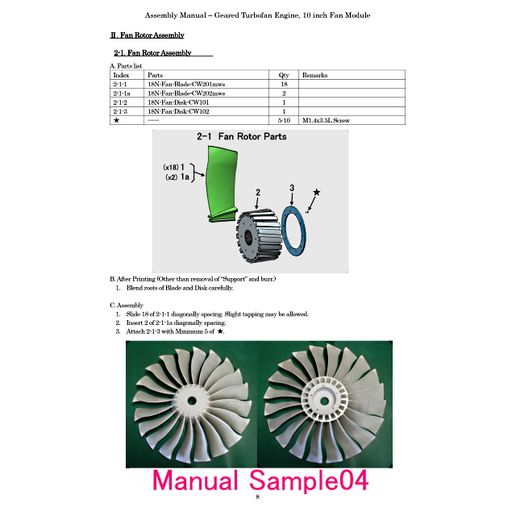

B. Assembly Manual (PDF format, total 16 pages)
The detail assembly manual including "Parts-List", "After printing treatment" and "Assembly procedure" are prepared based on "Standard Skill (Filing, Drilling, Tapping and painting)".

C. Purchase Parts Information;
- Bearings
6804ZZ (20x32x7) (2ea), 6900ZZ (10x22x6) (1ea) and DDL-1050ZZ (5x10x4) (5ea)

-Screws
Micro screws M1.4x3.5L & M1.4x6L - Direct screw-in to 1 mm dia hole (No nut)
But if you have the M1.4 Tap, it will be very useful.
Screws M2 x ** - See Parts List
Size, quantity and length of screws can be adjusted by your experience.

D. STL file
Total STL files are 42 items including the stand and tools.
“ws” of last 2 digits of file name means “With Support” special designed.

E. Total Net Print Time: Approx. 97HR
- (Estimated as case of PLA, 0.4mm Nozzle, 0.3mm Layer Height, 20% infill and No raft and support)
Note: When at actual print, each parameter may be adjusted by your experience.

F. Printing settings
Raft, Support, Layer Height, Infill: Depending on your experience.
My models were printed by "idbox" using with 0.4 nozzle, 1.75 PLA.

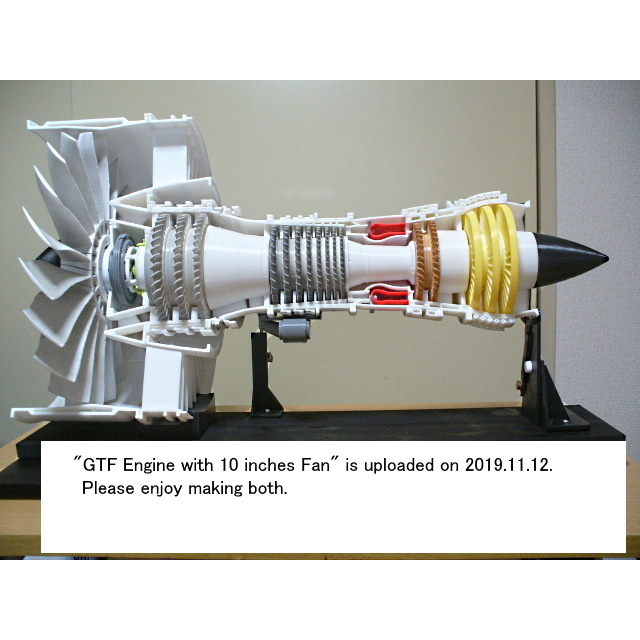

[Update]
For GTF Engine please refer to;
https://cults3d.com/en/3d-model/tool/geared-turbofan-engine-gtf-10-inch-fan

I do hope your success!!
