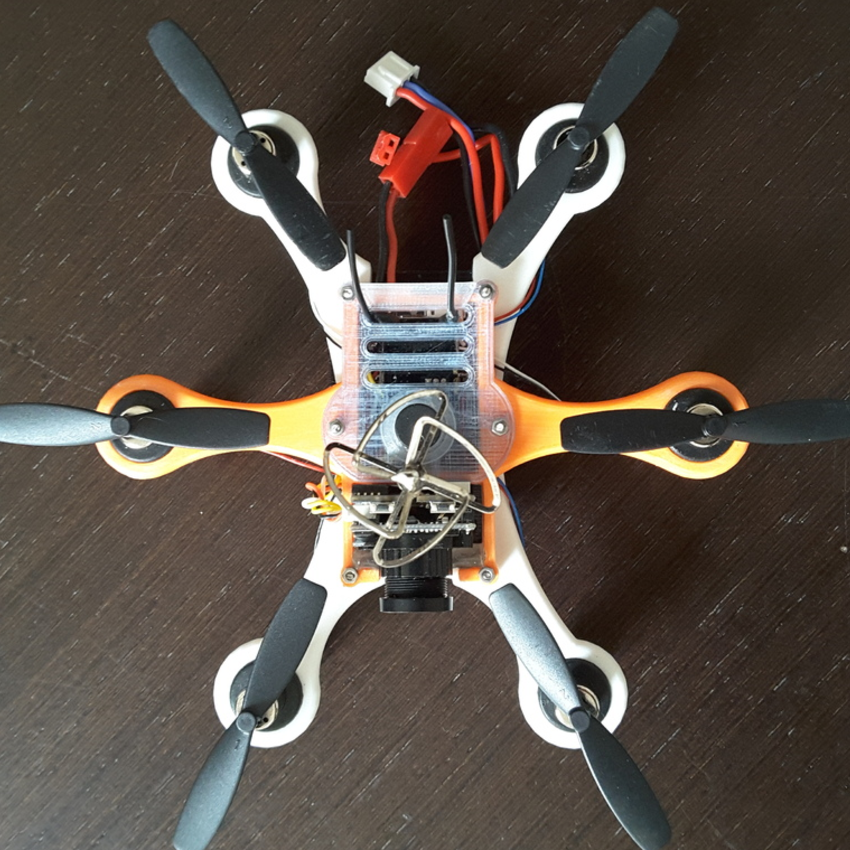

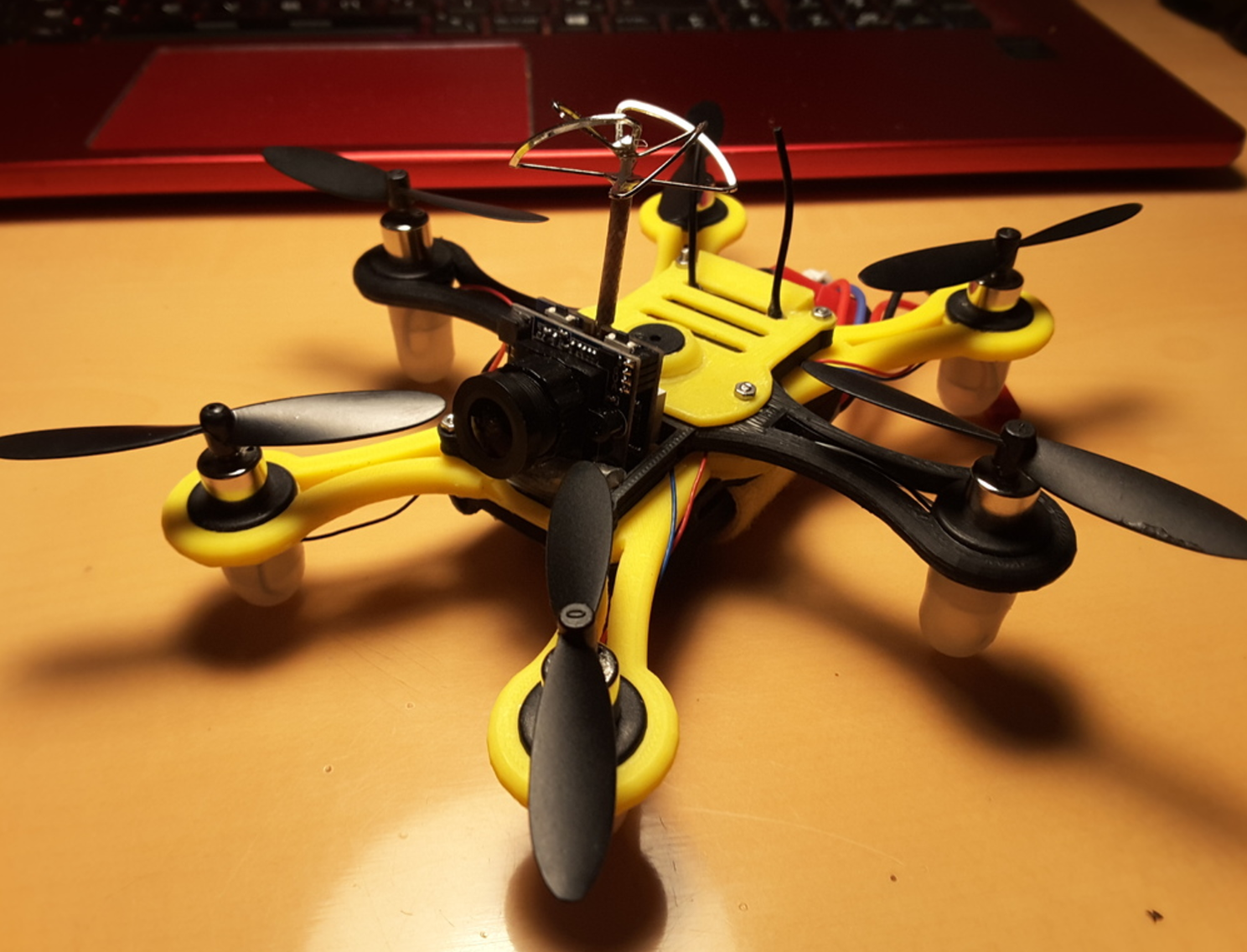

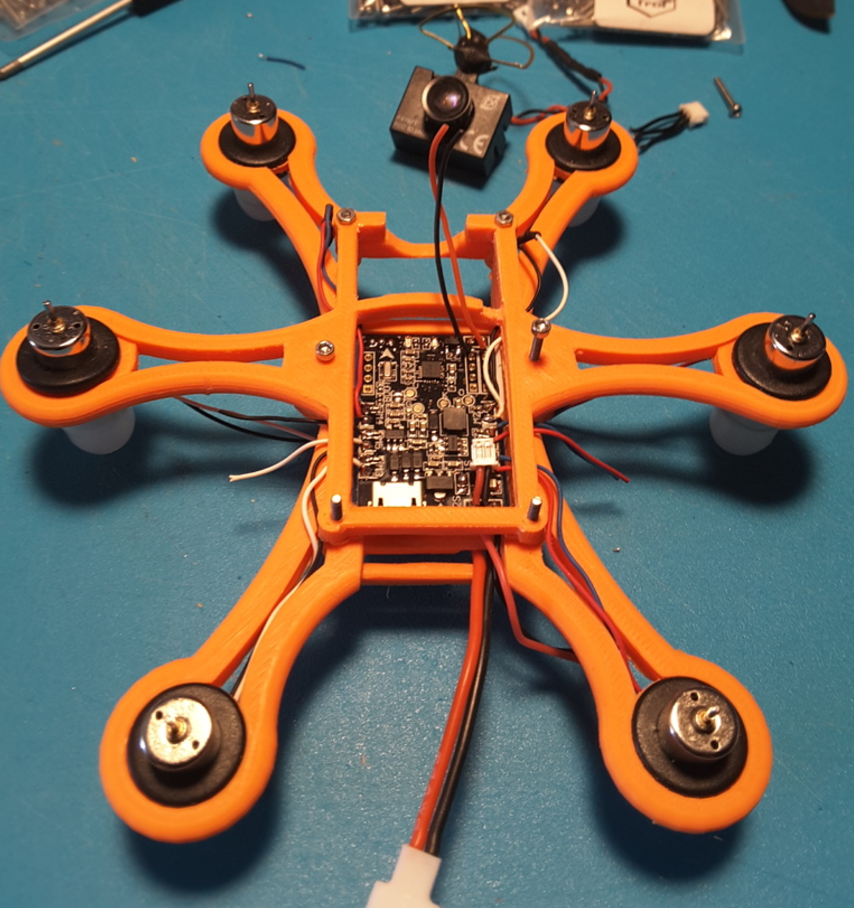

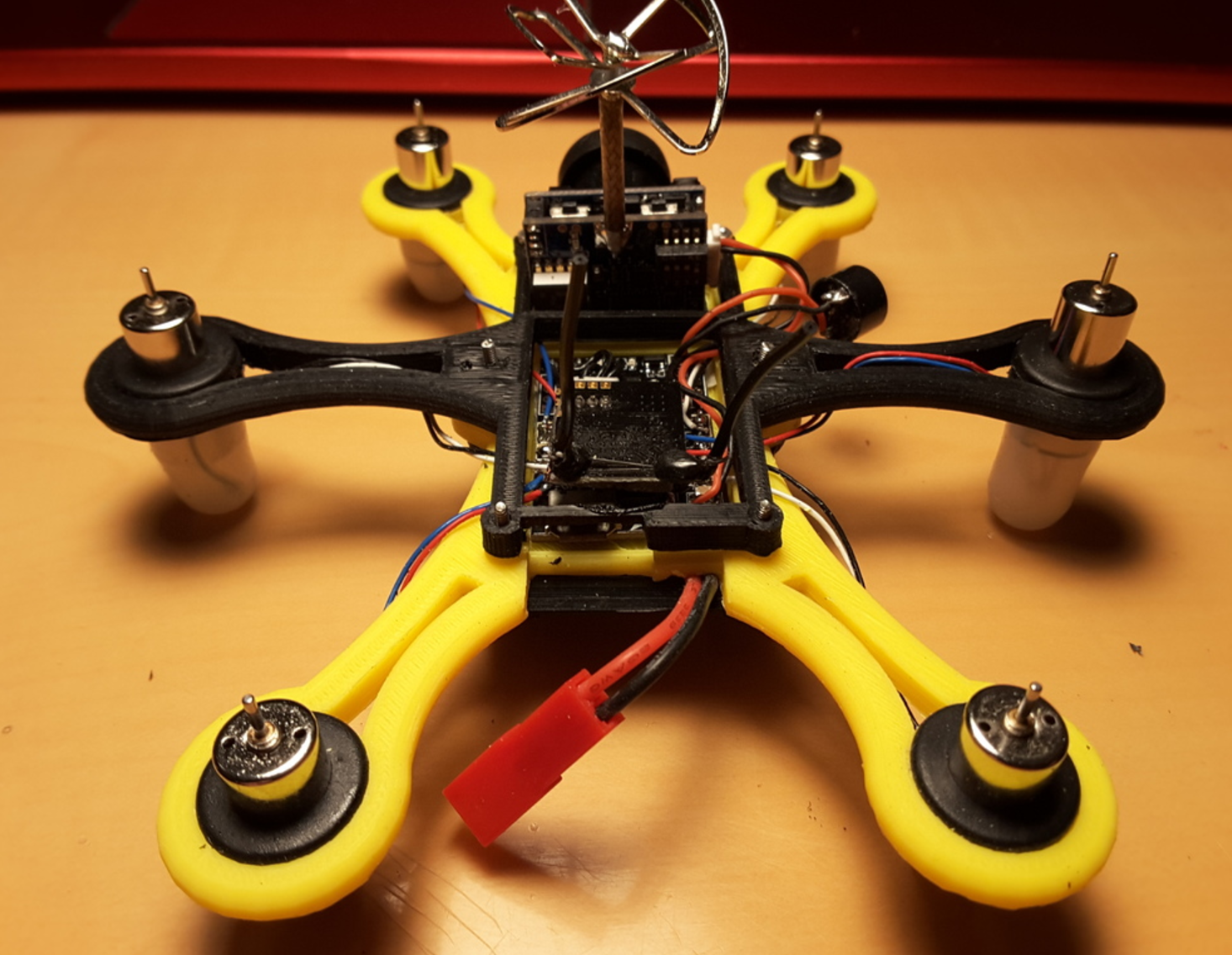

Hexacopter 1S / 2S 125 / 110mm spracing f3 coreless 8.5x20mm
:still():format(webp)/https://files.cults3d.com/uploaders/13058158/illustration-file/822ee301-d78e-46b1-b4c5-b9d4311e89a1/Capture%20d%E2%80%99e%CC%81cran%202017-02-20%20a%CC%80%2011.16.19.png)
?
Creation quality:
5.0/5
(1 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 6.6k views
- 16 likes
- 271 downloads
- <span class="text--light">0</span> comments
- <span class="text--light">0</span> makes
Designer
3D model description
2016/10/16
New: 2S Light version available for printing polycarbonate (light 2S version part1 and part2).
This is two new versions are only compatible with previous version of 2S.
2016/10/06
New: 2S version with adaptation to a lipo bold 500mha
Caution parts of 2S model are not compatible with the previous version.
New coreless 2S:
http://www.banggood.com/Chaoli-CL-820-8_5x20mm-2S-Coreless-Motor-for-90mm-150mm-DIY-Micro-FPV-RC-Quadcopter-Frame-p-1084265.html?p=LD020411878172015024
New camera 900TVL:
http://www.banggood.com/Eachine-MC02-AIO-5_8G-40CH-900TVL-25MW-to-200MW-Switchable-VTX-13-Cmos-FPV-Camera-p-1075701.html?p=LD020411878172015024
Frame hexa ABS : DCH125/110mm
Motors protection :
http://www.banggood.com/fr/20-PCS-3MM-5MM-6MM-8MM-10MM-Short-Circuit-Protection-Insulated-Rubber-Ring-for-FPV-Racer-p-1075031.html?p=LD020411878172015024
Lipo:1S 500/750 mha nanotech / 750mha graphènes
9mm diameter buzzer
http://www.banggood.com/5V-Buzzer-Alarm-Beeper-With-Cable-for-Eachine-QX70-QX90-QX95-NAZE32-F3-DIY-Micro-Brushed-FPV-Racer-p-1100338.html?p=LD020411878172015024
screws: M1.6 screws and nuts
I drew this hexadcopter FPV that is complete and at a price accessible to all for less than $ 75.
My wish is to fight against some sellers of goods boxes rc, specialist planned obsolescence.
planned obsolescence in which already discouraged many young beginners in the RC.
I wish you lots of fun with this hexadcopter is infinitely repairable
Mic.
https://www.facebook.com/Microdure/
Video: https://www.youtube.com/watch?v=hIGqBvBNkz0
https://www.youtube.com/watch?v=7sZic1SJOCc
3D printing settings
Printer Brand:
Ultimaker
Printer:
Ultimaker Original
Resolution:
0.06
Infill:
ABS
3D printer file information
-
3D design format: STL Folder details Close
- Hexa_125_2S__light_Polycarbonate_part2_recepteur_.stl
- Hexa_125_2S_compartiment__recepteur_et_buzzer_renforcer.stl
- Hexa_125_2s_compartiment_fc_renforcer.stl
- Hexa_125_2s_couvercle__recepteur_et_buzzer.stl
- Hexa_125__2S_fixation_lipo_50mha__30mmx50mm.stl
- Hexa_125__2s__Light_Polycarbonate__part1_fc.stl
- Hexa_compartiment__recepteur_et_buzzer.stl
- Hexa_couvercle__recepteur_et_buzzer.stl
- Hexa_fixation_lipo.stl
- Hexa_pour_compartiment_fc.stl
- fixation_cam_Hexa.stl
- Last update: 2017-03-13 at 13:49
- Publication date: 2017-02-20 at 10:36
License
CC BY-NC-SA - Attribution - Non commercial - Share alike
