Big Whoop 170mm 4S polycarbonate
:still():format(webp)/https://files.cults3d.com/uploaders/13058158/illustration-file/d6949c86-c0b7-4bcd-8d0b-022f0d22cd21/Capture%20d%E2%80%99e%CC%81cran%202017-02-20%20a%CC%80%2012.04.48.png)
?
Creation quality:
5.0/5
(1 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 8k views
- 17 likes
- 320 downloads
- <span class="text--light">0</span> comments
- 1 make
Designer
3D model description
Here is one of my latest Ultimaker Polycarbonate prototype.

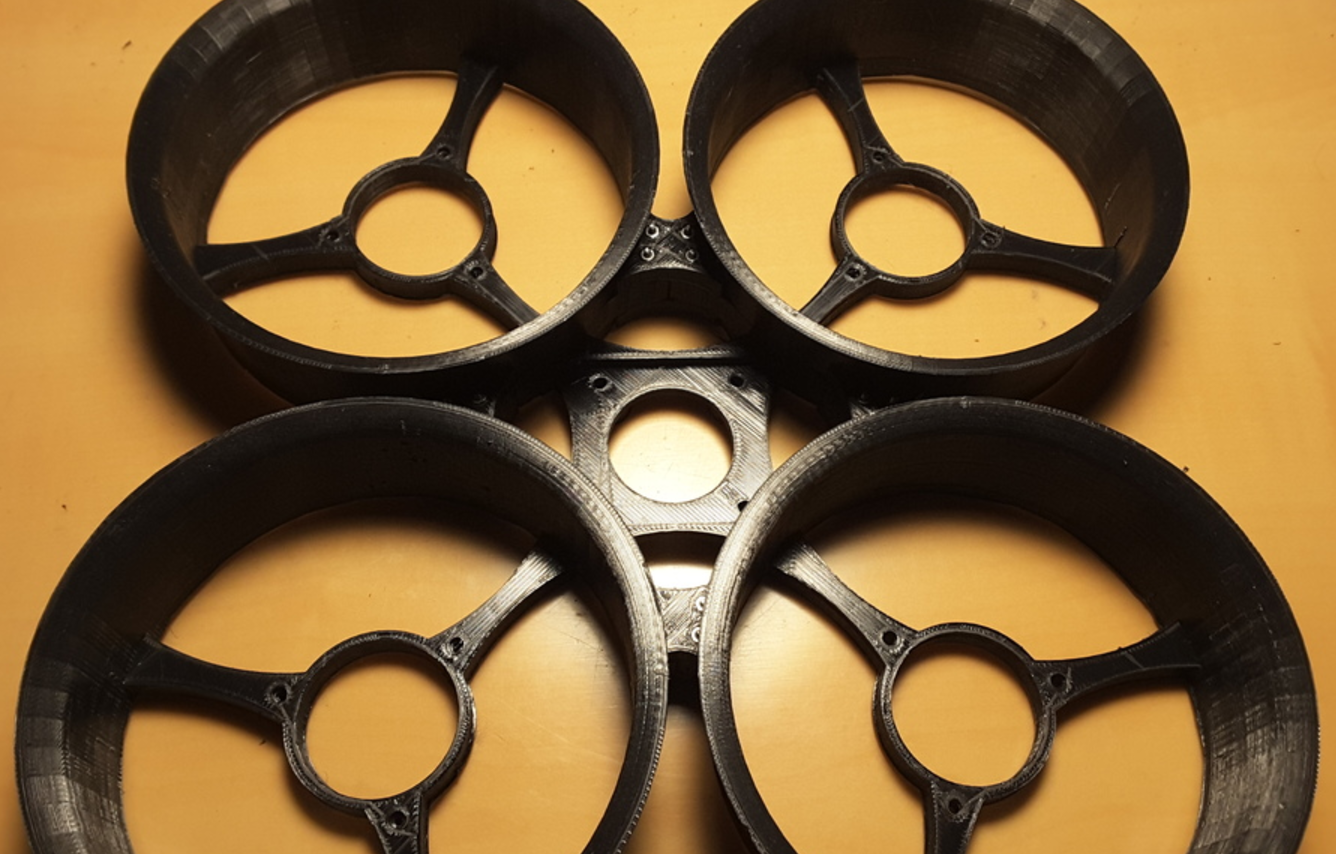

Built with rest of material "drawer bottom"

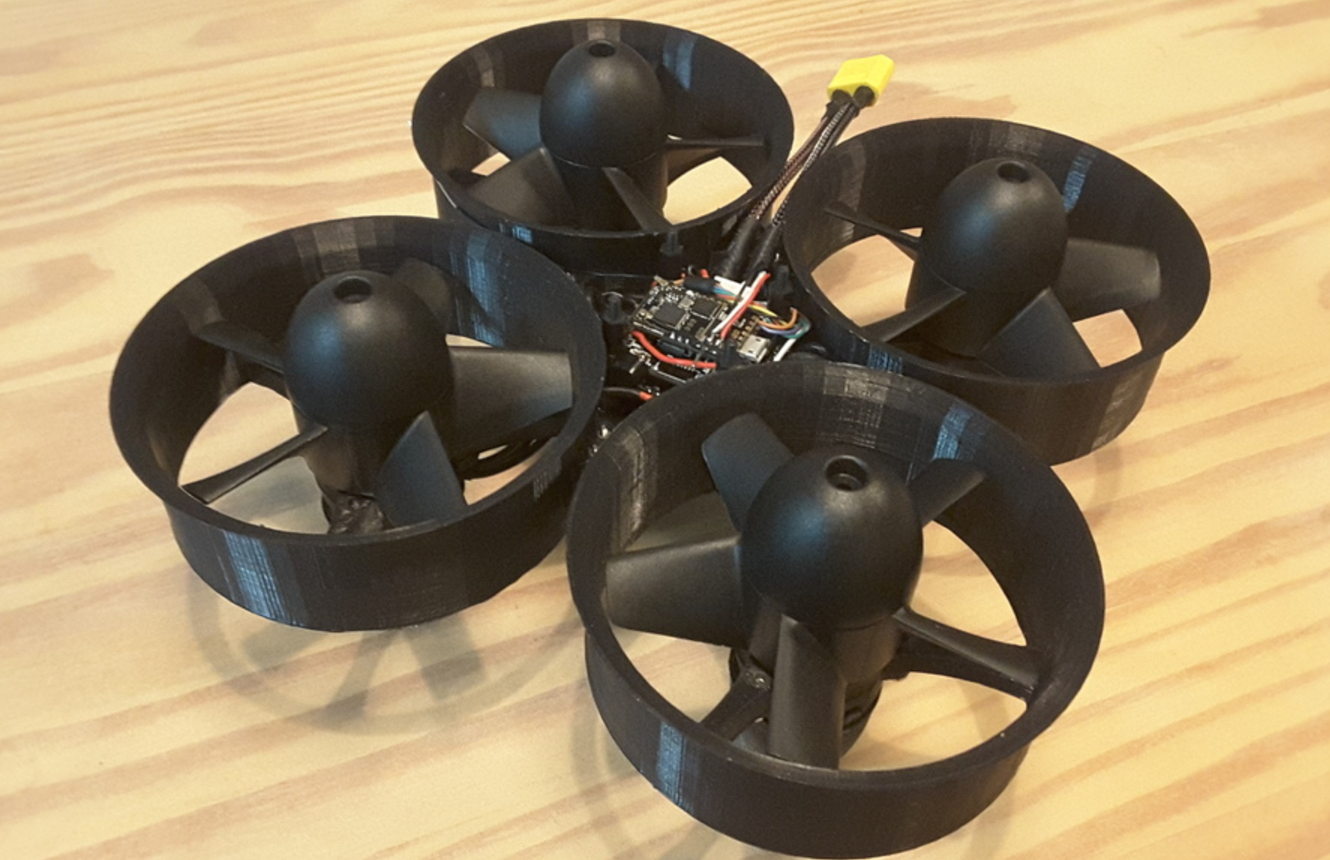

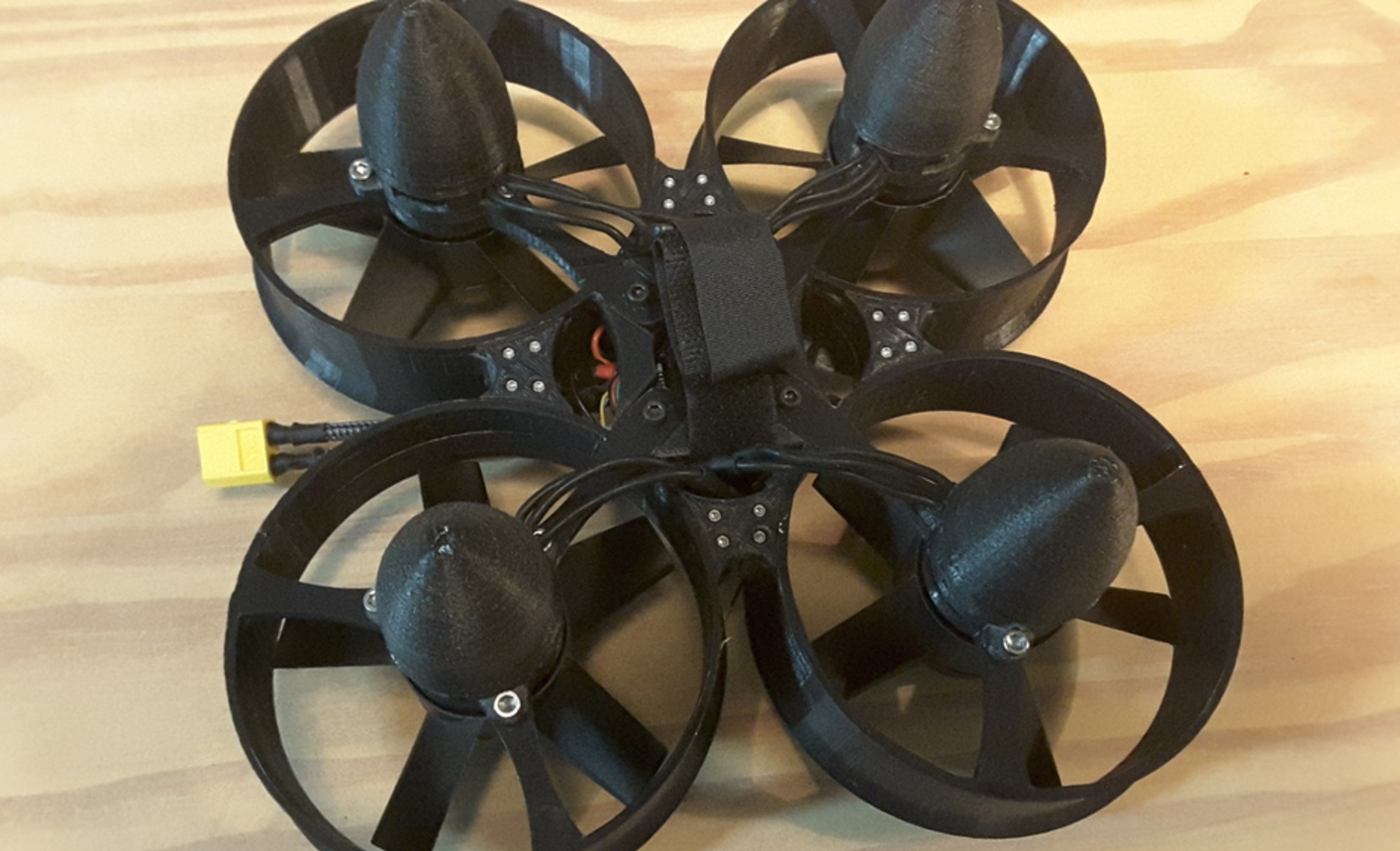

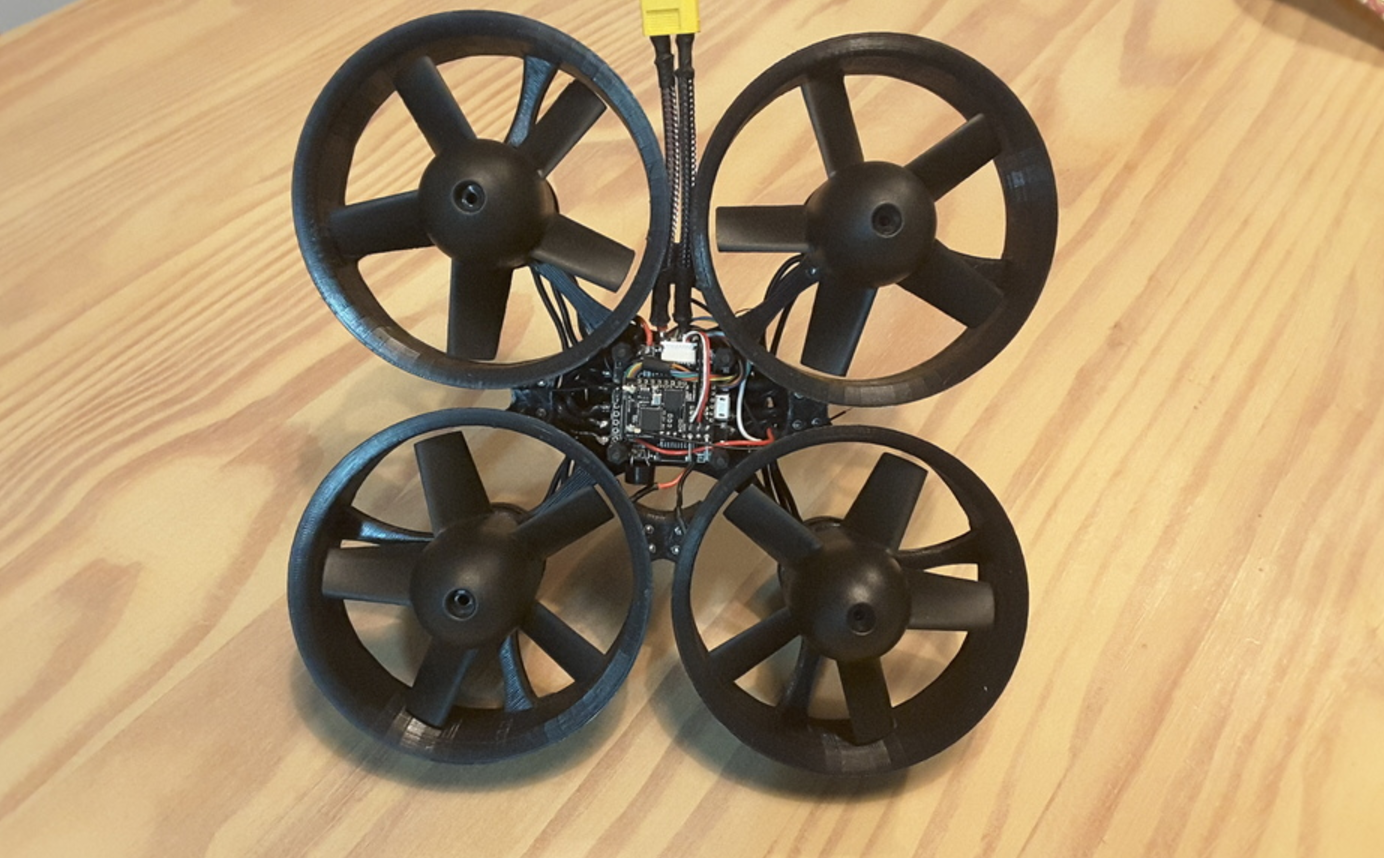

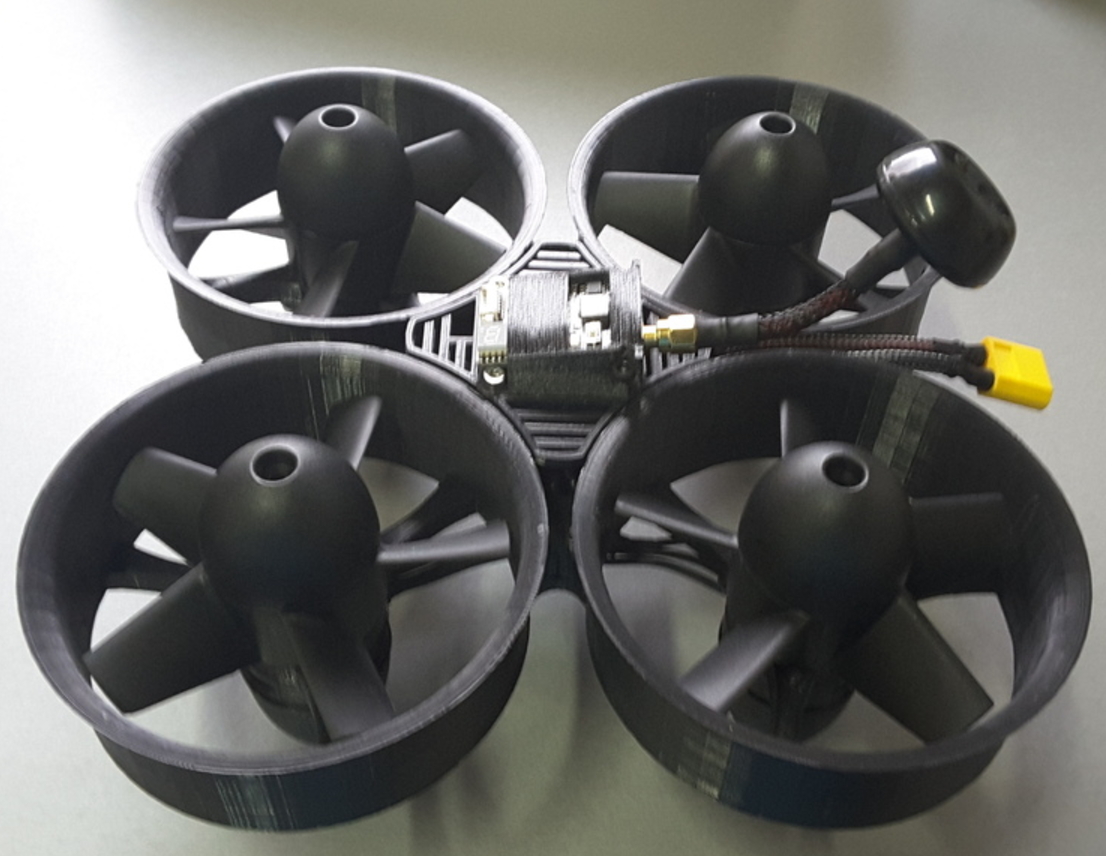

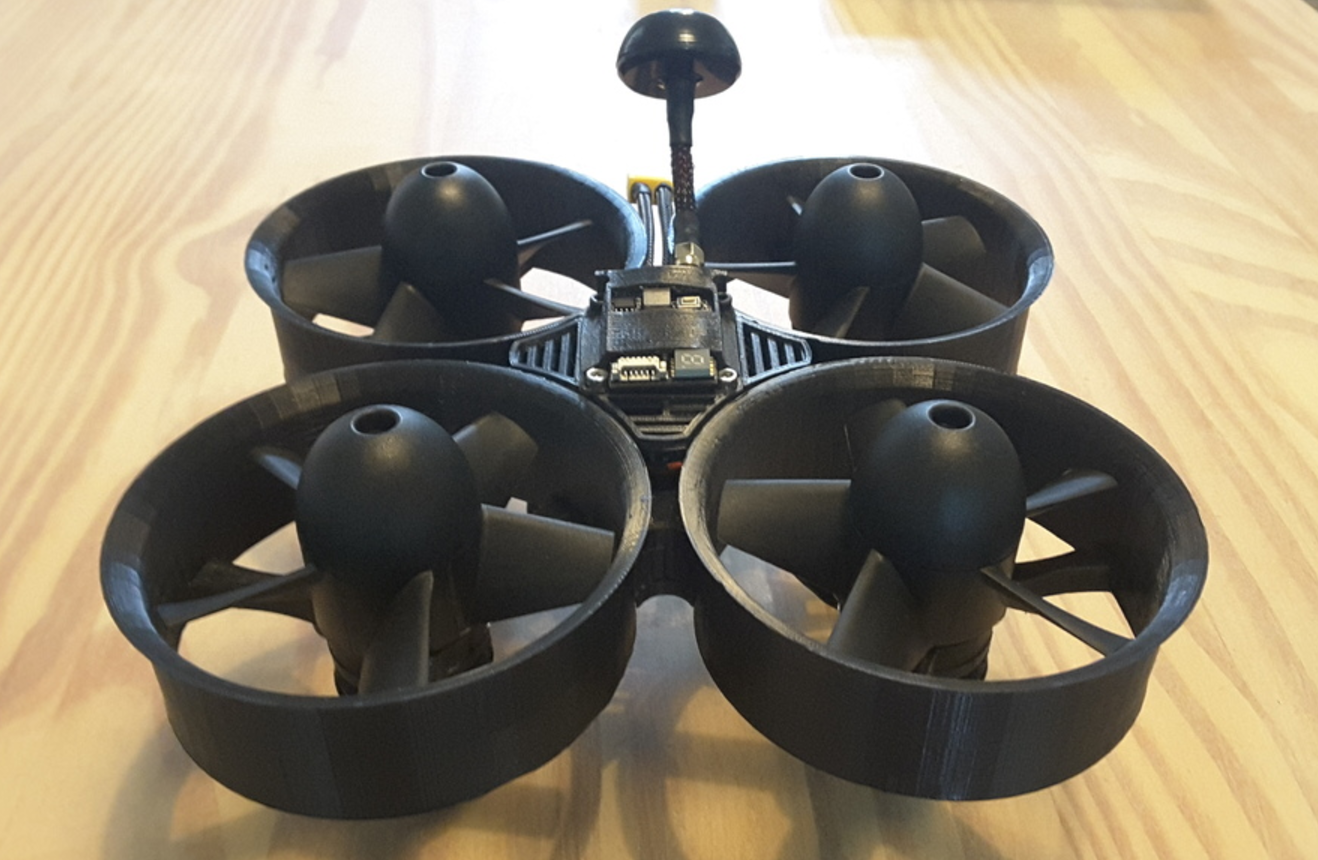

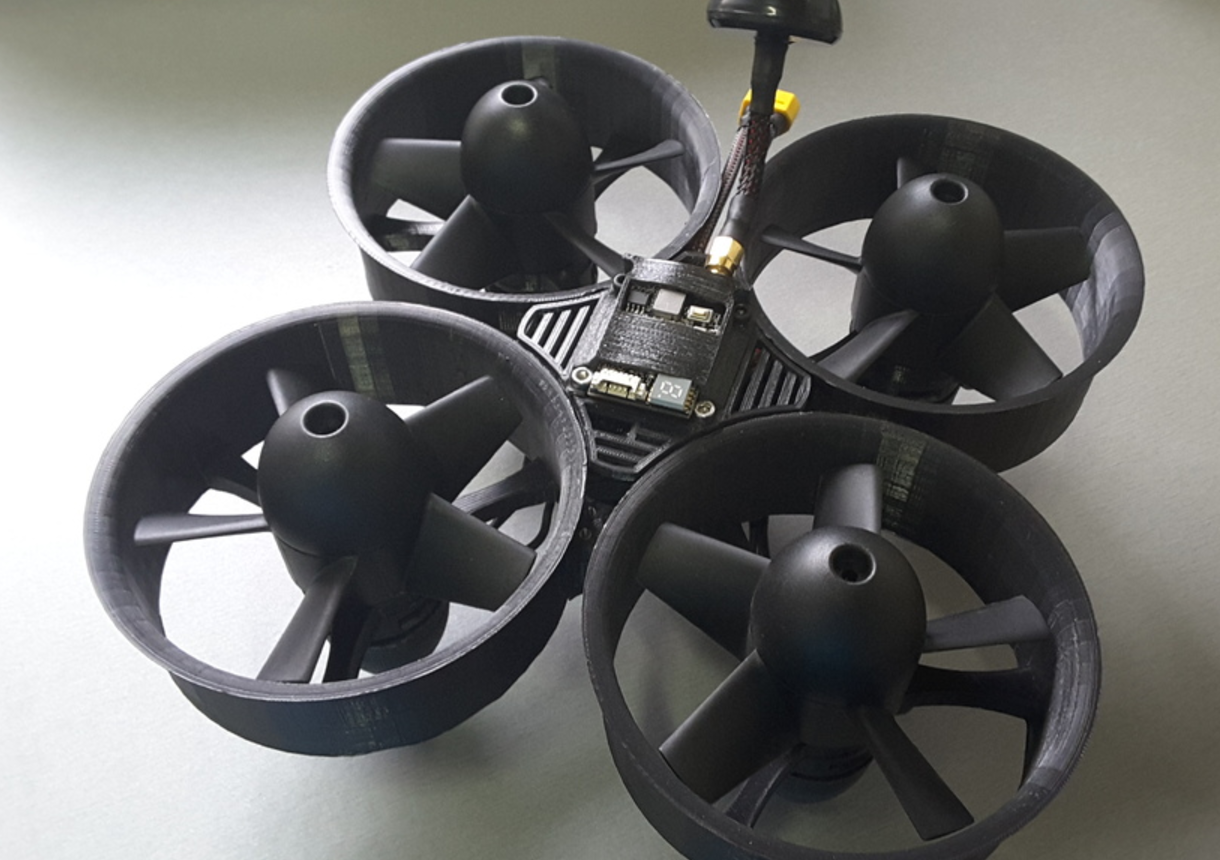

A 160mm Quadcopter equipped with 79mm CW & CCW turbines:
http://www.banggood.com/68mm-CW-89mm-5-Blades-CWCCW-Propeller-For-EDF-Unit-p-1095039.html?rmmds=myorder?p=LD020411878172015024

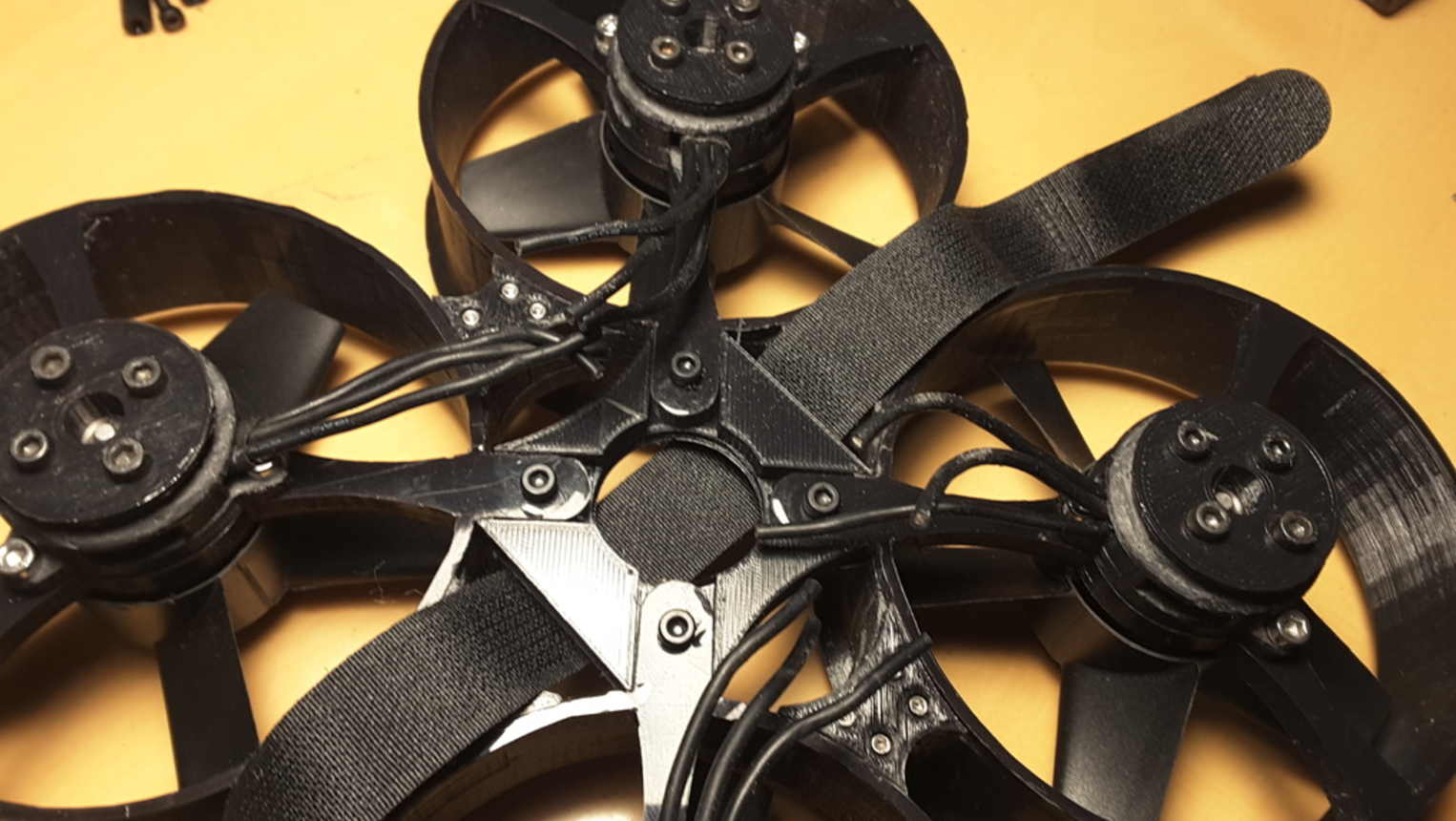

Brushlees 2212 4S 1400KV:
http://www.encorerc.com/outlaw-power-1/

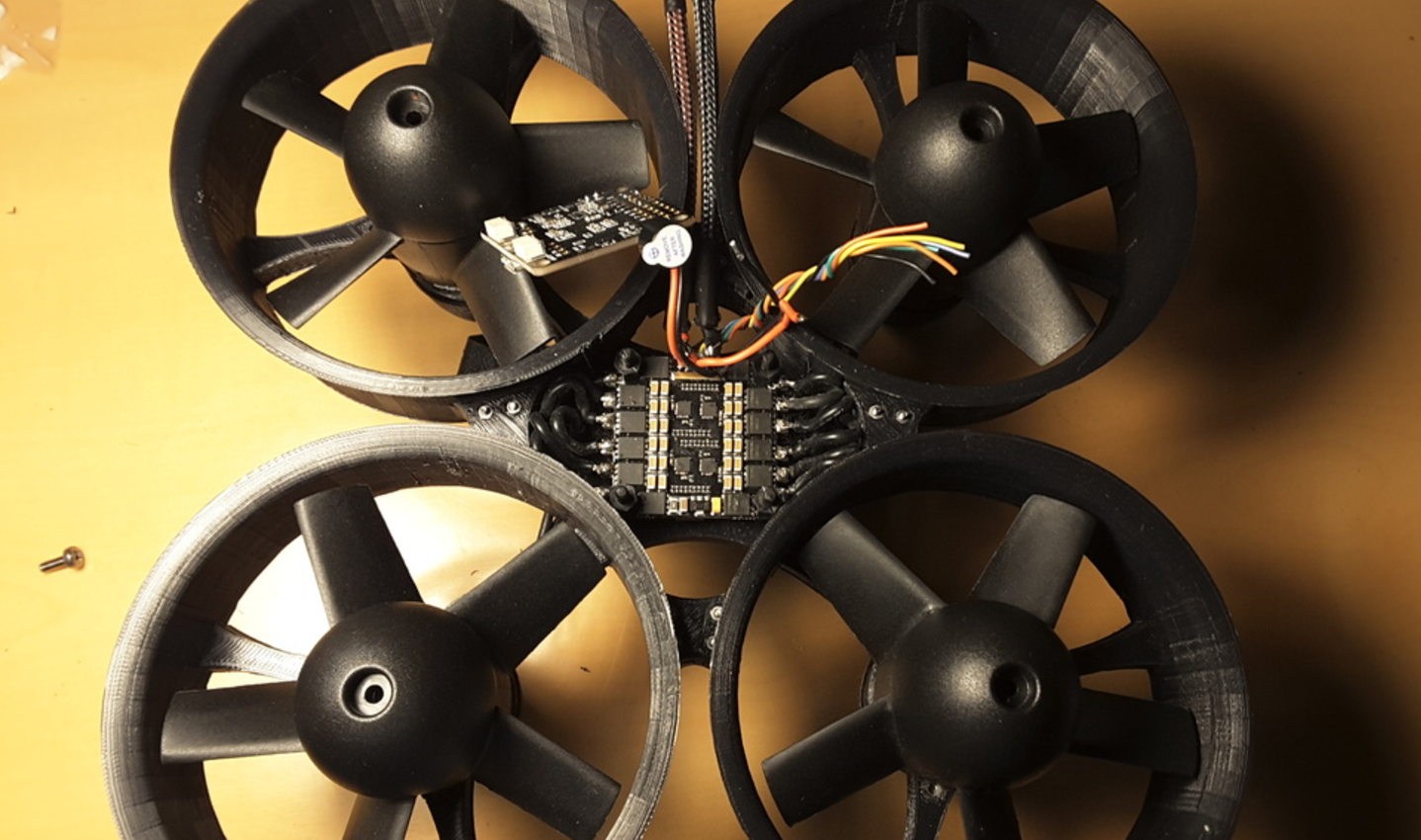

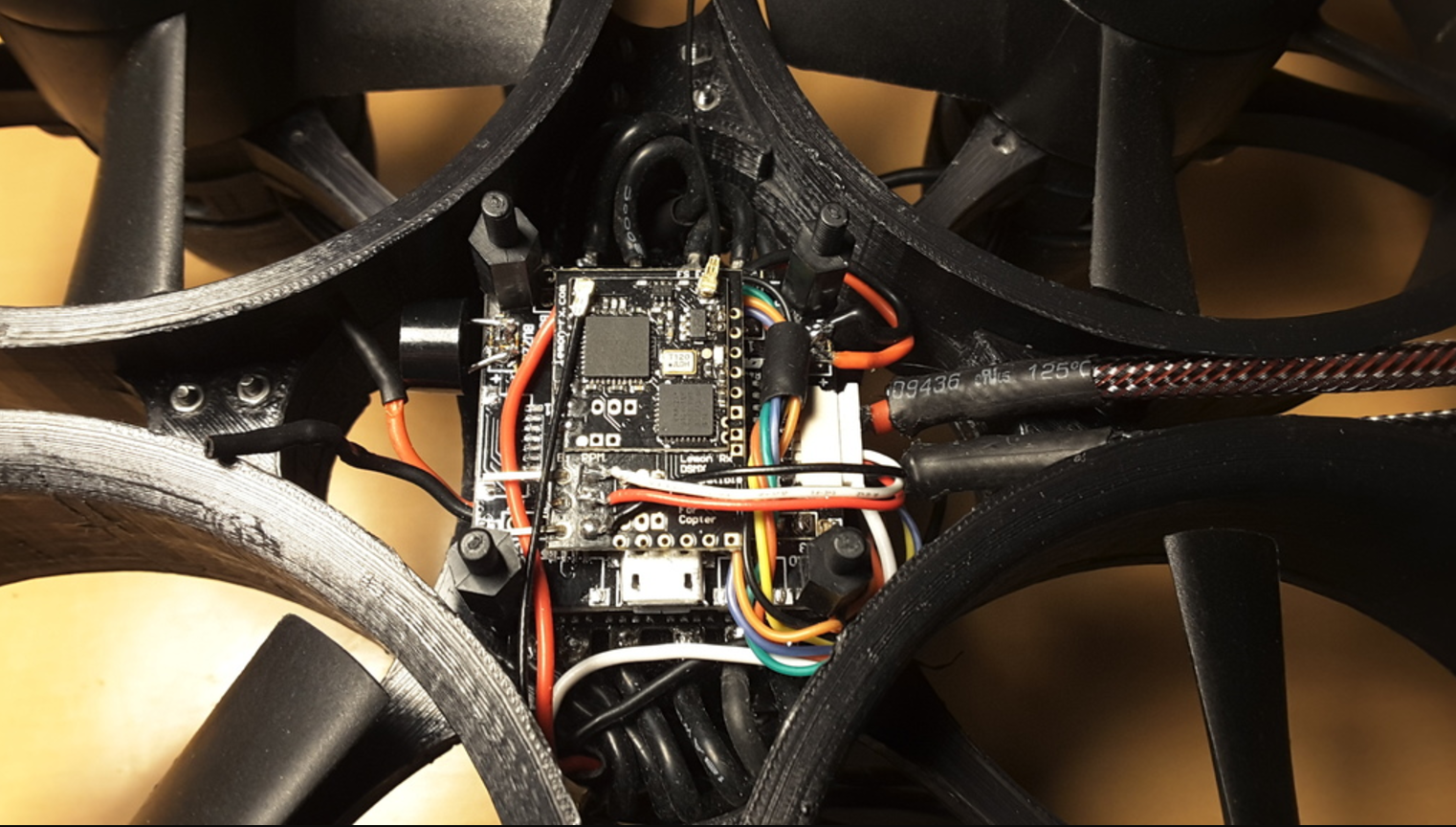

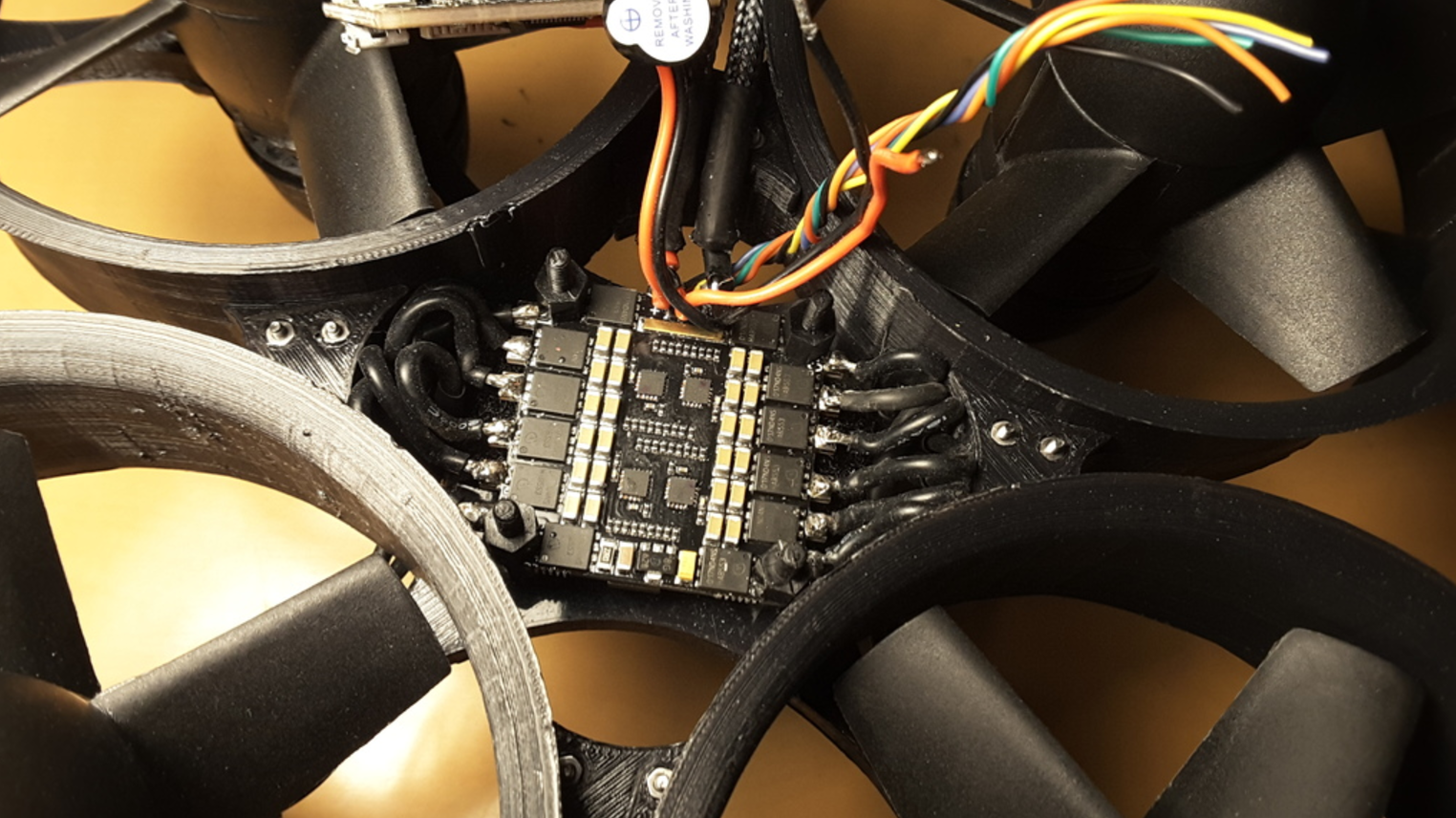

Flight Controller:
http://www.banggood.com/Upgrade-NAZE32-F3-Flight-Controller-Acro-6-DOF-Deluxe-10-DOF-for-Multirotor-Racing-p-1010232.html?rmmds=search?p=LD020411878172015024
Receiver: ppm DSMX Lemon RX
The VTX part and feet are made of Nijaflex
https://www.youtube.com/watch?v=v0UoCCKYygs&feature=youtu.be
3D printing settings
Printer Brand:
Ultimaker
Printer:
Ultimaker Original
Rafts:
No
Supports:
Yes
Resolution:
0.100 mm
Infill:
3mm Polycarbonate ultimaker
Notes:
Polycarbonate:
t ° : 260 ° + capton
t ° p .: 110 °
0.100mm
30mm / s
No brim
no Fan
Ninjaflex semiflex:
t °: 230 °
t ° p .: 70
0.100mm
50mm / s
3D printer file information
-
3D design format: STL Folder details Close
- 010Big_Whoop_Bindings__camera_part2.stl

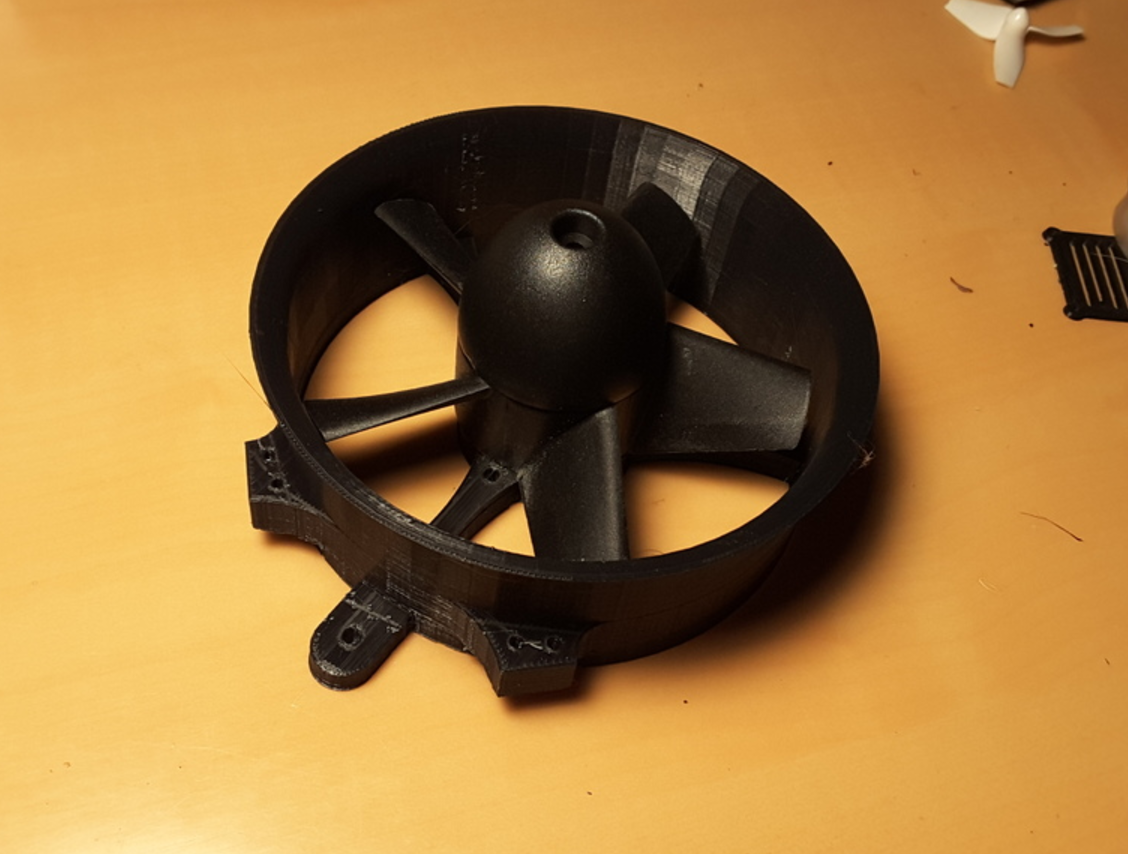

- 01_Big_Whoop_Part._Turbine.stl
- 02_Big_Whoop_Center_plate_lipo_.stl
- 03_Big_Whoop_Connection_bas.stl
- 04_Big_Whoop_Connection_haut.stl
- 05_Big_Whoop_Bindings__Brushless.stl
- 06_Big_Whoop_feet_.stl
- 07_Big_Whoop_Top_Plate_VTX_part1.stl
- 08_Big_Whoop_Top_Plate_VTX_Part2.stl
- 09_Big_Whoop__Bindings__camera_part1.stl
- Last update: 2017-03-13 at 13:25
- Publication date: 2017-02-20 at 11:15
License
CC BY-NC-SA - Attribution - Non commercial - Share alike
Tags
- betaflight
- big_whoop
- brushless_motor_mount
- cleanflight
- drone
- flyduino
- fpv
- camera
- fpv_racer
- motor
- mutirotor
- naze32
- nijaflex
- ninja
- semiflex
- polycarbonate
- quadcopter
- sp
- racing
- evo
- spracing
- f3
- spracingf3
- tiny
- whoop
- ultimaker
- vtx
- vtx_mount
