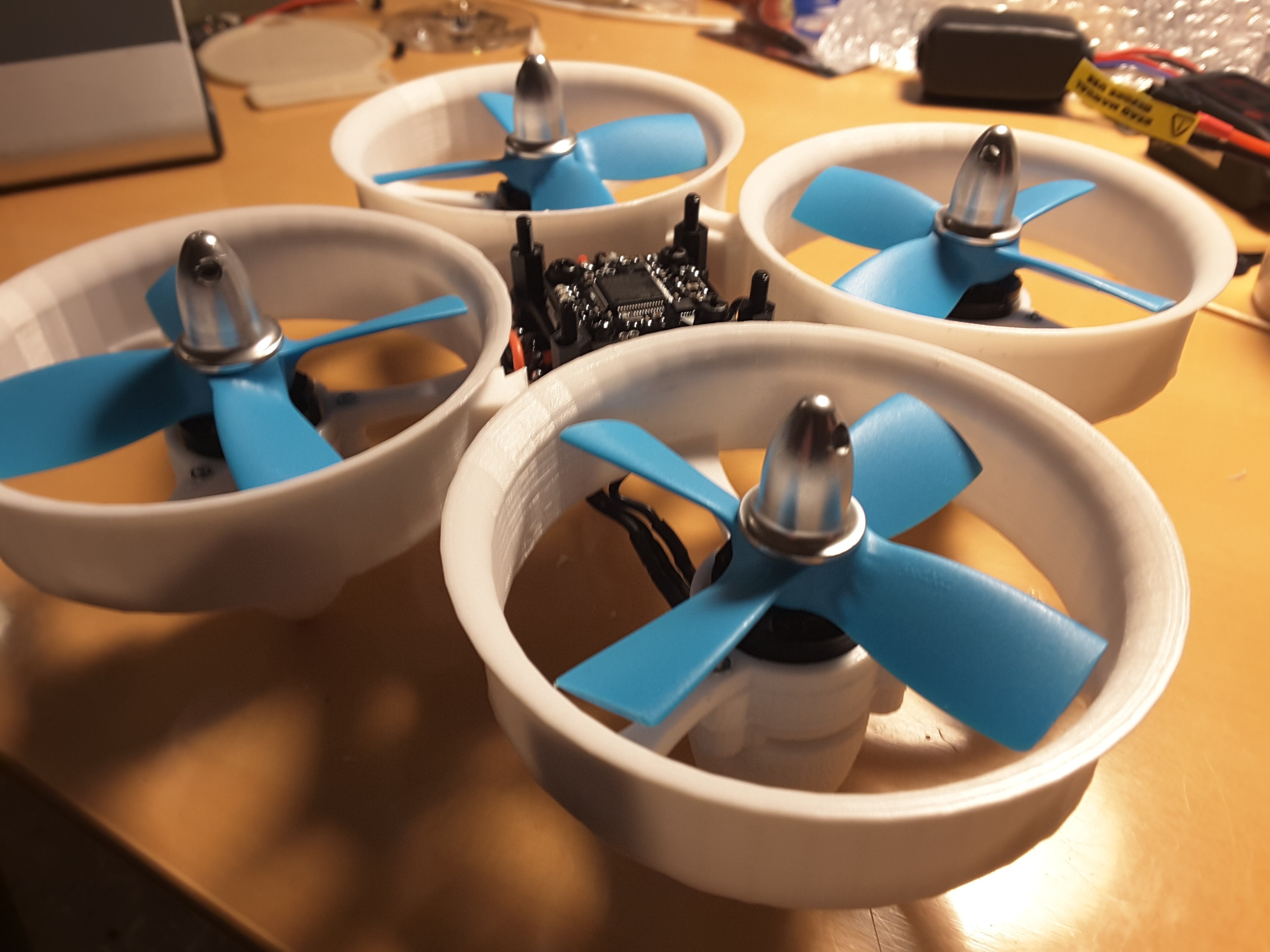

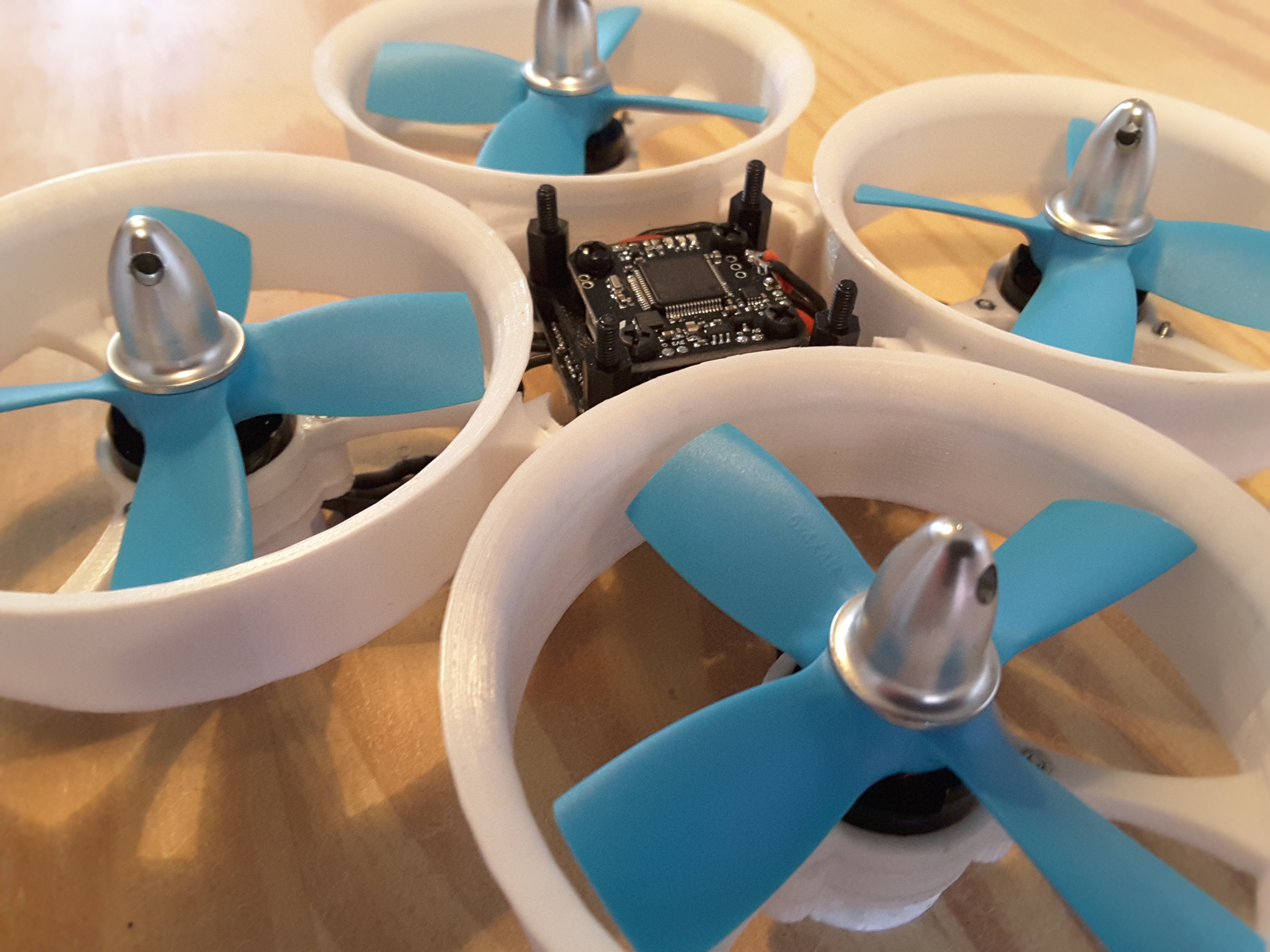

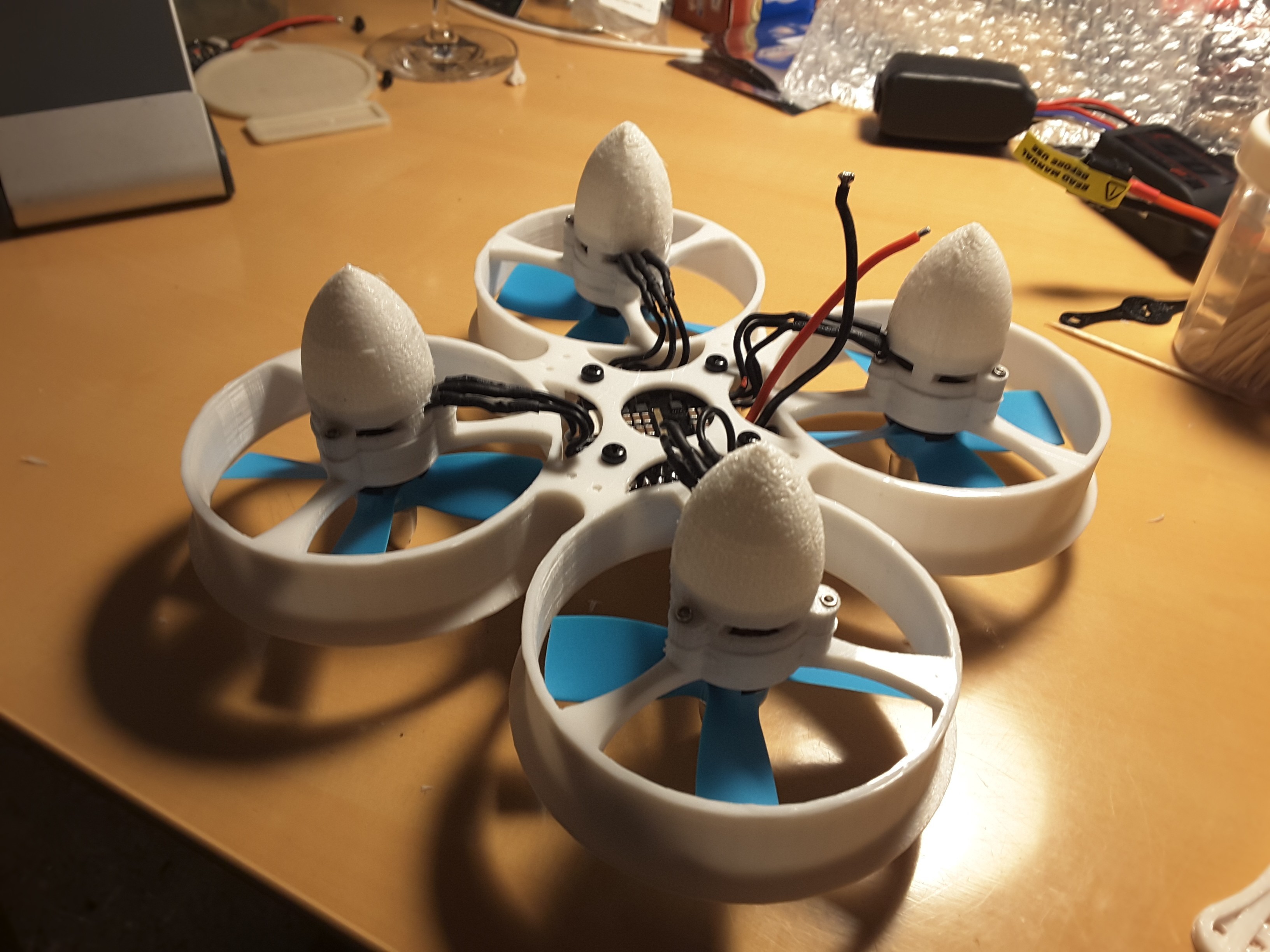

Here is a whoop cross 130 mm (axis to axis) in Polycarbonate and TPU Ultimaker.

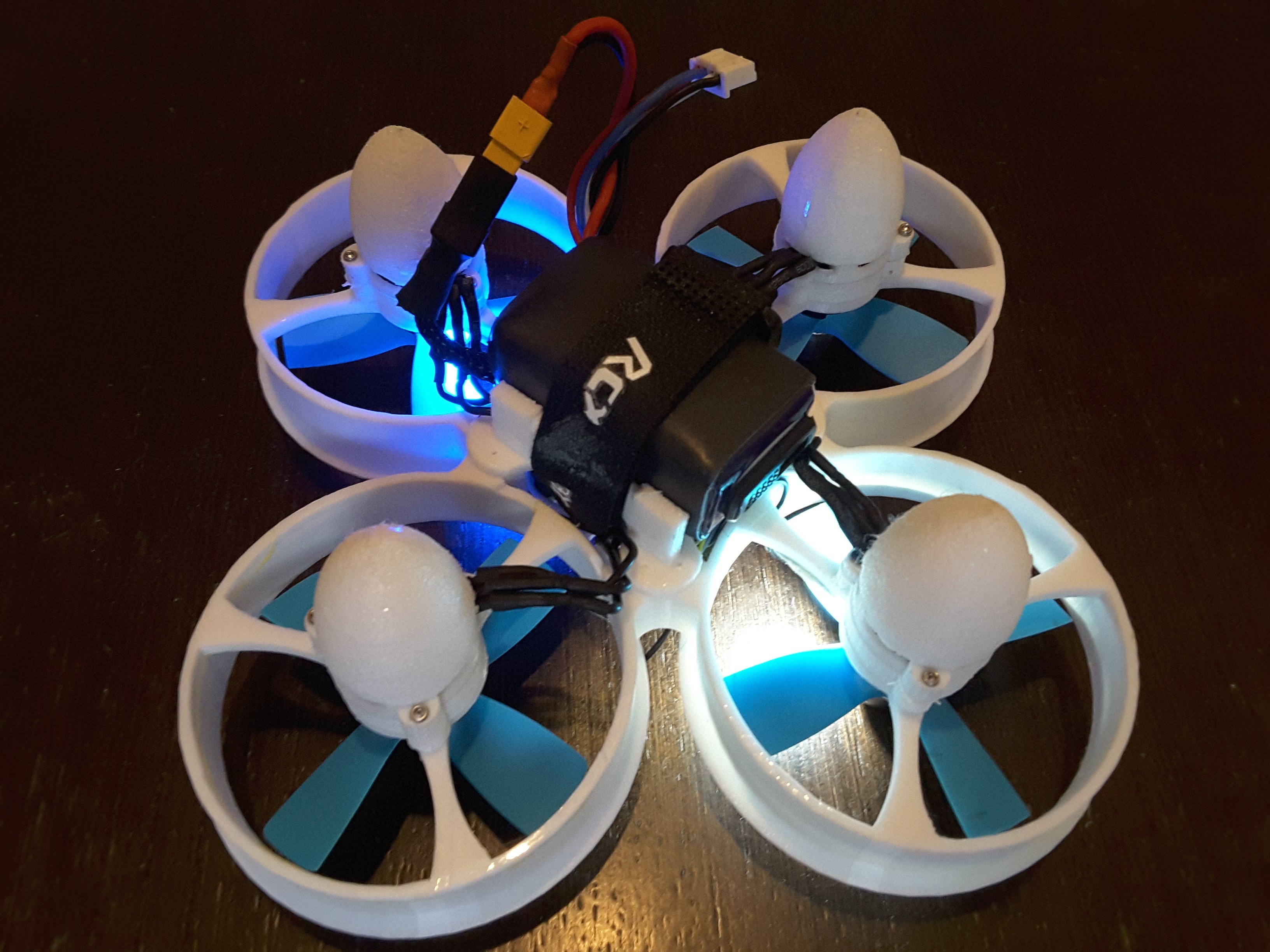

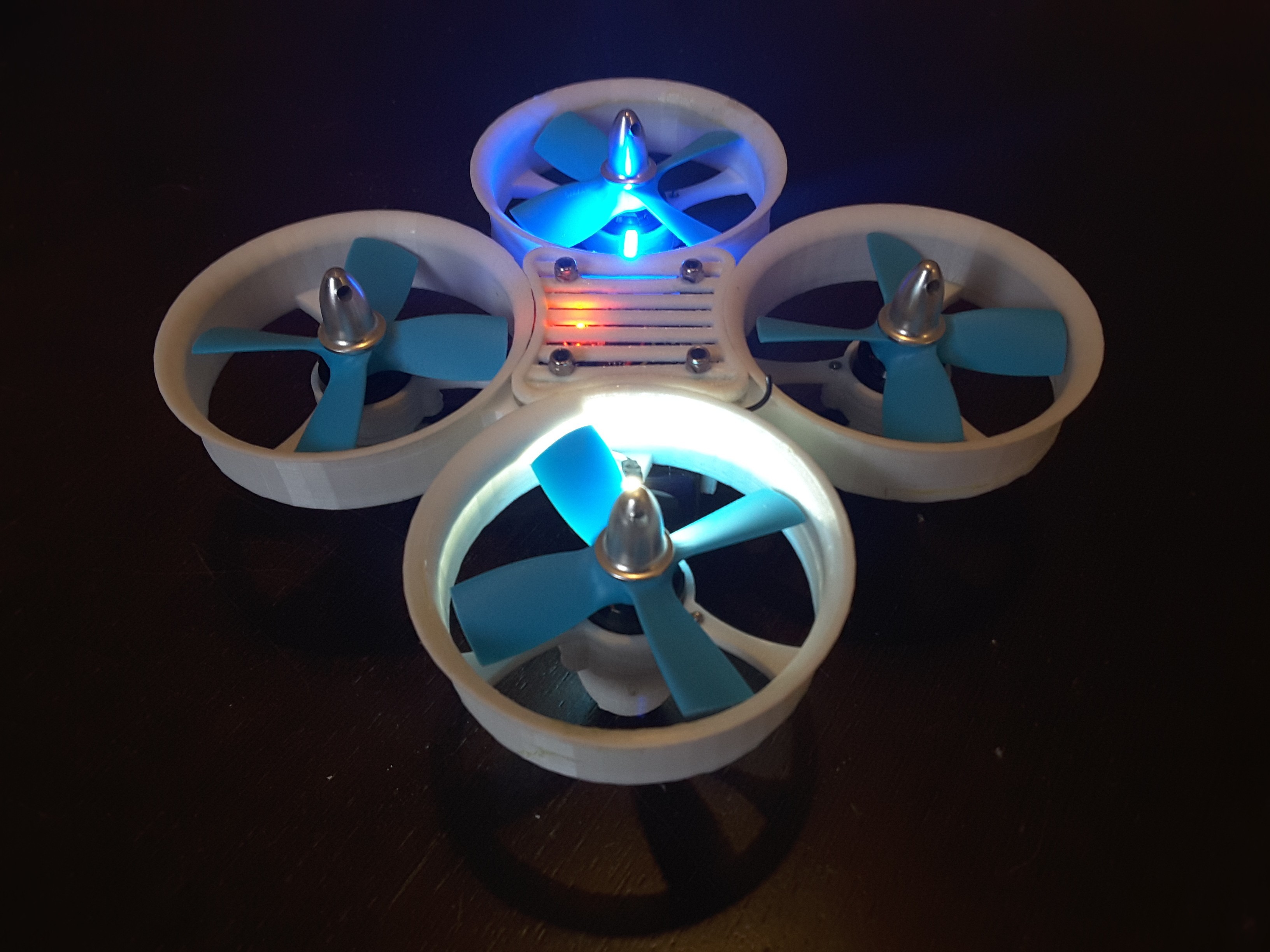

It was developed to be highly visible at night.
It is equipped with :
micro f4 20x20mm
Motors brushless 1707 - 3900kv

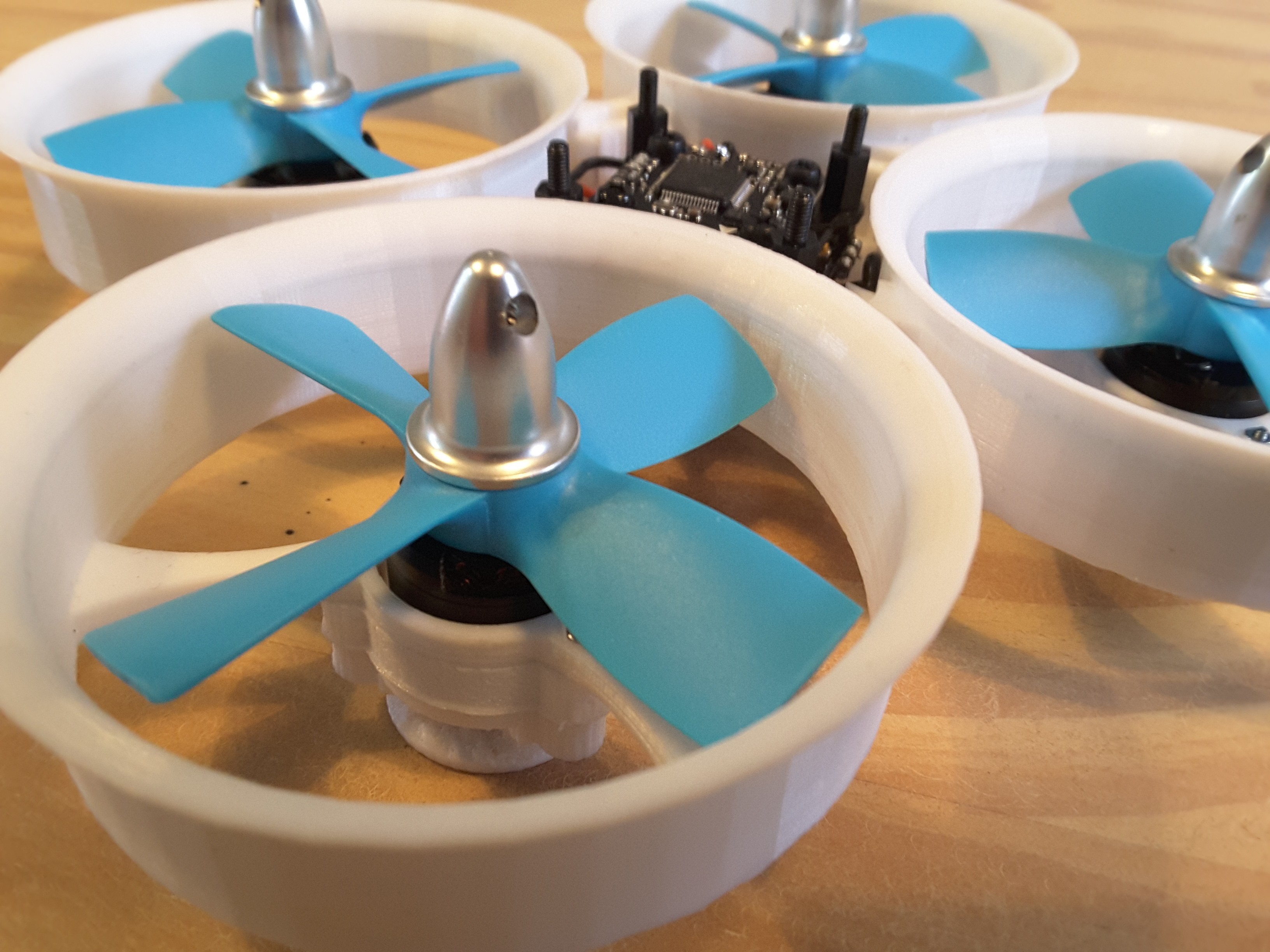

Propellers Lumenier 5040x4 cut to 70mm.
Quad ESC 4 X 20A Racerstar
It runs on 3S 850 mha or 4S 1000 mha
Mini controleur F4 betaflight :
http://www.banggood.com/fr/Mini-ACRO-F4-Betaflight-Flight-Controller-Buil-in-PDB-5V1A-BEC-with-Micro-Buzzer-p-1110441.html?rmmds=search?p=LD020411878172015024
ESC 4X 20AMP Bheli S V2:
http://www.banggood.com/fr/Racerstar-RS20Ax4-V2-20A-BB2-48MHz-Blheli_S-2-4S-Opto-Oneshot42-Multishot-4-in-1-ESC-for-FPV-Racer-p-1080541.html?rmmds=search?p=LD020411878172015024
Brusheless 1707 3900kv:
http://www.myrcmart.com/rcx-h1707-3900kv-micro-outrunner-brushless-motor-p-9434.html

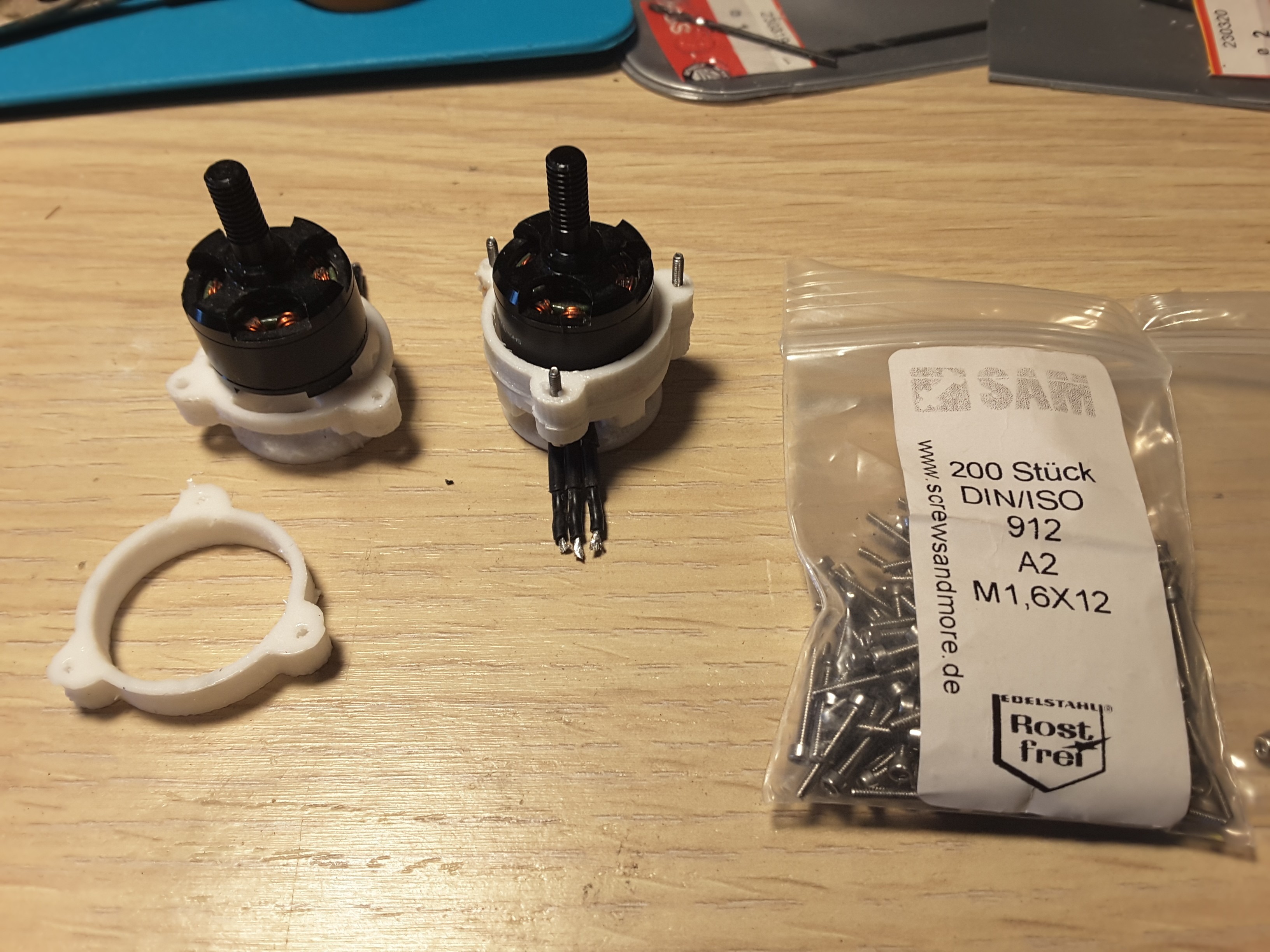

Small supply of screws:

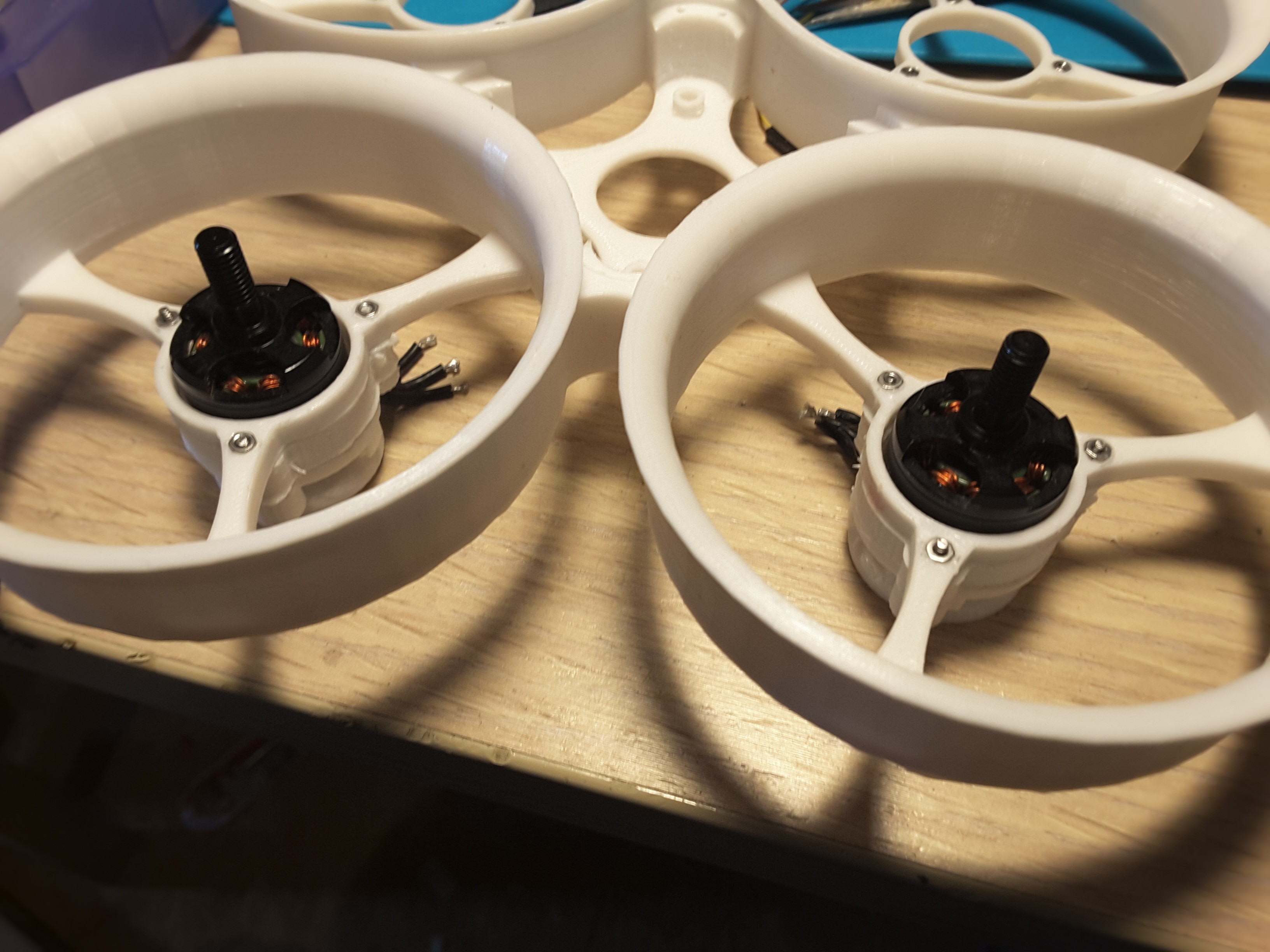

16xM2 12 mm to fix the brushless on the support motors.
12xM1.6 + 12xM16 nut to fix the brushless supports to the chassis
3D printing settings

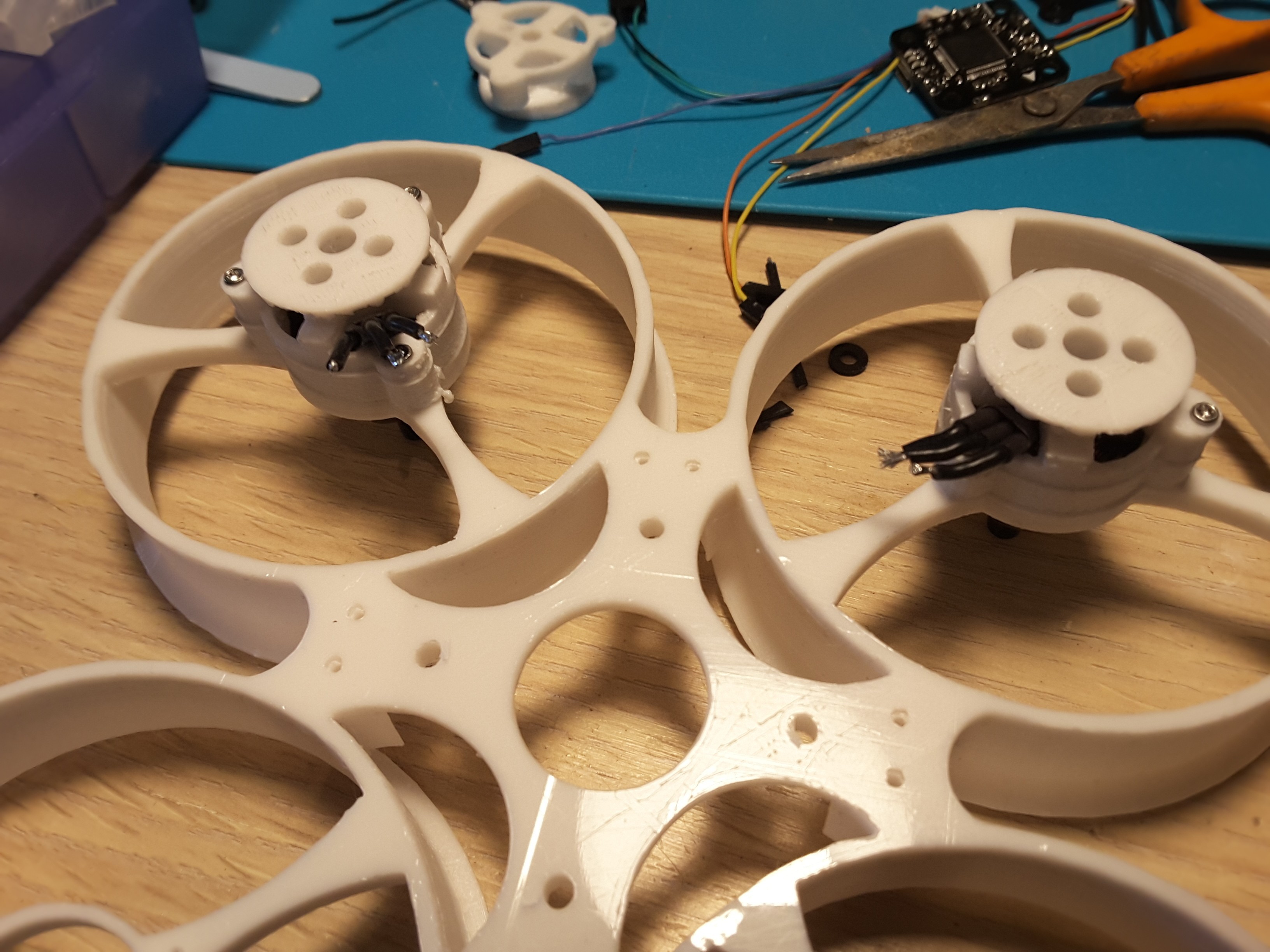

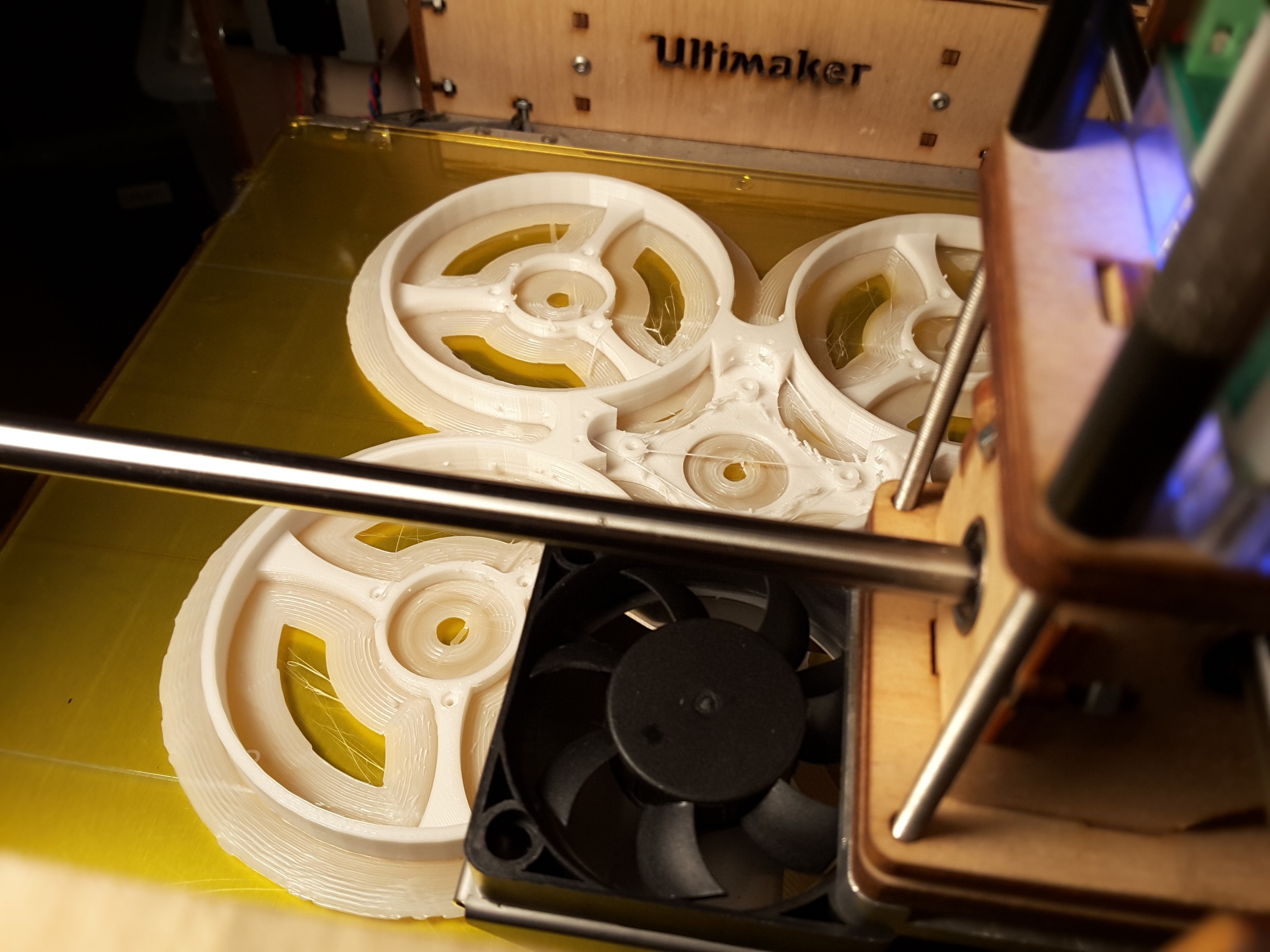

The chassis and engine mountings are made of polycarbonate Ultimaker (260°/ 110°/ 50mm/s).

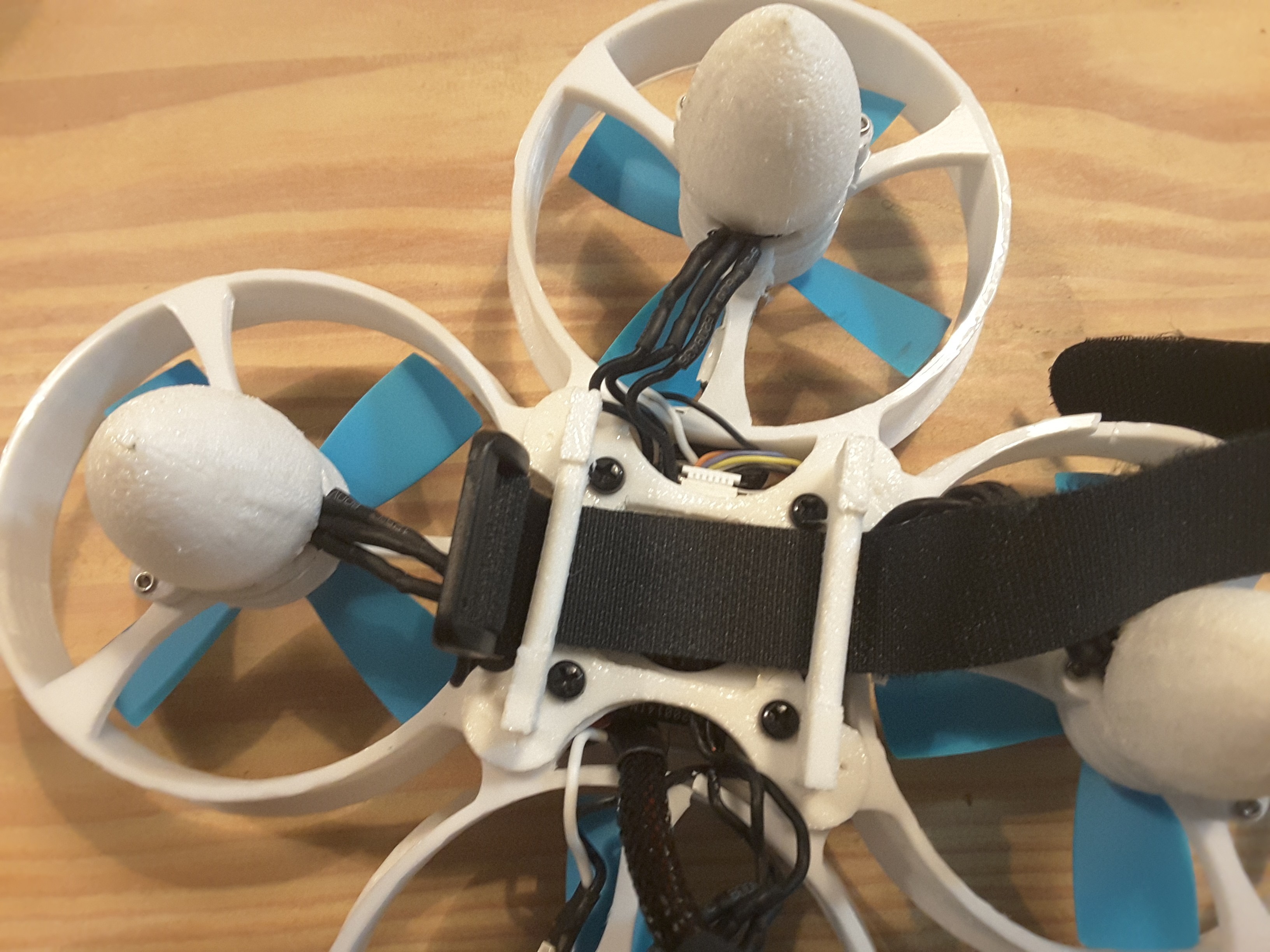

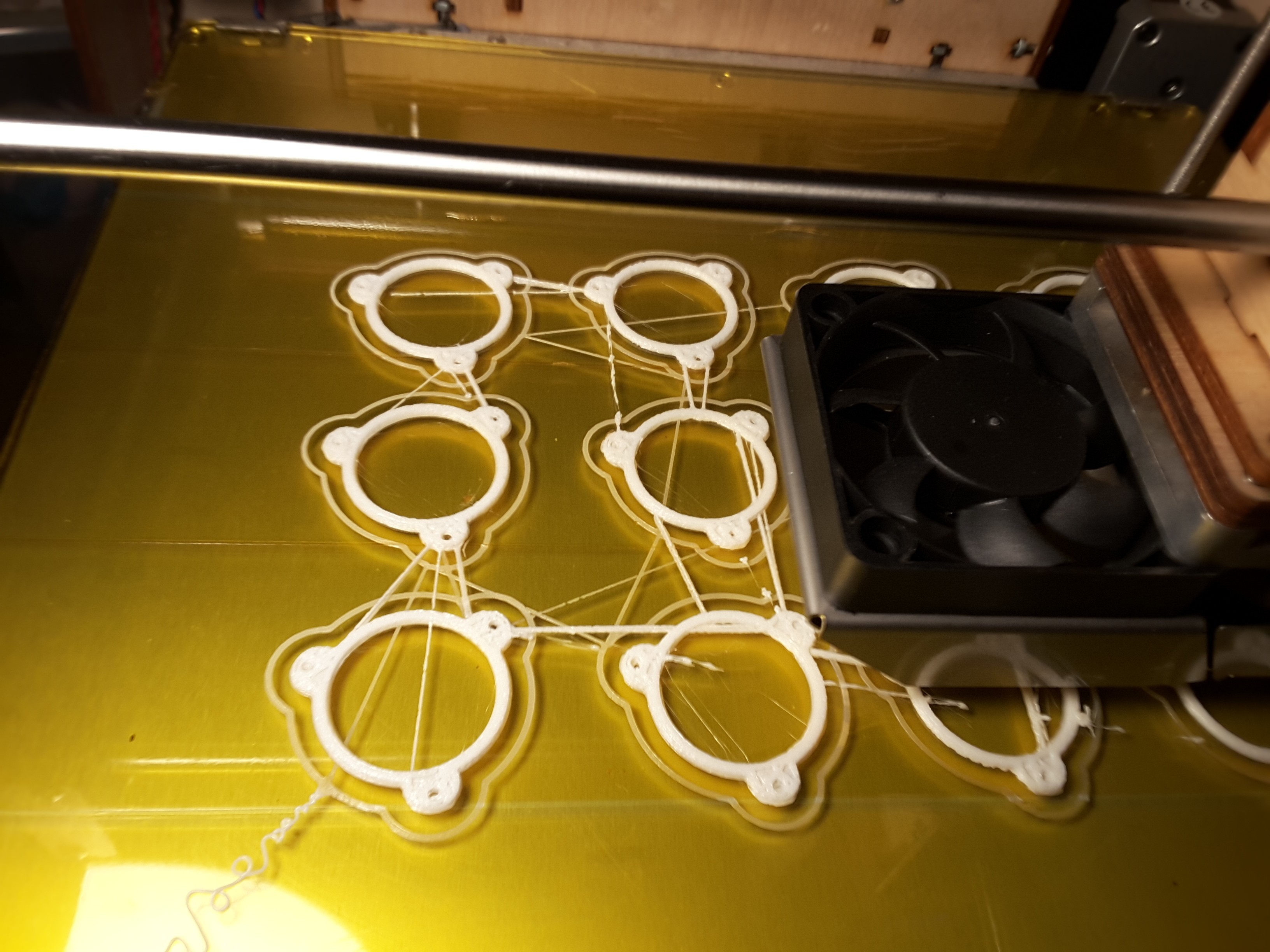

The different engine spaces 2,3,6mm, the feet and the top-plate and the lipo fixation are in TPU Ultimaker (235/75/50mm/s) to limit the vibration
3D printer file information
- Design number: 9673
-
3D design format: STL Folder details Close
- Fixation V2 moteur whoop 130mm 1707 .stl
- Fixation lipo whoop 130mm 1707.stl
- Joint 2mm fixation moteur whoop 130mm1707.stl
- Joint 3mm fixation moteur whoop 130mm1707.stl
- Joint 6mm fixation moteur whoop 130mm 1707.stl
- Pied turbine whoop 130mm.stl
- Tiny whoop v2 130mm 1707.stl
- Top Plate 30.5x30.5 grille whoop 130mm 1707.stl
- Last update: 2017-03-13 at 12:58
- Publication date: 2017-02-22 at 12:57
License
CC BY-NC-ND - Attribution - Non commercial - No derivatives
