Mini Quad Acro 120mm Micro Pico F3 Brushless 1103 2S 10.000kv
:still():format(webp)/https://files.cults3d.com/uploaders/13058158/illustration-file/fc4b158d-f5c0-4599-9aba-158191ab7c2a/Capture%20d%E2%80%99e%CC%81cran%202017-02-20%20a%CC%80%2012.07.21.png)
?
Creation quality:
5.0/5
(1 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
Designer
3D model description

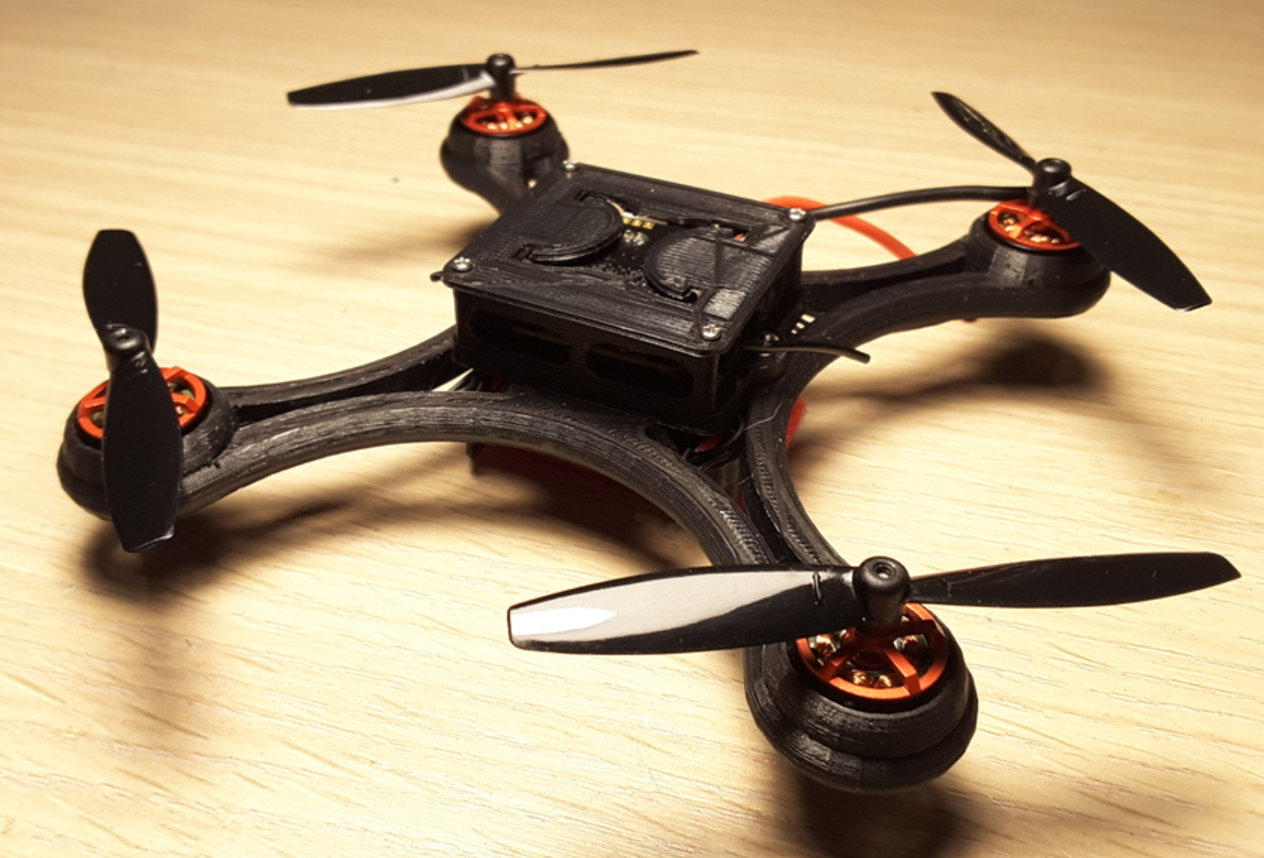

Here is my last mini quad acro 120 mm polycarbonate from ultimaker.

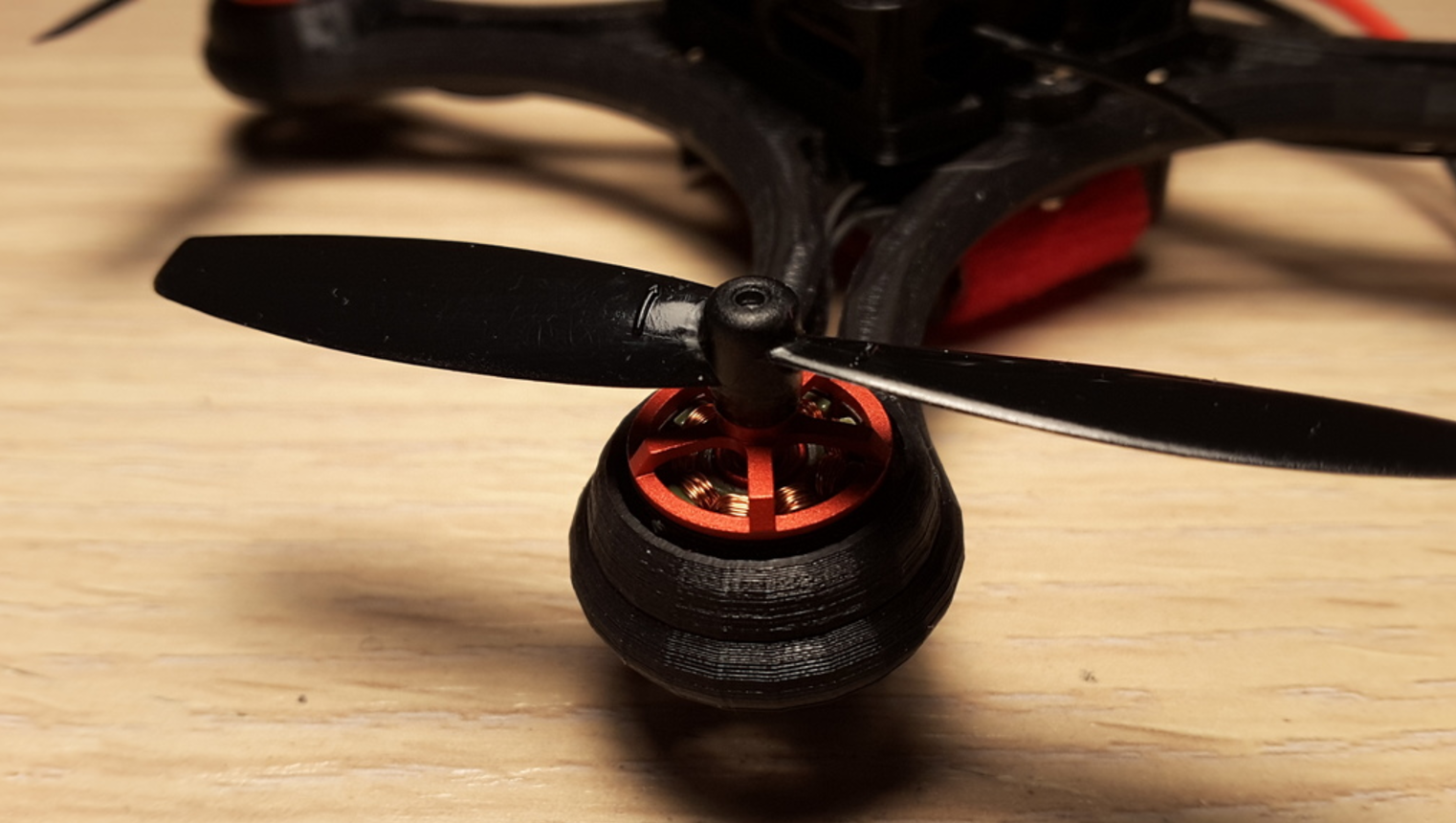

I put forward the protection of the brusless in this quad with a good cooling.
Flight control Pico 20x20:
http://furiousfpv.com/product_info.php?products_id=41
Brushless 1103 10.000kv 2S:
http://www.banggood.com/Racerstar-Racing-Edition-1103-BR1103-10000KV-1-2S-Brushless-Motor-For-100-120-150-RC-Multirotor-p-1110306.html?rmmds=myorder?p=LD020411878172015024
Recepteur: Lemon rx DSMX / Frsky
http://www.banggood.com/FD800-Tiny-Frsky-8CH-PPMSBUS-Receiver-Compatible-FRSKY-ACCST-X9DPlusDJTDFTDHT-For-QX95-QX90-p-1108071.html?rmmds=myorder?p=LD020411878172015024

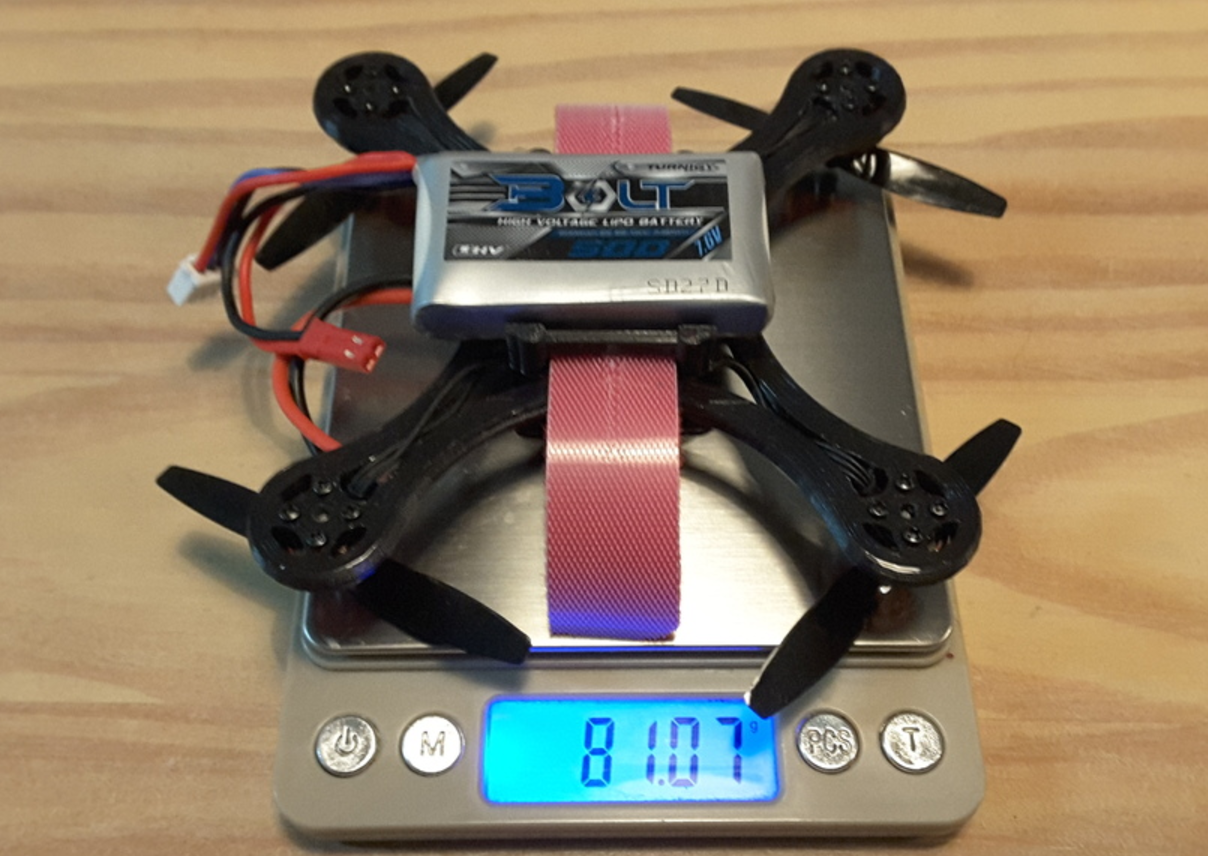

Lipo nanotech bold 50mha
https://hobbyking.com/en_us/turnigy-bolt-500mah-2s-7-6v-65-130c-high-voltage-lipoly-pack-lihv.html
Propellers 65mm king kong that must be enlarged with a drill of 1.5 mm without insisting too much. : http://www.banggood.com/10-Pairs-Kingkong-65mm-Blade-Propeller-Prop-20Pcs-for-720-8520-Coreless-Motor-DIY-Micro-Quadcopter-p-1092166.html?p=LD020411878172015024
Connection screws: M1.6x12mm
3D printer file information
- Design number: 9611
-
3D design format: STL Folder details Close
- Cover__quad_acro_120mm_.stl
- Frame_quad_acro_120mm.stl
- Lipo_Fixations_Quad_acro_120mm_.stl
- Top__quad_120mm_acro_.stl
- Last update: 2017-03-13 at 13:21
- Publication date: 2017-02-20 at 11:16
