TIKI BAR BIRD FEEDER - NO AMS NEEDED

0014.jpg TIKI BAR BIRD FEEDER - NO AMS NEEDED
0013.jpg TIKI BAR BIRD FEEDER - NO AMS NEEDED
007B.jpg TIKI BAR BIRD FEEDER - NO AMS NEEDED
009B.jpg TIKI BAR BIRD FEEDER - NO AMS NEEDED
006B.jpg TIKI BAR BIRD FEEDER - NO AMS NEEDED
008B.jpg TIKI BAR BIRD FEEDER - NO AMS NEEDED
0010B.jpg TIKI BAR BIRD FEEDER - NO AMS NEEDED
0012.jpg TIKI BAR BIRD FEEDER - NO AMS NEEDED
Advertising
Make an offer
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
Usages
3D design format
1 file (ZIP) Close
  • BIRD FEEDERS - THE TIKI BAR.zip
    • INSTRUCTIONS/Thumbs.db
    • PHOTOS/Thumbs.db
    • STL FILES/BAMBULAB PROJECT FILE/TIKI BAR FEEDER PROJECT FILE.3mf
    • STL FILES/BEIGE - BAMBU ROOF SECTION 01.stl
    • STL FILES/BEIGE - BAMBU ROOF SECTION 02.stl
    • STL FILES/BEIGE - LONG BAMBU WALL - SUPPORTS - 2x.stl
    • STL FILES/BEIGE - SHORT BAMBU WALL - 2x.stl
    • STL FILES/BROWN - BAR BASE.stl
    • STL FILES/BROWN - BAR CORNER POST - 4x.stl
    • STL FILES/BROWN - CENTER BEAM.stl
    • STL FILES/BROWN - COUNTERTOP.stl
    • STL FILES/BROWN - LARGE HOOK.stl
    • STL FILES/BROWN - POST PIN - 4x.stl
    • STL FILES/BROWN - ROOF BASE.stl
    • STL FILES/GREEN - LEFT PALM LEAVES - 4x.stl
    • STL FILES/GREEN - RIGHT PALM LEAVES - 4x.stl
    • STL FILES/GREEN - TRAY.stl
    • STL FILES/MULTICOLOR - POST - 4x.stl
    • STL FILES/YELLOW - CORNER TRIM - 8x.stl
    • STL FILES/YELLOW_WHITE_TURQUOISE - TIKI SIGNAGE - 2x.stl

Learn more about the formats
Publication date
Design number 3166705
PA1_MAKER

PA1_MAKER

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

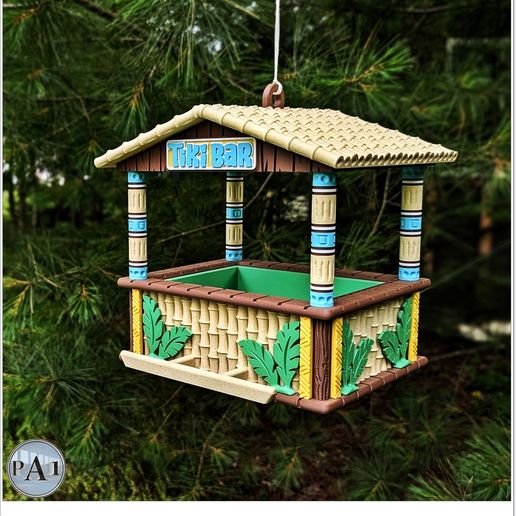

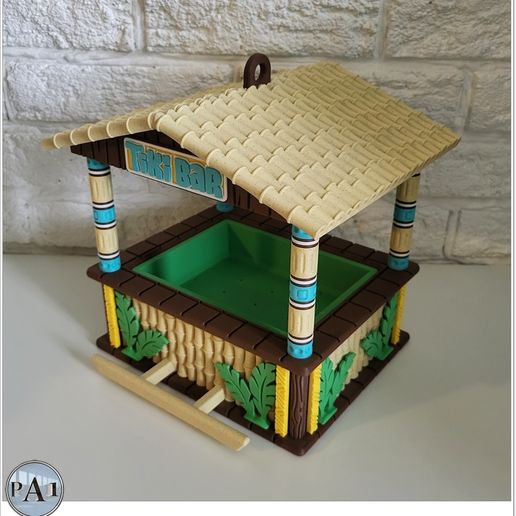

Colorful and adorned with classic Tiki-style elements, this bird feeder has one feature that the others don't: No hardware is required! So it can be scaled to any size that fits your printer!

Other than that, it's very similar to all my other projects.

It's simple to assemble, but I recommend following the instructions carefully and doing dry-fit checks (tests without glue) to fully understand how the parts fit together. Also, make sure you glue the parts properly and take the time to ensure the glue cures properly.

Only one part needs small supports. It's the long bamboo wall (the one with the perch) that needs supports on the small dovetails at each end. That's all. And it's specified in the file name.

All multi-color parts print using simple layered color changes, which can be done on any type of 3D printer. If you're not familiar with layered color changes, send me a private message and I'll guide you with some links or visit my community page to seek help from other members.

I recommend using multiple walls on the columns to ensure sturdy parts. The same goes for the hook if you decide to use it. 5 to 7 walls is, in my opinion, the minimum depending on your material.

A Bambu Lab project file is also included. In it, you'll find the color and wall settings already configured. These settings are only suggested, of course; you're free to change them if you wish.

Regarding the color changes in the project file, they are already configured, but they are per LAYER and not painted with the paint tool. So you must first slice the plate to see the colors applied in the preview window and on the slider bar to the right of your screen.

The project is currently in "normal" format, meaning it is configured for a 256x256mm bed like the P1s or X1c. However, as mentioned above, it can be scaled down to fit a mini or enlarged if your printer allows it.

Also, regarding the multicolor columns, the file name begins with... Multicolor! I didn't include color names, for obvious reasons of confusion or overly long file names.

I'll conclude by adding that if you experience any problems with the project, just let me know. I'll try to help you as best I can!

Have fun my friends! Keep printing!

**FACEBOOK COMMUNITY PAGE where you can find help regarding my models and exchange with others who printed my models: **

https://www.facebook.com/groups/1403567230344891

NOTE: COPYRIGHT PA1© - PERSONNAL USE ONLY. COMMERCIAL LICENSE ON MY PATREON. FULLACCESS AS SOON AS YOU JOIN, MULTI PARTS DESIGNS SO NO NEED FOR A MULTICOLOR PRINTER AND MOST OF THE PROJECTS ARE SUPPORT FREE!!! LINK TO PATREON:

https://www.patreon.com/PA1_MAKER
