CUTE CARAVAN BIRDHOUSE

?
Creation quality: 5.0/5 (27 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

NOTE: COPYRIGHT PA1© - SUBSCRIBE TO MY PATREON TO GET ALL (YES ALL!!) MY FILES FOR FREE, EXCLUSIVE MODELS AND A COMMERCIAL LICENSE TO SELL YOUR PRINTS:

https://www.patreon.com/PA1_MAKER

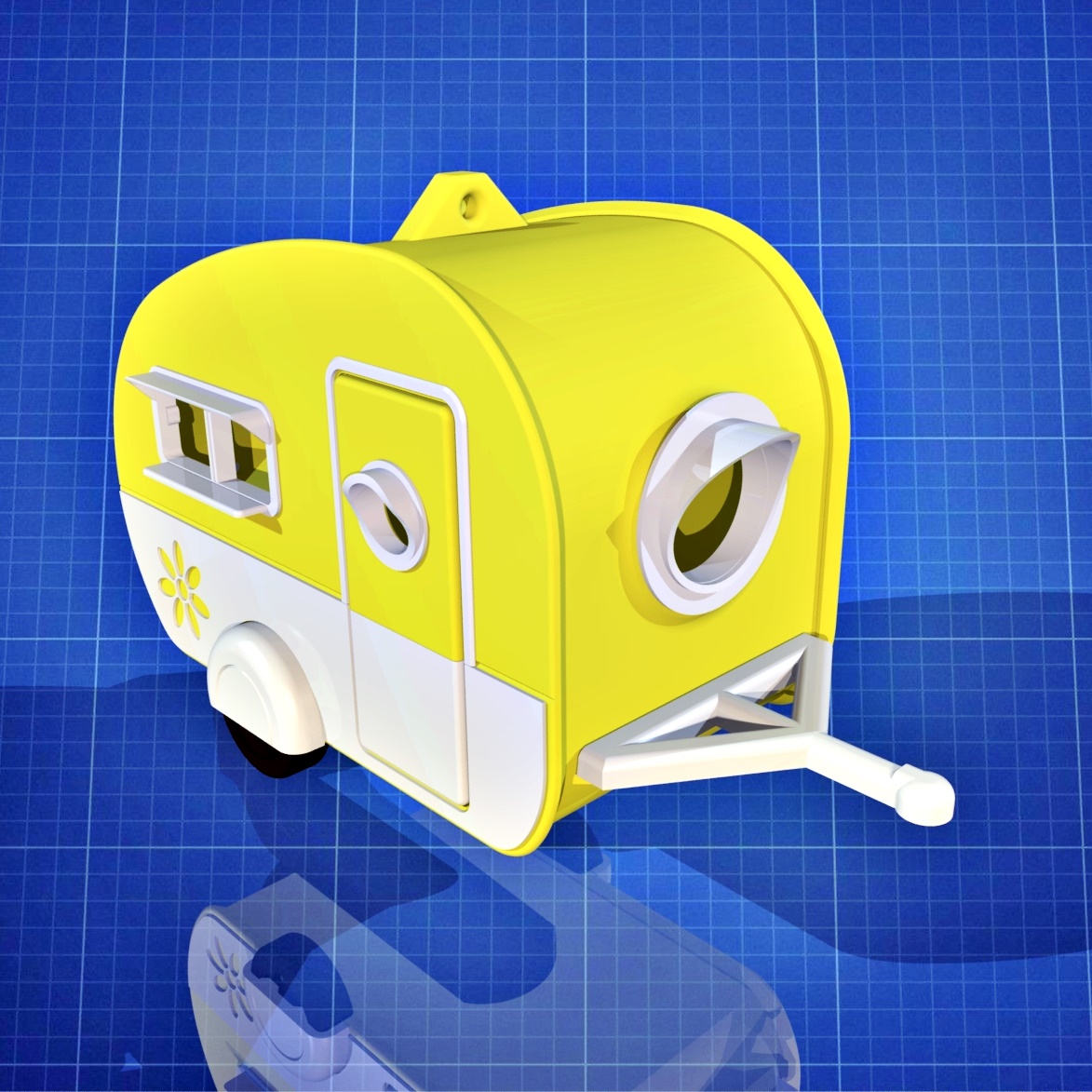

For all the camping lovers, this is the ultimate birdhouse!! Can't be more original and it is sooooo cute!!!

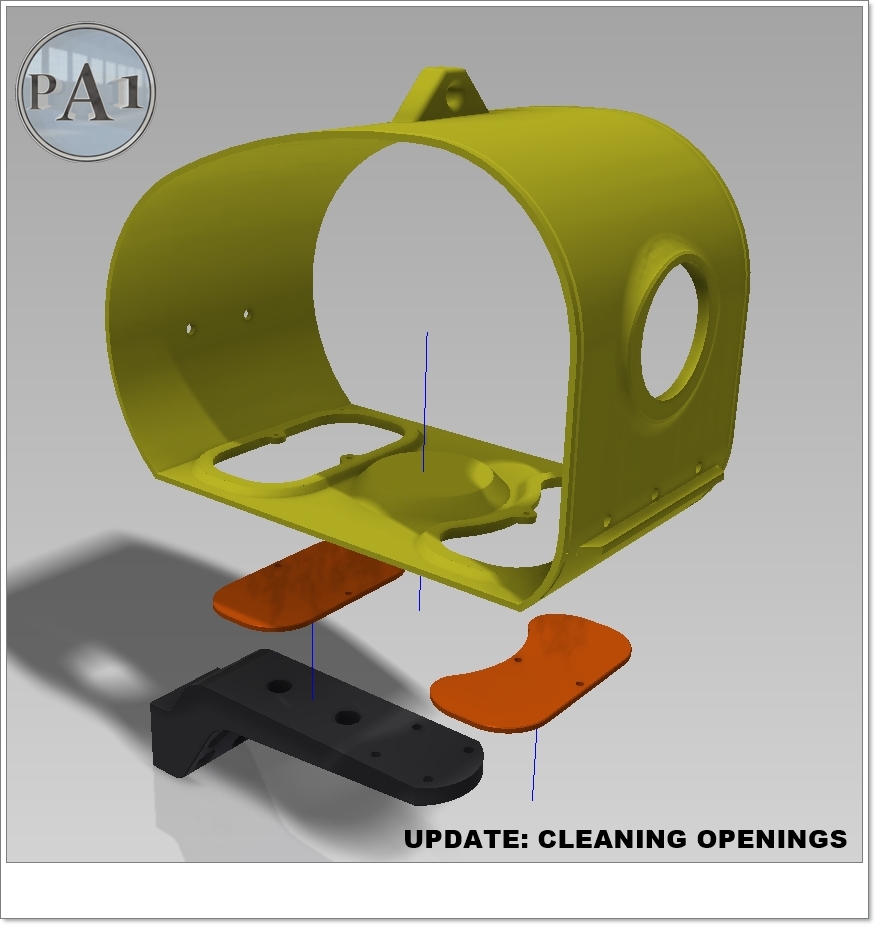

UPDATE: I have added a version of the body with cleaning openings underneath.
-body with cleaning openings
-rear cleaning door
-front cleaning door
-The support of the birdhouse is also updated with clearance holes for the screws of the cleaning door, but works for both types.

You will need (4x) m3X12mm screws for the cleaning doors.
Everything still prints without supports.

You still have the choice to print the full body, or the one with the cleaning openings. All the files are there. Simply choose the one you want.

Really easy to print, no supports. Easy to assemble.

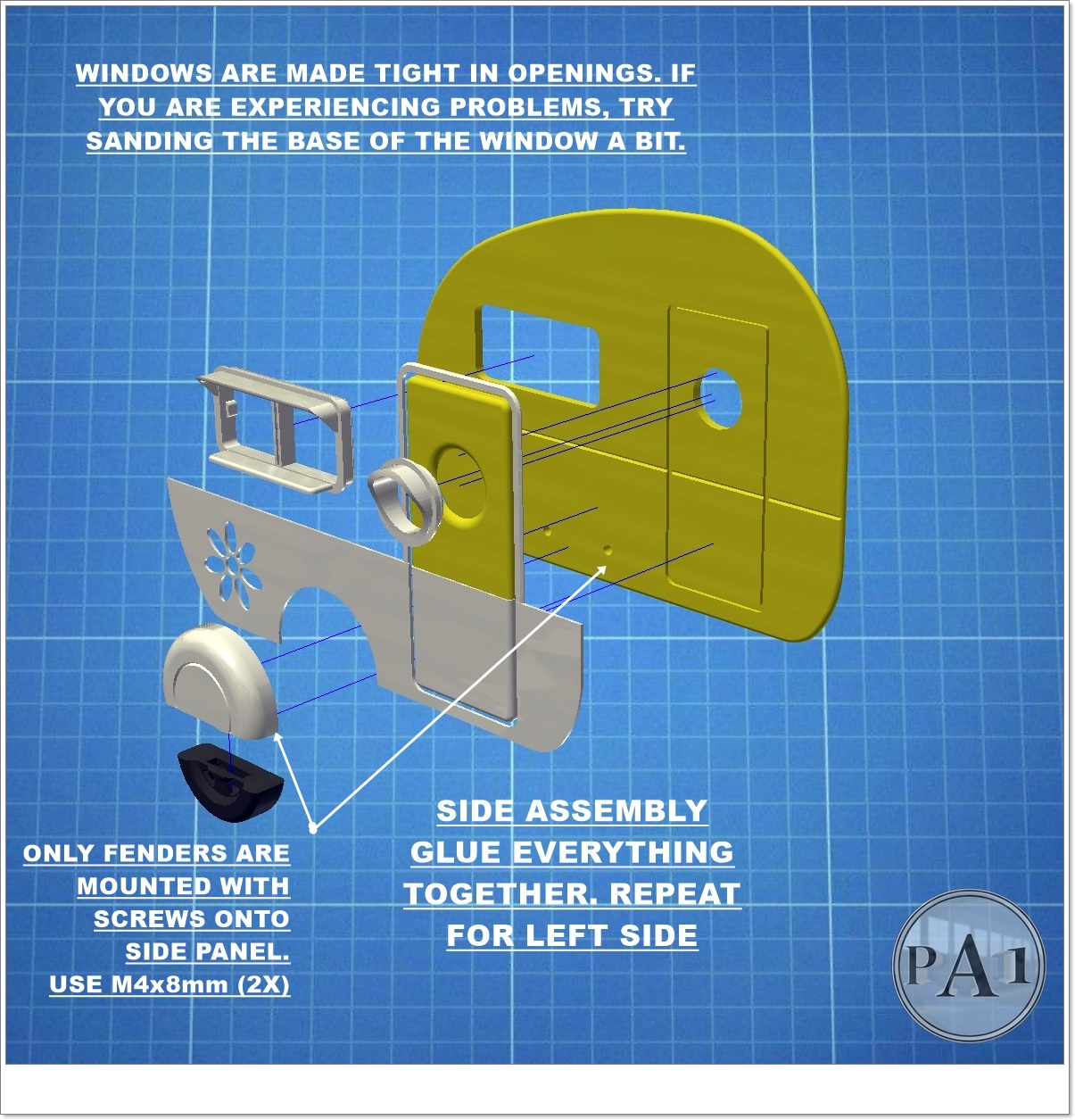

The only keyword is: Watch your over-extrusion/first layer. That's it. Sides are snug fit onto main body, with a tolerance of 0.5mm, to be perfectly glued together. So over-extrusion can be a problem but you still have room to play.

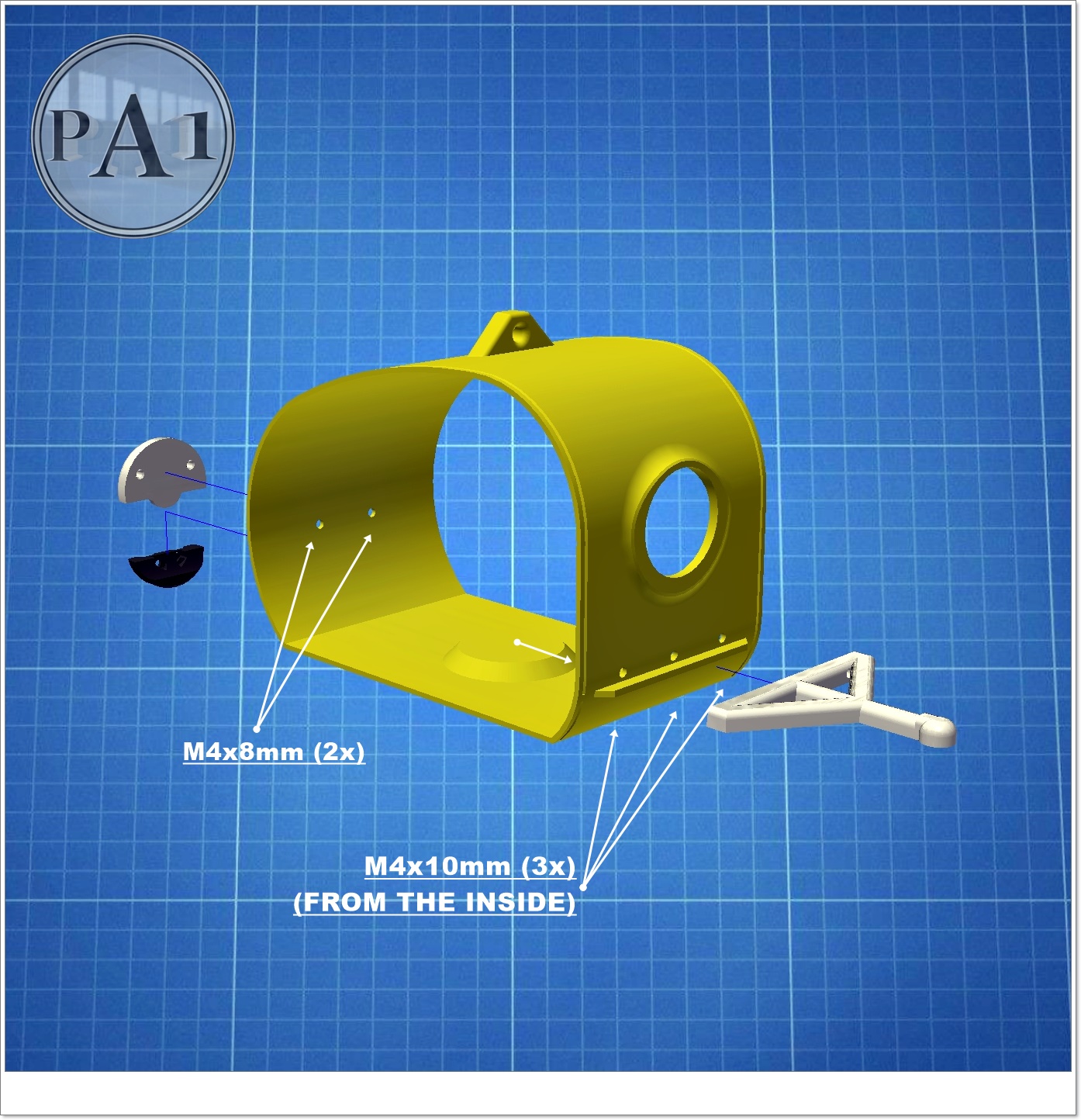

Only 9 screws needed (For the original version. Refer above for cleaning panels).
Screws you'll need:

M4x8mm (6x)
M4x10mm (3x)

Three ways to hang it:

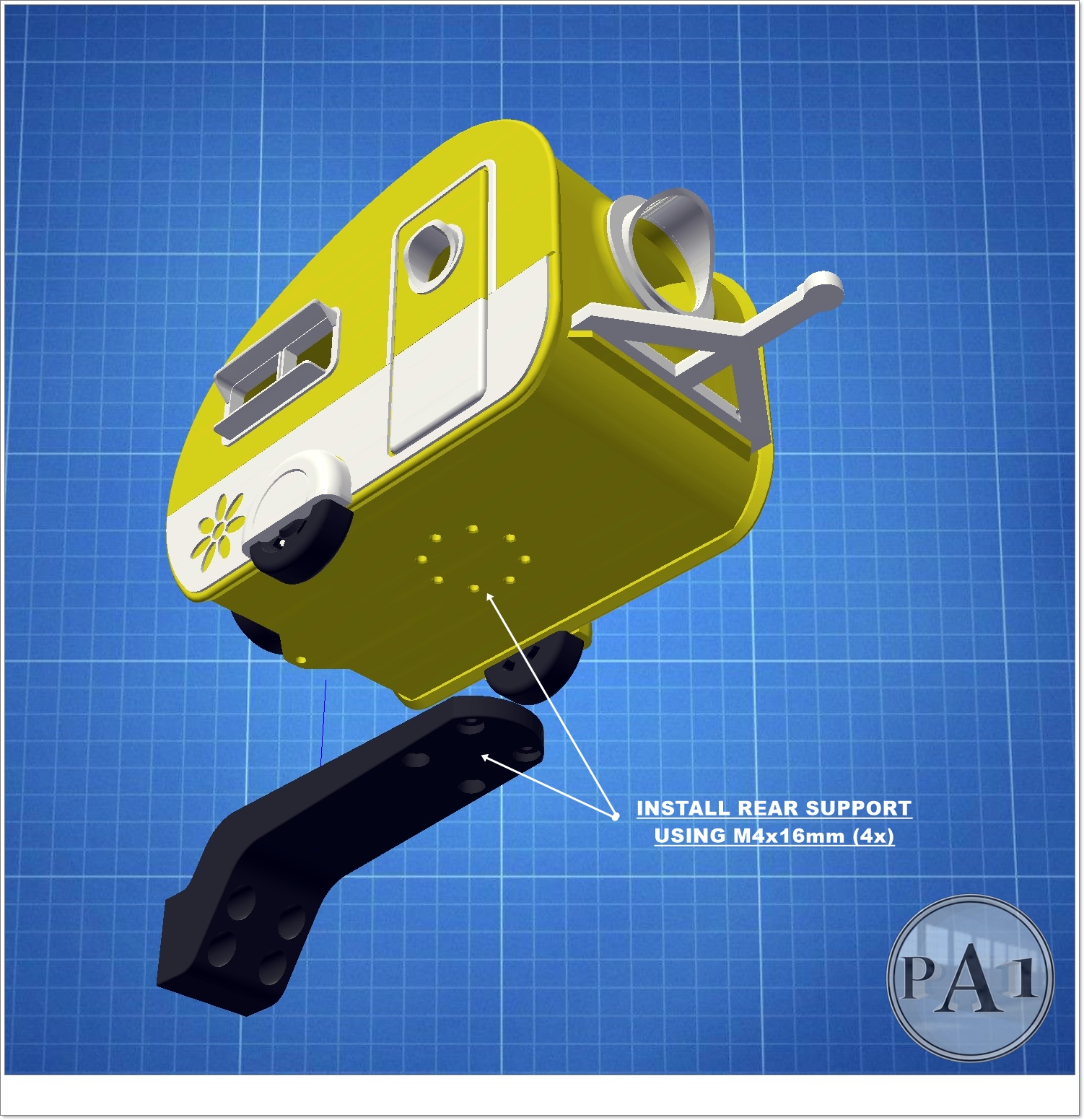

-With the rear support

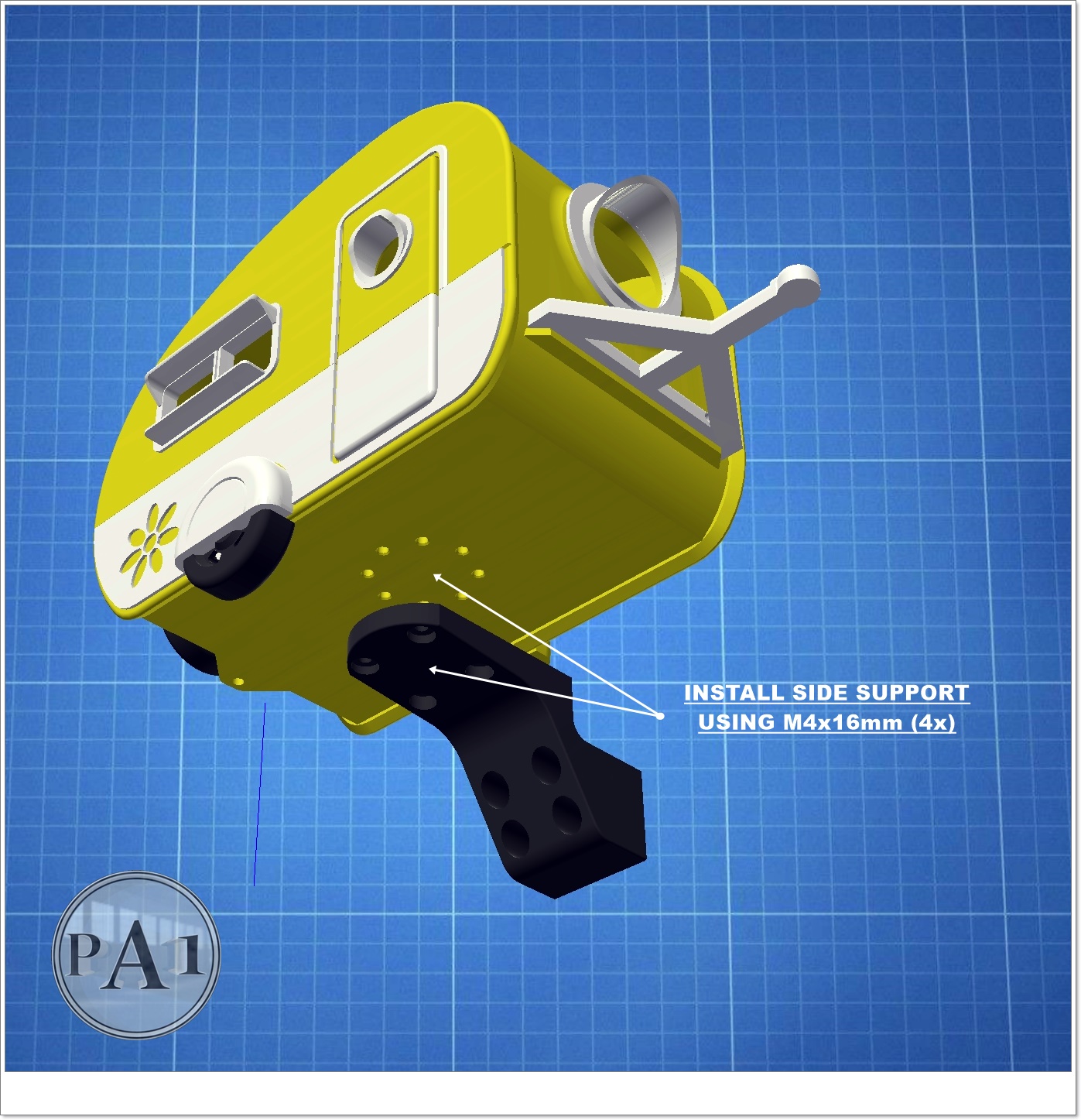

-With the side support
-With ropes (two hanging hooks are provided. One on top, one on the rear to stabilize the birdhouse)

Everyting fits on a classic Ender 3 bed. So no oversize printer needed.

Overall dimensions when FINISHED: 10.75in x 6.75in x 4.5in (273mm x 172mm x 114mm)

Hope your gonna like it!!

NO COMMERCIAL USE ALLOWED

Happy printing!! :p Please, post your prints!!!!! :) :)

Follow me on my Facebook page: https://www.facebook.com/PA1MAKER


3D printing settings

-Support free
-File names Color coded for easy refering
-Assembly instructions included
-Parts already placed in the right orientation.

Layer heigh .2 for parts with round area and .24 for flat part.
Print ideally in PETG or ASA.
BUT, overtime PLA+ gave good results outdoor, so i have printed one in pla and another one in petg for my personnal use to make some future tests. The walls are pretty thick, so im not really scared about printing it in pla.

3D printer file information

  • 3D design format: STL Folder details Close
    • 90P-BLACK-REAR-MAIN-SUPPORT.stl
    • 90P-BLACK-SIDE-MAIN-SUPPORT.stl
    • 90P-BLACK-SPARE-TIRE.stl
    • 90P-BLACK-TIRES.stl
    • 90P-SILVER-BOOM.stl
    • 90P-UPDATE-BLACK-REAR-MAIN-SUPPORT.stl
    • 90P-UPDATE-BODY-WITH-CLEANING-OPENINGS.stl
    • 90P-UPDATE-FRONT-CLEANING-DOOR.stl
    • 90P-UPDATE-REAR-CLEANING-DOOR.stl
    • 90P-WHITE-BIRD-ENTRY.stl
    • 90P-WHITE-DOOR-BOTTOM.stl
    • 90P-WHITE-DOOR-FRAME.stl
    • 90P-WHITE-DOOR-WINDOW.stl
    • 90P-WHITE-FENDERS-V2.stl
    • 90P-WHITE-LEFT-TRIM-PANEL.stl
    • 90P-WHITE-MAIN-WINDOW.stl
    • 90P-WHITE-RIGHT-TRIM-PANEL.stl
    • 90P-YELLOW-BODY.stl
    • 90P-YELLOW-DOOR-TOP.stl
    • 90P-YELLOW-LEFT-SIDE.stl
    • 90P-YELLOW-RIGHT SIDE.stl

    Learn more about the formats

  • Last update: 2021-12-10 at 14:44
  • Publication date: 2021-06-18 at 22:08
