DC110 ABS FPV for SP F3 RACING EVO Brush Flight control

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 129 views

3D model description

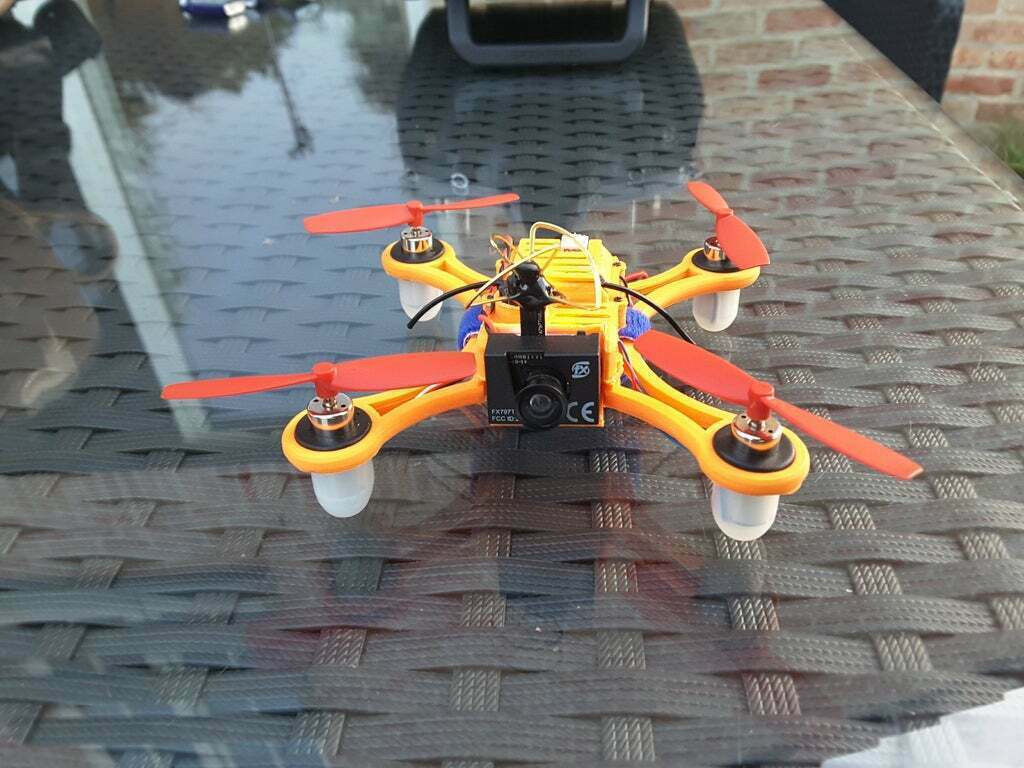

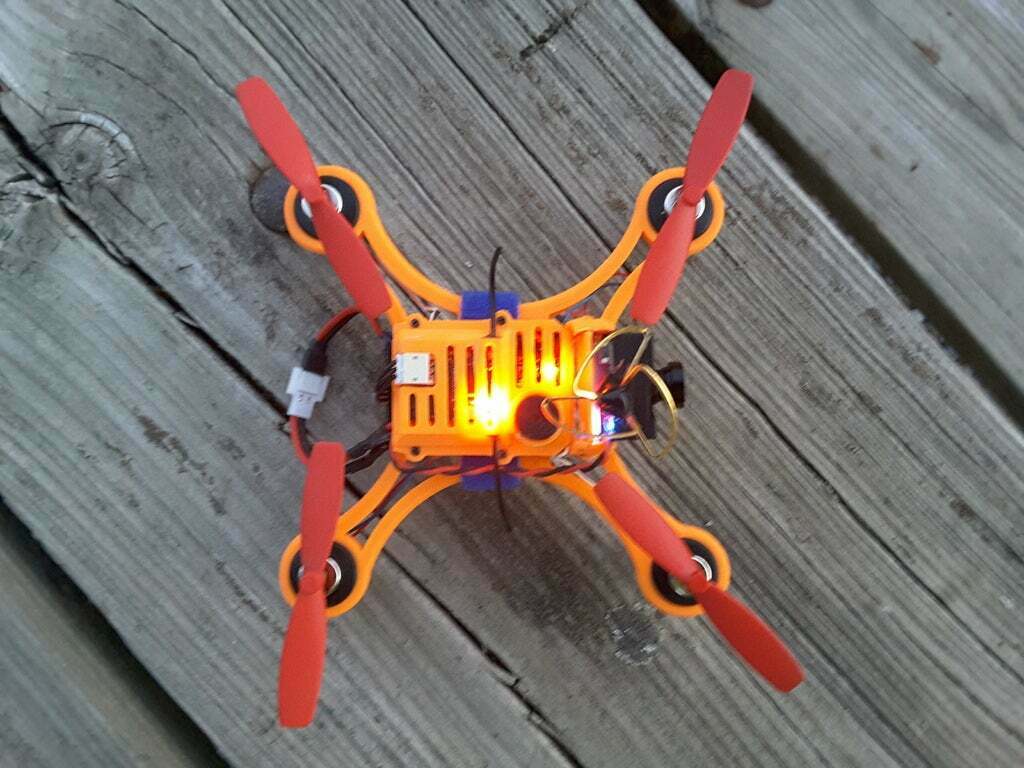

Chassis 110 mm ABS

FC: SP F3 RACING EVO Brush Flight Control (cleanflight & betaflight)
http://www.banggood.com/fr/Micro-32bits-Brushed-Flight-Control-Board-Based-On-SP-RACING-F3-EVO-Brush-For-Micro-FPV-Frame-p-1070068.html?p=LD020411878172015024

Coreless 1s:
http://www.banggood.com/4X-Chaoli-CL-720-7x20mm-Coreless-Motor-for-90mm-150mm-DIY-Micro-FPV-RC-Quadcopter-Frame-p-1070123.html?rmmds=search?p=LD020411878172015024

Coreless 2S:
http://www.banggood.com/Chaoli-CL-820-8_5x20mm-2S-Coreless-Motor-for-90mm-150mm-DIY-Micro-FPV-RC-Quadcopter-Frame-p-1084265.html?p=LD020411878172015024

Motors protection :
http://www.banggood.com/fr/20-PCS-3MM-5MM-6MM-8MM-10MM-Short-Circuit-Protection-Insulated-Rubber-Ring-for-FPV-Racer-p-1075031.html?p=LD020411878172015024

Propeller:

http://www.banggood.com/fr/2-Pair-Gemfan-65MM-ABS-Propeller-Blade-CW-CCW-for-6-X-15-Coreless-Motor-Racing-Multicopter-p-1042645.html?p=LD020411878172015024

Receiver:

http://www.banggood.com/fr/Self-frequency-Satellite-Receiver-With-High-Speed-Support-DSMX-DSM2-11MS-22MS-p-1049330.html?p=LD020411878172015024

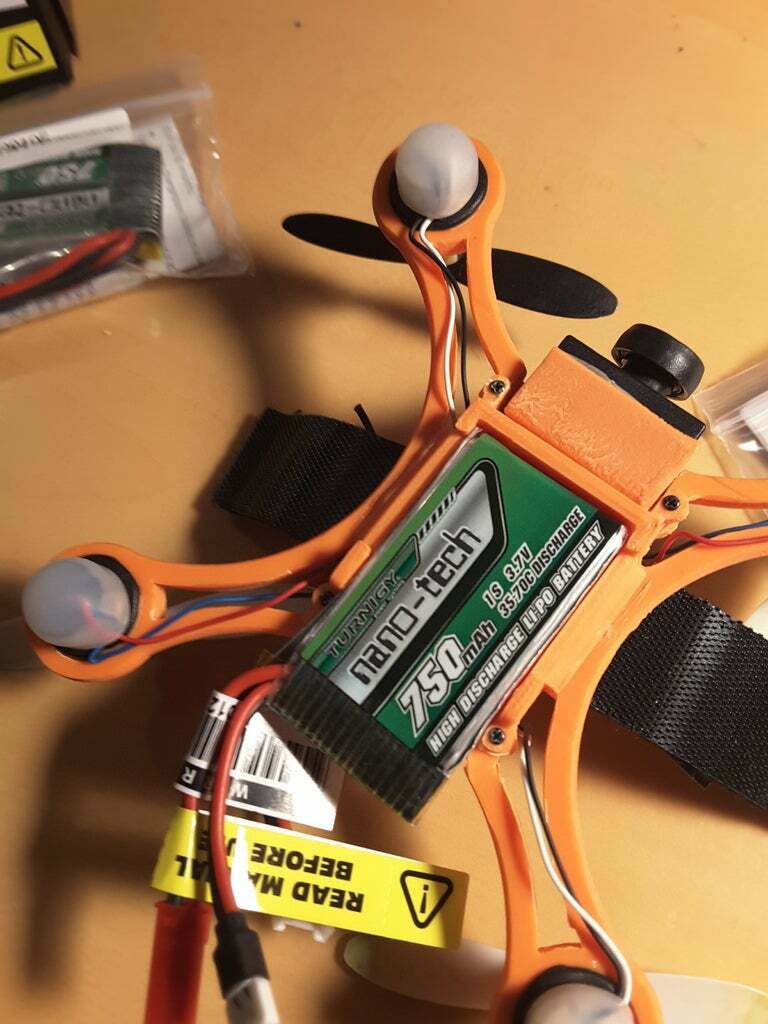

Lipo:1S 500/750 mha nanotech / 750mha graphènes

Camera 25mW: http://bit.do/CameraTransmetteur-AV-FX797T-5-8G-25mW

Camera 200mW: http://bit.do/camera-Super-Mini-AIO-5-8G-40CH-200mW-VTX-600TVL

9mm diameter buzzer
http://www.banggood.com/5V-Buzzer-Alarm-Beeper-With-Cable-for-Eachine-QX70-QX90-QX95-NAZE32-F3-DIY-Micro-Brushed-FPV-Racer-p-1100338.html?p=LD020411878172015024

4 x screws M1.4 x 10 mm (fixing lipo + frame + F.C. compartment)

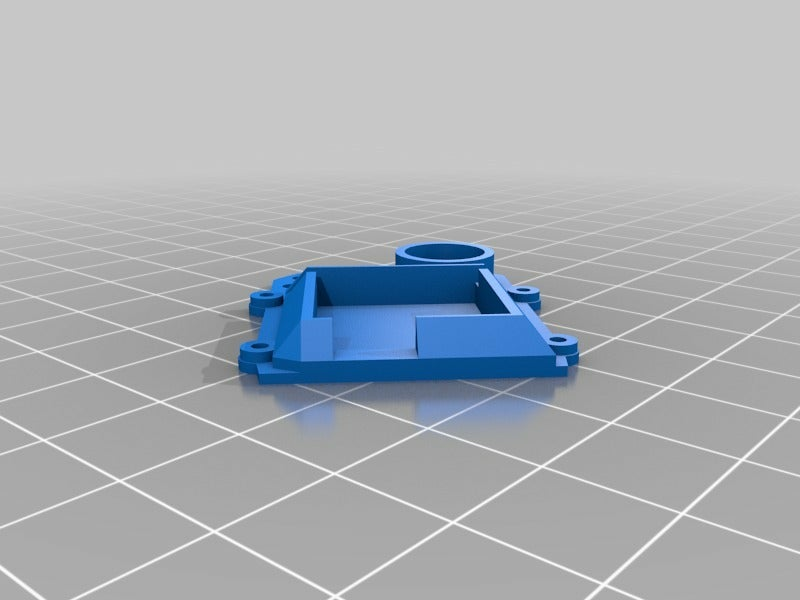

4 x screws M1.4 x 5 mm (F.C. lid attachment with FC compartment)
2 x screws M1.4 x 5 mm (fixing camera)
Screws shop:
http://www.micro-modele.fr/index.php?option=com_virtuemart&page=shop.browse&category_id=933&Itemid=17&lang=en&orderby=product_sku&DescOrderBy=ASC

It is best glued the frame part with the case fc part and fixing part lipo. For maximum rigidity and chassis soliditer

Under 50 gr without lipo

Youtube Test flight 2S: http://bit.do/Video-Youtube-Brax-fpv-Test-DC110-FPV-2S

https://www.facebook.com/Microdure/

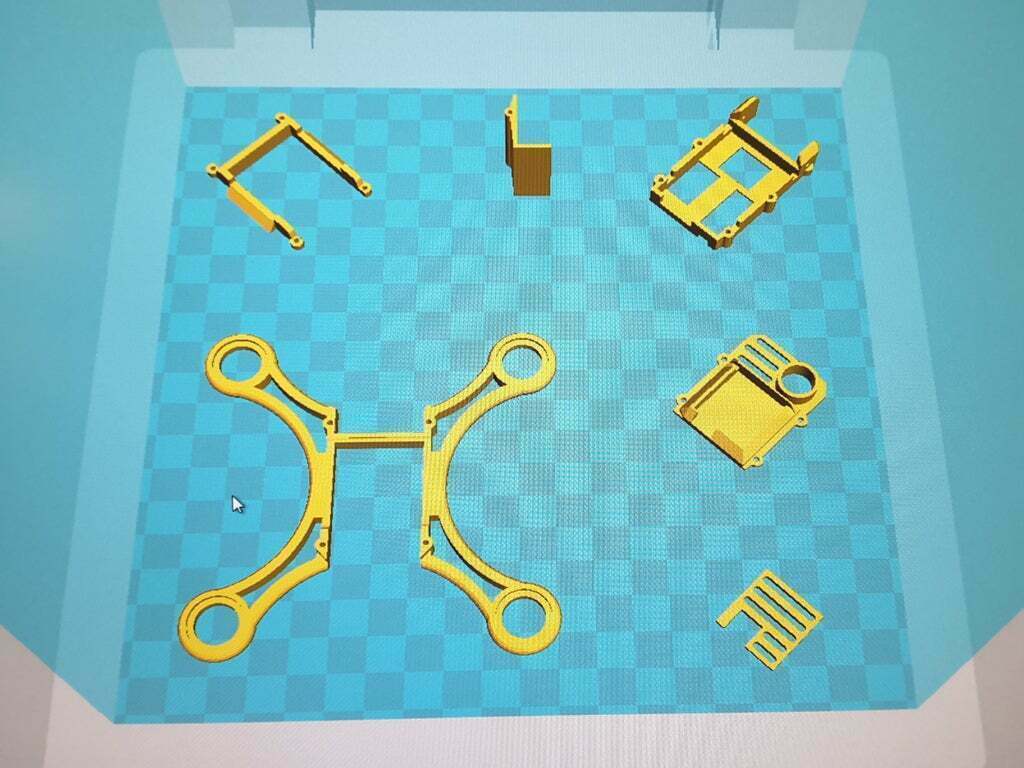

  • 3D file format: STL
  • Publication date: 2021/02/19 at 12:04

License

CC BY NC SA
