Parkside X20V Team Shelf / Wall Battery Holder
3D model description

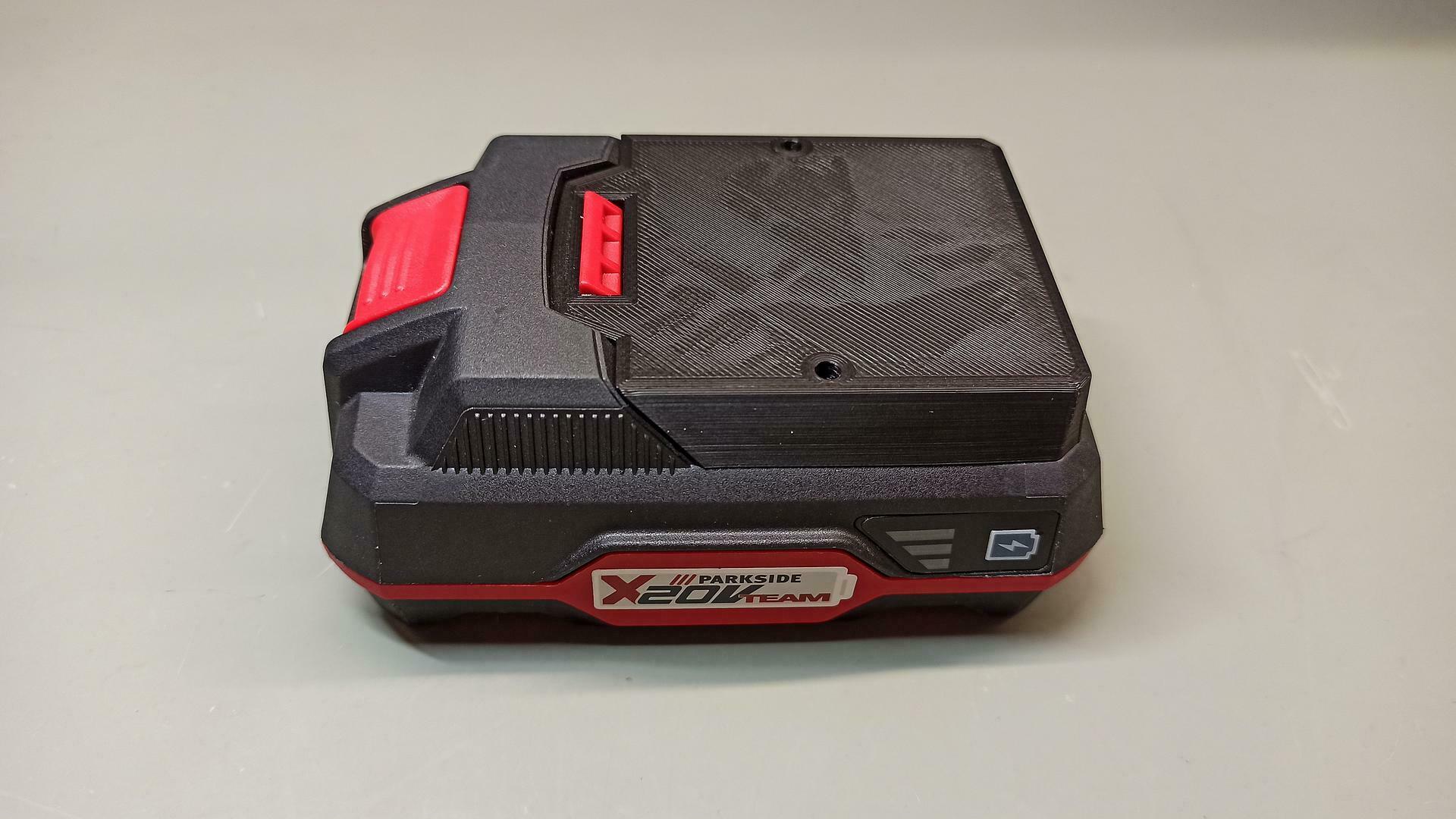

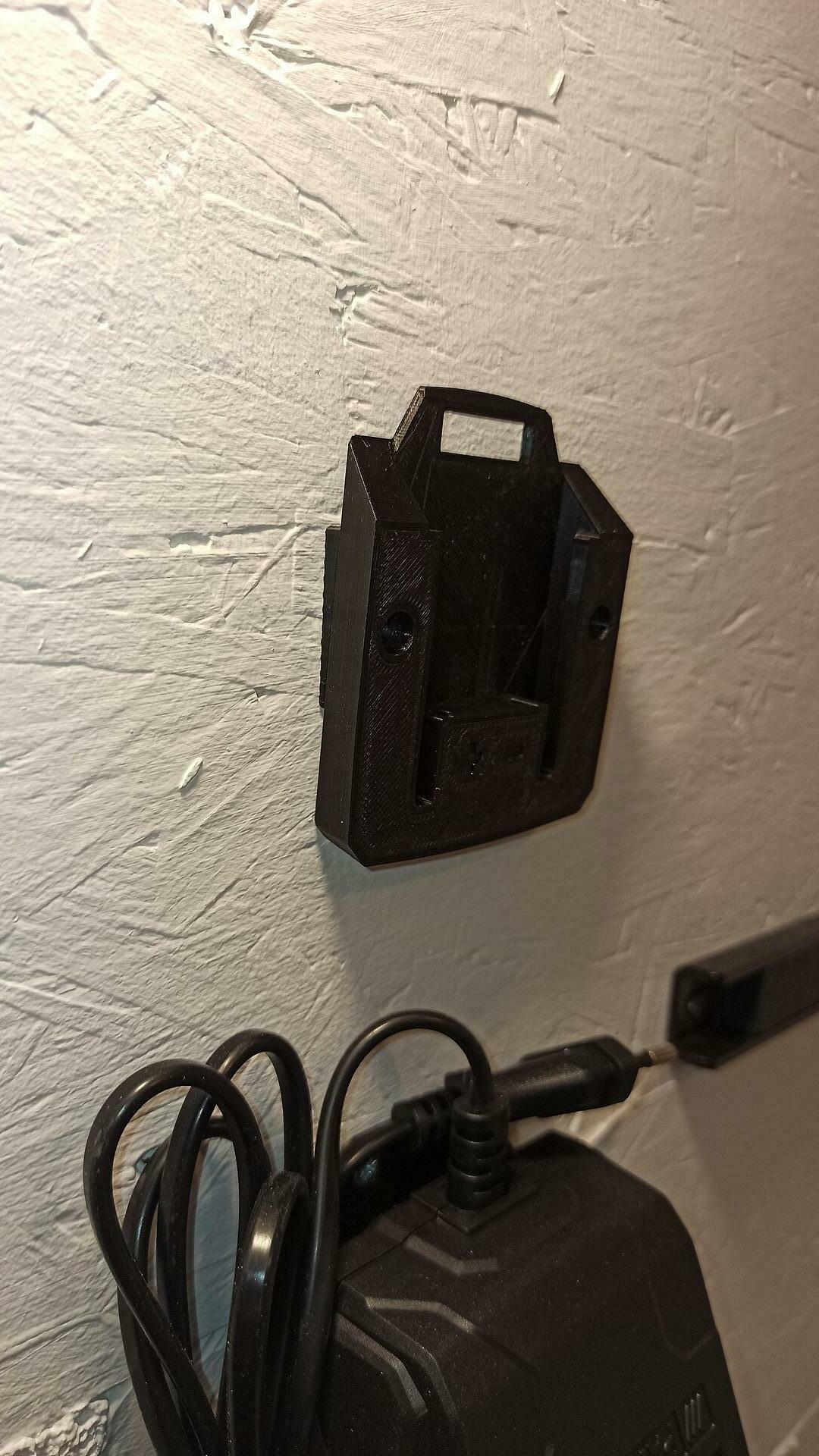

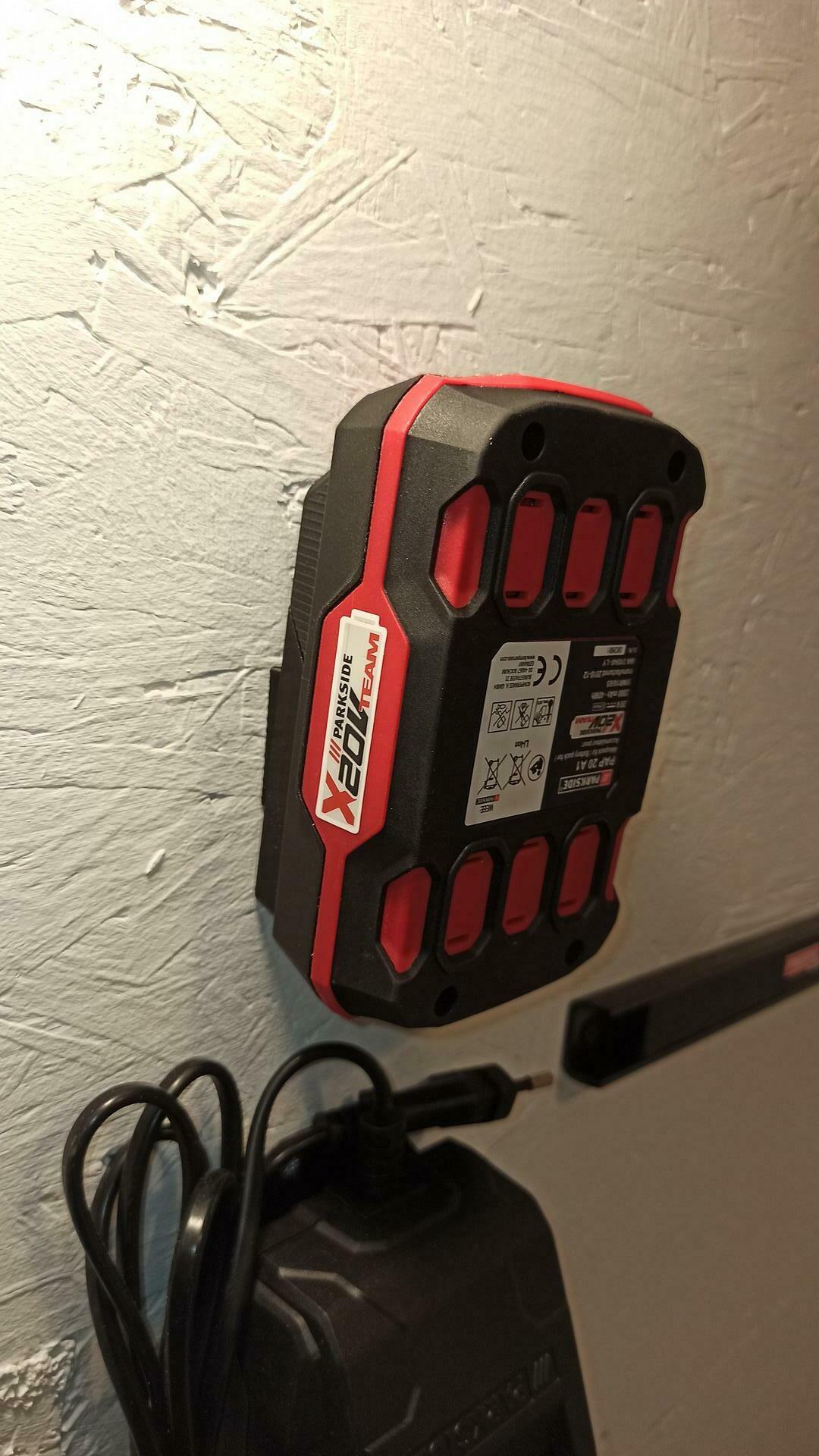

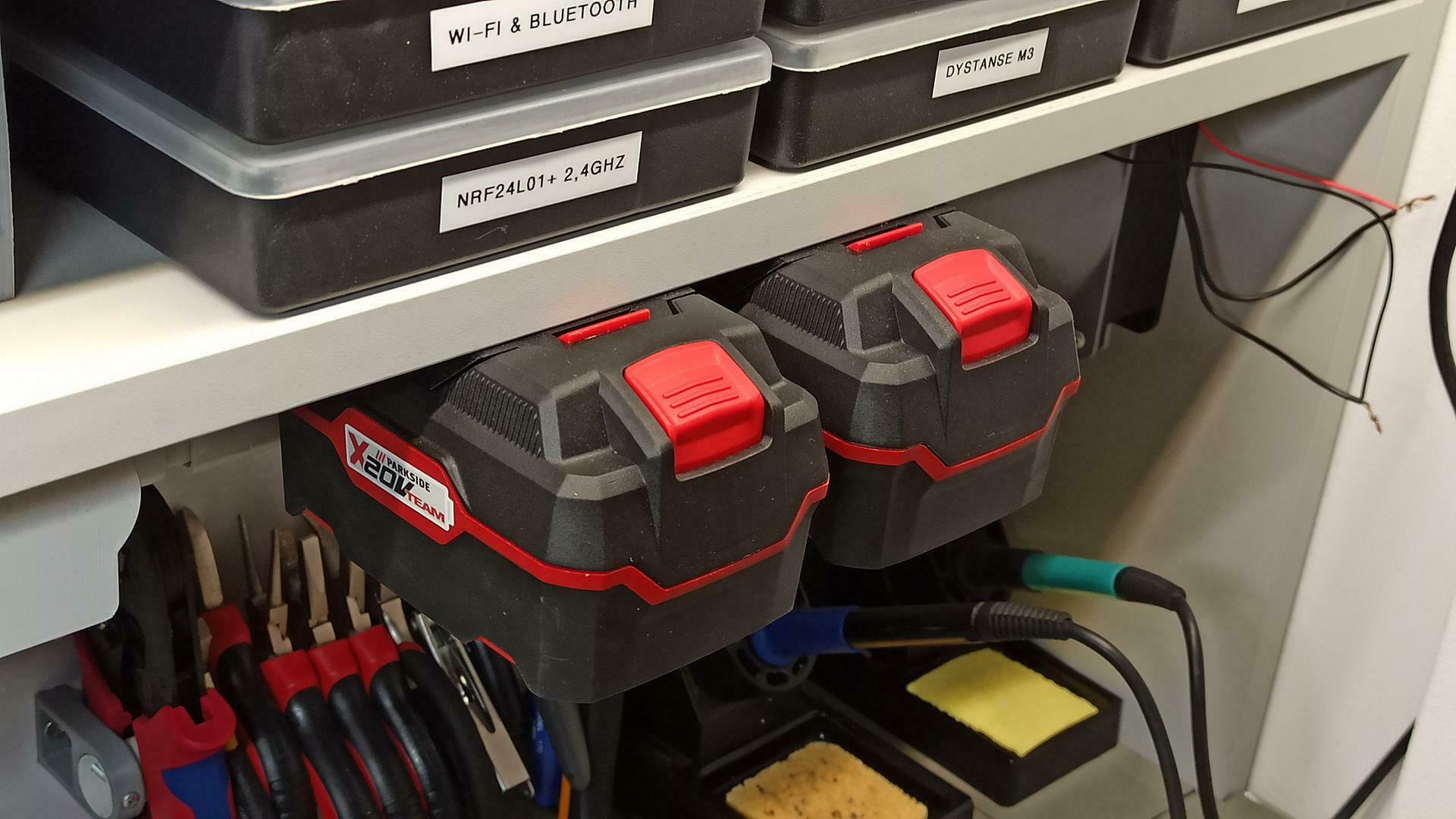

The mounting bracket allows you to mount the battery under the shelf of the cabinet or on the wall.
If you use 6.3 mm connectors and cables, you can use the holder and battery to power other devices.

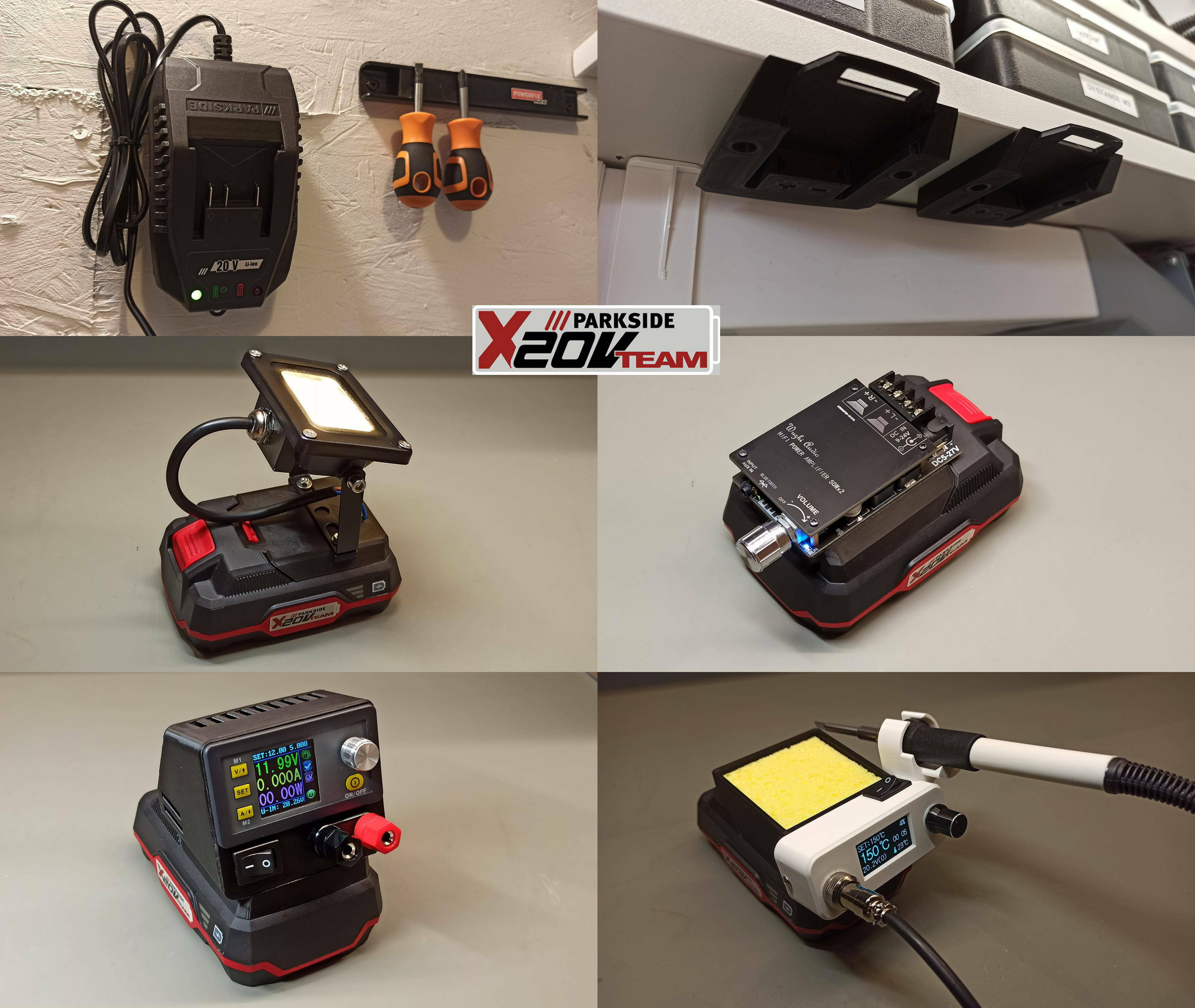

This is my project of useful gadgets and portable wireless devices for Parkside X20V batteries. There are:
- Mounting brackets for the charger
- Battery mounting bracket (shelf and wall mount)
- Floodlight / Work Light - LED 10W
- Audio amplifier TPA3116 Wuzhi - maximum output power RMS 2x20W/4R, 2x24W/8R
- Power supply DPS3005 (max 19.5V/5.1A)
- Soldering station KSGER T12 OLED
STEP files are available so you can modify them to suit your needs.
If you like this project and appreciate my work, you can support me through PayPal.

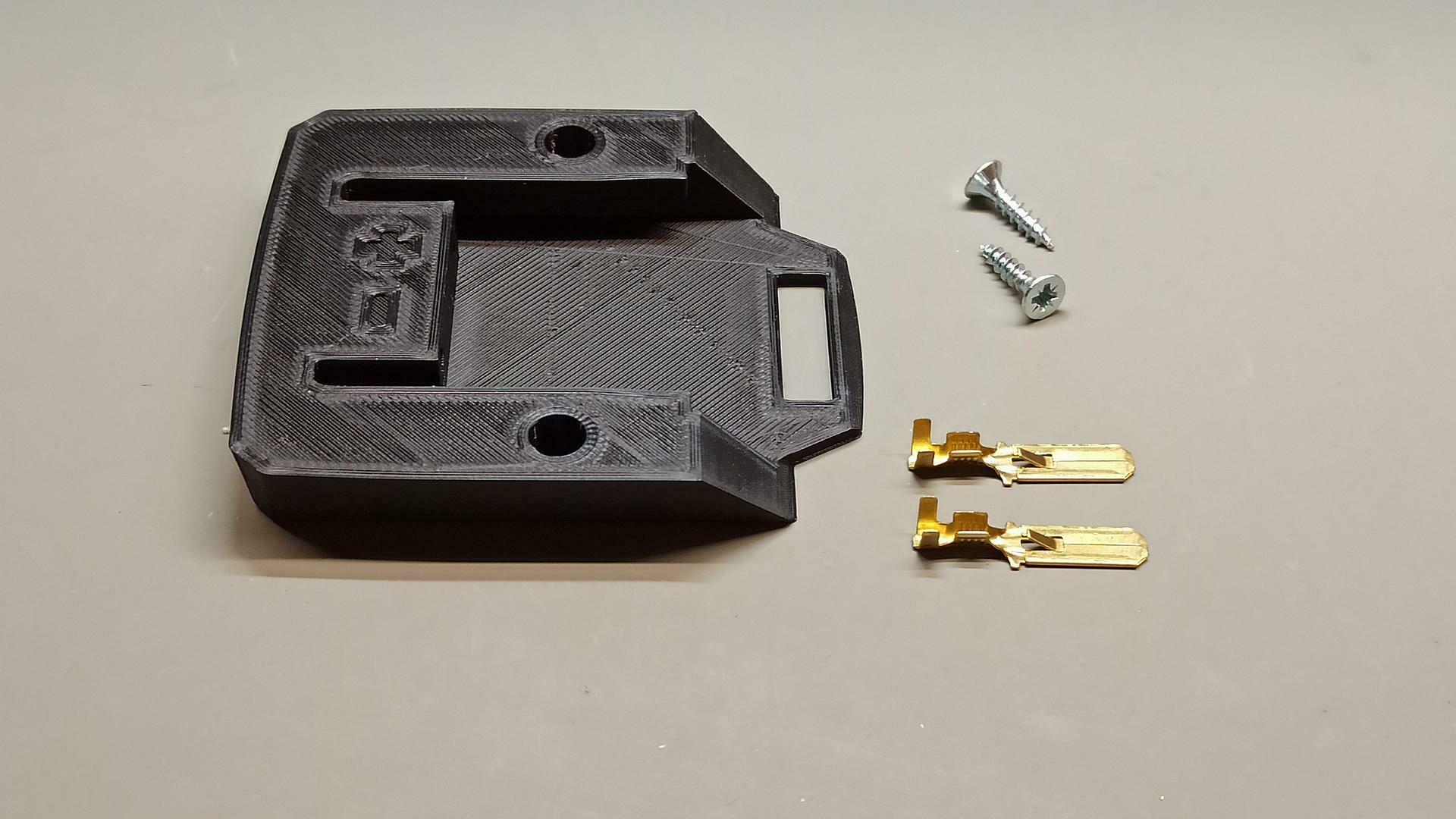

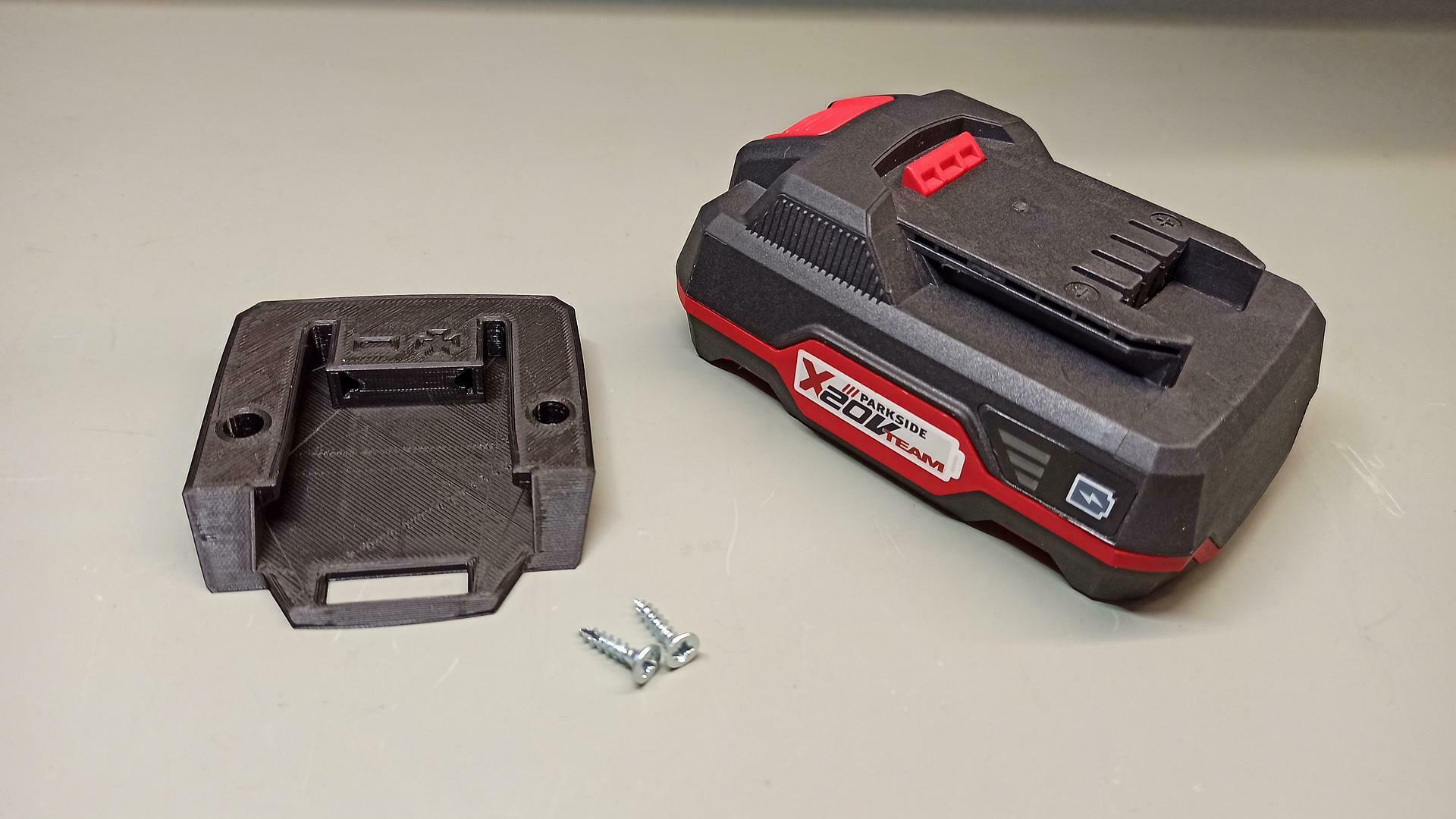

- 2 pieces 3.5x16 mm wood screws
- optional long 6.3 mm connectors and 0.5-1mm2 cables
The photos should explain everything.
3D printing settings

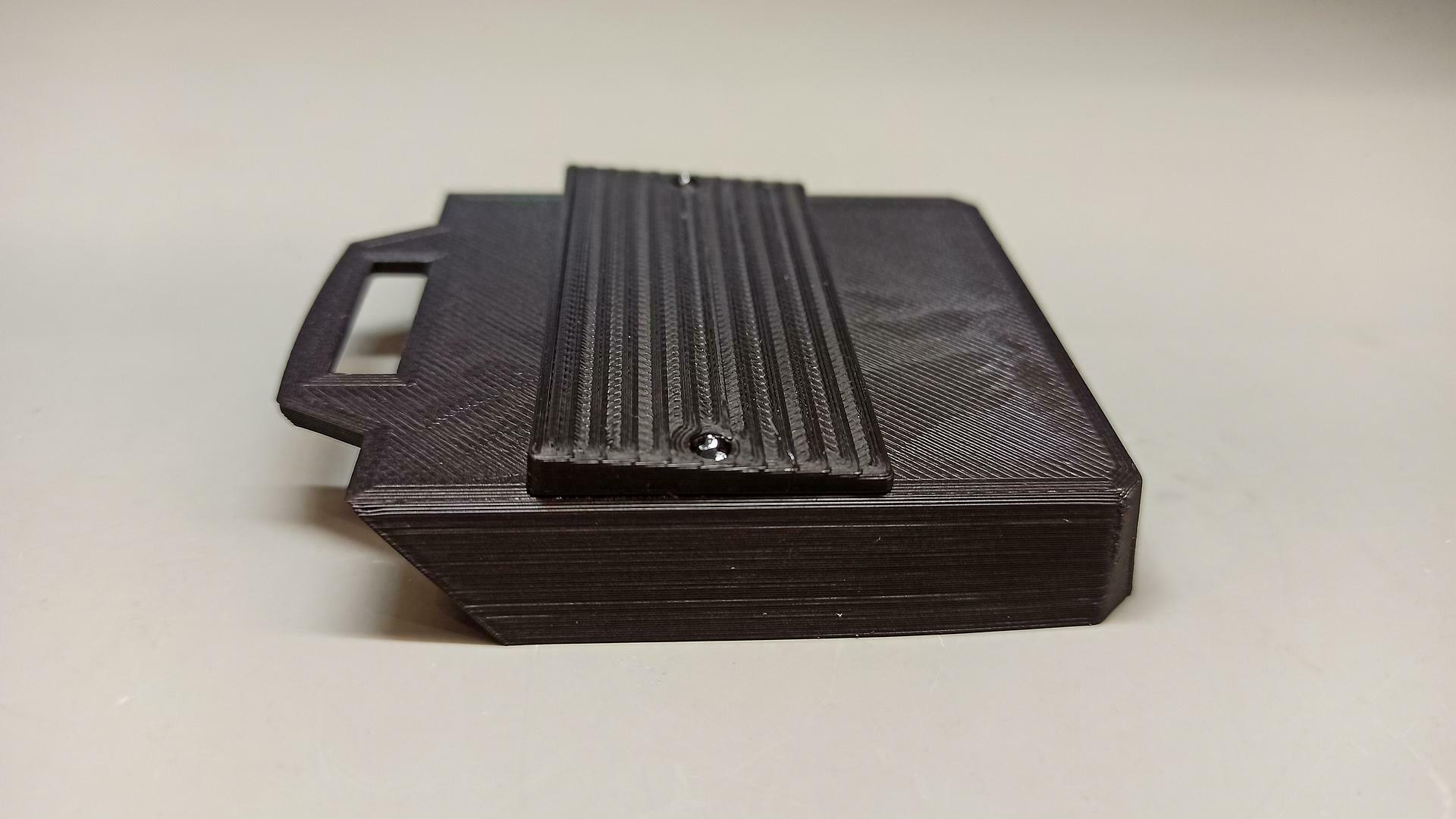

The third photo shows the recommended orientation of the elements when printing.
Walls thickness 1.6 mm (4 shells). Layer height 0.2 mm. Infill 25-30%.
3D printer file information
- Design number: 283498
3D design format: STEP and STL Folder details Close
- Publication date: 2021-02-03 at 18:30
