Parkside X20V Team Charger Wall Mount

Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.


3D model description

I present the mounting brackets for the Parkside X20V Team charger from the LIDL store. Mounting brackets allow the charger to be mounted to a cabinet or wall.

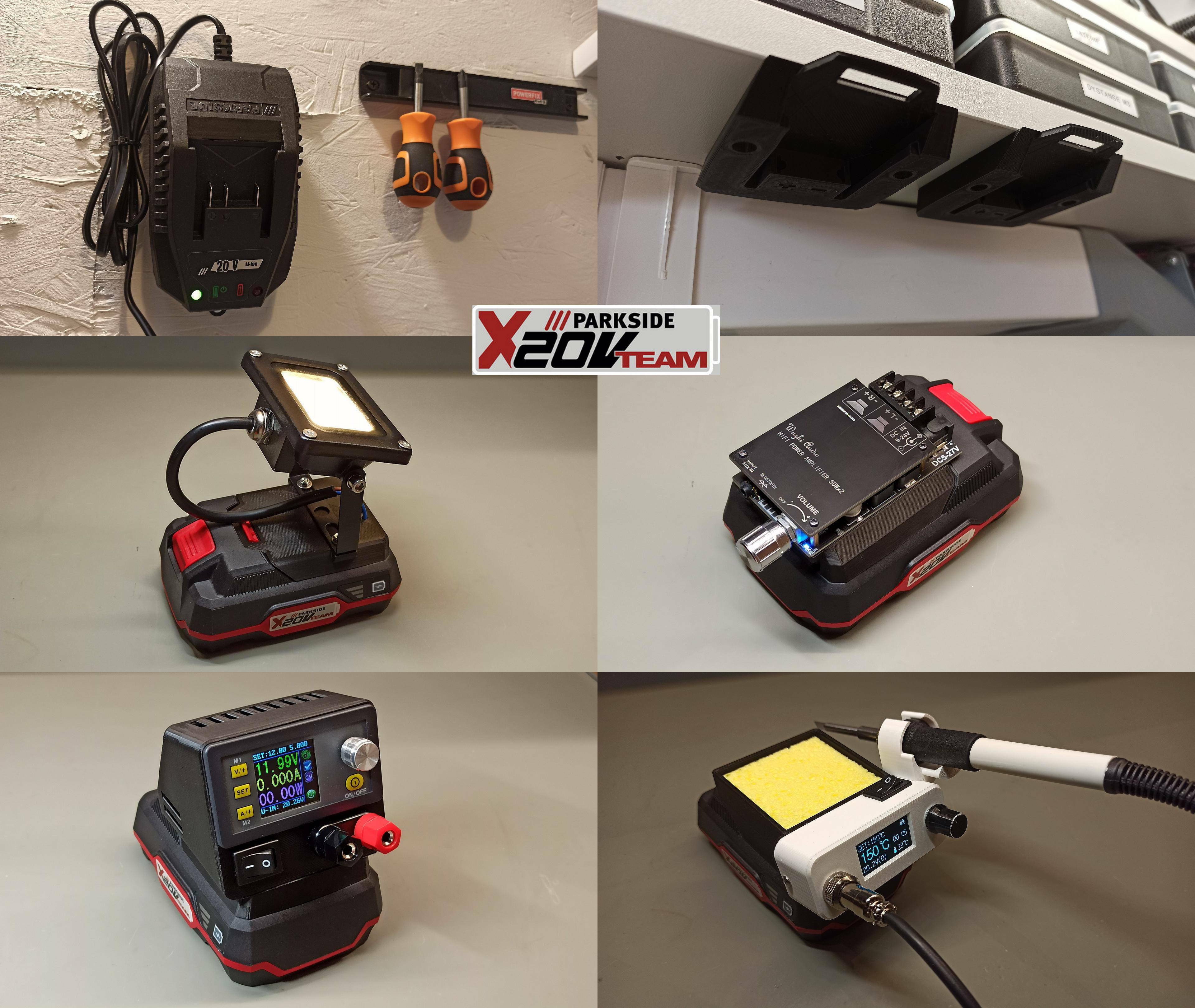

This is my project of useful gadgets and portable wireless devices for Parkside X20V batteries. There are:
- Mounting brackets for the charger
- Battery mounting bracket (shelf and wall mount)
- Floodlight / Work Light - LED 10W
- Audio amplifier TPA3116 Wuzhi - maximum output power RMS 2x20W/4R, 2x24W/8R
- Power supply DPS3005 (max 19.5V/5.1A)
- Soldering station KSGER T12 OLED
STEP files are available so you can modify them to suit your needs.

If you like this project and appreciate my work, you can support me through PayPal.

You need:
- 4 pieces 3x6 mm wood screws
- 3 pieces 3.5x16 mm wood screws

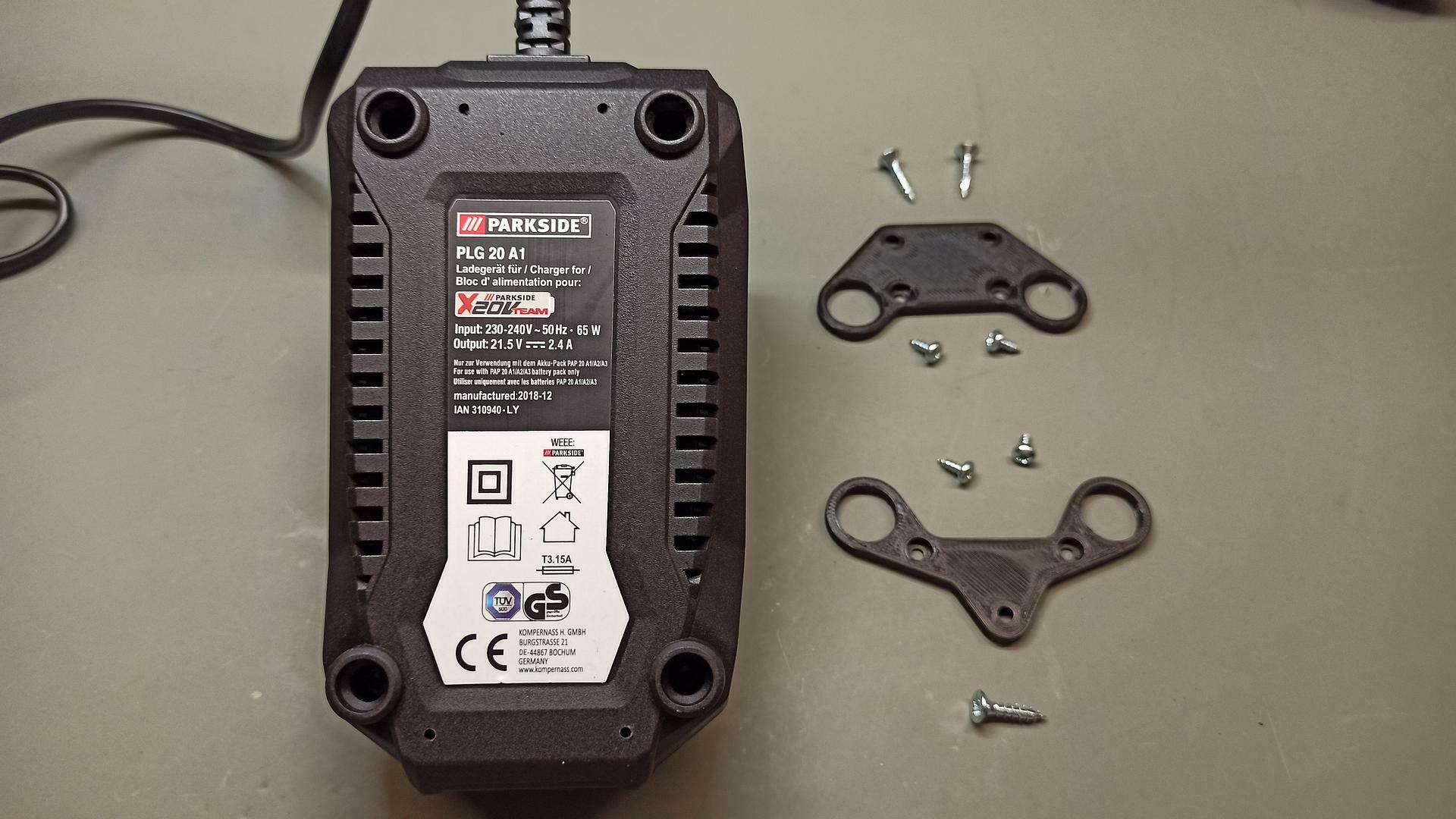

The photos should explain everything.

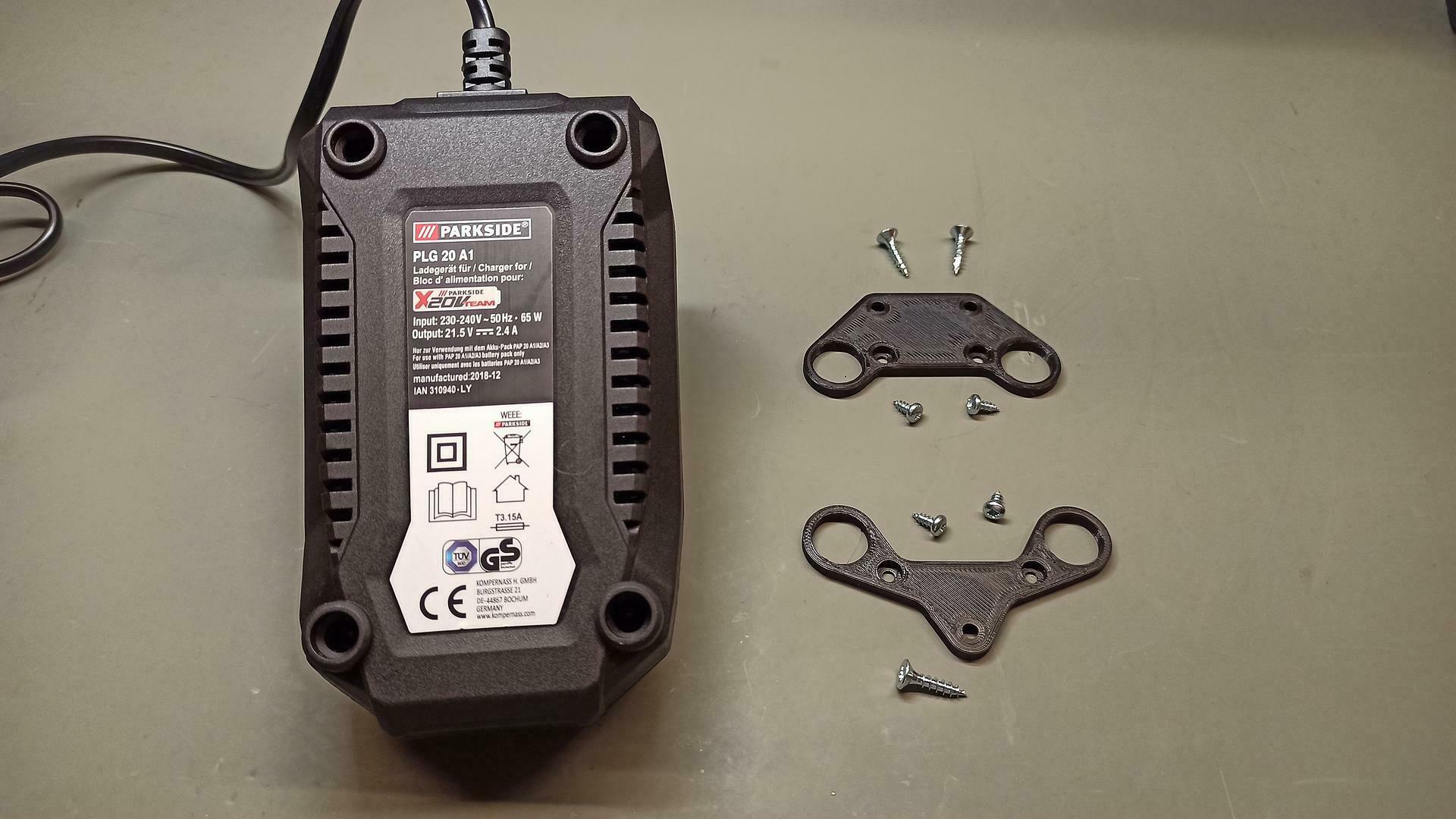

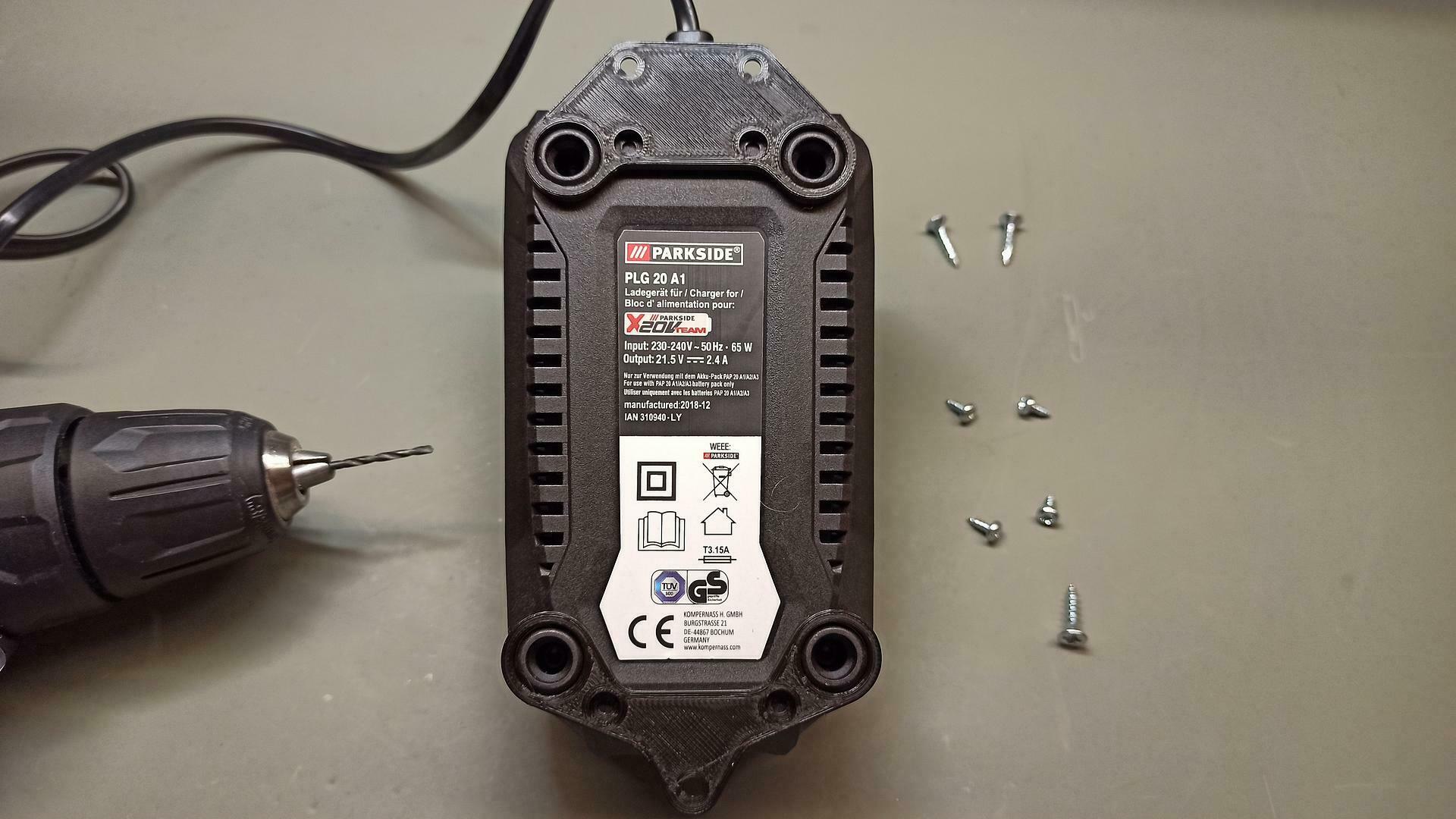

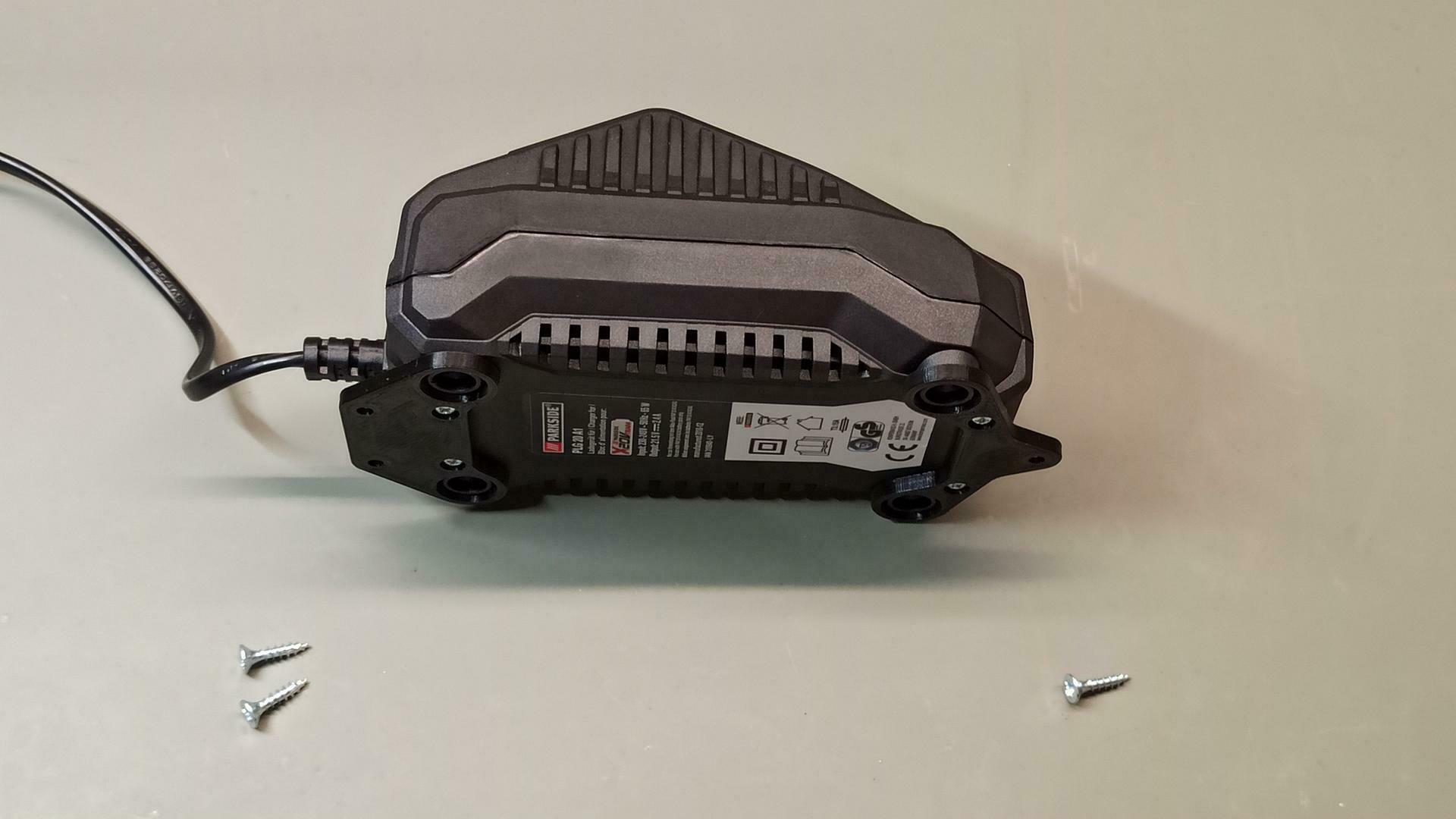

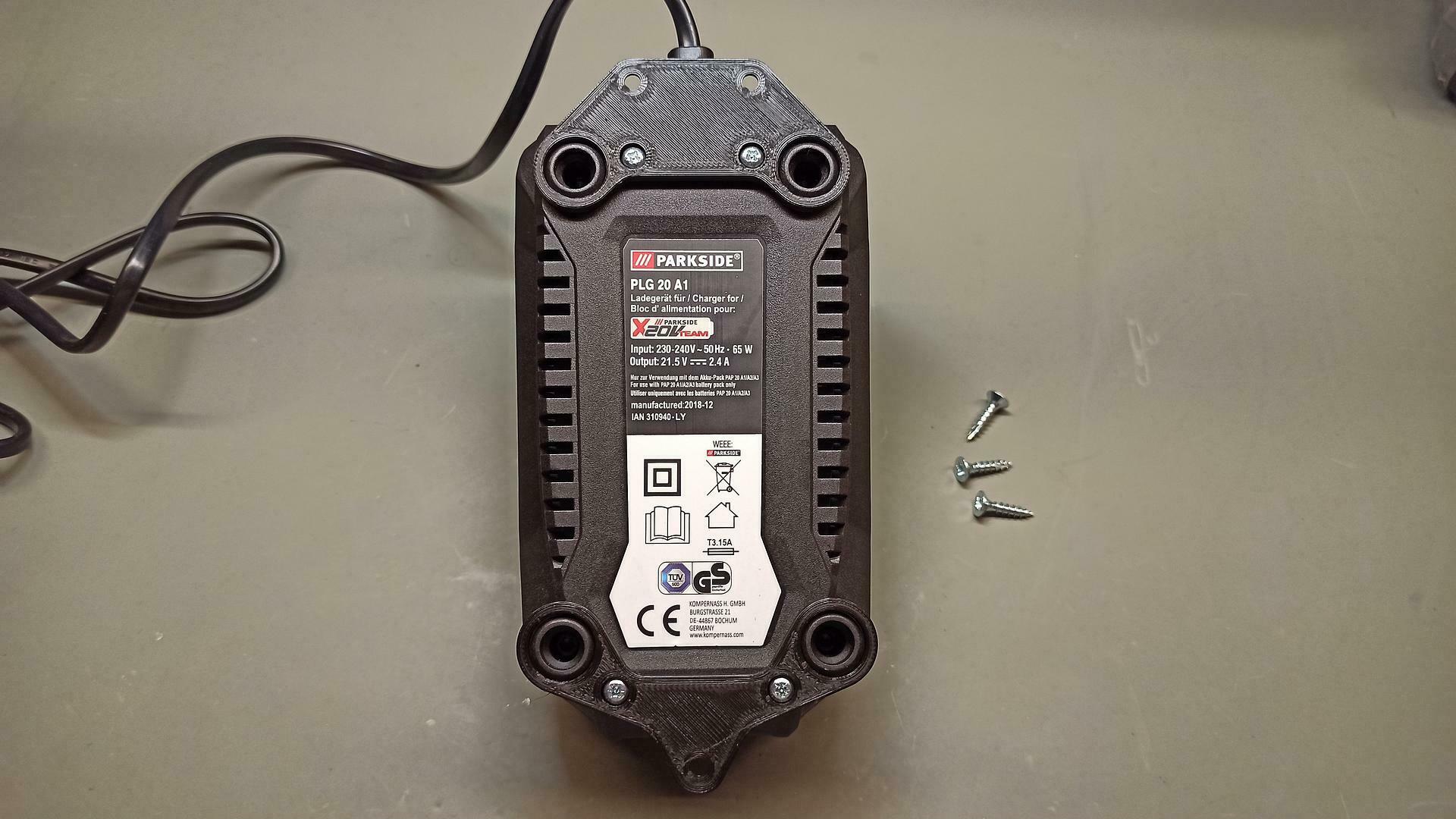

Put the printed parts in place. Drill holes for 3 x 6 mm screws (do not use screws longer than 6 mm). Screw the printed holders to the charger.

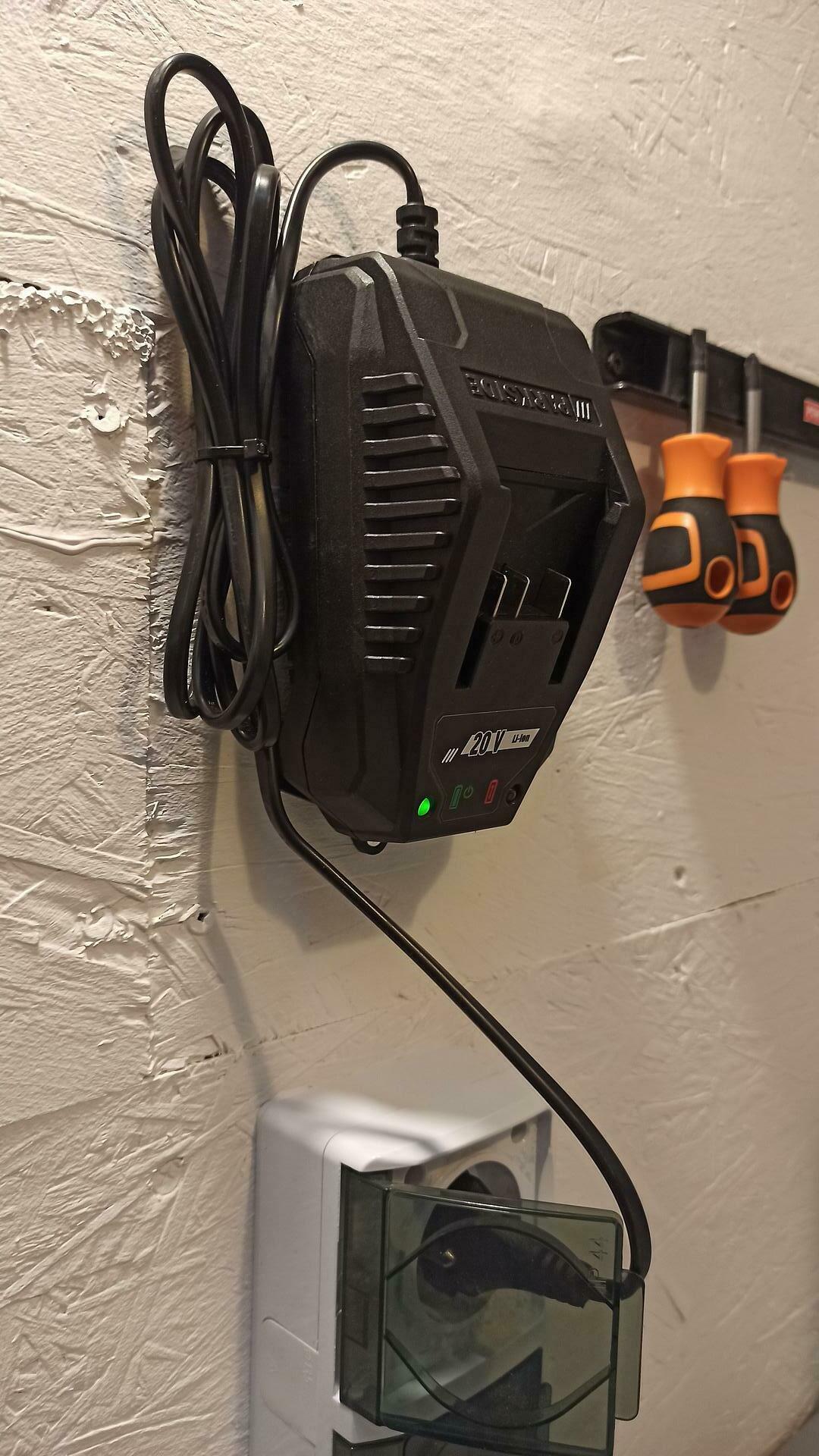

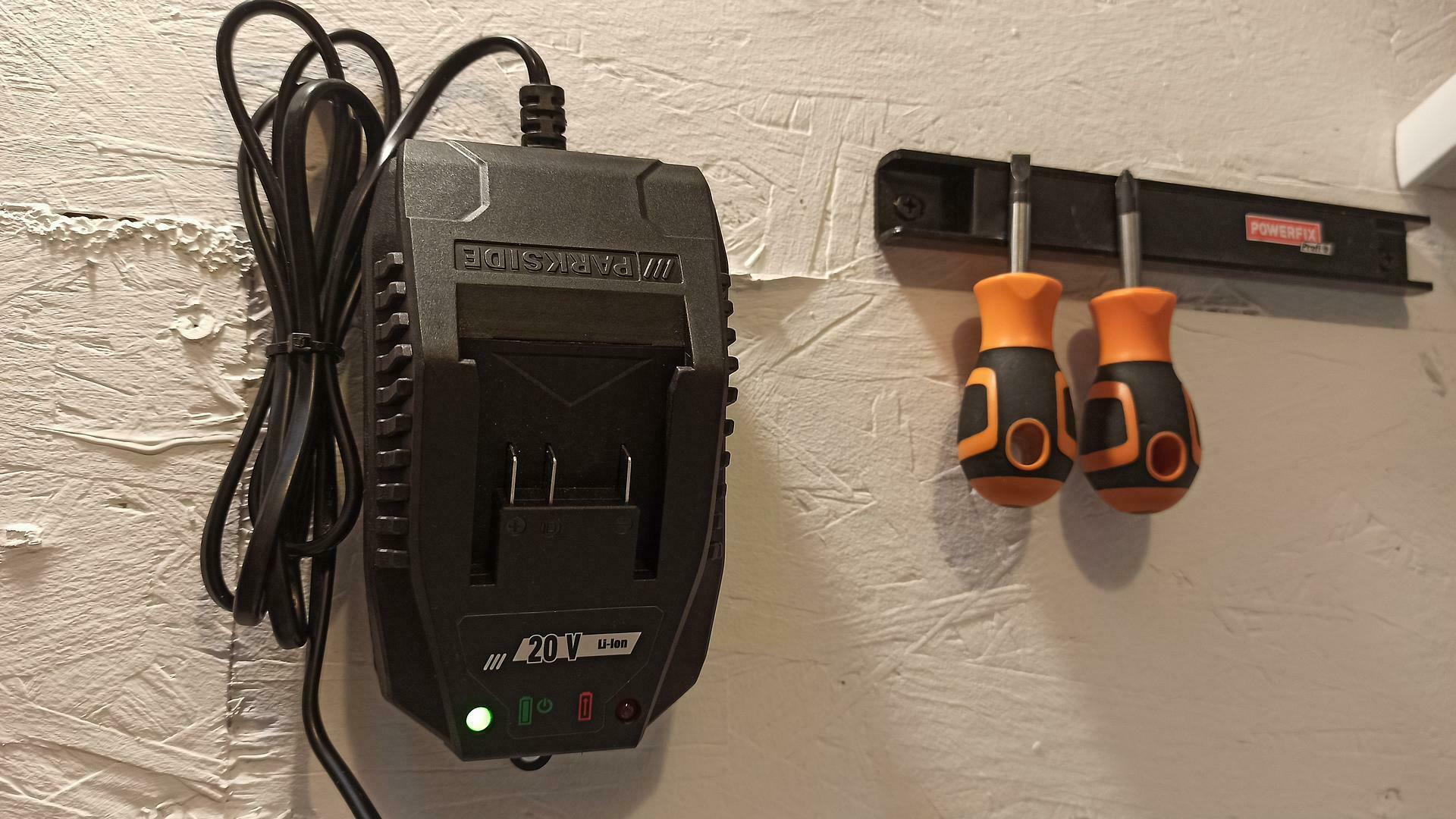

Attach the charger to the side of the cabinet or to the wall.

3D printing settings

The third photo shows the recommended orientation of the elements when printing.
Walls thickness 1.6 mm (4 shells). Layer height 0.2 mm. Infill 25-30%.

3D printer file information

  • Design number: 283487
  • 3D design format: STEP and STL Folder details Close
    • X20V_charger_mount.step
    • X20V_charger_mount.stl

    Learn more about the formats

  • Publication date: 2021-02-03 at 18:20


CC BY-NC-SA - Attribution - Non commercial - Share alike
