Parkside X20V Team LED 10W Floodlight / Work Light

Creation quality: 3.8/5 (3 votes)
Evaluation of members on the printability, utility, level of detail, etc.


3D model description

I present the floodlight for the Parkside X20V Team battery from the LIDL store.

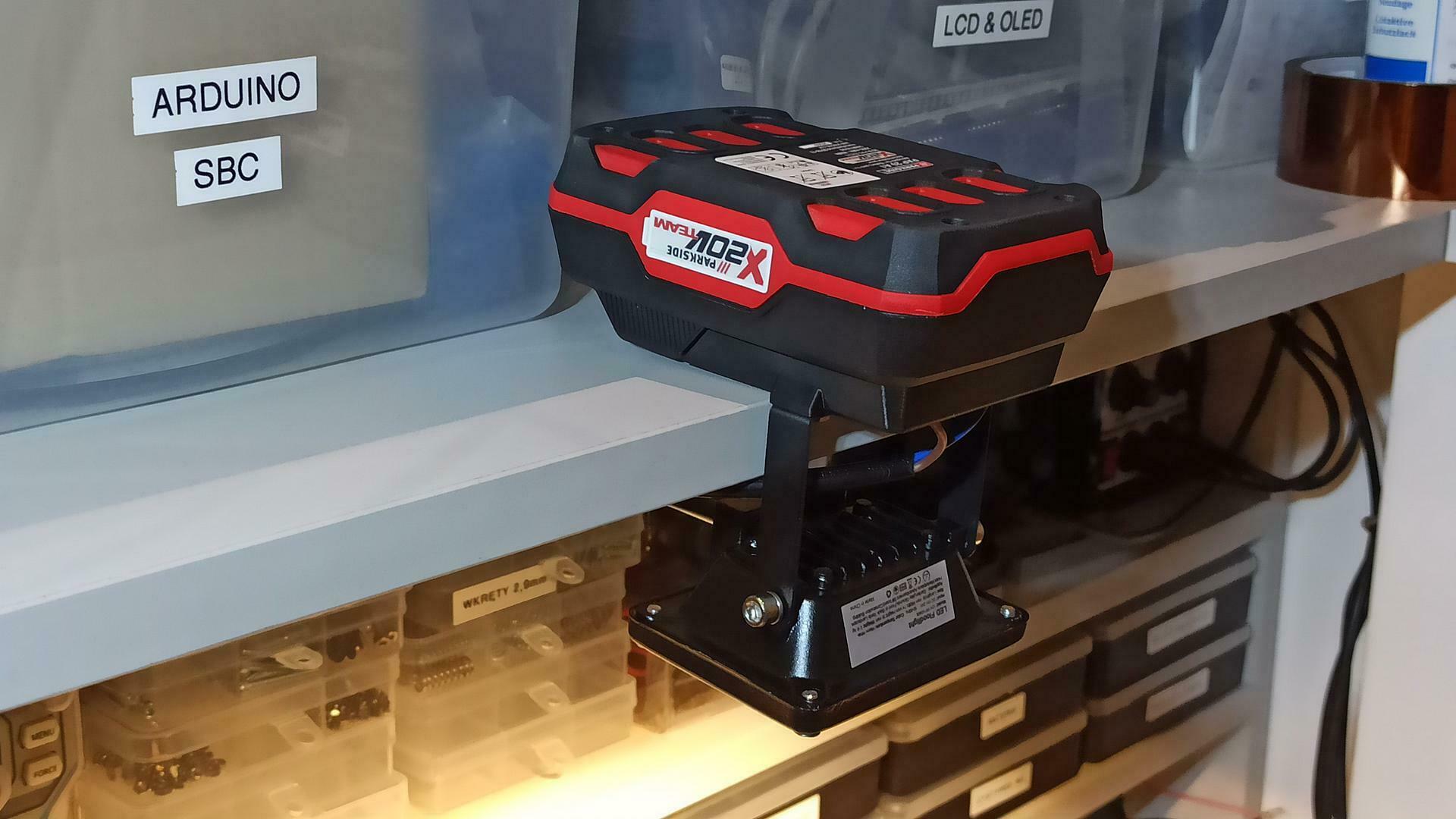

The lamps can be used, for example, to illuminate the working space, to illuminate rooms and campsites without access to the mains power supply.
I recommend using this inexpensive lamp, which is available in various variants and has a built-in DC converter, so you can power it directly from the X20V battery:
Standard 2Ah battery allows you to use the lamp for about 4-5 hours.

WARNING! X20V batteries have no built-in over-discharge protection, so check the battery voltage and do not discharge below 15V.

This is my project of useful gadgets and portable wireless devices for Parkside X20V batteries. There are:
- Mounting brackets for the charger
- Battery mounting bracket (shelf and wall mount)
- Floodlight / Work Light - LED 10W
- Audio amplifier TPA3116 Wuzhi - maximum output power RMS 2x20W/4R, 2x24W/8R
- Power supply DPS3005 (max 19.5V/5.1A)
- Soldering station KSGER T12 OLED
STEP files are available so you can modify them to suit your needs.

If you like this project and appreciate my work, you can support me through PayPal.

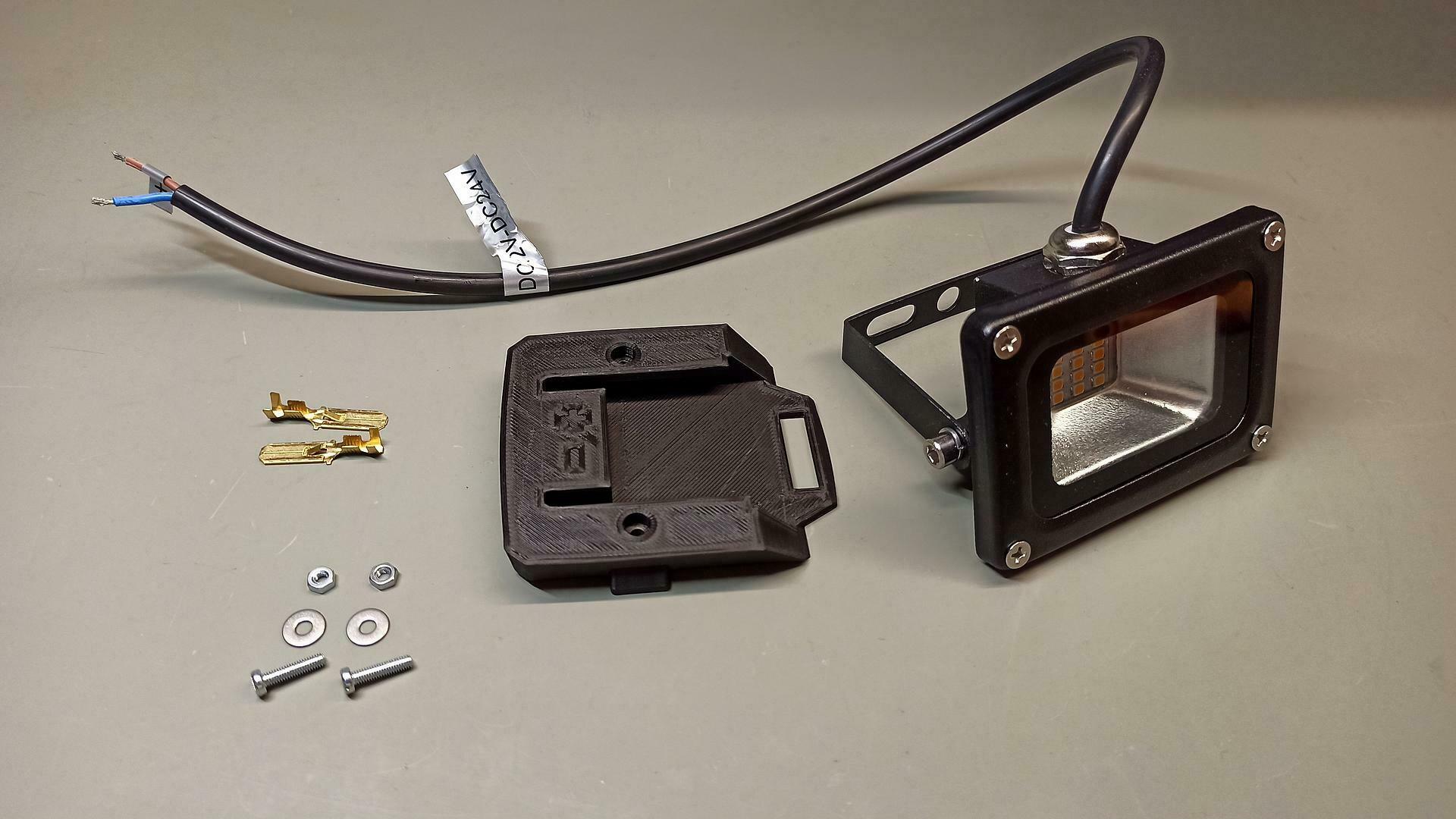

You need:
- 10W LED floodlight
- 2 pieces M3x12 mm screw
- 2 pieces M3 nut
- 2 pieces M3 washer
- 2 pieces long 6.3 mm connectors

The photos should explain everything.

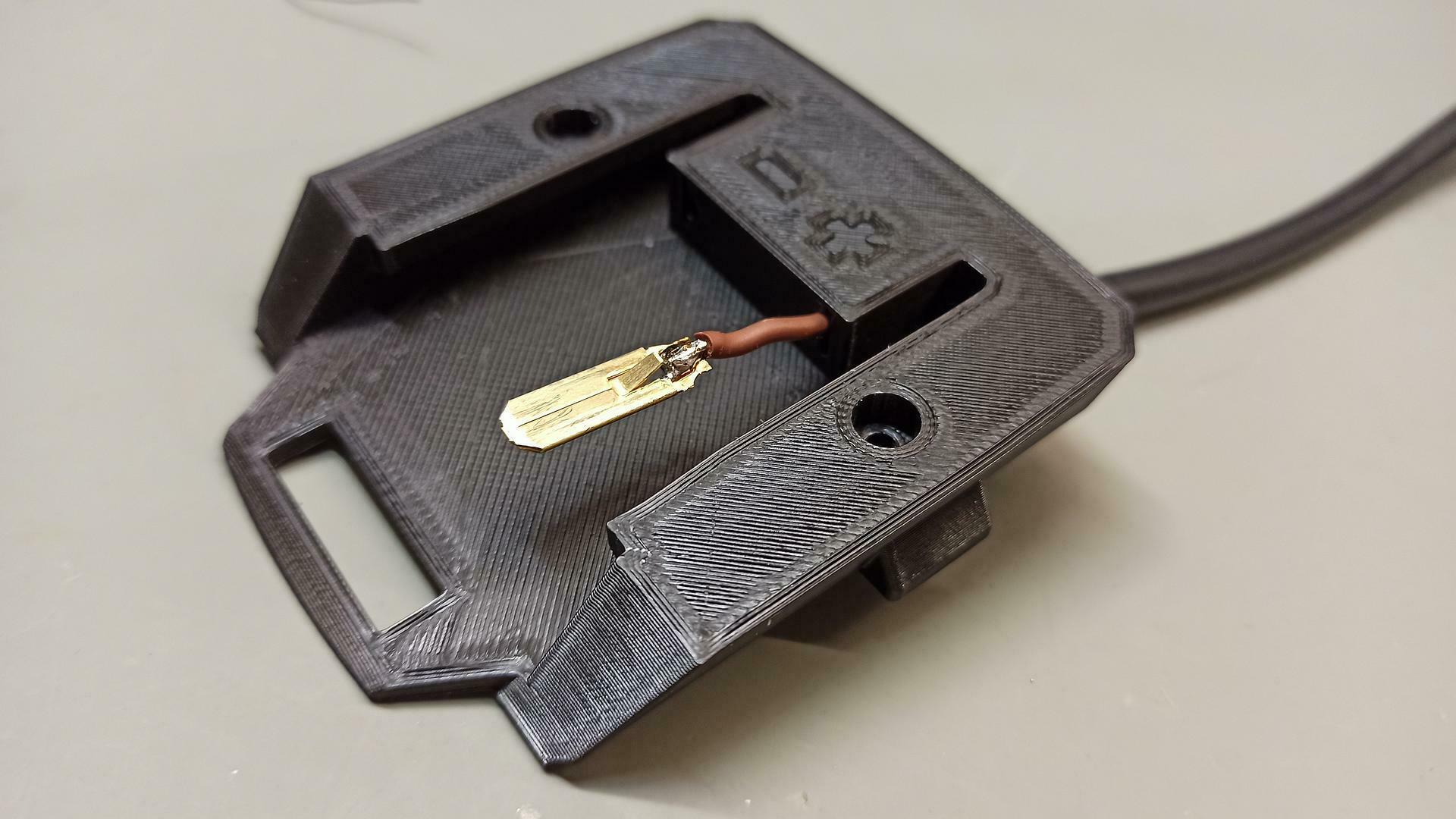

Cut the connectors as shown in the photos and solder the wire connections. Cut the lamp cable to the correct length and strip it.

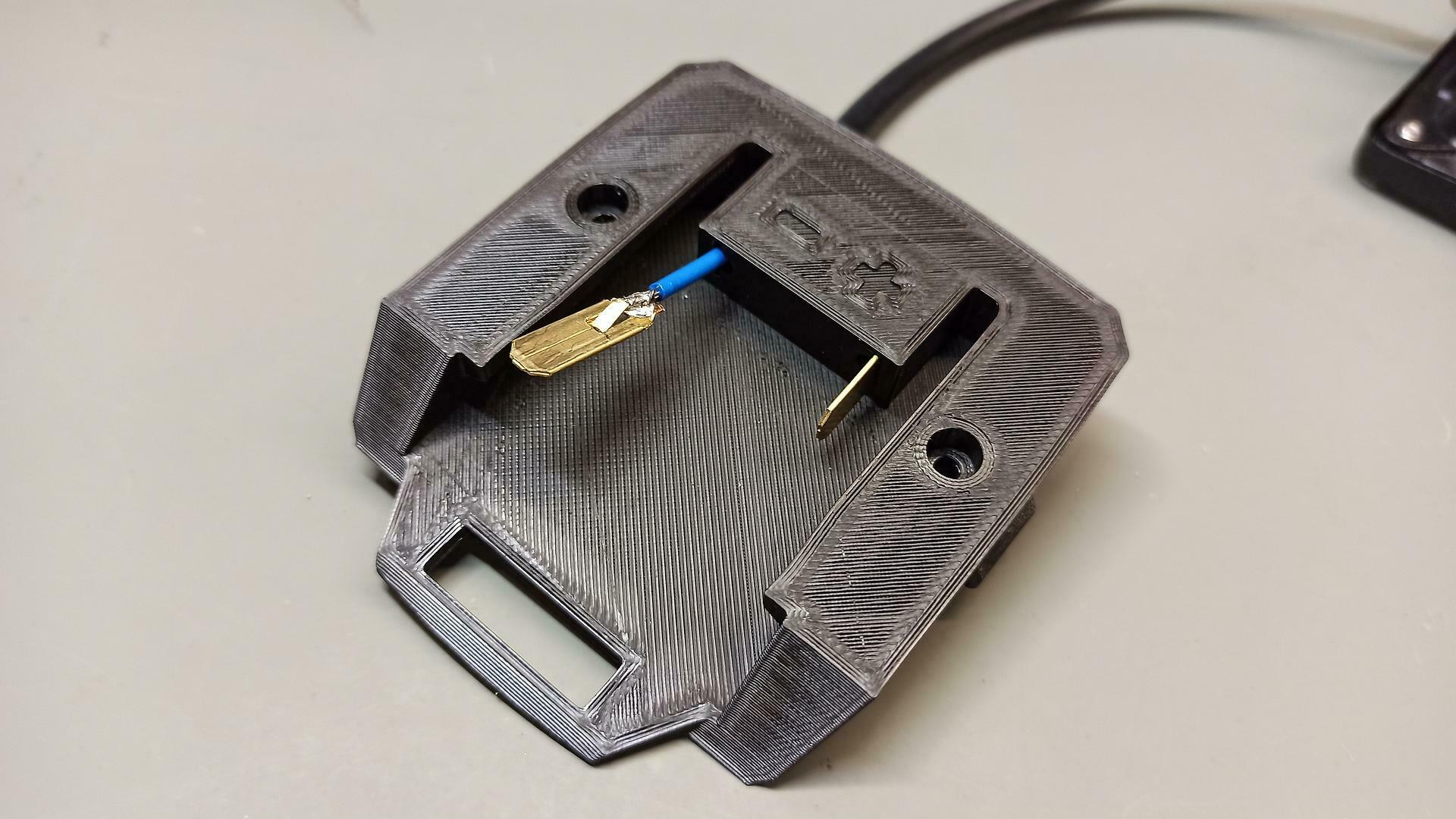

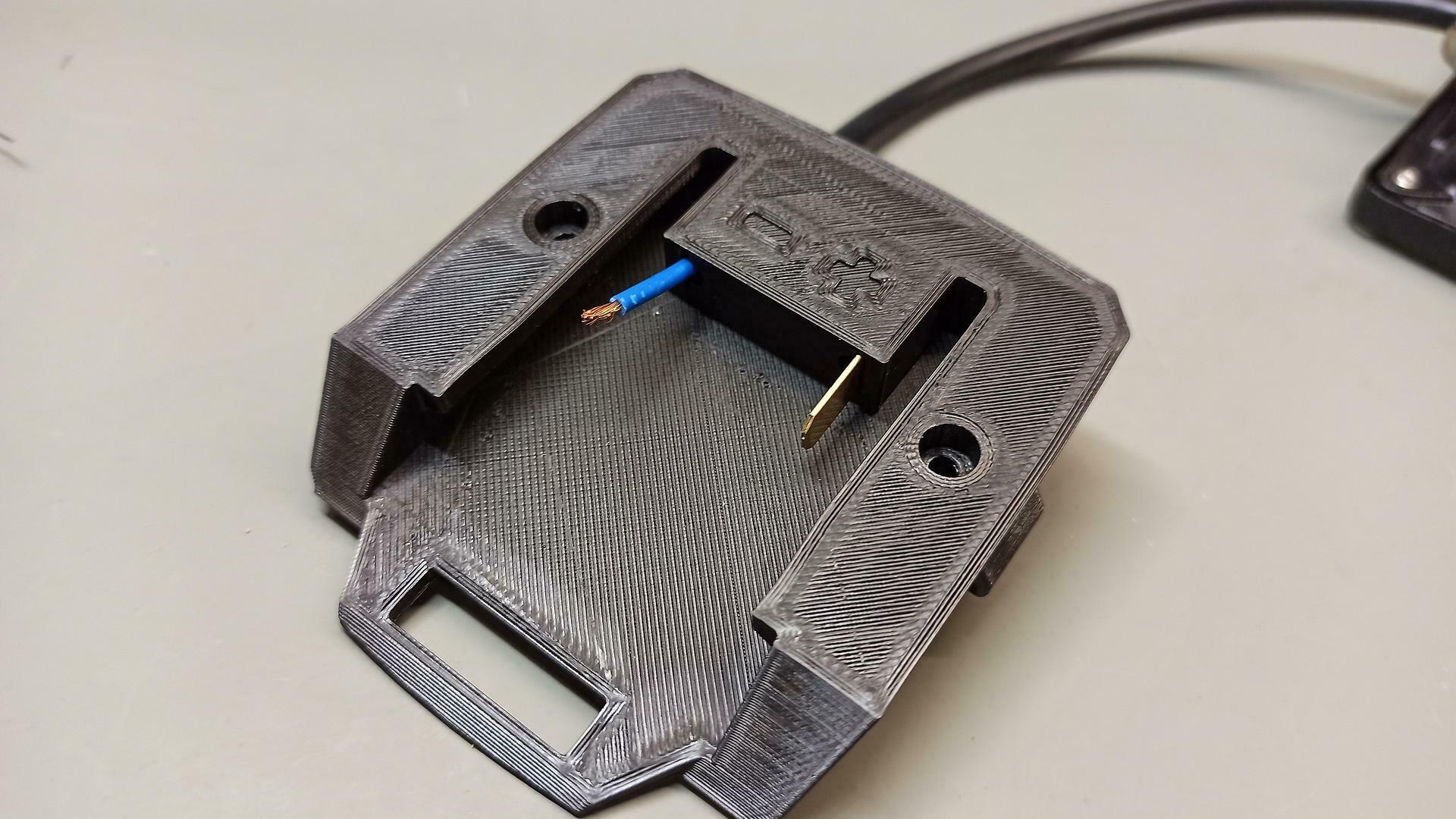

Push the wires through the holes in the 3D print. Solder the ends of the wire and solder the connectors to the wires.

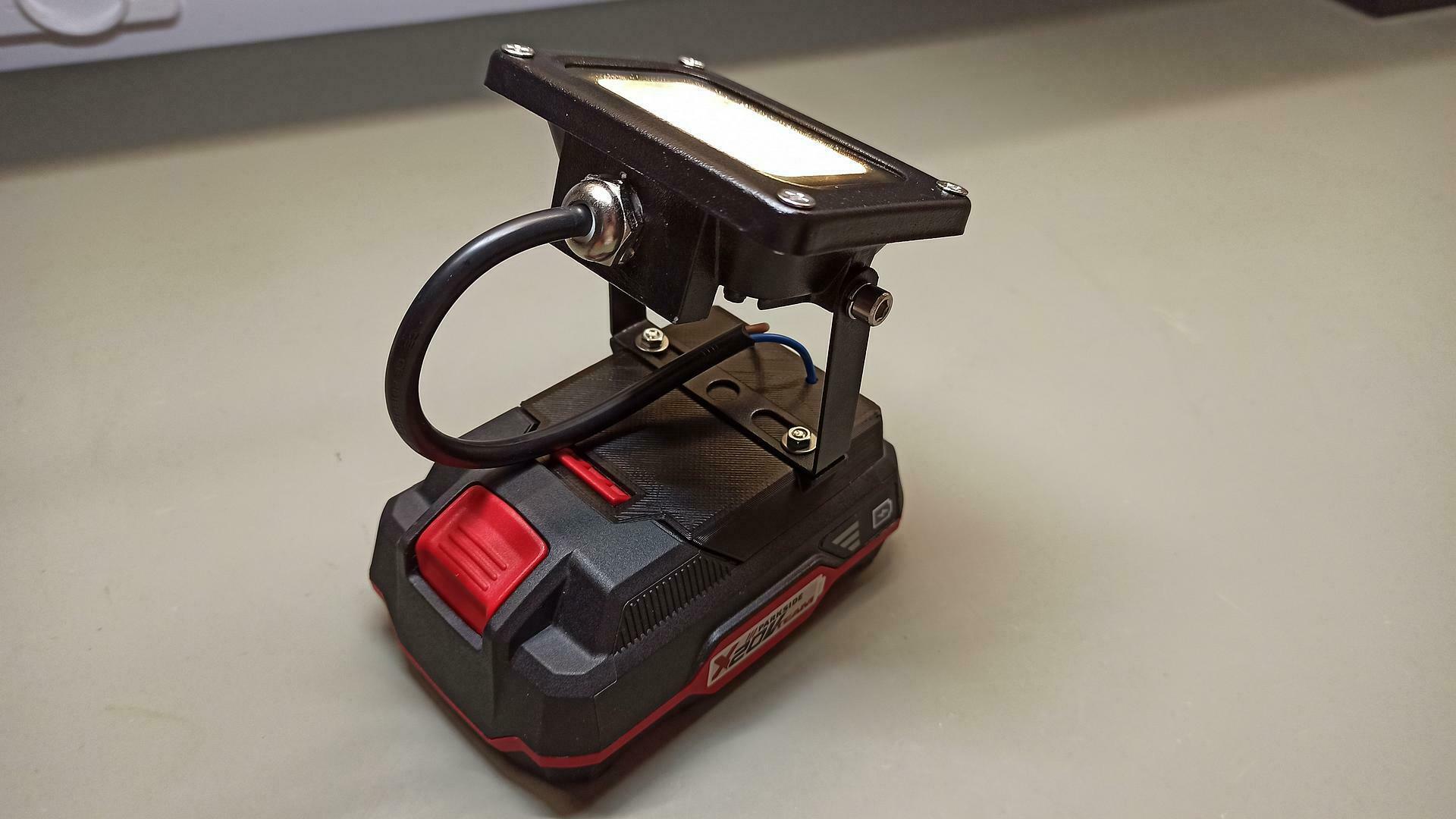

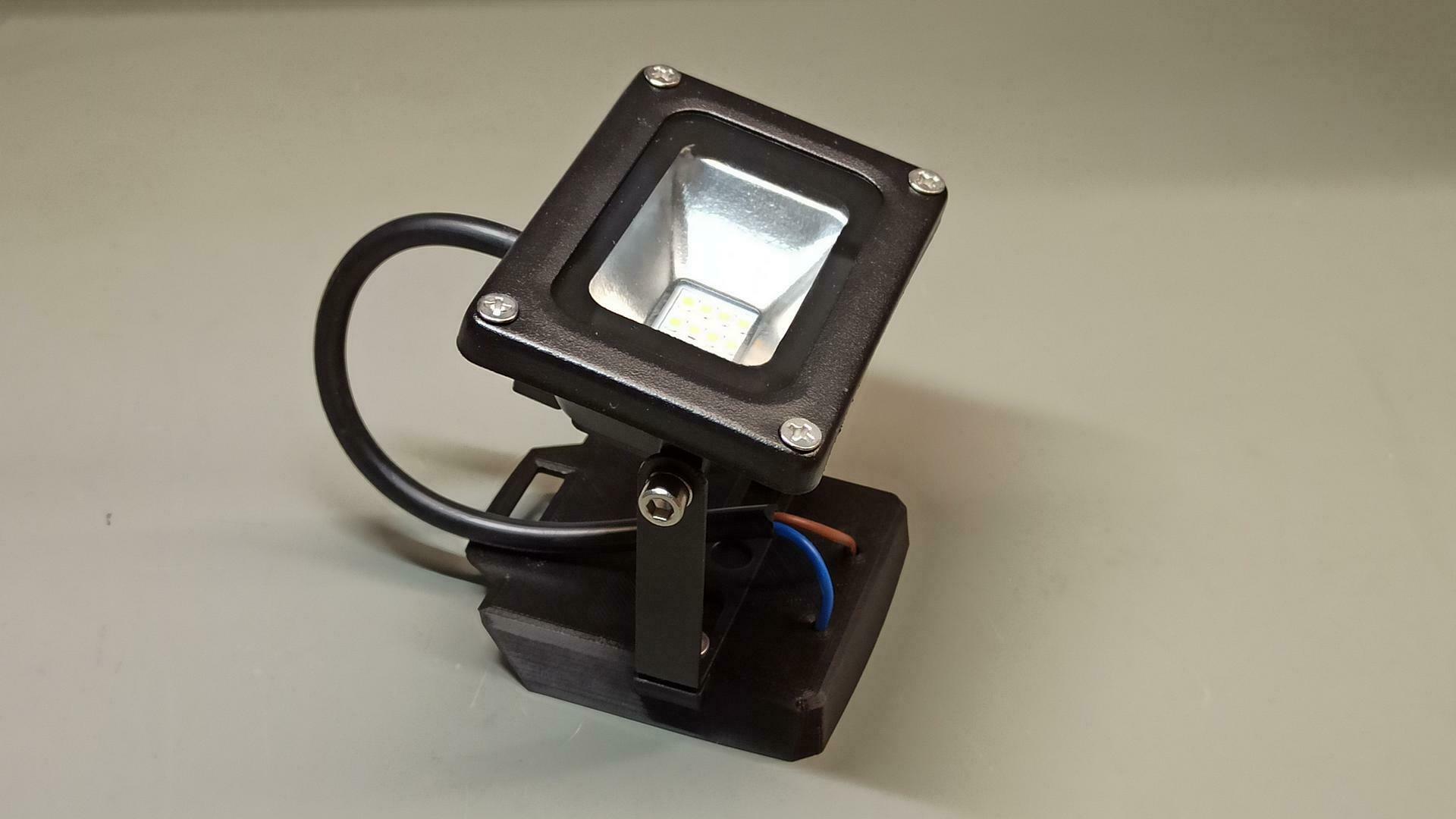

Put the connectors in place and secure them with CA glue. Screw the lamp holder onto the 3D printed part.

3D printing settings

The third photo shows the recommended orientation of the elements when printing.
Walls thickness 1.6 mm (4 shells). Layer height 0.2 mm. Infill 25-30%.
