3D model description
For a newer and improved version on my own website, go to
https://www.designuitinspiratie.nl/3d-printer/universele-nema-17-motor-koelers/
Due to heat my extruder motors do not perform so well with long prints.

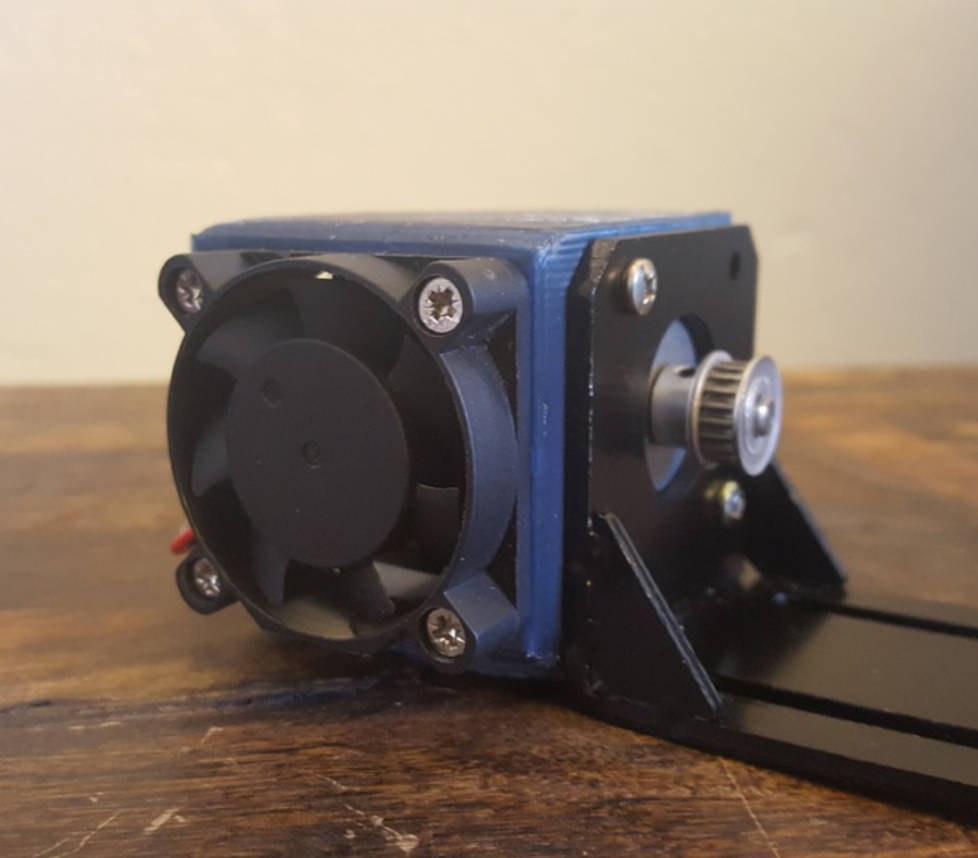

So I made these simple solutions for cooling them :-).
Because I have more than one printer and they are all slightly different,
I have 4 different models.

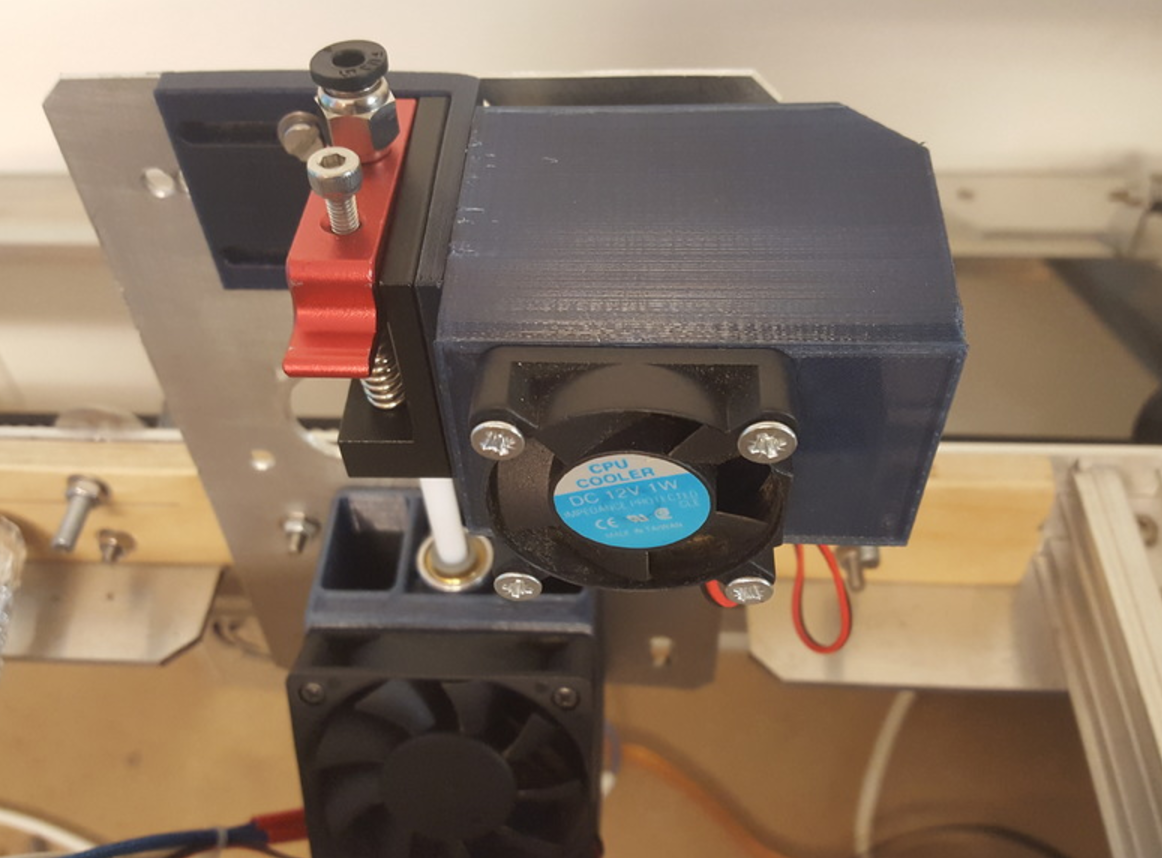

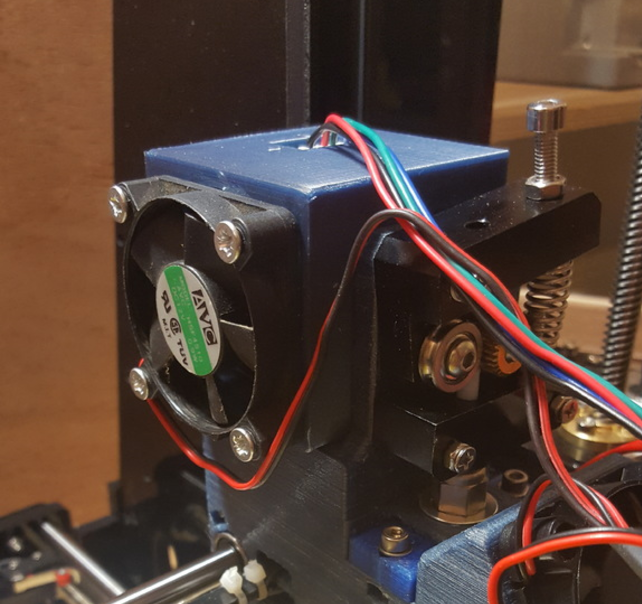

Also the fan size and model varys: see picture

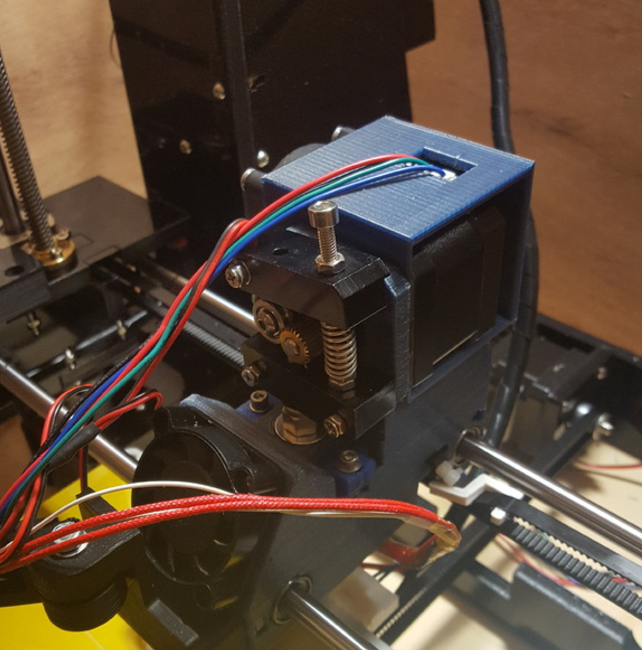

Then there are 2 Nema17 motor sizes: see picture

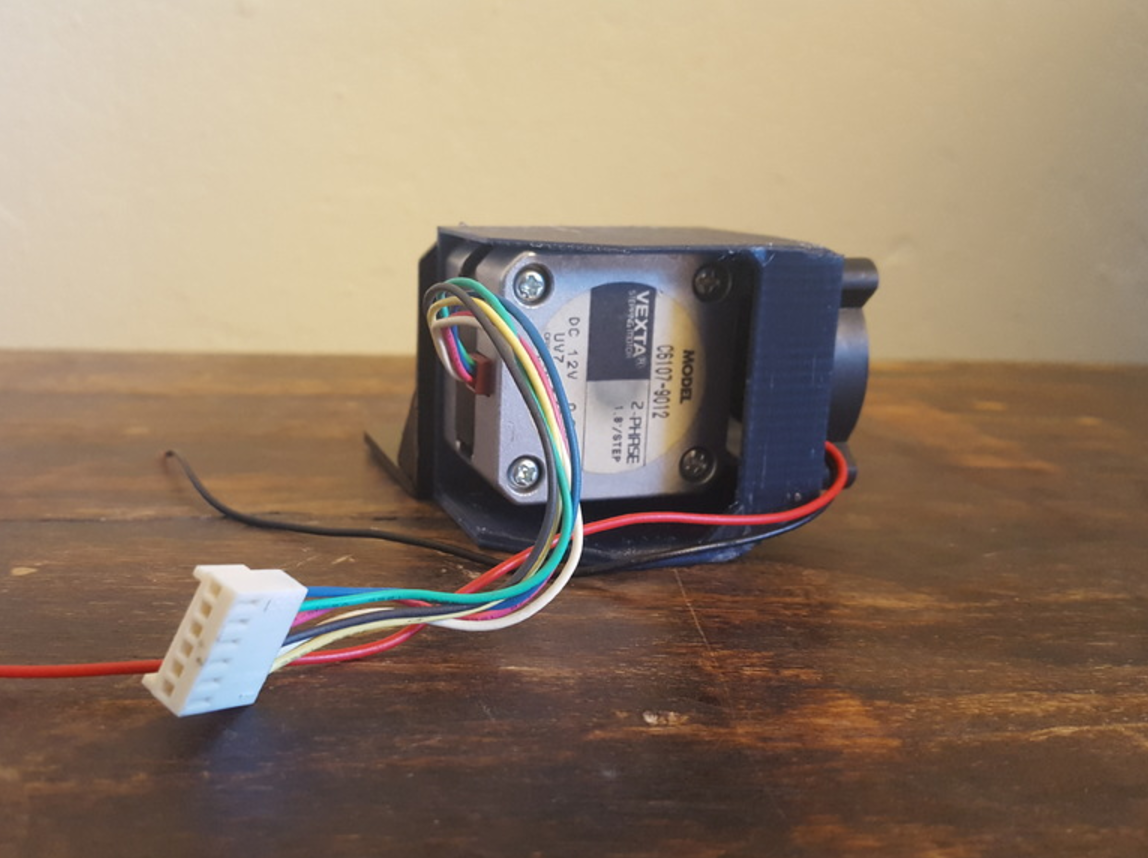

The snail house fan works in opposite direction :-) That was easier :-)
Printed in PET-G
3D printer file information
-
3D design format: STL Folder details Close
- nema_17_x_385_Fan_40x40mm_universal_cooler.stl
- nema_17_x_385_Fan_45x45mm_stepper_Cooler_Anet_A6__JhotendMod.stl
- nema_17_x_385_snailhousefan_Anet_A6__JhotendMod.stl
- nema_17_x_480_Fan_40x40mm_universal_cooler.stl
- Last update: 2020-05-17 at 16:48
- Publication date: 2017-05-29 at 12:52
