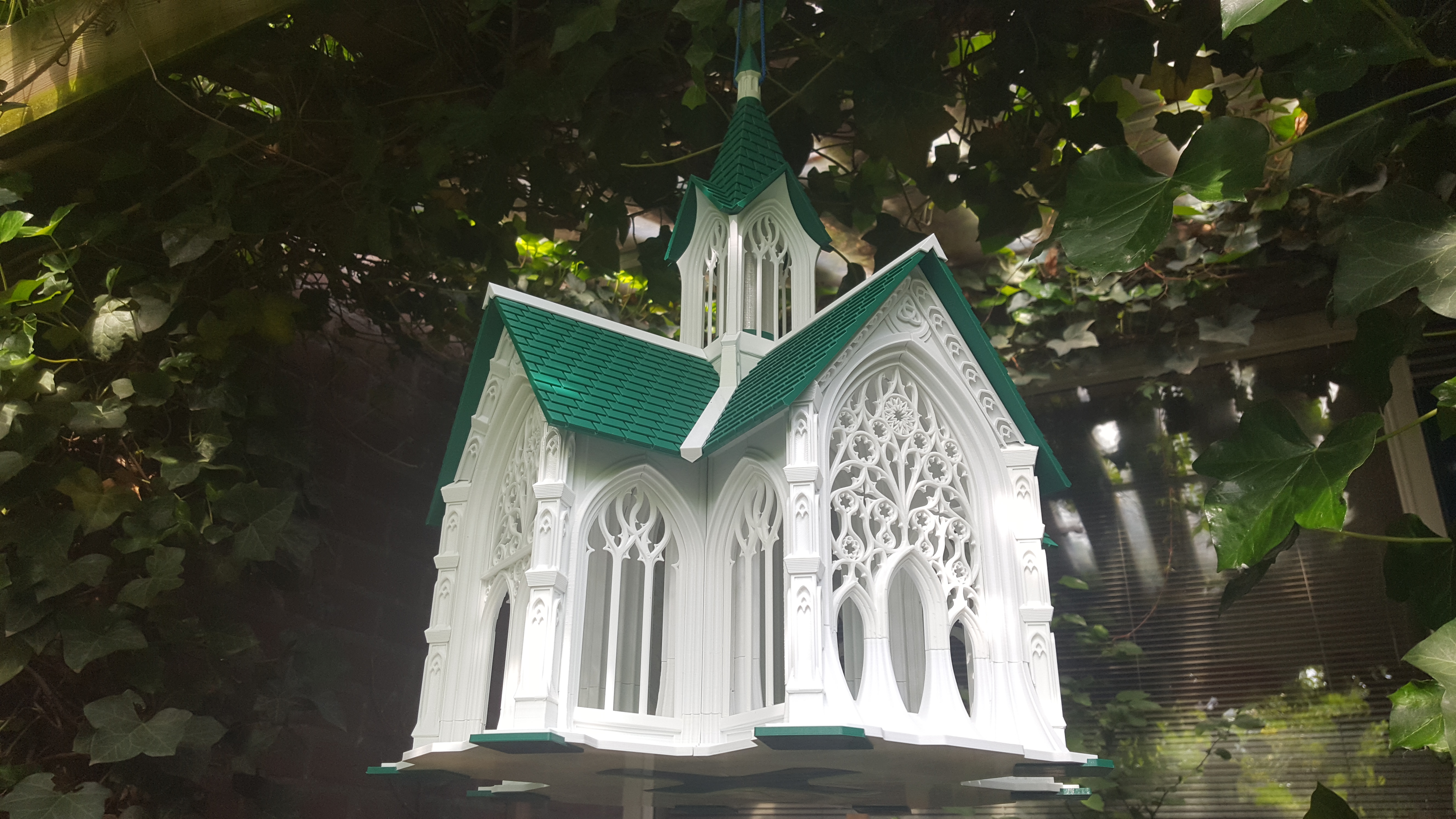

20190604_164346.jpg STL file Bird Cathedral・Design to download and 3D print

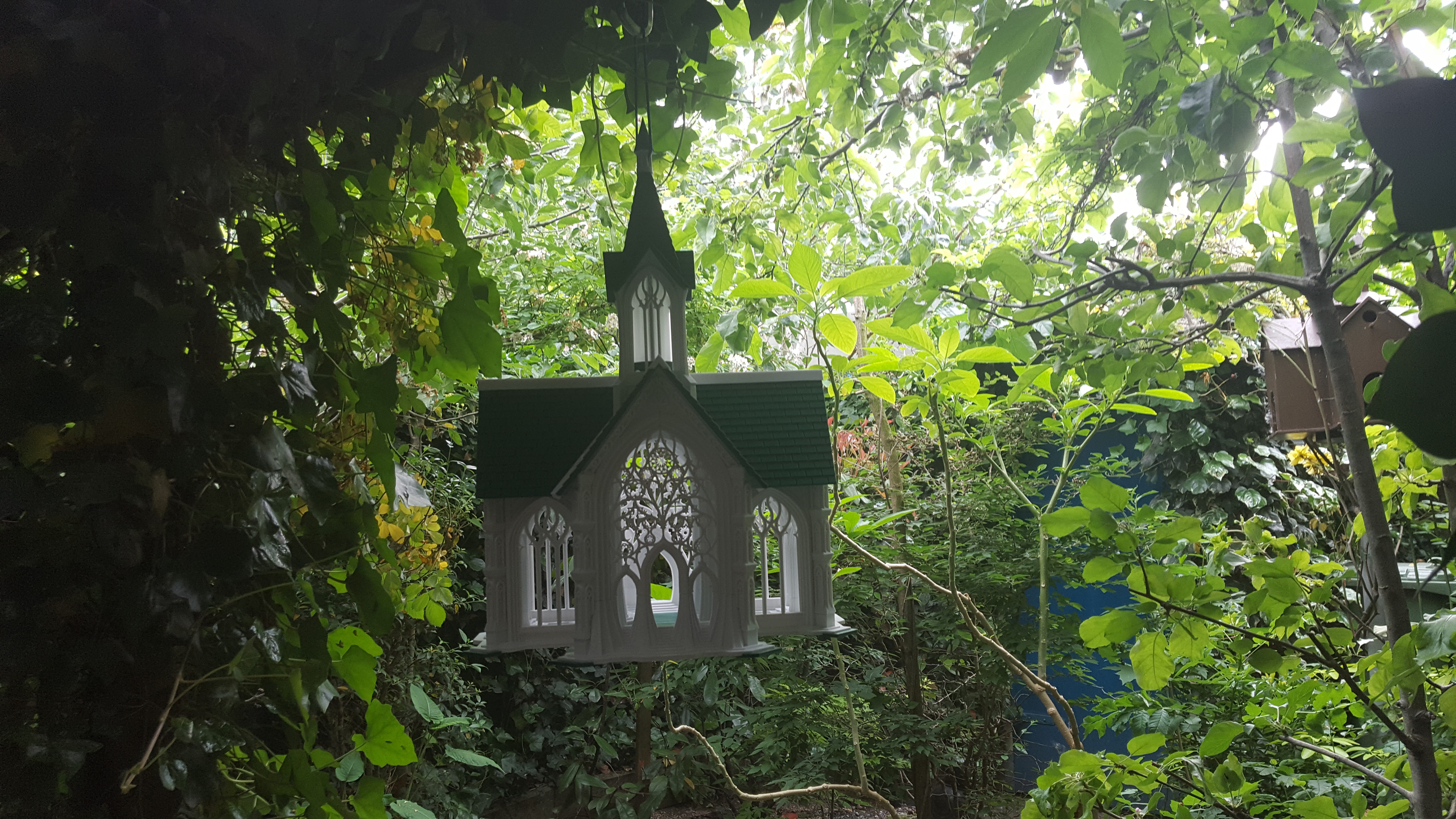

20190604_163801.jpg STL file Bird Cathedral・Design to download and 3D print
20190614_143708.jpg STL file Bird Cathedral・Design to download and 3D print
20190614_143735.jpg STL file Bird Cathedral・Design to download and 3D print

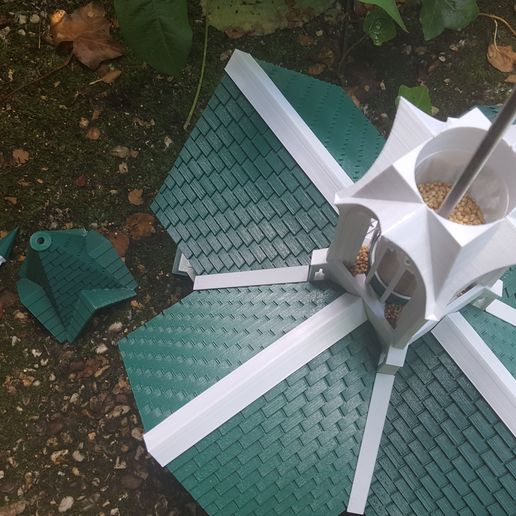

20190614_142913.jpg STL file Bird Cathedral・Design to download and 3D print
20190614_143859.jpg STL file Bird Cathedral・Design to download and 3D print
20190614_143831.jpg STL file Bird Cathedral・Design to download and 3D print
20190614_151416.jpg STL file Bird Cathedral・Design to download and 3D print
20190614_144029.jpg STL file Bird Cathedral・Design to download and 3D print

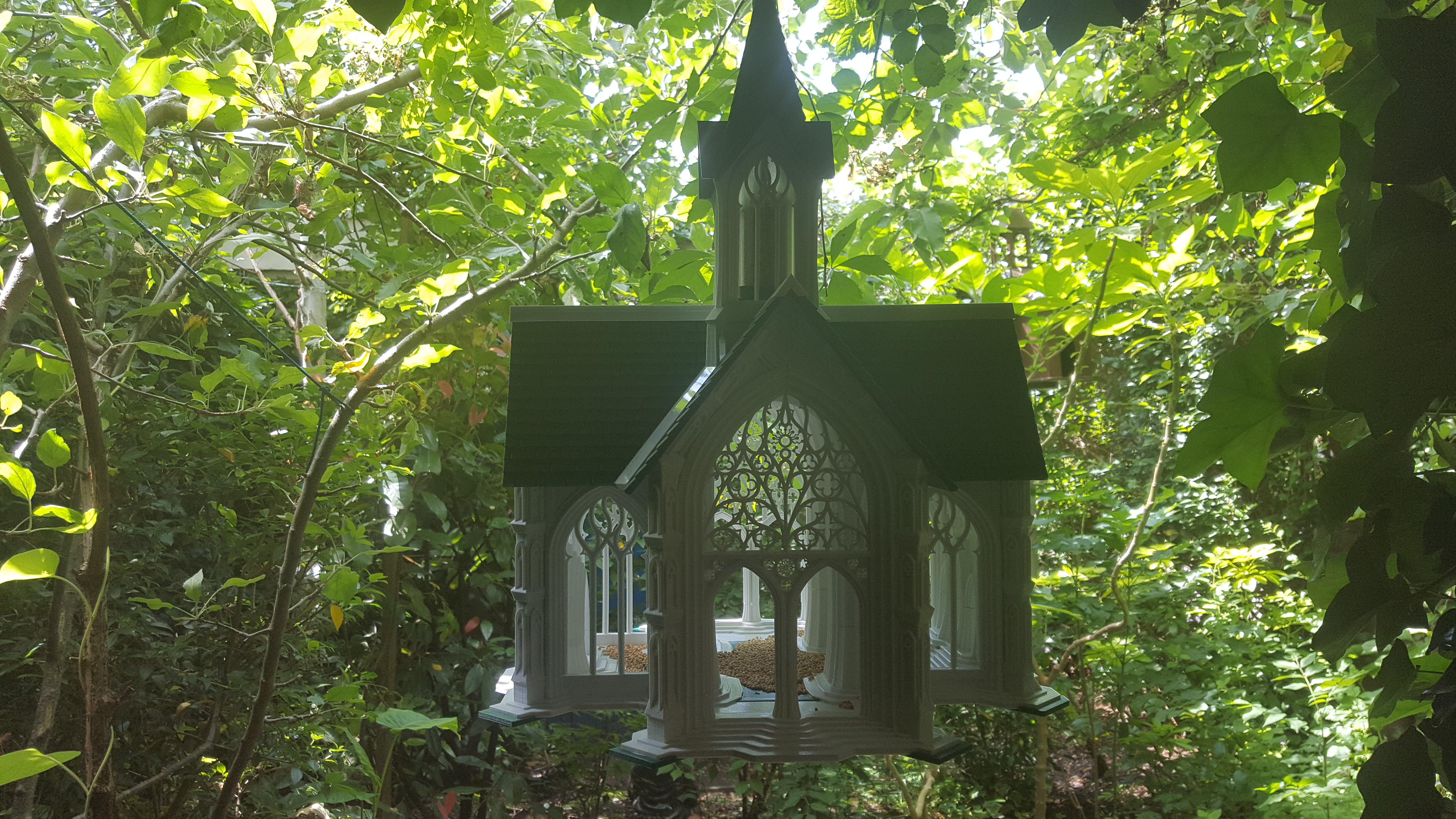

20190614_144043.jpg STL file Bird Cathedral・Design to download and 3D print

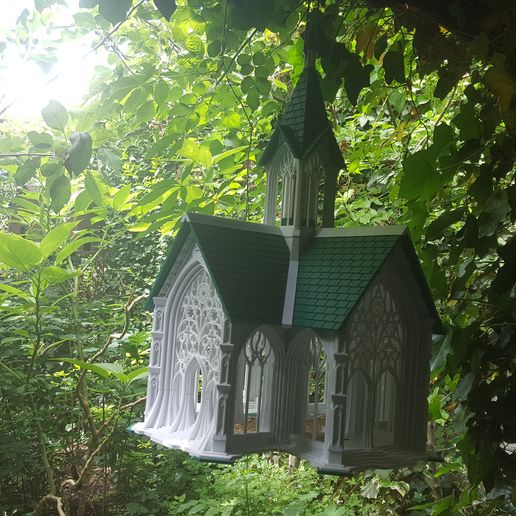

20190614_144149.jpg STL file Bird Cathedral・Design to download and 3D print
20190614_144155.jpg STL file Bird Cathedral・Design to download and 3D print

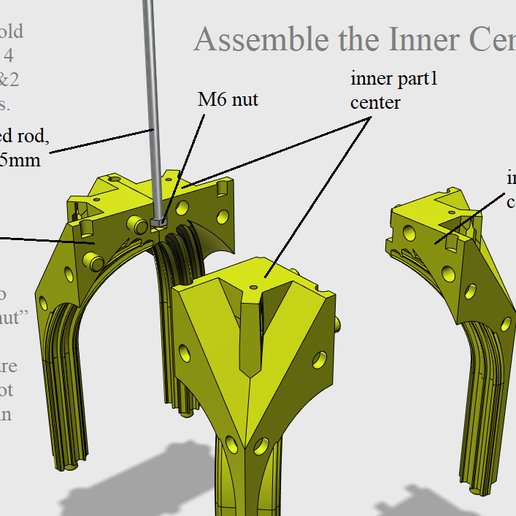

01 Assemble the Inner Center Part.png STL file Bird Cathedral・Design to download and 3D print

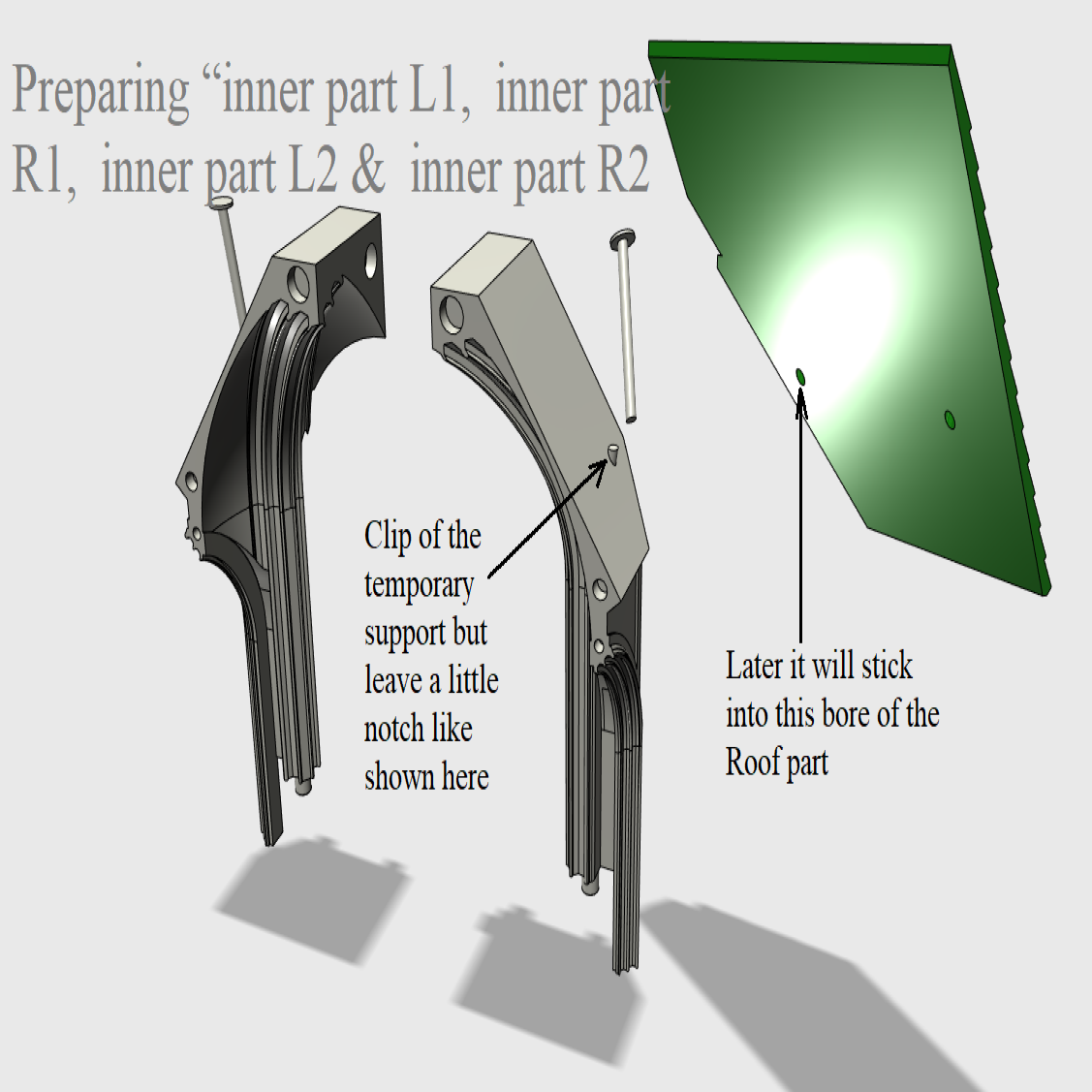

02 Preparing “inner part L1, inner part R1, inner part L2, inner part R2.png STL file Bird Cathedral・Design to download and 3D print

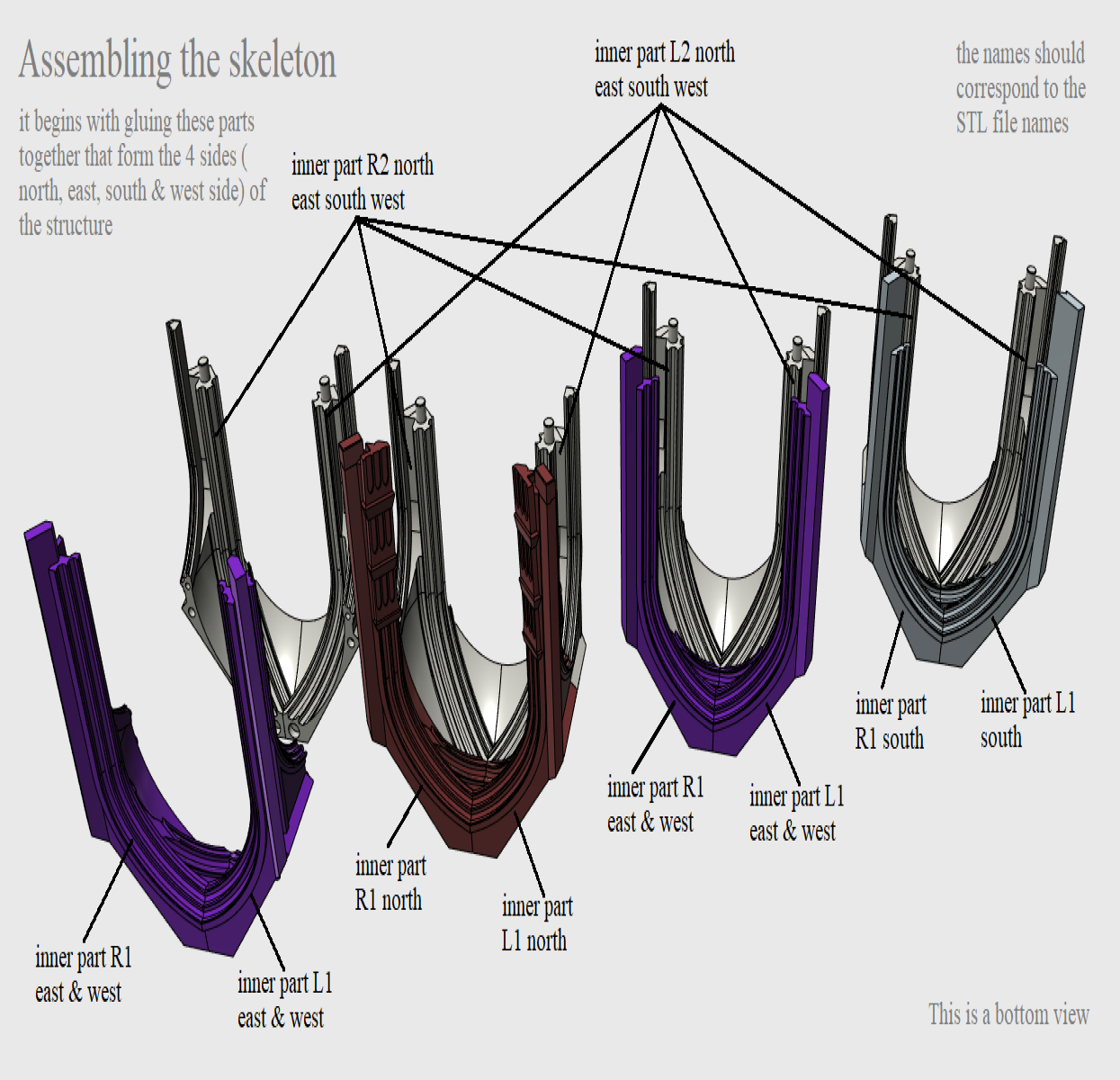

03 Assembling the skeleton.png STL file Bird Cathedral・Design to download and 3D print

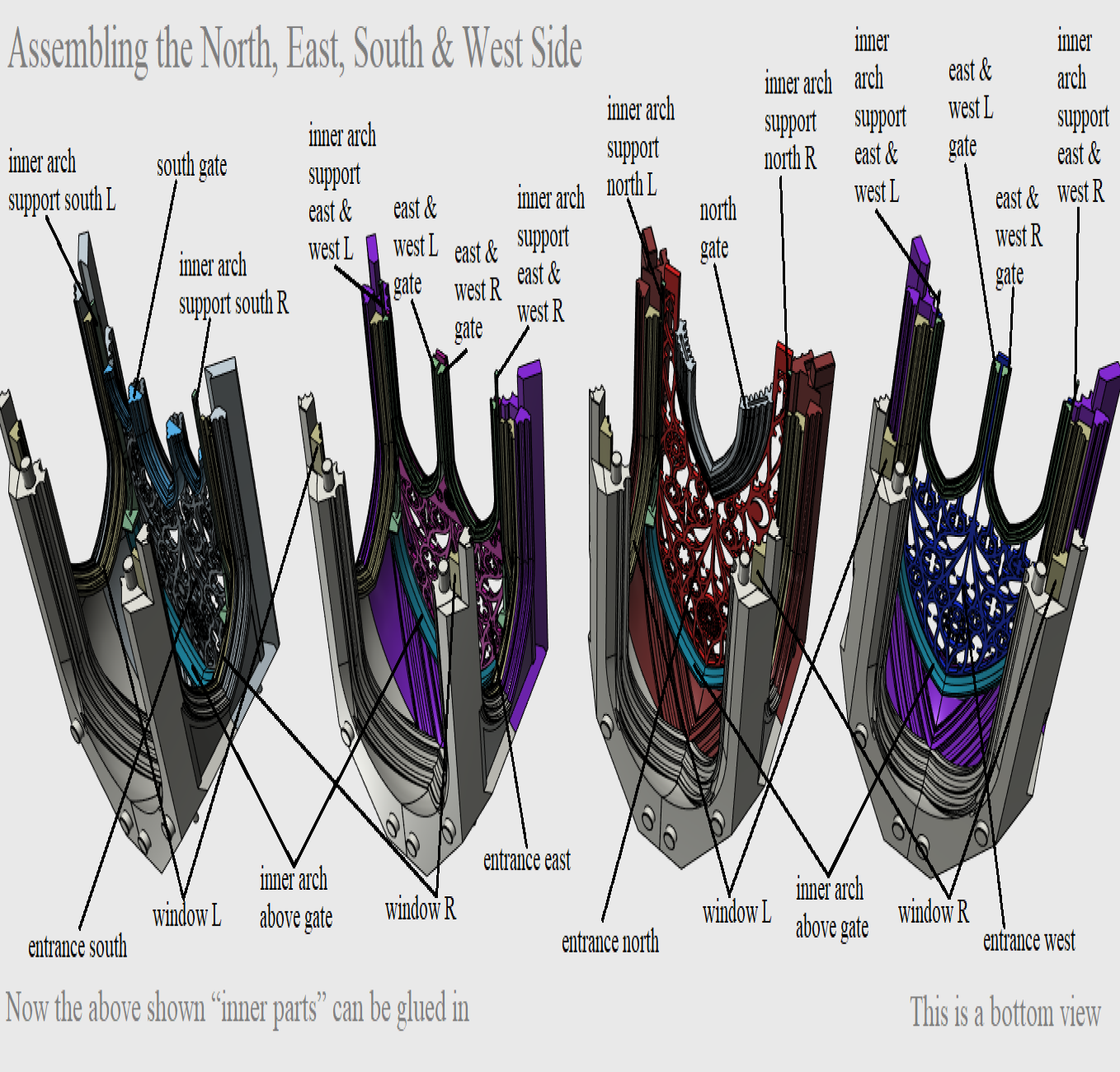

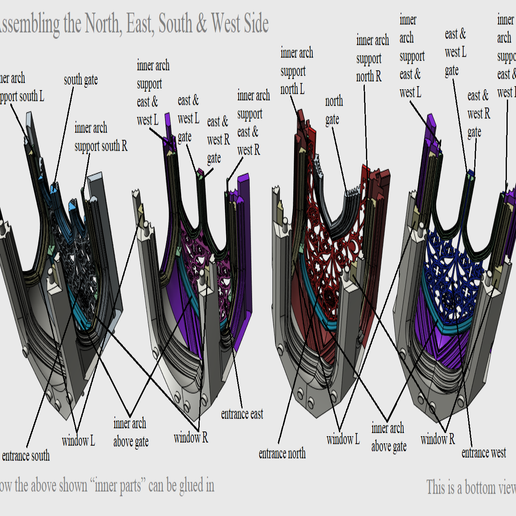

04 Assembling the North, East, South, West Side.png STL file Bird Cathedral・Design to download and 3D print

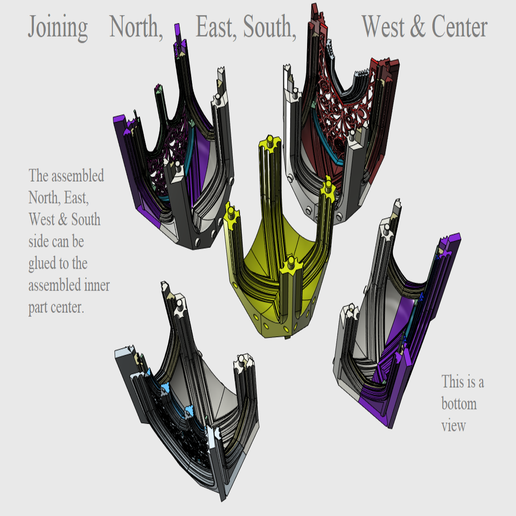

05 Joining north east south west and center.png STL file Bird Cathedral・Design to download and 3D print

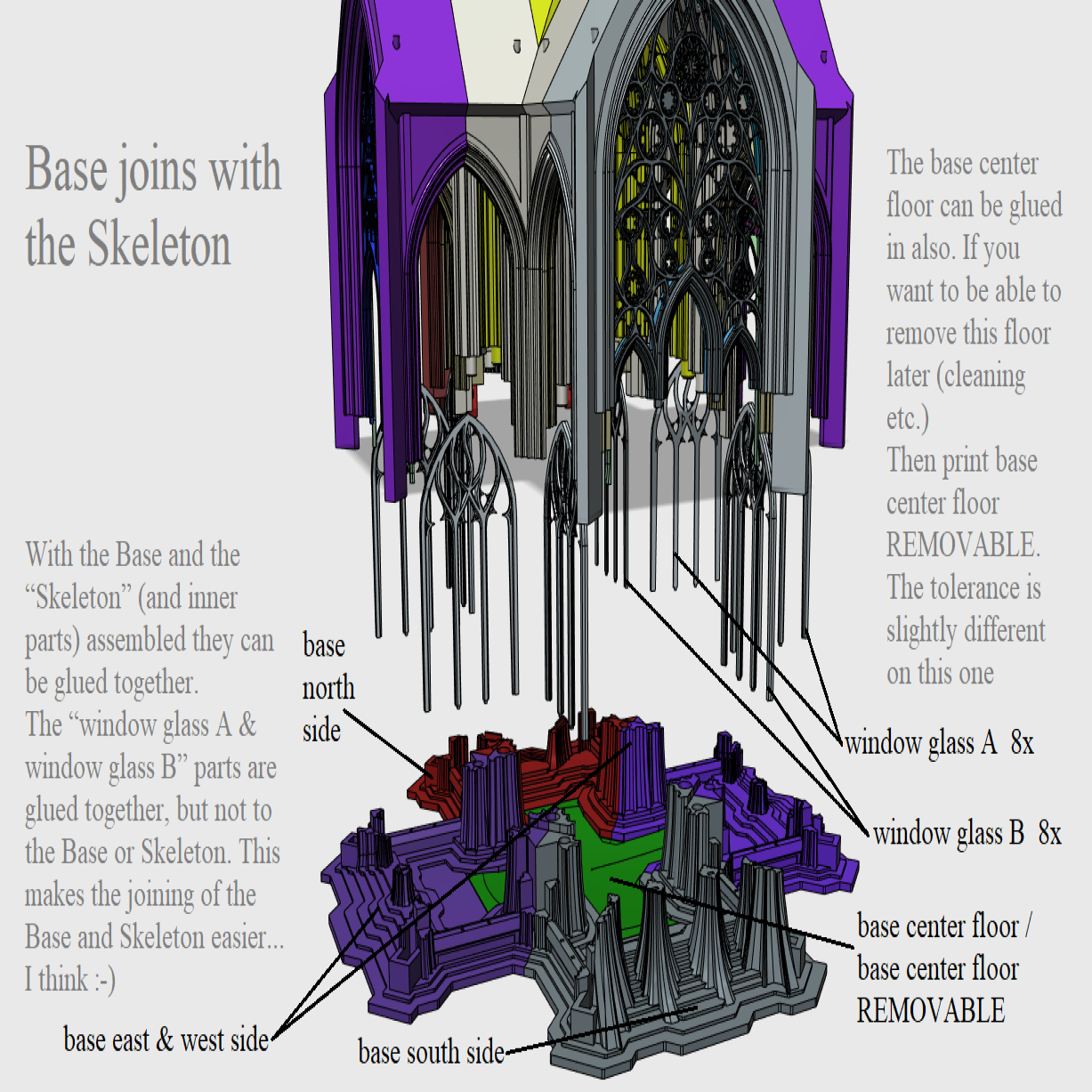

06 base joins with the skeleton.png STL file Bird Cathedral・Design to download and 3D print

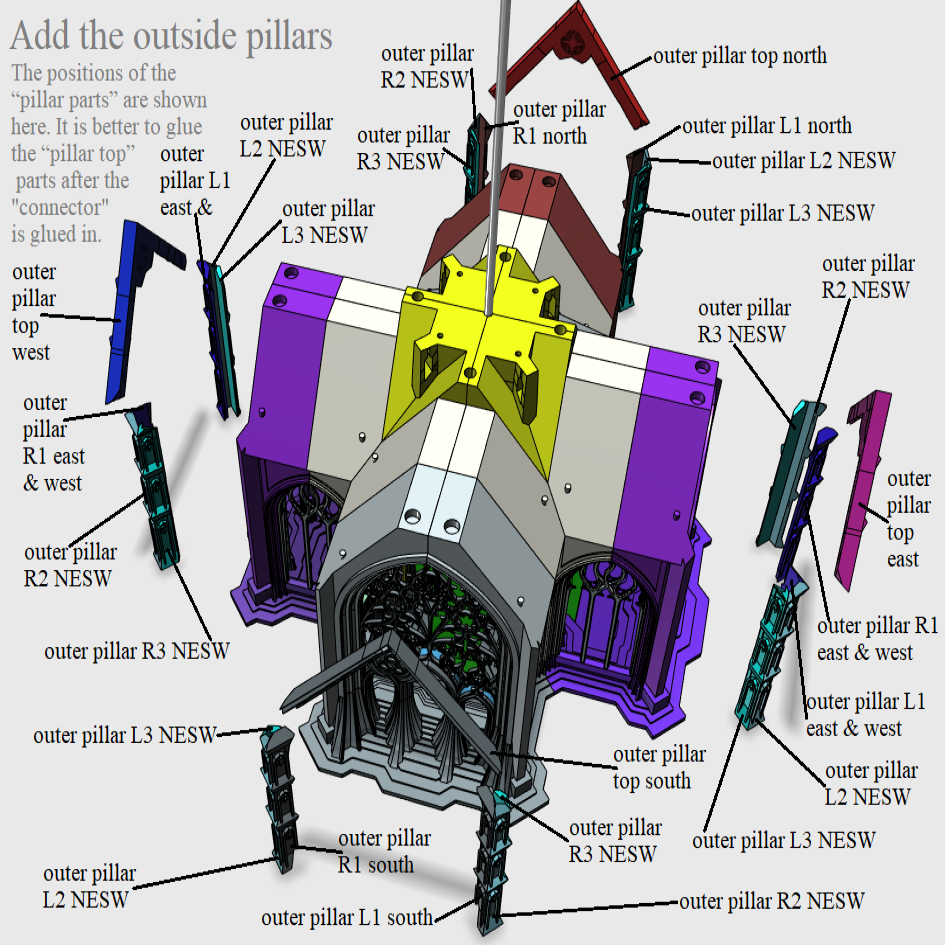

07 Add the outside pillars.png STL file Bird Cathedral・Design to download and 3D print

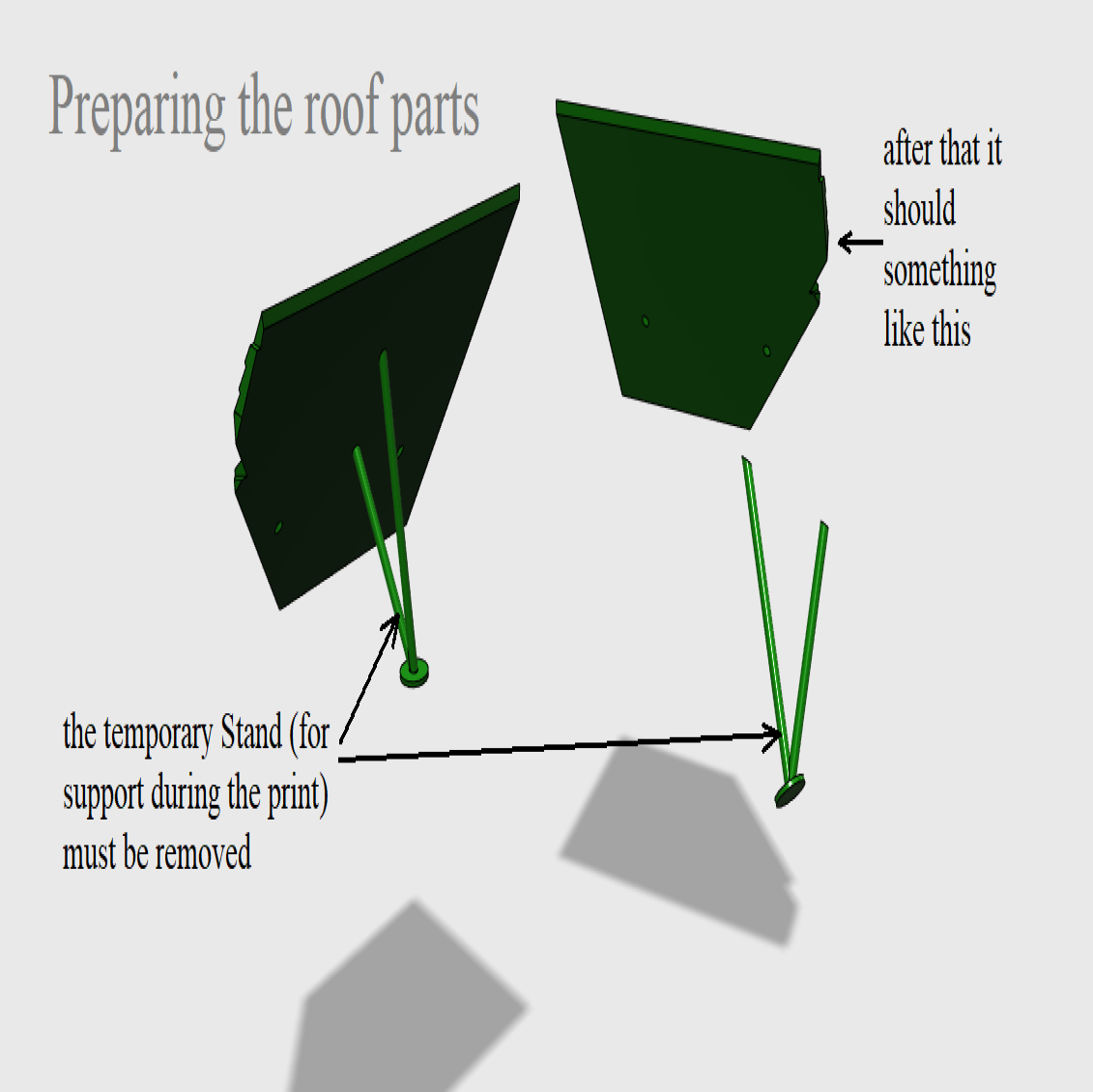

08 Preparing the roof parts.png STL file Bird Cathedral・Design to download and 3D print

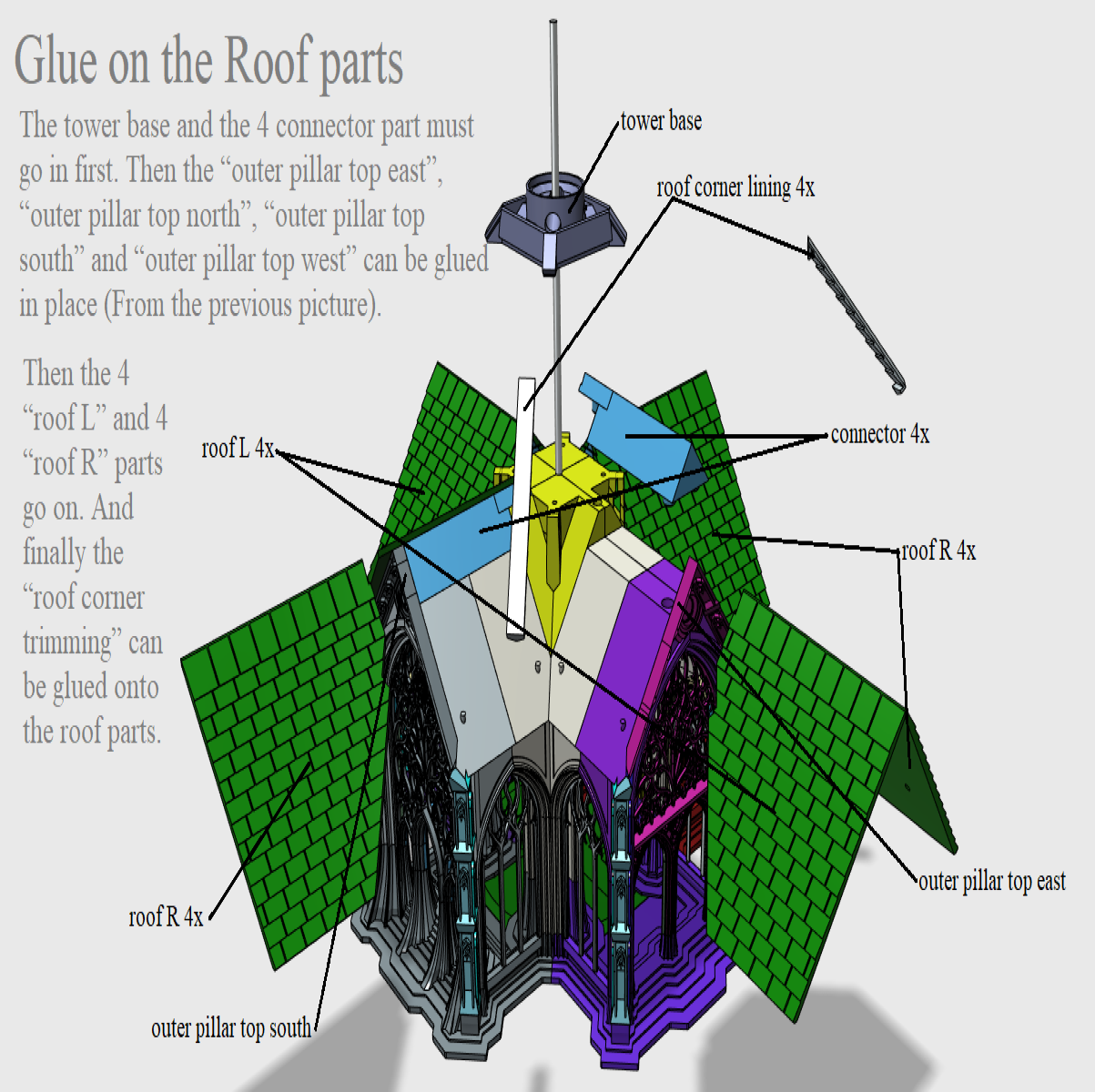

09 Glue on the Roof parts.png STL file Bird Cathedral・Design to download and 3D print
10 Preparing the Tower Top.png STL file Bird Cathedral・Design to download and 3D print

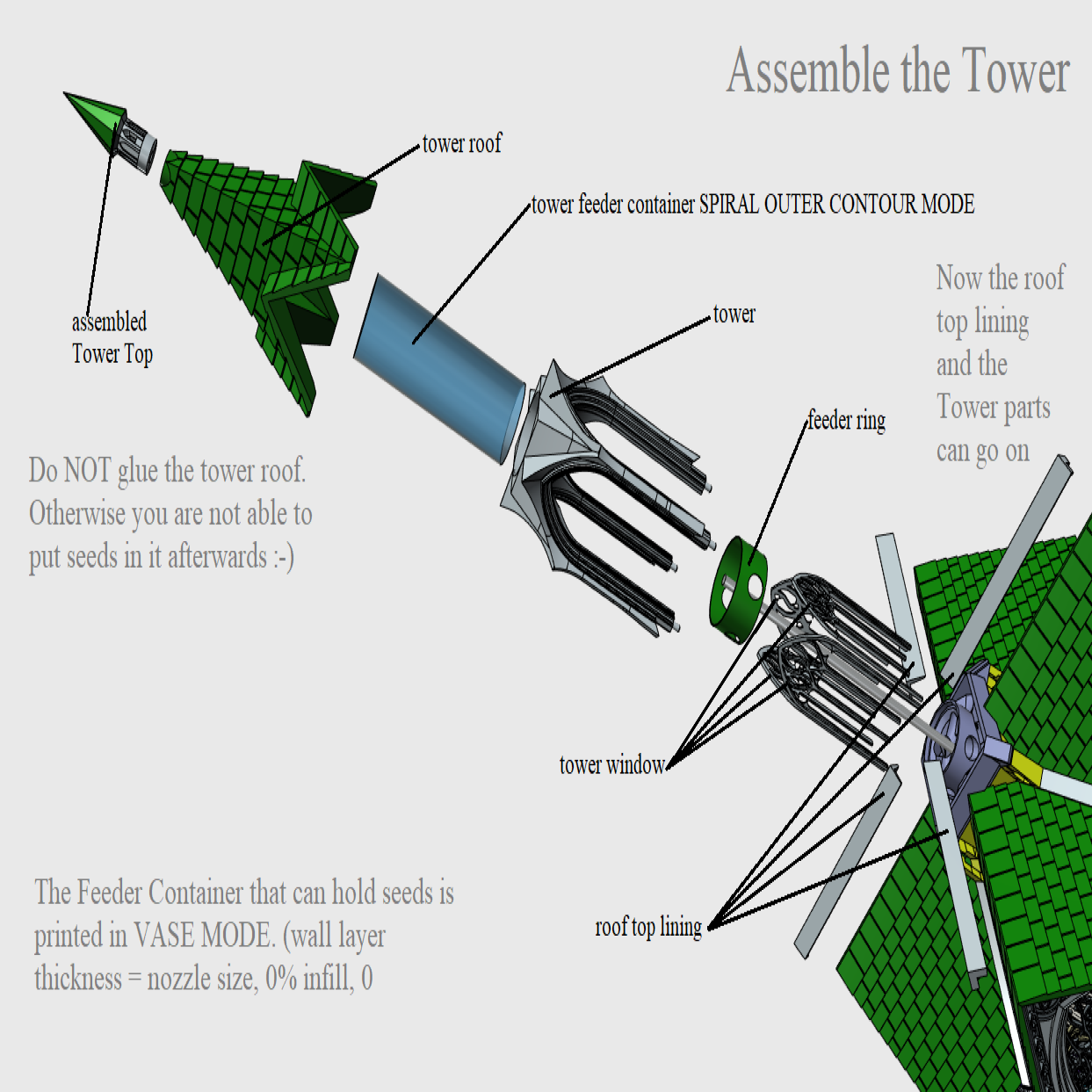

11 Assemble the Tower.png STL file Bird Cathedral・Design to download and 3D print

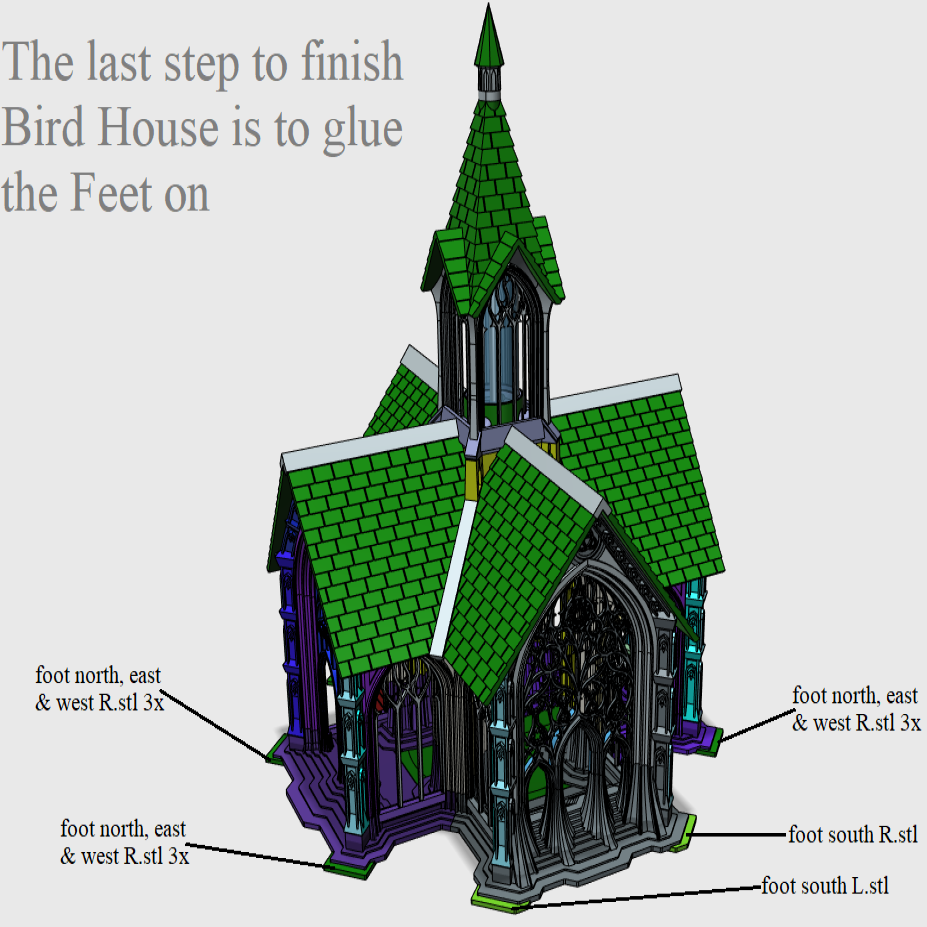

12 Finished.png STL file Bird Cathedral・Design to download and 3D print
connector.stl STL file Bird Cathedral・Design to download and 3D print
Share
Add to
Make
?
Creation quality: 5.0/5 (3 votes)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

Job

Job

3D model description

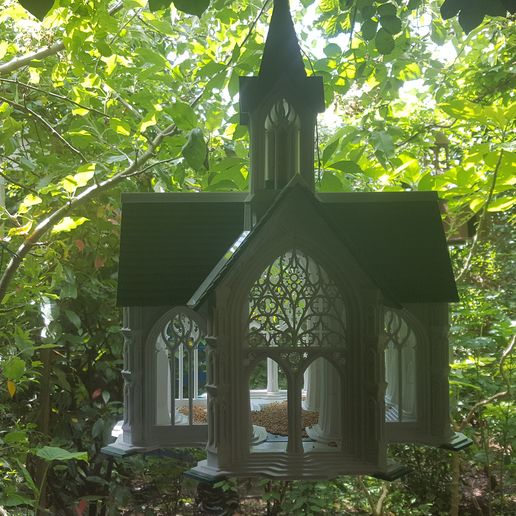

This is a Bird Feeder for little Birds.

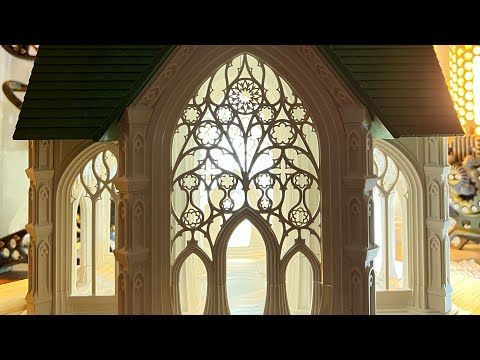

It's design is inspired by Gothic Cathedrals :-)
Only small Birds can get in due to the small openings.
Now they have a save place to eat and if necessary they can escape trough one of the four sides :-)

Of course there is also a place for bigger Birds to eat.

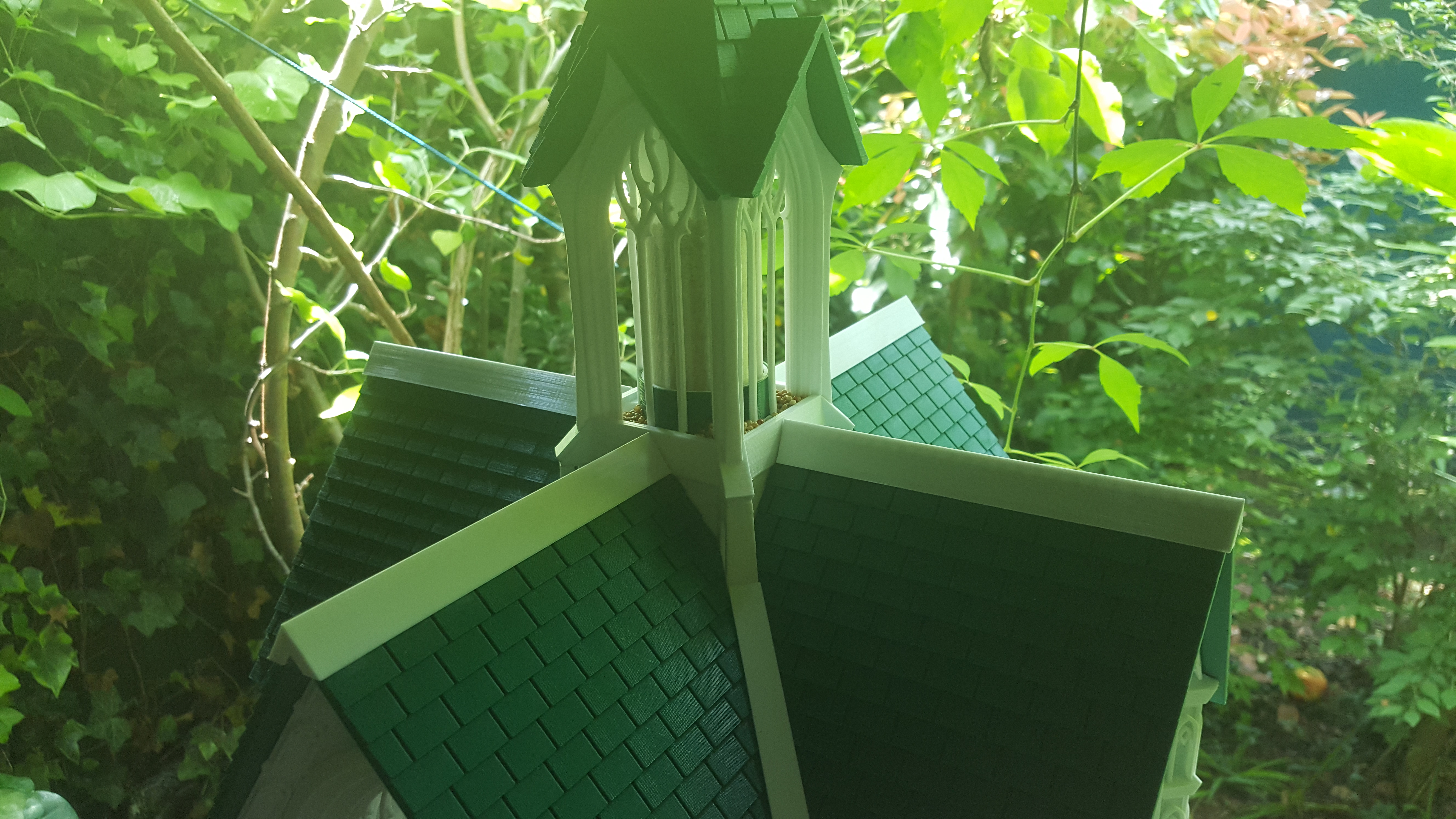

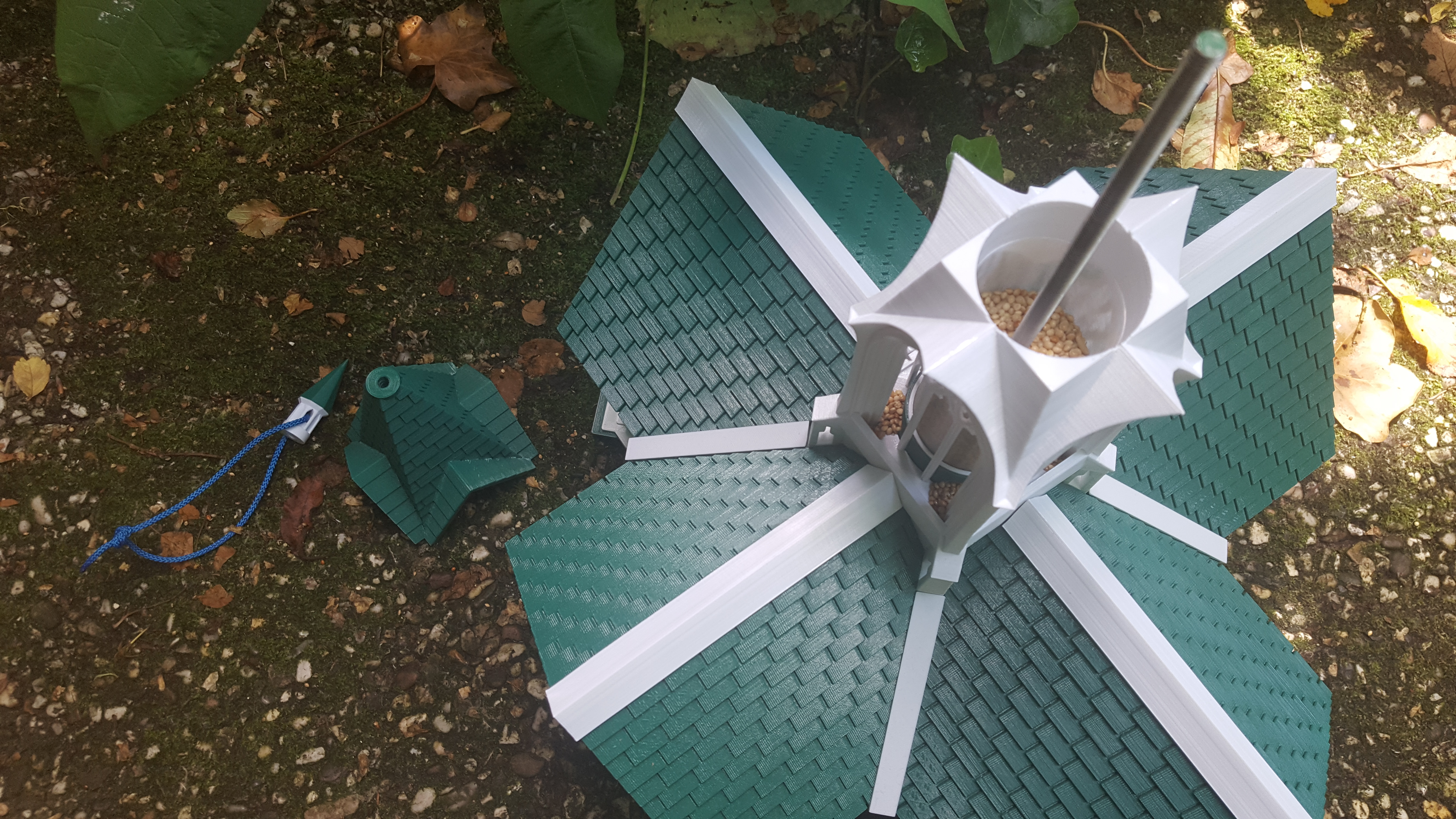

They can go to the Tower on top. This Tower is a Seed dispenser. It can be filled by taking the Tower Roof off.
By turning the green ring it is possible to regulate the amount of Seeds coming out.

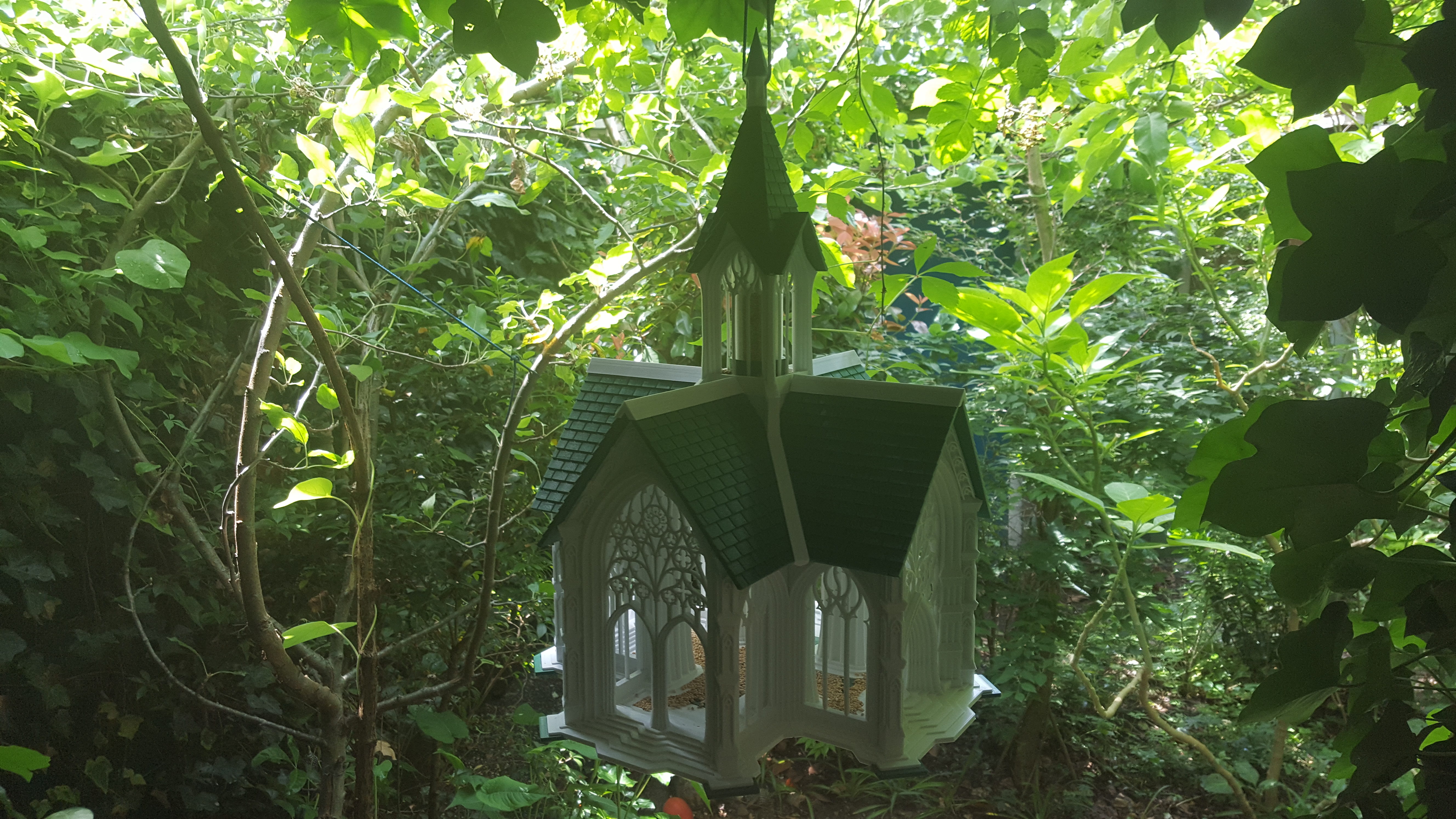

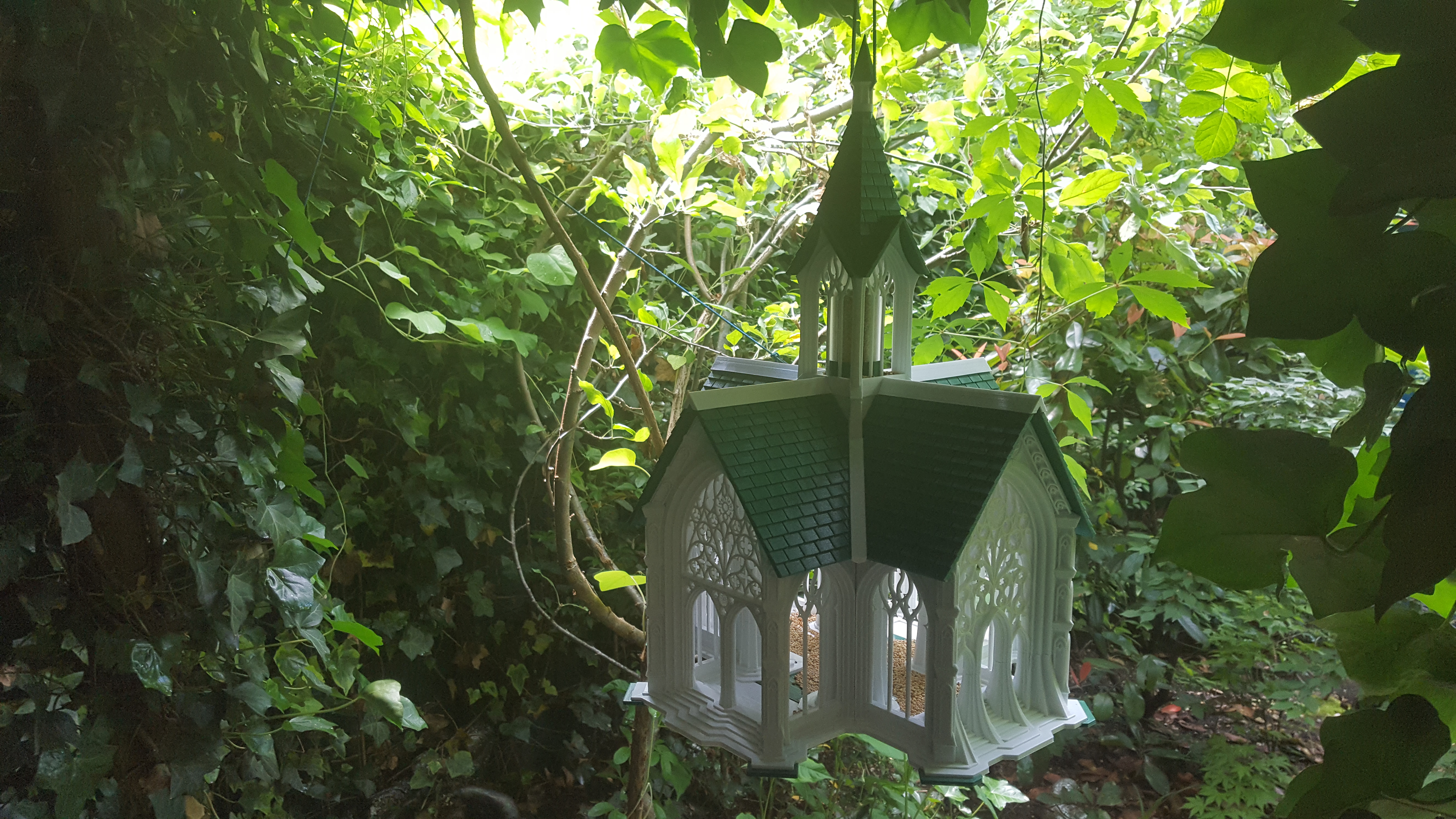

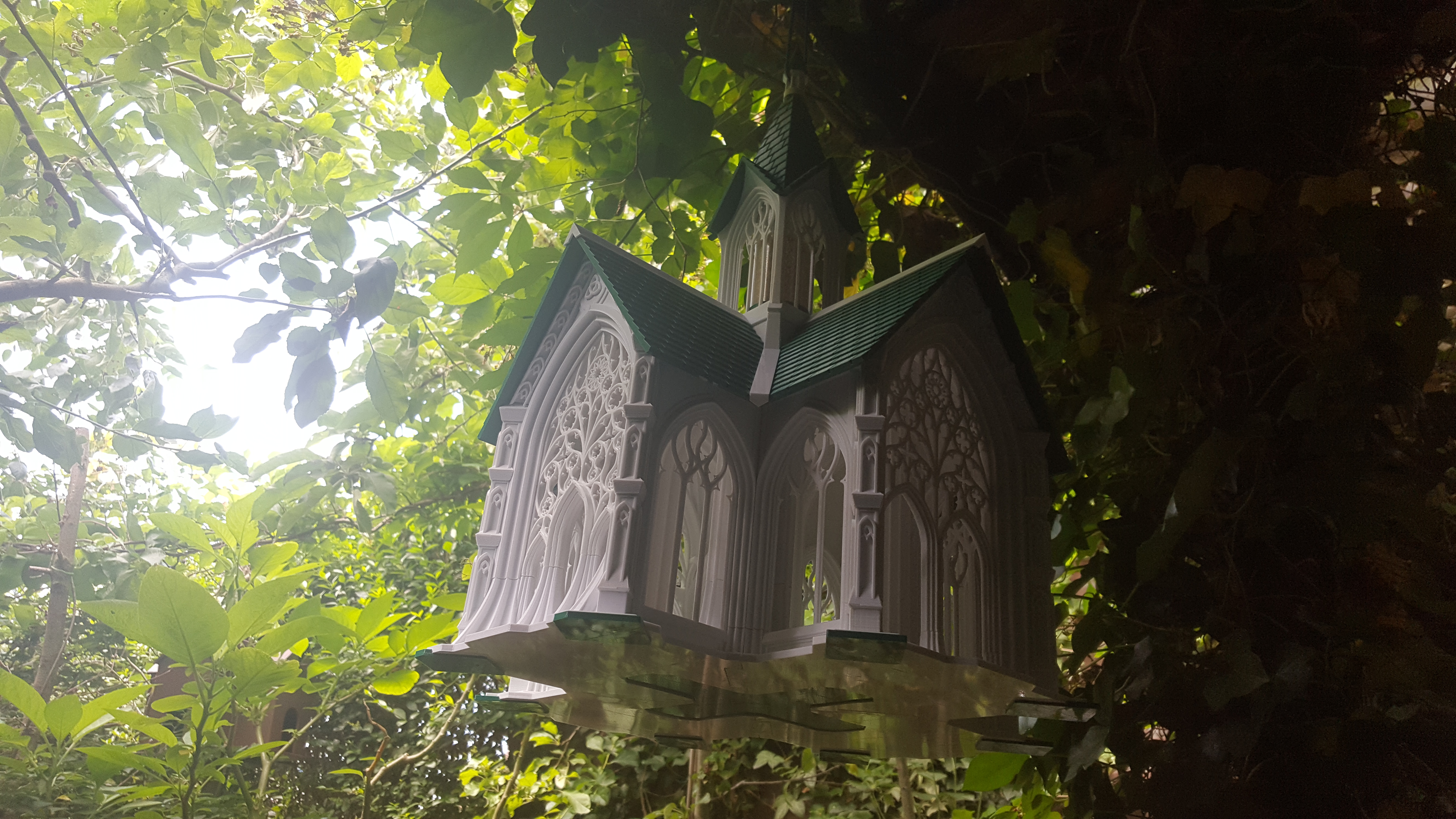

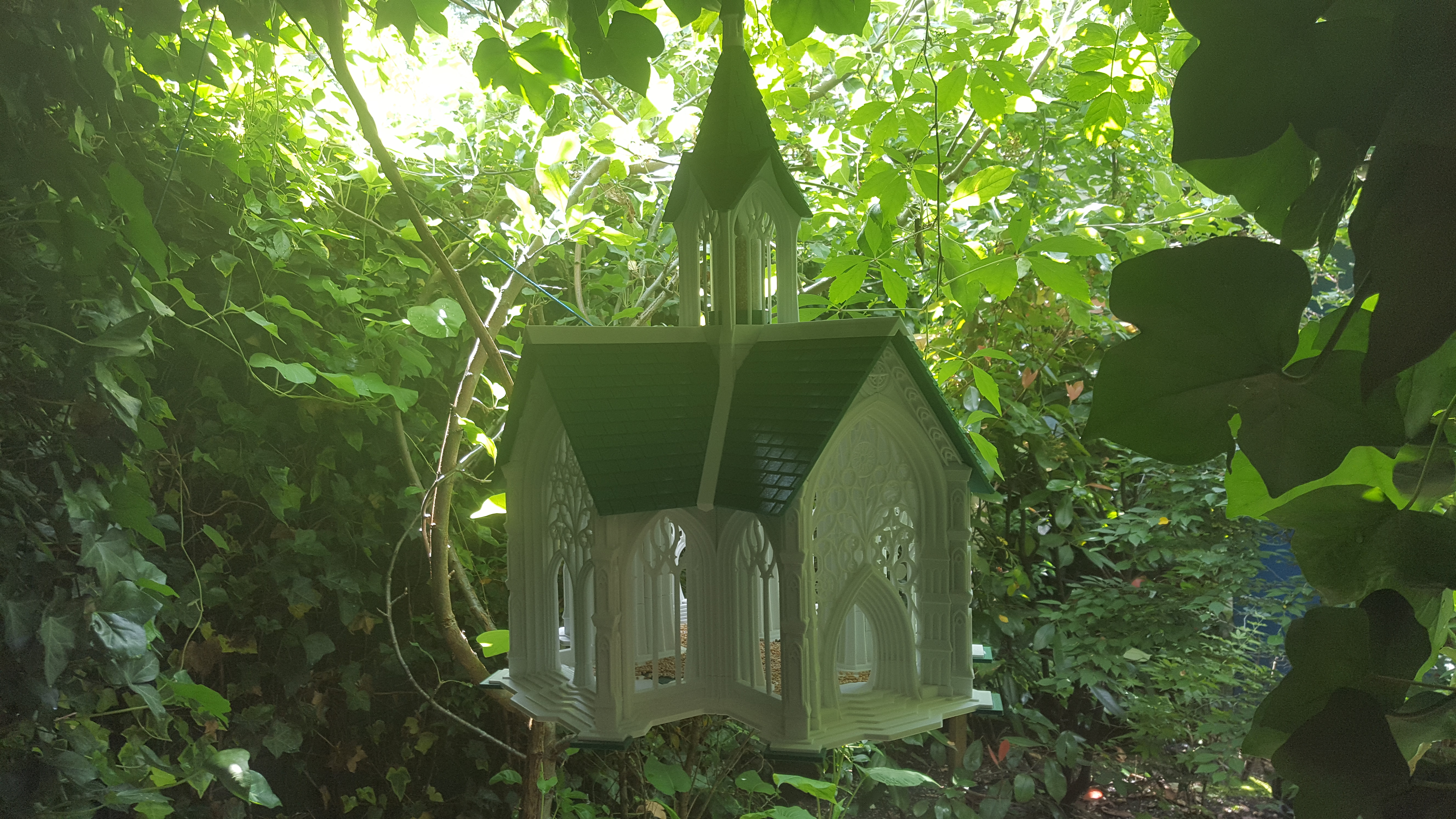

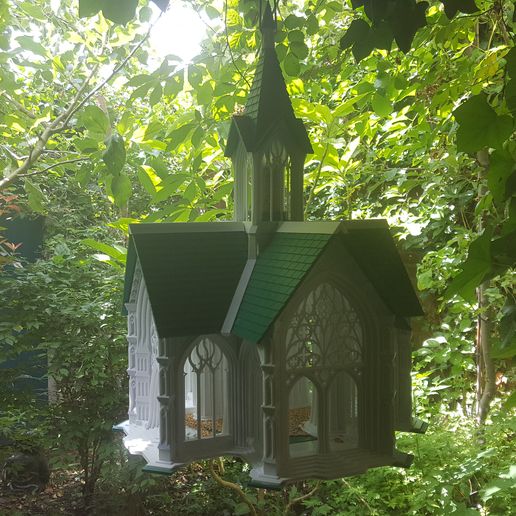

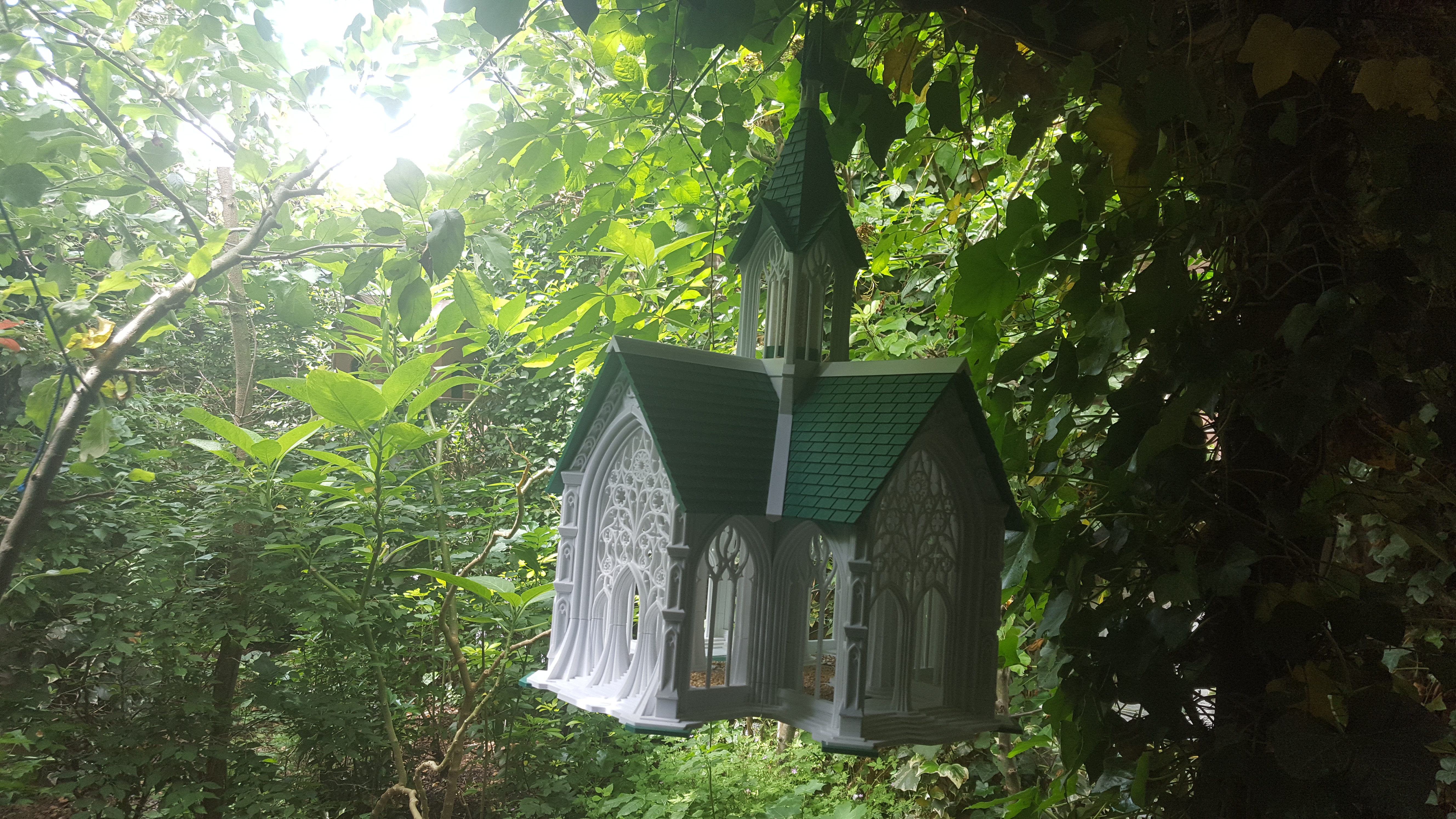

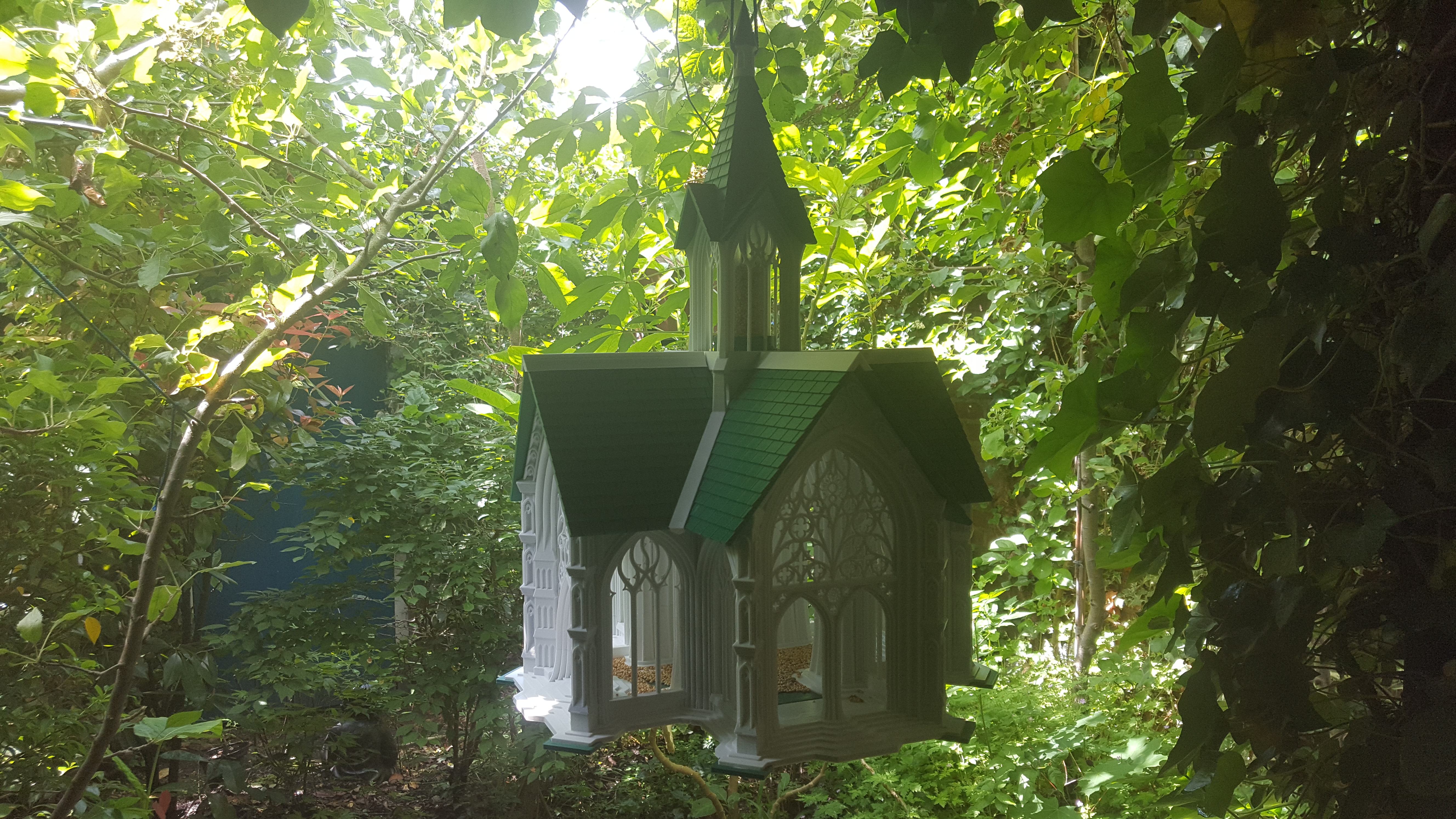

The Bird Cathedral is designed to stand on a floor or table, but it is also possible to hang it from a tree. Then the Birds are less worried about Cats etc. :-)

The green center floor can be taken out for cleaning purposes.

To bad that the drawings with the assembly directions are not shown fully on the site. Luckily they are also shown in the “manual.pdf “ included with the files. :-)

Please see the video made by Robert Salvador : https://www.youtube.com/watch?v=VqL4x2zzpQs&list=LLUAjEAdrUx9cQ4ie1Il6vrw

If you have any questions feel free to ask.

Do you think I made a mistake or forgot something feel free to inform me :-)

3D printing settings

It is hard to give precise amounts of material used, but I mostly used these settings for my printers:

0,4mm Nozzle
0,2 mm resolution /layer hight
4 top & bottom layers
3 wall layers (but for smaller peaces like the windows 2 wall layers)
infill 20% (but 15% is also possible for some parts)
Skirt 2 lines

So then you should need around:

White PLA around 2900 gram
Green PLA around 550 gram
PET-G around 10 gram.

Time....... I used mostly the settings:

print speed 38mm/s
wall speed 30mm/s
inner wall 30mm/s
top/bottom 25mm/s
travel 60 mm/s
initial layer 25mm/s
Retract distance 6,5 mm
(for some parts (like the tower top roof) I needed to turn the Feed rate back to 38%)
(print support is only used on “base center floor.stl”)

and that will take you to around 313 hours :-)

Yes I know, printing can be done faster :-) I just use more printers :-) Of course do what works best for you :-) this is just an example to give you an idea how long it will take.

3D printer file information

  • Design number: 60502
  • 3D design format: STL and ZIP Folder details Close
    • base center floor and removable.zip
    • base east and west side.zip
    • base north side.zip
    • base south side.zip
    • connector.stl
    • east and west LR gate.zip
    • entrance east.zip
    • entrance north.zip
    • entrance south.zip
    • entrance west.zip
    • feet.zip
    • inner arch arch above gate.zip
    • inner part L1 east and west.zip
    • inner part L1 north.zip
    • inner part L1 south.zip
    • inner part L2 north east south west.zip
    • inner part R1 east and west.zip
    • inner part R1 north.zip
    • inner part R1 south.zip
    • inner part R2 north east south west.zip
    • inner part1 center.zip
    • inner part2 center.zip
    • manual.zip
    • north gate.zip
    • outer pillar top east.zip
    • outer pillar top north.zip
    • outer pillar top south.zip
    • outer pillar top west.zip
    • outer pillars.zip
    • roof.zip
    • south gate.zip
    • tower top.zip
    • tower window.zip
    • tower.zip
    • window L.zip
    • window R.zip
    • window glass.zip

    Learn more about the formats

  • Last update: 2022-05-11 at 17:54
  • Publication date: 2019-06-14 at 15:50
