Mousey Pill Splitter

?
Creation's quality: 3.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 1.2k views
  • 3 likes
  • 4 downloads

3D model description

Use this little guy to cut pills in half.

Consult with pharmacist or doctor to insure that the pills do not contain a special coating, as splitting them might not be appropriate.

Please keep this out of reach of children.


3D printing settings

The supports are designed into the model. BUT IF USING CURA, make sure the "Print Thin Walls" setting (under SHELL settings) is CHECKED. No additional supports needed. After printing, remove the 3 support structures. Use .25 or .125 layer height. 15% to 25% infill.

You will need a 12 or 16mm M3 screw for the hinge. Apply some pressure to cut the threads as you go.

A standard utility knife blade is also needed. (see photo)
Carefully install the blade using a strong pair of pliers. If fit is too tight, heat the blade over an open flame and let it melt in.

3D printer file information

  • 3D design format: STL Folder details Close

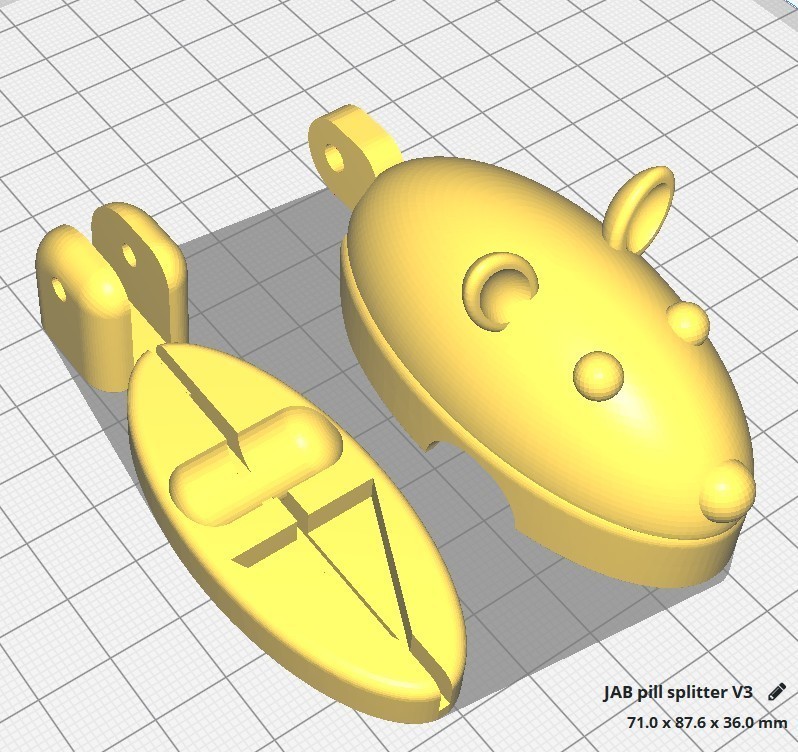

    • JAB pill splitter V3b.stl

    Learn more about the formats

  • 3D model size: X 71 × Y 87.7 × Z 36 mm
  • Last update: 2021/03/15 at 12:43
  • Publication date: 2018/10/01 at 16:57

Copyright

©

Tags

Creator

Designs 16
Downloads 156
Sales US$158
Followers 8
Issue with this design? Report a problem

Best sellers of the category Home


Add a comment

2 comments

Thanks for reporting the issue with the Mousey Pill Splitter supports not printing. I tracked it down to a problem with a setting in Cura. Under "Shell Settings" look for an option called "Print Thin Walls". It needs to be checked. I guess I checked it on my system a long time ago and forgot about it, cause who wouldn't want all walls printed???? I will update print instructions. Thanks Again.

Prints well but supports that claim to be included and even show on cura do not print so make sure you add supports, found this out 3 hours in and the hinge on the lid is not supported
