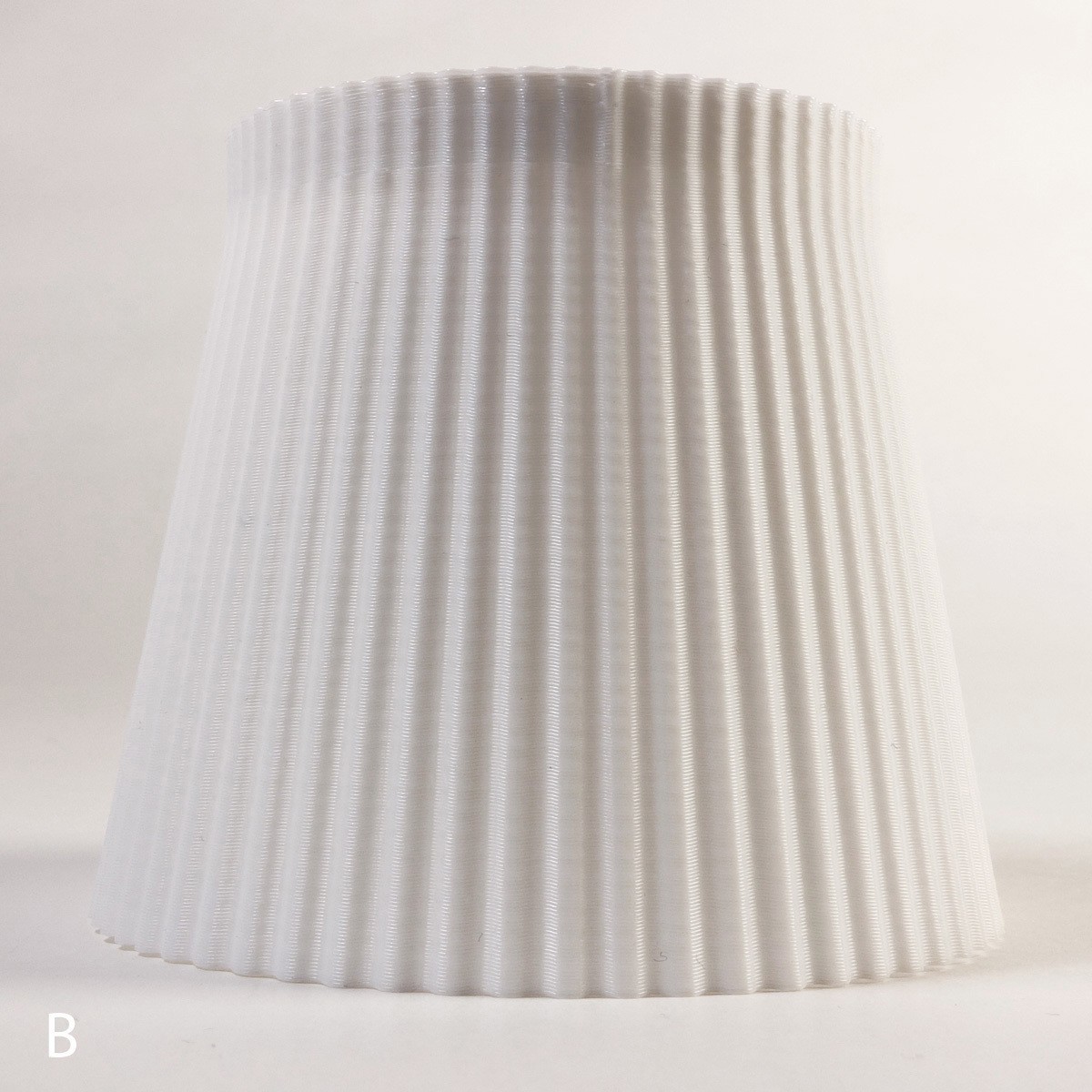

Marilyn_shadeB.jpg Download STL file MARILYN • 3D print model, svdv
Marilyn_shadeC.jpg Download STL file MARILYN • 3D print model, svdv
Marilyn_base.stl Download STL file MARILYN • 3D print model, svdv
Marilyn_hook1.stl Download STL file MARILYN • 3D print model, svdv
Marilyn_hook2.stl Download STL file MARILYN • 3D print model, svdv
Marilyn_shadeA.stl Download STL file MARILYN • 3D print model, svdv
Marilyn_shadeB.stl Download STL file MARILYN • 3D print model, svdv
Marilyn_shadeC.stl Download STL file MARILYN • 3D print model, svdv
Add to
Make
?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 7k views
  • 62 likes
  • 6 downloads

3D model description

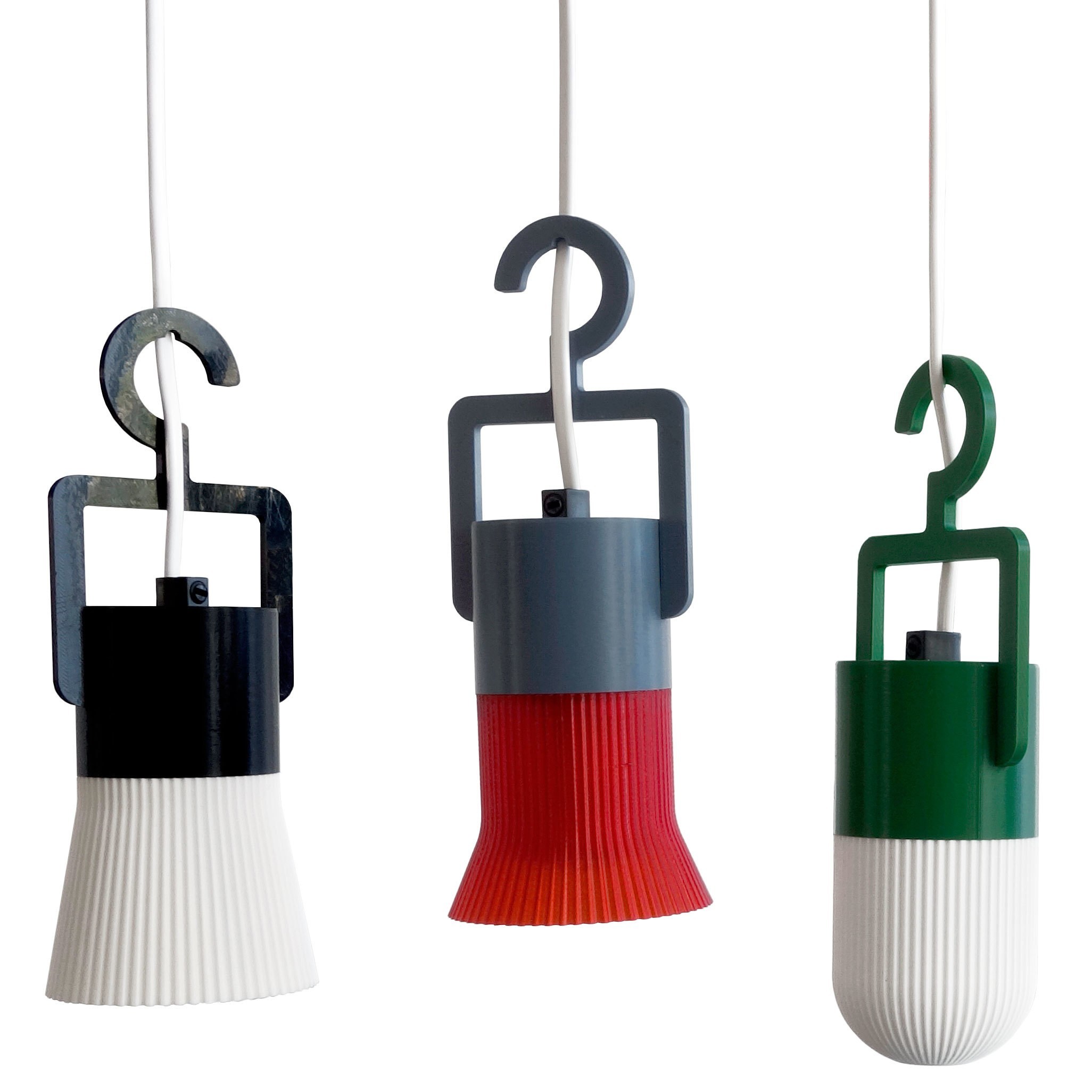

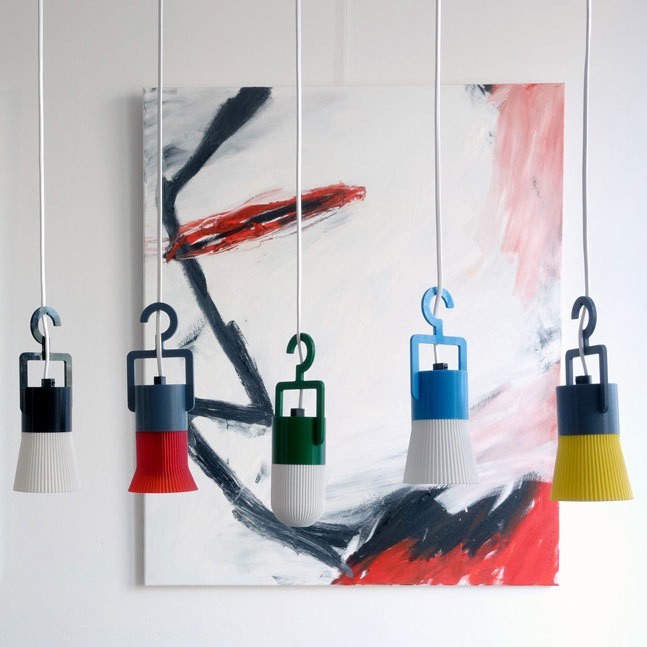

Pendant lamp, consisting of three 3D-printed parts.
The base-element which houses the fitting, is printed with PLA.

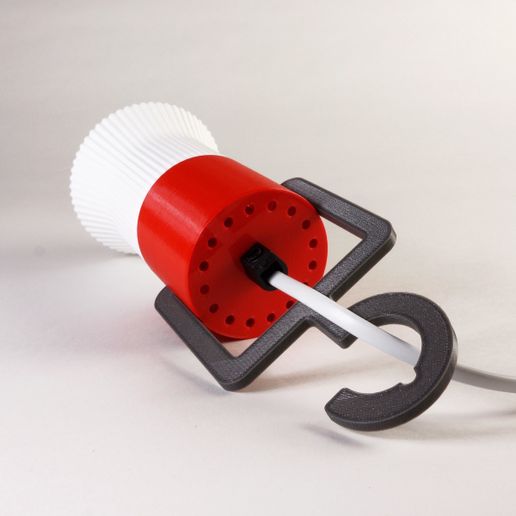

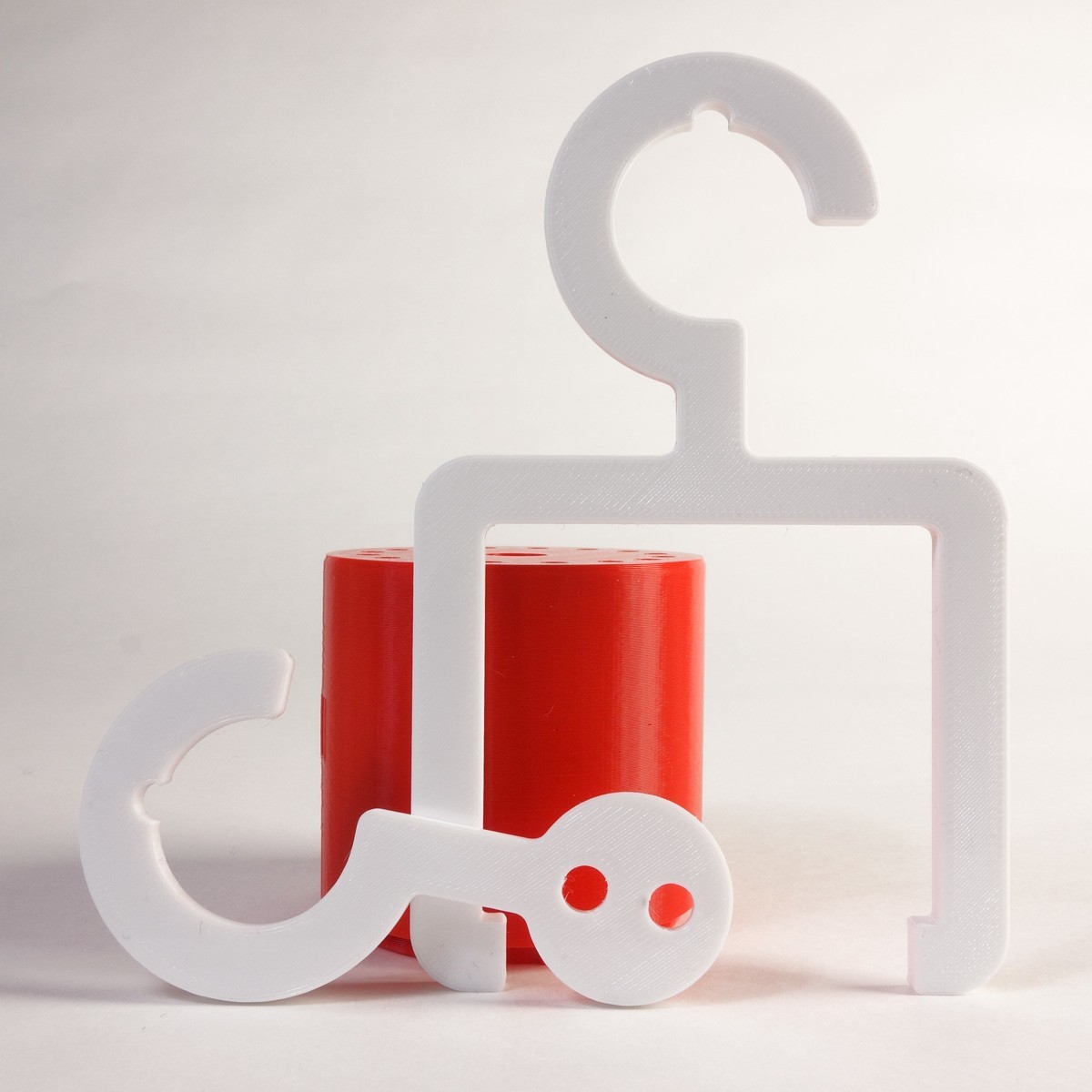

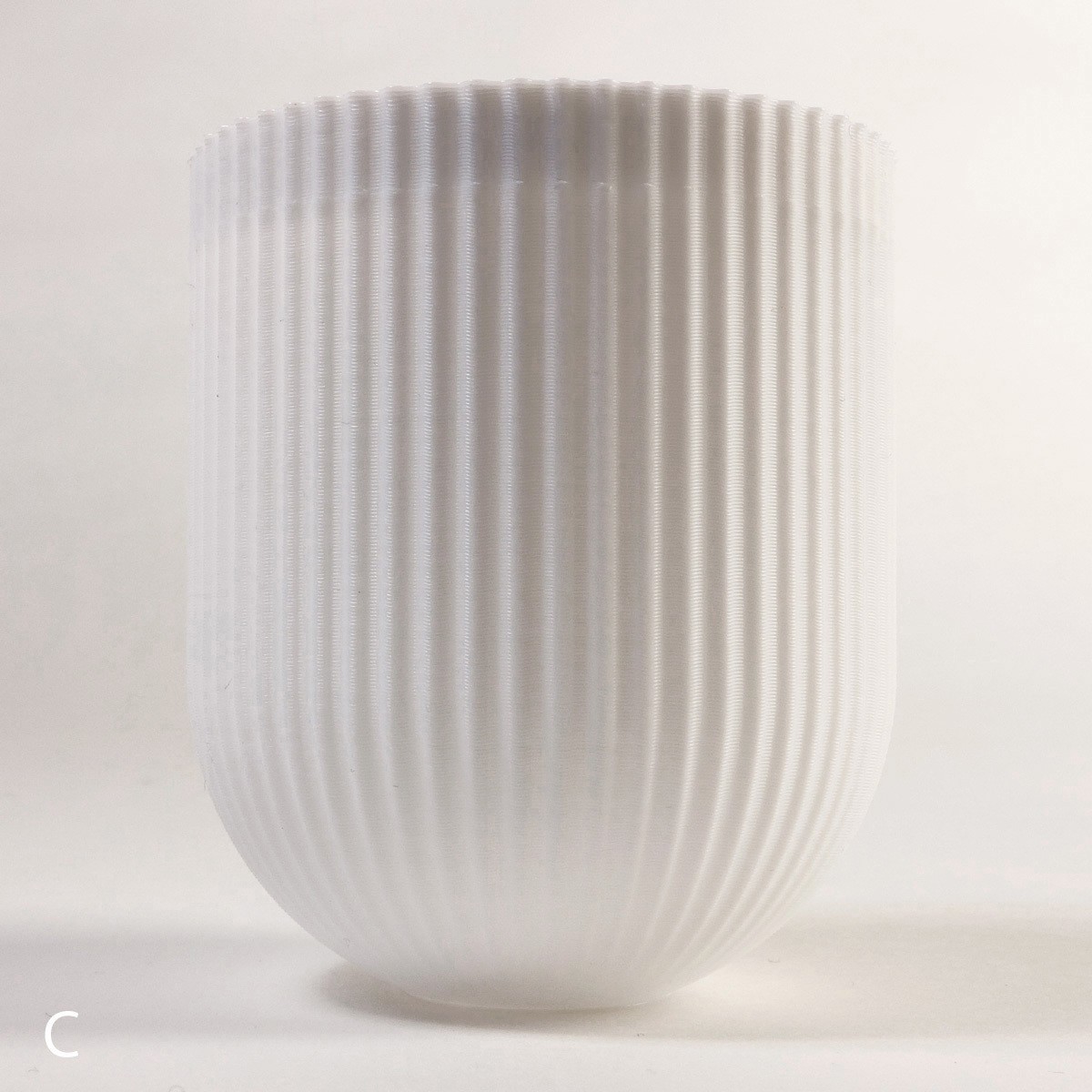

The shade is printable with PLA or PETG. The shades fits in the base-element with a bayonet mount. Included a hook to hang the lamp directly on and a hook to hang the lamp on the cord on the ceiling.

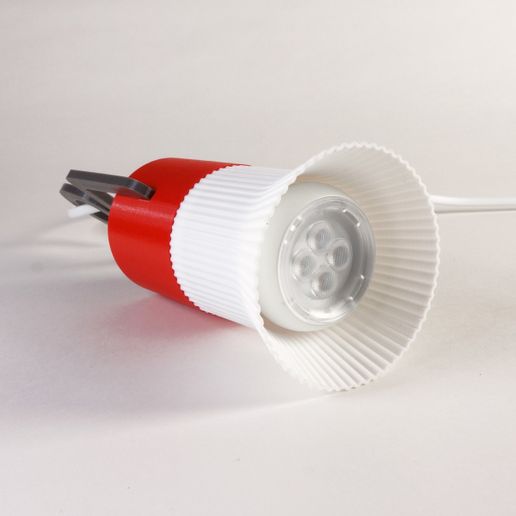

Only suitable for small fitting (E14) led-lamps, for instance a spotlight which only downlights, or a bulb for light around.
Diameter base-element approx. 59 mm. Height full lamp incl. hook approx. 212 mm.

For more information and other designs: http://www.sjaakvandervooren.nl

3D printing settings

Base-element is printed with PLA, infill approx. 40%, layer 0.2, shell 2 perimeters, top/bottom 3-4 layers. The shade can be printed with PLA or PETG.

If you’re familiar with, for instance, Simplify3D, you can print the shade partly with PETG in vase-mode. The first process over a height of aproxx. 7 mm has to be printed normal (it contains the bayonet mount), but above 7 mm you can make a second process in vase-mode. I recommend a 0.5 (or larger) nozzle for these two processes.

3D printer file information

  • 3D design format: STL Folder details Close
    • Marilyn_base.stl
    • Marilyn_hook1.stl
    • Marilyn_hook2.stl
    • Marilyn_shadeA.stl
    • Marilyn_shadeB.stl
    • Marilyn_shadeC.stl
