DIVA

3D model description

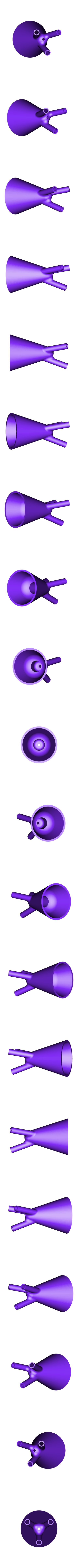

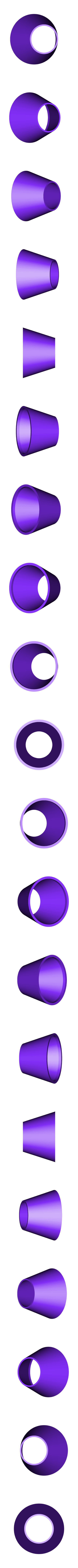

Diva is a table lamp with a closed and an open part. It’s printed in transparant natura land red PETG. The fitting part is closed and the shade part is open because it is printed without perimeters (infill only).

The printed part height is 234 mm (approx. 9.2 inch). It’s only suitable for a E14 fitting and small led-bulbs with threaded fitting. The legs are made of 10 mm (approx. 0.3937 inch) stainless steel.
Total height on this picture is 460 mm (approx. 18.11 inch) but it depends of course on the leg-length you choose - on this picture I used 300 mm (11.81 inch).

For more information and other designs: http://www.sjaakvandervooren.nl

3D printing settings

Diva is a challenge for your printing skills. You got two choices to print it. The 2 parts in one gcode-file or the 2 parts seperately printed and glued together afterwards.
In the one gcode-file scenario you must have the ability to make 2 print-processes in one gcode. Like in Simplify3d. In that case you have to put the leg-part on top of the shade-part. The leg-part starts on 95 mm height (3.74 inch) from your printbed.

Shade-part (process 1):
Layer: 0,2 mm; bottom-solid-layers: 1; perimeters: 0; infill-pattern: rectilinear 20%; stop-printing-at: 95 mm.
Leg-part (process 2):
Layer: 0,2 mm; top-solid-layers: 3; bottom-solid-layers: 2; perimeters: 2; infill-pattern: rectilinear 55%; start-printing-at: 95 mm.

Feet-part:
The same as the leg-part.

  • 3D model format: STL
