SHADE II

3D model description

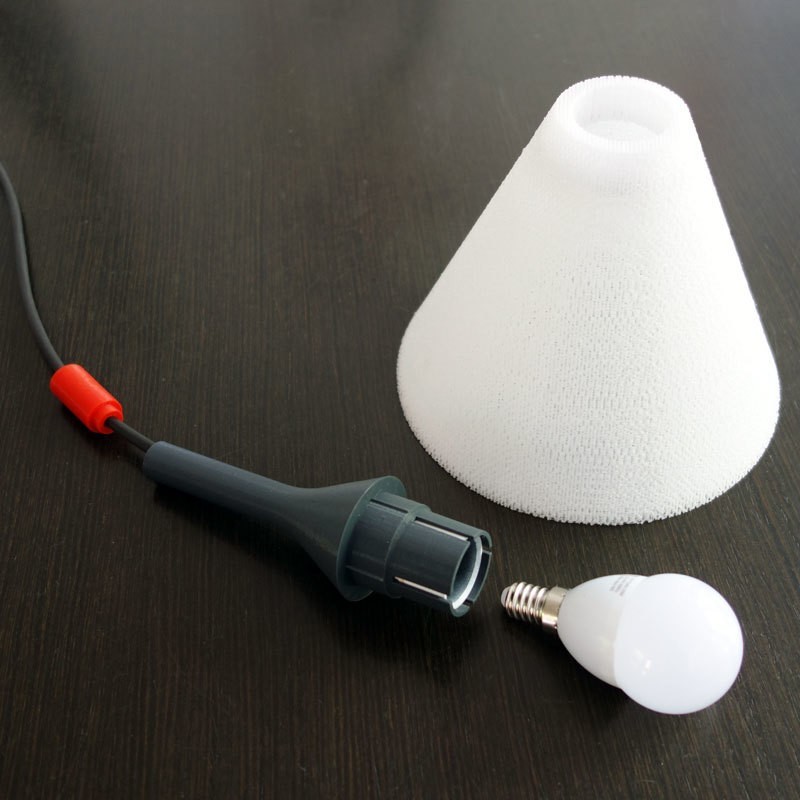

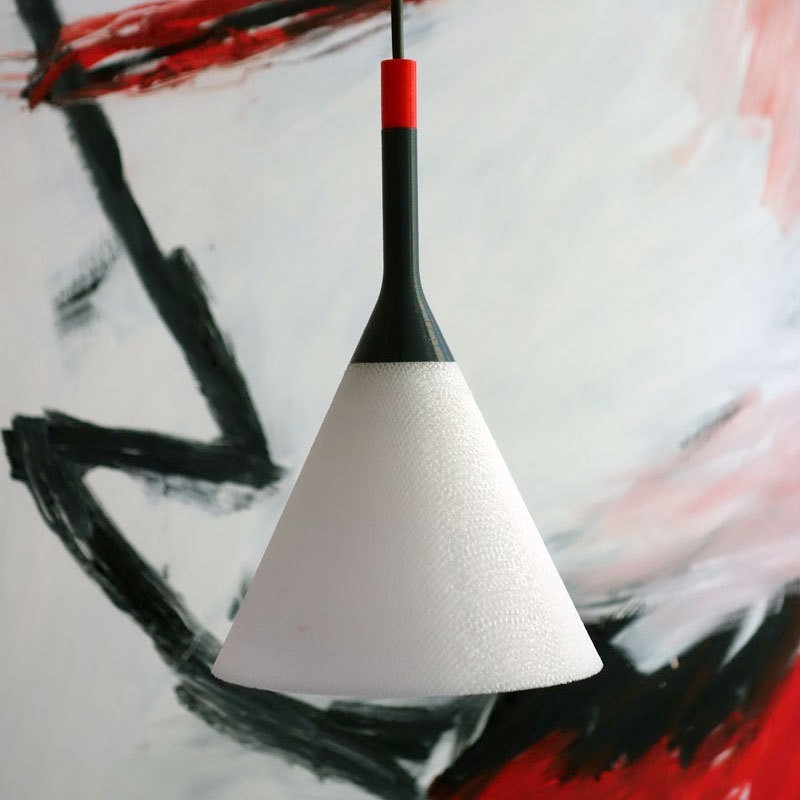

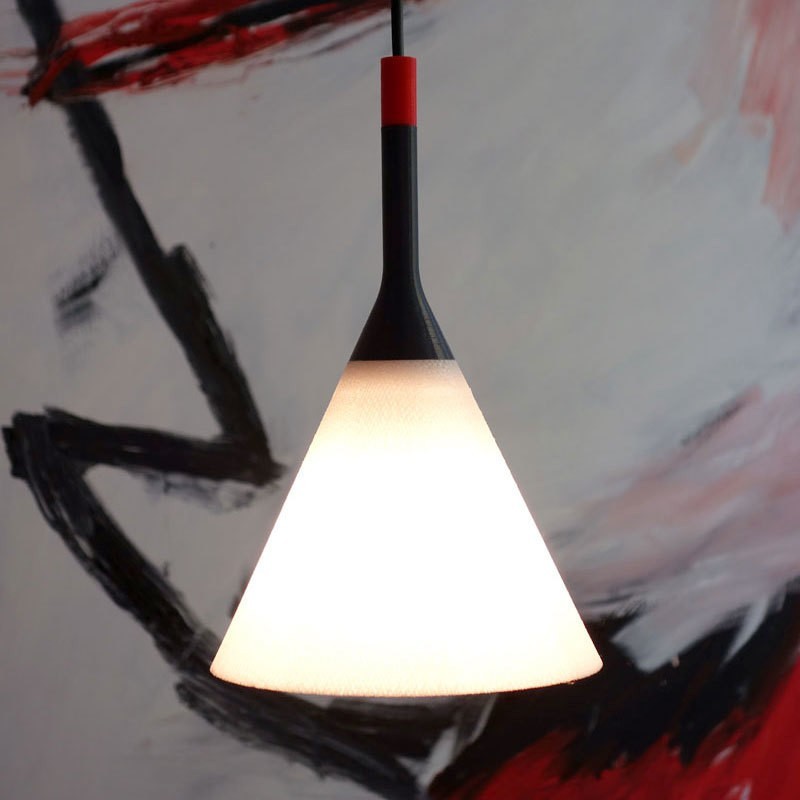

Hanging lamp, consisting of three 3D printed parts.
Total lamp height approx. 272 mm (10.7 inch), height lampshade approx. 140 mm (5.5 inch), diameter lampshade bottom approx. 178 mm (7 inch).
Only suitable for E14 fitting and small led-bulbs with threaded fitting, 2.5 à 3.5 W. In the fitting holder element there is room for a strain relief.

For more information and other designs: http://www.sjaakvandervooren.nl

3D printing settings

The two connection elements can be printed in PLA, infill approx. 25%, shell 2 perimeters, top/bottom 3-4 layers.

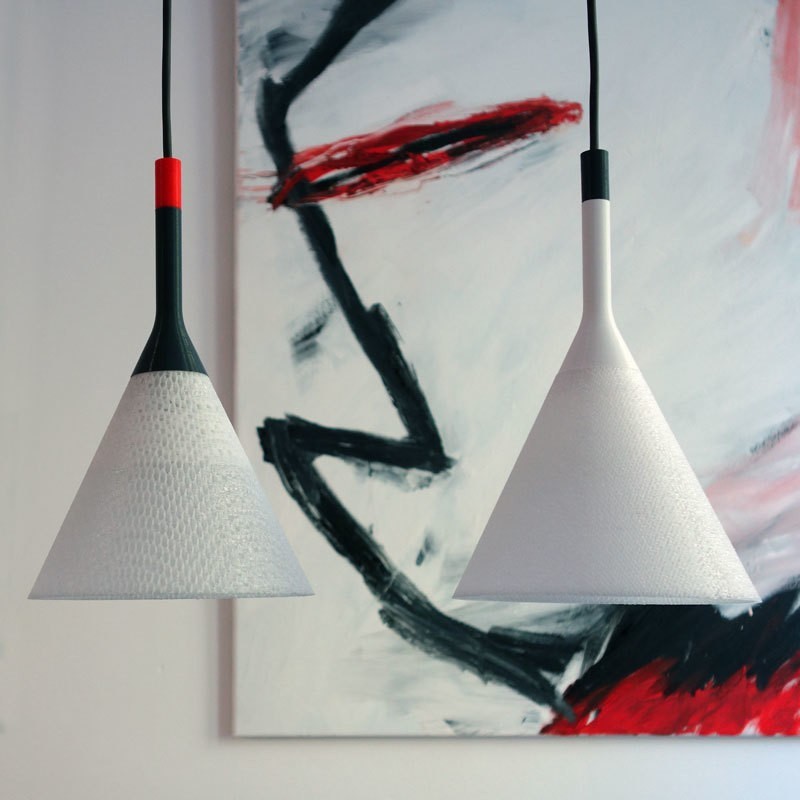

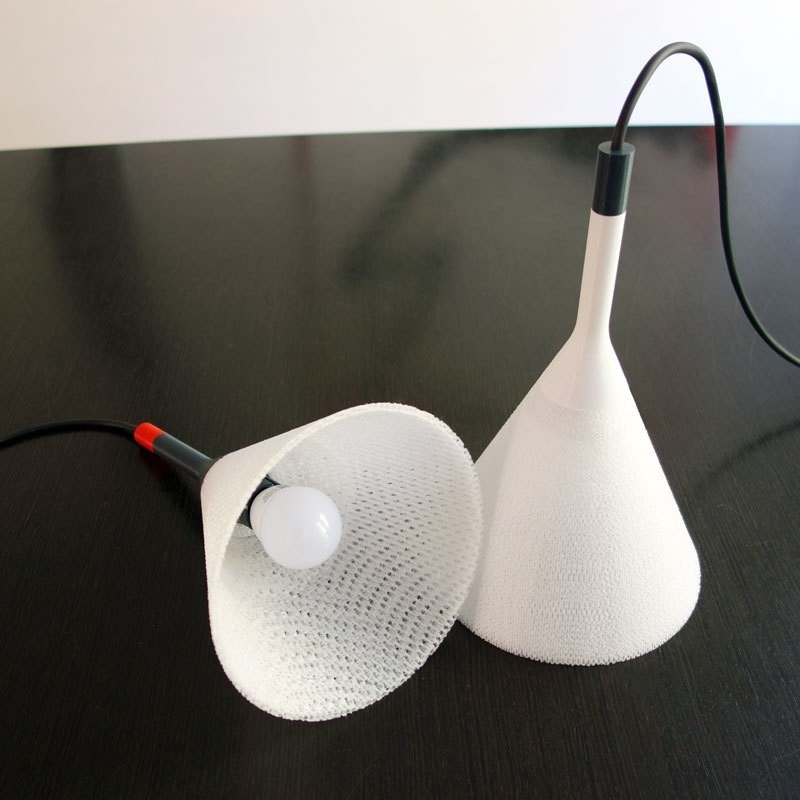

Lampshade is printed with transparent PETG infill only (without shell/top/bottom). You can play around with the infill in Cura, Slic3r or Simplify 3d to get what you want. The coarse fabric in the picture is made with Simplify 3d 30% full honeycomb. Fine fabric for instance is made in Cura 25% lines.
Layer height 0.2 for the shade is sufficient. No support needed. If your printer can handle it, you can print the shade's infill at 80-90 mm/s.
The shade is printed with the narrow side down. The fitting holder also with the narrow site down and with a brim.
Of course you also can print the shade as a closed volume and use a led spotlight to shine downwards.

  • 3D model format: STL
