Lamp support adaptor for 90mm DCL box

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.2k views
  • 6 likes
  • 36 downloads

3D model description

I recently arrived in my new house were all lamps are provided using these "DCL" boxes (in french : boites De Connexion Luminaire). It is now mandatory to install these when refurbishing or building a house.

Those are supposed to ease the process of mounting lamps, and provide also a standard lamp socket, to avoid having parts under voltage apparent during construction.

Sometime mounting your old lamps on these can be a real PITA so why not using them to build your own new lamp?

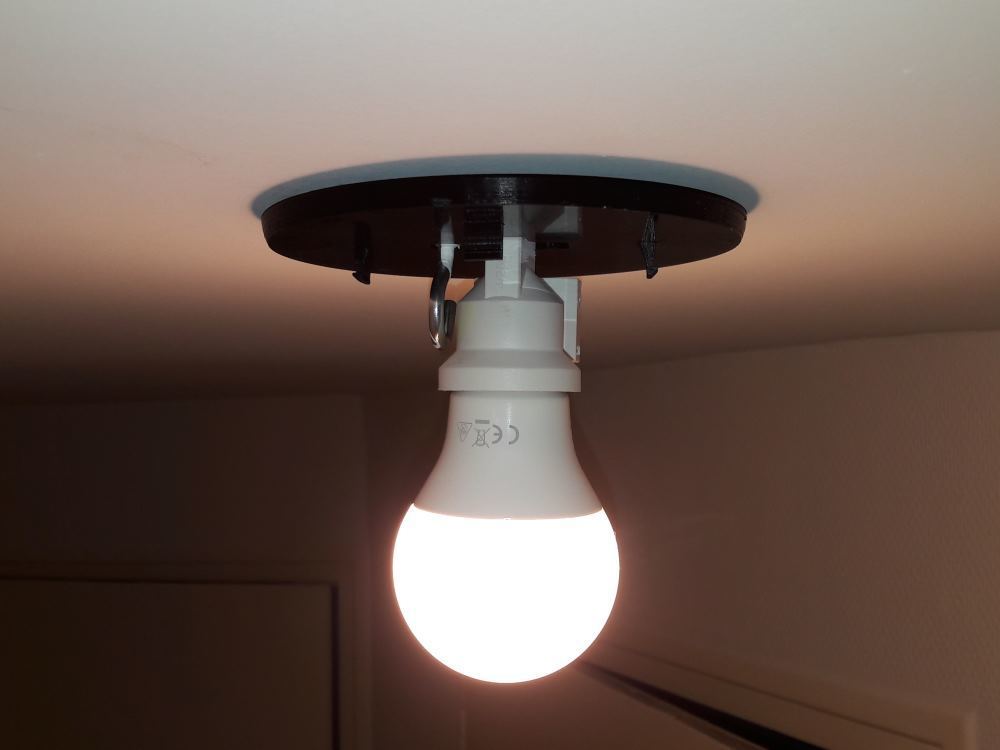

This is the idea of this adaptor : it can be easily mounted on those dirties DCL boxes, using the existing threaded hook if you're to lazy to buy a screw...

Then you have those for clipping hooks, so that any part with a cylinder oh height 6.1mm and radius 39.5 (79 diameter) will snap in.

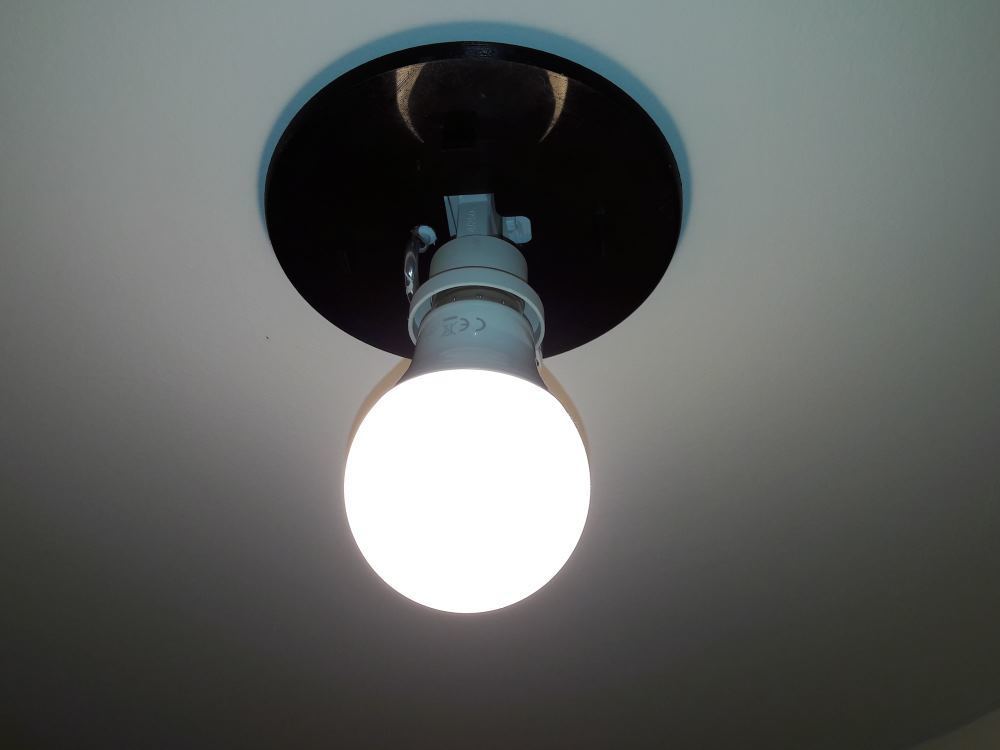

Like this "beautiful" lamp I designed.

Print one adaptor, 4 clips, use some superglue (clips should fit just fine.) et voilà!

  • 3D file format: STL
  • Publication date: 2020/02/05 at 21:03

License

CC BY
