Folding Quadcopter 450 Frame

3D model description

This is an optimized model that has already undergone many changes. Drone is really flyes.

My VIDEO of making: https://youtu.be/HgwuQiqNqp8

I designed it in SolidWorks under the props 10 inches.

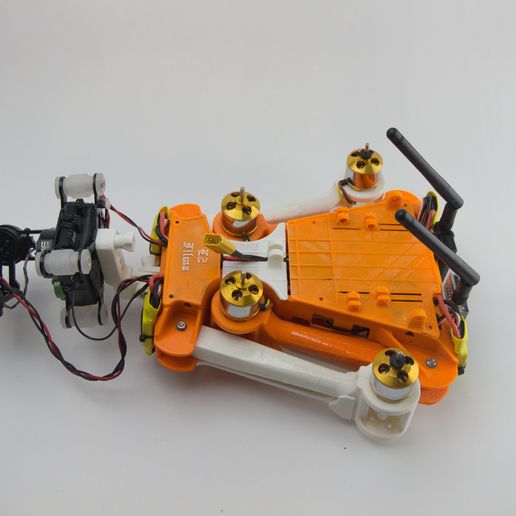

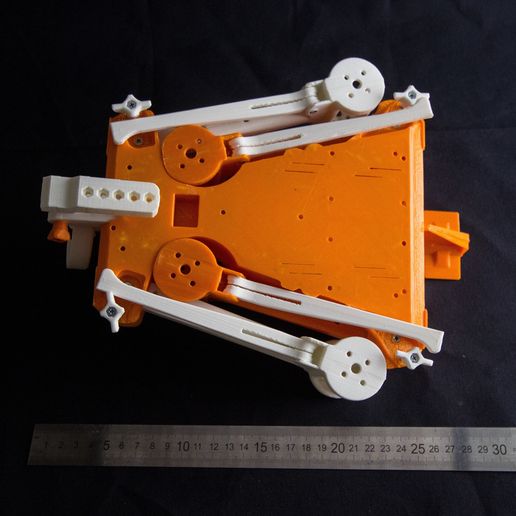

Frame is foldable, very convenient for transportation.

Specifications:
- Distance between the axes diagonally - 450 mm
- The weight of the frame is 355 g.
- Erection of motor axes 5 degrees
- The size of the motor mounting - 16x19 mm

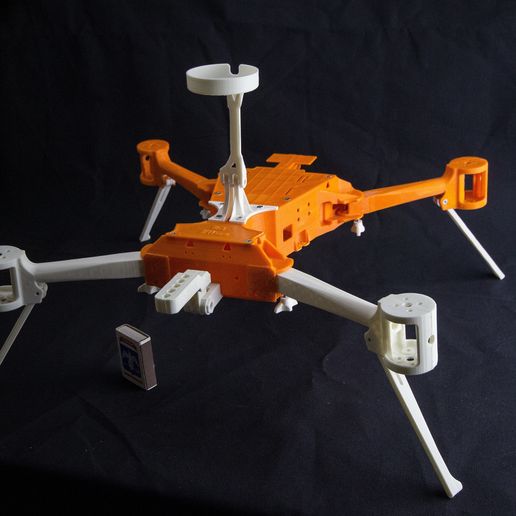

Provided internal wiring in the folding beams, foldable gps antenna mount and folding legs. In a closed frame case, any flight controller can be installed. There is an integrated vibration isolation. 3d model mold for casting of silicone in the set.

Also you will need:
- M3 screws
- M3 nuts
- Some of nuts are installed in the frame by heating (use soldering tool or gas lighter)
- Some plastic parts must be glued together with super-glue (cyanocrylate, for example)

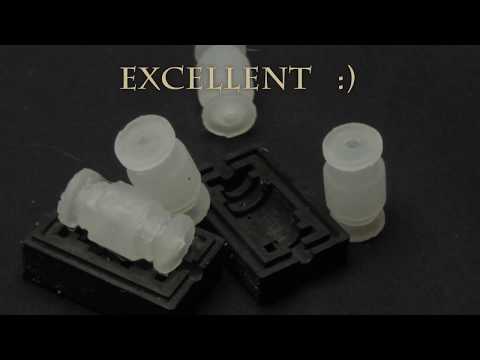

- Make silicone damper, like on these VIDEO:
https://youtu.be/6rWVS8KR_Zg

Assembly diagram in the "copter assembly.stl" file.

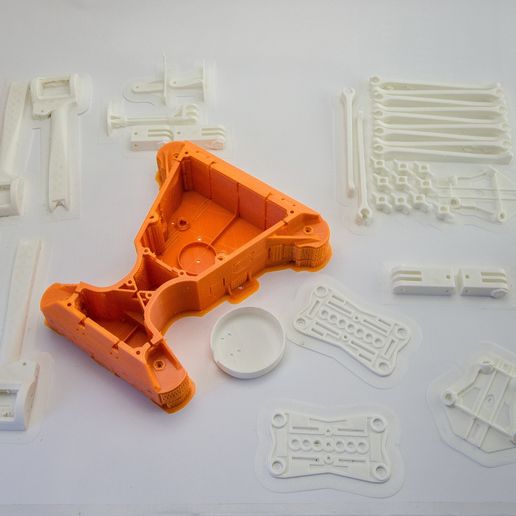

The number of items for printing is indicated in stl name.
Enjoy!
