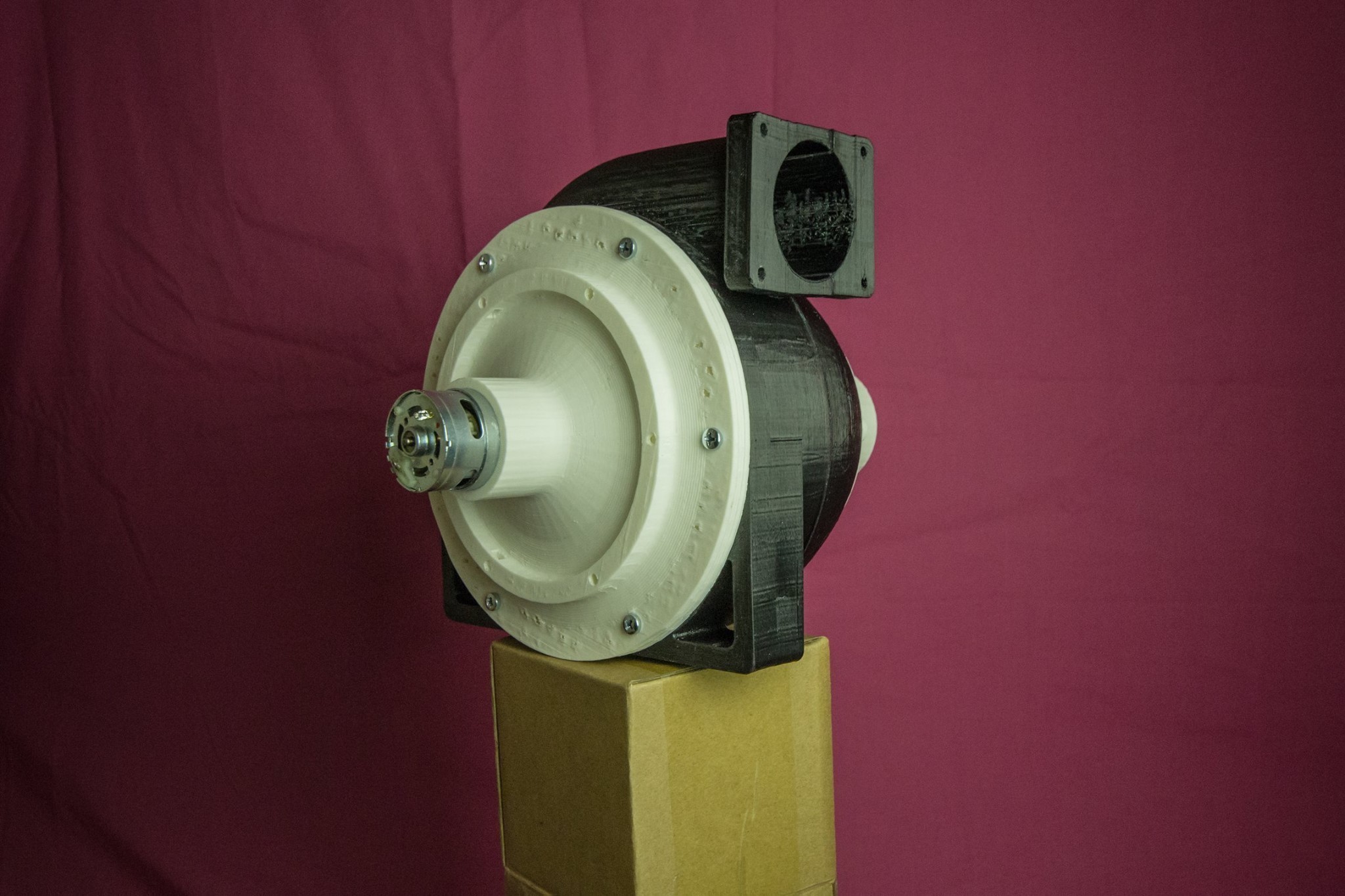

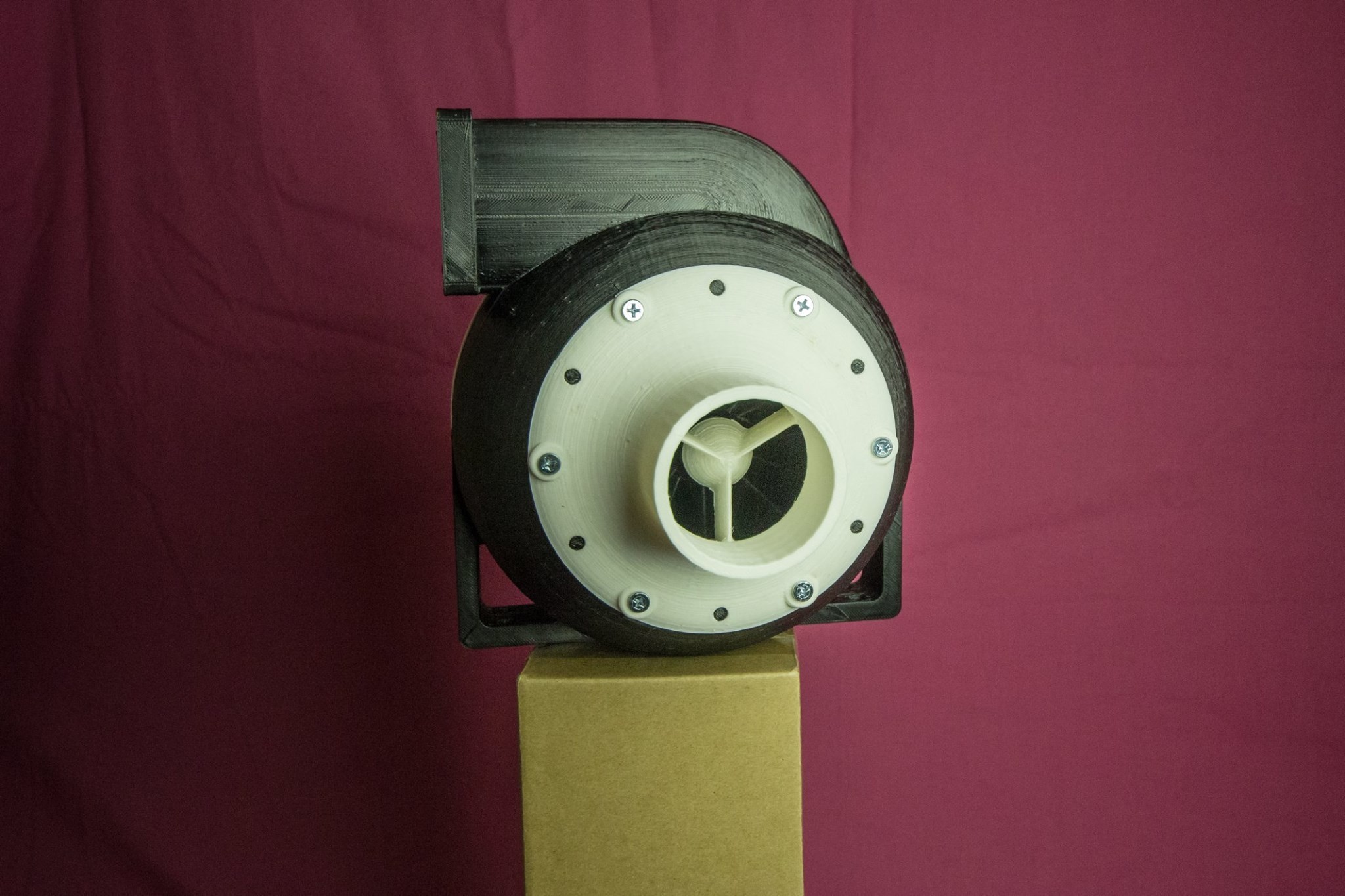

Air turbine (air pump)

?
Creation's quality: 4.8/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 6.1k views
  • 27 likes
  • 27 downloads

3D model description

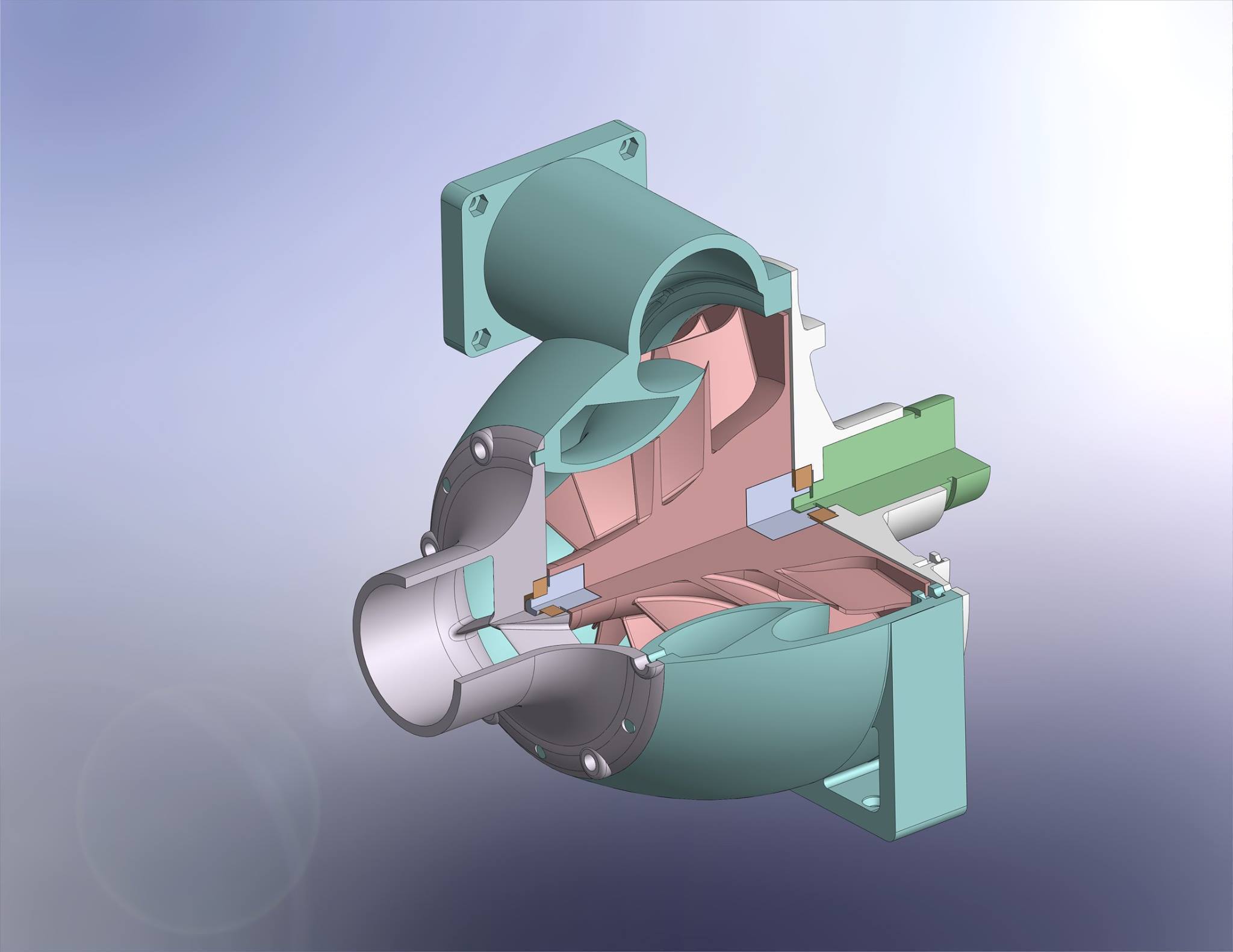

This turbine operates in a chip cleaning system.

Usage screwdriver motor
one 6*19*6 bearing
one 12*28*7 bearing
M4 screws and nuts

maximum print size is 198 mm

Video in action: https://youtu.be/vwKHrPUylbY

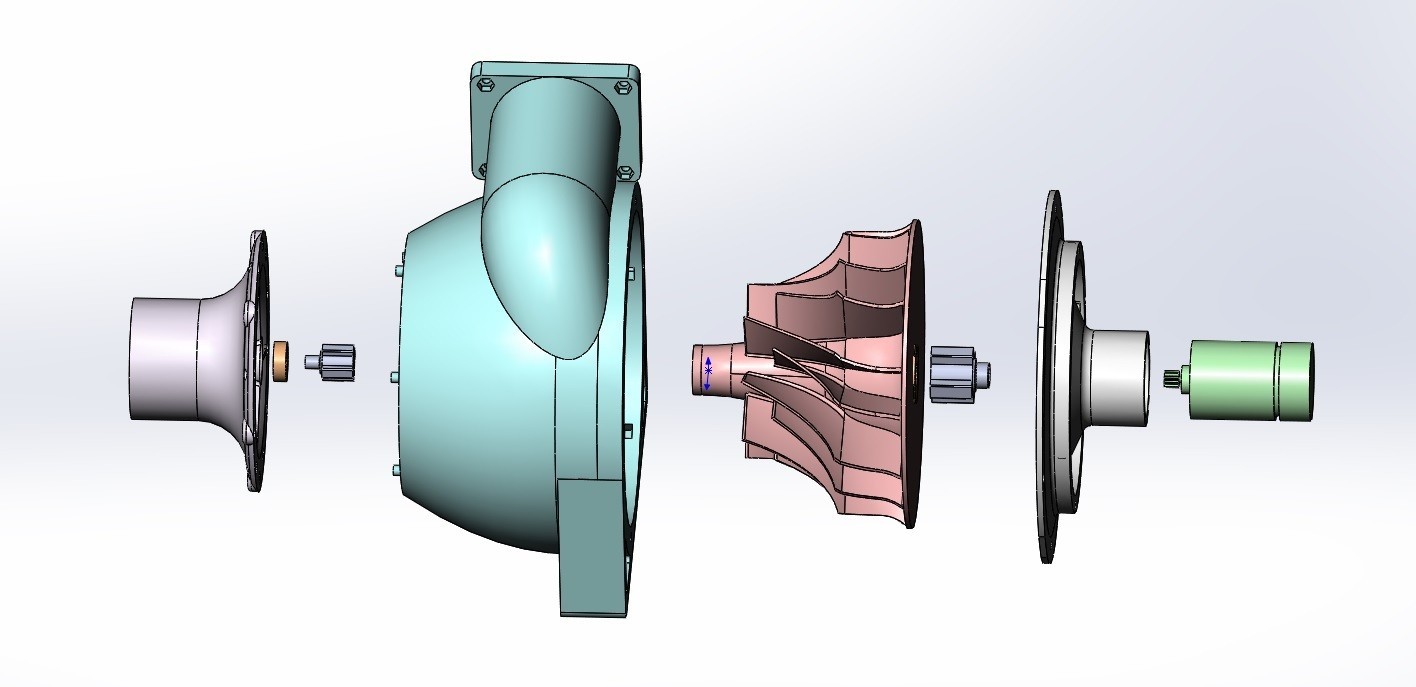

Archive contains SolidWorks, parasolid X_T and STL files.

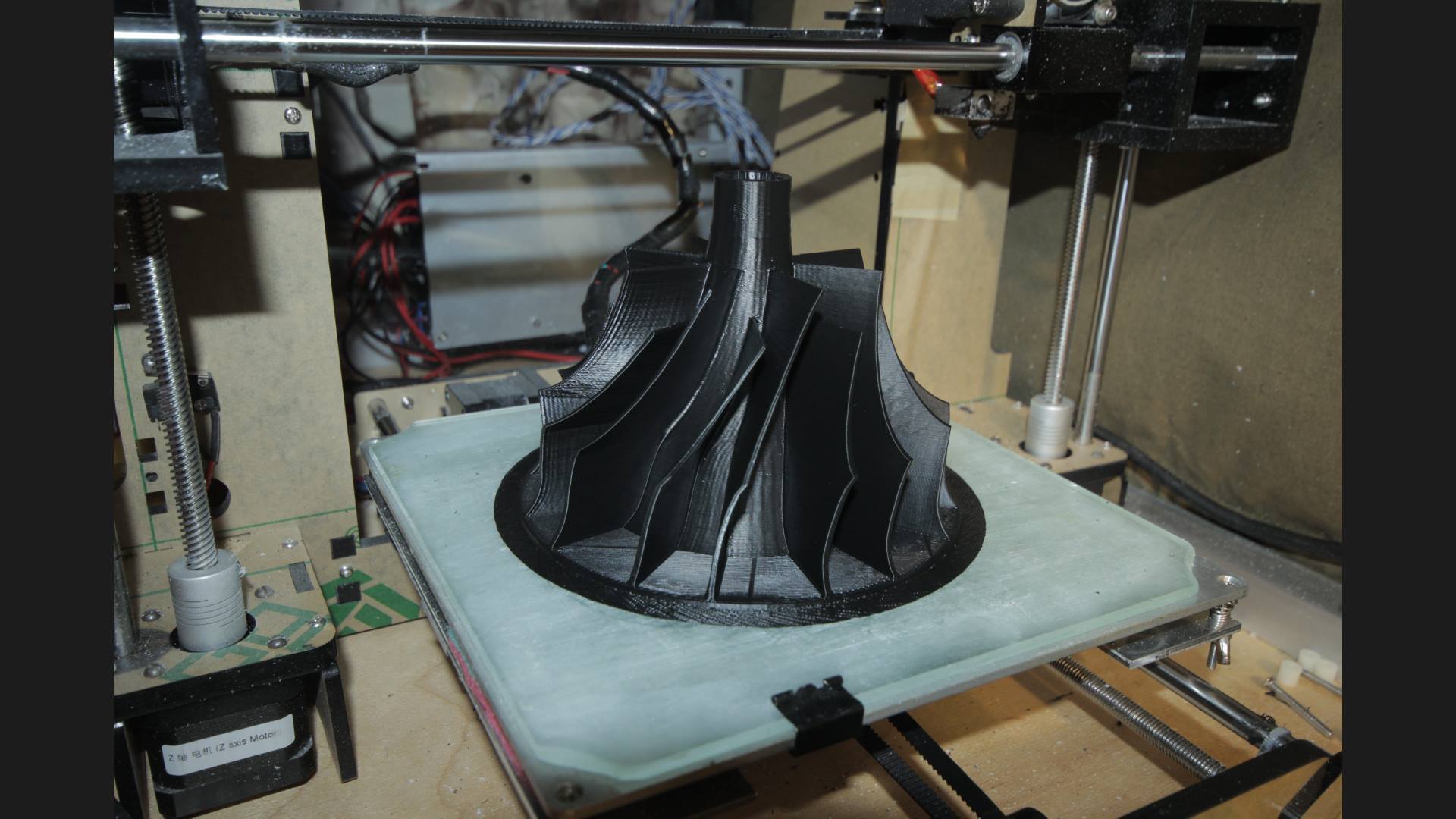

3D printing settings

Printer:
Rep Rap
200x200 table

Rafts:
Yes

Supports:
Yes

Infill:
20%

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • 1. back cover.STL
    • 2. Insertion into the propeller.STL
    • 3. propeller.STL
    • 4. Case.STL
    • 5. Insertion into the propeller (2-nd).STL
    • 6. front cover.STL
    • Air turbine (air pump).zip
    • Air turbine.STL
  • Last update: 2019/10/22 at 20:13
  • Publication date: 2017/04/11 at 23:34
