"Wyrd" Elephant Compliant Mechanism

Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

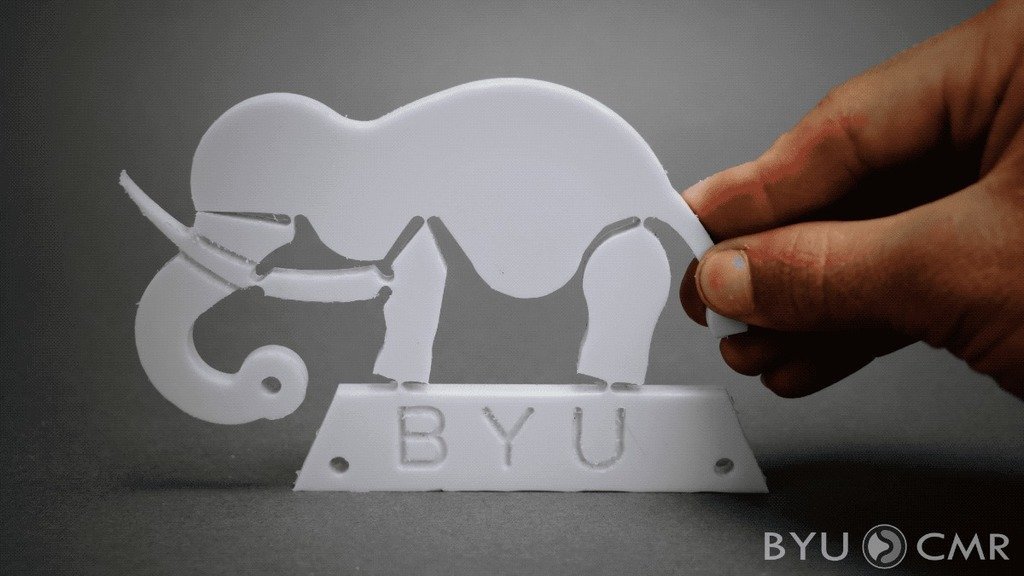

A Wyrd mechanism is a compliant mechanism that has motion similar to a double parallel mechanism.

The mechanisms are examples of how compliant mechanisms can be used to create specific desired motions. The coupler point rotates but does not translate, as if the point were pinned to ground but it is actually unconstrained. The mechanism workings are disguised by integration with various shapes (in this case, animals).

The compliant mechanism topology was developed by the BYU CMR as an illustrative example, and the motion is based on a well known rigid-link mechanism. The term "Wyrd mechanism" was coined by CMR students, and the word "wyrd" is ancestral to the modern "weird" (e.g. see Shakespeare's usage of wyrd in Macbeth).

  • 3D file format: STL



Designs 23
Downloads 1.2k
Followers 33

The BYU Compliant Mechanisms Research Group (CMR) involves students and faculty who strive to make an impact by creating compliant mechanism theories and applications that are novel, used by others, and make a difference for good.
