Compliant Overrunning Clutch

Download free STL file Compliant Overrunning Clutch, byucmrDownload free STL file Compliant Overrunning Clutch, byucmrDownload free STL file Compliant Overrunning Clutch, byucmrDownload free STL file Compliant Overrunning Clutch, byucmr

Did you 3D print this model?

3D model description

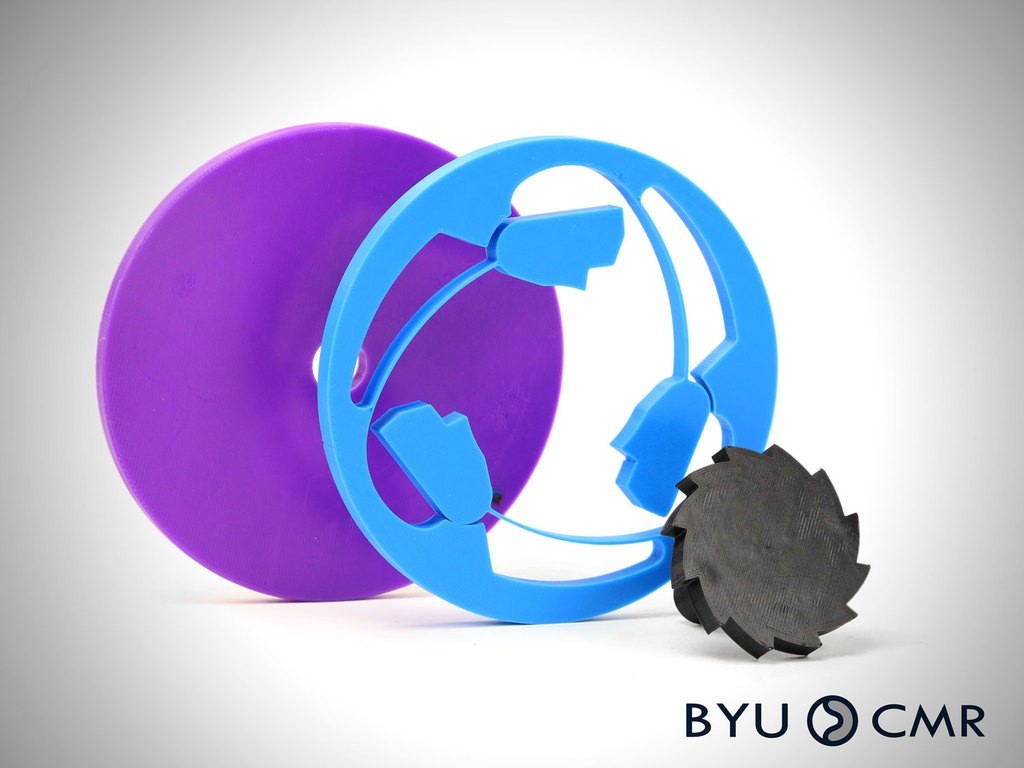

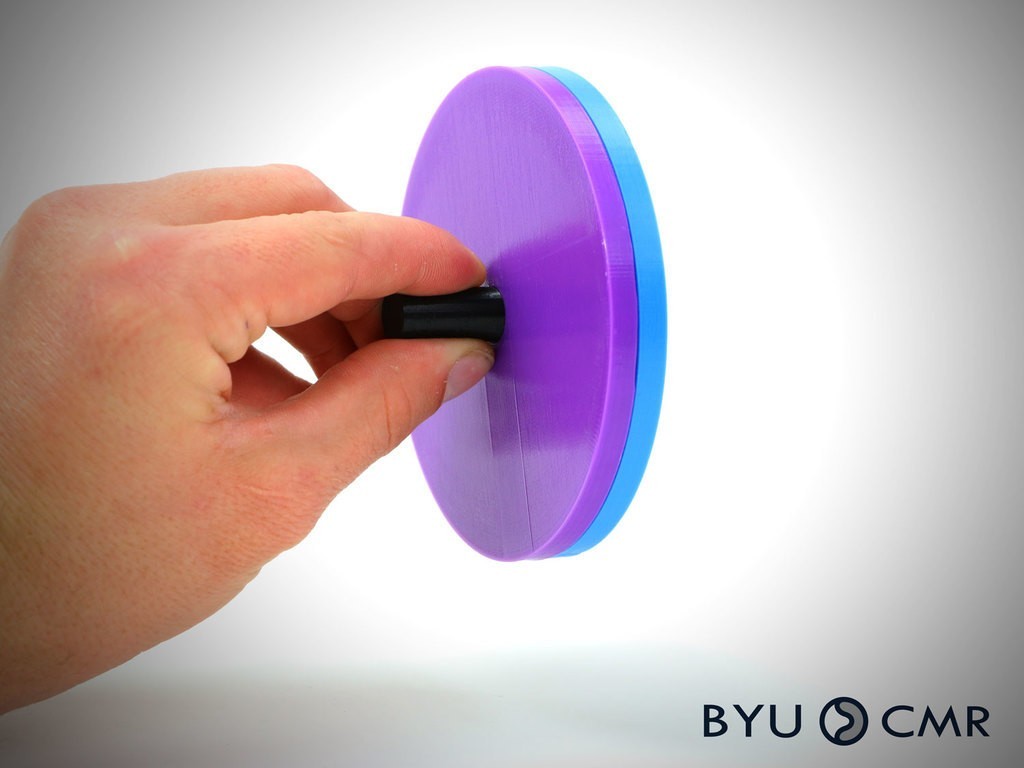

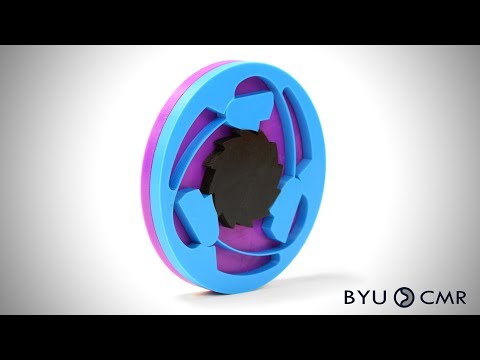

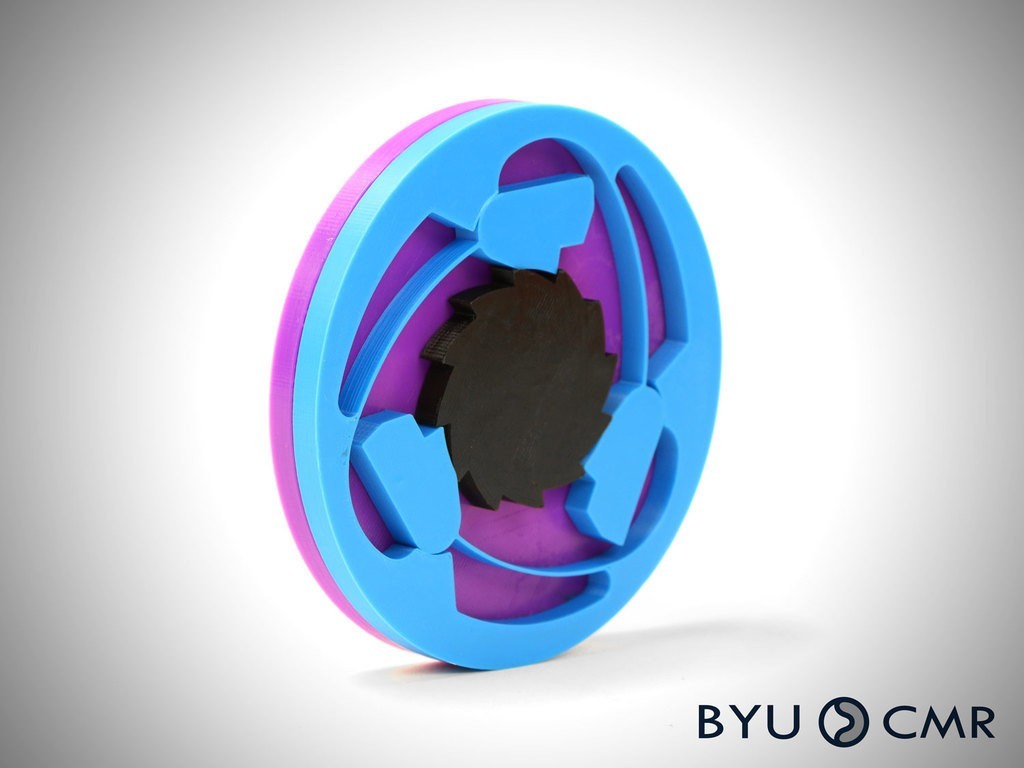

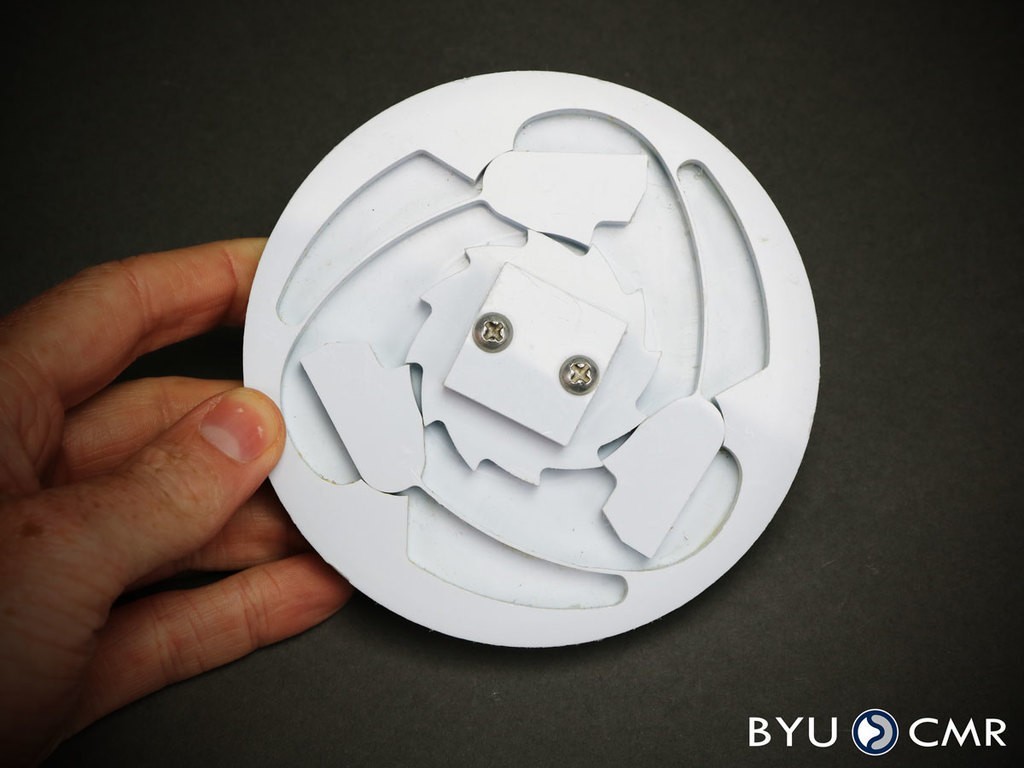

Overrunning clutches, or freewheel clutches, are used in applications which require torque to be transmitted in only one direction. These clutches have traditionally been used in applications such as vehicle transmissions, engine starters, agricultural equipment, helicopters, and bicycles.There are several variations of over-running clutches, but the four main types include the sprag clutch, the roller or ball clutch, the spring clutch, and the ratchet and pawl clutch. This design most resembles the ratchet and pawl clutch, and was produced by the Compliant Mechanisms Research Group at Brigham Young University, under the direction of Dr. Larry Howell.

Advantages of using a compliant overrunning clutch:
-lower part count than alternative designs
-easy assembly and maintenance
-reduced part wear
-low cost
-less lubrication required

-difficult to manufacture due to very thin segments
-requires non-linear analysis methods
-noisy (when clutch teeth are passively rotating past compliant part)

  • 3D model format: STL



Designs 20
Downloads 628

The BYU Compliant Mechanisms Research Group (CMR) involves students and faculty who strive to make an impact by creating compliant mechanism theories and applications that are novel, used by others, and make a difference for good.
