Astronaut space helmet

Advertising
Share
Add to
Make
?
Creation quality: 5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
License
3D design format
2 files (ZIP) Close
  • Astronaut space helmet_OBJ_by 3Demon.zip
    • Space helmet_WHOLE_obj_by 3Demon .mtl
    • Space helmet_WHOLE_obj_by 3Demon .obj
  • Astronaut space helmet_STL_by 3Demon.zip
    • Space helmet_37xPins_by 3Demon .stl
    • Space helmet_Decoration_Left_STL_by 3Demon .stl
    • Space helmet_Decoration_Right_1_STL_by 3Demon .stl
    • Space helmet_Decoration_Right_2_STL_by 3Demon .stl
    • Space helmet_Fan_Box_STL_by 3Demon .stl
    • Space helmet_Glass_Clear_1_STL_by 3Demon .stl
    • Space helmet_Glass_Clear_2_STL_by 3Demon .stl
    • Space helmet_Glass_Clear_3_STL_by 3Demon .stl
    • Space helmet_Glass_Clear_4_STL_by 3Demon .stl
    • Space helmet_Glass_Clear_Opening_Handle_STL_by 3Demon .stl
    • Space helmet_Glass_Filter_1_STL_by 3Demon .stl
    • Space helmet_Glass_Filter_2_STL_by 3Demon .stl
    • Space helmet_Glass_Filter_3_STL_by 3Demon .stl
    • Space helmet_Glass_Filter_4_STL_by 3Demon .stl
    • Space helmet_Hole_Connection_Inner_STL_by 3Demon .stl
    • Space helmet_Hole_Connection_Out_by 3Demon .stl
    • Space helmet_Hole_Connection_Ring_STL_by 3Demon .stl
    • Space helmet_Hole_Connection_STL_by 3Demon .stl
    • Space helmet_Lock_Bot_1_STL_by 3Demon .stl
    • Space helmet_Lock_Bot_2_STL_by 3Demon .stl
    • Space helmet_Lock_Bot_3_STL_by 3Demon .stl
    • Space helmet_Lock_Bot_4_STL_by 3Demon .stl
    • Space helmet_Lock_Top_1_STL_by 3Demon .stl
    • Space helmet_Lock_Top_2_STL_by 3Demon .stl
    • Space helmet_Lock_Top_3_STL_by 3Demon .stl
    • Space helmet_Lock_Top_4_STL_by 3Demon .stl
    • Space helmet_Lock_Top_Tag_STL_by 3Demon .stl
    • Space helmet_Shell_1_STL_by 3Demon .stl
    • Space helmet_Shell_2_STL_by 3Demon .stl
    • Space helmet_Shell_3_STL_by 3Demon .stl
    • Space helmet_Shell_4_STL_by 3Demon .stl
    • Space helmet_Shell_5_STL_by 3Demon .stl
    • Space helmet_Shell_6_STL_by 3Demon .stl
    • Space helmet_Shell_7_STL_by 3Demon .stl
    • Space helmet_Shell_8_STL_by 3Demon .stl
    • Space helmet_Side_Decoration_1_STL_by 3Demon .stl
    • Space helmet_Side_Decoration_2_STL_by 3Demon .stl
    • Space helmet_WHOLE_STL_by 3Demon .stl

Learn more about the formats
Publication date
Design number 570605
3D-mon

3D-mon

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

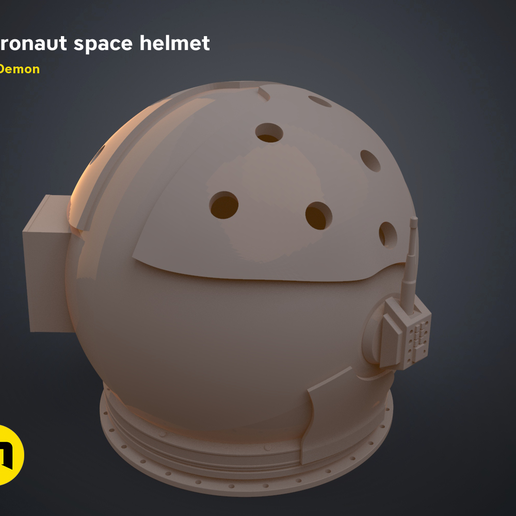

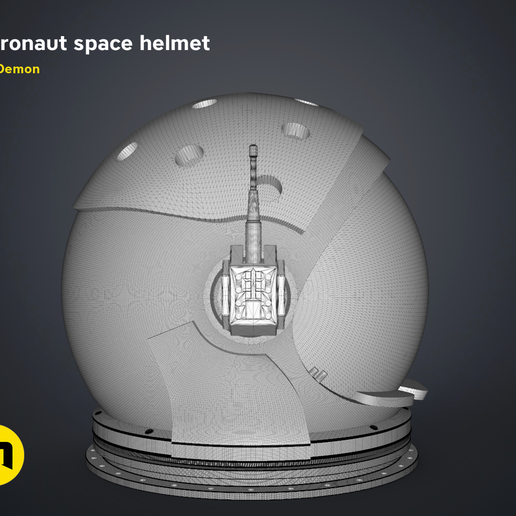

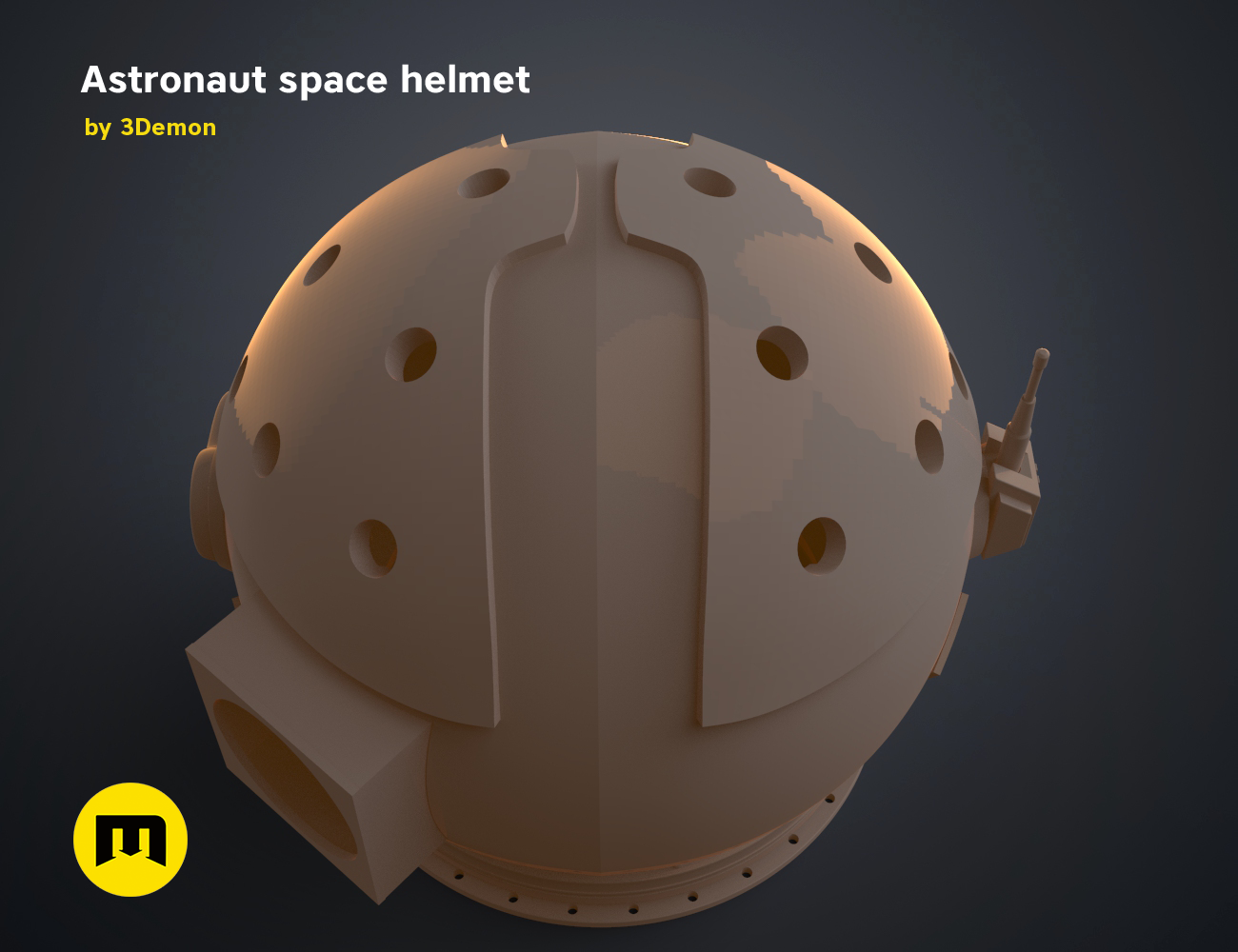

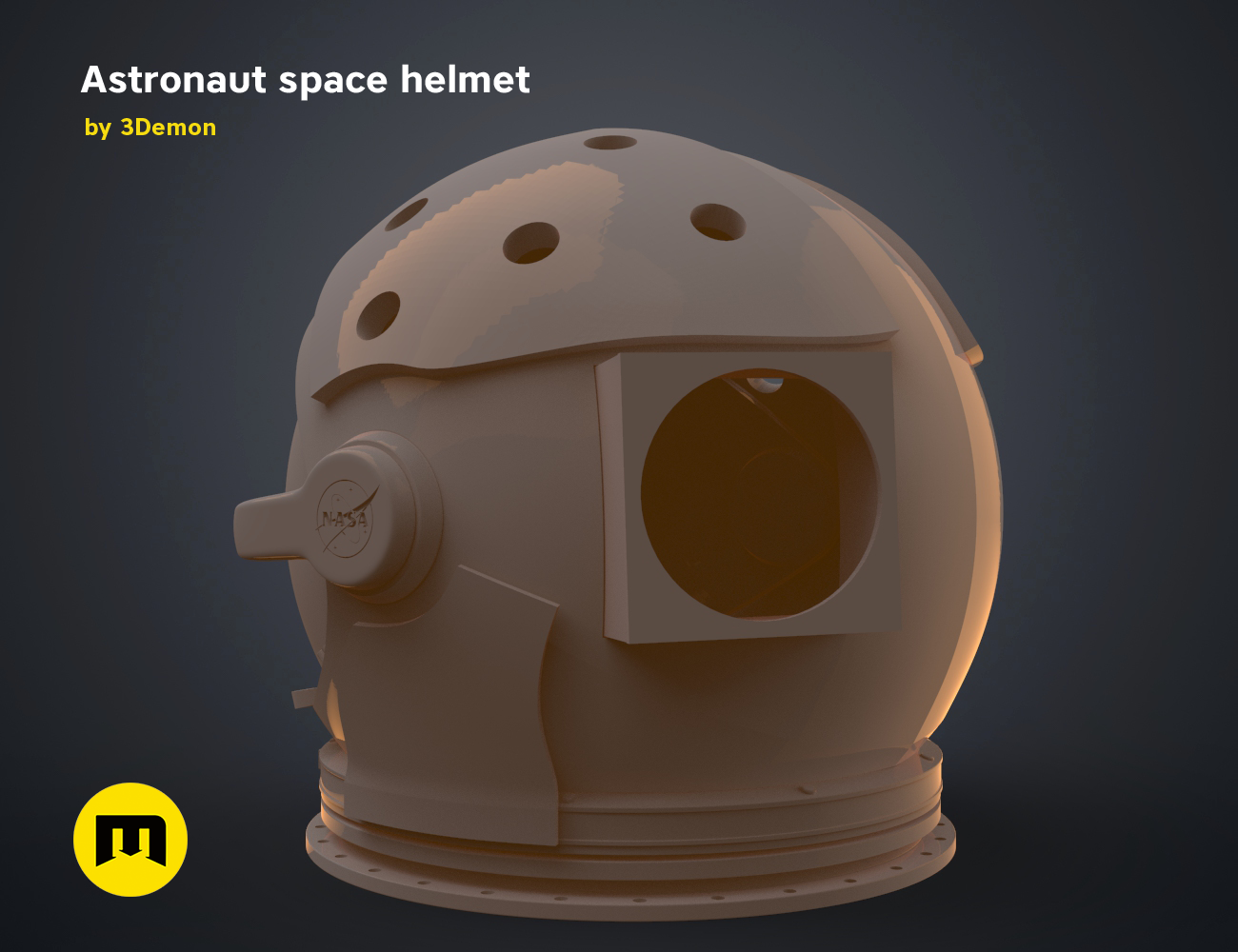

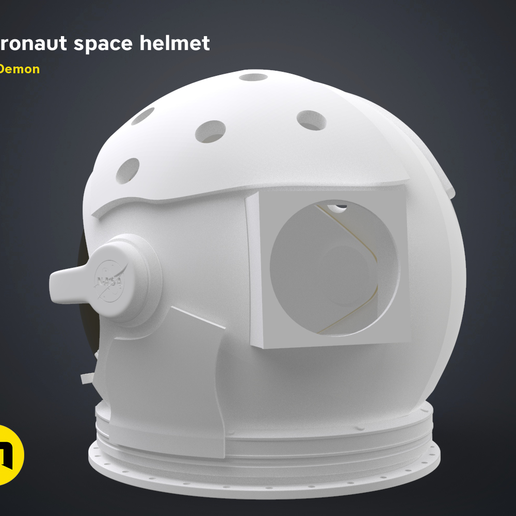

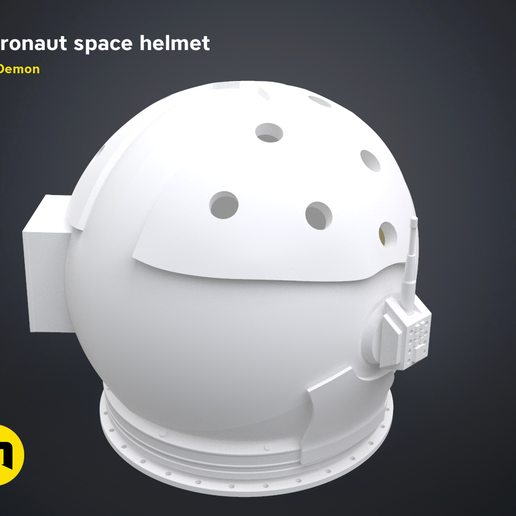

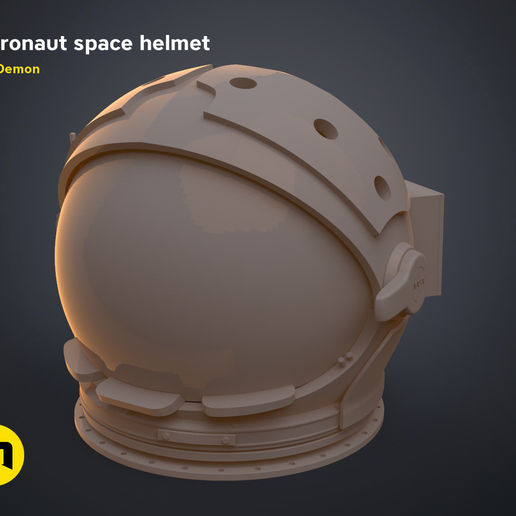

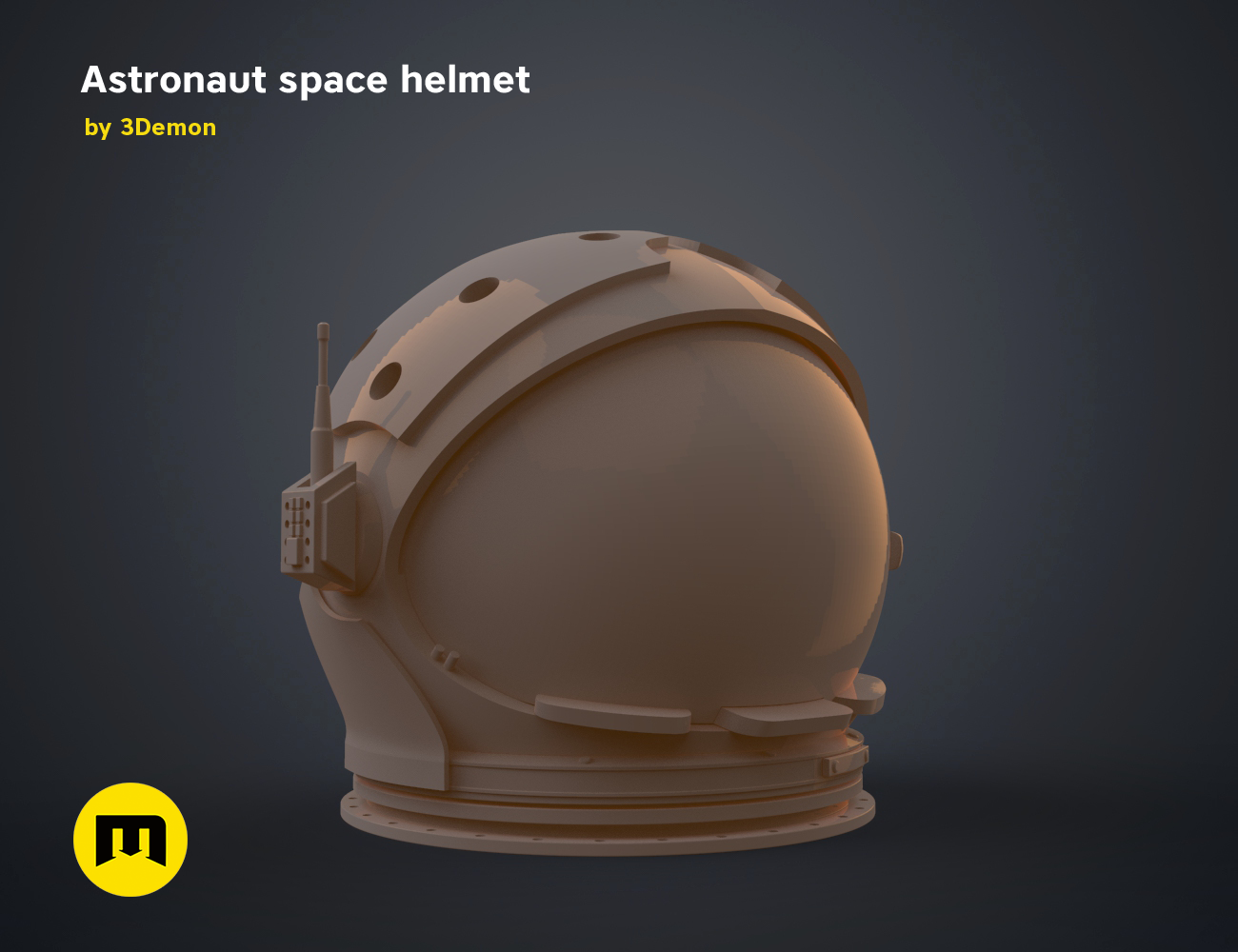

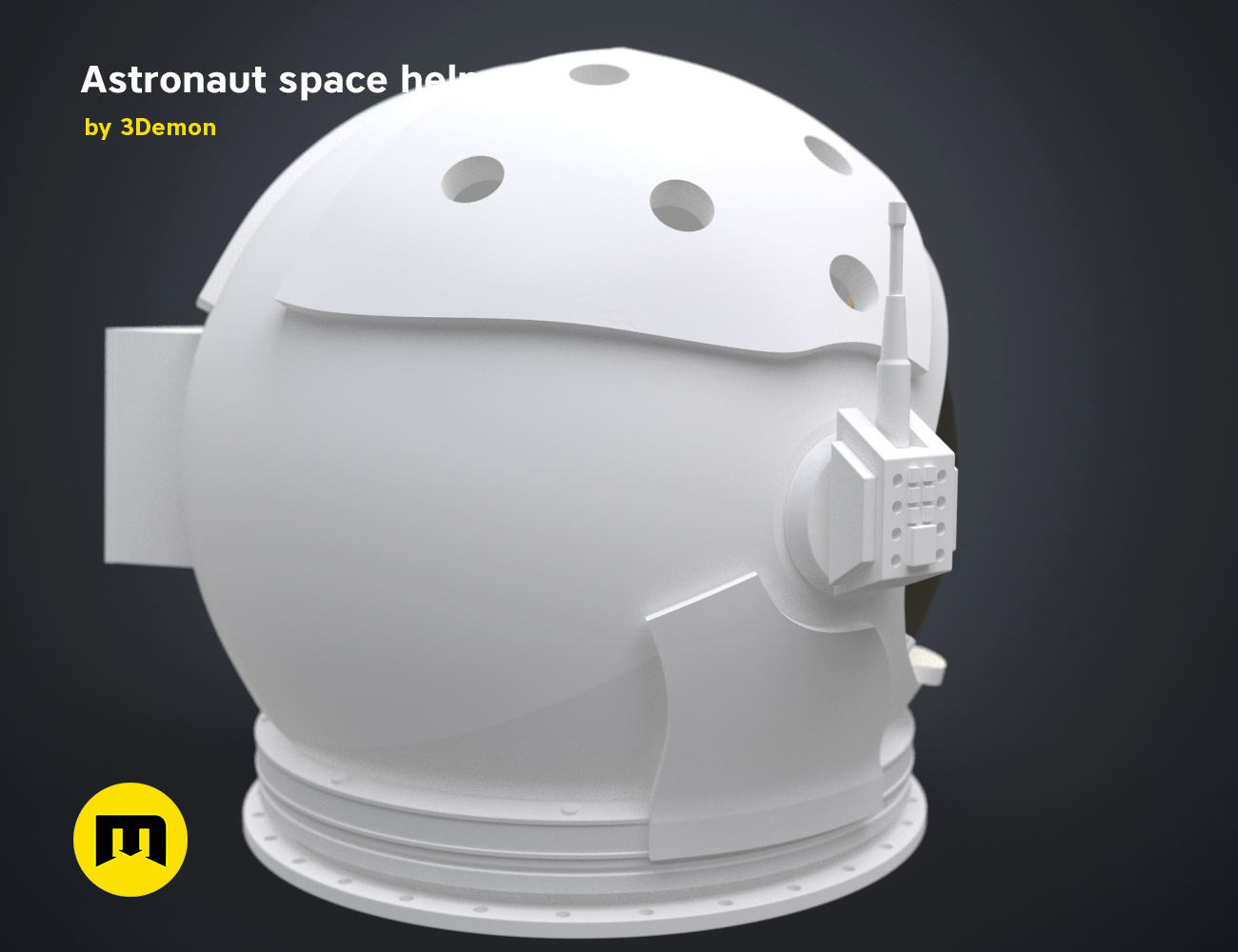

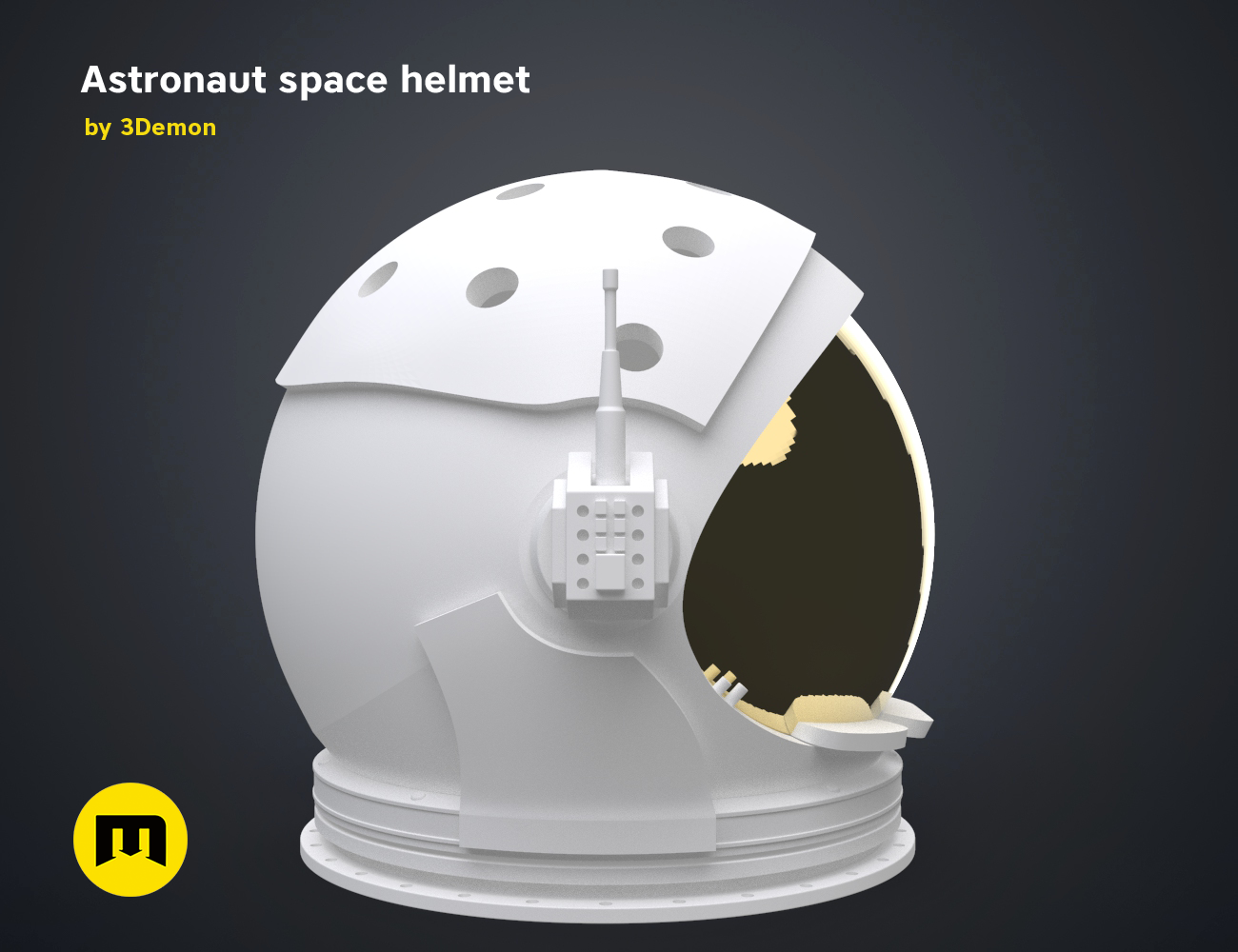

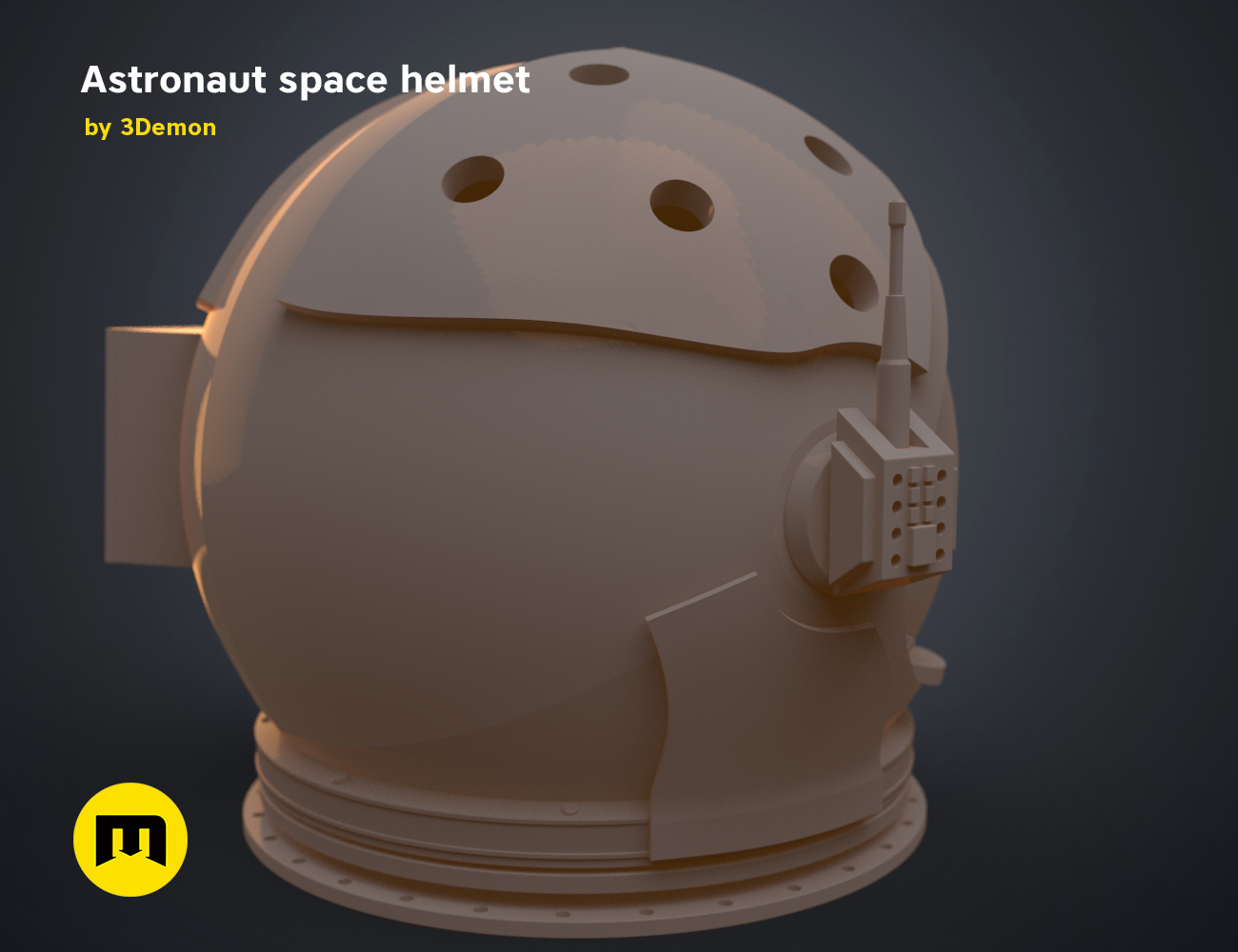

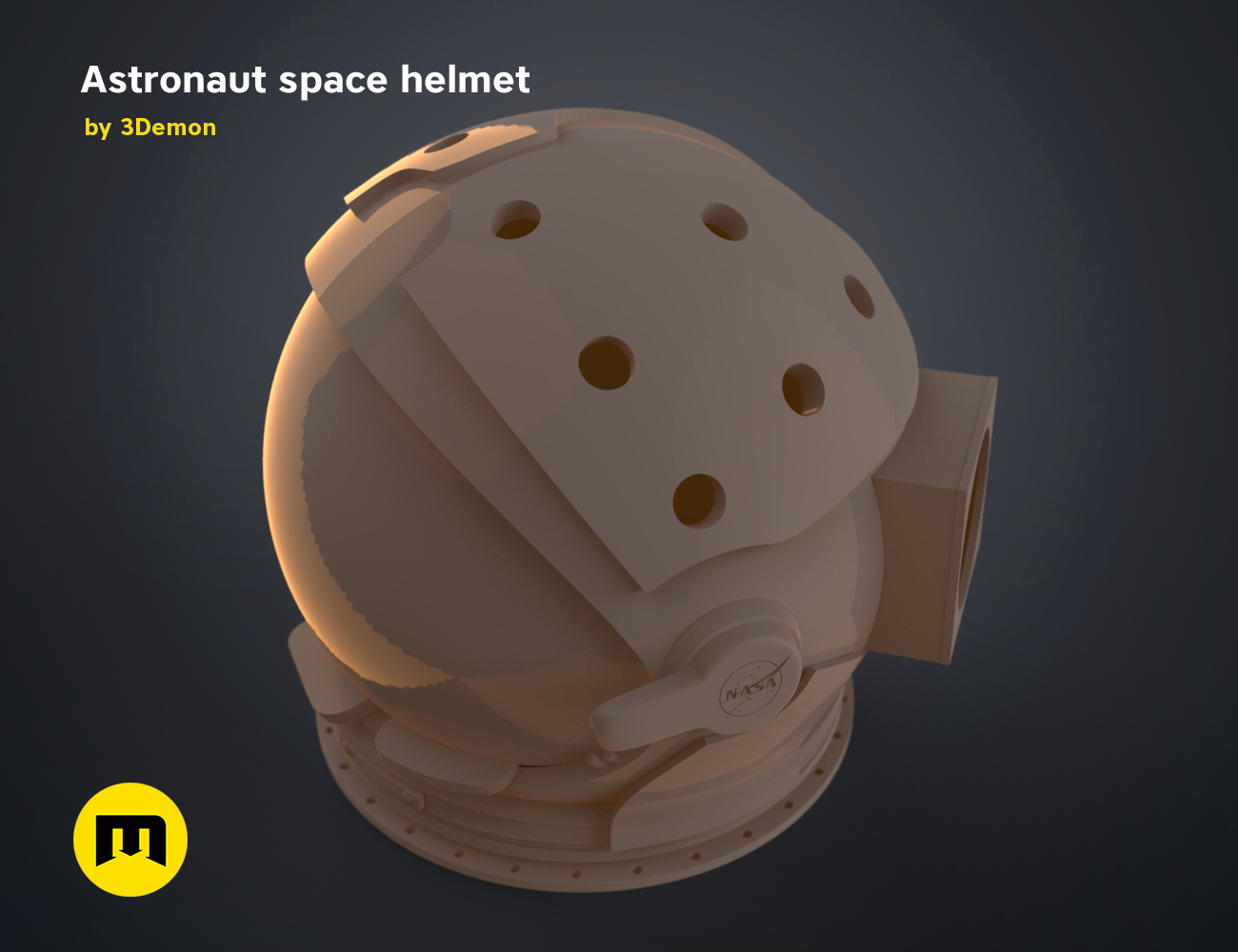

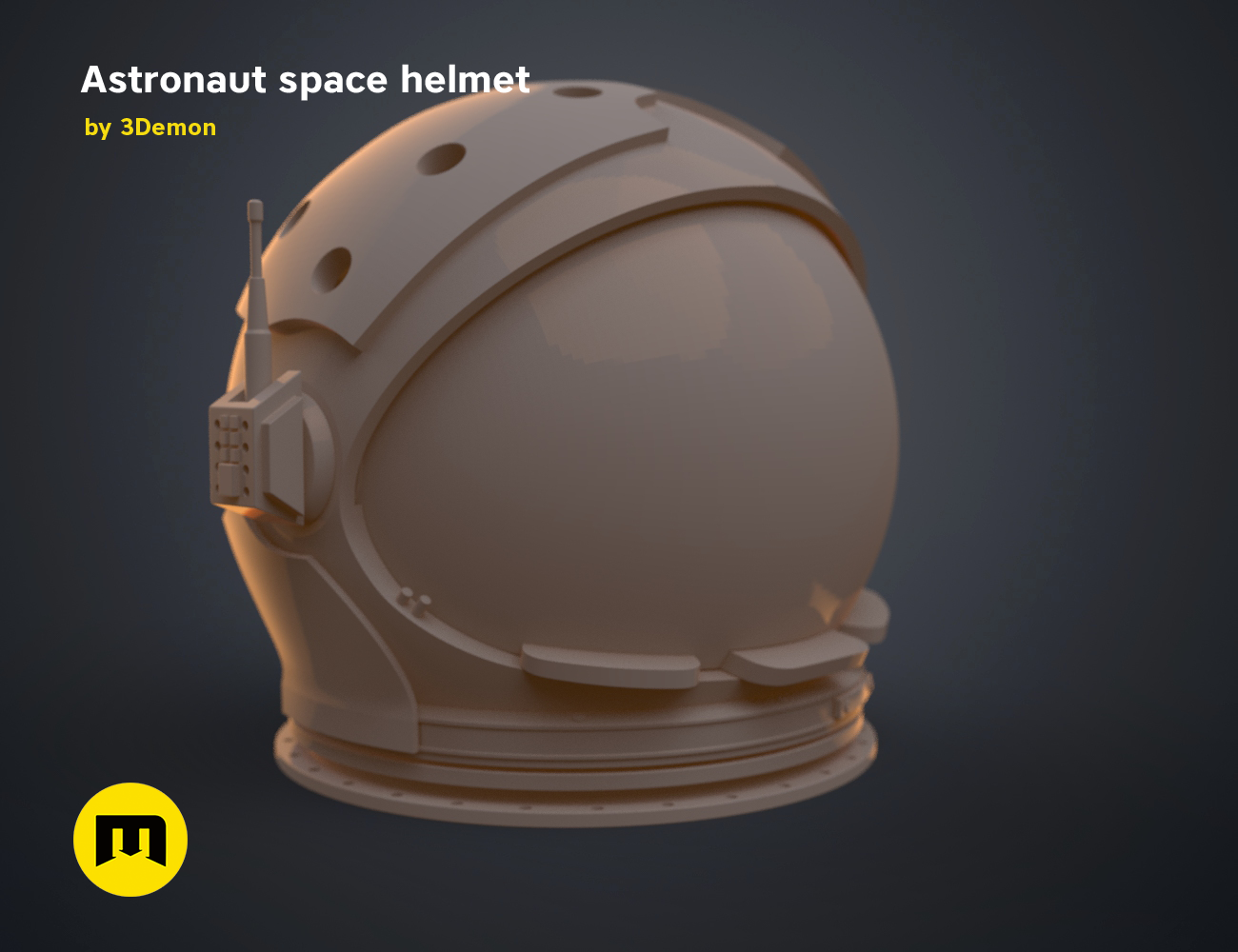

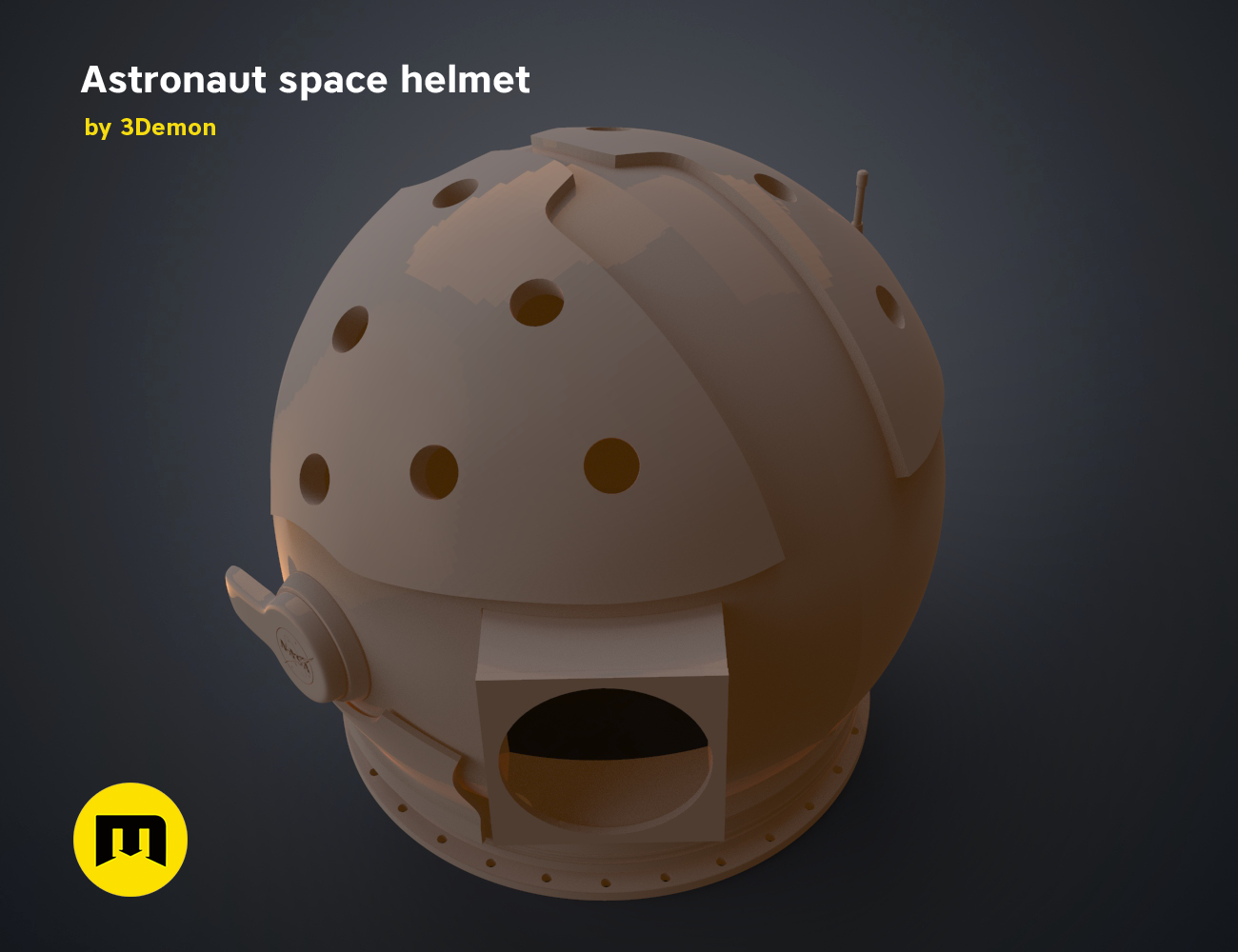

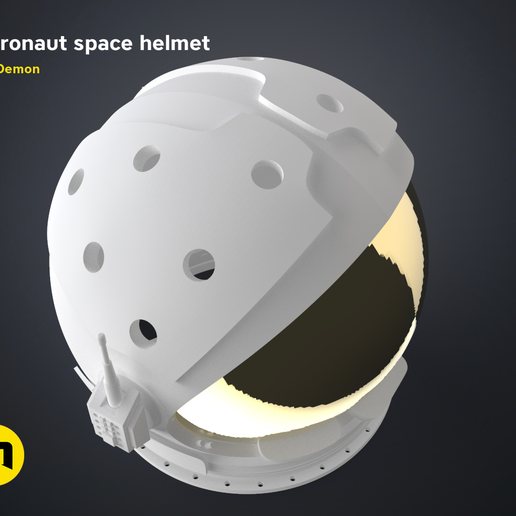

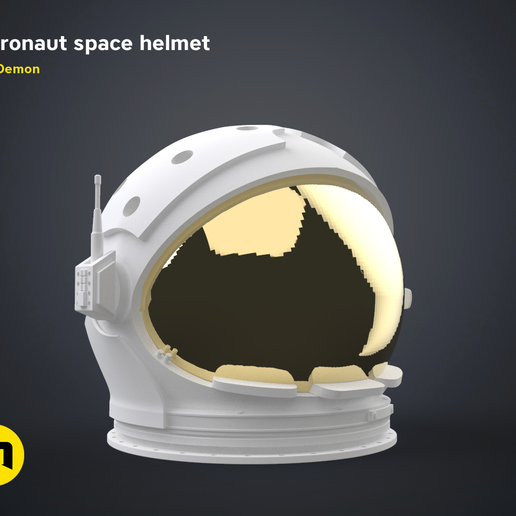

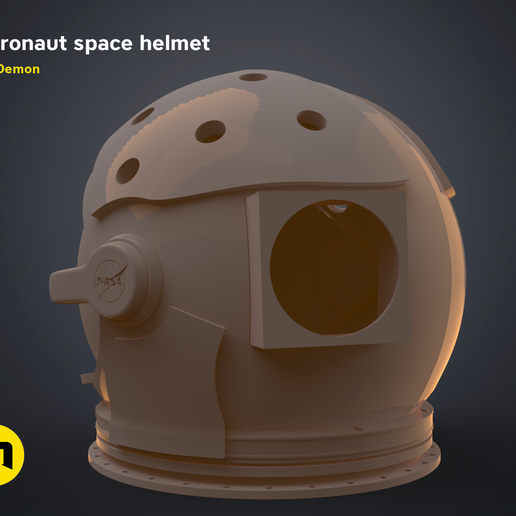

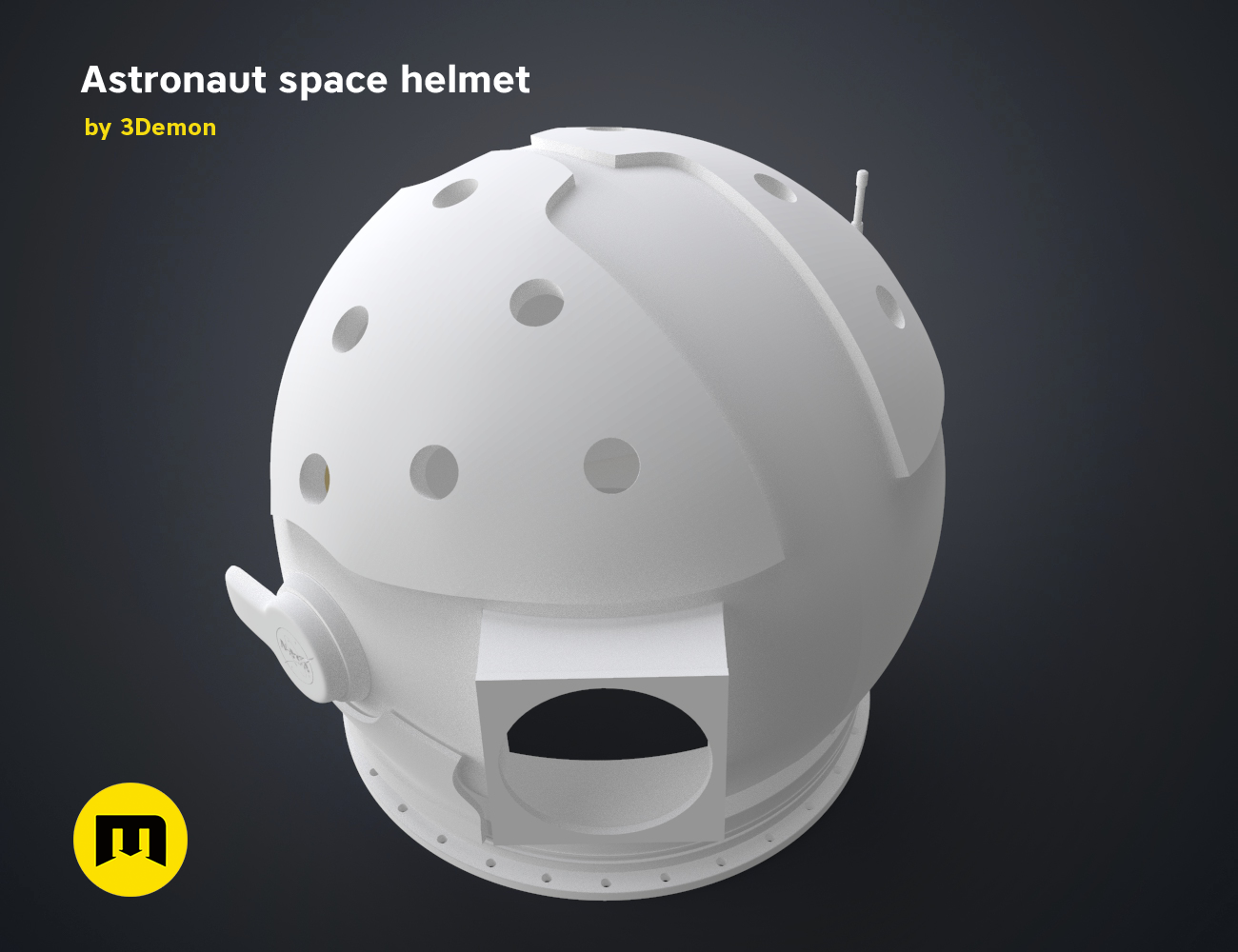

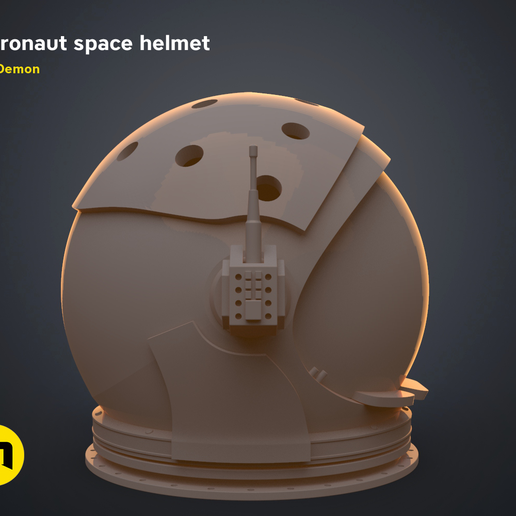

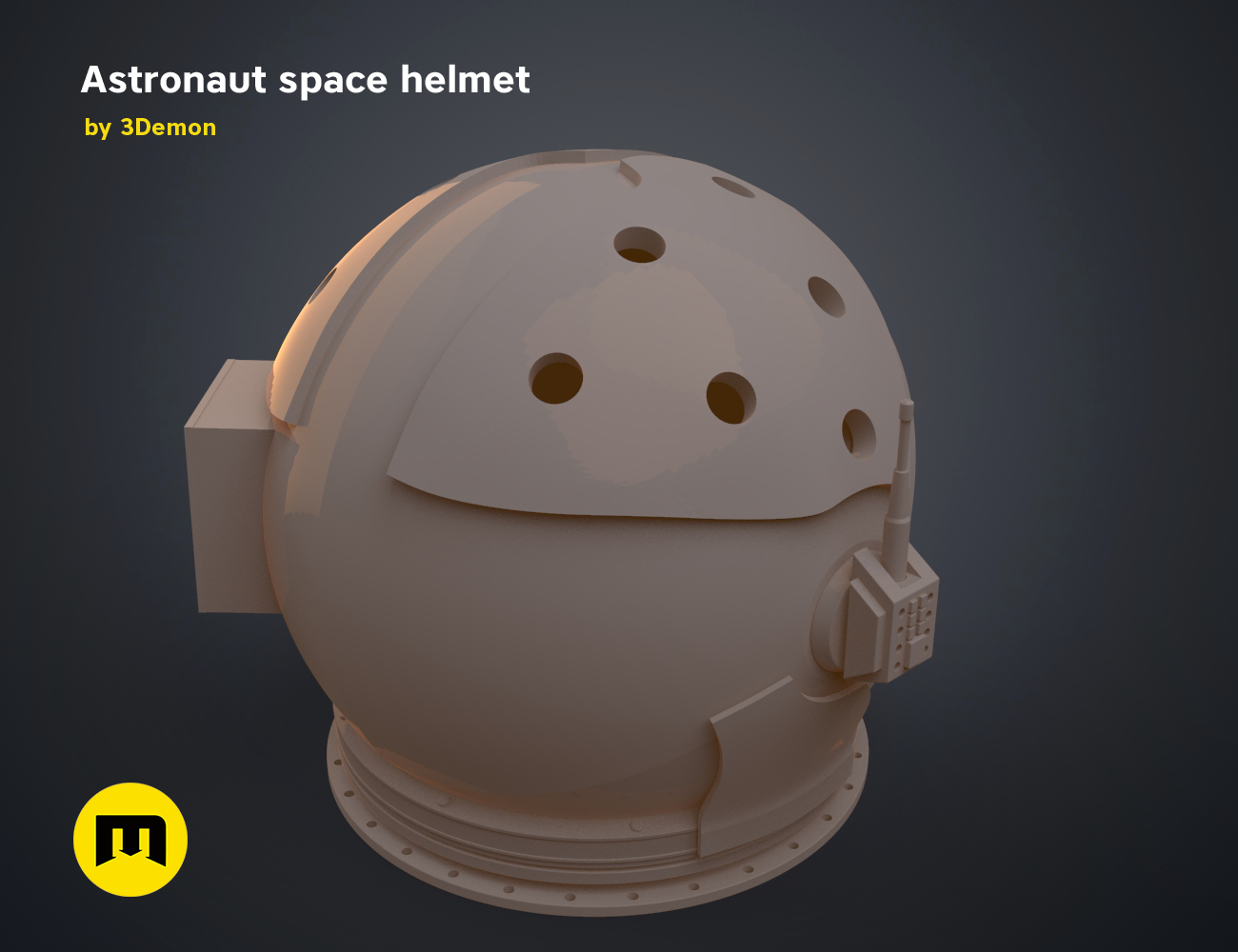

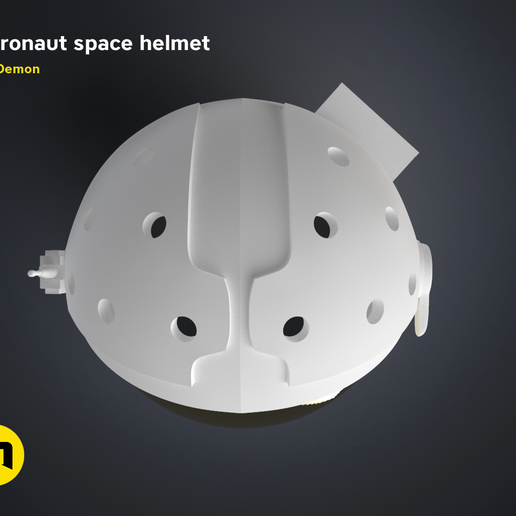

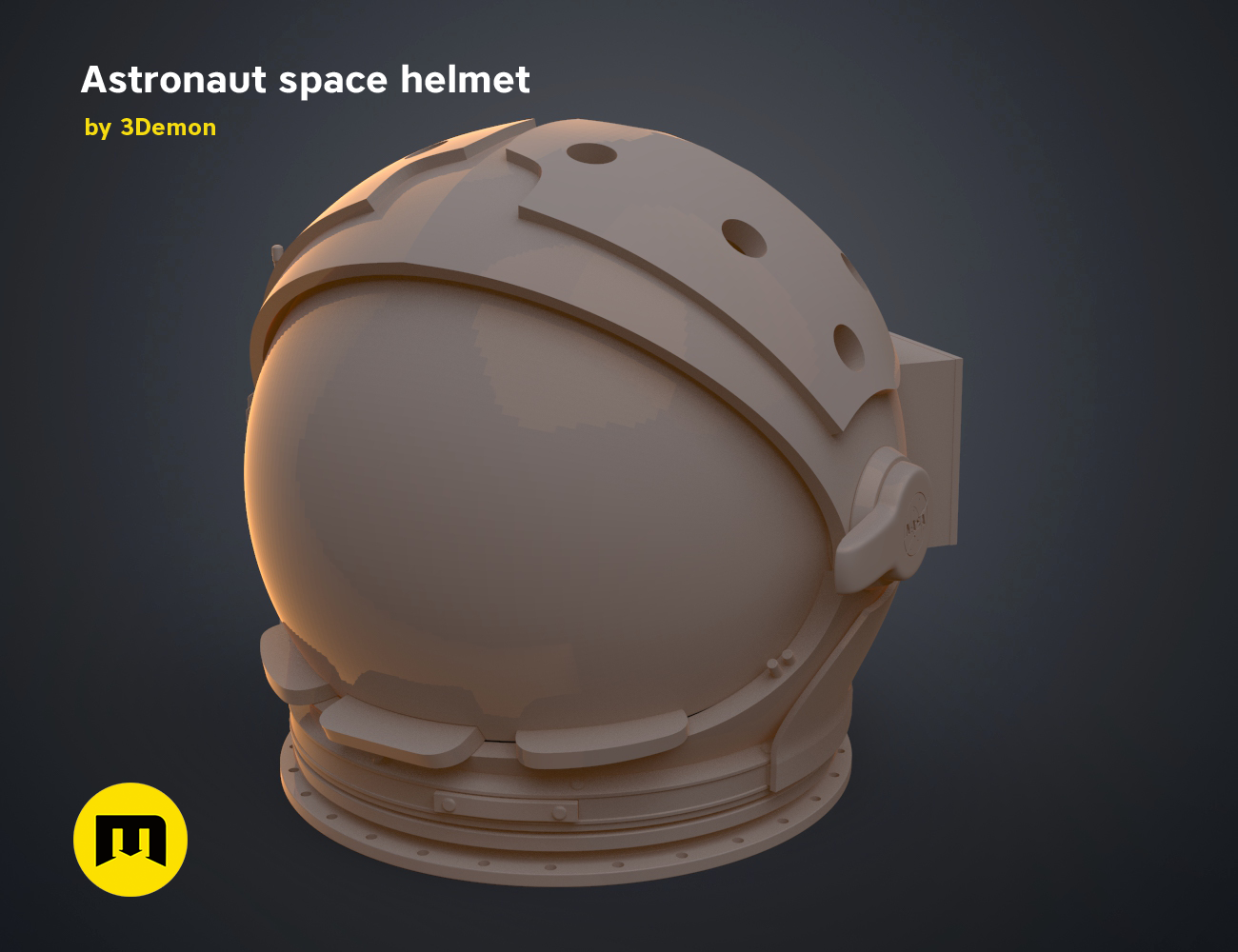

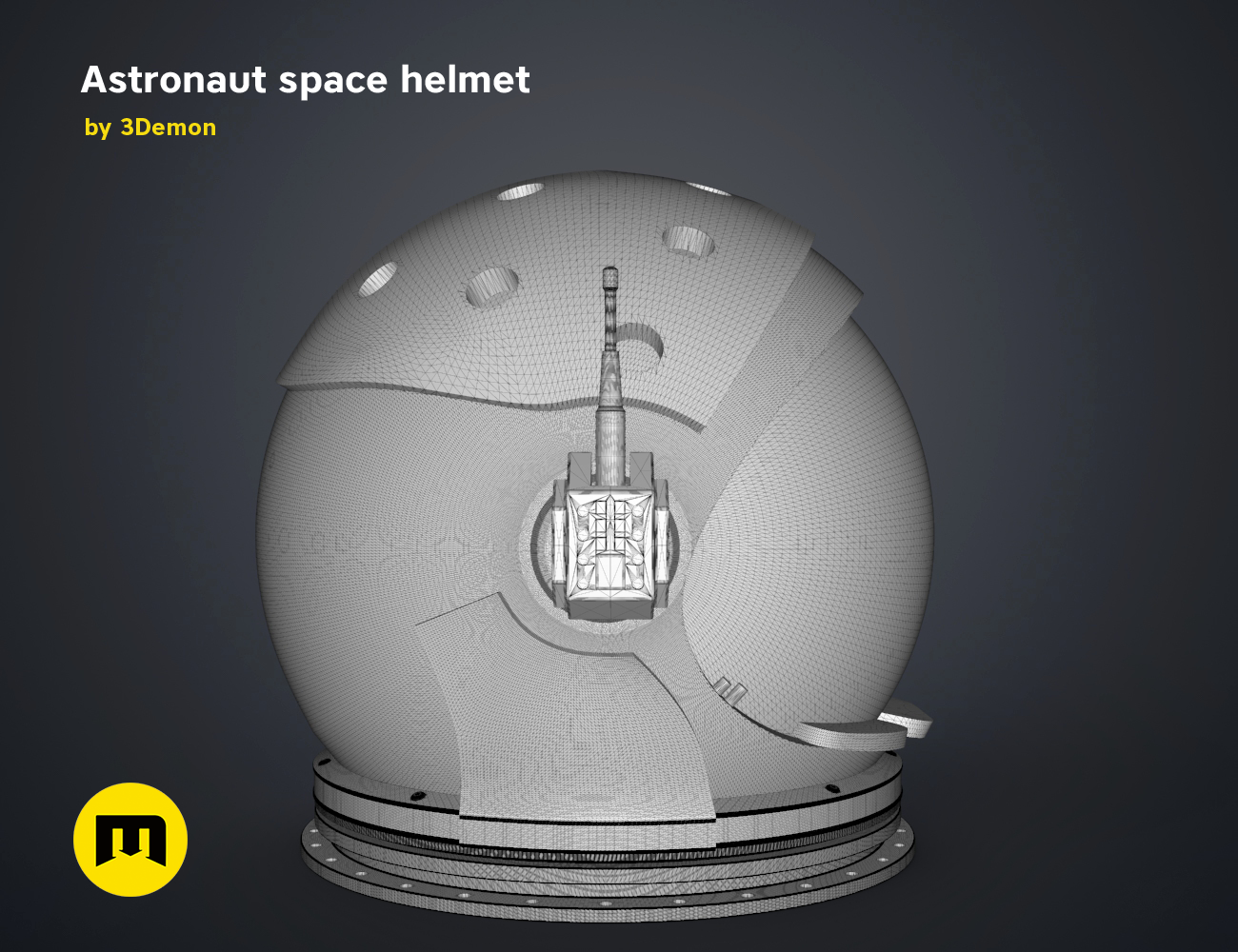

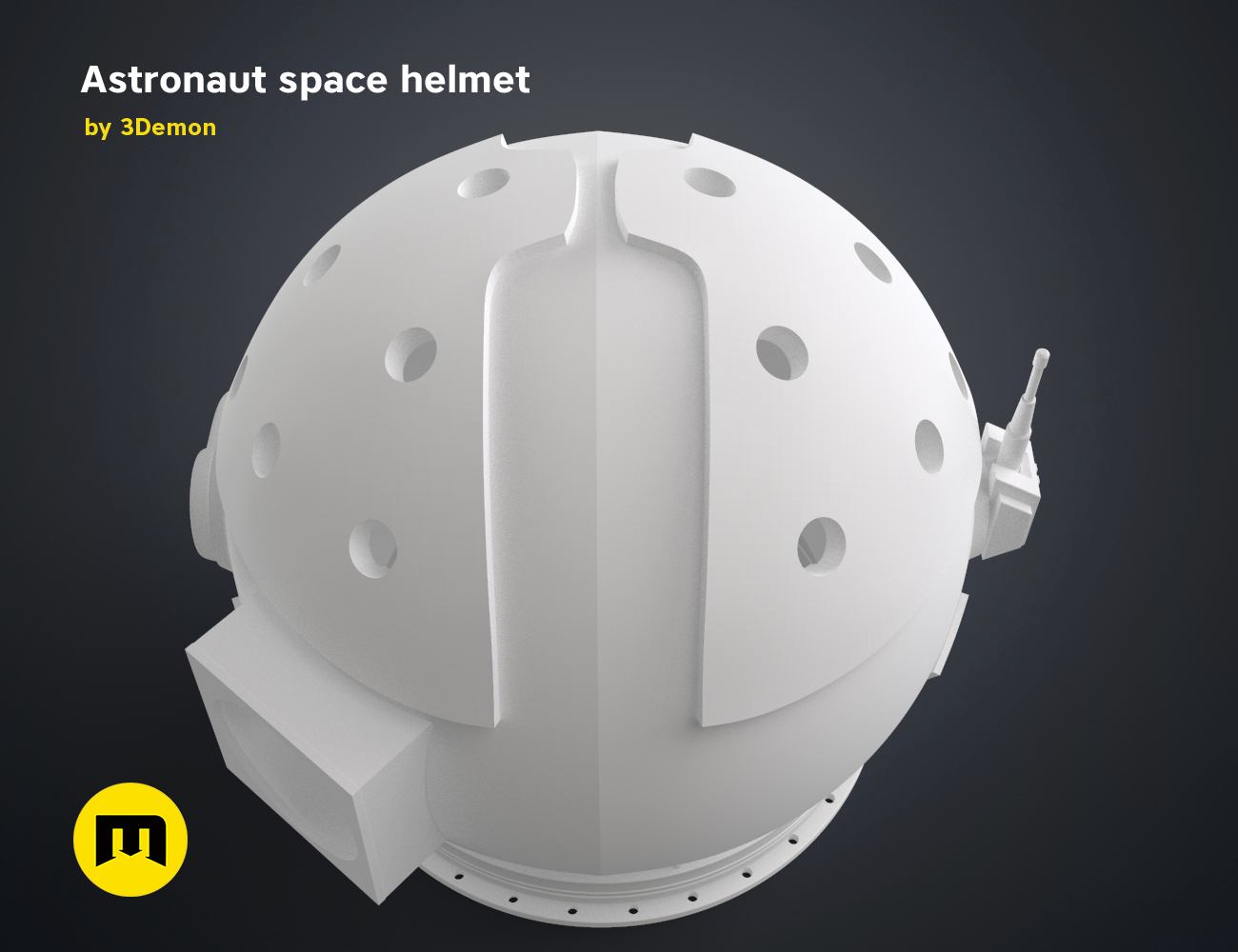

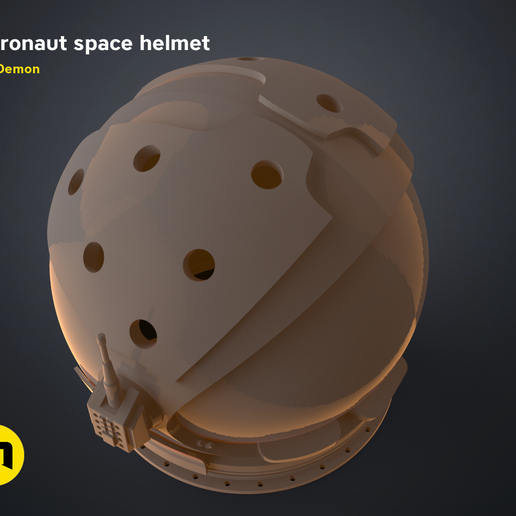

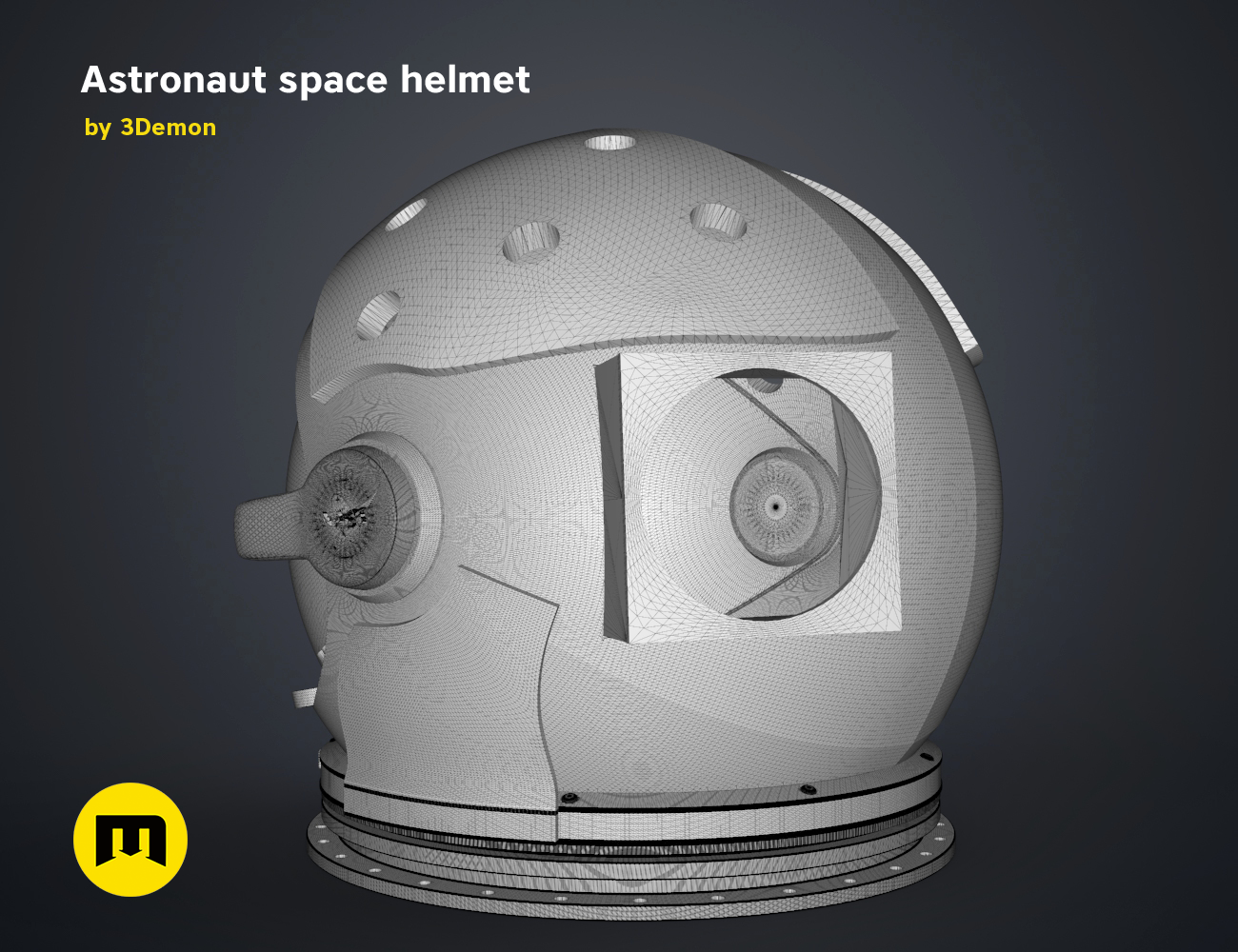

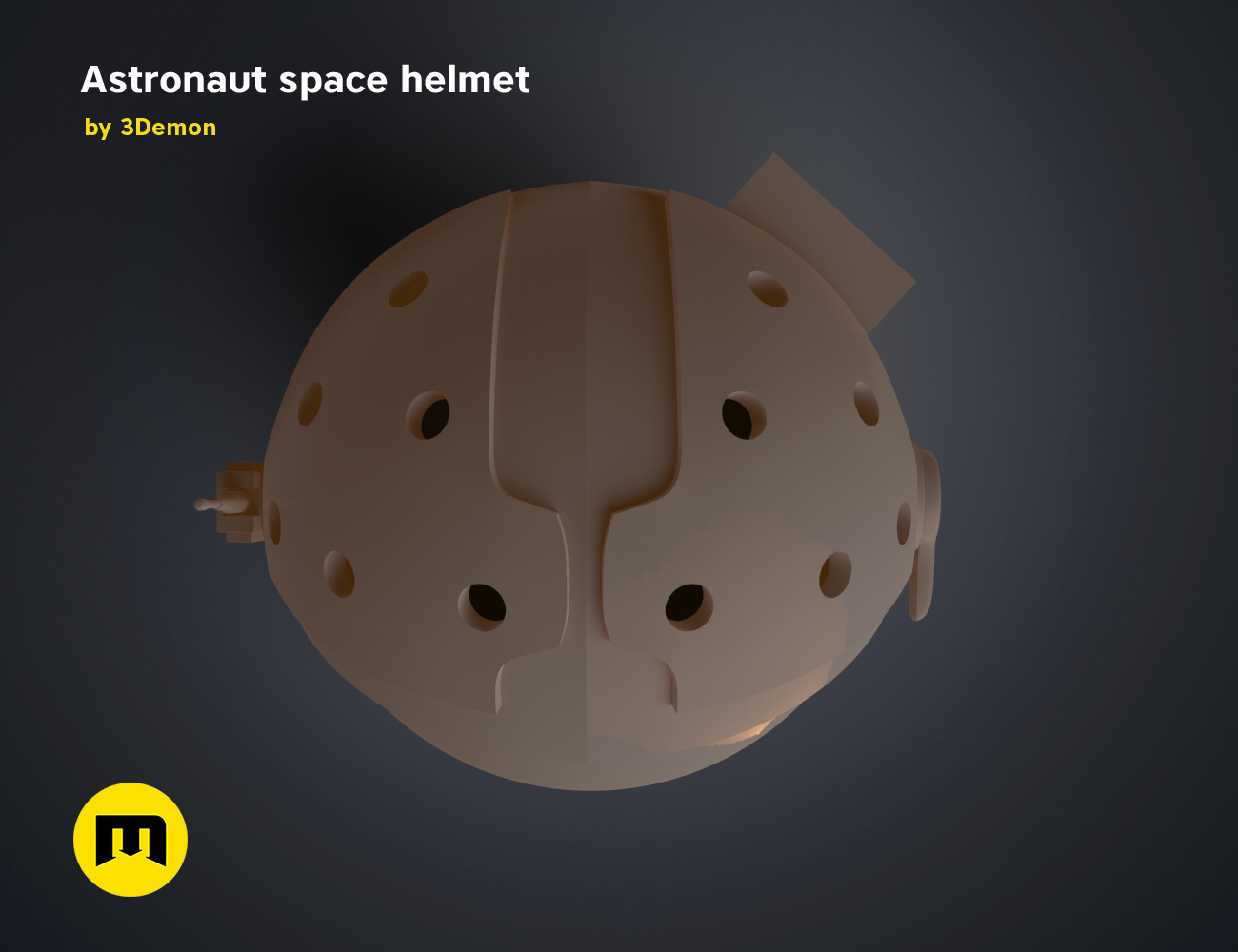

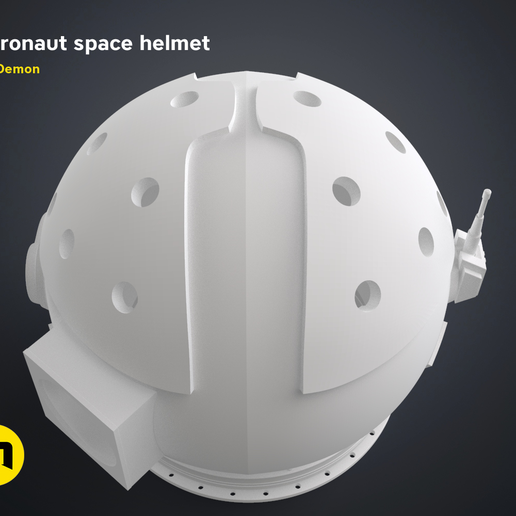

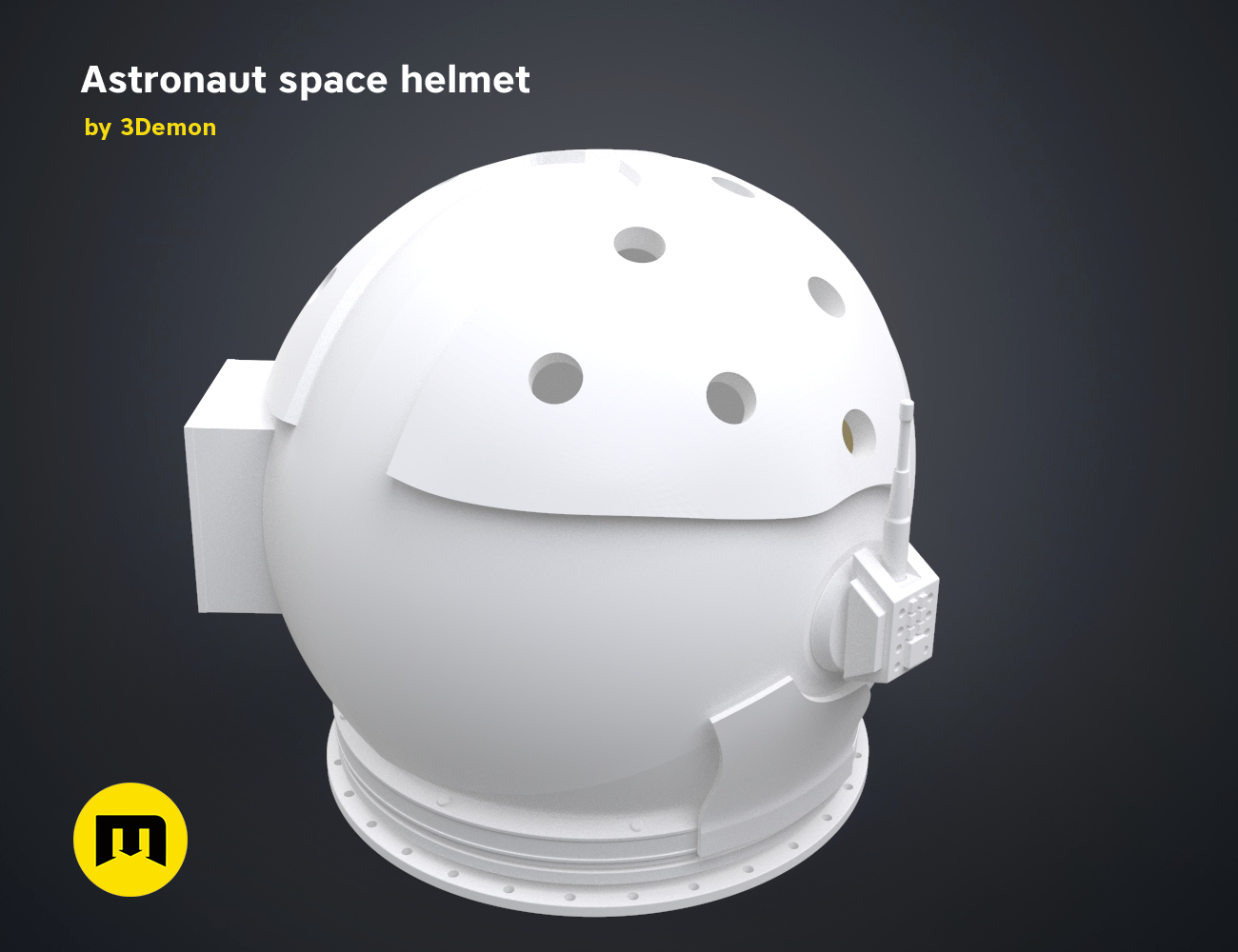

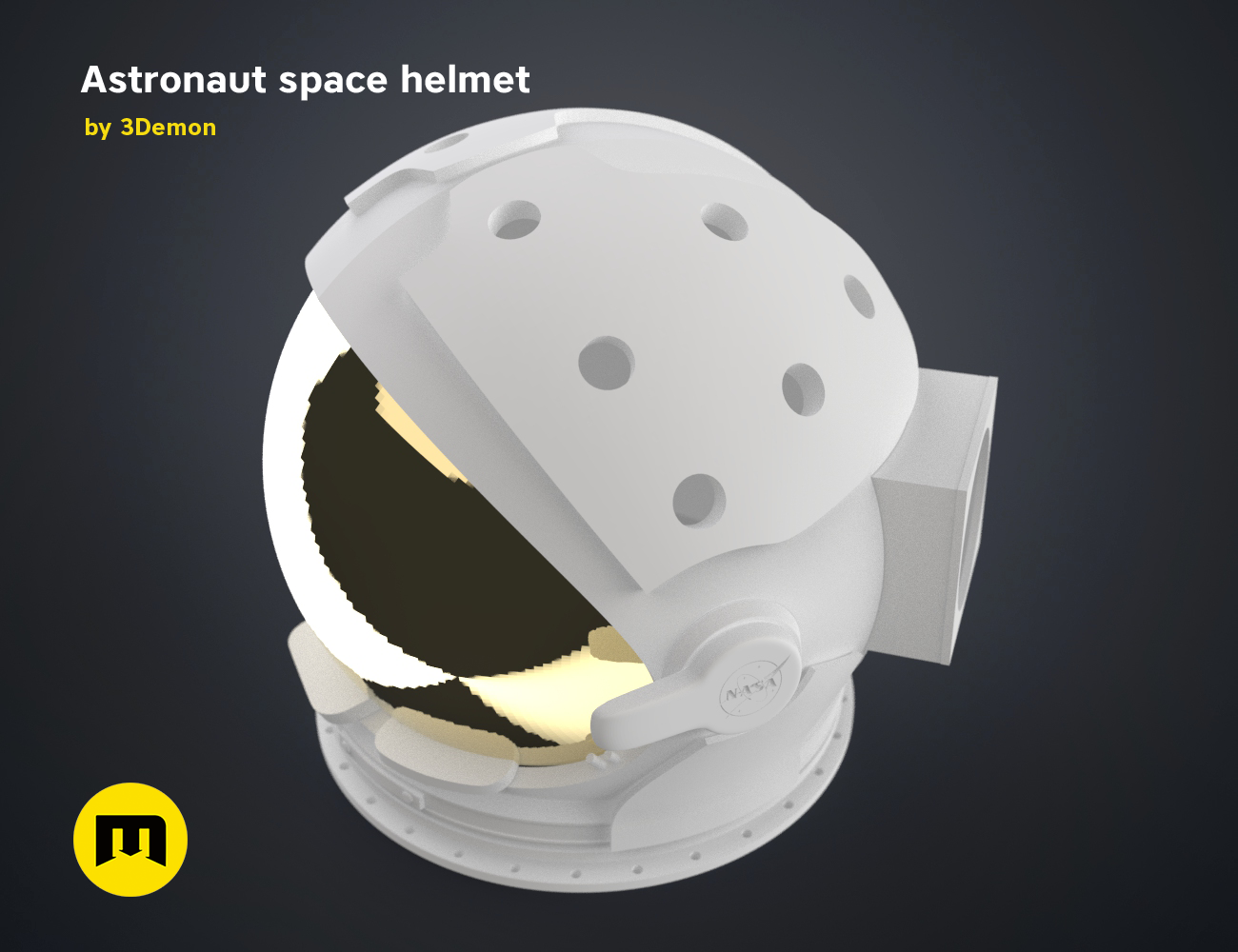

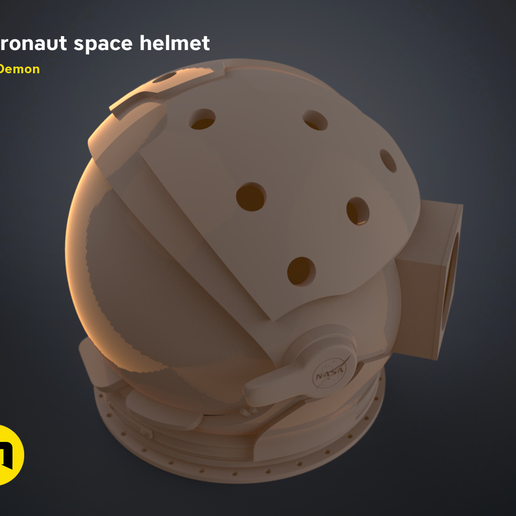

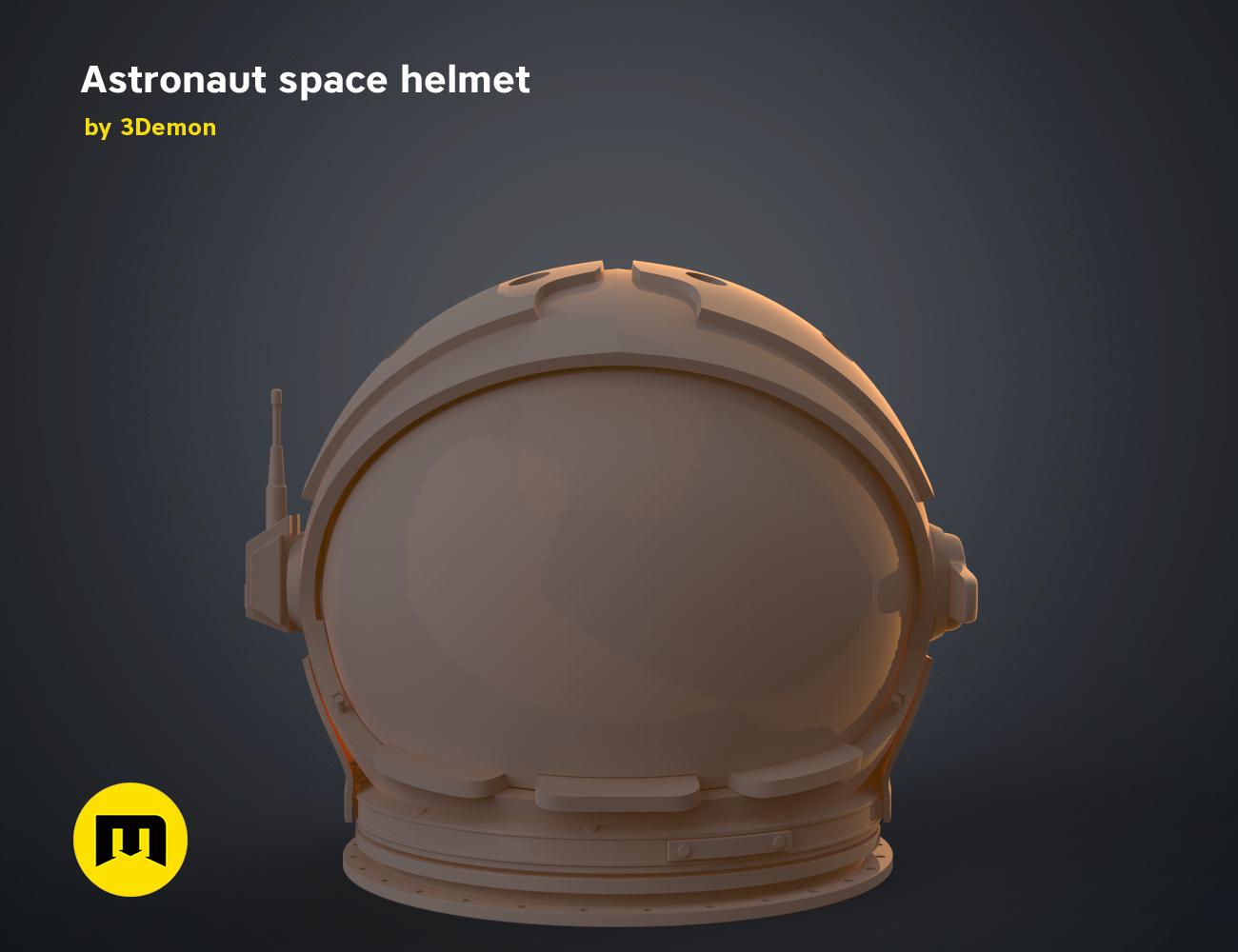

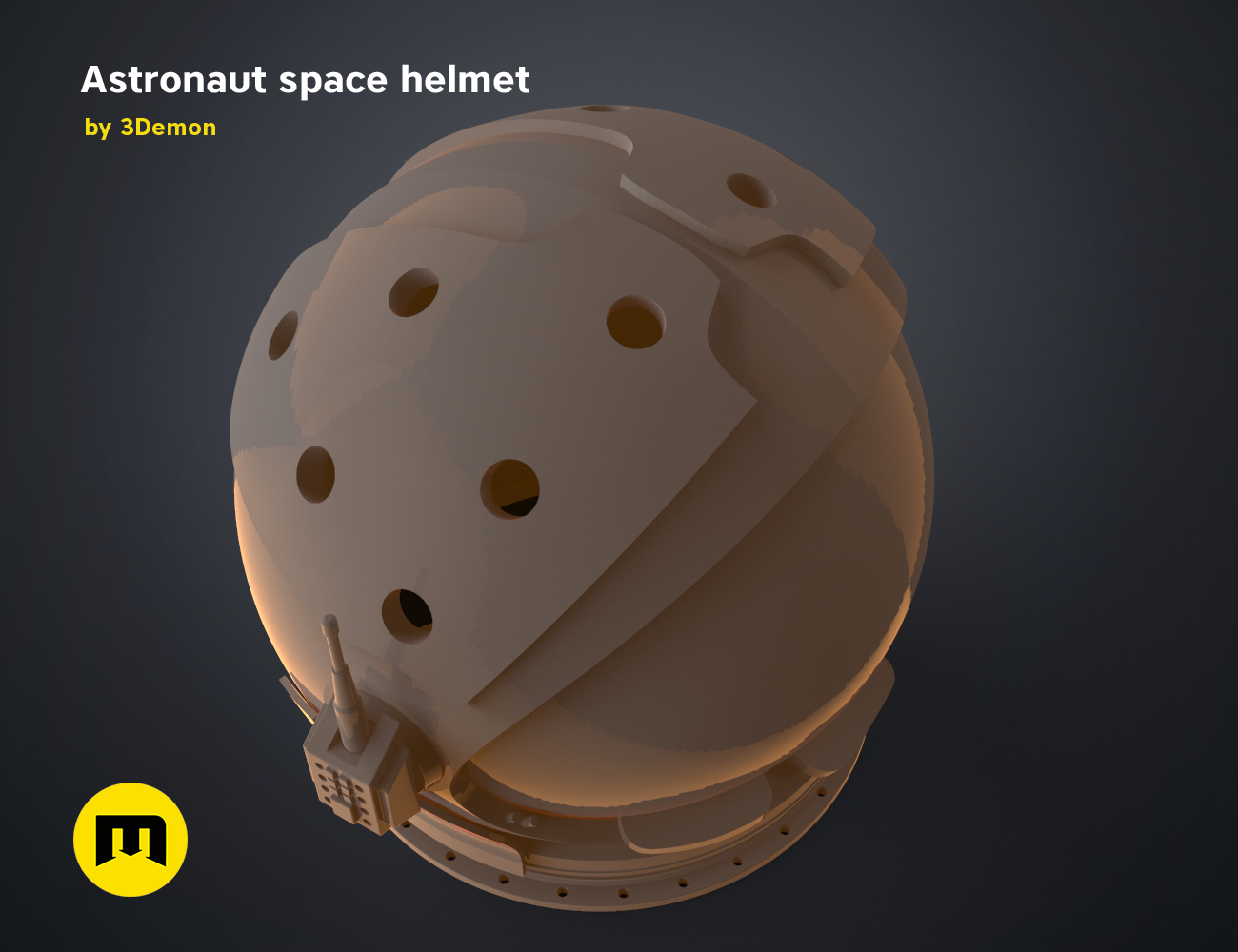

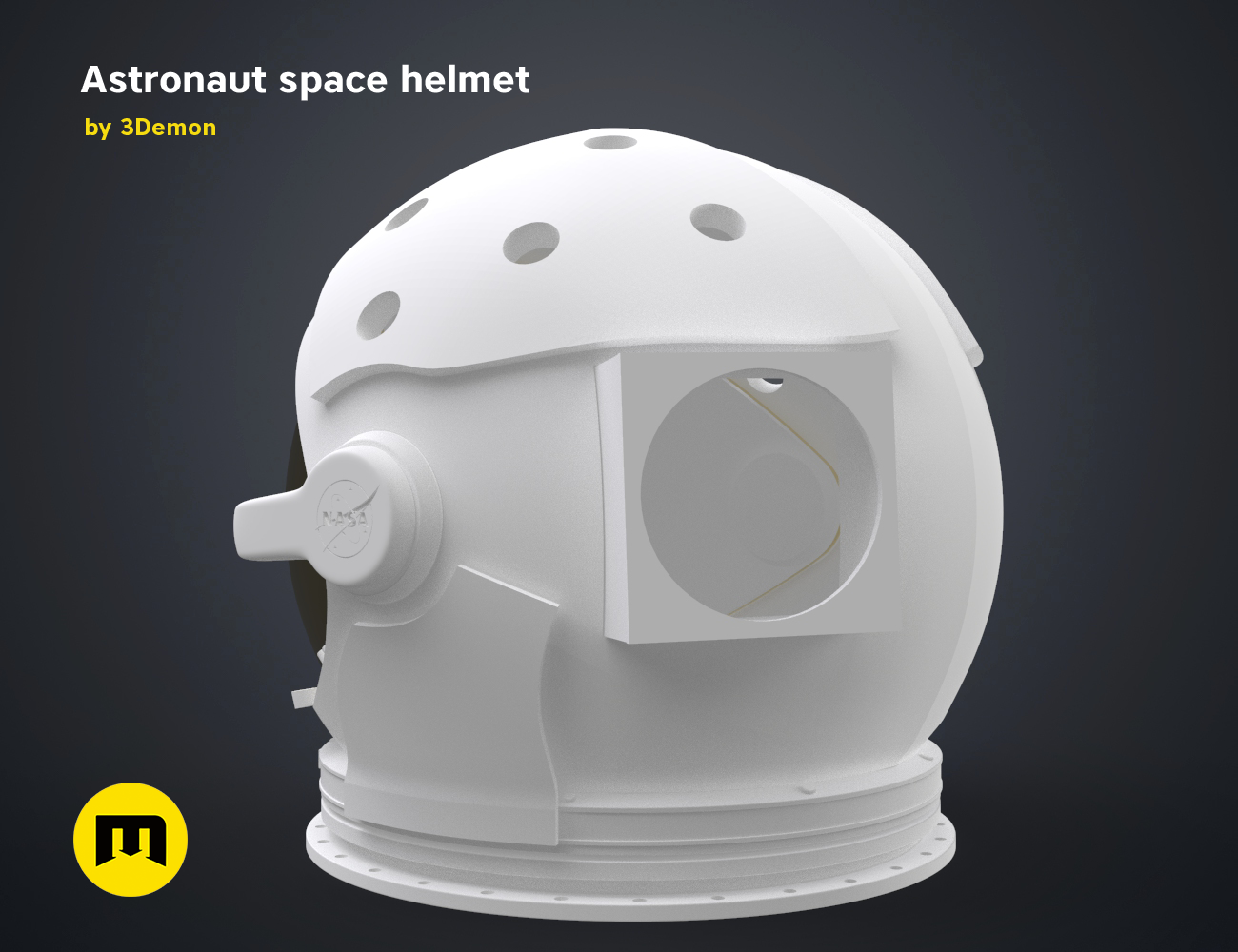

This is a digital 3D printable model of an Astronaut space helmet used by Neil Armstrong on the Apollo 11 mission.

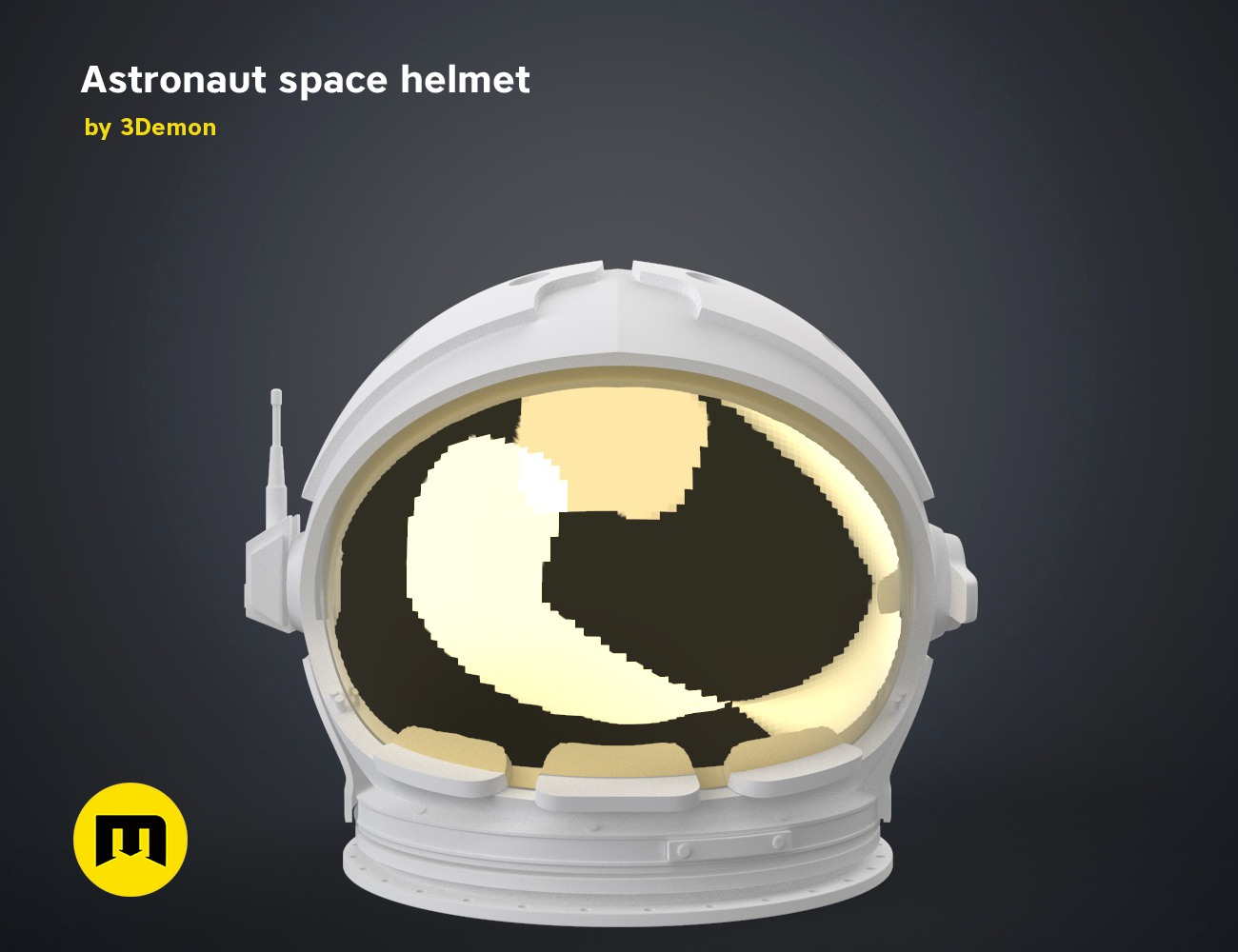

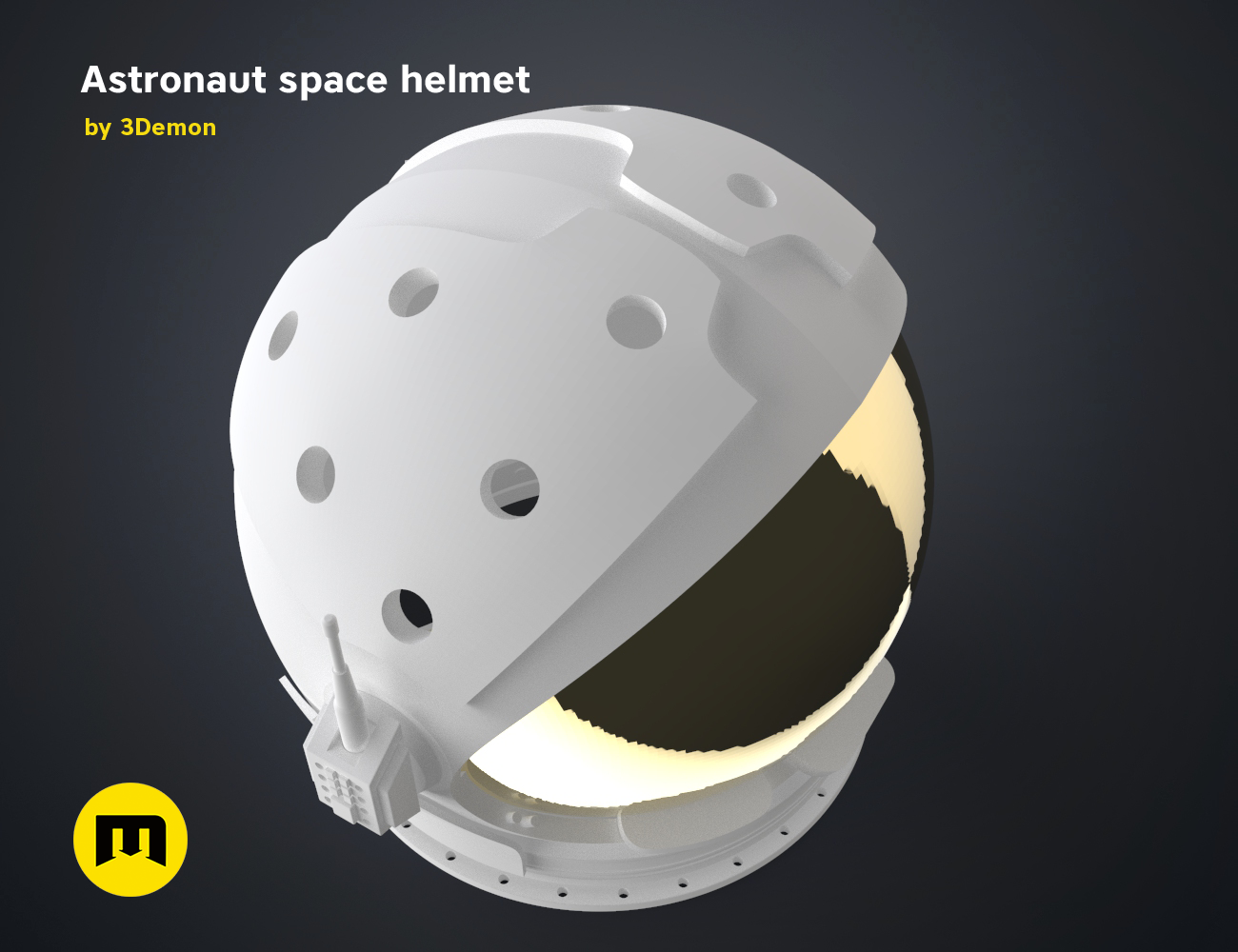

The visor that you print is meant as a base for the actual visor which should be made from a clear plastic sheet using for example vacuum forming. There are two film visors that are supposed to go over one another. One with a reflective layer and one without. You need to cut the film so it fits and has room for the “handles” at the bottom of the visor, which can be used to lift them. Also, this helmet from the apollo mission is normally covered with fabric so this model really serves as a base to make an astronauts helmet. Basically, none of the 3D printed surfaces would be visible in the end. Only the rim around the visor and the part that connects it to the body.

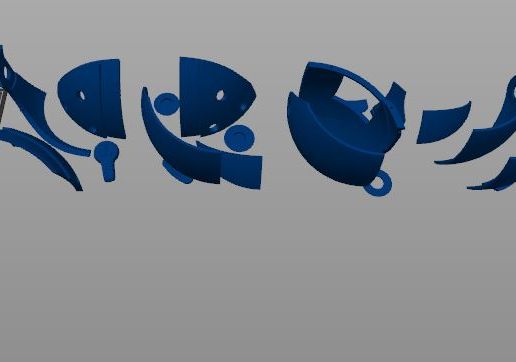

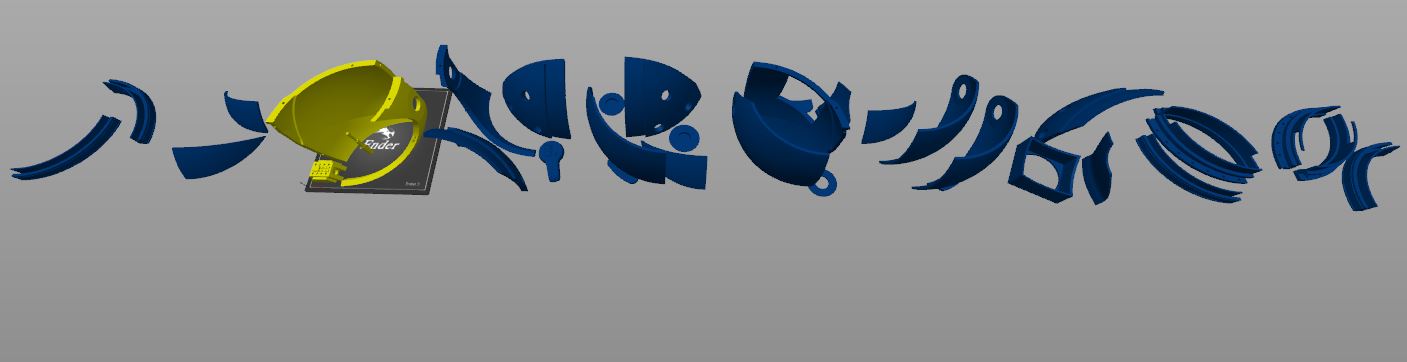

The download contains pieces of the model ready to be 3D printed on a 200 mm print bed and files that are not cut into smaller pieces. All cut parts are placed on the print bed as we would print them to save you time.

SIZE
At 100% scale the model’s dimensions are approximately:
Width 357 mm
Length 311 mm
Height 298 mm
You can scale the model as you wish but we can’t guarantee that at a much smaller size the model will print well.

3D printing settings

3D PRINTING SETTINGS
We use these settings for most of our prints:
Layer height 0.2 mm
Infill 15%
Supports 45°
For parts that are tall but have a small base, we use a 10 mm brim for better bed adhesion.

We try to make the models in a way that uses as little support material as possible.
This model is meant to be post-processed after printing. This can be gluing, sanding, painting, etc.

Printing settings will vary greatly depending on your specific printer.

Do you like the model and don't have a 3D printer? There are lots of people who offer 3D printing services these days. Try searching for someone who offers them in your area.

This fan-made model was brought to life by 3Demon. We are a group of modeling and 3d printing enthusiasts based in Prague, Czech Republic. We’ve been making 3D printable models for more than a decade. We make a lot of cosplay accessories but we also make all sorts of interesting 3D models. You can join our community or just look at more of our creations here: https://3d-mon.com/links/
