apollo 15 saturn 5 pack 4/4 Apollo ship

?
Creation's quality: 5.0/5 (4 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 10.2k views
  • 38 likes
  • 141 downloads

3D model description

Saturn V launcher of the Apollo 15 mission

AS 510 mission

Pack 1/4: the S1C stage

Included, the supports of the different elements in horizontal position.

We no longer present this pitcher that has marked the history of the twentieth century.

David R. Scott, James B. Irwin and Alfred M. Worden made up the crew of Apollo 15, which was the first lunar mission to carry the Lunar Roving Vehicle.

They lifted off on July 26, 1971, alunis on July 30, 1971 and amerris on August 7, 1971.

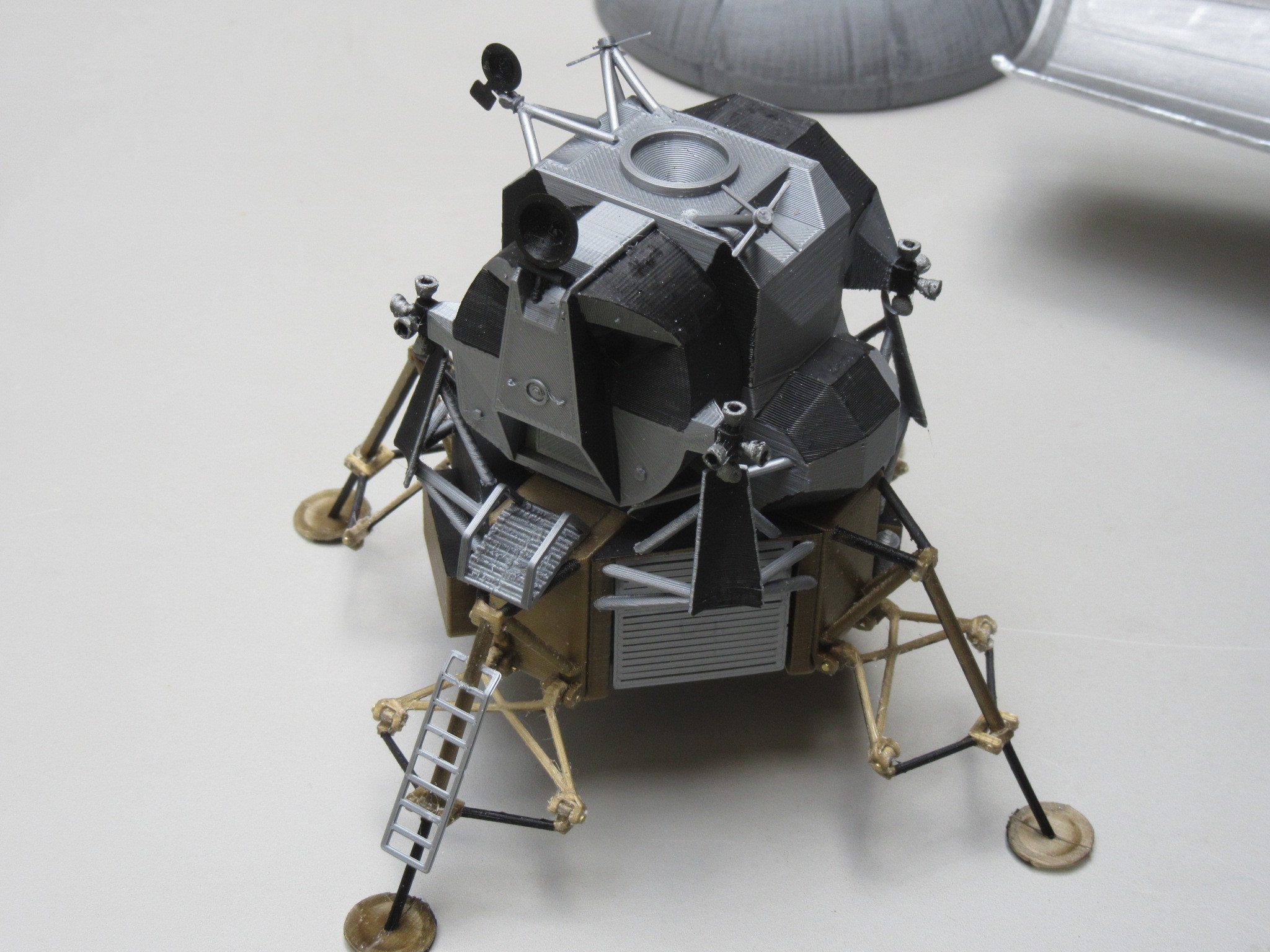

The command module is named Endeavour, and the lunar module, Falcon.

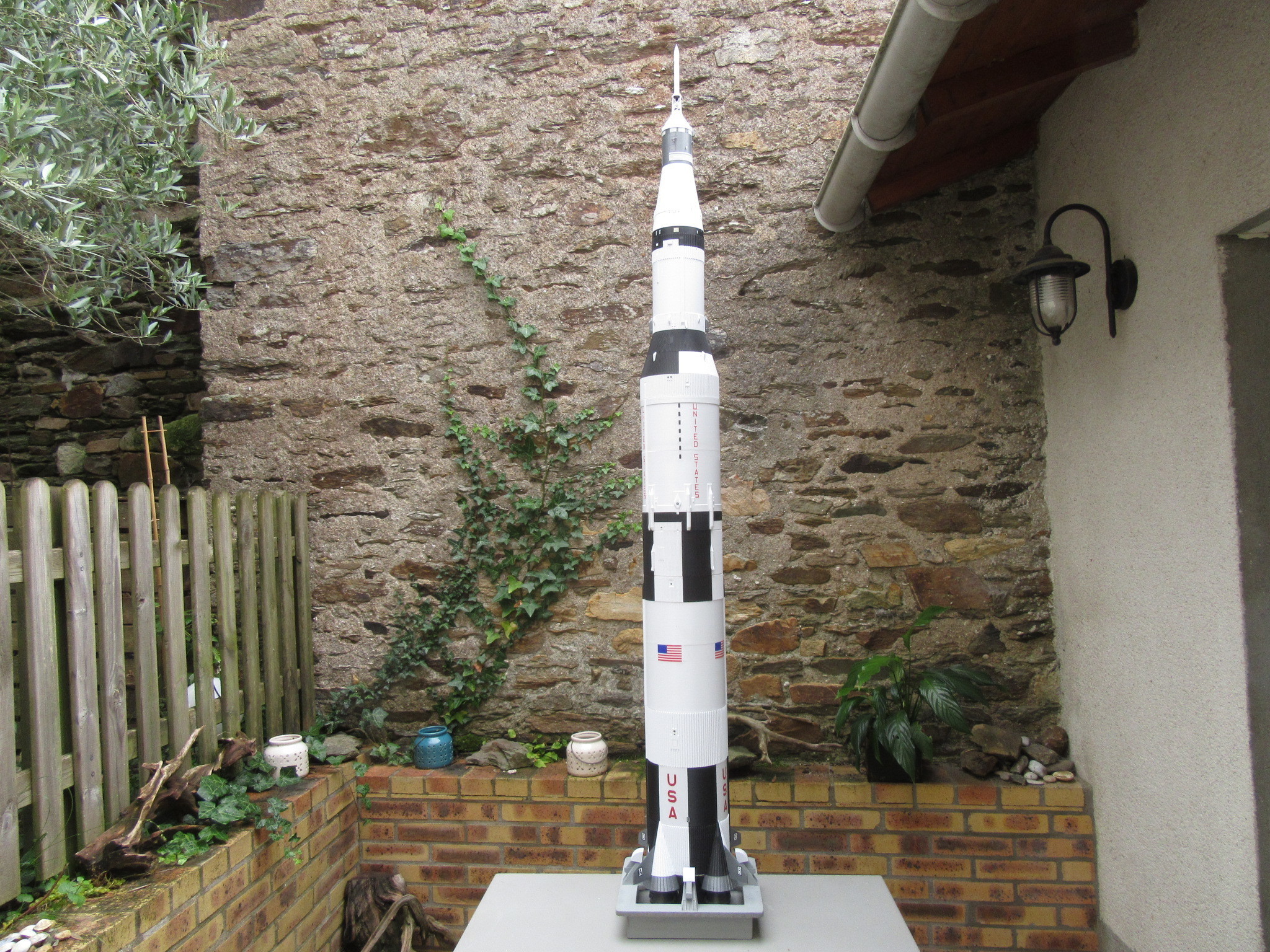

The model shown here and at 1/60th scale.

Measures 1.82 m high

Weighs about 3 kgs

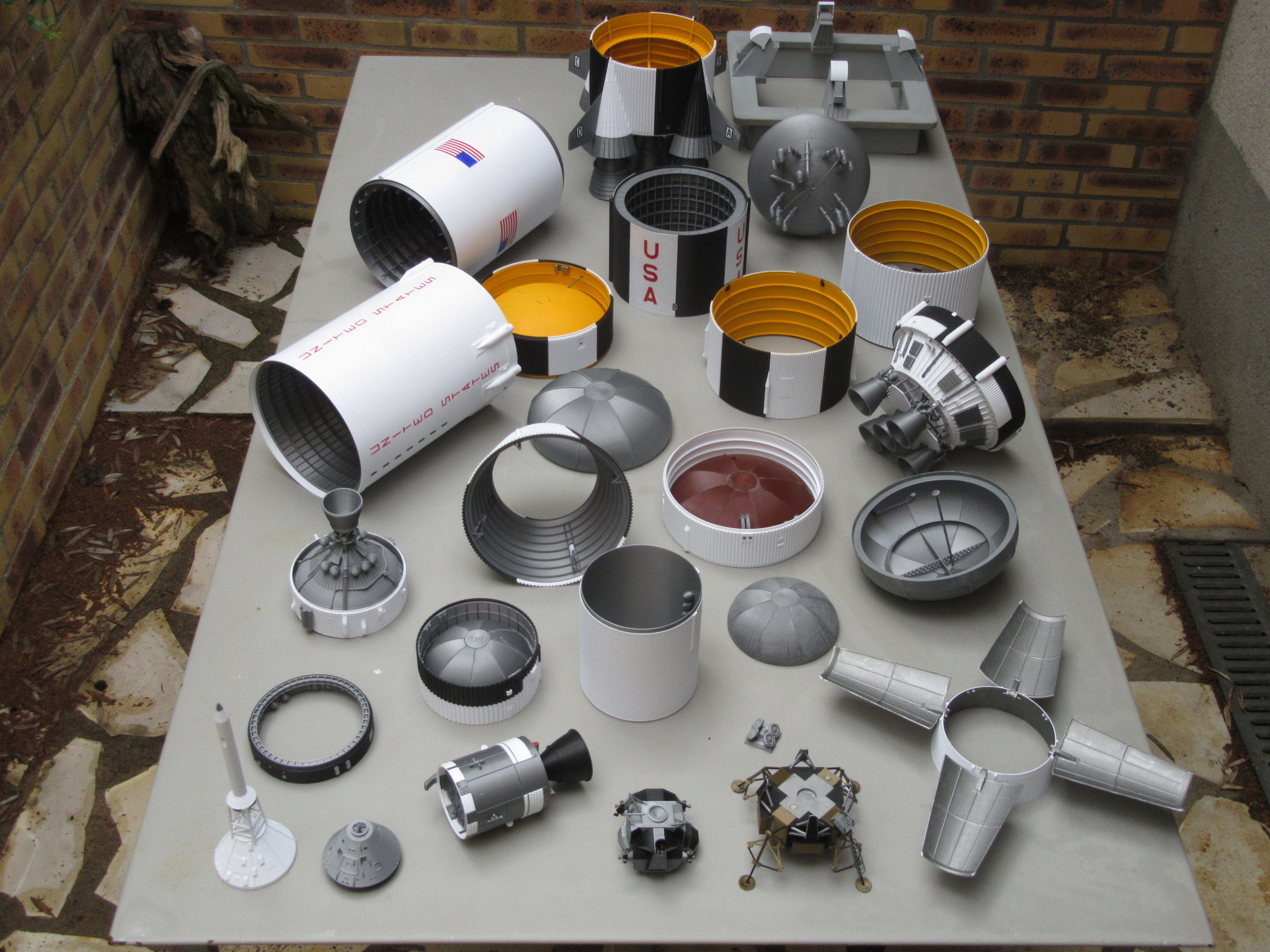

Has 656 pieces

The download comes in 4 packs so you can make this model step by step.

Pack 1/4, the S1C floor

Pack 2/4, the S2 floor

Pack 3/4, the S4b floor

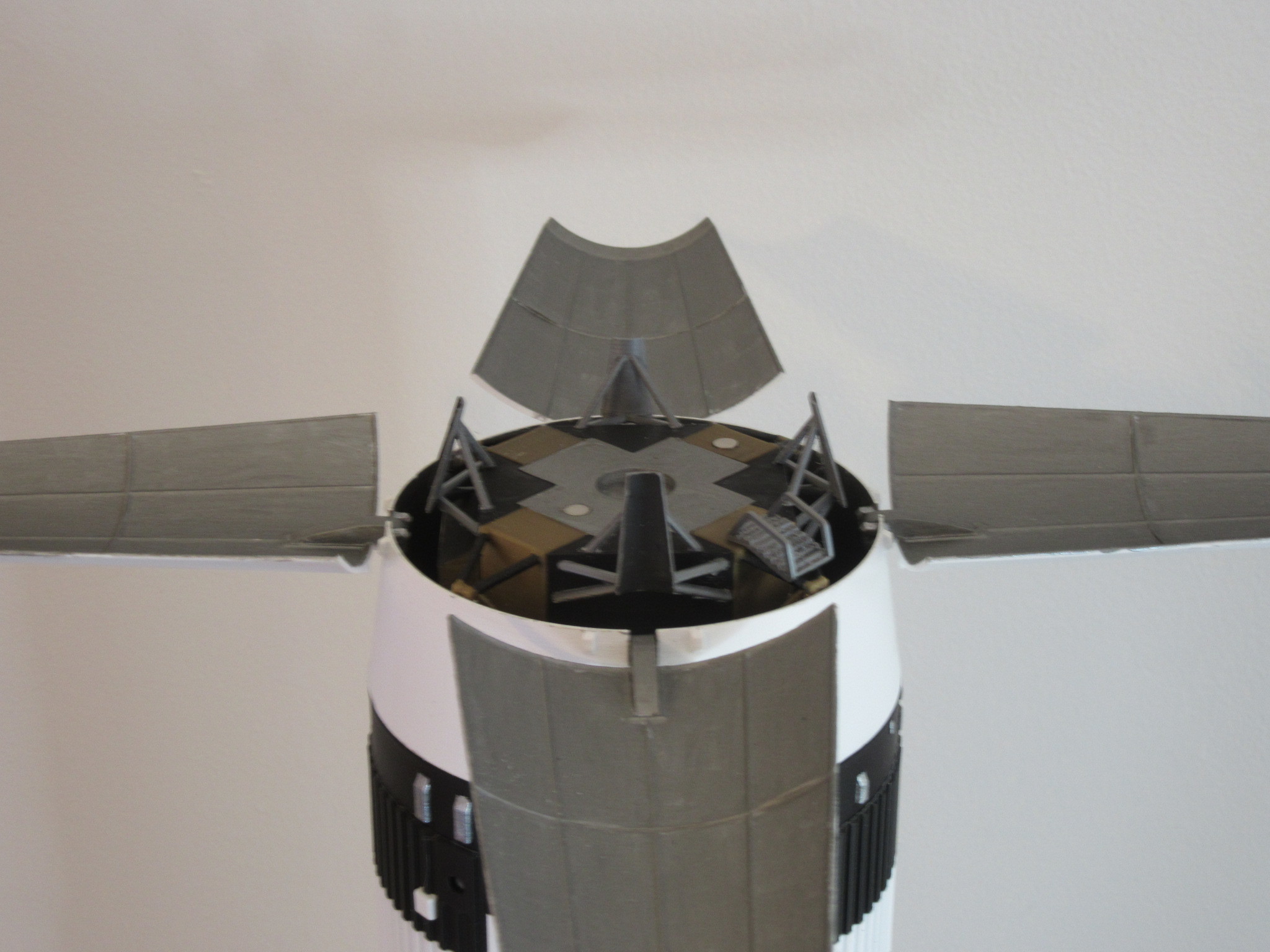

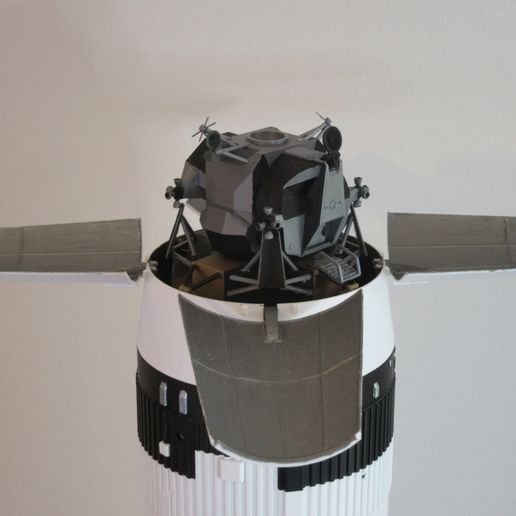

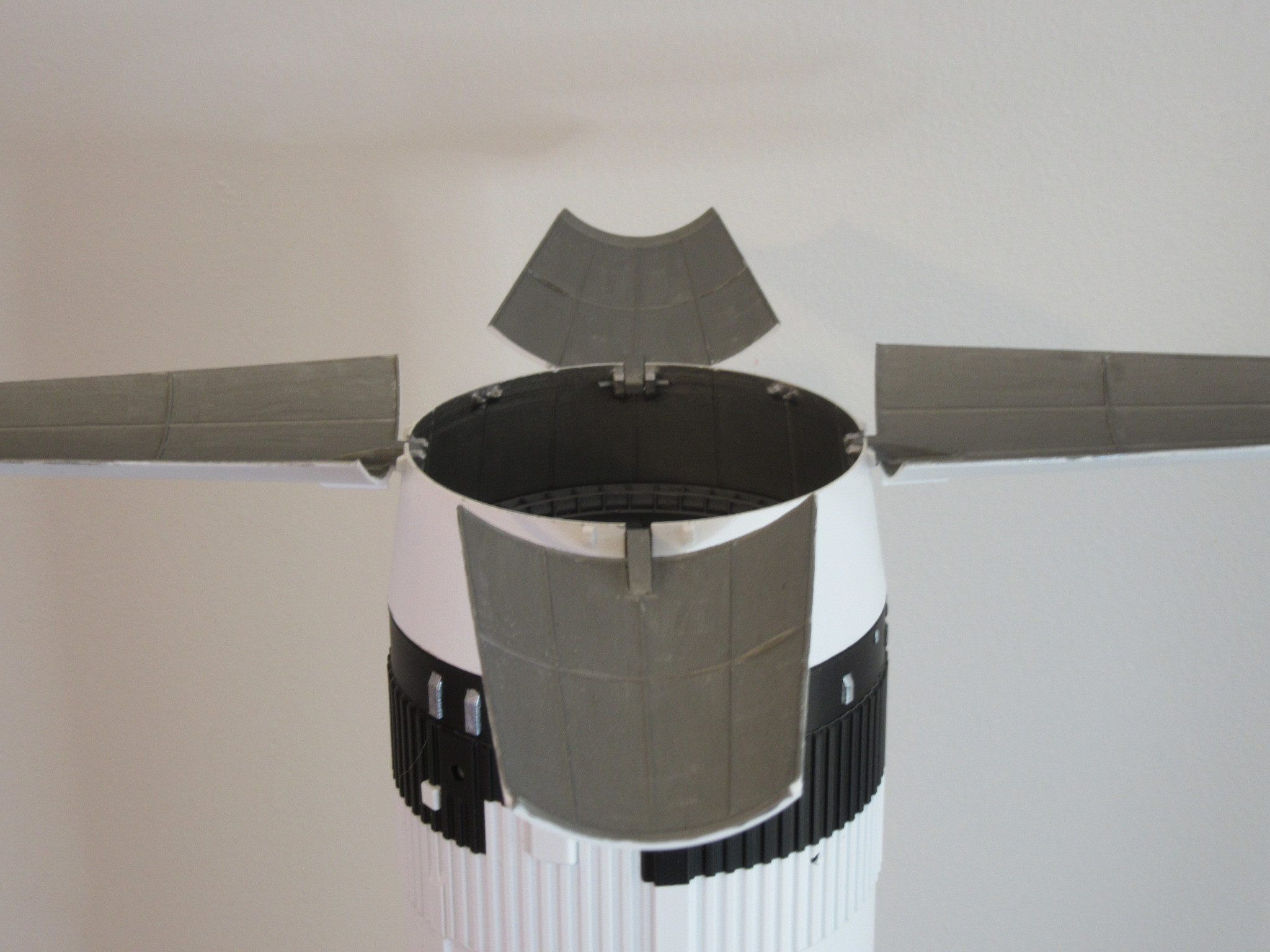

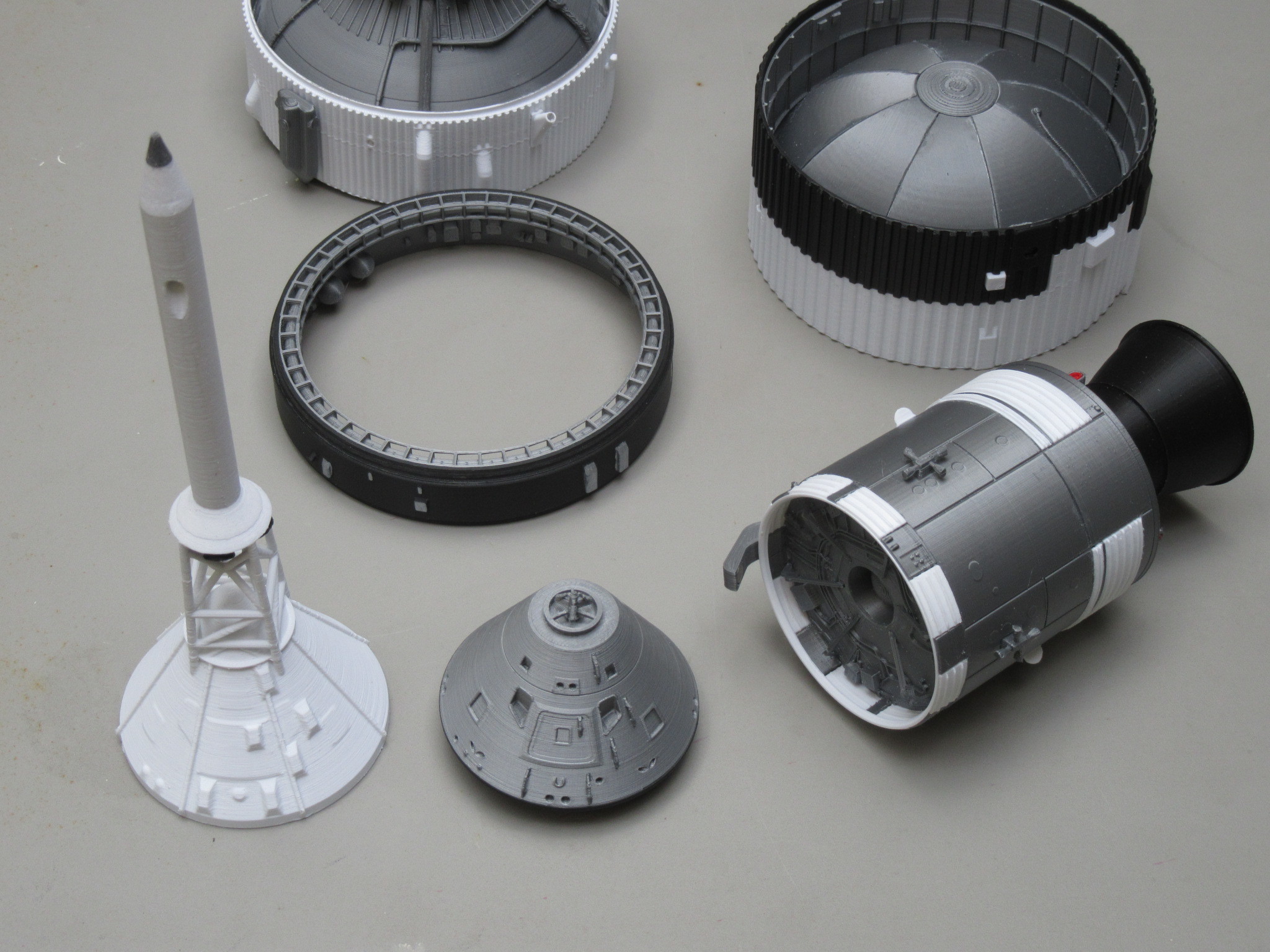

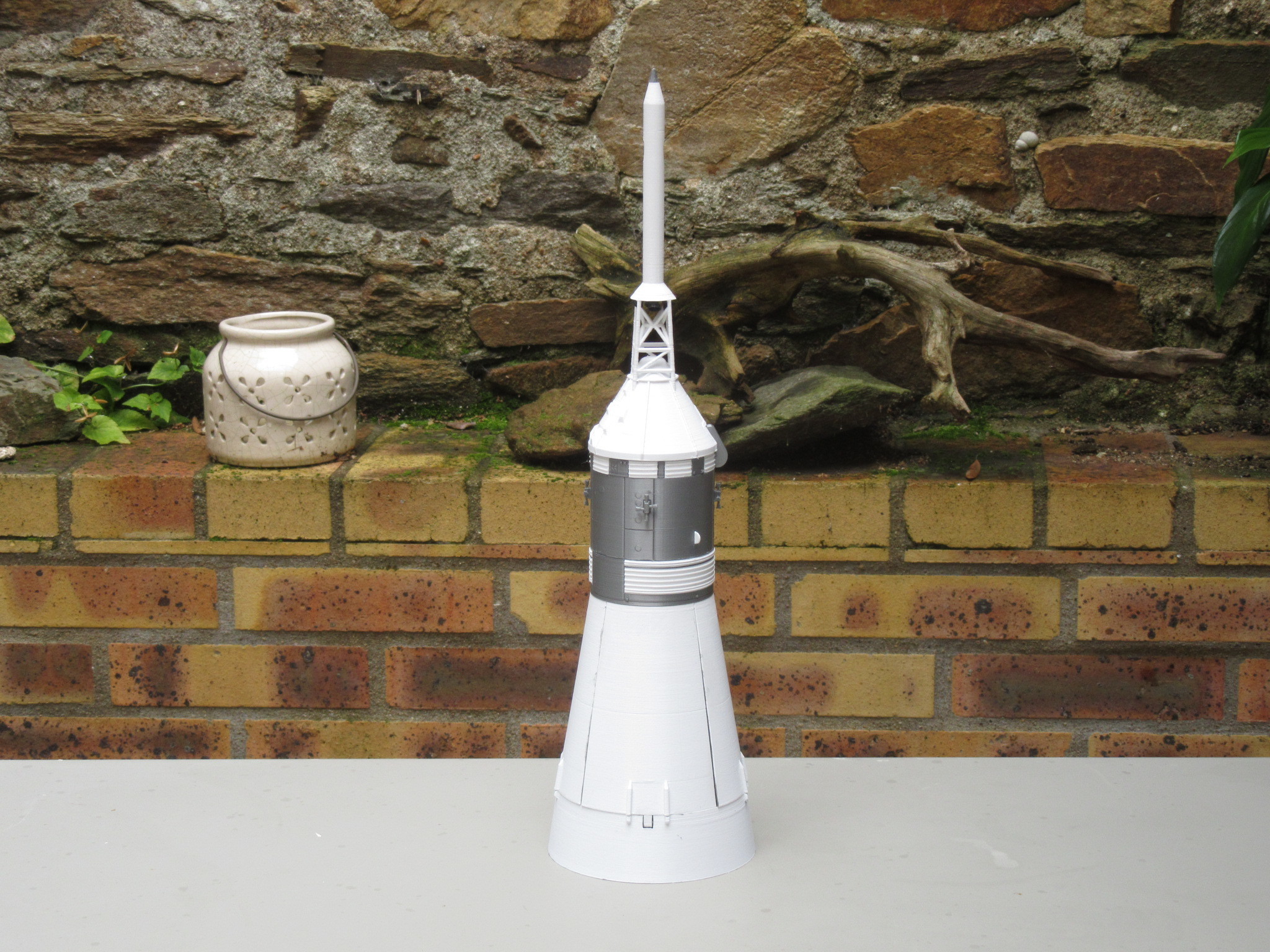

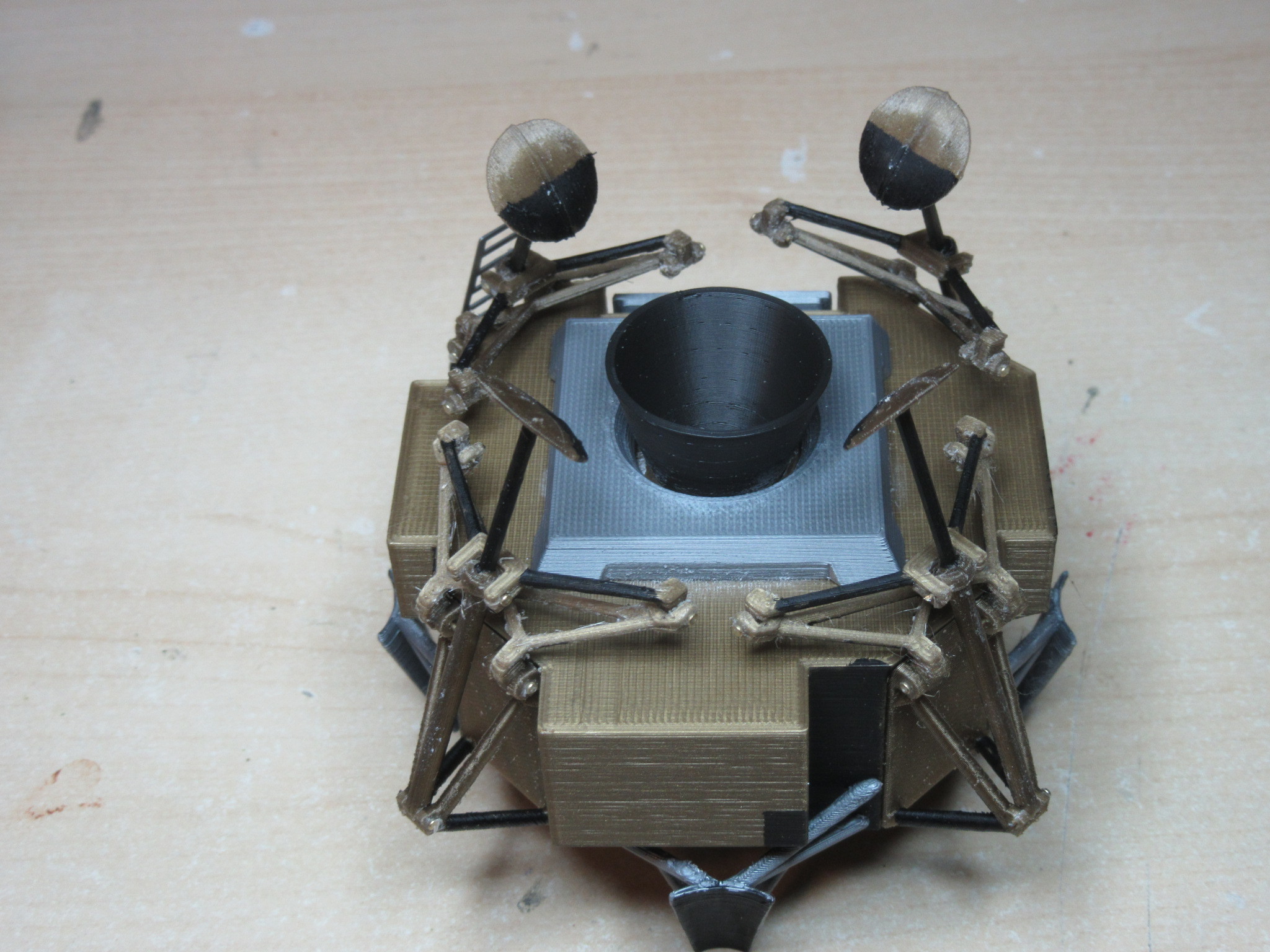

Pack 4/4, the apollo ship

The print does not require any supports. Or at least, those are already provided if any.

The thickness of the first layer is recommended at 0.2mm

The height of the layers can vary from 0.10 to 0.2mm. For some small parts, the layers of 0.05mm may be chosen.

In many cases, a brim will be required.

The thin walls are 0.89 mm, corresponding to 2 nozzle passes in 0.4 mm. In this case, the fill will be maintained at 0% and only one perimeter will be chosen.

The step by step and very detailed assembly instruction is available in PDF with the download or on this link: https://the-amphioxus.monsite-orange.fr/

The gluing is recommended with cyanoacrylate glue. 12 tubes of 3g will be necessary.

The model can be built without painting anything. Some suggestions for painting are included in the assembly instructions.

If you prefer to paint all parts by yourself, then some parts are available already assembled, ready to paint.

Also available with pack 1, the STL file of the complete rocket and an F1 engine to be able to print it in one piece at small scale.

May this model bring you as much pleasure as I had to build it and admire it!

3D printer file information

  • 3D design format: PDF, STL, and ZIP Folder details Close
    • S5 20-G_07.stl
    • S5 21-S_02.stl
    • S5 22-S_07.stl
    • S5 22-S_08.stl
    • S5 23-S_01.stl
    • S5 24-W_02.stl
    • montage pack 4.pdf
    • pack 4.zip
    • supports pack 4.zip

    Learn more about the formats

  • Last update: 2021/12/04 at 13:06
  • Publication date: 2018/10/09 at 20:27

Copyright

©

Tags

Creator

passionné de la conquête spatiale. je modèlise, j'imprime les lanceurs qui ont transportés des hommes.
pour me contacter : https://the-amphioxus.monsite-orange.fr/
