Apollo 15 Saturn V Launcher

AS 510 Mission

Pack 1/4: the S1C stage

Final major update:

  • errors are corrected,

  • the model is more detailed,

  • the adjustments are more precise,

  • printing and assembly are simplified.

We no longer present this pitcher who marked the history of the 20th century.

David R. Scott, James B. Irwin and Alfred M. Worden form the crew of apollo 15, which was the first lunar mission to carry the Lunar Roving Vehicle.

They took off on 26 July 1971, landed on 30 July 1971 and landed on 7 August 1971.

The command module is called Endeavour, and the lunar module, Falcon.

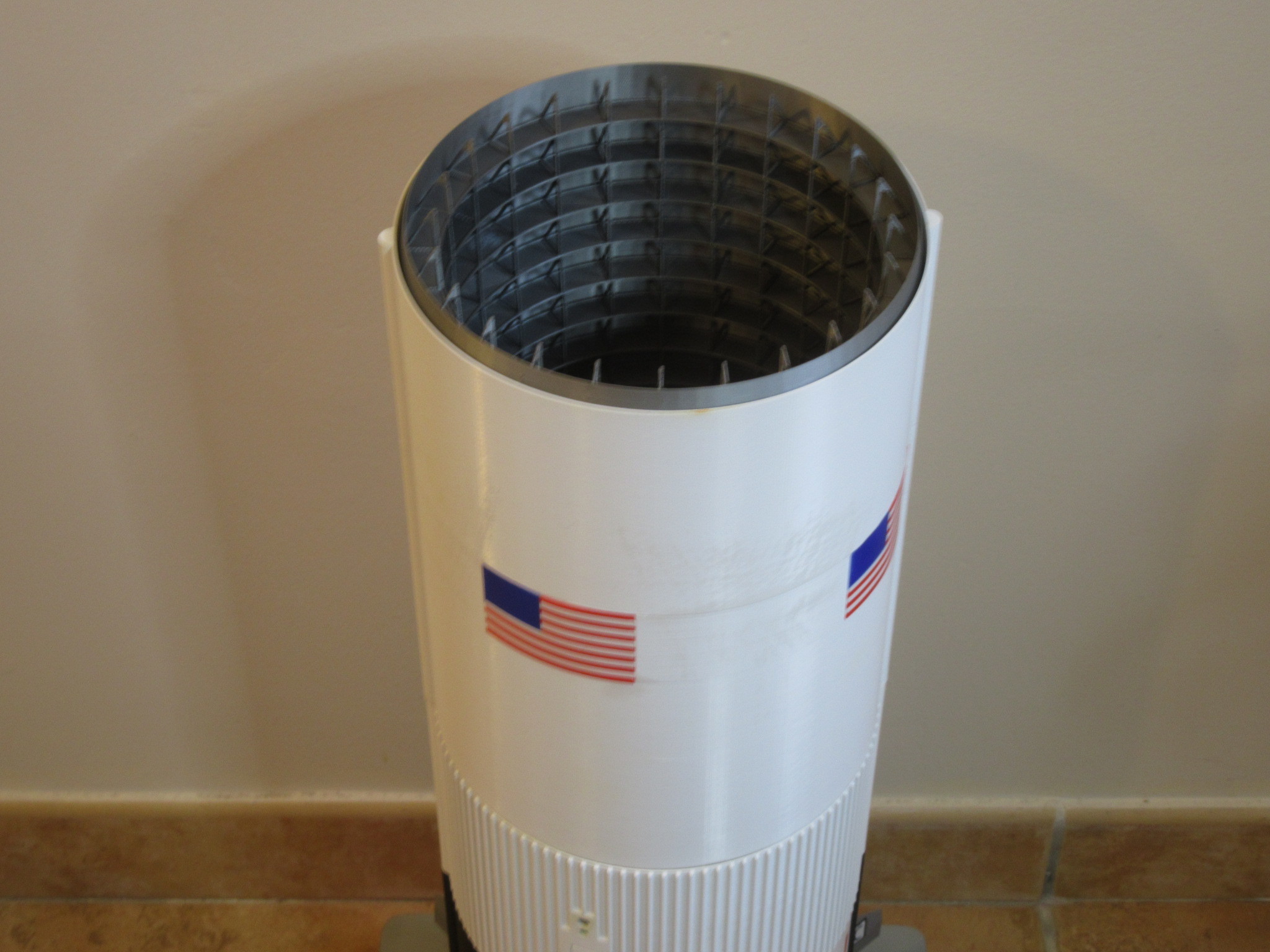

The model presented here and at 1/60th scale.

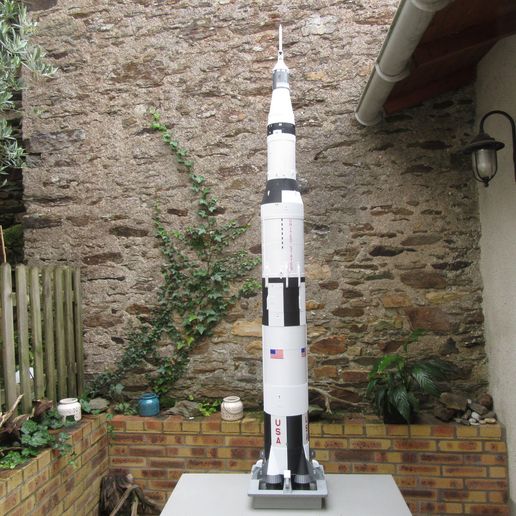

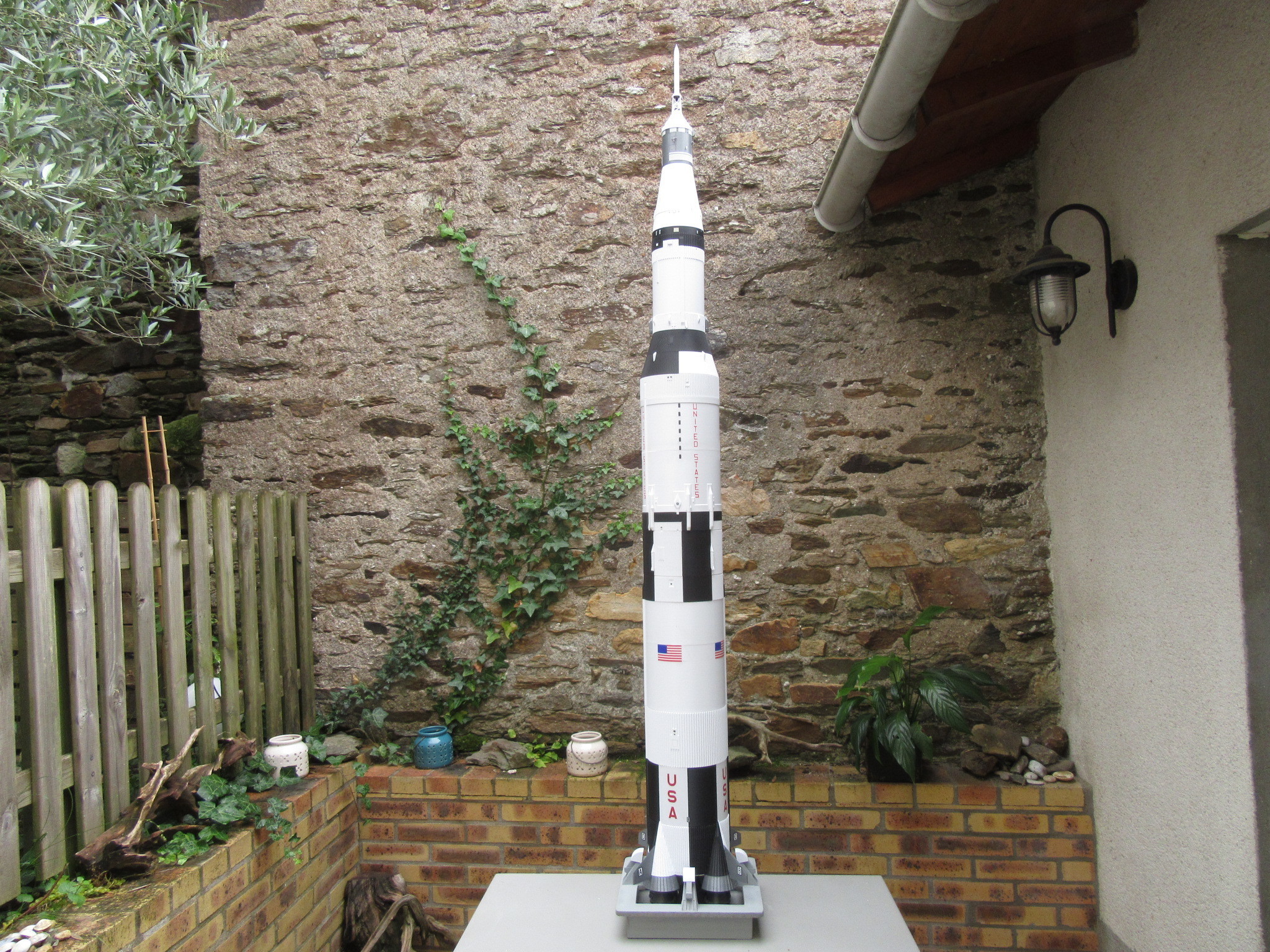

Measures 1.82 m high

Weighs about 3 kgs

Account 656 pieces

The download is proposed in 4 packs in order to be able to realize this model step by step.

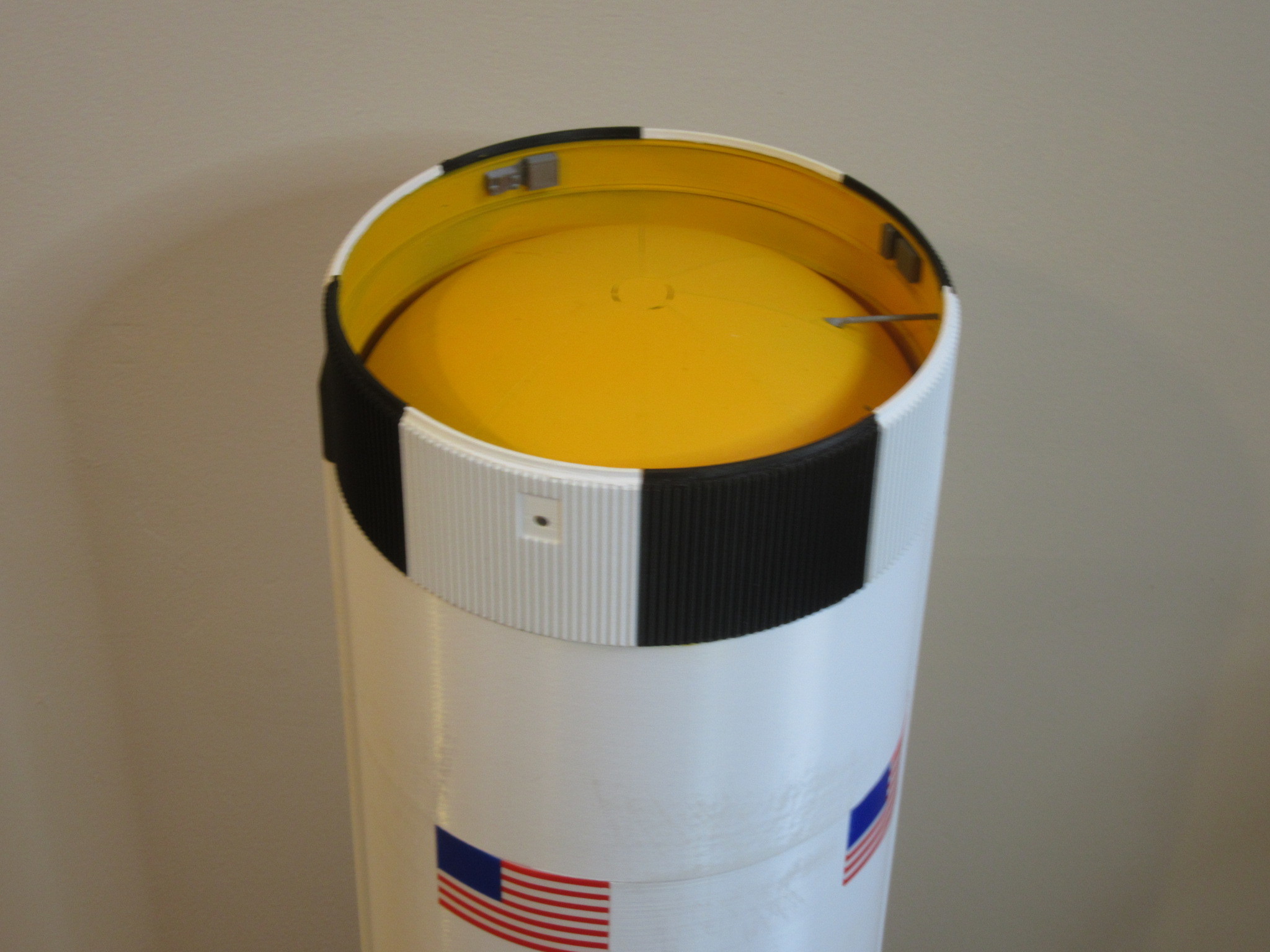

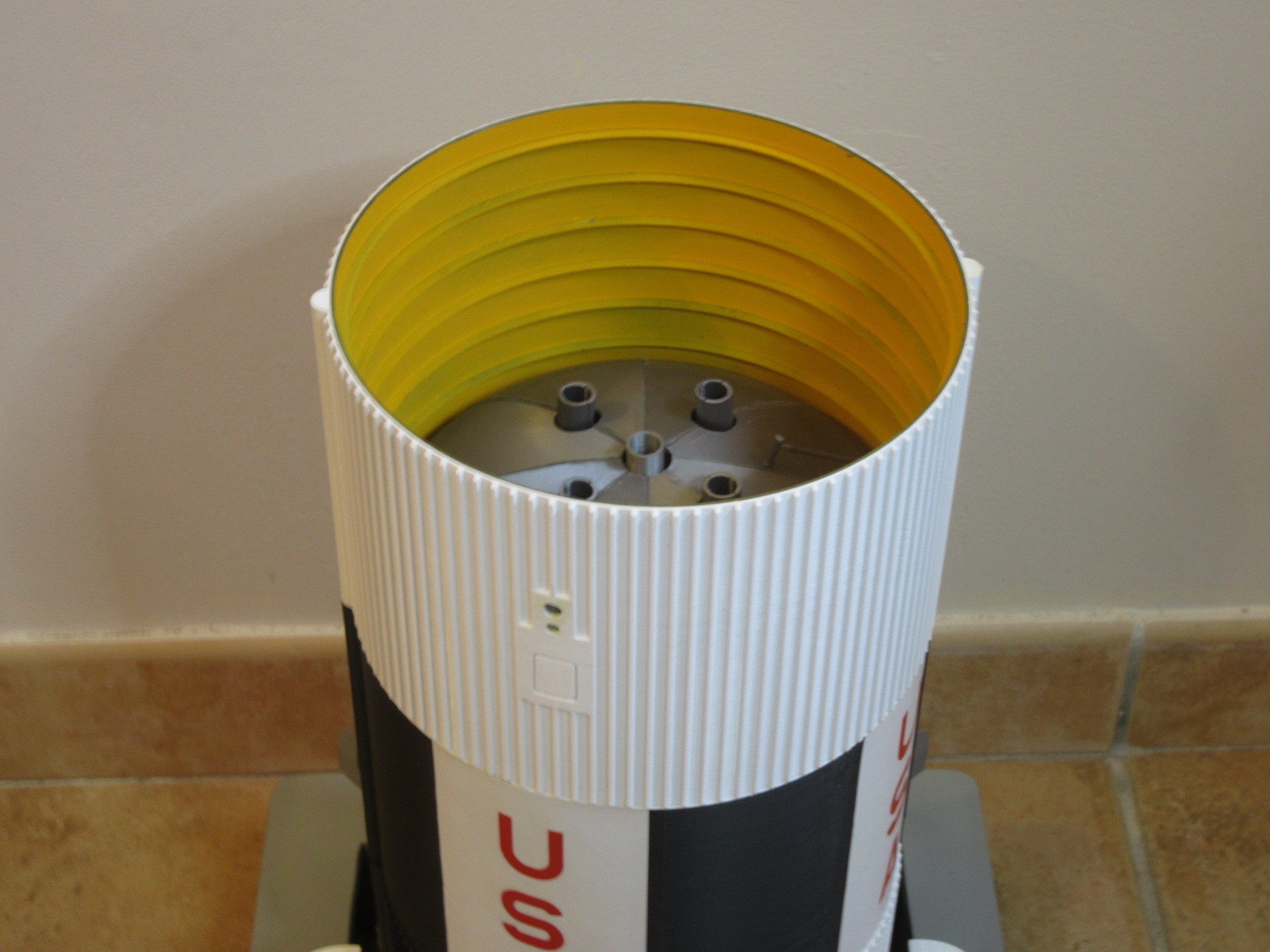

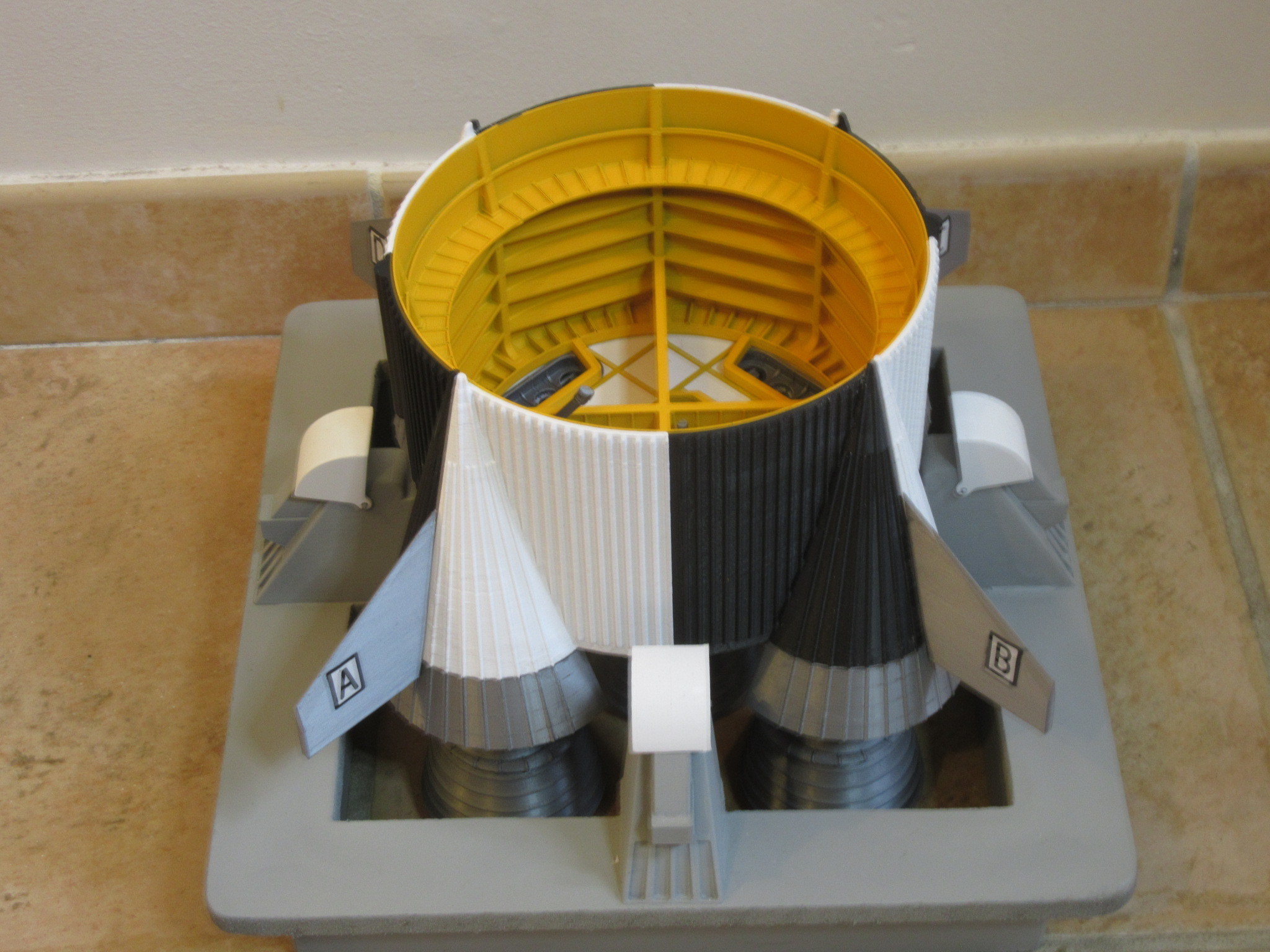

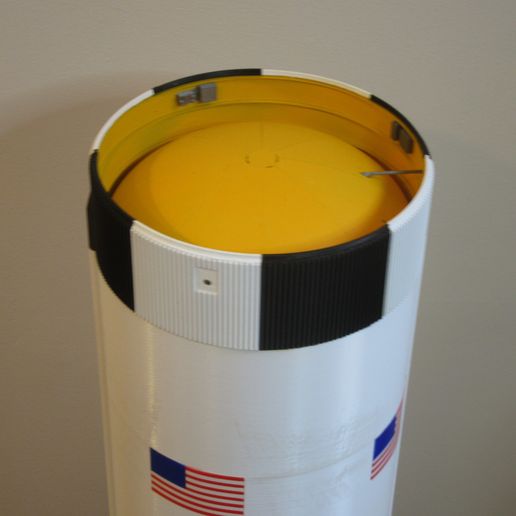

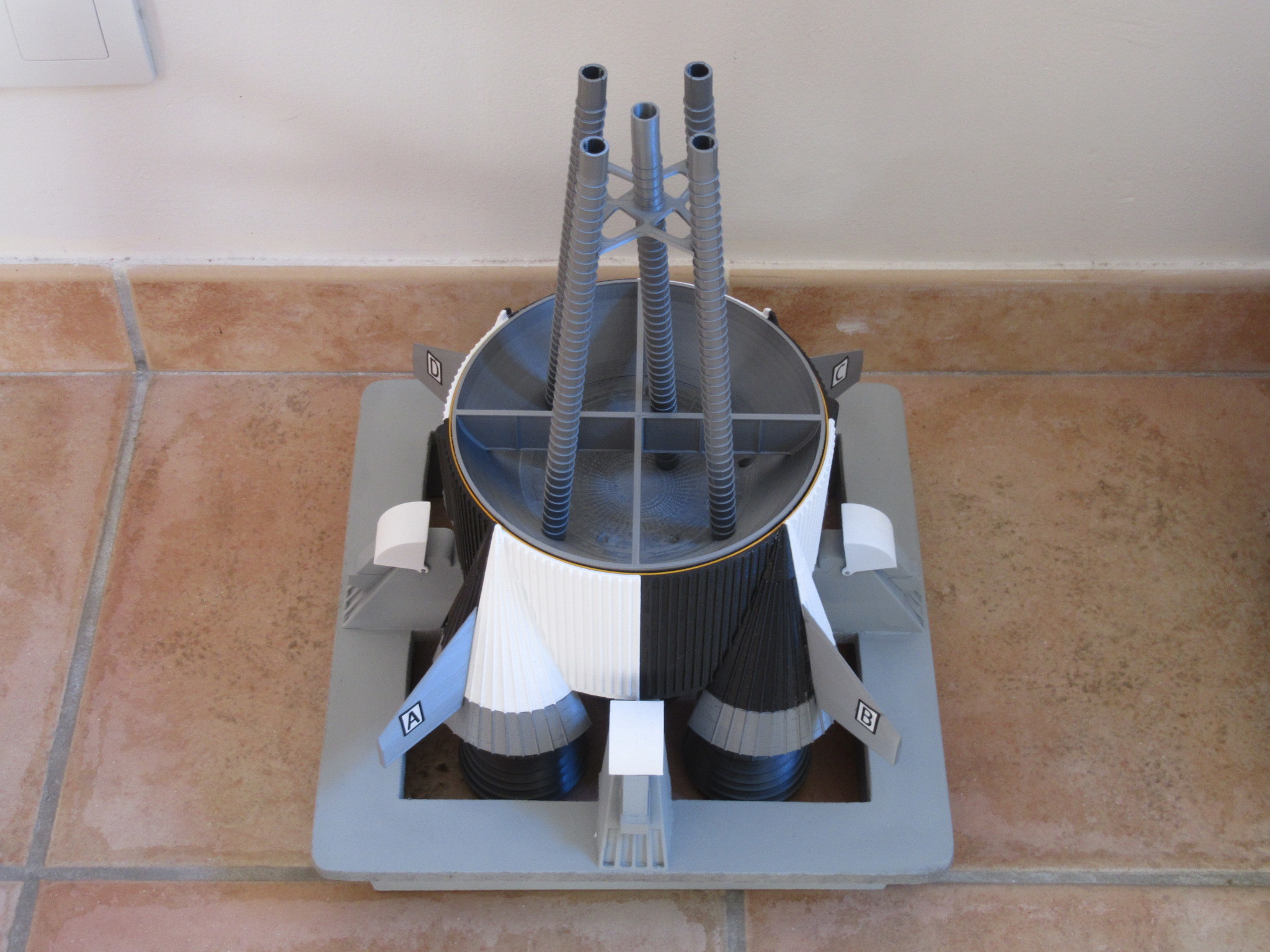

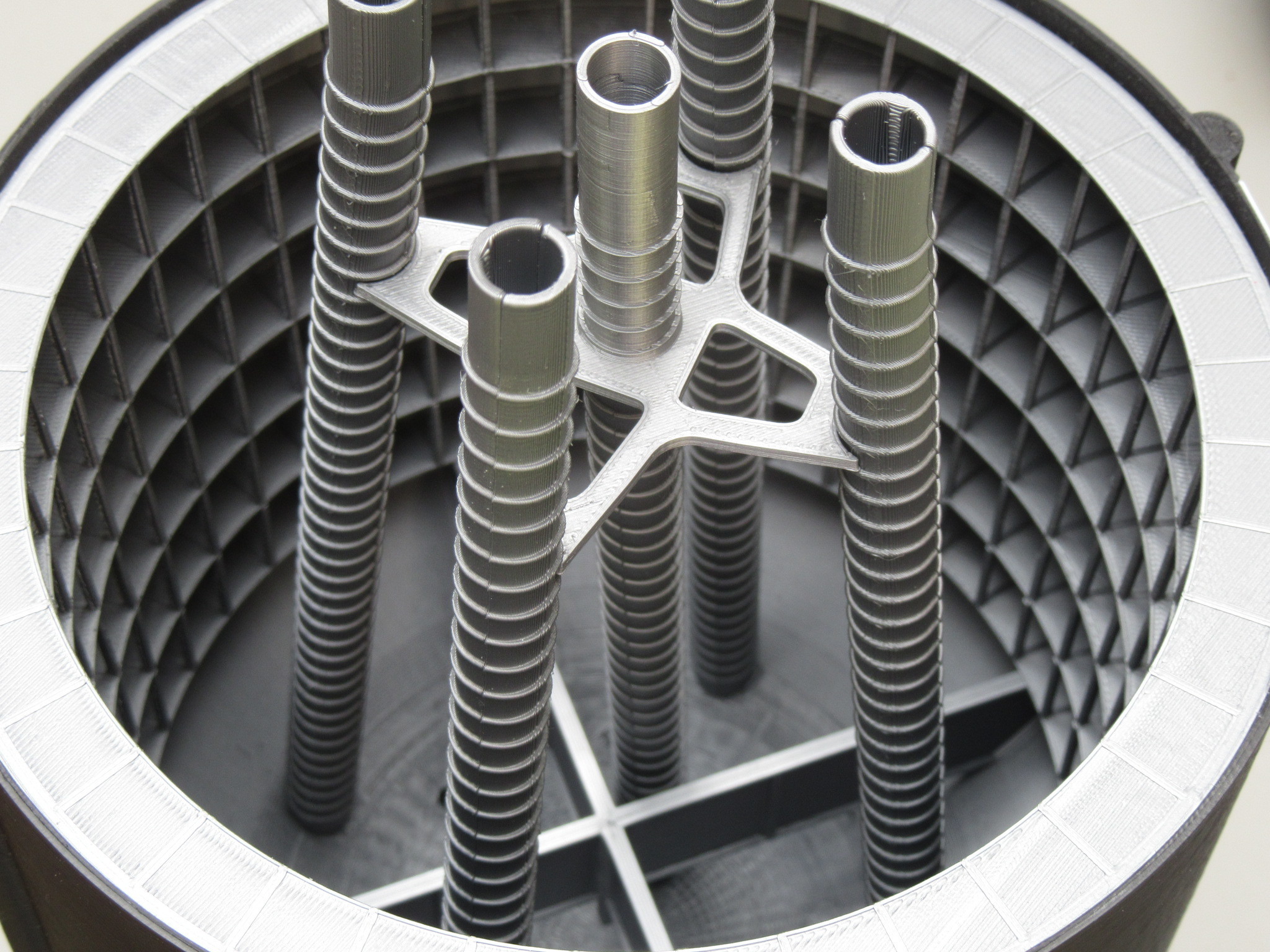

Pack 1/4, stage S1C

Pack 2/4, floor S2

Pack 3/4, the S4b floor

Pack 4/4, the Apollo ship.

Printing does not require any support. Or at least, these are already provided for if necessary.

The thickness of the first layer is recommended at 0.2mm.

The height of the layers can vary from 0.10 to 0.2 mm. For some small parts, layers of 0.05 mm may be chosen.

In many cases, brim will be necessary.

Thin walls are 0.87 mm, corresponding to 2 nozzle passages in 0.4 mm. In this case, the filling will be maintained at 0% and only one perimeter will be chosen.

The step-by-step and very detailed assembly instruction is available as a PDF download or at this link: https://the-amphioxus.monsite-orange.fr/.

method for printing markings and flags: https://youtu.be/YS2s9fNvux8

Gluing is recommended with cyanoacrylate glue. 12 tubes of 3g will be necessary.

The model can be built without painting anything. However, some suggestions for painting are included in the assembly instructions.

If you prefer to paint all the parts by yourself, then some parts are available already assembled, ready to paint.

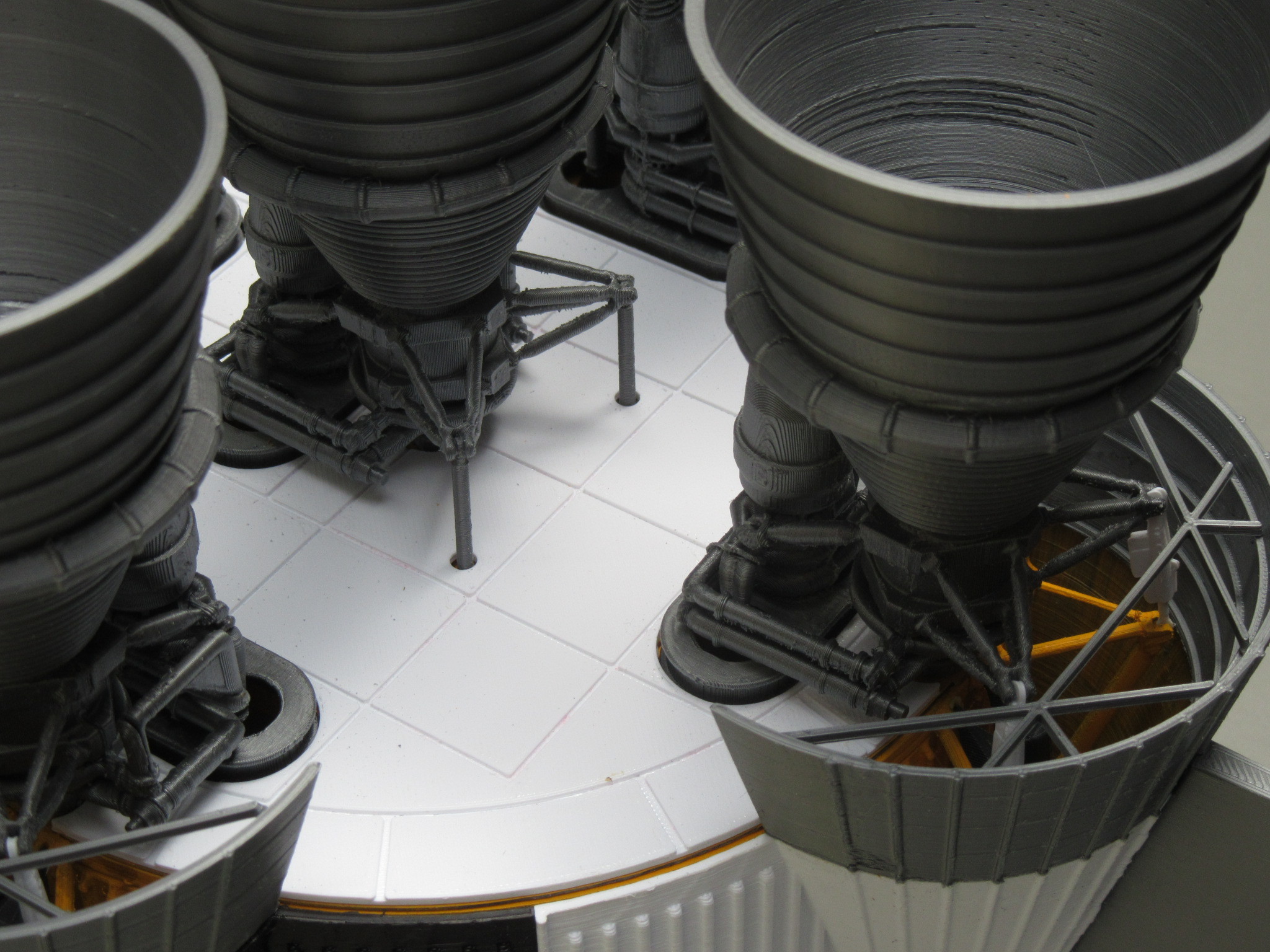

Also available with pack 1, the STL file of the complete rocket and an F1 engine so that it can be printed in one piece on a small scale.

May this model bring you as much pleasure as it does me to make it and admire it!

3D printing settings

requires a good knowledge of your printer.

Preferably print all the parts on the same printer in order to have a better conservation of dimensions.

Some parts may require 5 to 6 hours of printing time.

the adhesion of the parts must be controlled in general.

The modeling was tested on an i3 with a 0.4mm nozzle.

First layer must be 0.3 mm thick and must be even over the entire printing surface (autoleveling desired).

Layer height 0.2 mm for large parts. 0.1 or 0.15 mm for small parts.

No support required.

Fill to 15% if necessary. 0% on thin walls.

Brim imperative on thin walls.

Edge thickness for thin workpieces to 0.4mm (single nozzle pass)

Edge thickness for other workpieces 0.8 or 1.2 mm as desired

Assembly :

for assembly, use the step-by-step assembly videos to position the parts correctly.

The gluing will be done with cyanoacrylate glue.

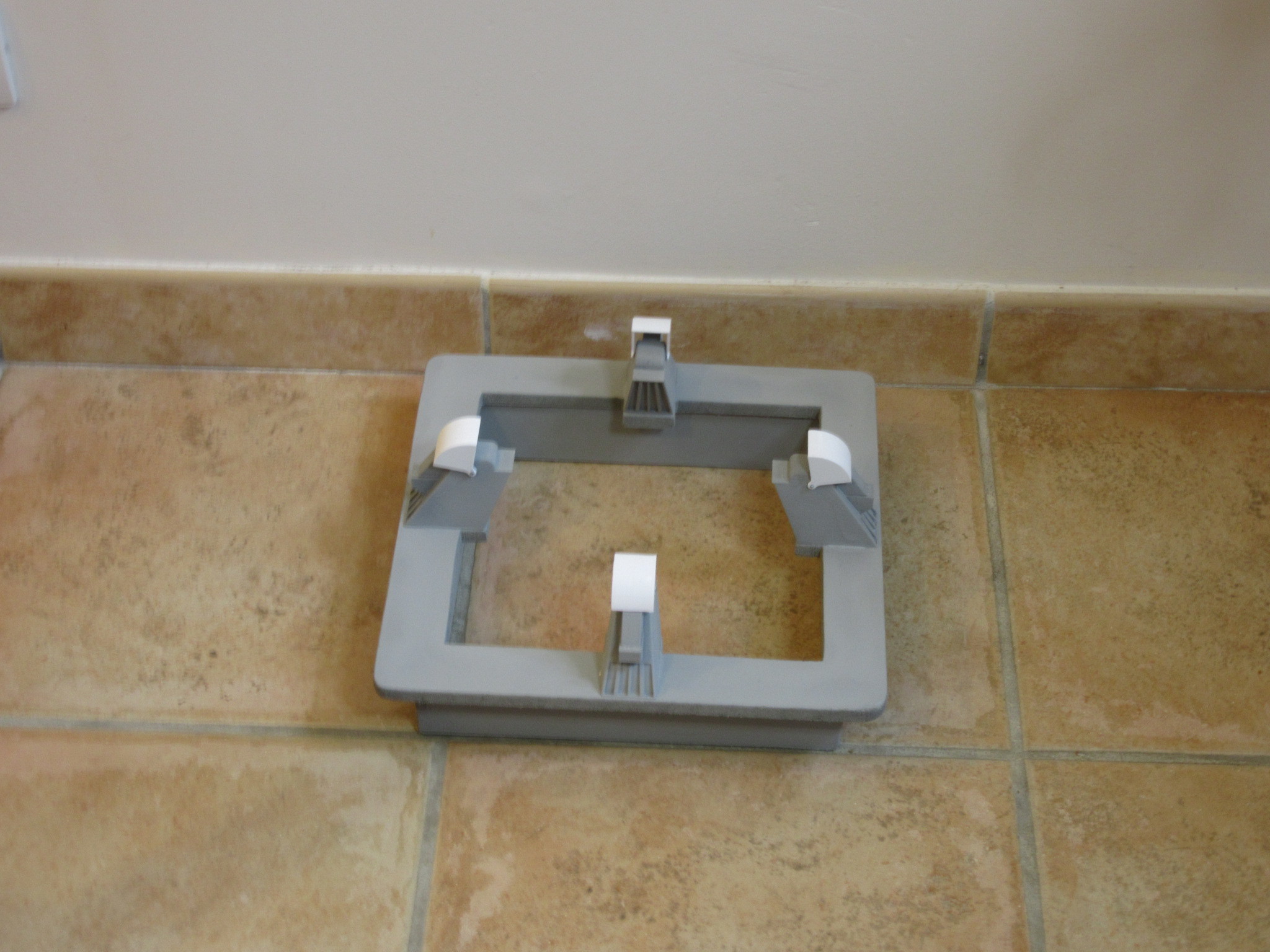

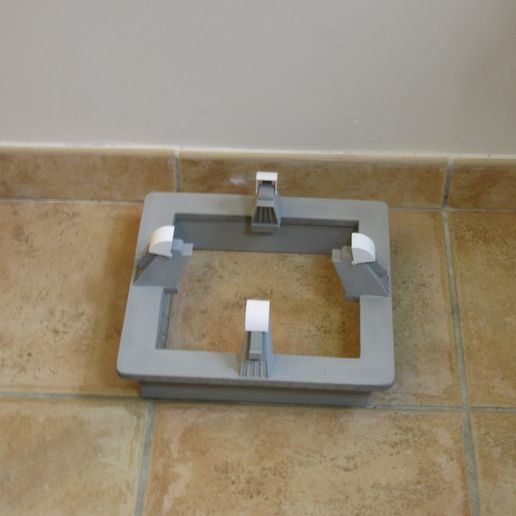

the support will be made in a material of your choice.

  • 3D file format: PDF, STL, and ZIP
  • Last update: 2021/01/20 at 18:03
  • Publication date: 2018/10/09 at 20:09

Tags

Creator

Designs 30
Downloads 4.2k
Followers 254

passionné de la conquête spatiale. je modèlise, j'imprime les lanceurs qui ont transportés des hommes.
pour me contacter : https://the-amphioxus.monsite-orange.fr/

Copyright

©

Page translated by automatic translation. See the original version.

Collection associated with this 3D model


Best sellers of the category Various


Add a comment

6 comments

bonjour, j'ai arrêté de coller à la colle PVC, trop de déformation dans le temps.
colle cyanoacrylate premier prix fonctionne très bien.
prévoir 10 à 15 tubes de 3grs pour cette fusée.

Bonjour,
Je vais commencer l'assemblage et j eme pose des questions sur la colle à utiliser. A tu la référence de la colle PVC que tu utilises ?
Merci

bonjour,
j'utilise assez souvent le PLA d'emotion tech. mais je constate qu'ils sont pas mal en rupture en ce moment.
cordialement

Bonjour
Pour respecter les bonnes teintes de couleur, quel filament utilise tu ?
Surtout pour le jaune, vert et Marron.
Merci

bonjour,

les fichiers 03 black RP1 tank skin pos I and III x2.stl, et 03 black RP1 tank skin pos II and IV x2.stl ont été vérifiés et remplacés.

cordialement

Hi, for the Saturn V stage S1C, there are 2 files (03 black RP1 tank skin pos I & III x2.stl / 03 black RP1 tank skin pos II & IV x2.stl) corrupted, impossible to open them, can you please check it and made the correct files available.
Thanks.
