apollo 7 saturn 1b

?
Creation's quality: 5.0/5 (4 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 9.7k views
  • 34 likes
  • 62 downloads

3D model description

Apollo 7

saturn 1b

October 11, 1968 _ October 22, 1968

first manned flight of the Apollo with three people on board.

assembly instructions: https://the-amphioxus.monsite-orange.fr/

method for printing markings: https://youtu.be/YS2s9fNvux8

update August 20

added STL files for SLA resin printer

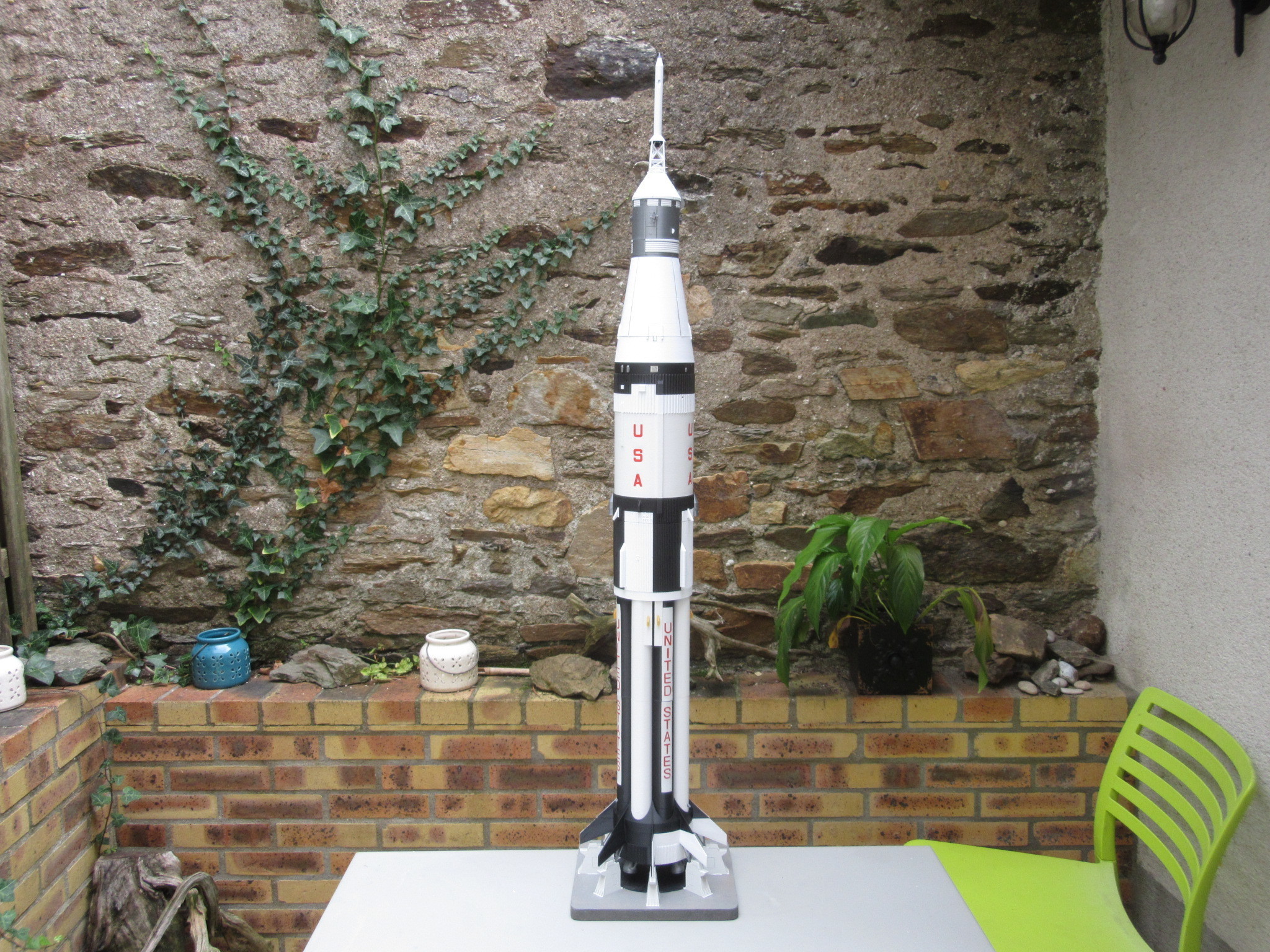

1/60th scale model

Height: 118 cm

diameter: 115 mm

weight: 1.1 kg

quantity per color :

white about 400 gr

olive about 300 gr

black about 250 gr

silver about 200 gr

red and yellow about a few grams

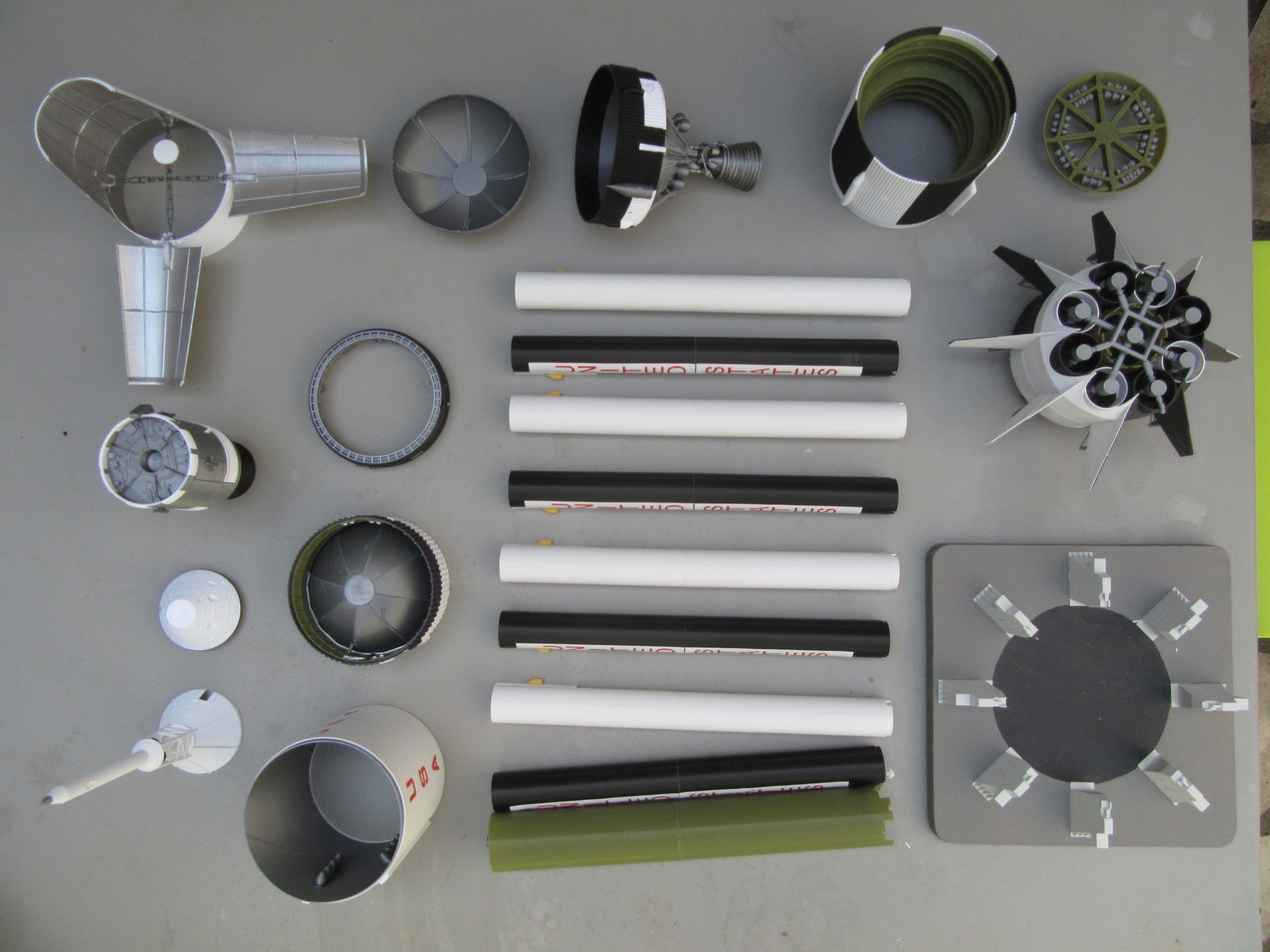

295 pieces, can be dismantled into 22 parts


3D printing settings

requires a good knowledge of your printer.

Preferably print all the parts on the same printer in order to have a better conservation of dimensions.

Some parts may require 5 to 6 hours of printing time.

the adhesion of the parts must be controlled in general.

The modeling was tested on an i3 with a 0.4mm nozzle.

First layer must be 0.3 mm thick and must be even over the entire printing surface (autoleveling desired).

Layer height 0.2 mm for large parts. 0.1 or 0.15 mm for small parts.

No support required.

Fill to 15% if necessary. 0% on thin walls.

Brim imperative on thin walls.

Edge thickness for thin workpieces to 0.4mm (single nozzle pass)

Edge thickness for other workpieces 0.8 or 1.2 mm as desired

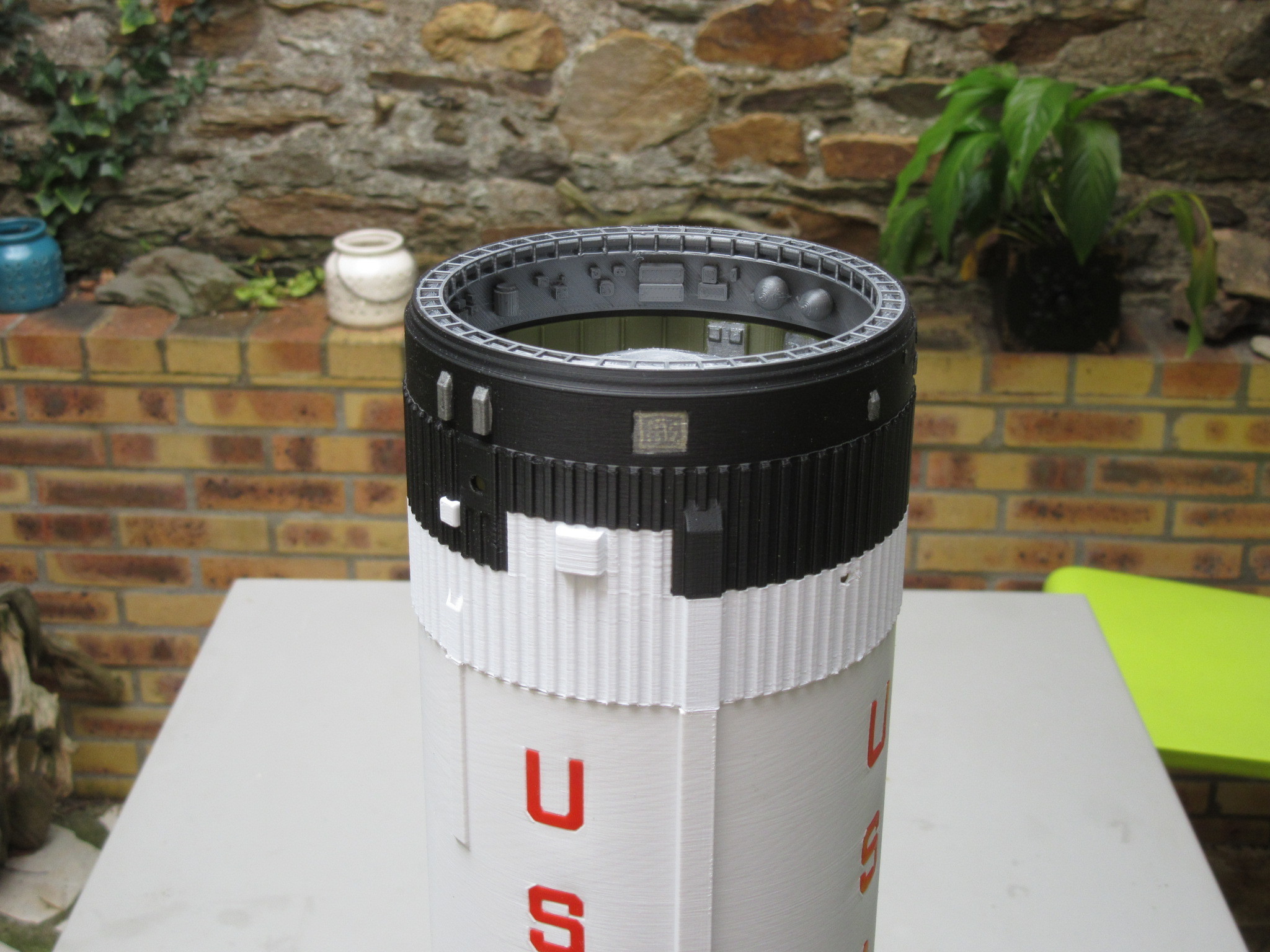

for the UNITED STATES marks of the RP1 tanks:

the printing will be done in two stages:

  • reverse printing on white backgrounds without contour.

  • then, without removing the part from the printer, print red letters inside out without contour.

The final rendering will be a red UNITED (or STATES) tape on a white background, in one piece, 0.3 mm thick, smooth on the playback side.

To do this, in the slicing software, use the STL print marks (v-shaped marks) to set the position of the two models in the same place (the two tips of the marks on the same slicer grid mark). In addition, the "v" marks will be placed as close as possible to the printer's home, so that the printouts start with the marks to purge the nozzle.

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • 02 olive trust structure.stl
    • 06 olive spider beam.stl
    • STL.zip
    • saturn 1b-H1_inside.stl
    • saturn 1b-J2.stl
    • saturn 1b-W_35.stl
    • saturn 1b-W_37.stl

    Learn more about the formats

  • Last update: 2021/01/20 at 18:03
  • Publication date: 2018/10/08 at 18:55
