Z Markers for Sovol SV06 and SV06 Plus

Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

  • 1 comment
  • 1 make

Licence CULTS - Private Use
Last update 2023-07-03 at 06:45
Publication date 2023-06-29 at 19:22
Design number 1297954
3D design format
STL Folder details Close
  • left.stl
  • pointer 1.stl
  • pointer 2.stl
  • pointer 3.stl
  • pointer 4.stl
  • pointer 5.stl
  • right.stl
  • v2 left.stl
  • v2 pointer size 1.stl
  • v2 pointer size 2.stl
  • v2 pointer size 3.stl
  • v2 pointer size 4.stl
  • v2 pointer size 5.stl
  • v2 right.stl

Learn more about the formats

3D printer file info

3D model description

Save your Z-level, by marking the position of the lead screws using these pointers that fit perfectly around the z-motor couplers.

Carry out the z-leveling using the most accurate method you choose, home your print head, then mark where the lines on the lead screw couplers fall. You will immediately notice if your z motors got out of sync, and you will know how to adjust the screws without redoing the leveling!

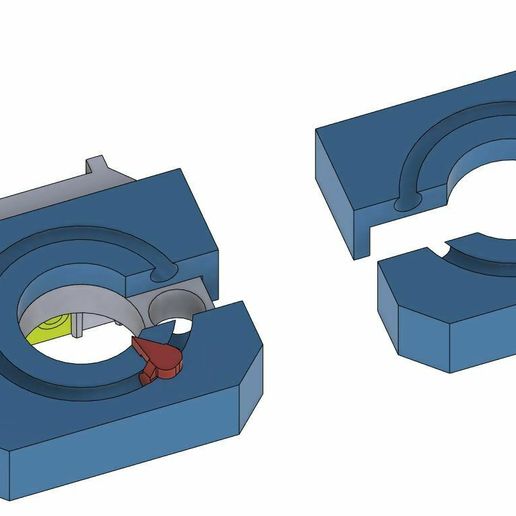

Included Left and Right z-motor caps, and five variants of the pointers for an accurate fit regardless of the clearance of your printer.

+ much improved fit with 4 screw hole protrusions on the right/left caps - no more wiggle!
+ elongated arrow now extends to the edge of the caps - improved viewing angles!

+ turns out the right and left z-motor caps are compatible with the regular SV06 (non-Plus version!) Thank you @brucoder for the feedback!

Watch demo and z-alignment tutorial on YouTube:

3D printing settings

All pieces can be printed out of PLA, without brims and supports!

Z-motor caps: 0.2mm layer height, regular speed, 2 walls, minimal infills. If the groove (which is printed up-side-down) doesn't turn out smooth enough slow down between layers 20-25. Print time 15-25 minutes each.

Pointers: print one for each cap, using a contrasting color, 0.1mm layer height, slow speed. It is small small, there is no infill with 2 walls. Print time: 2 minutes each. Start with "pointer 3.stl", if it turns out to be too tight, try "pointer 2 or 1", if too loose try "pointer 4 or 5".

I included a screenshot of the model positions in the slicer, please note these pieces should be printed one at a time!
