Customizable Sanding Stick

Download free 3D model Customizable Sanding Stick, MightyNozzleDownload free 3D model Customizable Sanding Stick, MightyNozzleDownload free 3D model Customizable Sanding Stick, MightyNozzleDownload free 3D model Customizable Sanding Stick, MightyNozzle

Makes created by the community

Did you 3D print this model?

3D model description

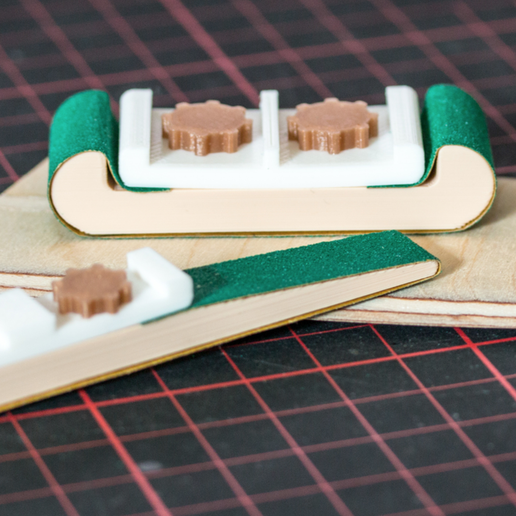

I've created this OpenSCAD, where you can customize your sanding stick. Even the needed screws are printable. You only need some sandpaper (sheet or strip) and the 4 printed parts.

I've also added the four sticks I'm using in the first picture, as .stl files.

Customizable Settings
- set the length, height and width (picture 3)
- 3 different end styles: none, round and wedge (picture 4)
- set the angle and a smooth round end for wedge style

Customizable Sanding Stick on YouTube
RCLifeOn: https://www.youtube.com/watch?v=eK8k_6zu0hs
Print 3D Channel: https://www.youtube.com/watch?v=kY7AoZirRsI

Changelog
v1.3 - 2017-08-08:

[feature] parts will be generated in separate stl-Files additionally.
v1.2 - 2017-07-31:

[fix] reduced the tolerance of the threaded hole. If you have problems, to insert the screw in, you can change the tolerance in the screw-settings-advanced section -> Screw Thread Hole Dia In Millimeter.
[feature] parameter to add extra height of the screws head
v1.1 - 2017-06-27:

[feature] added color
[cosmetic] updated description for screw settings

How to support me?
Do you like my things and do you want to support me? You can use these links if you want to buy something. This helps me doing more things. Thanks!

Banggood: https://goo.gl/ZXgx3A
Gearbest: https://goo.gl/FfE59f
Aliexpress: https://goo.gl/bQLi15

3D printing settings

Rafts:
No

Supports:
No

Resolution:
0.2 or better

Infill:
50%

Notes:
You can use lower infill, as long as the infill is present in each layer of the screw. Or you can use separate infill settings for each part e.g. 50% for bottom part and screws, 25% for top part. You can easily separate the part in Simplify3D under Mesh -> Separate Connected Surfaces. You can also separate the parts in the customizer.

  • 3D model format: STL and ZIP

Tags

Creator

Designs 136
Downloads 16505
Followers

I like to create things to save money and time. Wherever possible, I try to use aspects of ecological design. As a full-time software developer and pragmatic solution designer my focus is on the creation of customizable things.

License

CC BY NC SA
