Customizable Linear Bushing / Bearing - LM8UU, LM8LUU, LM12UU, LM12LUU, LM16UU, ... IGUS like

3D model description

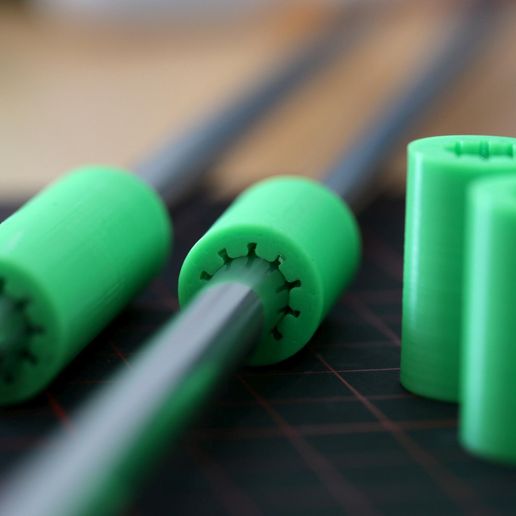

With this customizable design, you are able to create bushings, that will be printed in an optimal way. You can set the inner and outer diameter, the length, the extrusion width, number of perimeters and number of teeth.
You can find a more detailed description above each variable in the MakerBot Customizer or OpenSCAD file.
Please leave a comment, if you have any questions or problems!

Updates
2017-08-15: fixed graphic glitch
2017-08-07: added chamfer setting in customizer. There will be a graphic glitch in the preview, but the .stl-File will be generated without any glitch.
2017-06-14: After 3 months and 4kg filament, i couldn't recognize any wear to these bushings, printed in PLA. I used one drop PTFE oil per bearing in the beginning and the bushings are still wet. For me, they perform much better, than the IGUS Japan bushings.

How to support me?
Do you like my things and do you want to support me? You can use these links if you want to buy something. This helps me doing more things. Thanks!

Banggood: https://goo.gl/ZXgx3A
Gearbest: https://goo.gl/FfE59f
Aliexpress: https://goo.gl/bQLi15

3D printing settings

Print Settings

Printer:
Anet A8

Resolution:
0.12

Infill:
0%

Notes:

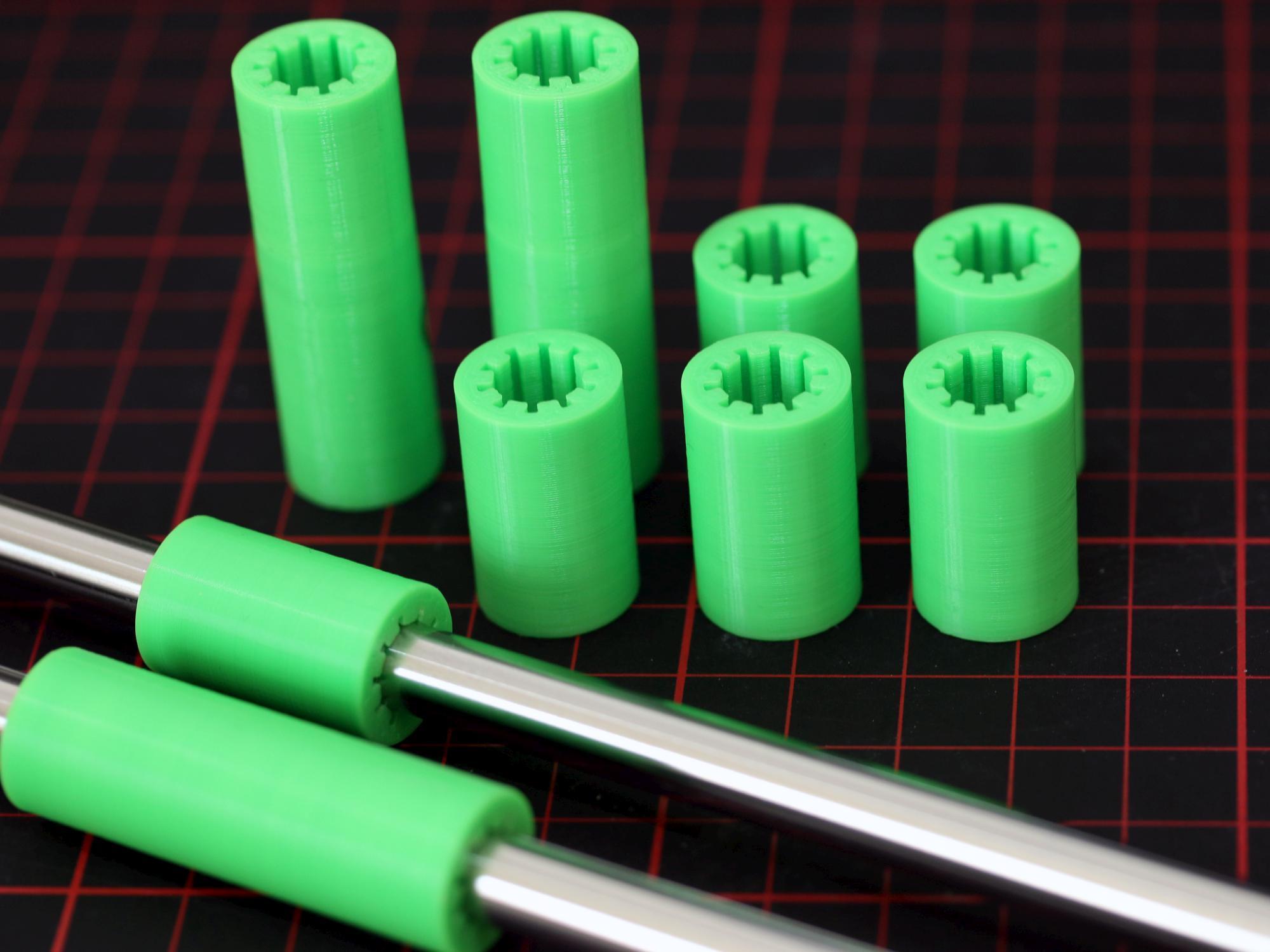

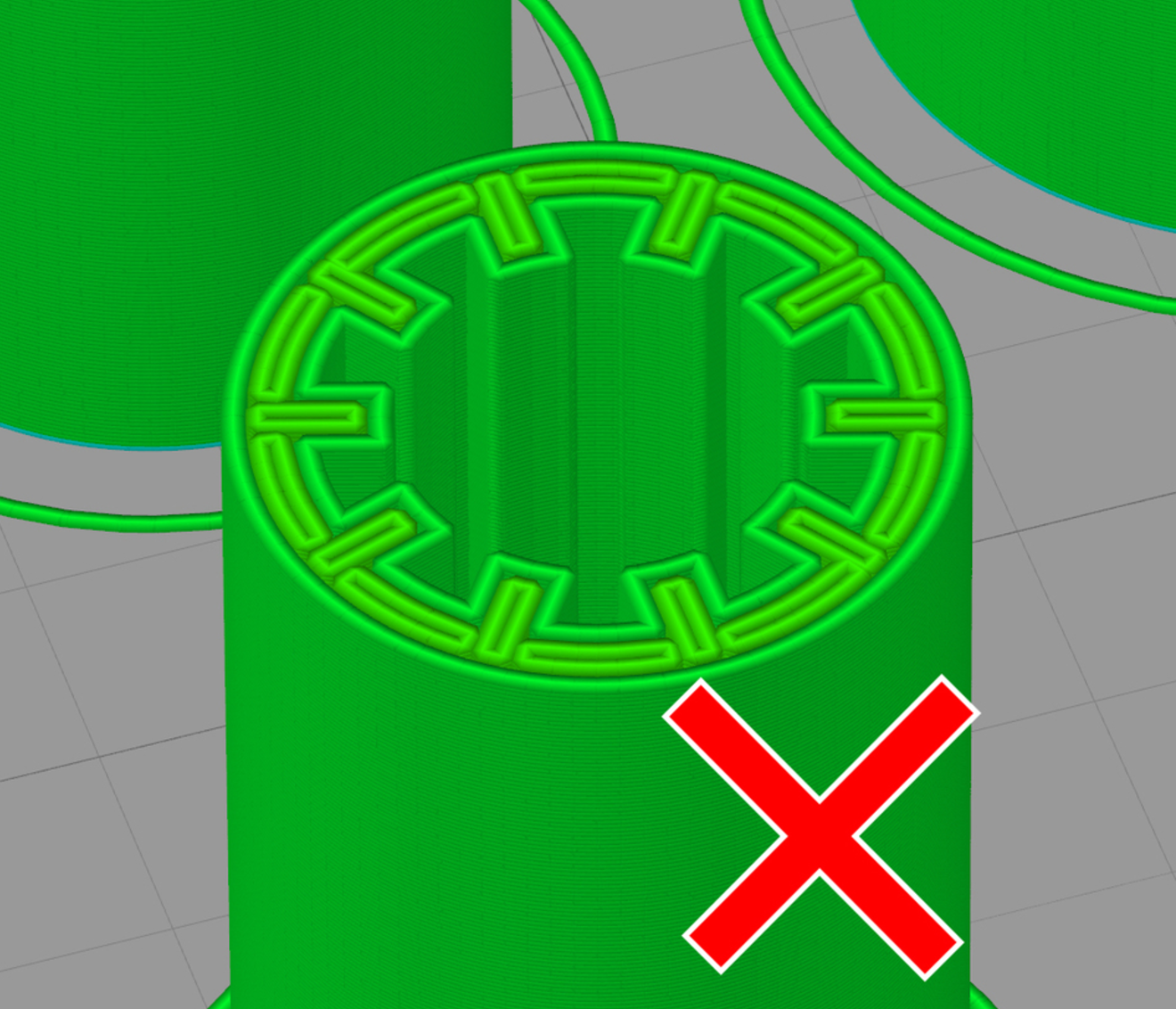

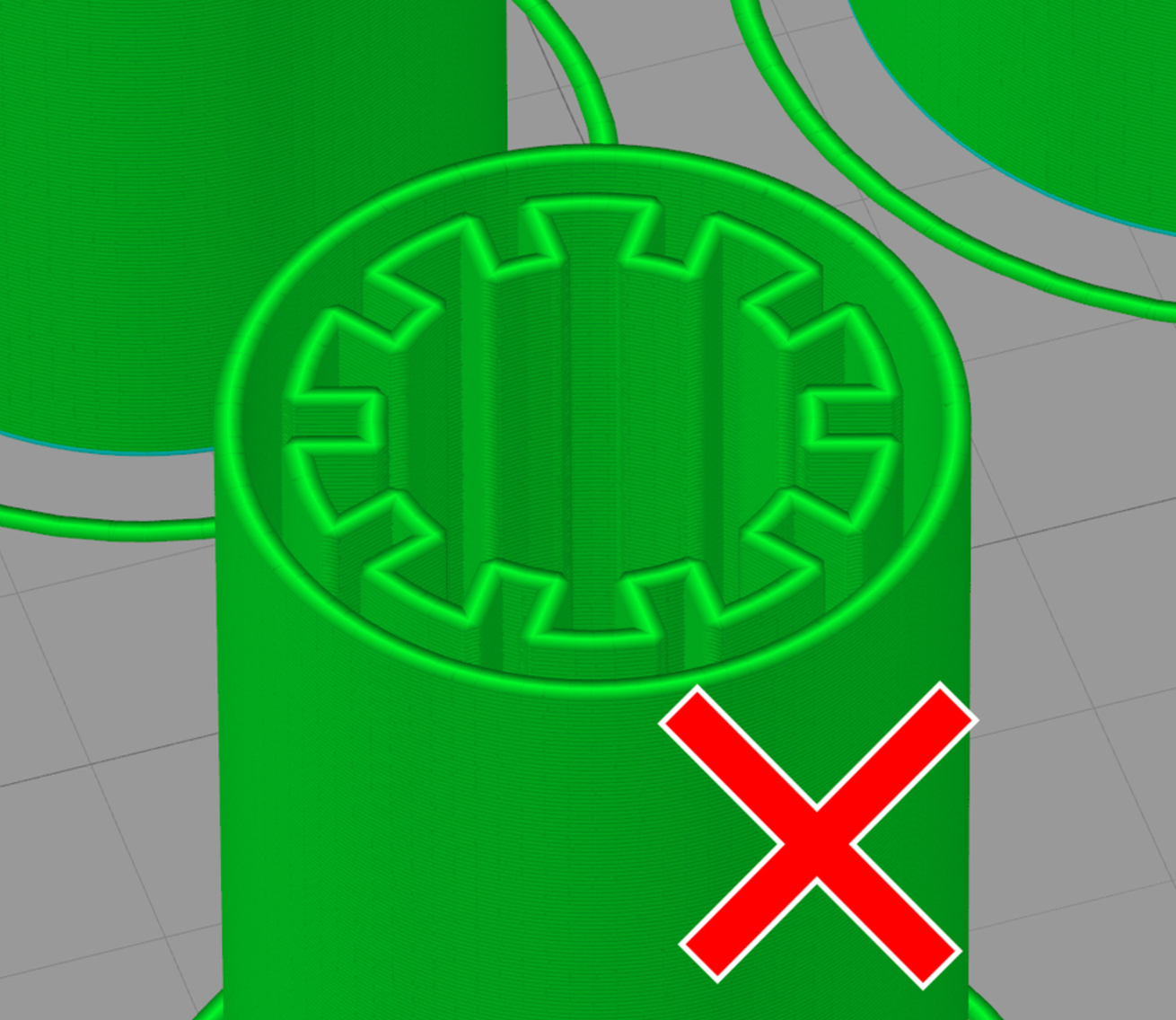

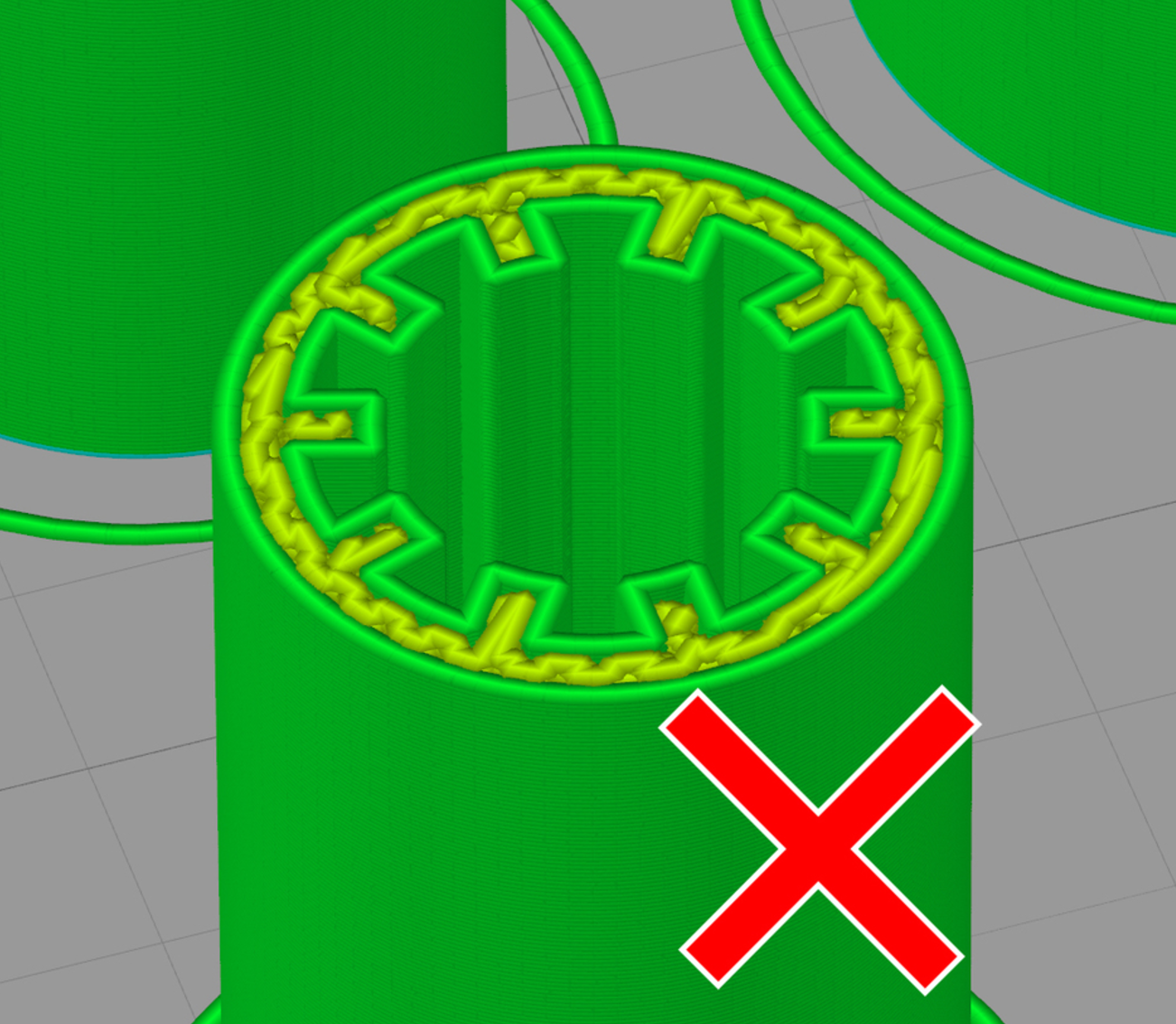

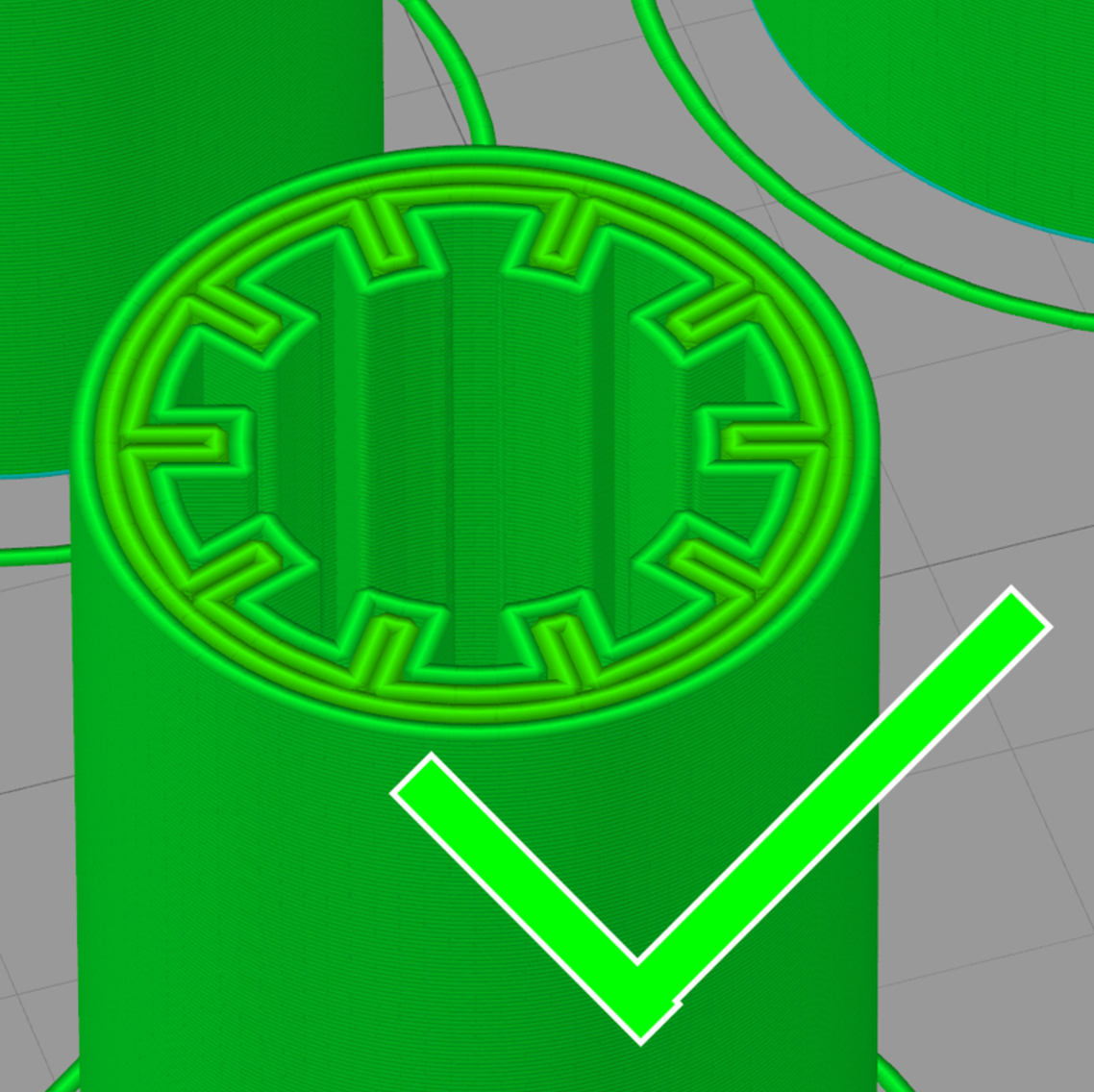

Extrusion width (not the nozzle size!) and # of perimeters should be in sync between the Customizer / OpenSCAD and your Slicer! Check the 4th picture how it should look like, before printing.

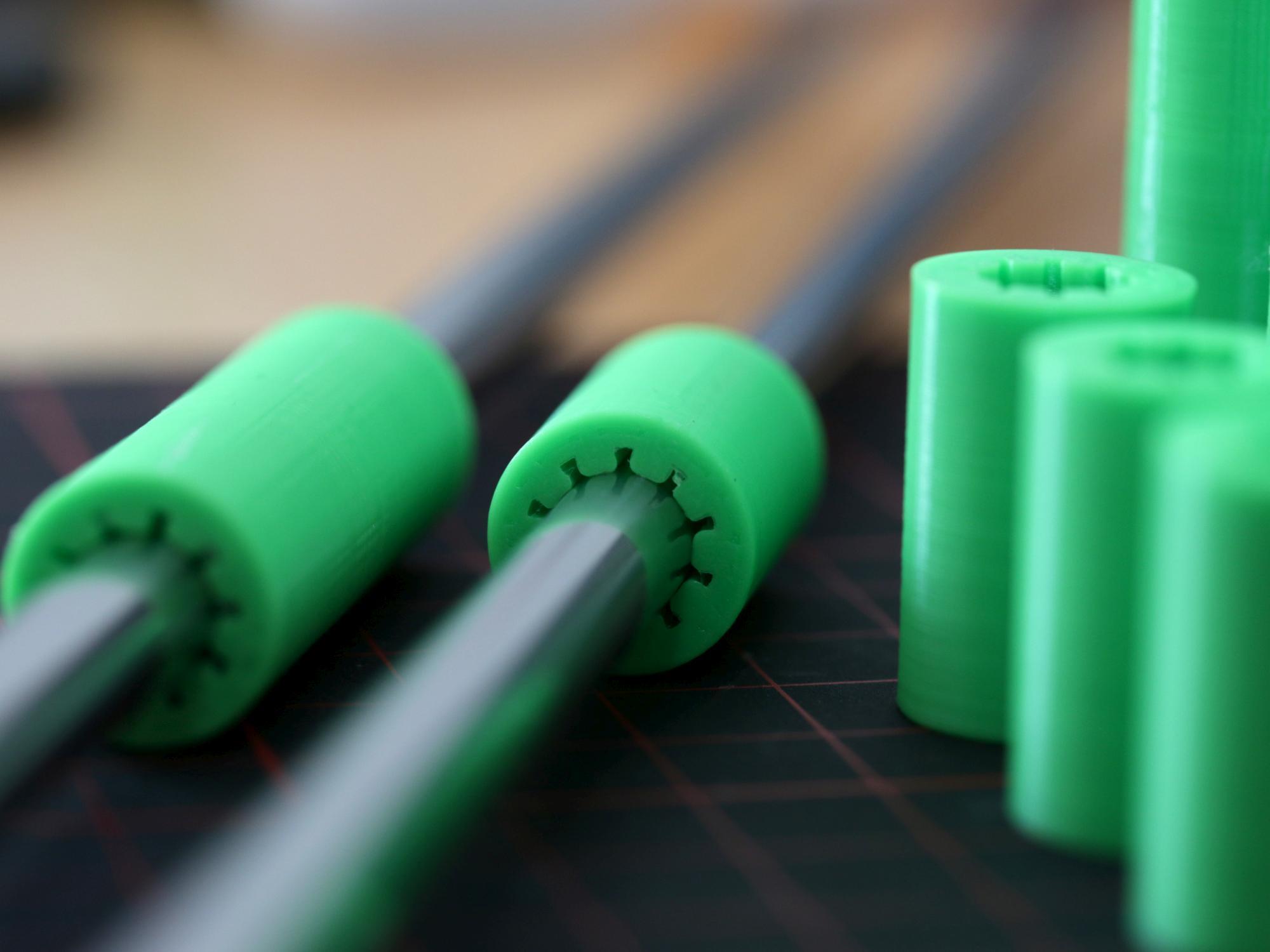

Best way in my case is to choose the bushing where you can push it in with some effort on the rod and slide it by hand without any tools. Then slide it back and forth along the rod, until the bushing has the expected behavior. I suggest you not to use any drill or heat. The sliding of the bushing generates enough heat from its friction against the rod.
