Customizable Plate Bracket for Aluminium Extrusion Profiles (Misumi 2020, 2040, 4040, ...)

?
Creation's quality: 5.0/5 (4 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 12k views
  • 52 likes
  • 949 downloads

3D model description

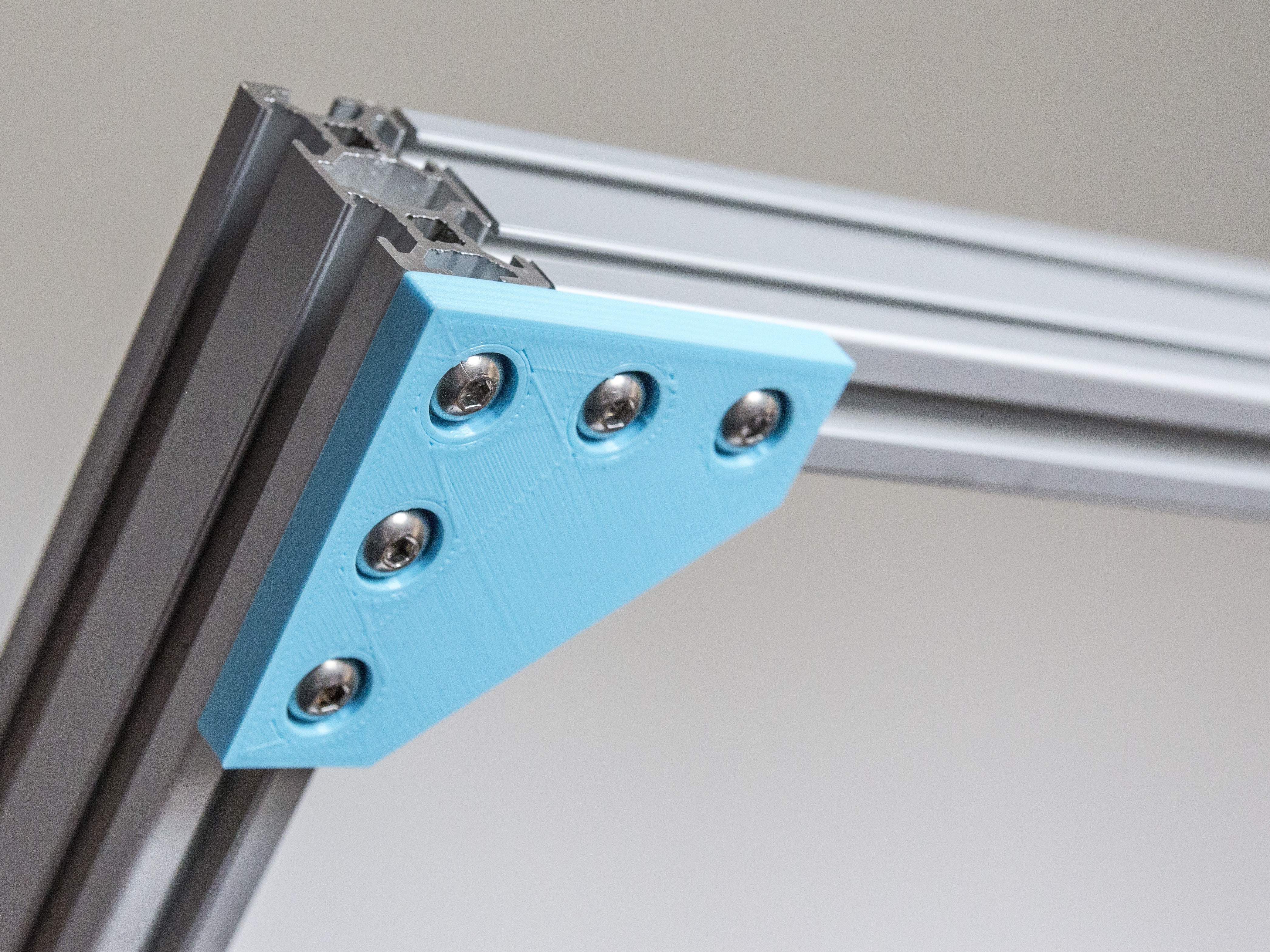

This is a customizable 3d model that allows you to create and print aluminum extrusion brackets for different types and sizes of extrusion profiles.

I've also added the 21 brackets for 2020 and for the short side of the 2040 profile as .stl files.

Customizable Aluminium Extrusion Series

This is my first part of a series of customizable aluminium extrusion parts. Follow me, if you want to be informed about a new part of this series!

Customizable Settings

Use OpenSCAD to create your own customized set of brackets.

You only need to set these few parameters to get all the 21 brackets automatically:

  • width of mounting side of the extrusion profile (20mm for 2020 profile)
  • length and thickness of the bracket
  • number of rails (2020 has 1, 2040 has 1 and 2 rails)
  • screw hole settings

How to support me?

Do you like my things and do you want to support me? You can use these links if you want to buy something. This helps me doing more things. Thanks!

Banggood: https://goo.gl/ZXgx3A
Gearbest: https://goo.gl/FfE59f
Aliexpress: https://goo.gl/bQLi15


3D printing settings

Rafts:
No

Supports:
No

Resolution:
0.2

Infill:
50%-100%

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • 2020_all_brackets.stl
    • 2020_long_straight_bracket.stl
    • 2020_normal_straight_bracket.stl
    • 2020_short_L_shape_with_full_support.stl
    • 2020_short_L_shape_with_half_support.stl
    • 2020_short_L_shape_without_support.stl
    • 2020_short_T_shape_with_full_support.stl
    • 2020_short_T_shape_with_half_support.stl
    • 2020_short_T_shape_without_support.stl
    • 2020_short_X_shape_with_full_support.stl
    • 2020_short_X_shape_with_half_support.stl
    • 2020_short_X_shape_without_support.stl
    • 2020_short_straight_bracket.stl
    • 2020_uniform_L_shape_with_full_support.stl
    • 2020_uniform_L_shape_with_half_support.stl
    • 2020_uniform_L_shape_without_support.stl
    • 2020_uniform_T_shape_with_full_support.stl
    • 2020_uniform_T_shape_with_half_support.stl
    • 2020_uniform_T_shape_without_support.stl
    • 2020_uniform_X_shape_with_full_support.stl
    • 2020_uniform_X_shape_with_half_support.stl
    • 2020_uniform_X_shape_without_support.stl
    • customizable_aluminium_extrusion_plate_brackets.zip
  • Last update: 2017/09/05 at 16:18
  • Publication date: 2017/08/29 at 22:11

License

CC BY NC SA
