3D model description

/!\Fixed parts: Sides_A/B and TopPart 16/12/2018

/Update February 12, 2021 Added Street fighters stickers!

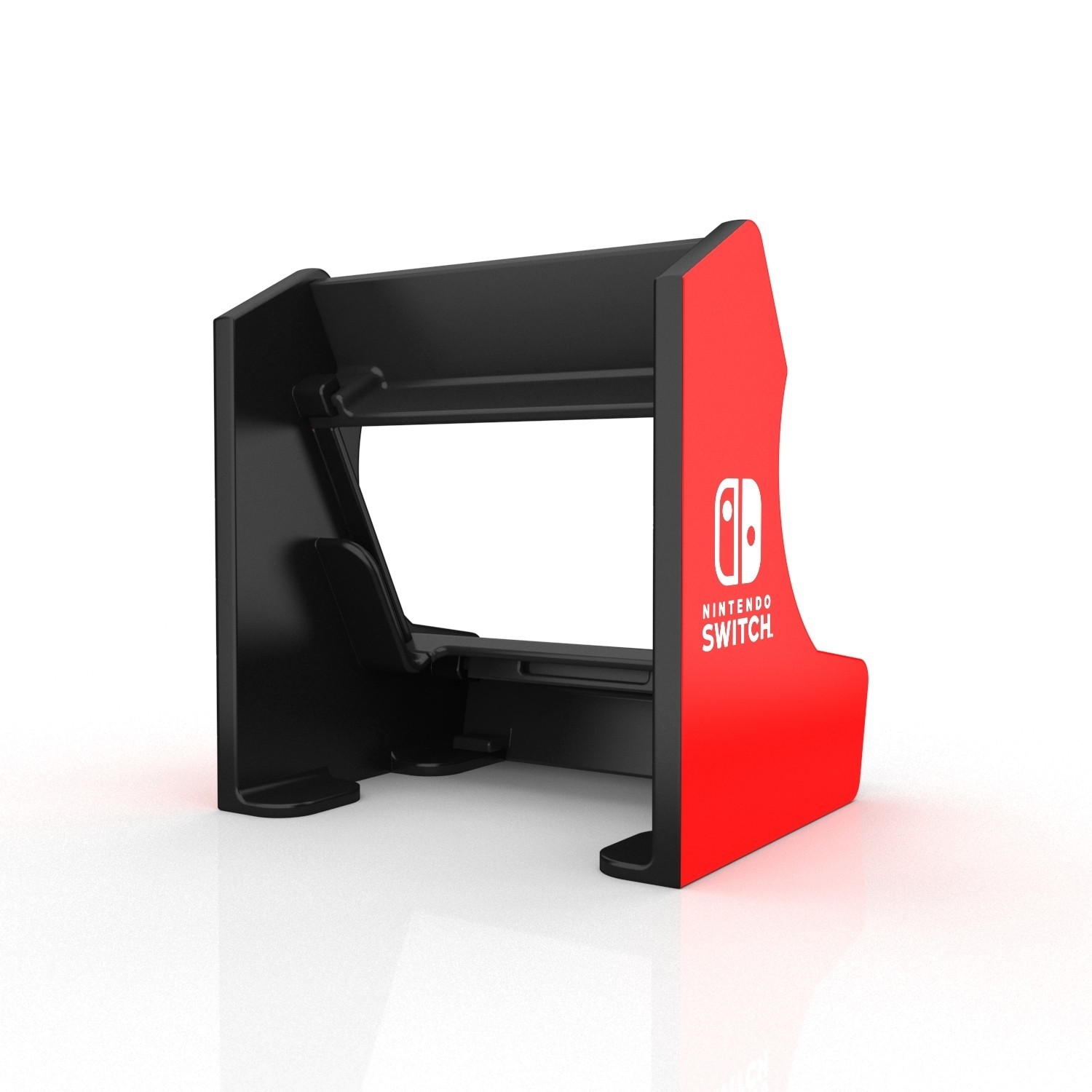

Nintendo switch retro gaming stand (Arcade/Bartop) for 3d print

Nintendo switch stand retro (arcade/bartop) for 3d printing

5 files to print (Glue optional)

Sides (L and R): X = 158mm Y = 207mm Z = 35mm

Front: X = 175mm Y = 52mm Z = 70mm

Top: X = 367mm Y = 175mm Z = 50mm

Joy-con_Cover: X = 102mm Y = 35mm Z = 15mm


3D printing settings

I used Creality CR-10

My Cura setting :My cura setting :

Layer Height = 0.2mm

Wall = 0.8mm

Top/bottom Thickness = 0.6mm

Infill Density = 10%.

Print temperature = 203°.

Build plate = 66°.

Sides (L and R) :no need support

Front: need support

Top: need support

Joy-con_Cover : no need support

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • BartopStickers(A4).zip
    • Front.stl
    • Joy-con_Cover.stl
    • Side_L.stl
    • Side_R.stl
    • StreetFightersStickers(A4).zip
    • Top.stl

    Learn more about the formats

  • Last update: 2021/02/12 at 18:07
  • Publication date: 2018/07/10 at 17:36

Copyright

©

Tags

Creator

Designs 72
Downloads 732
Sales US$5,784
Followers 67

Infographiste 2d/3d autodidact

Page translated by automatic translation. See the original version.
Issue with this design? Report a problem

Makes created by the community

Best sellers of the category Game


Add a comment

2 comments

Hi Sébastien,

Thank you for your purchase!

And sorry but it seems that I had not updated in Cult3d, it's done now (v4 available), please download the new version before printing!

  • the "top" part there is less support generated now (in my case on CURA), for the front it's the same as your image on my side (for print media)

  • for Stickers, no need to sanded before (all about the thickness of your stickers and the quality of your print) but the surface for stickers is very flat normally

  • I think that the orientation of the STL files is the best, finally in my case it generates the least support and is more solid (I use CURA and a crality CR-10)

King regards,
David.

Hi!

I just bought your Nintendo Switch Arcade Stand, great work!!

Quick questions:
- what king of support should I generate for the front and top? My first test seams to put way too much of it. If I ask "only on build plate" it doesn't seam enough: https://www.dropbox.com/s/1uhwfn5op0lzg9w/SupportsTest.png?dl=0
- What is your finishing recommendation before putting some stickers. Did you just sand it?
- Should all parts be printed in the orientation the stl file is?

Thanks a lot and have a nice day,

Sébastien
