Nintendo labo Piano 3d print and improvements

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 8.3k views
  • 11 likes
  • 8 downloads

3D model description

Nintendo labo Piano full and improvements 3D print model

/!\ You Need Nintendo labo Kit 01 (piano)/!\
/!\ Maj 3d keys 09/07/2018 (back keys now are flat for reflective tapes).
/!\ Add full Piano files 04/06/2018 /!\

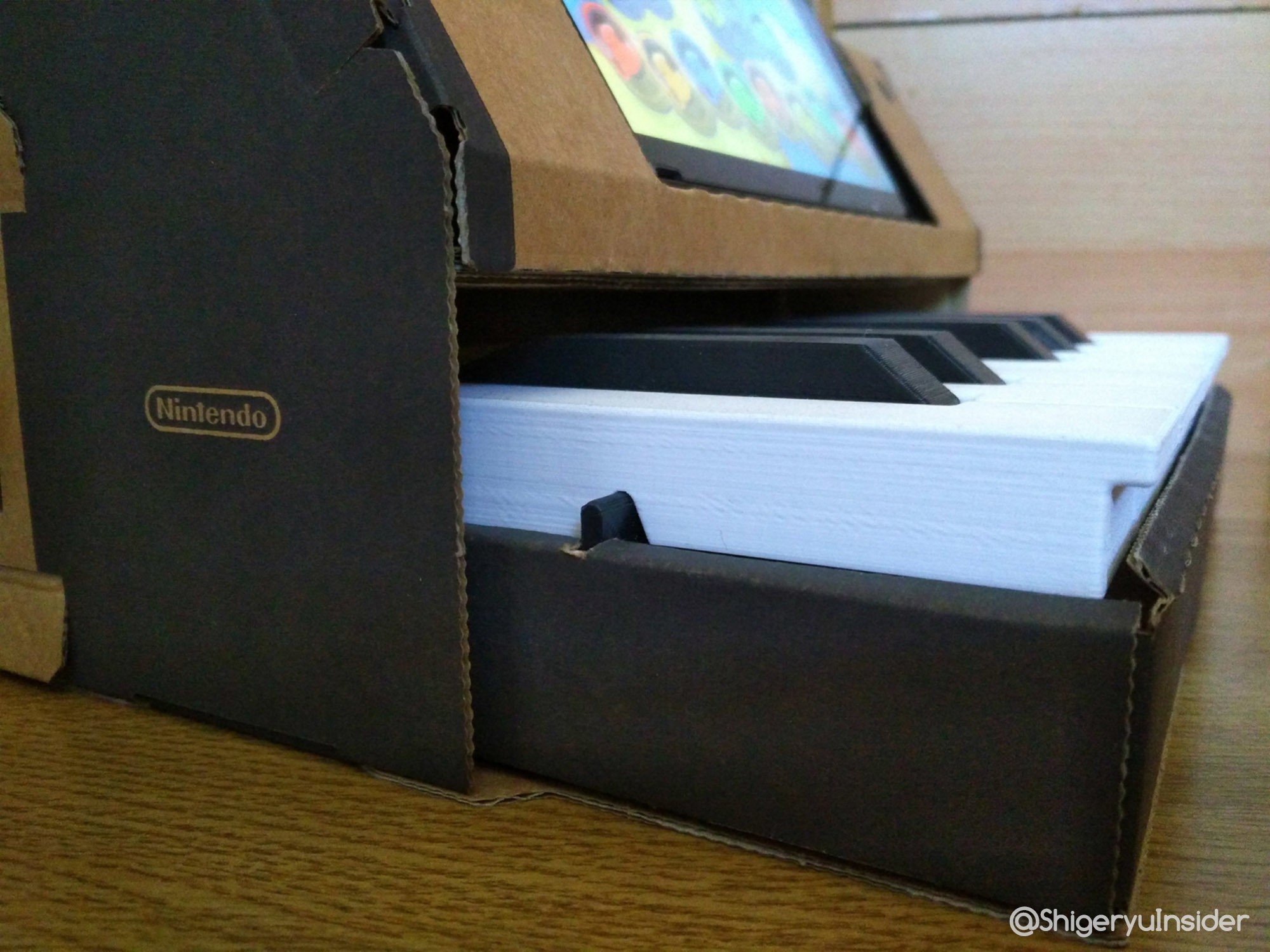

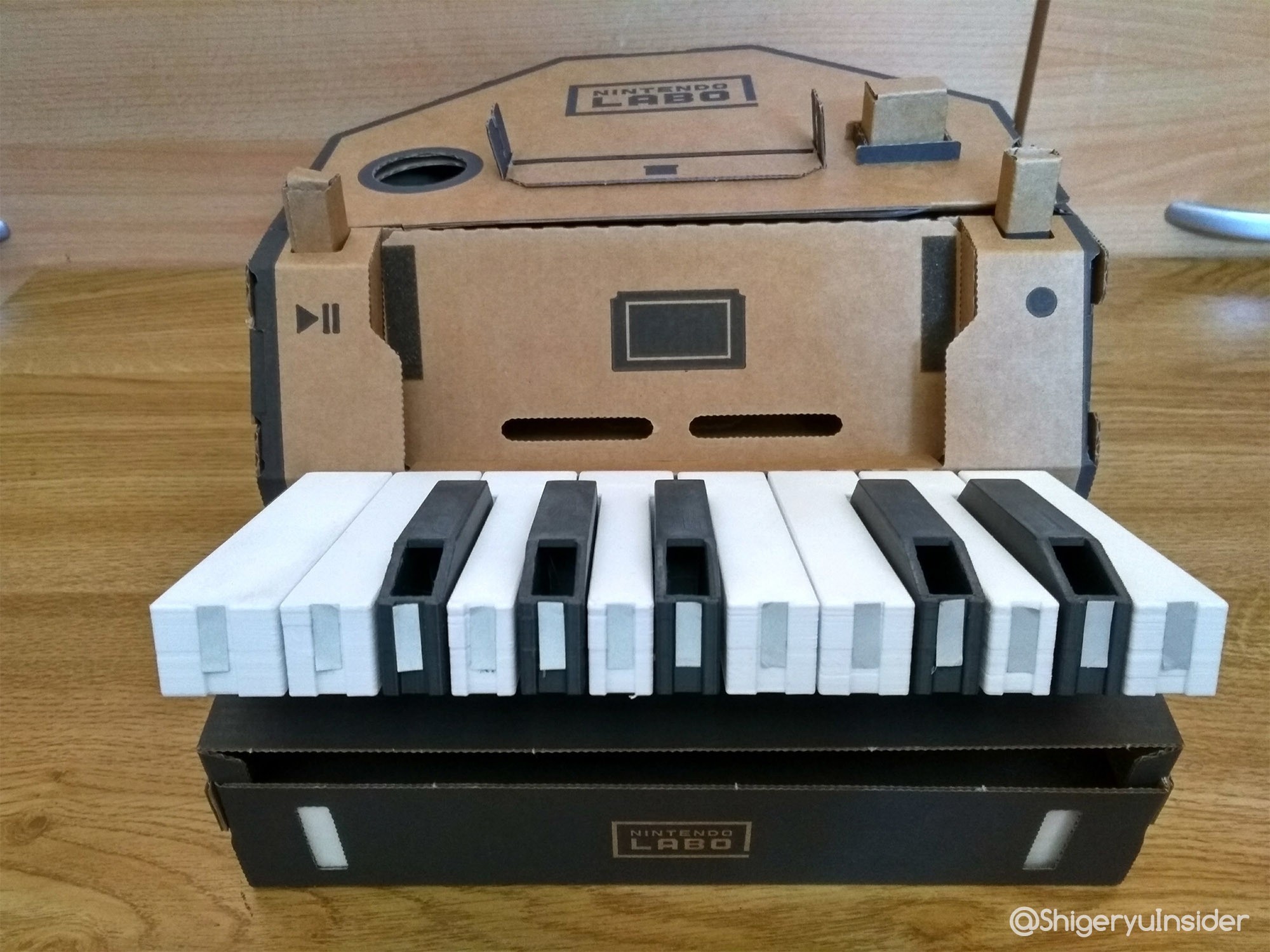

Nintendo labo Piano (Kit01) full and improvements(Keys, Knobs and more...)

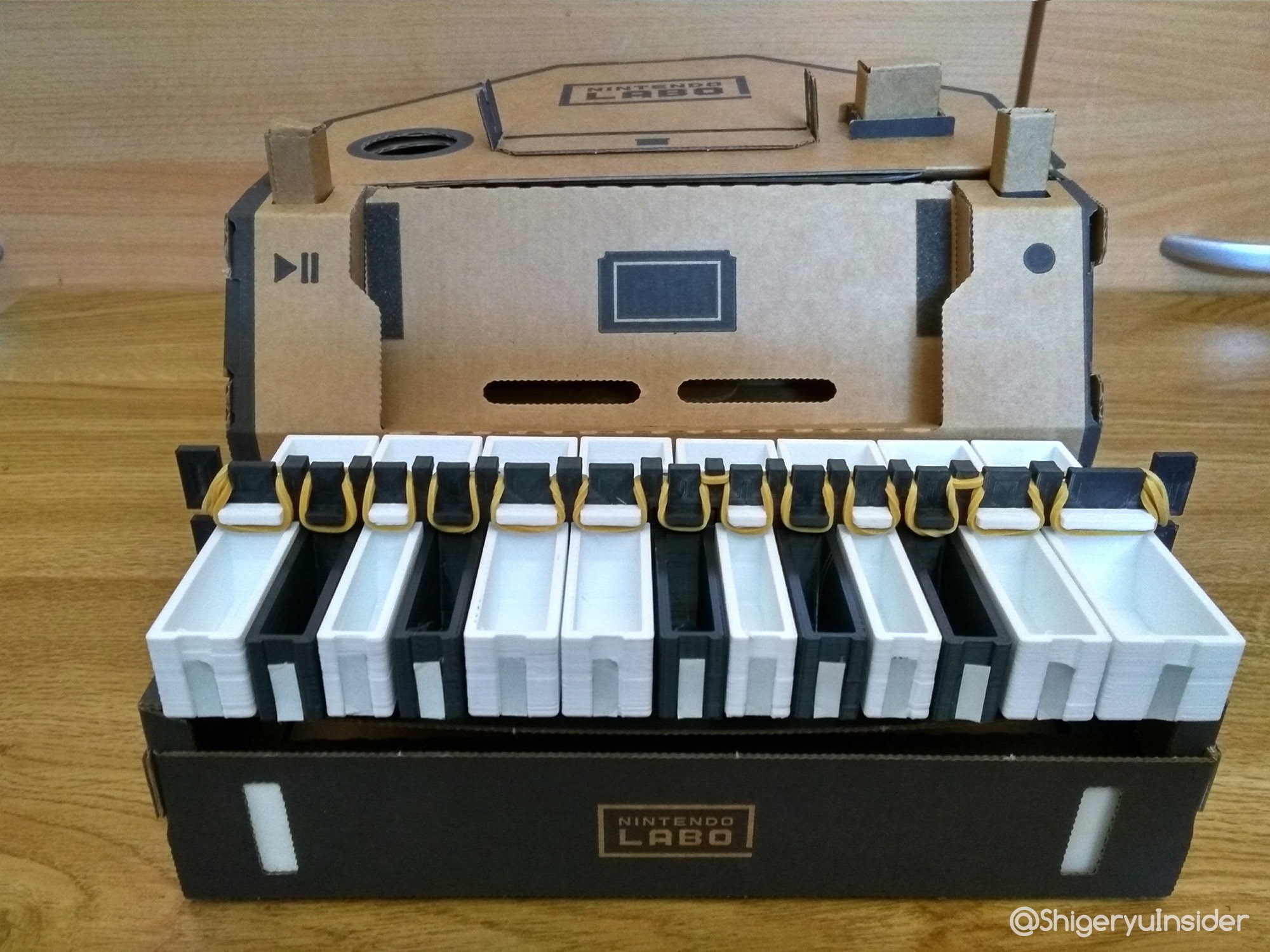

Pack including the full piano set keys to print and replace (redrawn, compatible cardboard version) new pressure system (using rubber bands and a new support for the keys of the piano), new "buttons" and body redrawn.

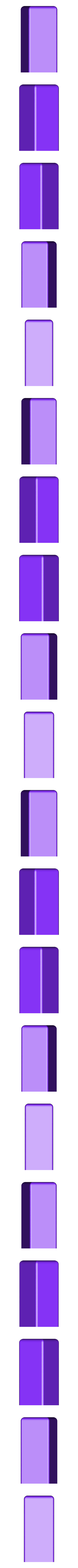

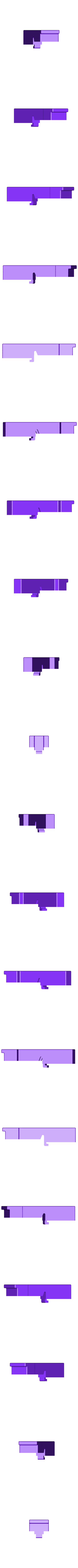

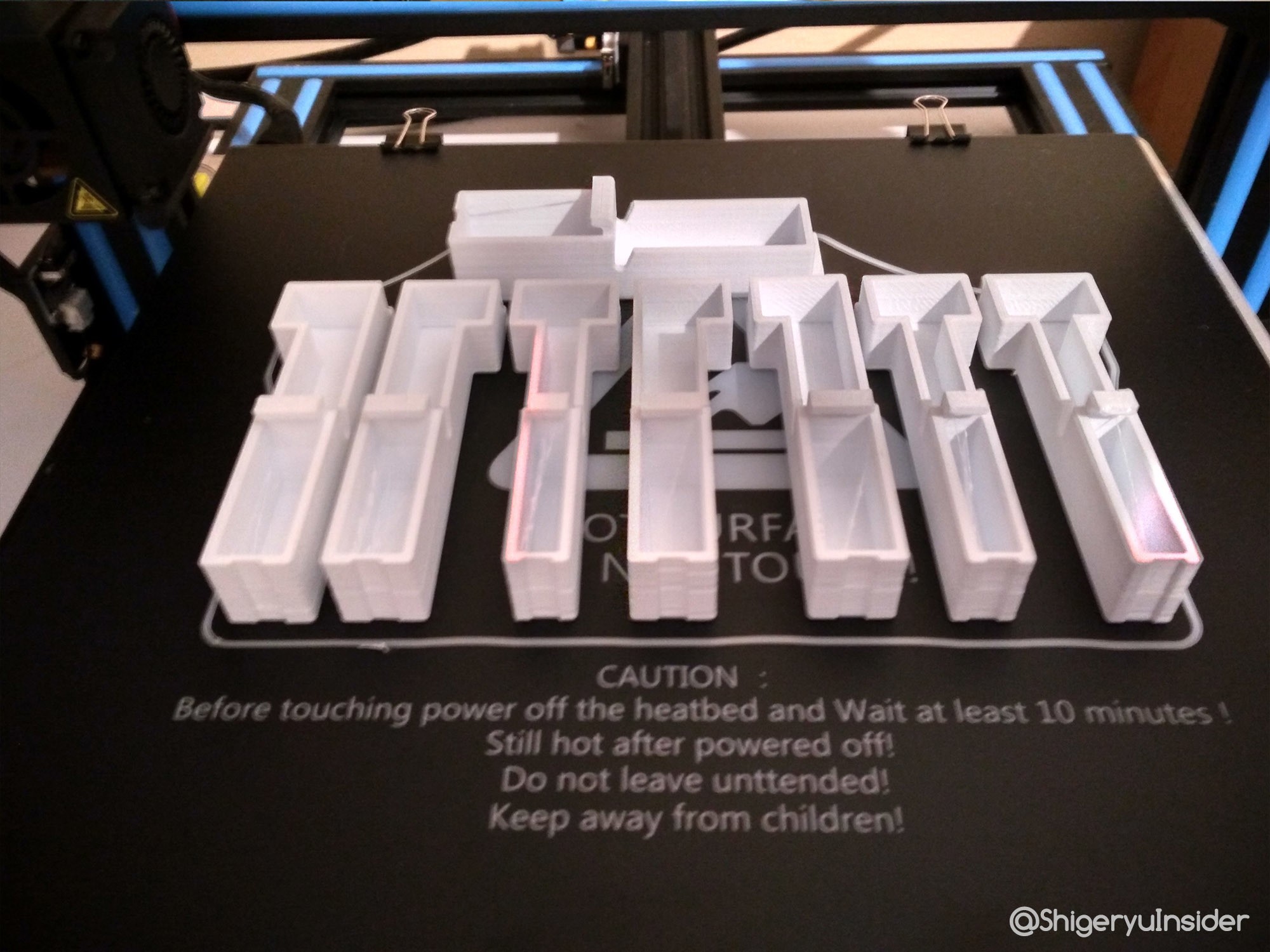

  • 13 pinao keys (BlackKeys need supports for good print)
    you need to print :
    x2 "Do"
    x3 "Ré"
    x2 "Mi"
    x1 Do(Key13)
    and 5 Do# keys (black keys) need supports for printing)

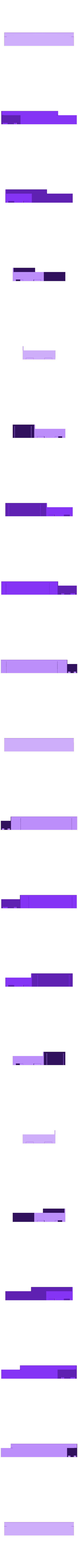

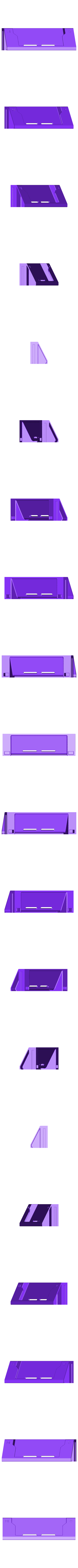

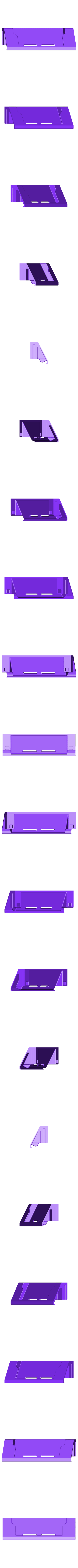

  • Support piano keys (no need supports)

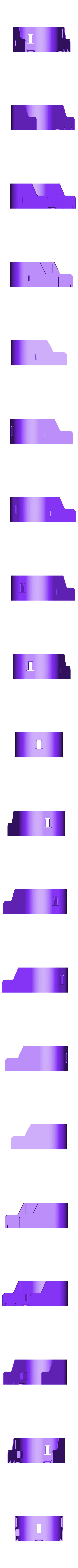

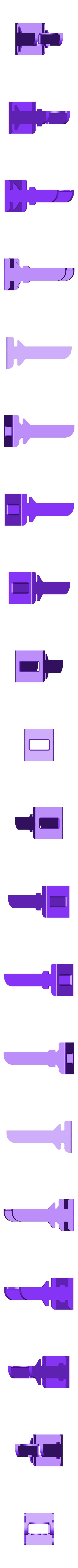

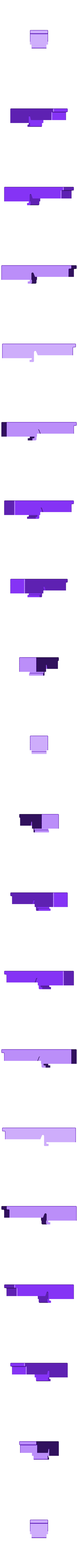

  • Buttons (optional) "Knobs" (Button4"JoyCon vibration" need supports) /!\Knobs edited : 13/05/2018

Add the full piano on 04/06/2018

Body piano (need supports) : 240 x 284 x 125 mm

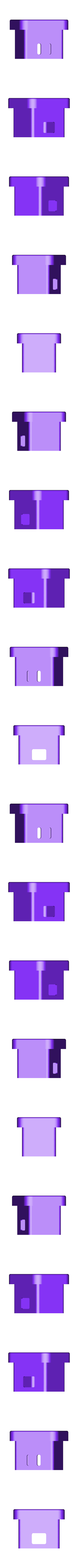

Play/Rec buttons : 16 x 15 x 35
Side button (2 parts)
SupportSwitch (need supports) : 232 x 55 x 70 mm
SupportKeyboard (need supports) : 109 x 232 x 44 mm

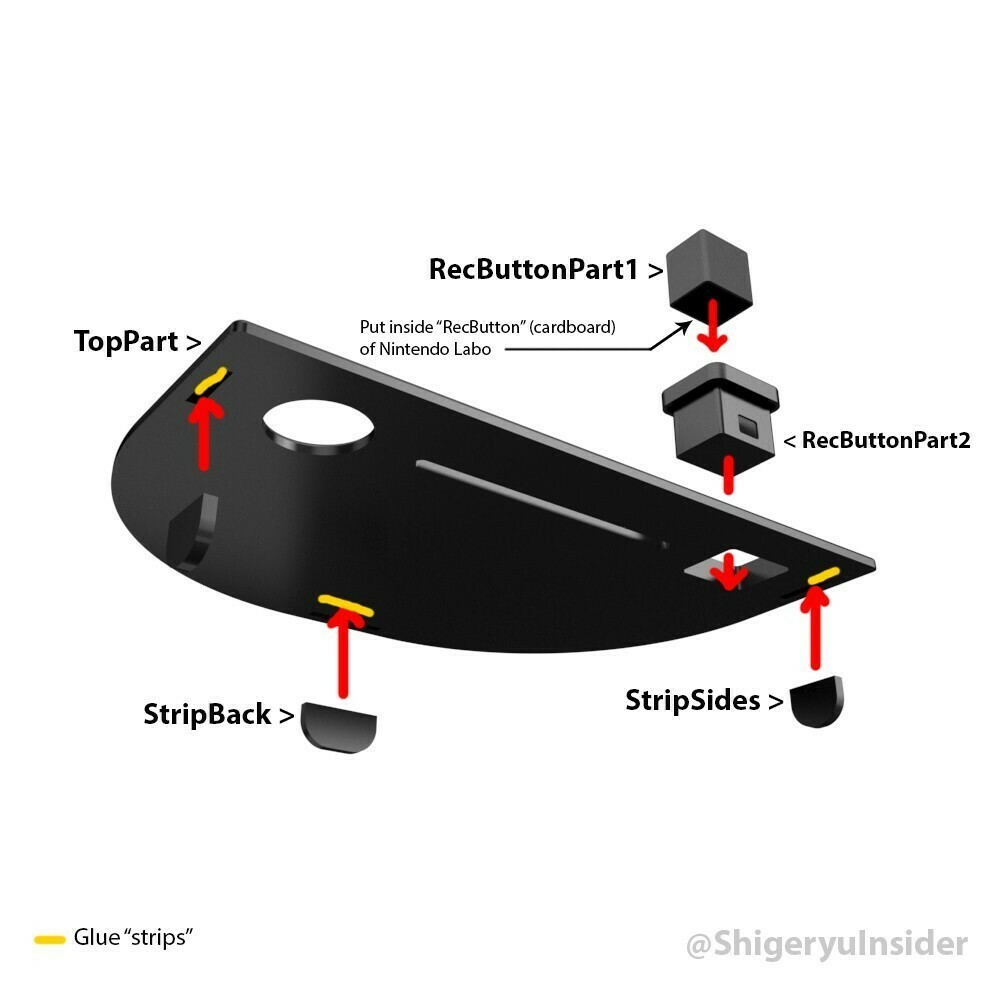

TopPart (with or without logo) : 240 x 14 x 160 mm
StripBack/Sides (for "TopPart", you need glue)
AnalyseButton (2 parts, part 2 need support)

3D printing settings

I used Creality CR-10

My Cura setting :
Layer Height = 0.2mm
Wall = 0.8mm
Top/bottom Thickness = 0.6mm
Infill Density = 10%
Print temperature = 203°
Build plate = 66°

  • 3D file format: STL
  • Last update: 2019/05/03 at 23:39
  • Publication date: 2018/05/09 at 01:00
