Nintendo labo vr-kit accessory "Camera" to print

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2k views
  • 5 likes
  • 2 downloads

3D model description

/!\nYou need Nintendo lab VR-kit+3d Printer /!

/You'll need the Nintendo lab VR-kit+ 3d printer.

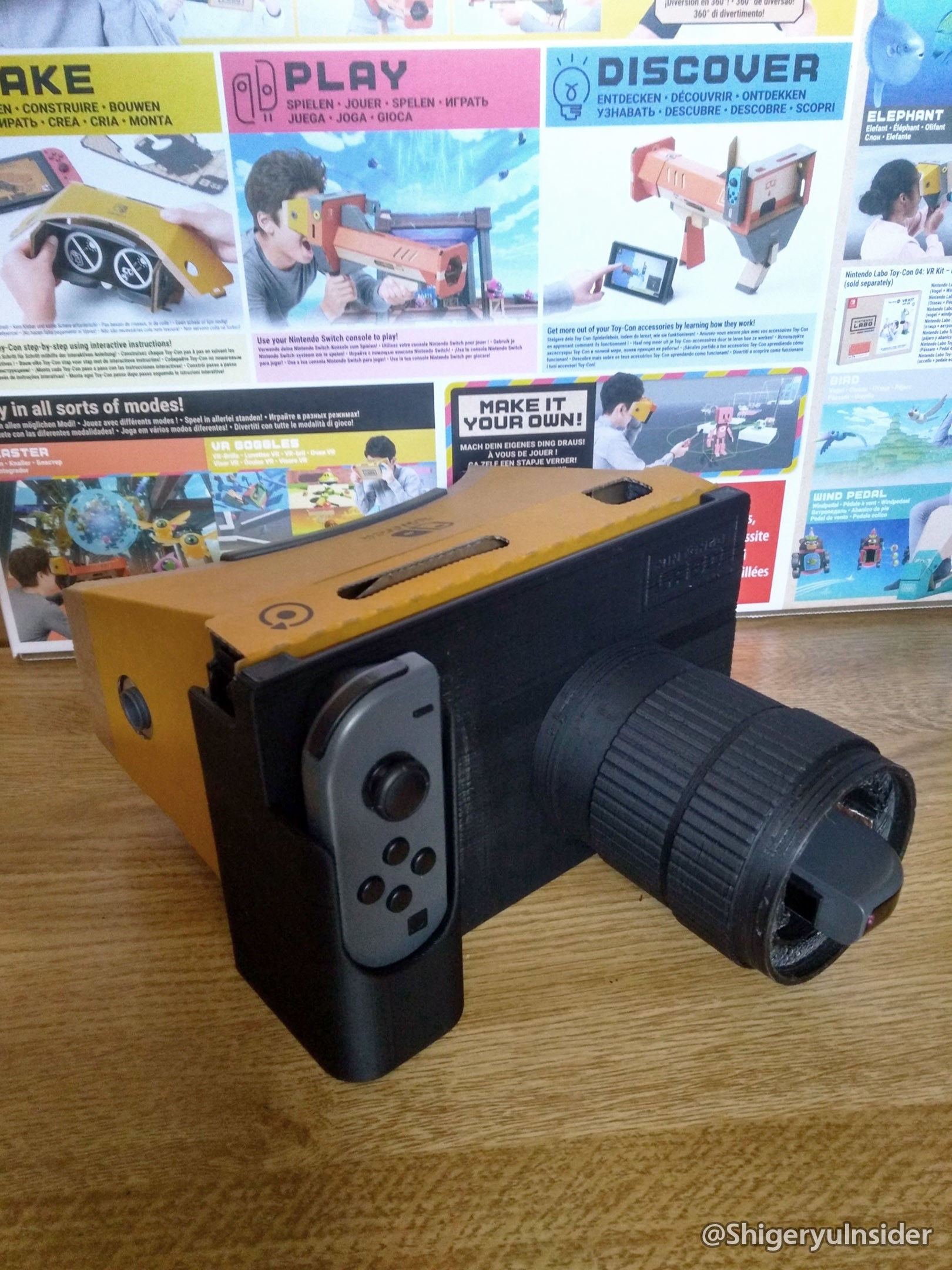

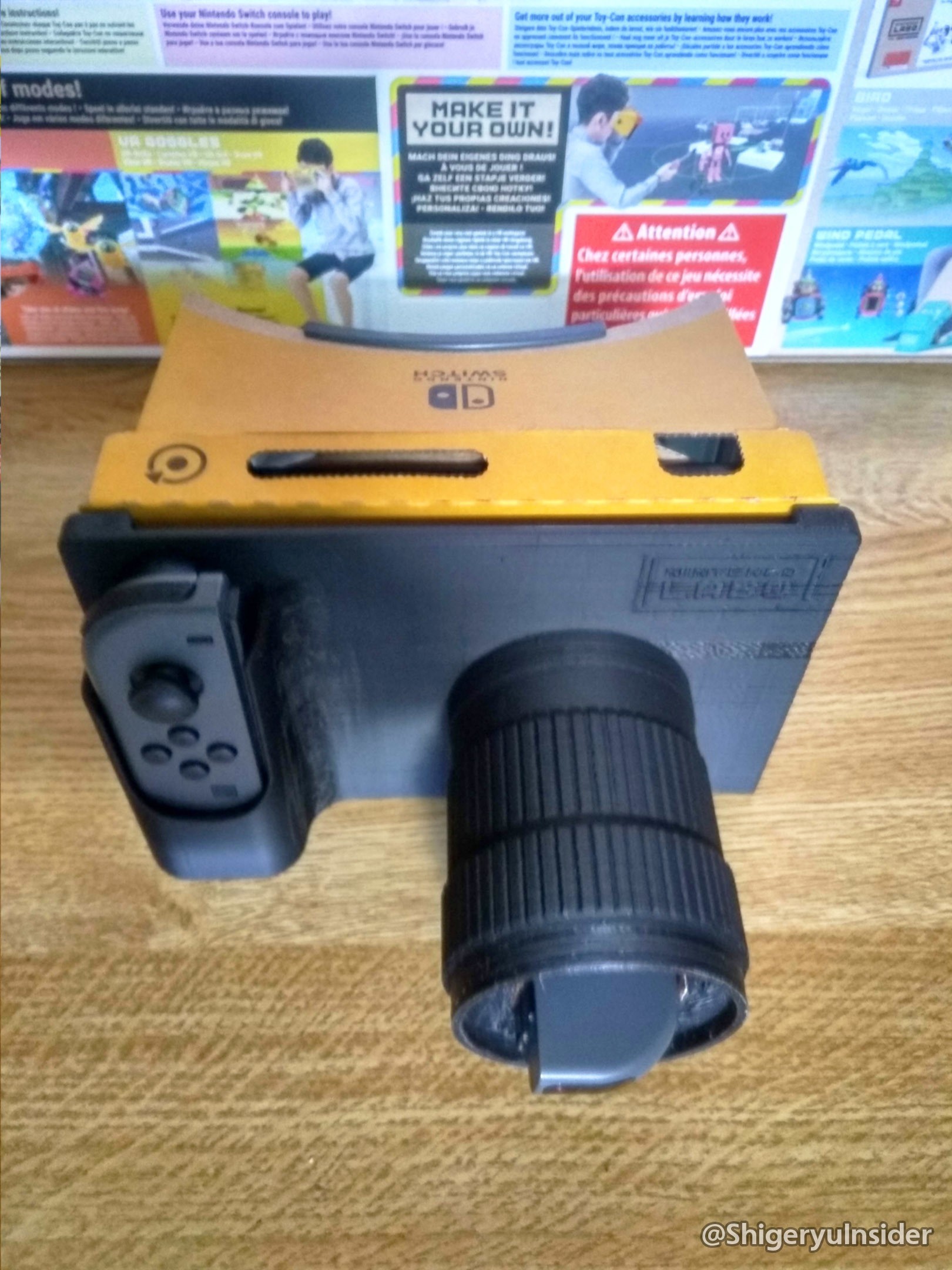

Camera for Nintendo labo VR-KIT to 3d print

Camera for Nintendo lab VR-KIT to print

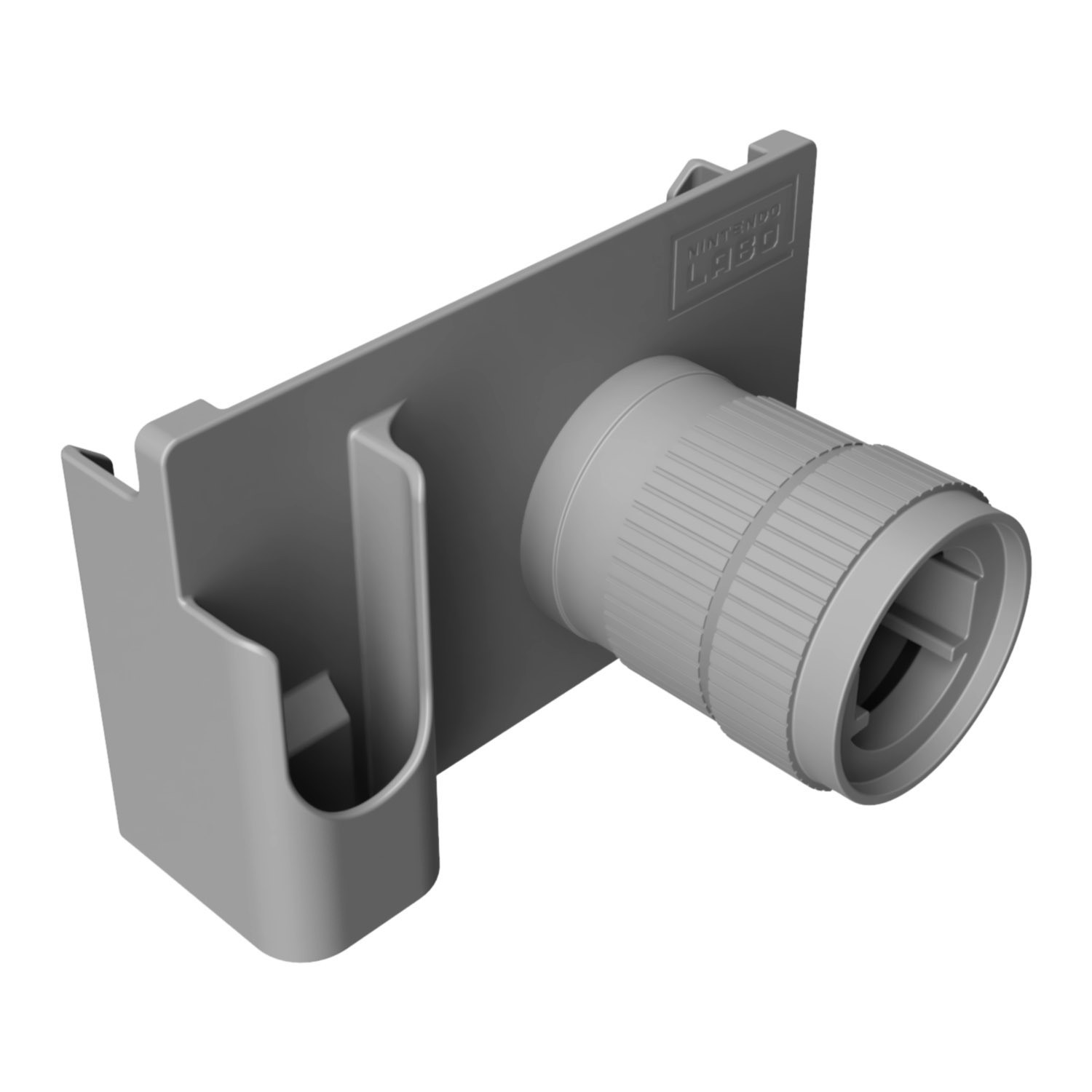

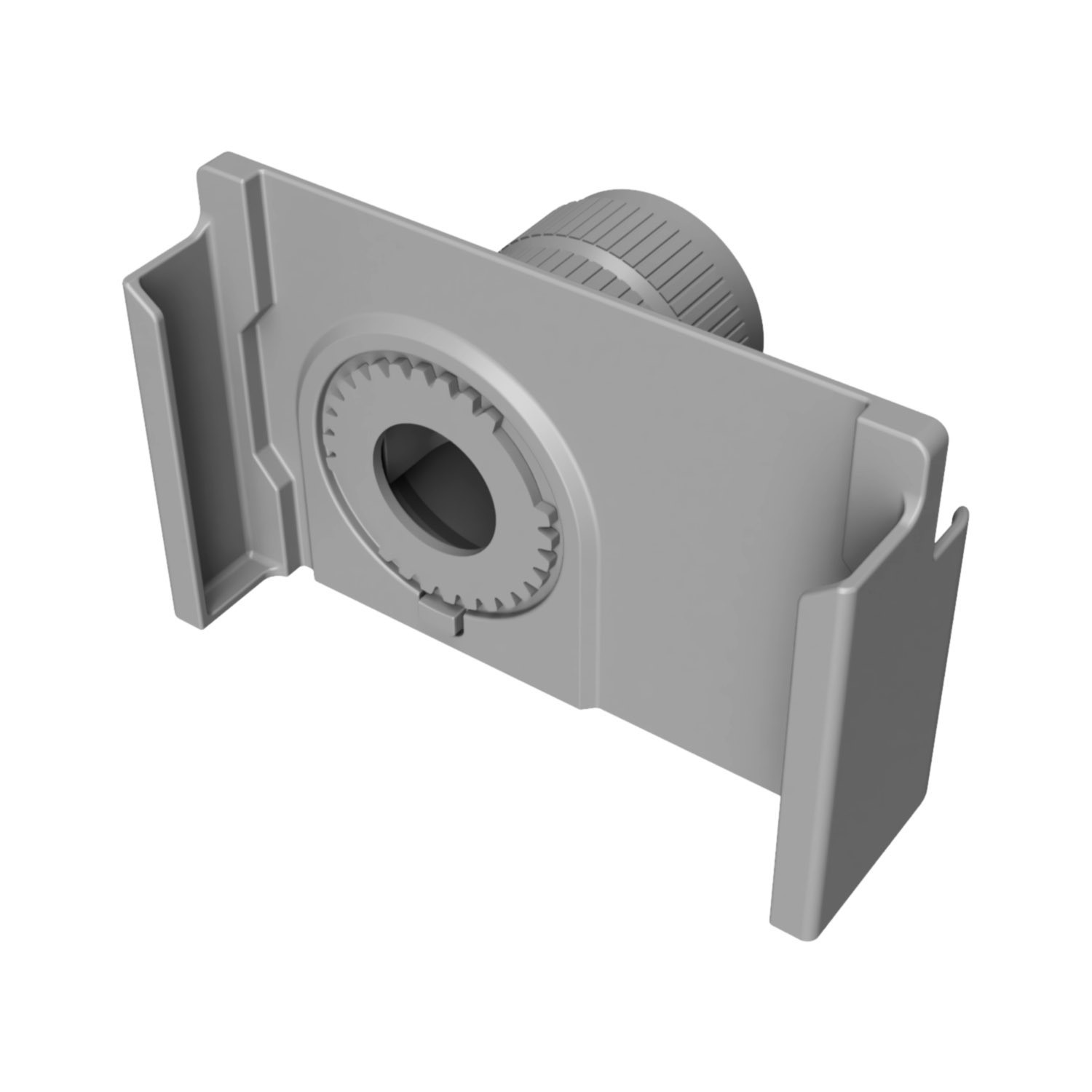

6 parts to 3d print/6 parts to print: Body_camera, focus+focusring, Gear_weel, Fix(for "clic" sound, optional), SupportSwitch (for 2d mode)

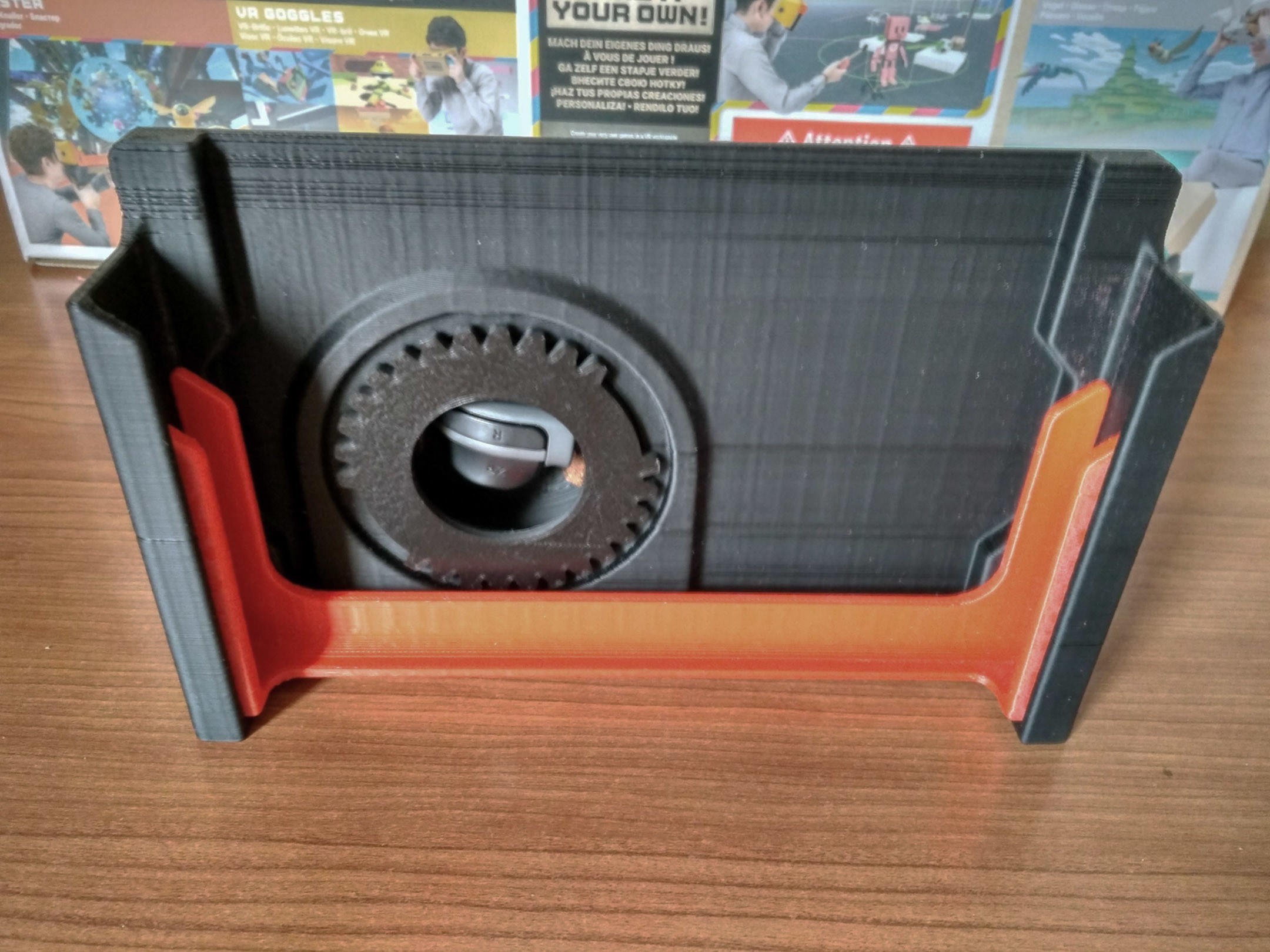

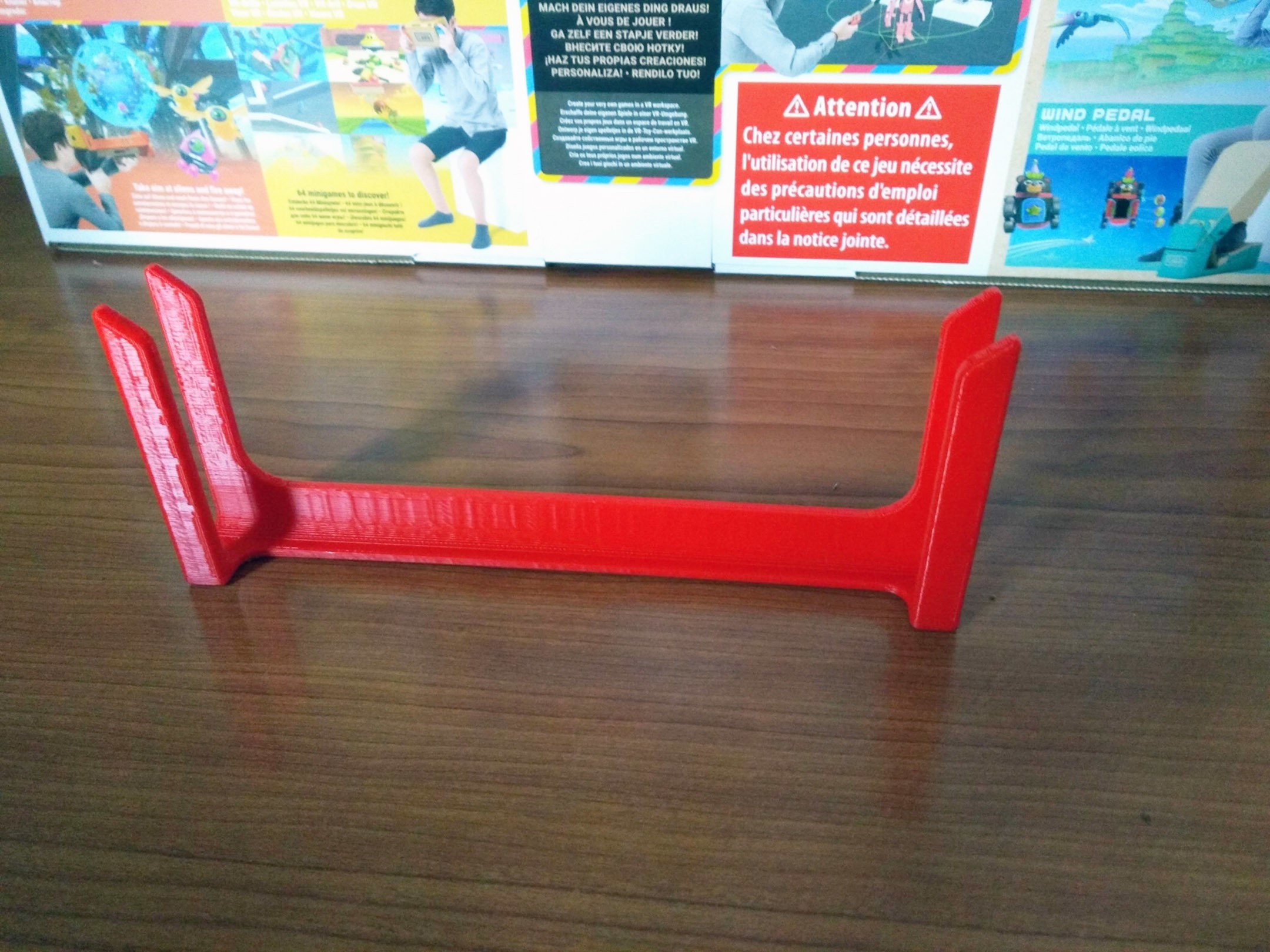

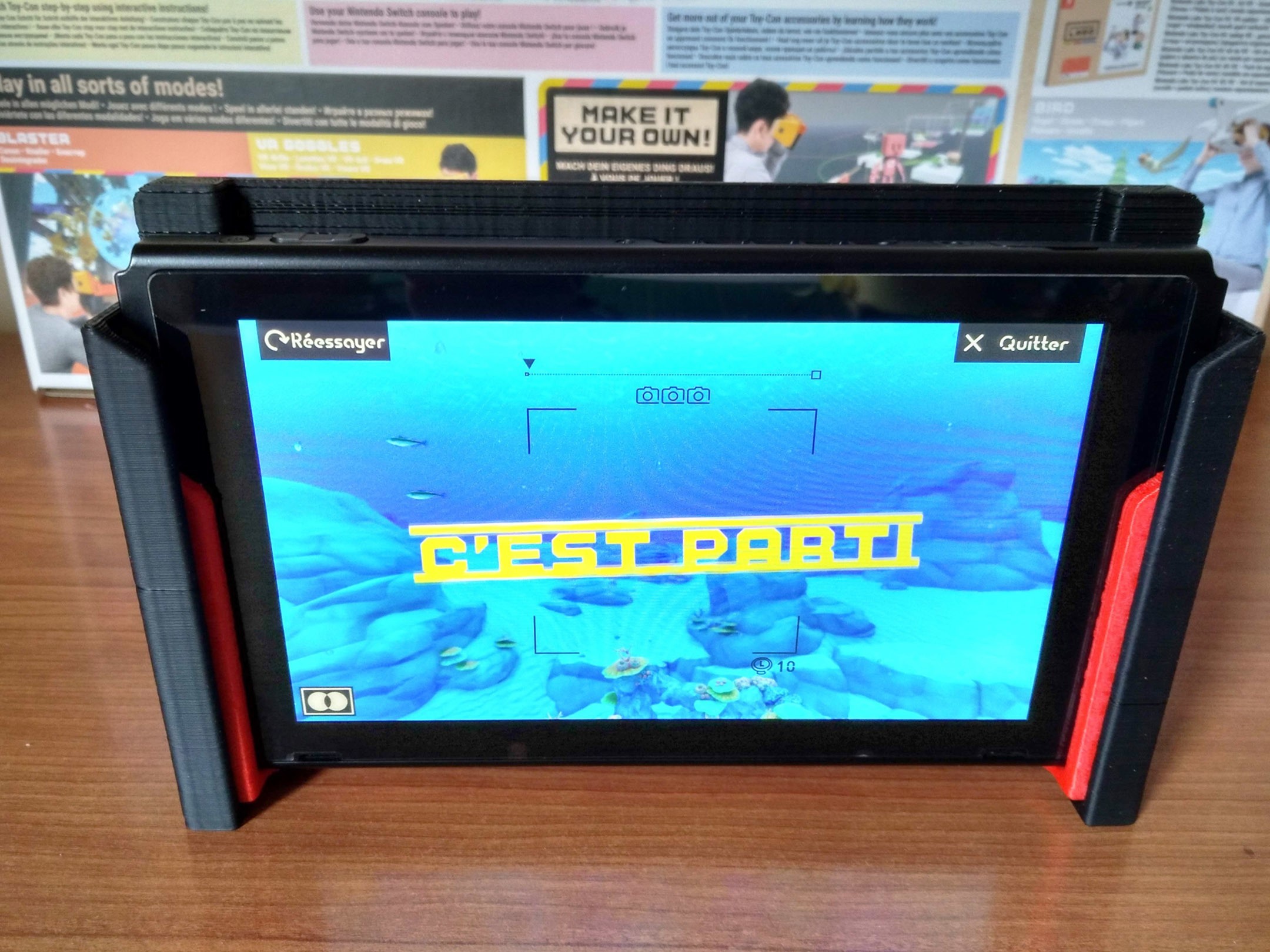

29/04/2019 Added a "support" for the console (SupportSwitch.STL) to play in 2d mode

3D printing settings

My Cura setting (Creality CR-10 for 3d printer) :

Nozzle = 203°.

Bed = 66°

Infill = 10%.

Supports = Everywhere for Body_camera.STL and Focus.STL

Body_camera: Size = 179.6mm X 63.7mm X 113.3mm

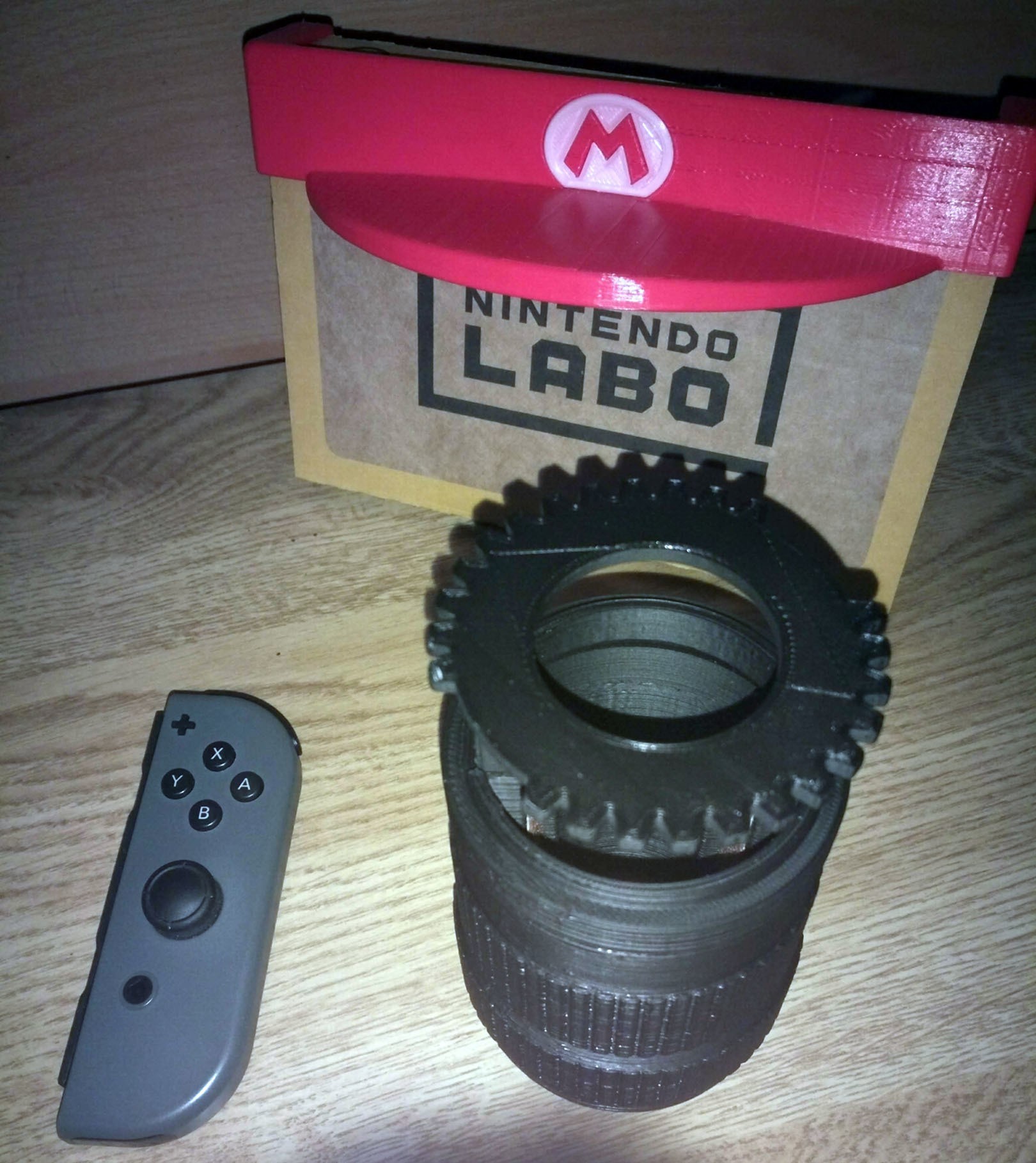

Focus: Size = 60mm X 69mm X 84mm

Ring_Focus: Size = 65mm X 65mm X 13mm

Gear_weel: Size = 64.9mm X 64.9mm X 31mm

Fix (optional) Size = 35.6mm X 11mm X 5.3mm

SupportSwitch (2d mode) = 173mm X 23mm X 69.6mm

  • 3D file format: ZIP
  • Last update: 2020/10/09 at 04:12
  • Publication date: 2019/04/27 at 12:55
