3D model description

After my first one worked, but was hard to clean after print (had broken one or two, other printer-problems related), I wanted to have an optimized version with flexibiltiy to change the pillars. Further the design has "improper" height with my supports (multiples of 9,9mm), so the Marble didn't roll freely, when attached to a tile.
Further I wanted more flexibility to put marbles back in above ground.

It takes N20 geared motor, 35-60rpm. 200rpm is too fast.

Functionality showed in video: https://youtu.be/JgNCtiqc8s4

So I completely reconstructed the original designs base and made it modular (ok, didn't use more versions of the pillars yet.
If you need, tell me which ones you want...

Print following parts:

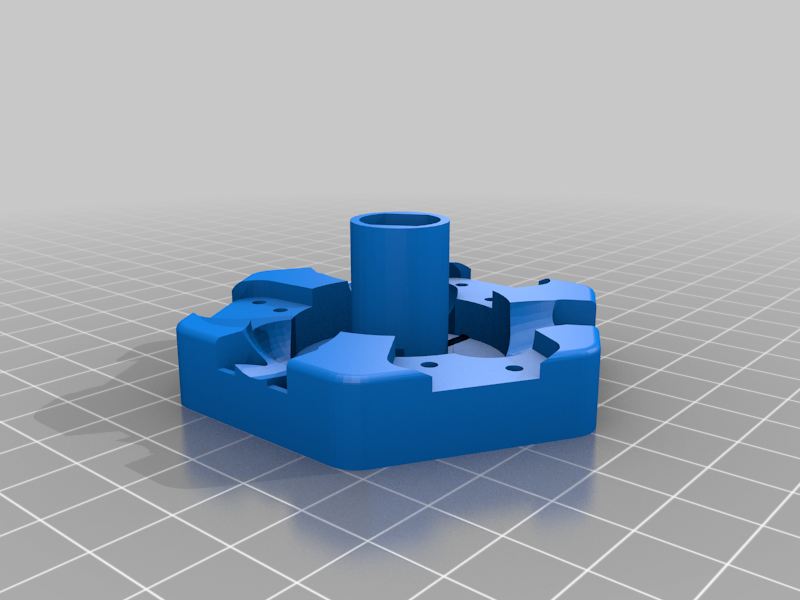

1x Base

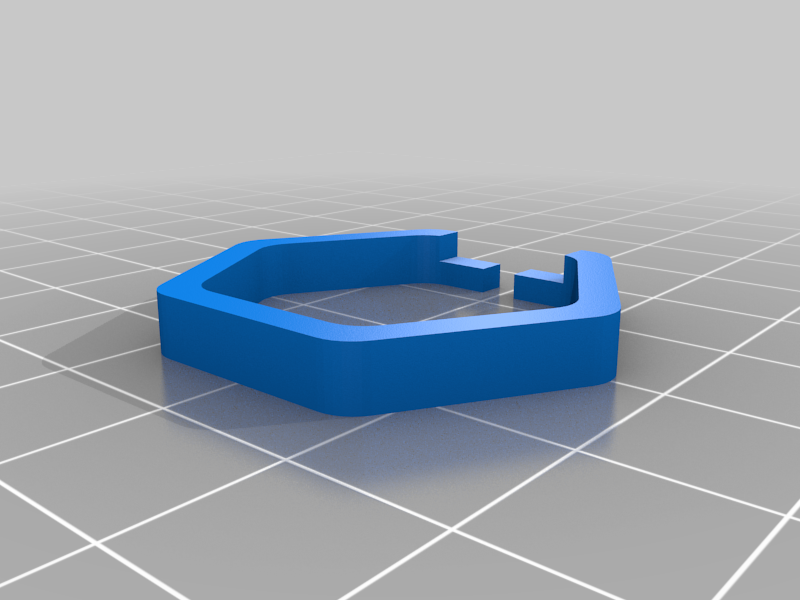

1x Ring at Z-Scale 80% (X-Y unchanged)

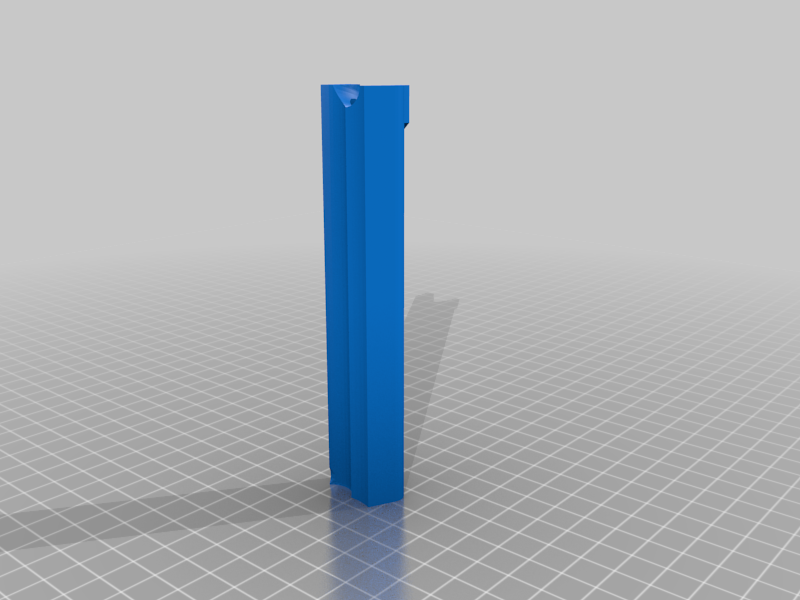

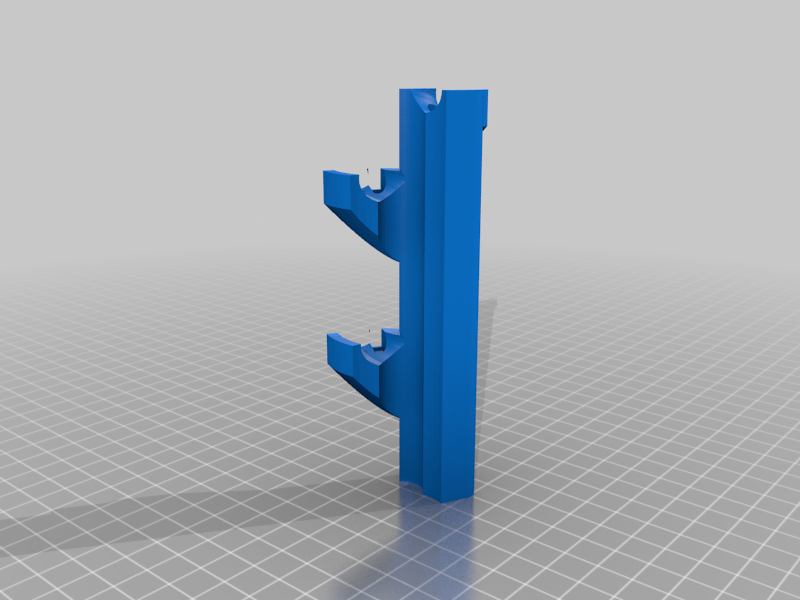

3x 120_Arm_Extra or 3x 120_Arm

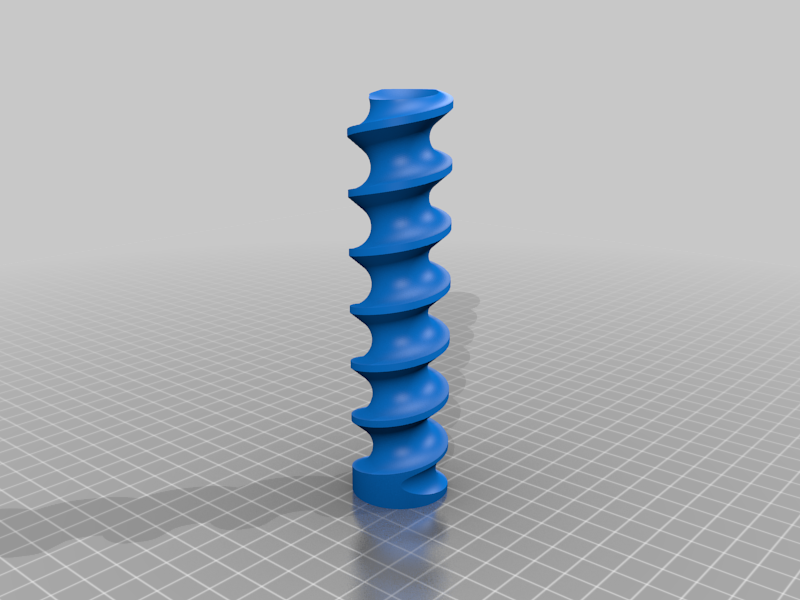

1x Spiral_130

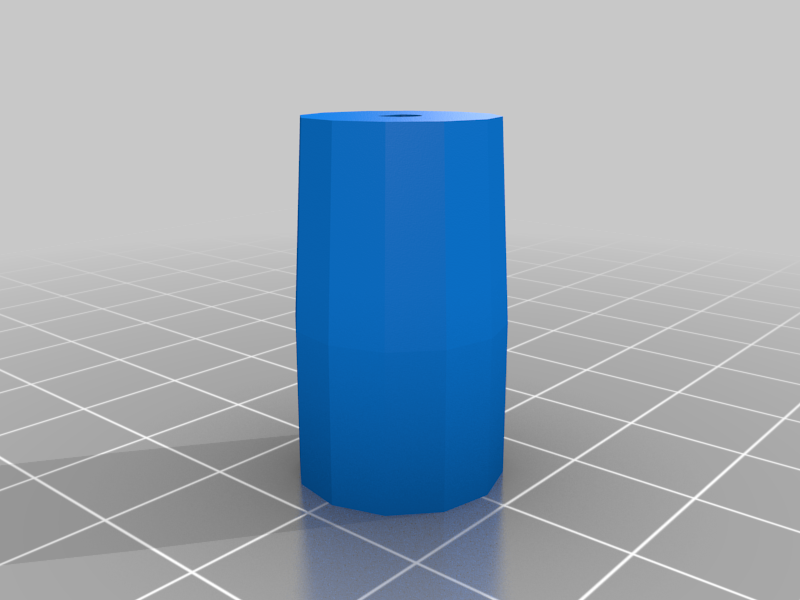

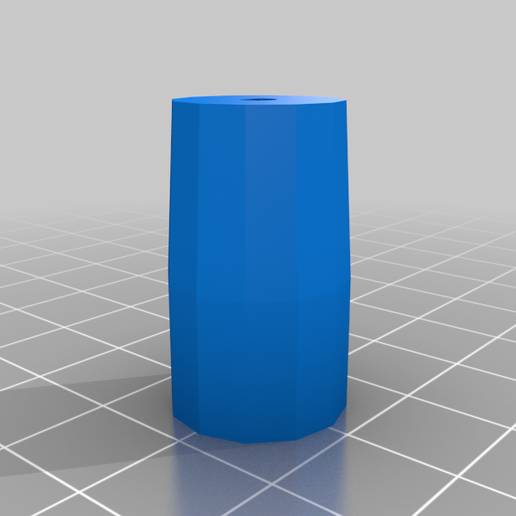

1x MotorHubLonger (please use Horizontal expansion to best fit your Inaccuracies)
Glue the Ring into the base.
