Crawler G3308 Sideboard Flatbed 1/10 RC body attachment

PLEASE make sure your 3D printer is able to print a minimum size of 172x118x50mm. before purchasing.

This body attachment is intended for scratch builds and DIY projects. Market ready chassis such as stock or modified SCX10, SCX10 ii, SCX10 iii, TRX4, VS4-10 are not compatible with this body attachment.

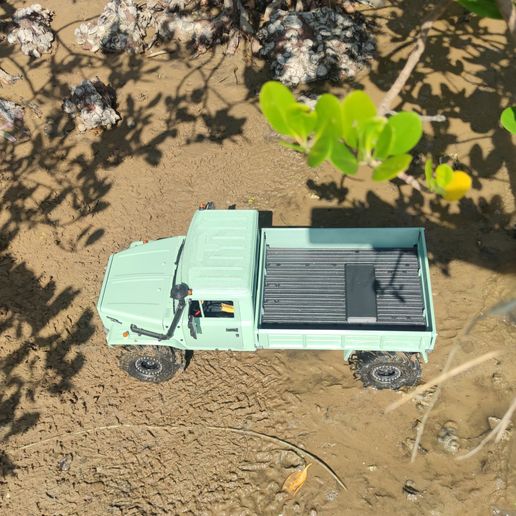

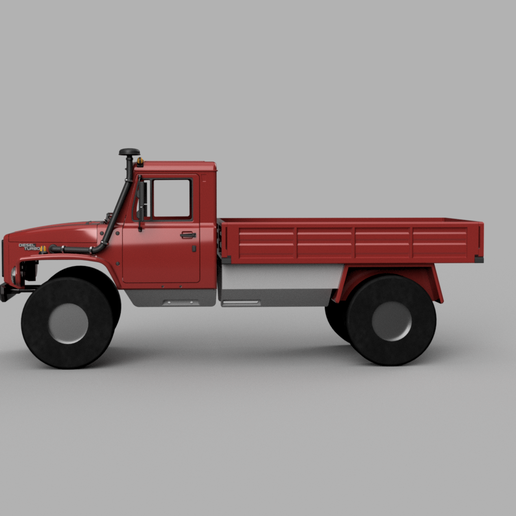

Designed specifically for the Crawler G3308 “Adventurer”, this functional flatbed gives a more agricultural look to the truck. Truck cab is SOLD SEPARATELY and can be found here: https://cults3d.com/en/3d-model/game/crawler-g3308-single-cab-adventurer

Cab sold separately. Aftermarket shock towers may be required. All inner fenders need to be removed before installing.

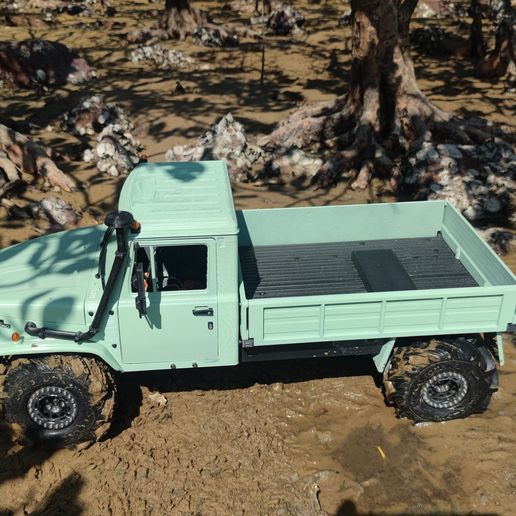

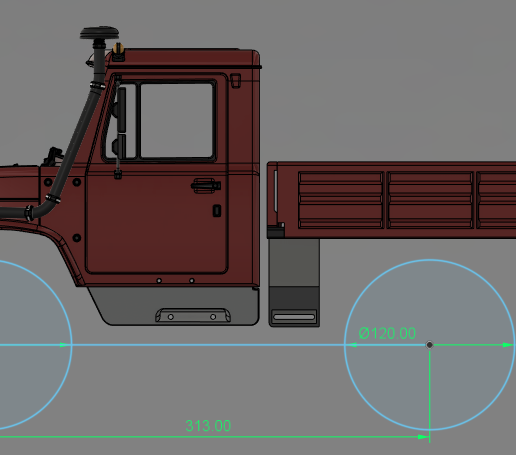

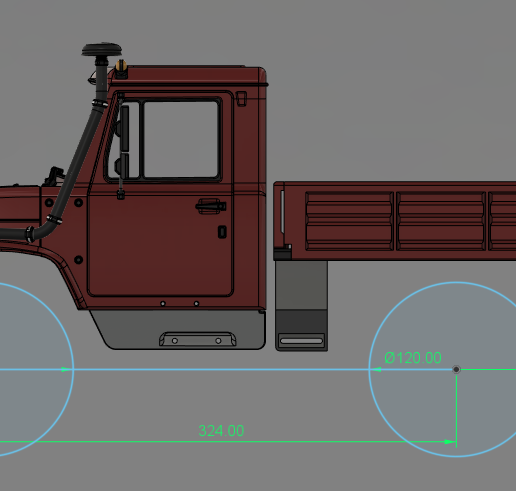

The G3308 sideboard flatbed is an addon attachment designed specifically for the G3308 “Adventurer” truck cab (the truck cab is sold separately). It gives the truck a more agricultural look, and was initially designed to work with a 420mm wheelbase. However a shorter or longer wheelbase can also be used to match. (see the included images for different wheelbases). If you do plan to use this bed on a shorter wheelbase, please note that the fender and “Rock Shield” mounts will not fit. However, standard non “Rock Shield” mounts are included and designed for use with the Axial SCX10 iii platform. 120mm and 125mm tyres can also be used with the included fenders, but expect some rubbing at full articulation.

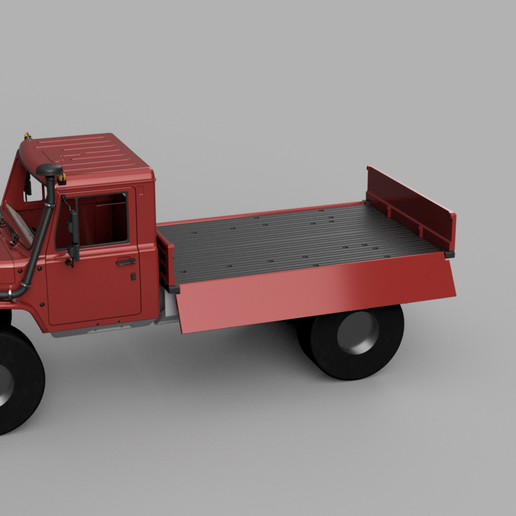

The bed can also be very easily configurable between flatbed and sideboard with 1.5mm and 2.5mm hex drivers. The sideboards are essentially hinged to the bed with M3 screws and locked in place with M2 screws. This means you can either flap the sideboards down, or remove them all together!

The rear bumper is essentially identical to the one on the “C23 Flatbed”, so LEDs can be used to illuminate the taillights. All you need are 2x Red 5mm LED, 2x Orange 5mm LED, 2x White 5mm LED.

Assembly instructions:
View the link below to download the assembly instructions
https://www.aheadrc.com/manual

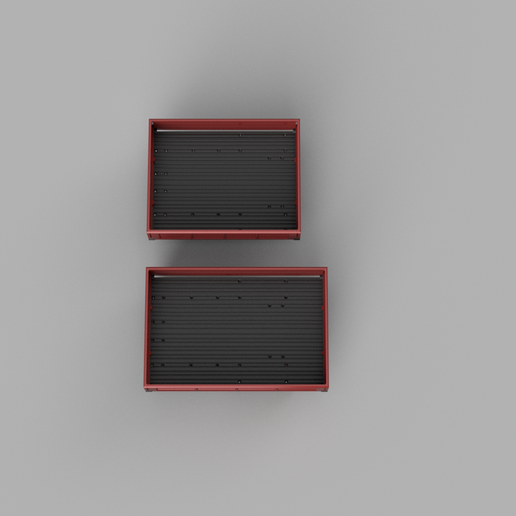

Designed to be printer friendly, the parts come in a variety of included options.

Bed:
- Short (Short bed for use with 420mm and shorter wheelbases)
- Long (Long bed for use with 420mm and longer wheelbases)
- Shock cover (Raised section in bed to clear shock towers for those using coilovers)
- Shock cut (Cut rectangular hole section in bed to clear shock towers.)
- Standard bed (No cut or raised section for shock towers. For use with leaf springs)

Short bed:
- Full size (Multiple 1 piece prints. Requires a printer that can print a minimum of 294x232x50mm)
- Quarter split (Multiple small piece prints, needs assembly. Requires a printer that can print a minimum of 150x118x50mm)

Long bed:
- Full size (Multiple 1 piece prints. Requires a printer that can print a minimum of 344x232x50mm)
- Half split (Multiple medium size prints, needs assembly. Requires a printer that can print a minimum of 172x232x50mm)
- Quarter split (Multiple small piece prints, needs assembly. Requires a printer that can print a minimum of 172x118x50mm)

Fender:
- Fender (standard wheel arch with inner fender integrated.)
- Fender alt ver (wheel arch without inner fender)

Mounts:
- Rock Shield (Angled deflector plates to slide easier over rocks. To match with cab’s Rock Shield mounts. Originally designed for SCX10 iii. Let me know if you need a rock shield mount with different dimensions) [side note: print rock shield mount vertically to use less supports]
- Standard (No deflector plates, for use with wheelbases of 420mm and longer or shorter. Originally designed for SCX10 iii)

Bumper:
- Bumper post (standard 1 piece bumper post with adjustment holes)
- Bumper post alt (stub bumper posts to fit bumper flush against bumper mount)

Some files will need to be printed multiple times, this includes the following:
Sideboard FRONT / REAR x2
Bumper post alt x2

A .zip file containing all the print files is also included for convenience.

It is highly recommended to read the instruction manual before purchasing, to ensure you have all the required tools and hardware to assemble this body.

Should you need any help, please do not hesitate to contact us!

FDM printing:

Requires a printer that can print a minimum volume of: 172x118x50mm.

PLA+ filament
0.3mm-0.4mm (0.6mm nozzle) layer heights
20-30% infill density
Supports are necessary
