Catoku (Cat Sudoku)

?
Creation's quality: 4.8/5 (12 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 18.7k views
  • 122 likes
  • 308 downloads

3D model description

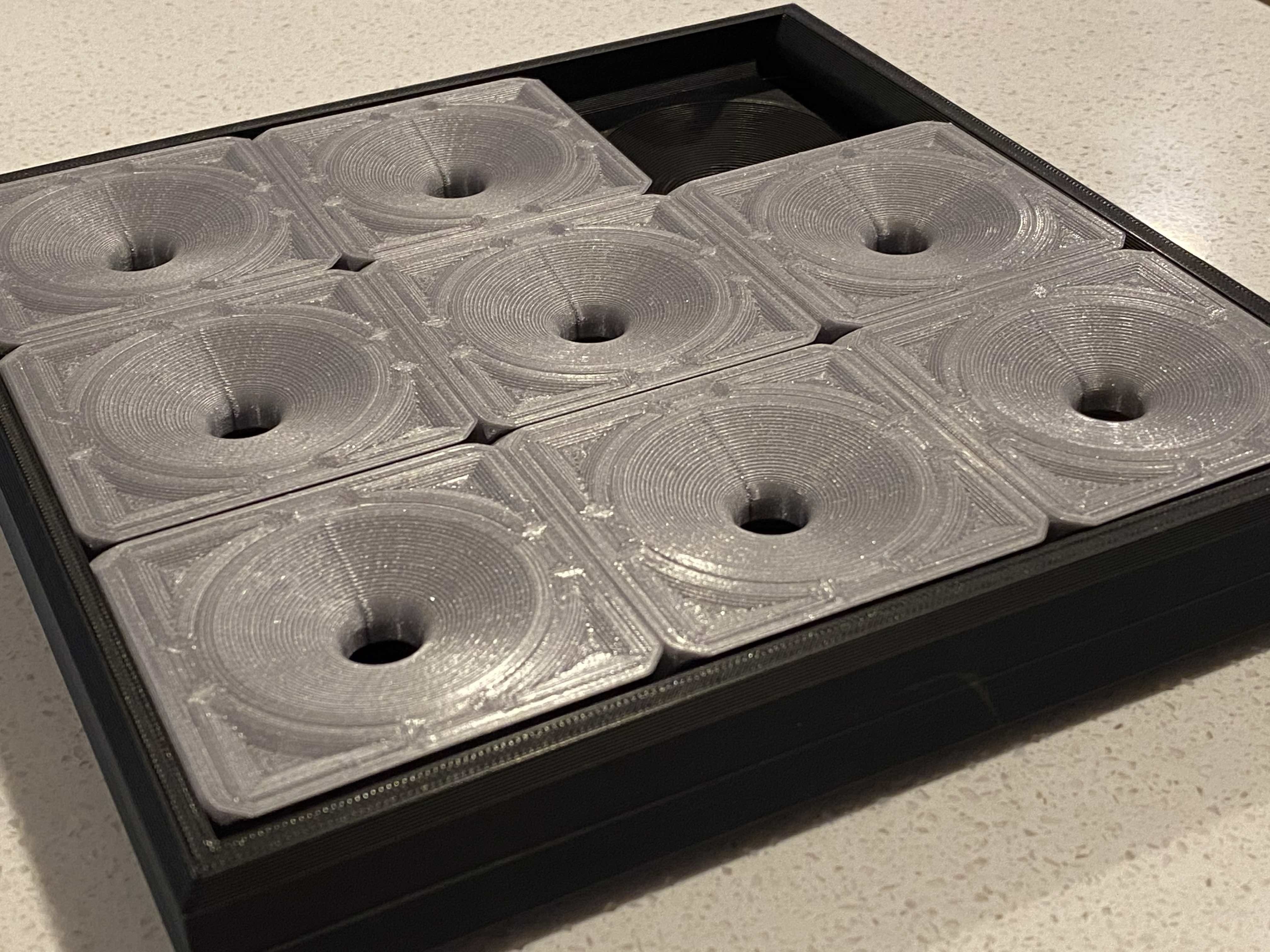

Place treats underneath the sliding pieces and watch your cat (or dog) solve the puzzle

Non-slip rubber grip pads (Optional)
https://www.amazon.com/dp/B000SL0KJC/ref=cm_sw_r_cp_tai_pcPyFbECNRY7B

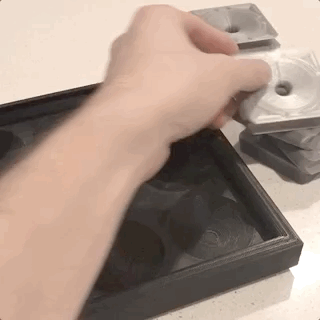

Assembly
- Slide all pieces but one into the housing
- Rotate housing so the corner where the two convex sides meet is in the bottom right

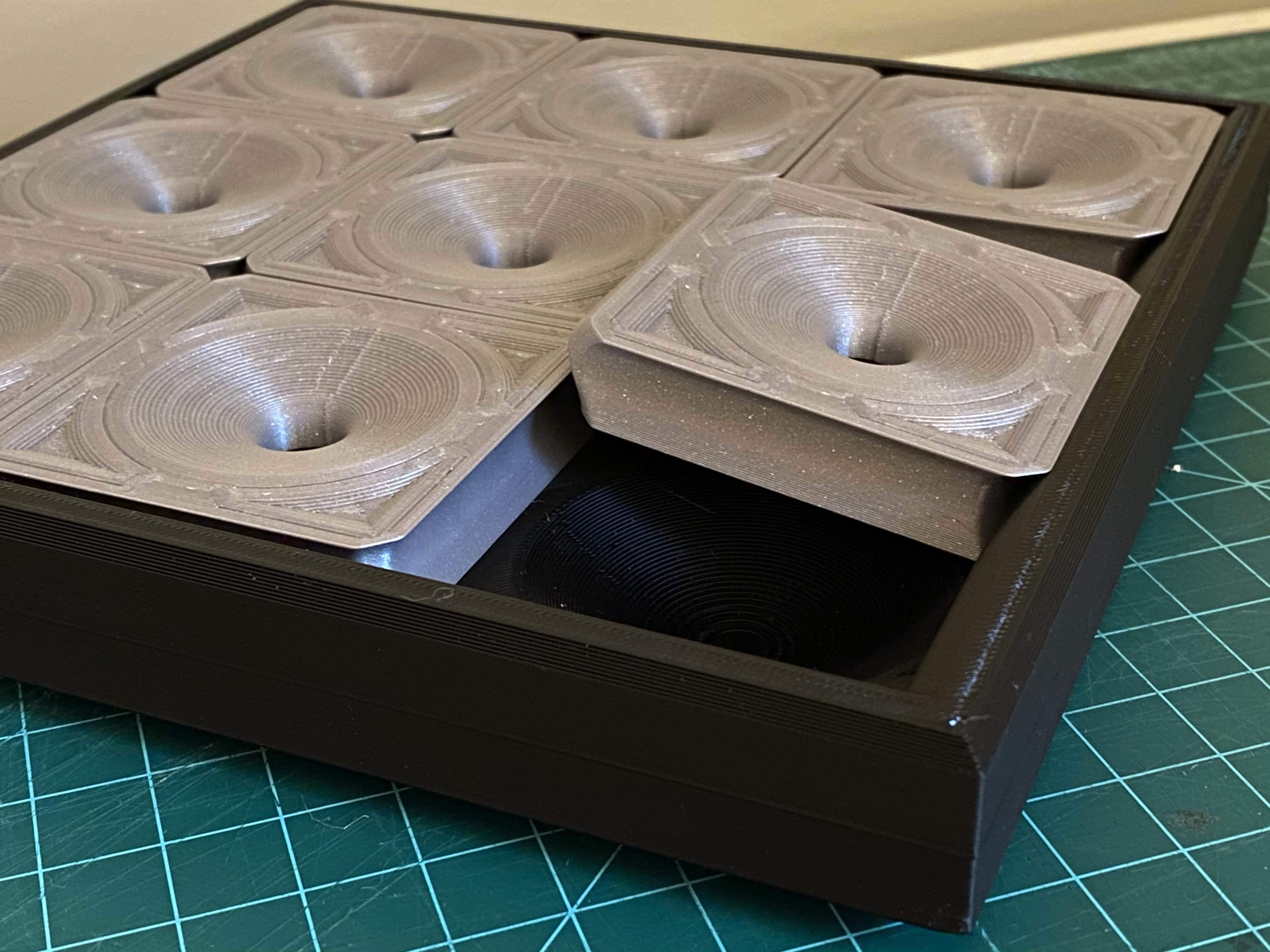

- Place the right side of the final piece into the housing (use the last image for reference)
- Slightly lift the right side of the middle pieces while pressing down on the left side of the final piece until it snaps into place


3D printing settings

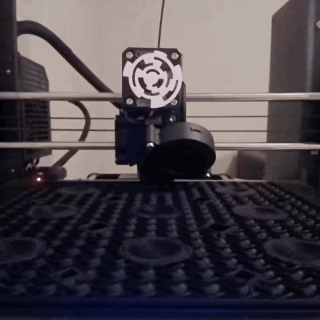

Printed in PLA on Prusa Mk3s

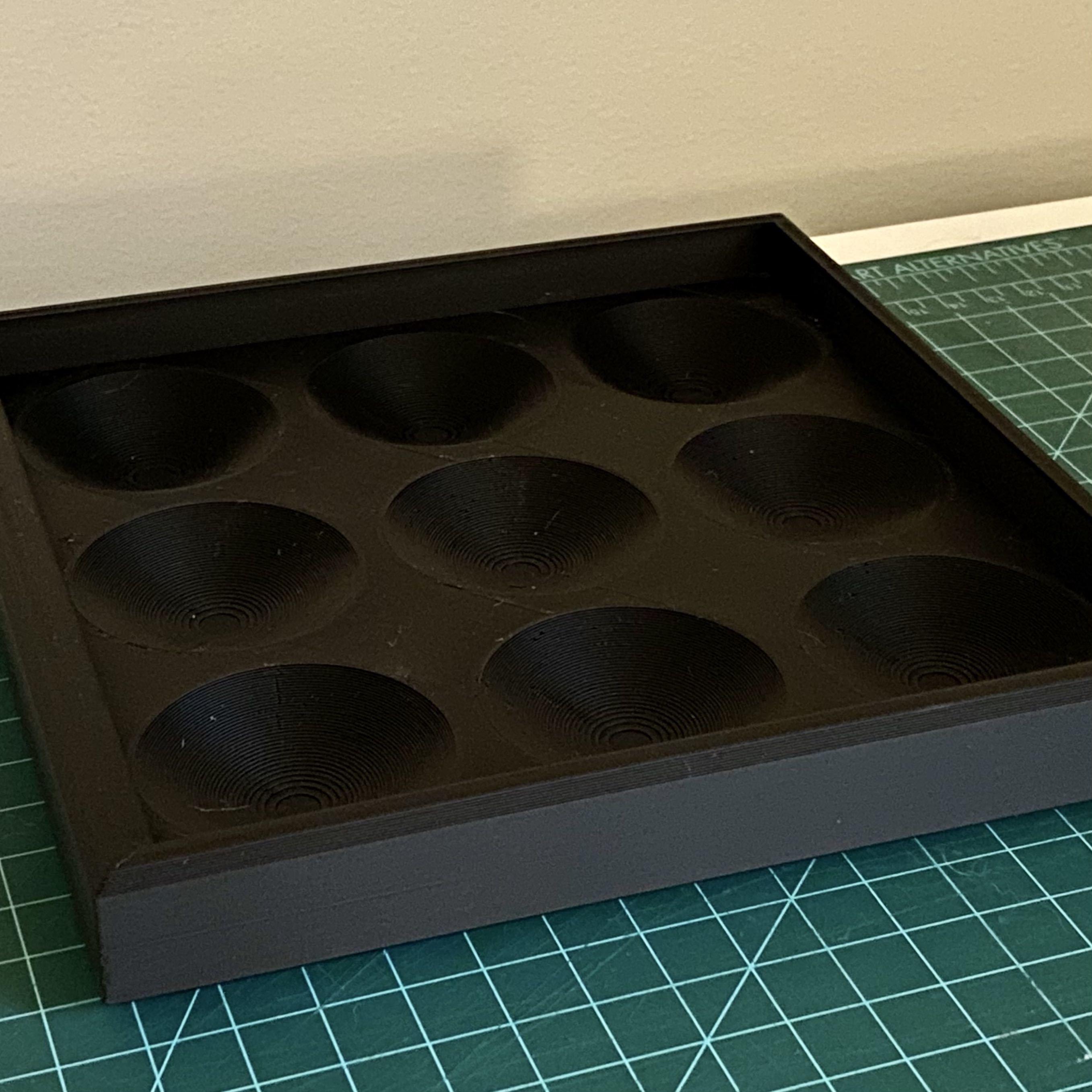

Housing (190.5 x 190.5 x 25.4mm)
- Layer Height: 0.3
- Infill: 8%
- Infill Pattern: Rectilinear
- Top Fill Pattern: Concentric

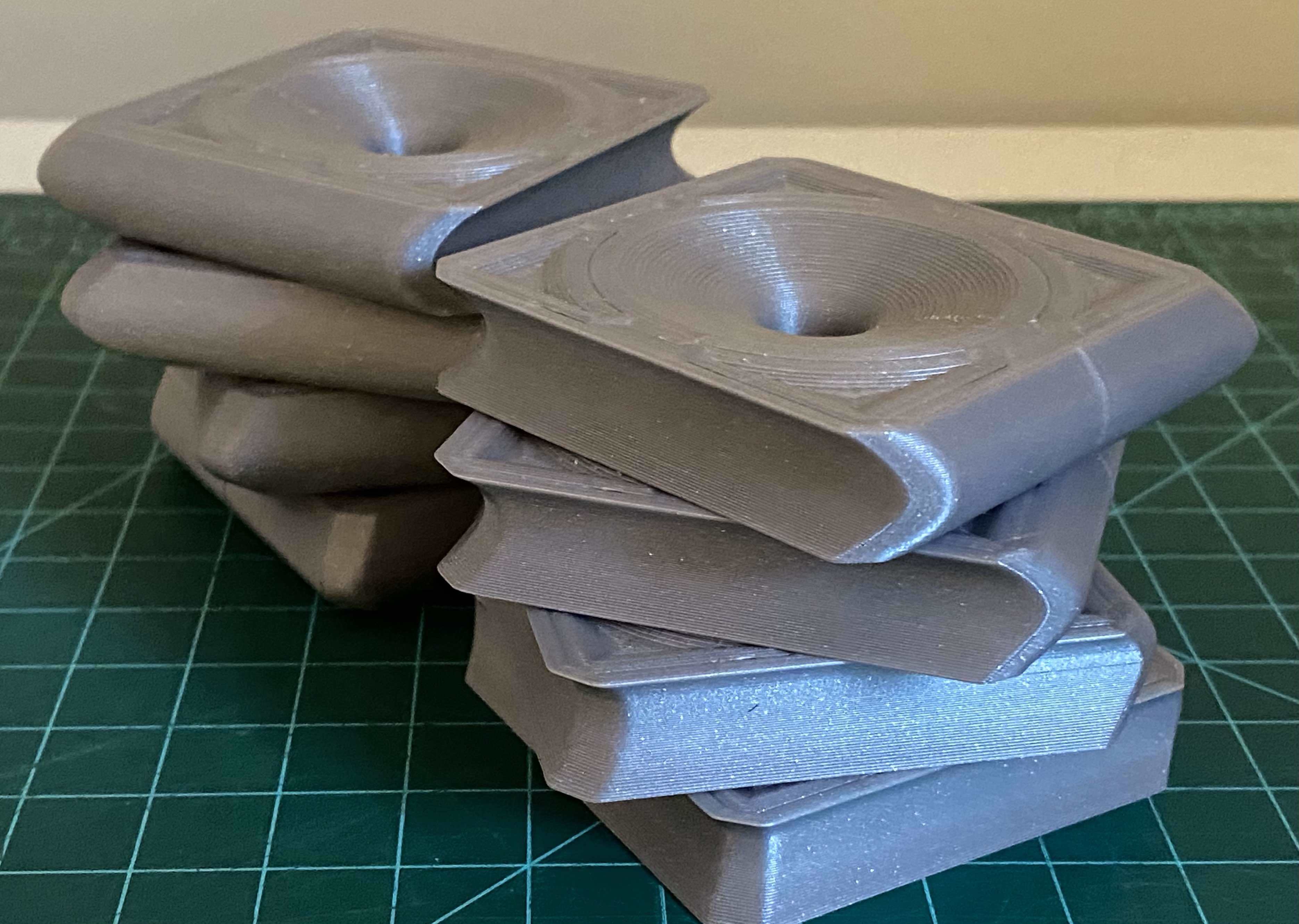

Piece (61.74 x 61.74 x 12.7mm) (x8)
- Layer Height: 0.2
- Infill: 8%
- Infill Pattern: Gyroid
- Seam Position: Rear
- Top Fill Pattern: Concentric

3D printer file information

  • 3D design format: STL Folder details Close
    • housing.stl
    • piece.stl

    Learn more about the formats

  • Last update: 2020/09/18 at 16:10
  • Publication date: 2020/09/17 at 00:49

Copyright

©

Tags

Creator

BFA in Industrial Design from Savannah College of Art and Design

Issue with this design? Report a problem

Collection associated with this 3D model


Makes created by the community

Best sellers of the category Game


Add a comment

7 comments

What!! Please post that as a make!

A friend saw my wife's Instagram post of the one we made for our cats. She wanted a "bigger one" for her 100+ pound dogs, and asked what the "biggest" I could print would be. Some quick math and I figured I could cut the base into quarters, print each quarter at 200mm on my Ender3, then glue the base together. End result was a model 209% bigger than the original.

Each sliding piece is 6 hours and 110g of filament. The base (in quarters) is 4 x 28 hours and 4 x 270g of filament.

So total is just over 2kg filament and 166 hours of print time... I hope her dogs like thier Christmas gift!

Words of caution are always appreciated!

Everyone should use their best judgement, disinfect, monitor pets while they play, etc. but if for any reason if you just don’t feel comfortable, don’t print it 🙂

Yes, but for this build you specified PLA and I wouldn't advise it for pets. They will eventually lick or even chew it, which can release toxins.

PLA is not food safe!!!
