Wallet

Update: airtag version

I added 4 extra models, which allow you to build apple airtag version. To build it you need to print the following models:

• back_v5_airtag.stl
• back_v5_airtag_cover.stl
• back_v5_airtag_cover_nut.stl
• back_v5_airtag_cover_wrench.stl ( its a tool for tightening the nut)
• wallet_clip_small_v5.stl (you need 5)
• wallet_pusher_v5.stl
• wallet_screw_v5.stl
• wallet_slider_v5.stl
• wallet_top_v5.stl

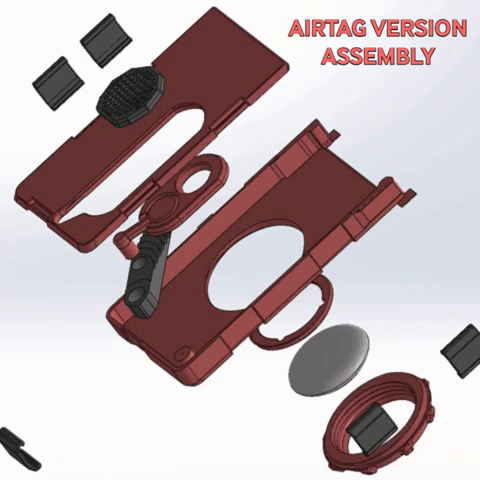

Watch wallet_airtag_assembly.gif to see how it goes together.

Design goals were: small, minimalistic, practical.

In action: https://youtu.be/w4Xl1NjGIeE

Features:
- it takes 7 cards and paper bills
- one hand operation
- only 3d printed parts needed to assemble

Assembly:
Watch wallet_assembly.gif.
Use an exacto knife to clean mouse ears and integrated supports.
If you are planning to abuse the wallet extra hard, apply 1 drop of super glue only on the back side (as marked in yellow on picture wallet5.jpg), before attaching the wallet_clip_long_v5.

Make sure you dont end up with an elephant foot on the wallet_pusher_v5 and wallet_slider_v5. It will make it hard to operate the wallet.
Wallet_slider_v5 is made of 2 parts. Smaller part must rotate freely inside the bigger one. Wiggle it around a bit, to make sure it rotates freely before assembly.

Material: pla, petg, asa, pc...
Nozzle diameter: 0,4mm
Layer width: 3 layers of 0,4mm
Layer height: 0,2mm
Infill: 10 - 15%
Support material: not needed (supports are integrated in the design where needed).
