universal car phone holder

?
Creation quality: 4.5/5 (36 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

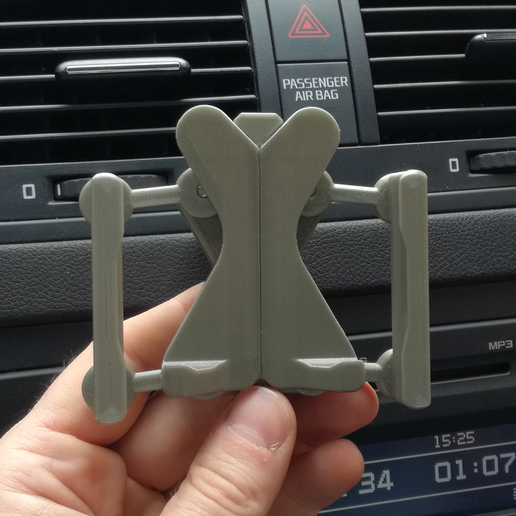

I couldn't find a truly universal phone holder so i designed one.

Features:
- it takes any phone thickness from 6 to 9 mm without adjustments
- its takes any phone width from 65 to 78 mm without adjustments
- allows for 1 hand operation
- provides a very firm grip on the phone
- threads designed in to the parts

Assembly:

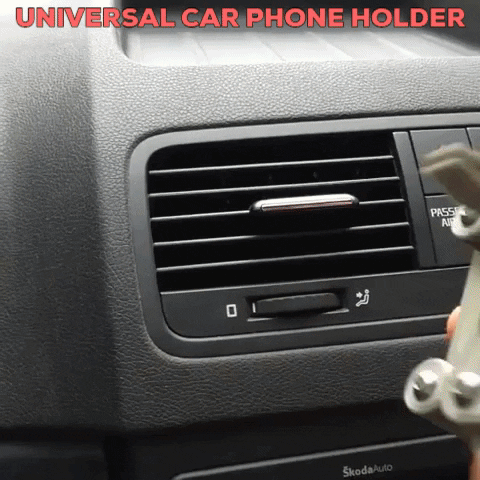

Watch the assembly gif.

You need 8 of M4 x 16mm bolts and 3d printed parts. Use exacto knife to clean mouse ears from models center_v5_a and center_v5_b. Use size 2,5 allen key to tighten the bolts. After tightening the bolts unscrew them 1/2 turn to allow for smooth operation.


3D printing settings

Recommended print settings:

Material: I recommend petg, asa, abs, pc... Pla will be fine if your car wont stay on hot sun for long periods. Pla softens and deforms fast, specially when under load.
Nozzle diameter: 0,4mm
Layer width: 2 or 3 layers.
Layer height: 0,2mm
Infill: 10%
Support material: not needed (designed for fdm)

3D printer file information

  • 3D design format: STL Folder details Close
    • center_v5_a_1x.STL
    • center_v5_b_1x.STL
    • center_v5_c_1x.STL
    • clip_v4_2x.STL
    • lever_v4_4x.STL
    • mount_v5_1x.STL
    • side_support_v5_2x.STL
    • ucph_full_plate.stl

    Learn more about the formats

  • Publication date: 2020-05-17 at 19:51
