SMARS modular robot

?
Creation quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

  • 9k views
  • 30 likes
  • 345 downloads
  • 1 comment

Licence CC BY-NC-SA
Publication date 2021-02-20 at 05:21
?
Published to Thingiverse on: 2017-11-22 at 13:07
Design number 302003
3D design format
PDF, STL, and ZIP Folder details Close
  • Instructions.pdf
  • chassis_-SL.stl

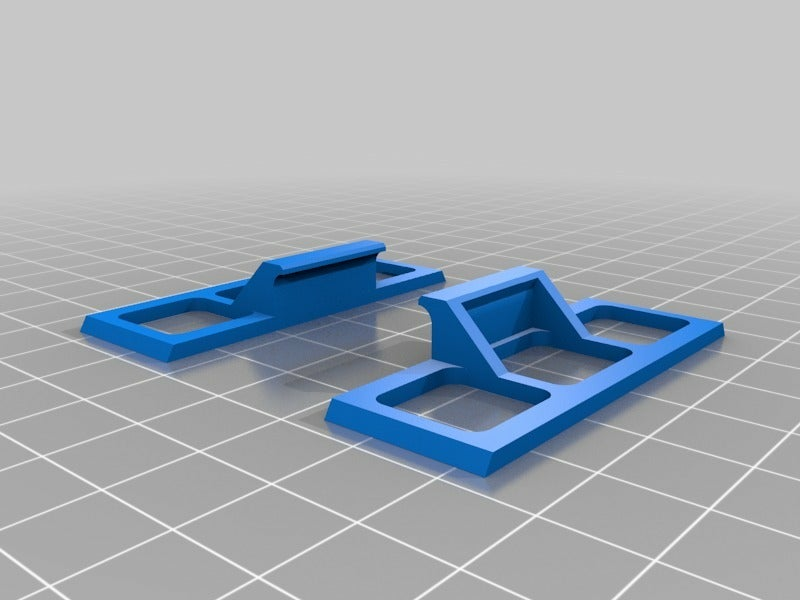

  • connector_a.stl
  • doc_lite.zip
  • holding_board__9V.stl

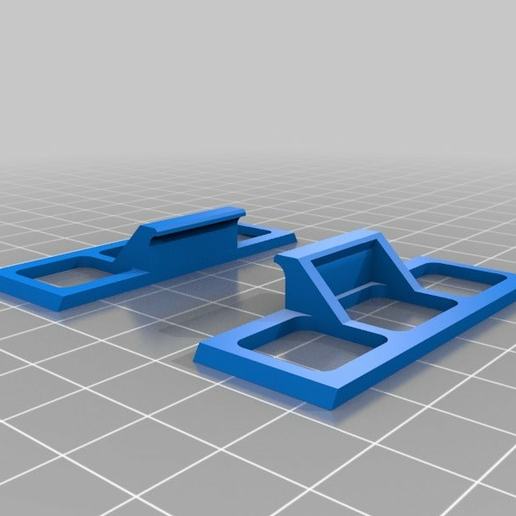

  • ir_sensor_a.stl
  • ir_sensor_b.stl
  • lesson_plan_eng.pdf
  • master_wheel.stl
  • mechanical_track.stl
  • slave_wheel.stl
  • slave_wheel_SL.stl
  • smars_demo_1.pdf
  • smars_demo_2.pdf
  • smars_demo_3.pdf
  • source_files.zip
  • student_documentation_concept.pdf
  • ultrasonic_1.stl

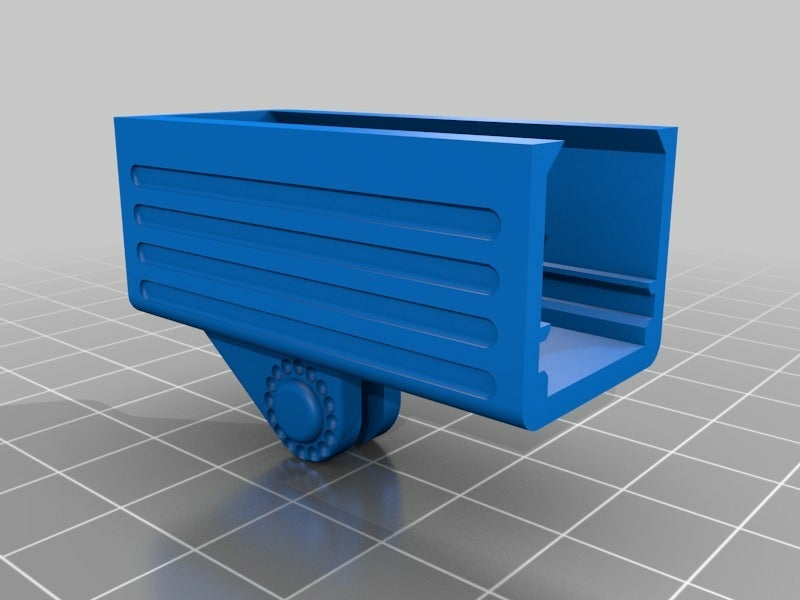

  • ultrasonic_2a_V2.stl

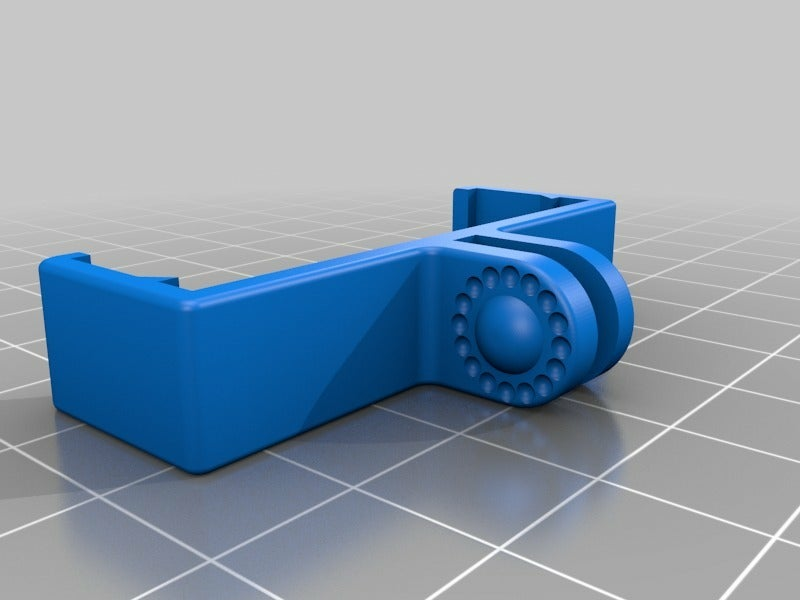

  • ultrasonic_2b_V2.stl

Learn more about the formats

3D printer file info

3D model description

https://youtu.be/JCqkuDWNzIg

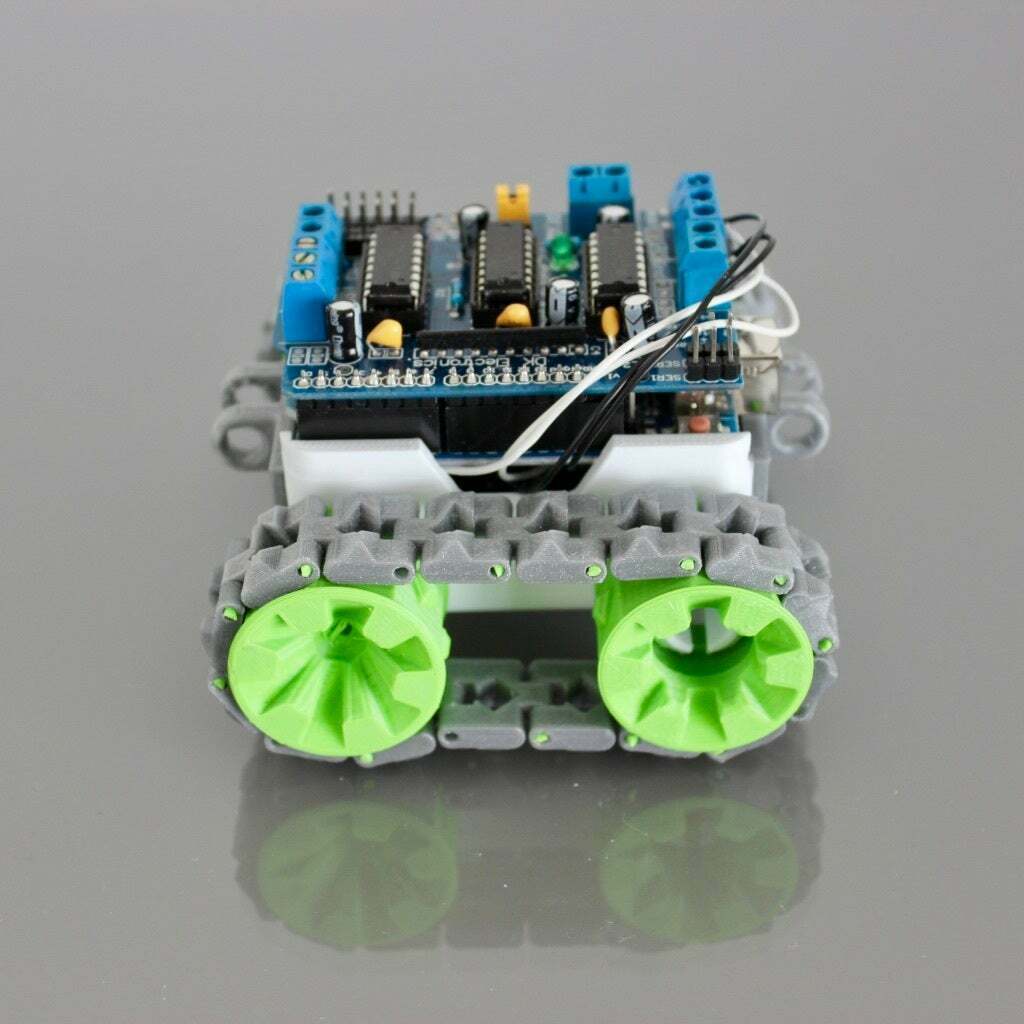

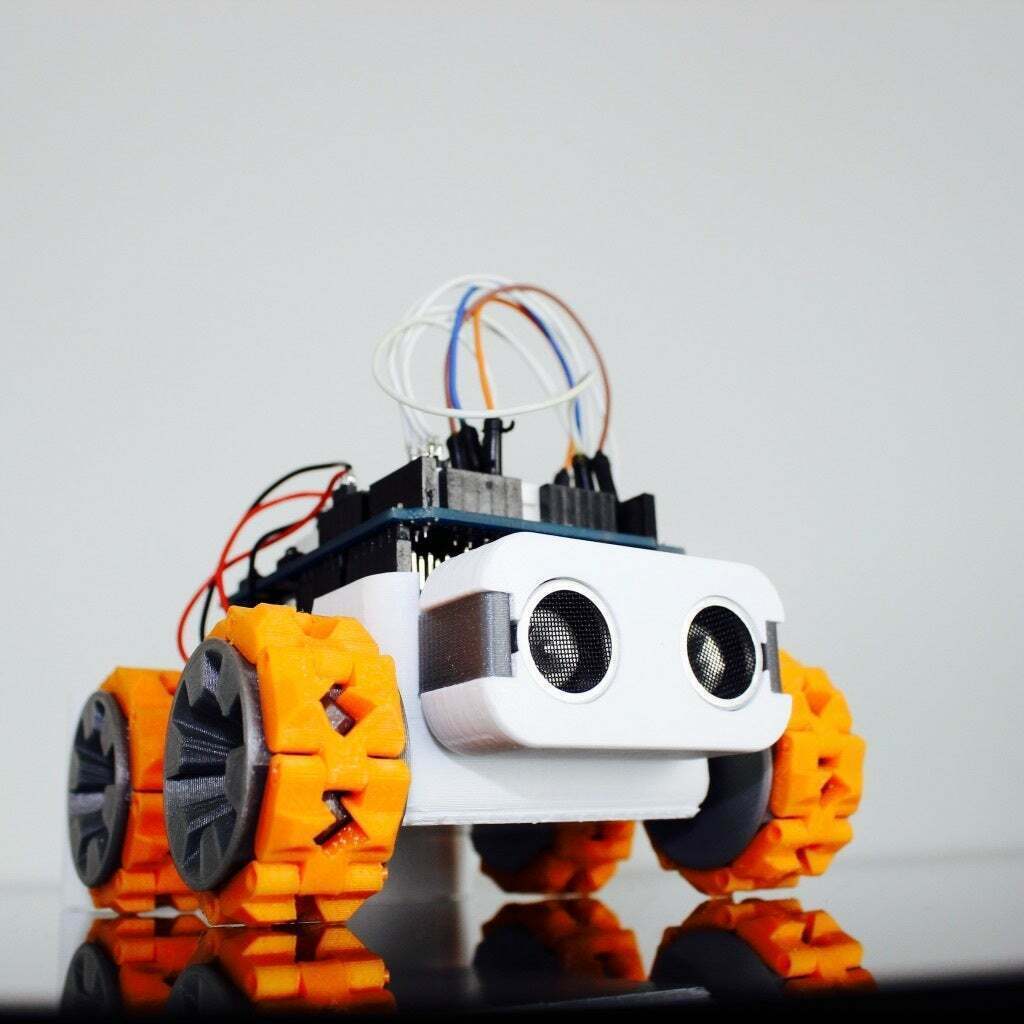

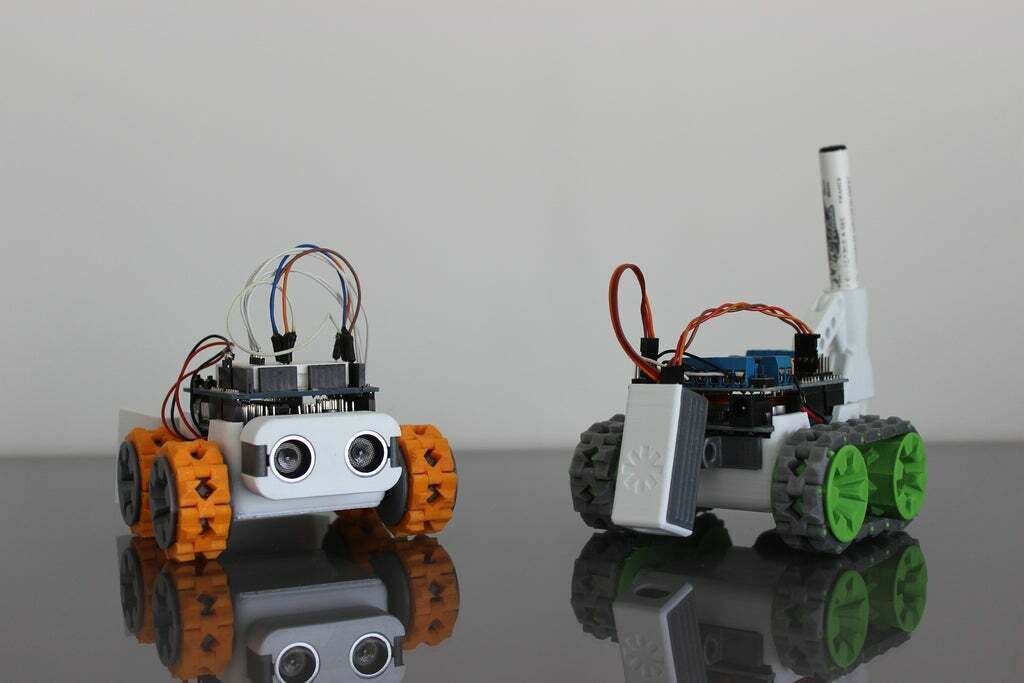

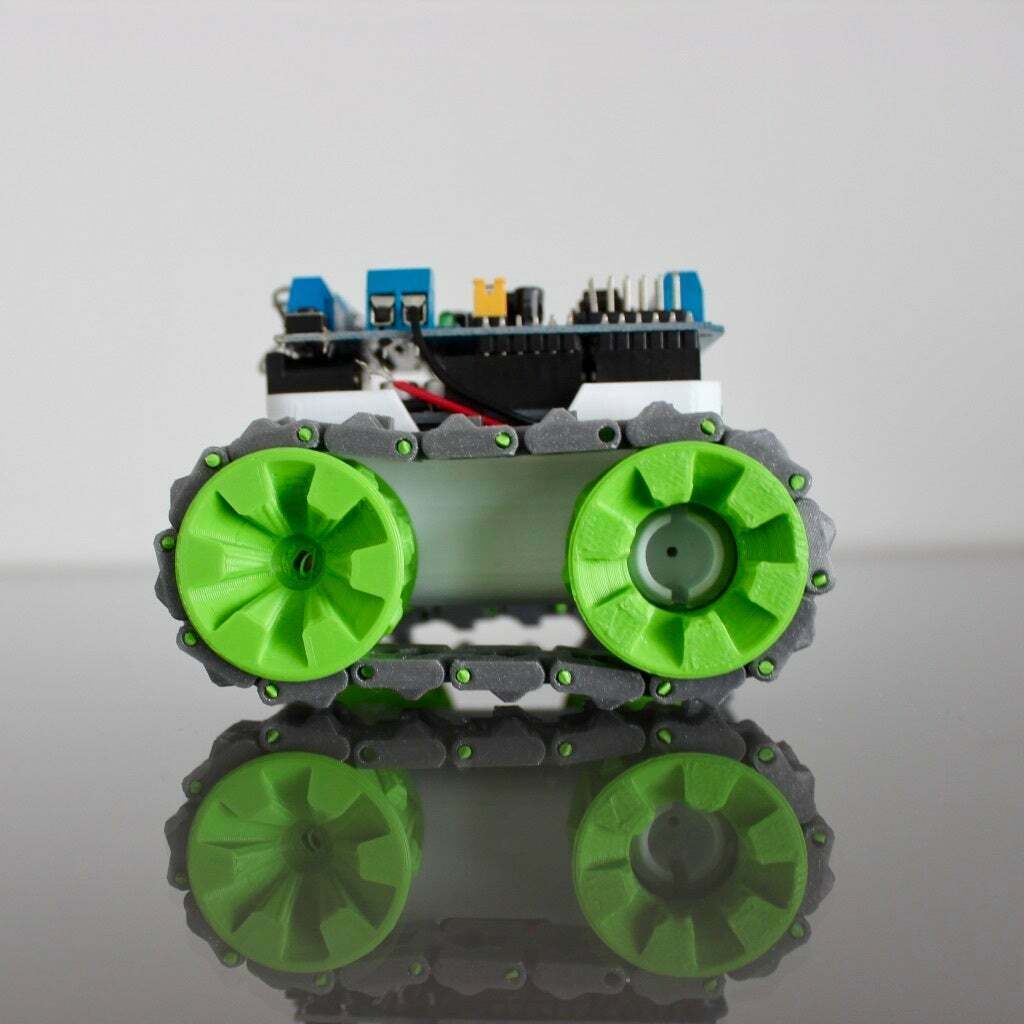

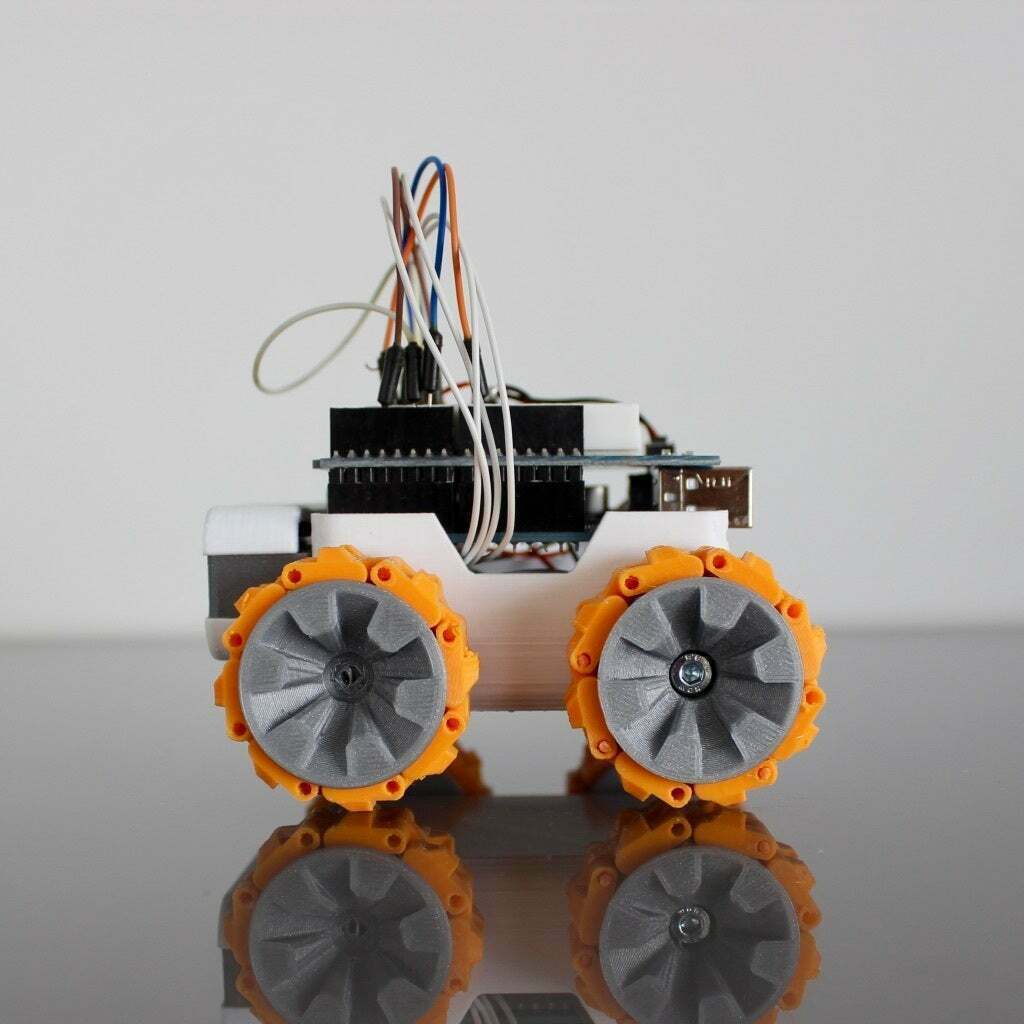

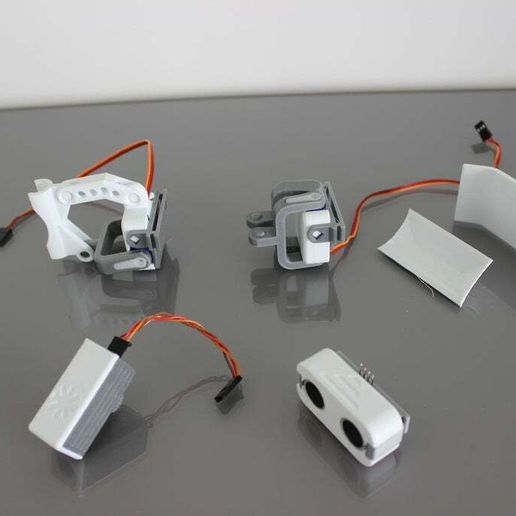

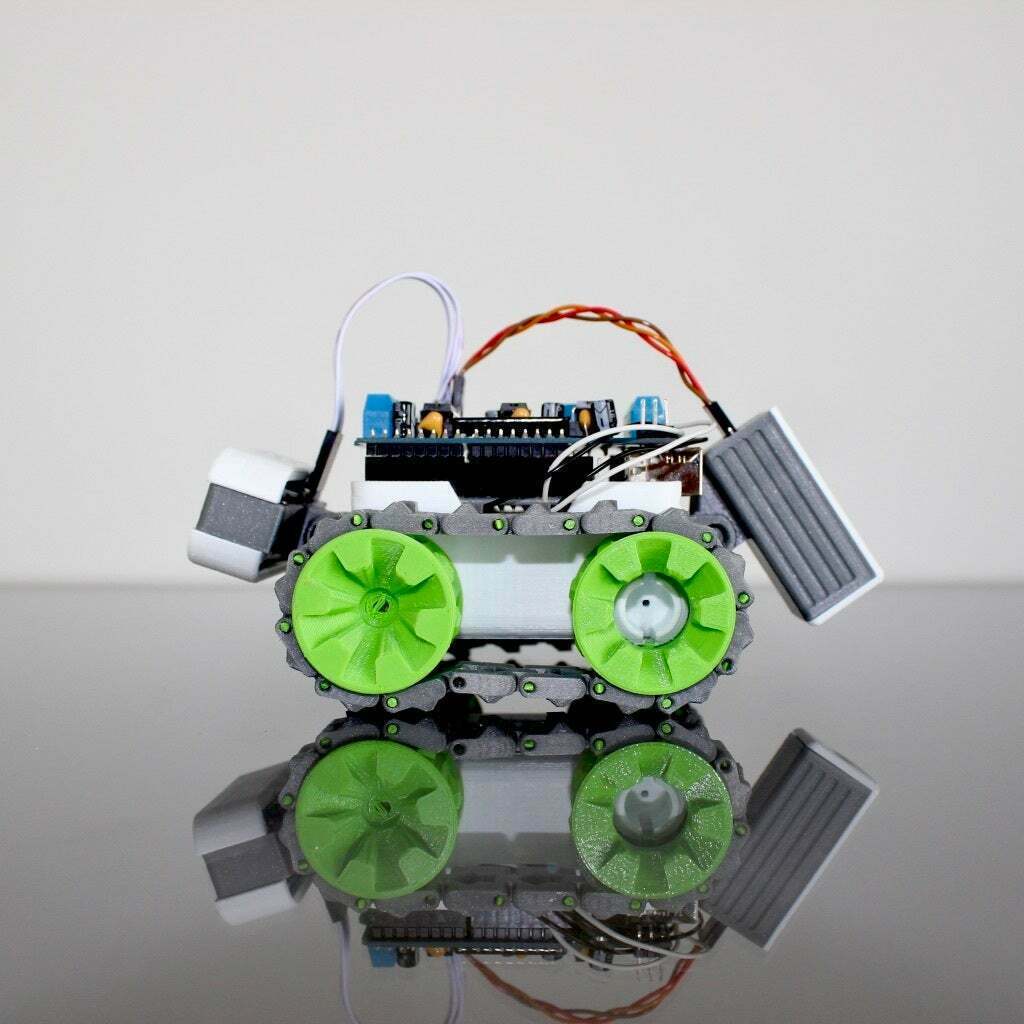

SMARS acronym of “Screwless/Screwed Modular Assemblable Robotic System” is a simple robot designed to the educational field. The main features of SMARS are the reduced number of components, the possibility of mount it without screws and without soldering any part, it doesn’t need glue or similar and it’s really cheap to build. Another main point of SMARS is the modular design. You can mount different sensors and tools and design your own parts. In future I’ll add new modules or DLC to improve the model on my Cults 3D page (https://goo.gl/xK9s1V) but It would be nice if you could share your mods too.
Join the Facebook group! https://goo.gl/4EgJhX
Facebook page: https://goo.gl/Gcmxp5

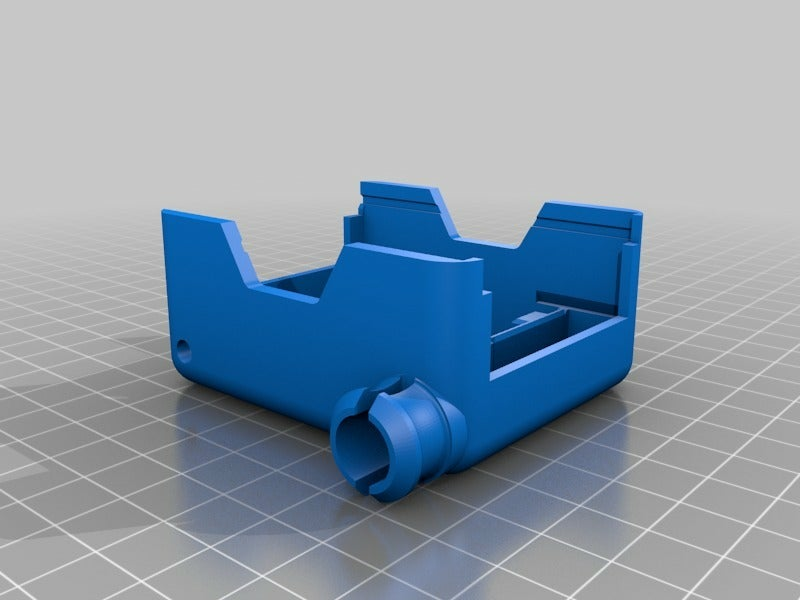

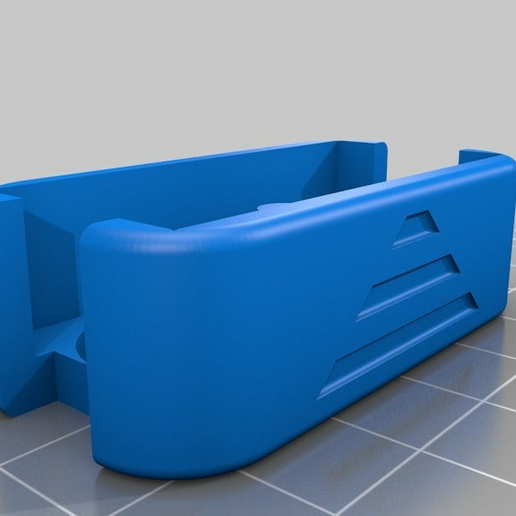

To build the basic model (with “chassis -SL.stl”) you just need few extra components:
1x Complete kit
https://www.etsy.com/it/listing/1102659286/official-smars-electronics-kit?ref=shop_home_active_1

or


-2x mini 150RPM motors
https://amzn.to/3BHHpj2

https://s.click.aliexpress.com/e/_9HTmqT

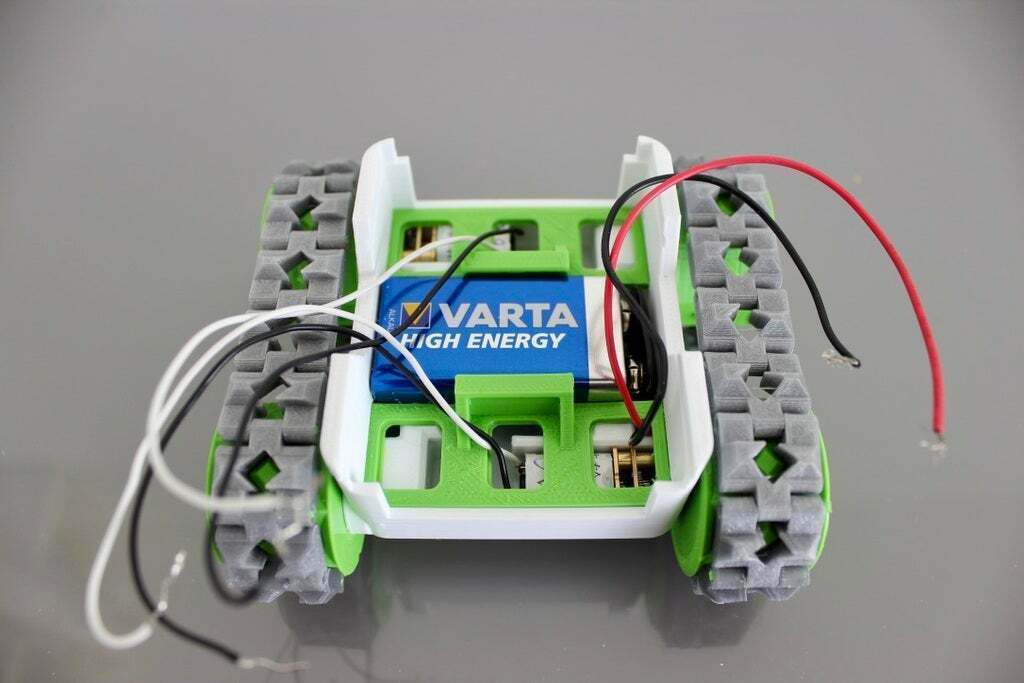

-1x 9[V] battery
https://amzn.to/3j5geaC

https://s.click.aliexpress.com/e/_A0G3l5

-1x 9[V] battery connector
https://amzn.to/3FXDuRI
http://s.click.aliexpress.com/e/jDzqDWY

-1x Arduino UNO
https://amzn.to/3mNzdra
http://s.click.aliexpress.com/e/Qc3oVvA

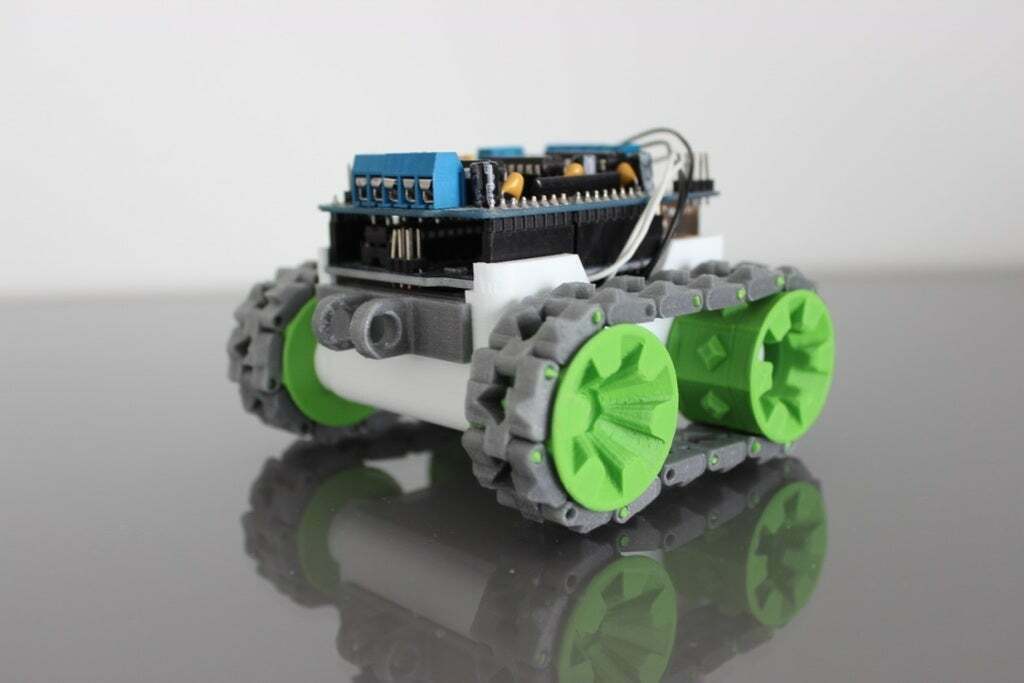

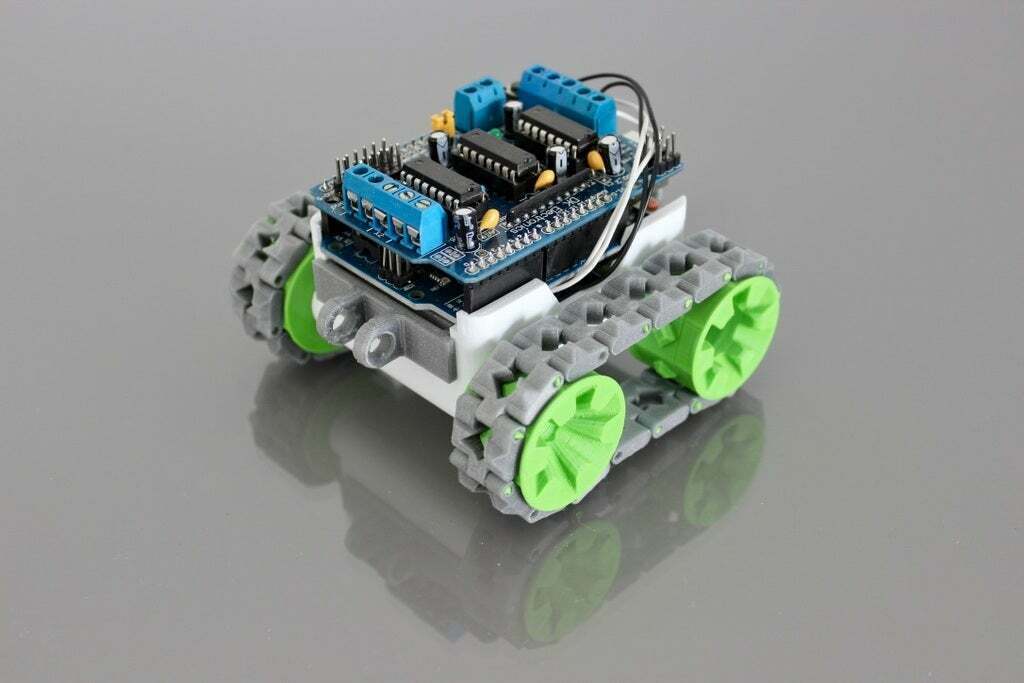

-1x Adafruit Motor Shield V1 or V2
https://amzn.to/30hdgcj
http://s.click.aliexpress.com/e/ghtEQa8
or
https://amzn.to/3lJMT7n

https://s.click.aliexpress.com/e/_esfQhp

For the screwed version ( “chassis -S Mk2 https://www.thingiverse.com/thing:2829401”) you just need two 25mm M4 screws and two self locking nuts.
TIPS:

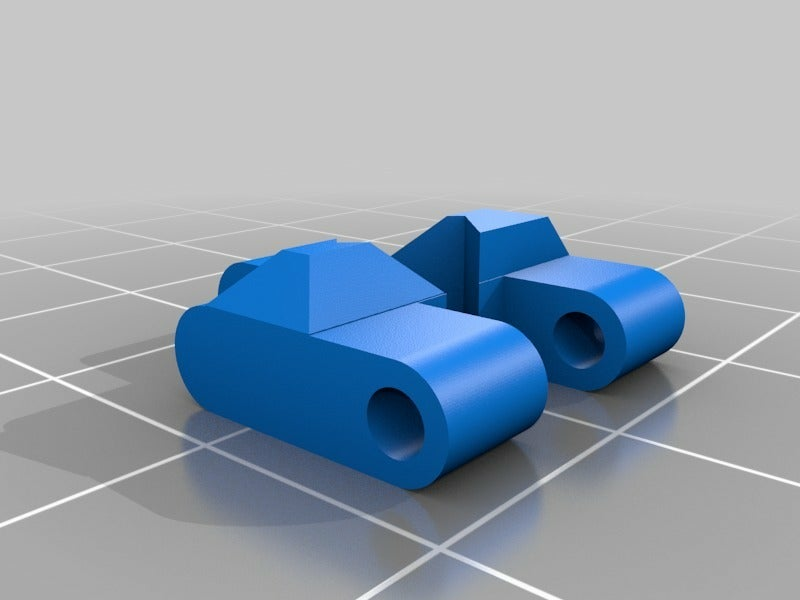

The joints of the tracks are simply pieces of 1.75mm filament cutted at the right length.

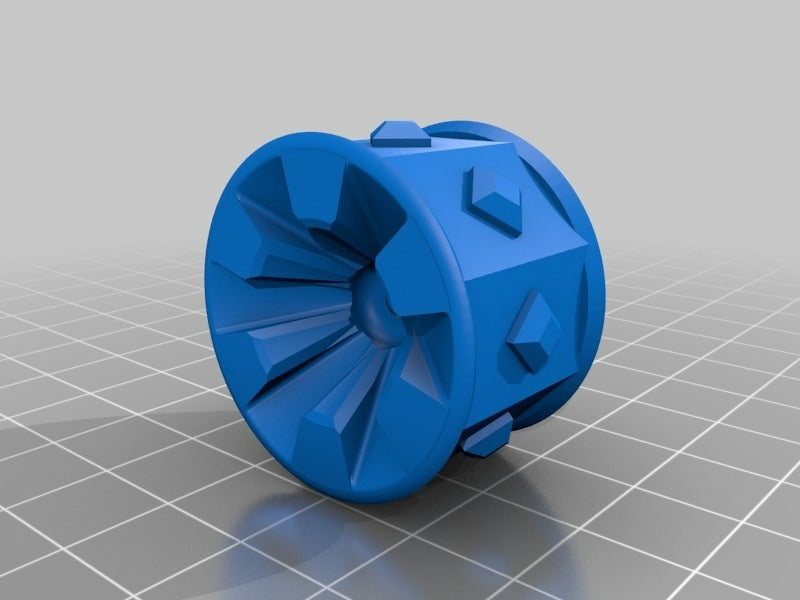

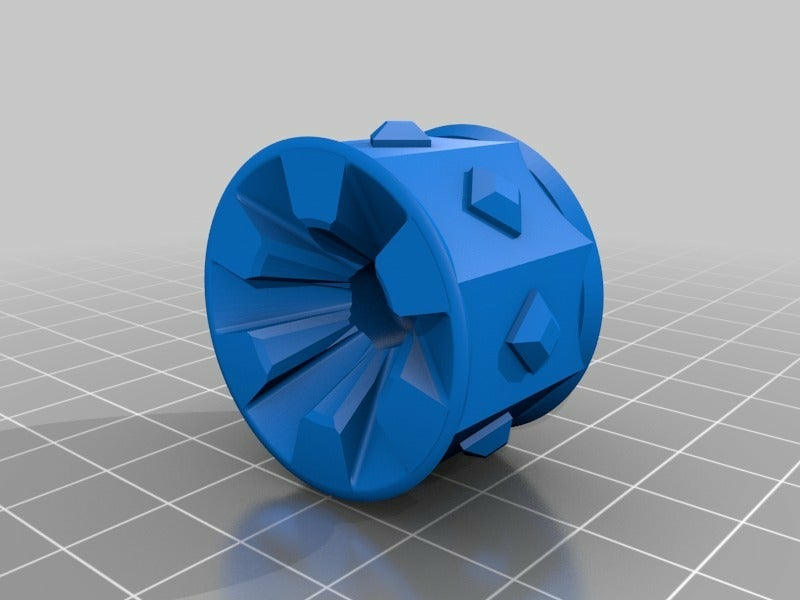

To assemble the screwless version you will need a multi slip-joint gripping plier to insert the “slave wheels”.

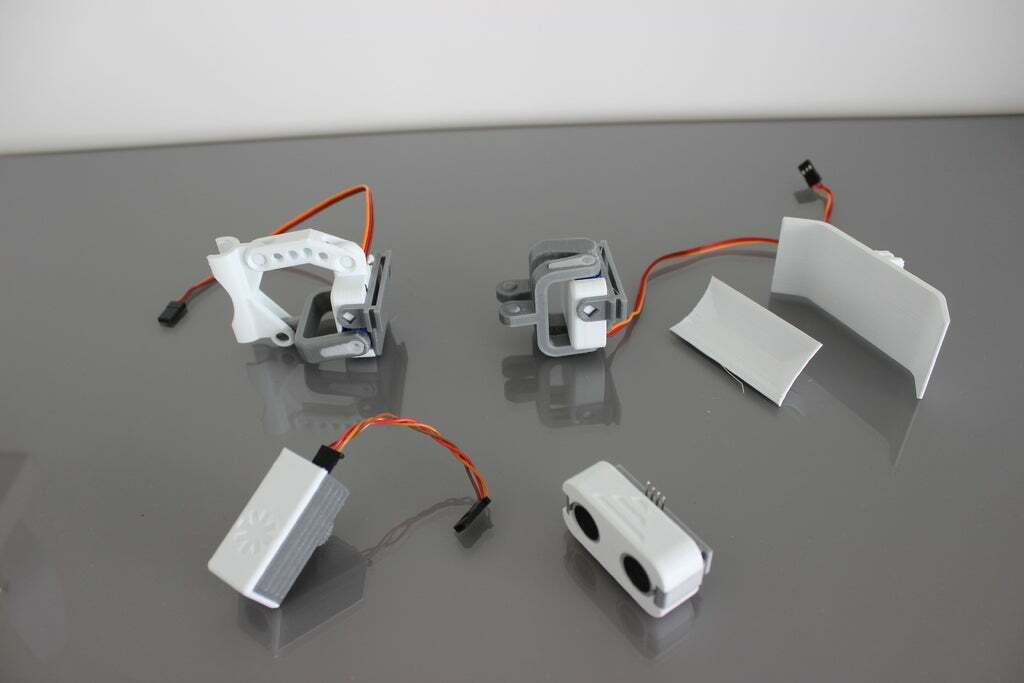

One of the next DLC will be the Quadpod mod. if you are interessted to move from tracks to legs, use the screwed version “chassis-S Mk2 https://www.thingiverse.com/thing:2829401” (“chassis-SL” will not be compatible)!
Building instructions are in the "doc lite" folder.

These models fits also:
-3x AAA batteries (check on my profile for the DLC)
-1x PS3 controller 1800mAh 3.7V Li-Ion Battery (be careful and use it only if you
know what you are doing!)
P.S
If you like my projects, just tip me or support me buying the material from my links, it will not cost you extra money and you will allow me to finance new projects! I would really appreciate it!

3D printing settings

0.2mm
20% infill
