Rubber bands sentry gun

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 8.8k views
  • 67 likes
  • 353 downloads

3D model description

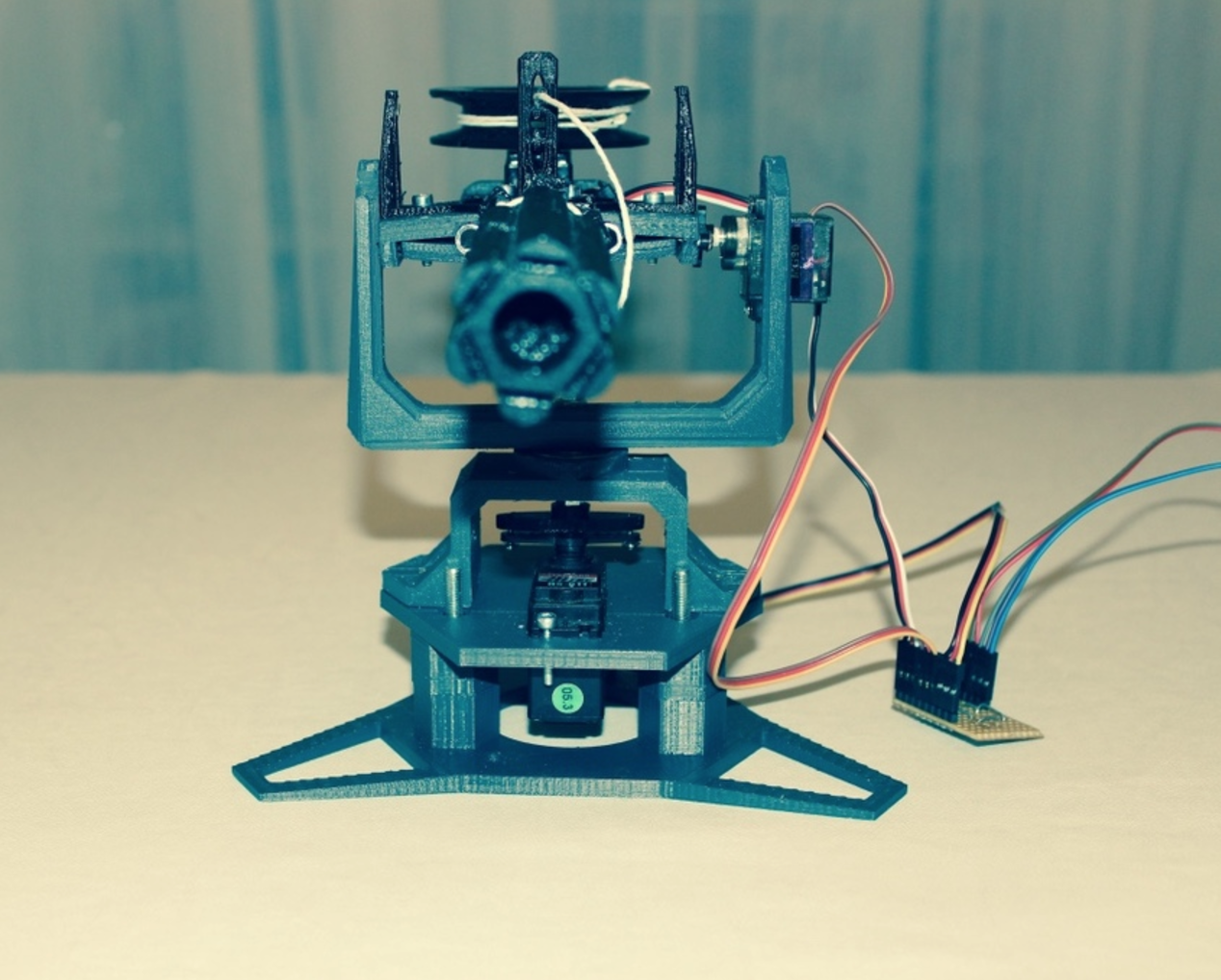

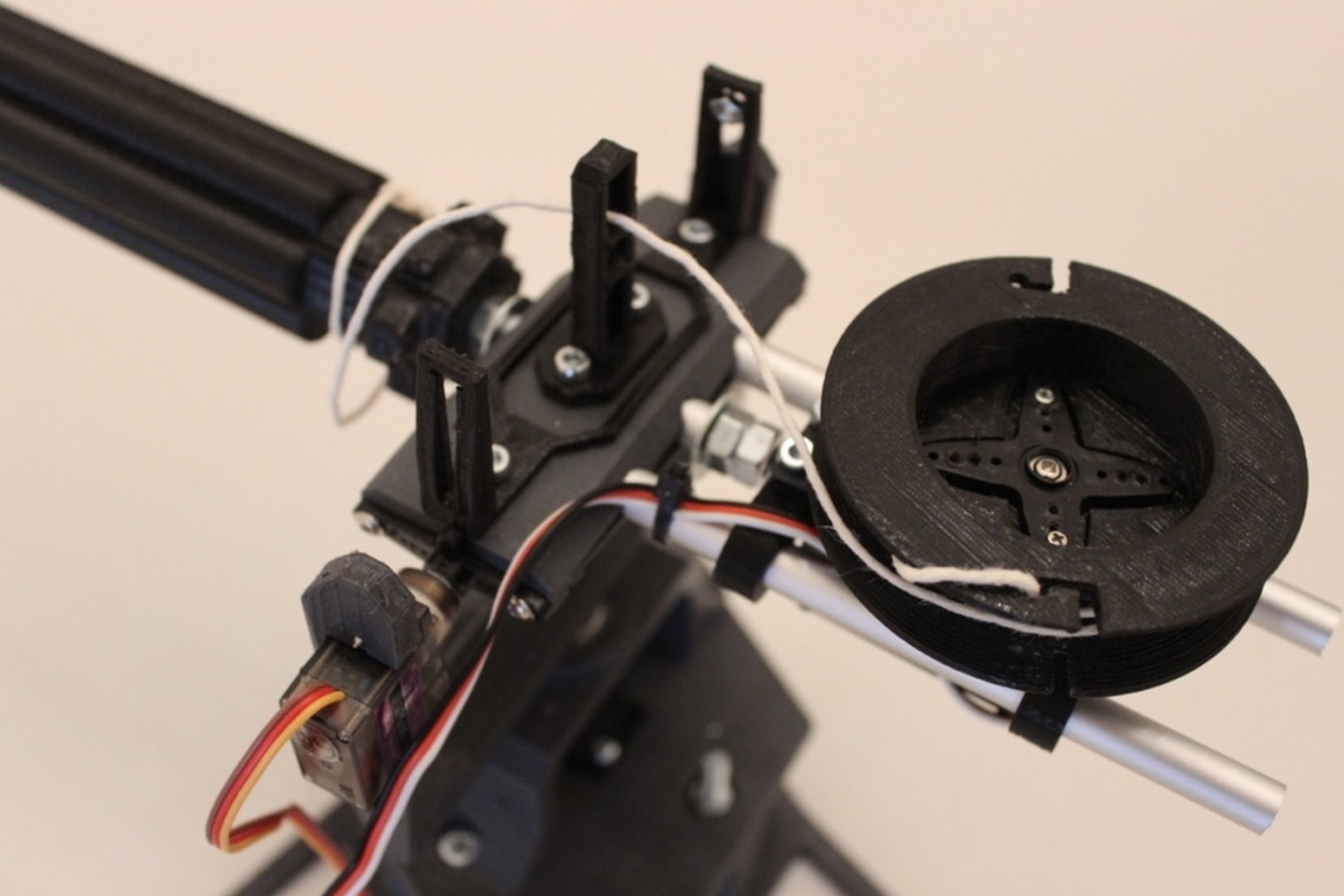

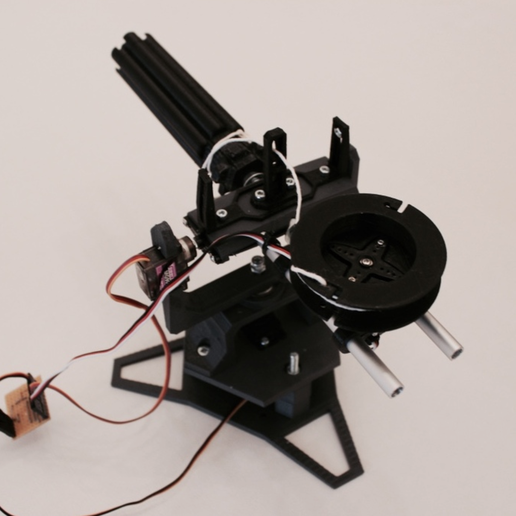

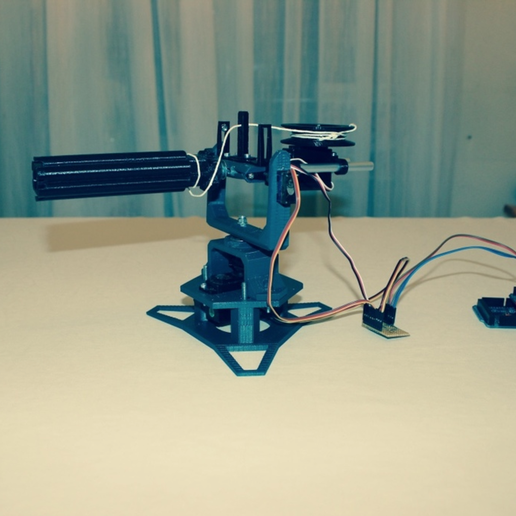

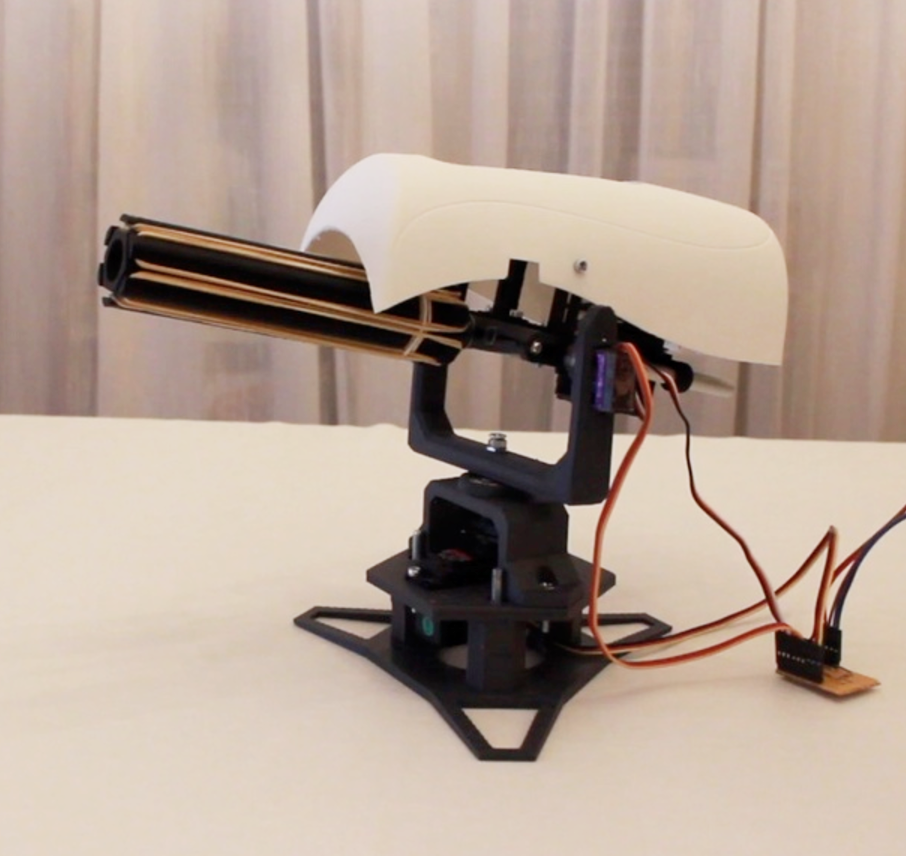

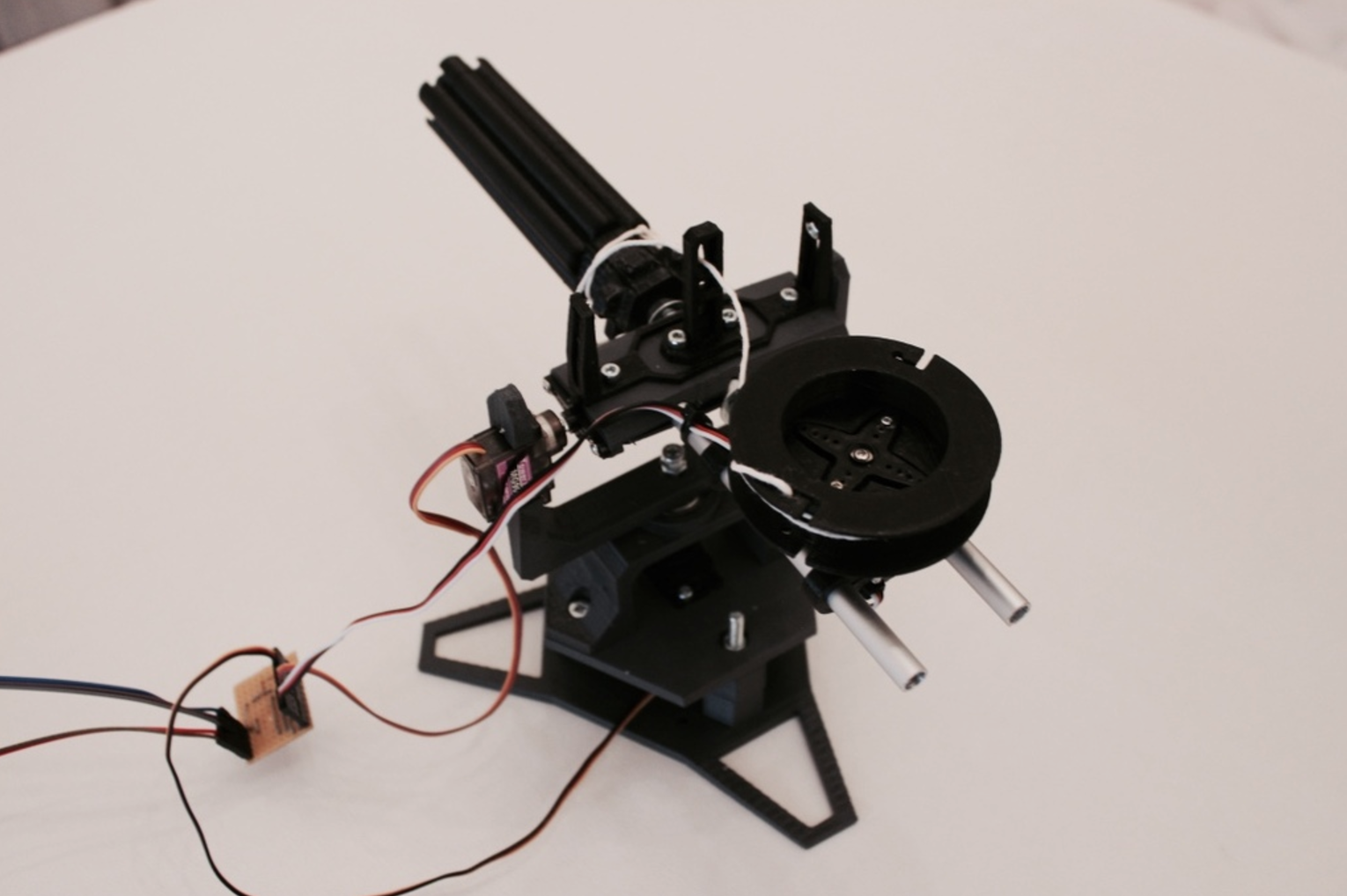

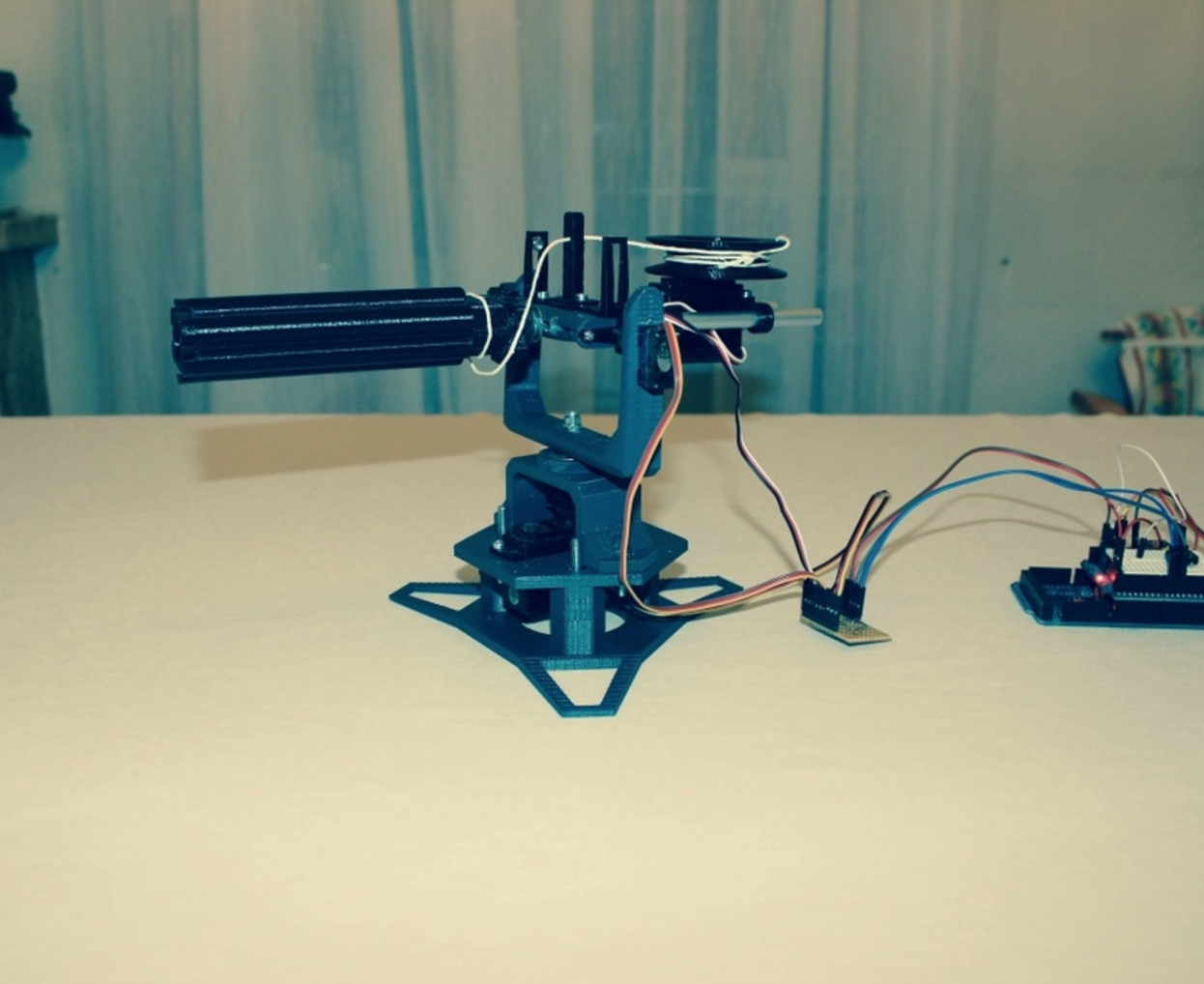

Full-auto sentry gun, shoots rubber bands.

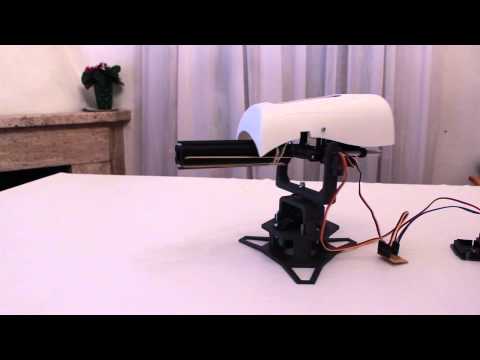

Youtube: http://youtu.be/YoOh4k-KuBM

https://www.youtube.com/watch?v=nvMih-ZmREQ&feature=youtu.be

For the software, follow the guide: http://projectsentrygun.rudolphlabs.com


3D printing settings

!!! for the barrel, set the scale dimensions on X 35.12mm and Y34.97mm

material:
mechanical parts:
-3 M5 50mm screws
-2 M4 30mm screws
-1 M4 40mm screw
-12 M3 16mm imbus
-3 M3 10mm
-15 M3 nuts
-3 M5 nuts
-6 M4 nuts
-3 M6 nuts
-10 servo screws
-1 M6 80mm threaded bar
-1 skateboard ball bearing
-1 30 cm piece of string
-2 135 mm x 8mm ⌀ metal pipe
-1 35 mm x 8mm ⌀ metal pipe
electronic parts:

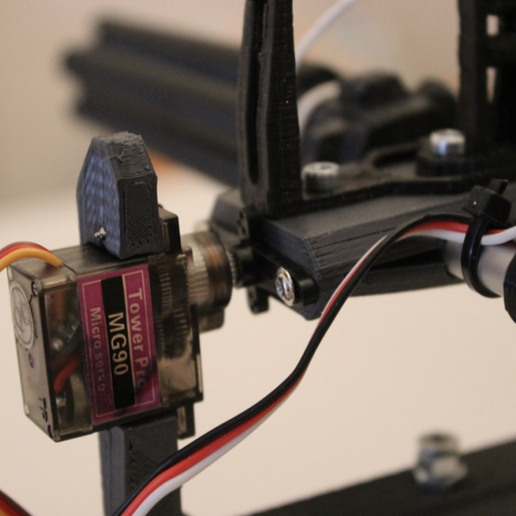

-1 180° micro servo https://amzn.to/2UysWkj
http://s.click.aliexpress.com/e/bFG6Nwso
-1 180° servo https://amzn.to/2Ea2G9U
http://s.click.aliexpress.com/e/bVqfAXpe
-1 360° servo https://amzn.to/2UytA1d
http://s.click.aliexpress.com/e/bQmvLrBw
-1 arduino UNO, 2009 or Mega https://amzn.to/2QpCDmq
http://s.click.aliexpress.com/e/Qc3oVvA

optional (for manual cotrol):
-1 joystick https://amzn.to/2EeJOH5
http://s.click.aliexpress.com/e/c11a4Yzw
-1 button https://amzn.to/2EnOgUz
http://s.click.aliexpress.com/e/cfdERPk4

3D printer file information

  • 3D design format: STL Folder details Close
    • barrel.stl
    • barrel_scaled.stl
    • base_bottom.stl
    • base_top.stl
    • core_bottom.stl
    • core_top.stl
    • fire_servo_support.stl
    • fire_wheel.stl
    • shell_support.stl
    • wire_guide.stl
    • x_servo_coupler.stl
    • x_support.stl
    • y_support.stl

    Learn more about the formats

  • Publication date: 2017/09/13 at 18:18

License

CC BY NC SA
