LiL FRONT LOADER

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.9k views
  • 33 likes
  • 26 downloads

3D model description

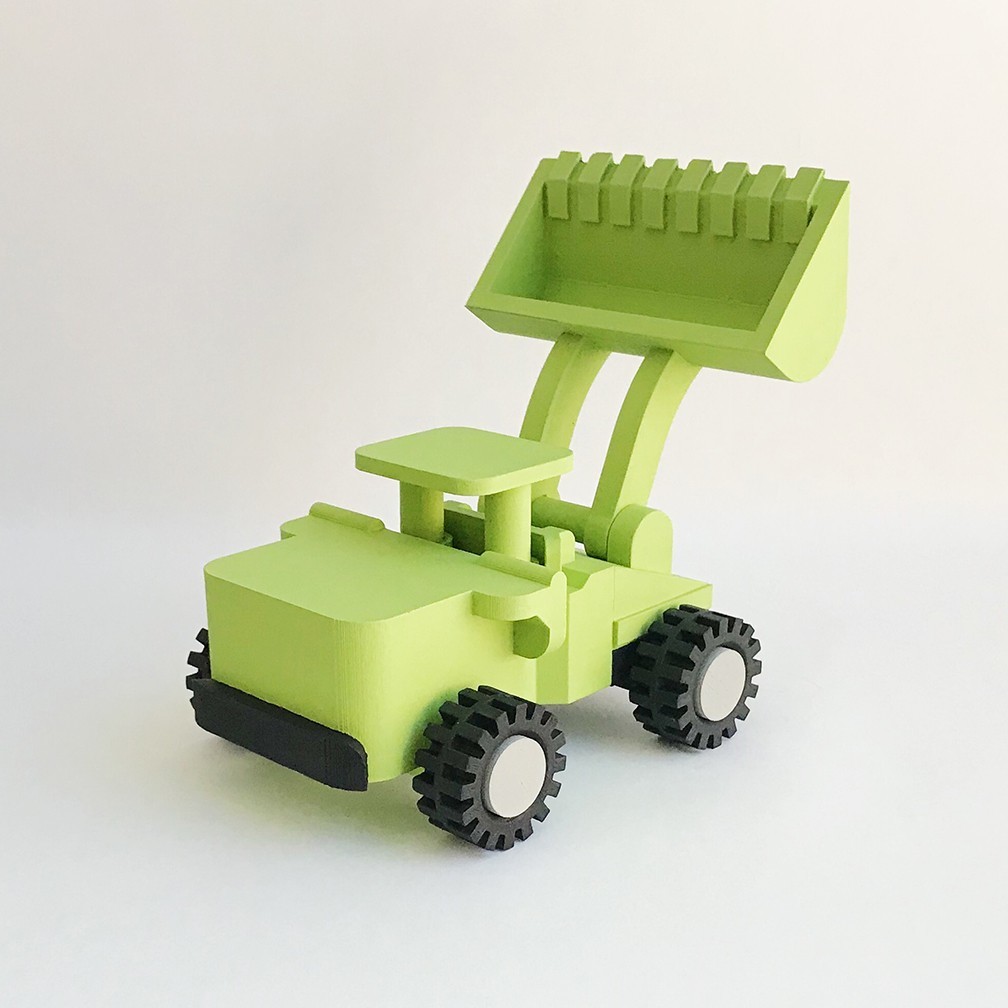

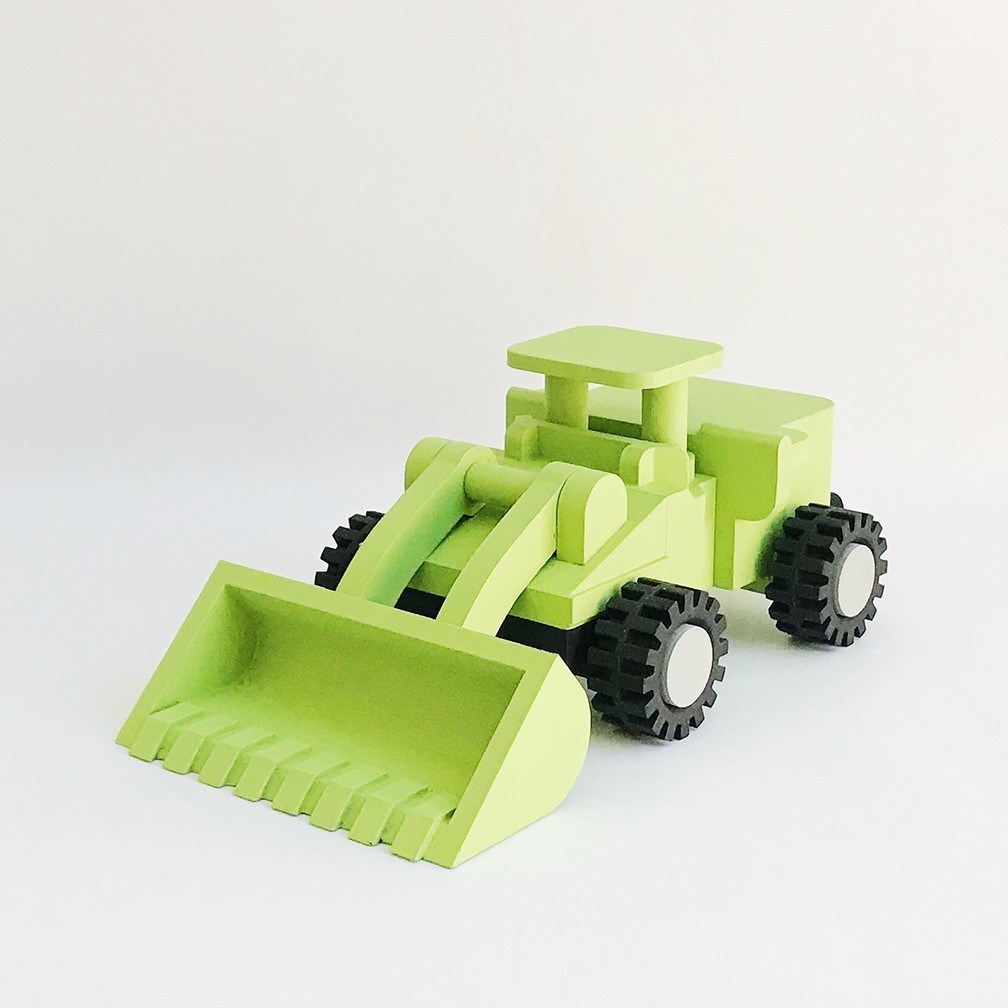

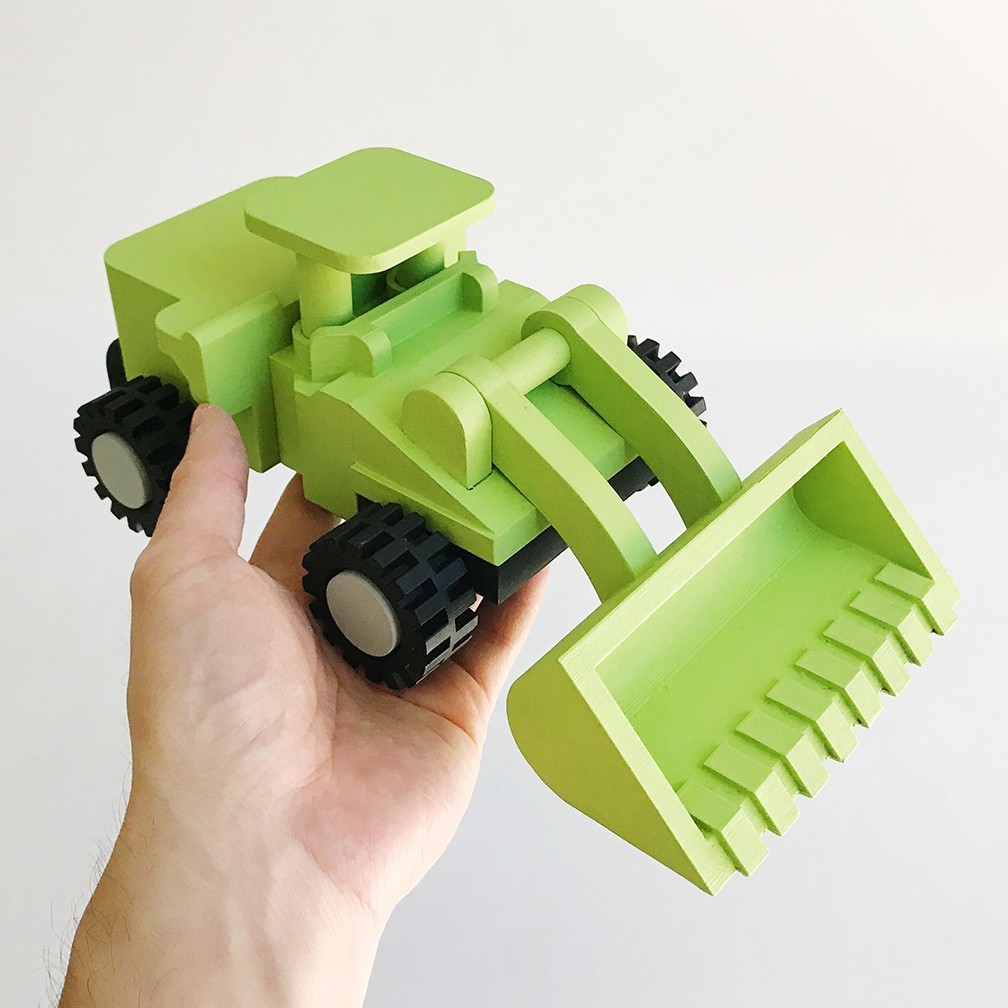

The LiL FRONT LOADER is a simple design that is 3D print-friendly and easy to assemble. Gluing is required.

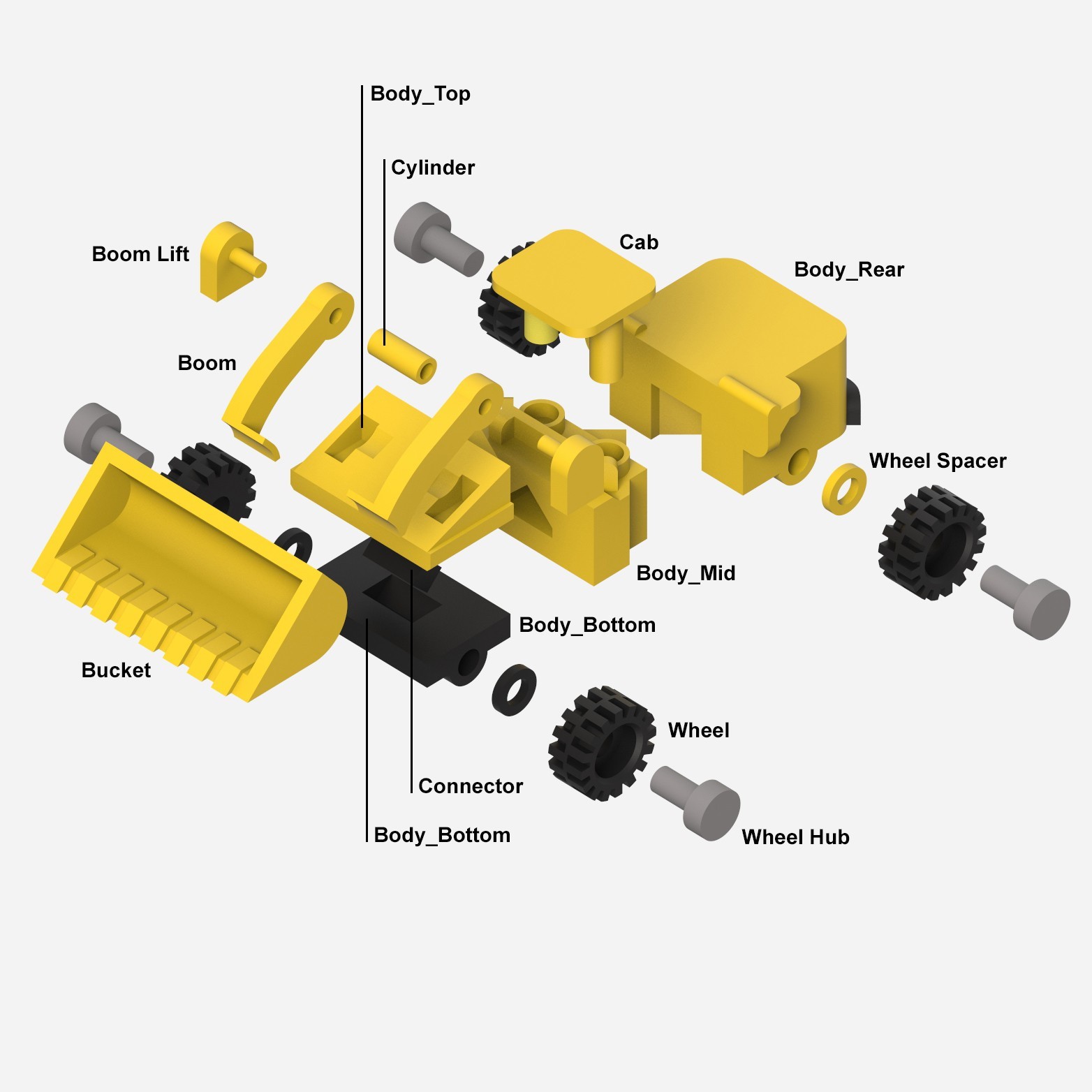

Number of parts: 24

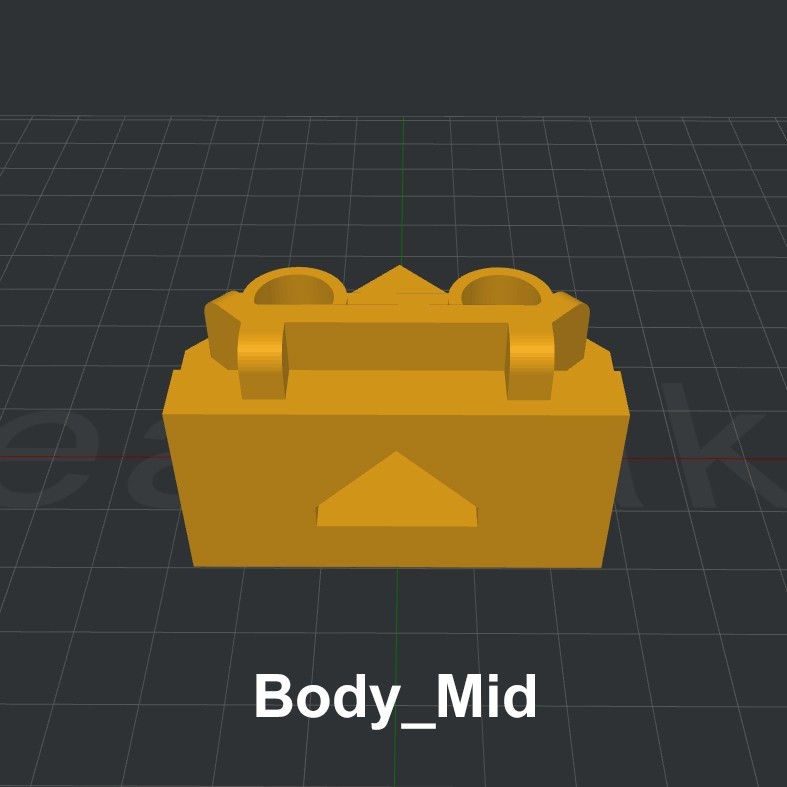

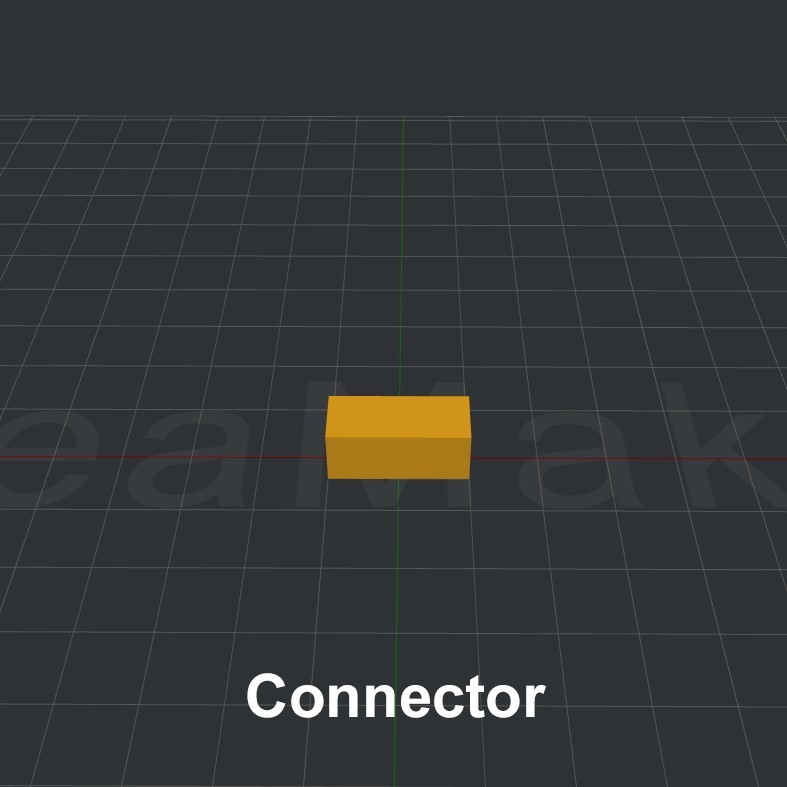

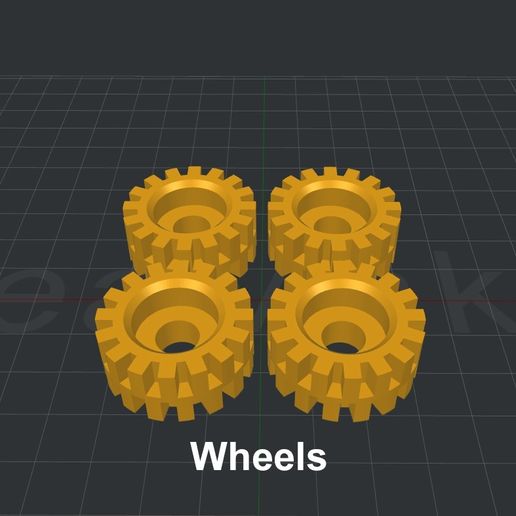

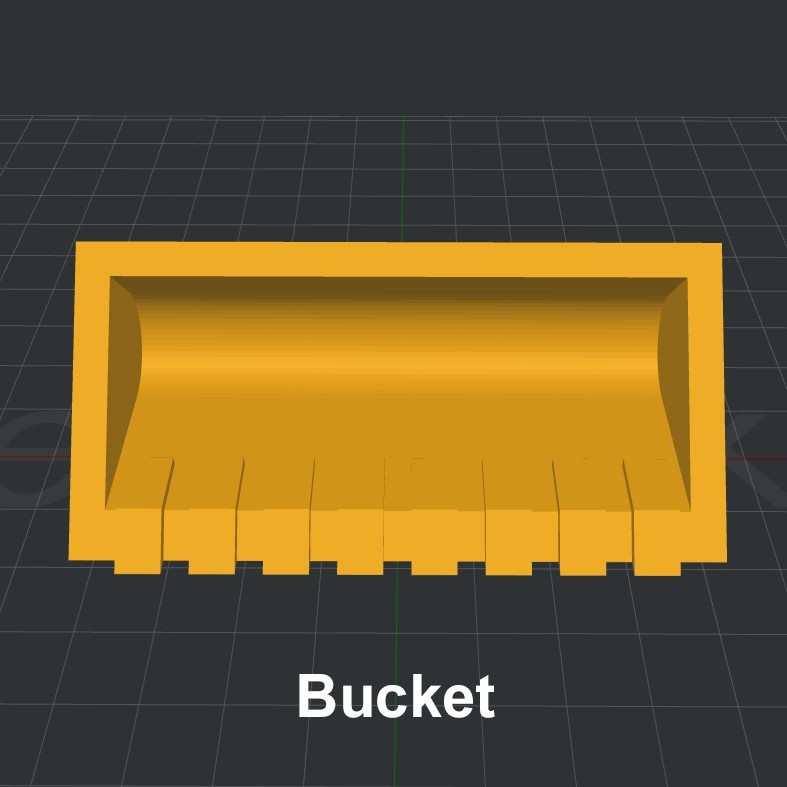

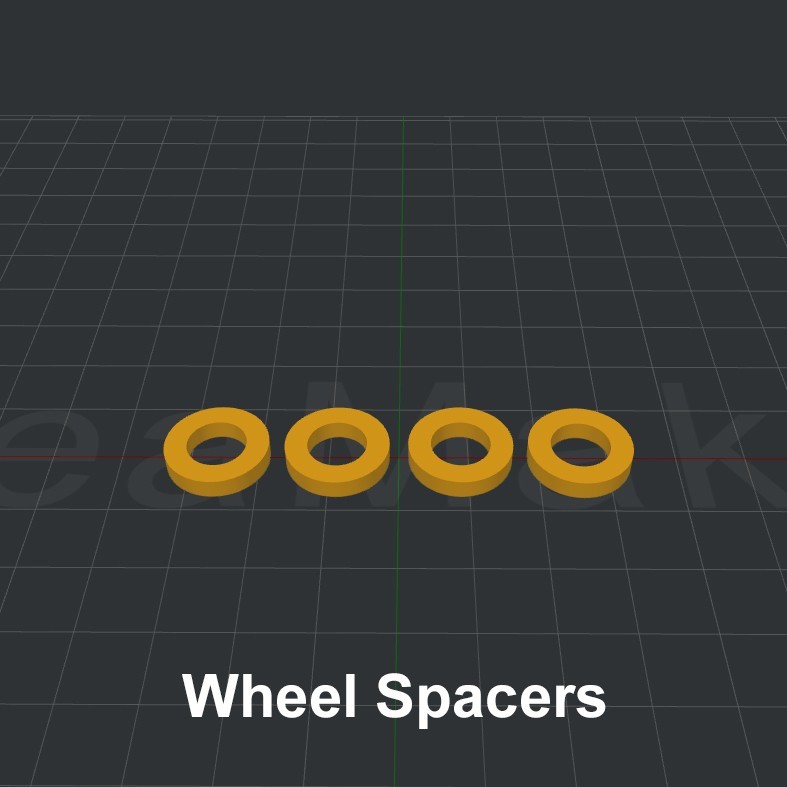

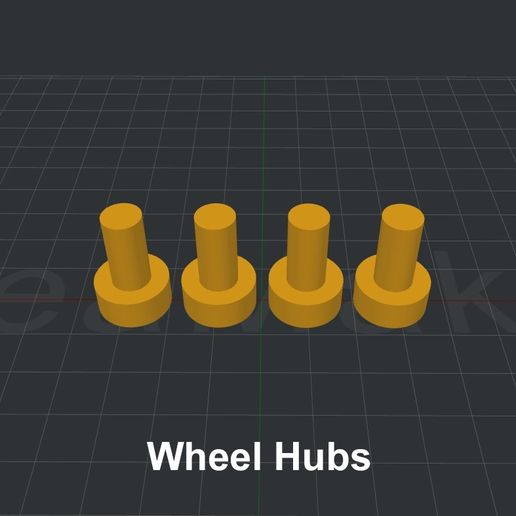

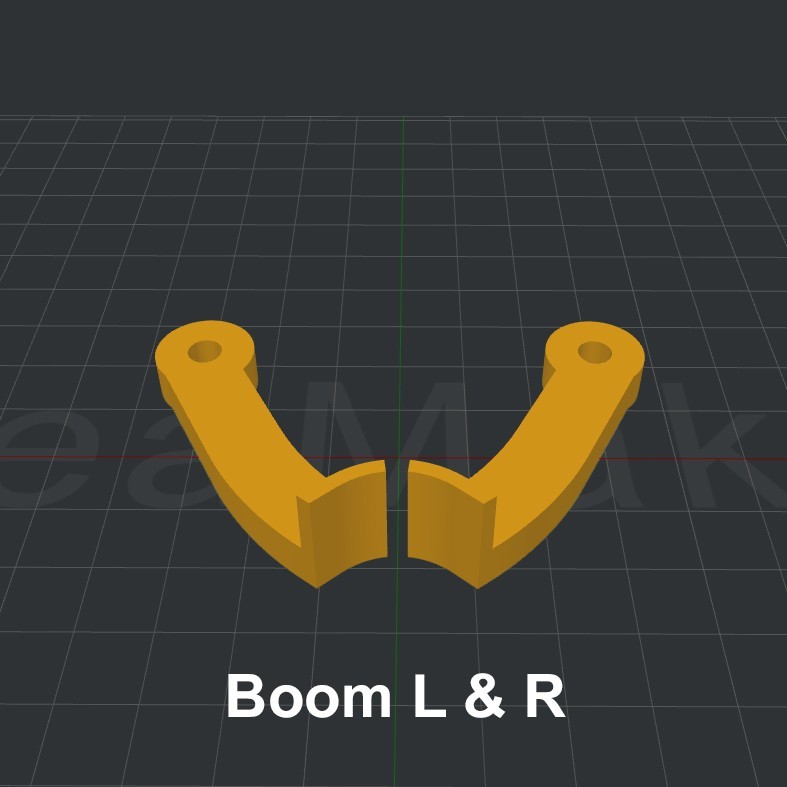

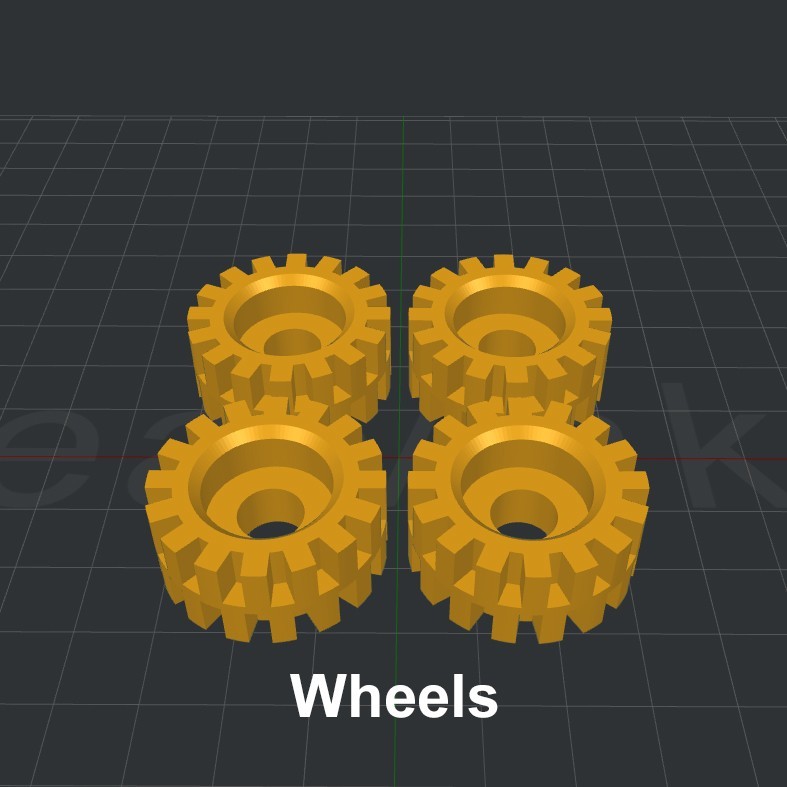

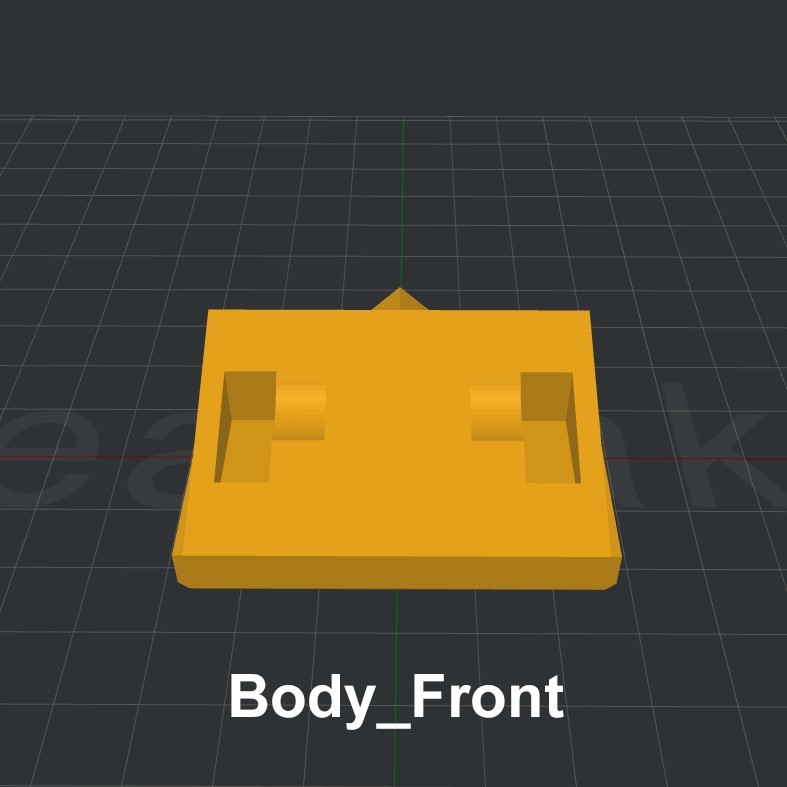

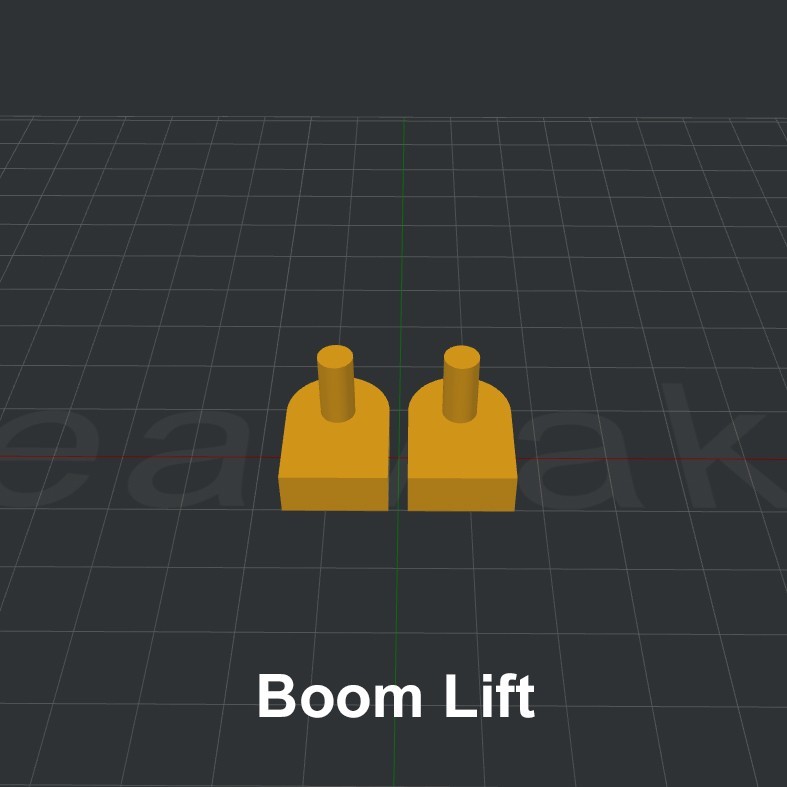

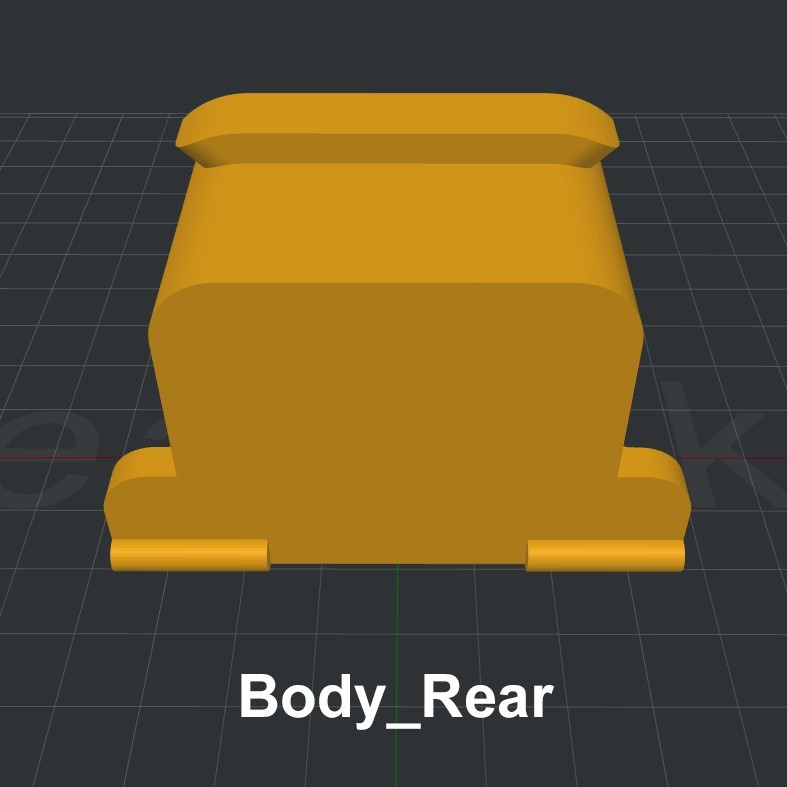

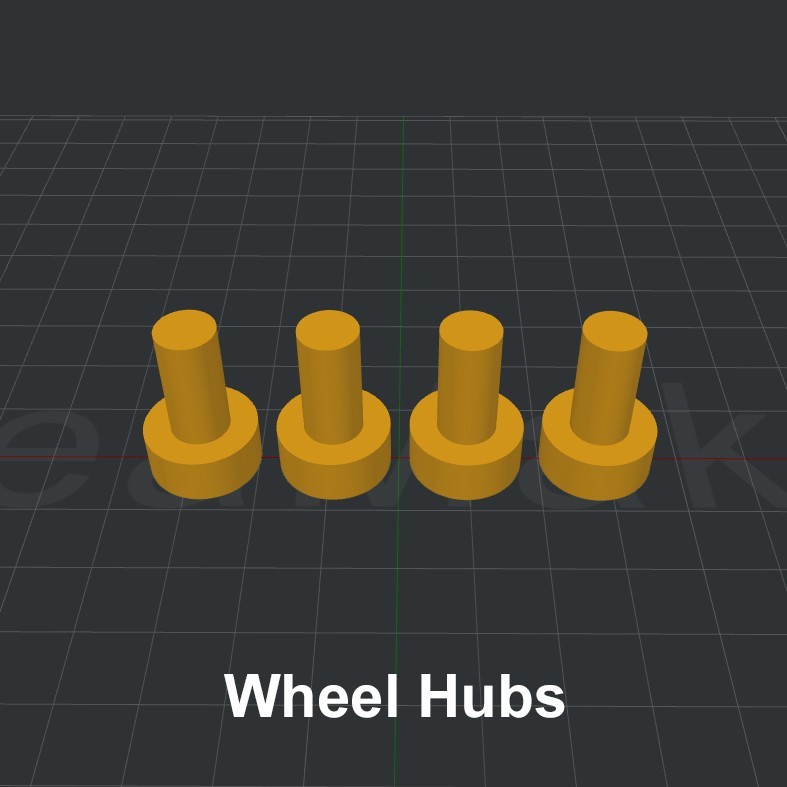

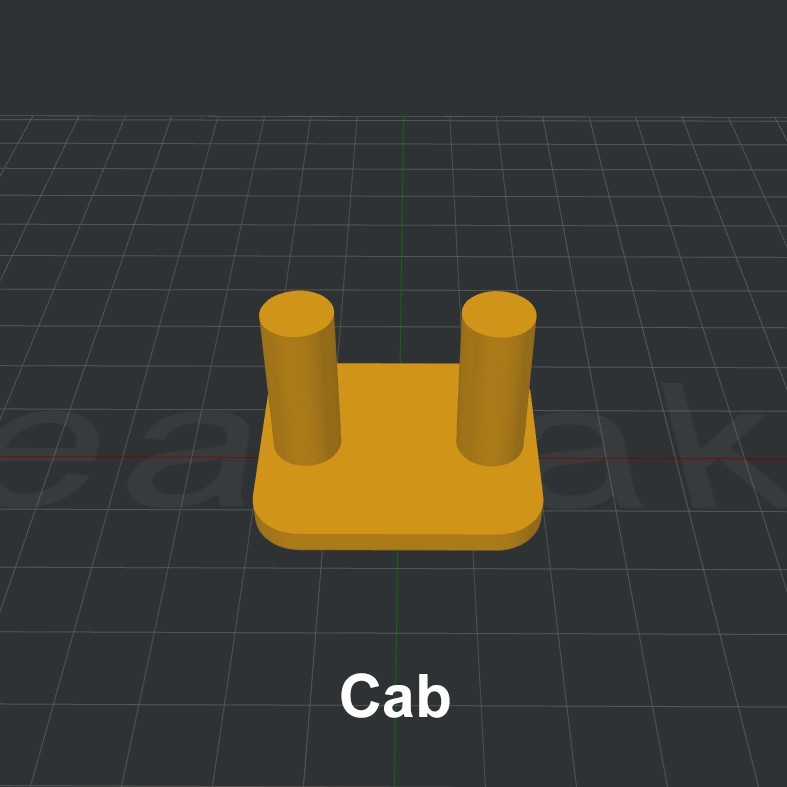

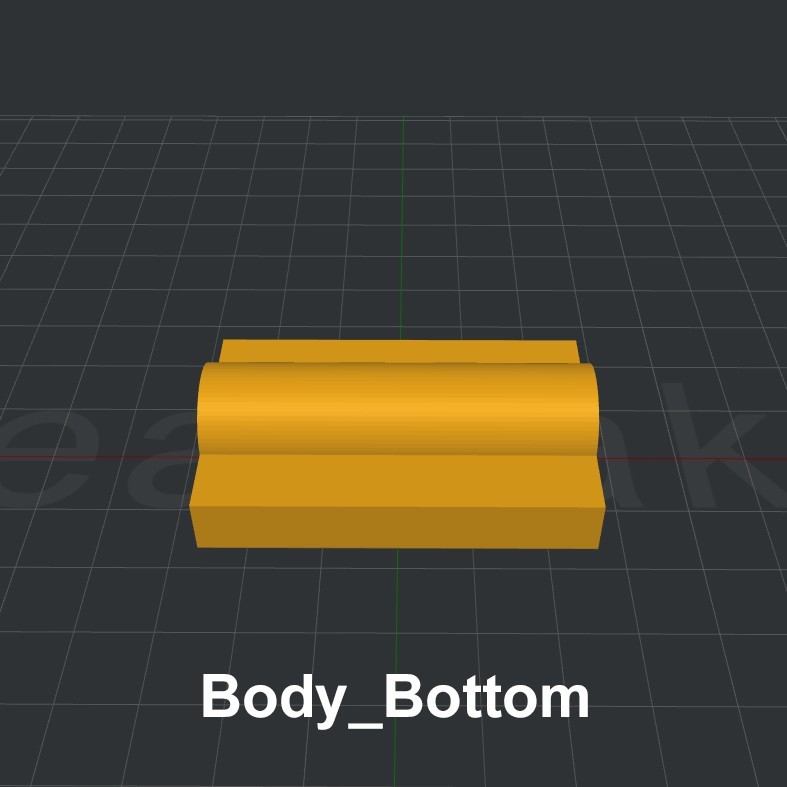

Please refer to the attached images of each part. The parts are shown in the recommended orientation.

Overall Dimensions:
Width 132mm x Length 251mm x Height 100mm

3D printing settings

3D printed on my Raise3D N2 in 'speed' setting at 0.25mm layer height. I used 1.75mm PLA filament.

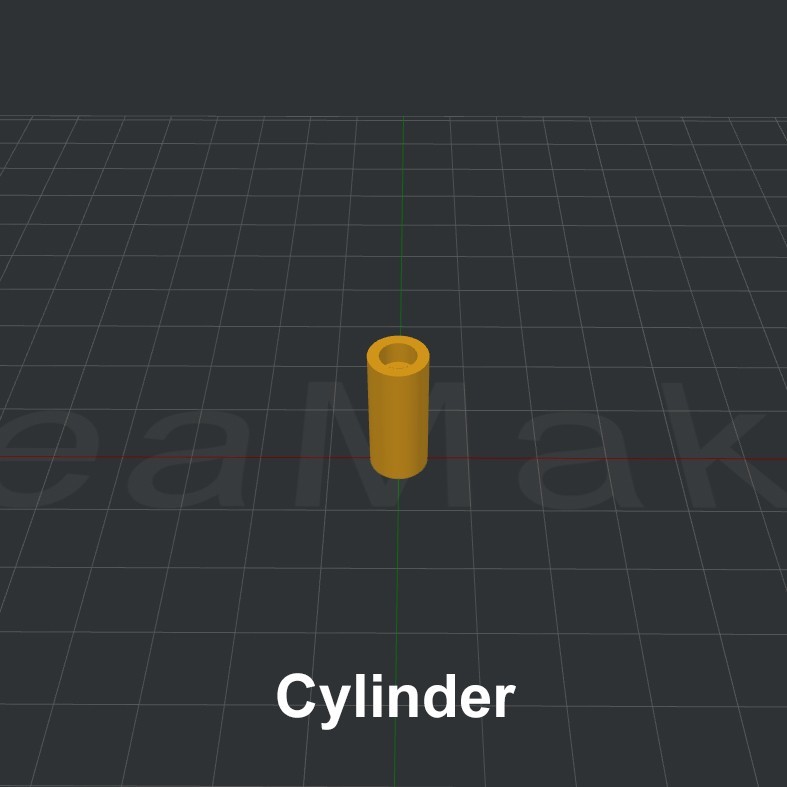

Note: The 'Cylinder.STL' is not symmetrical on both ends. Notice that one end has a chamfer feature that creates a cone surface. Place this side facing the build plate to avoid support structure.

All of the parts do not require a raft but for the larger parts, it is recommended to use the brim feature to help prevent lifting / curling from the build plate.

  • 3D file format: STL
  • Last update: 2018/06/11 at 23:05
  • Publication date: 2018/05/27 at 23:13
