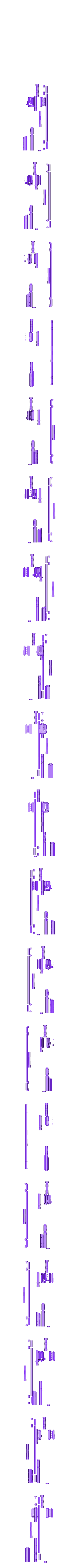

  • jailah staff parts export.obj
  • jailah-stick02.obj
  • jaylah stick-Cylinder_2.stl

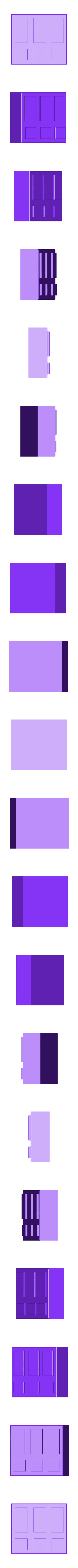

  • jaylah stickCube_1_button_k.stl
  • jaylah stickCylinder_2-Cylinder_2.stl

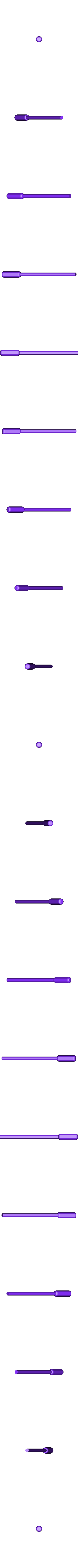

  • jaylah stickCylinder_3_Cylinder_2.stl
  • jaylah stickTube.stl
  • jaylah stickTube_1.stl

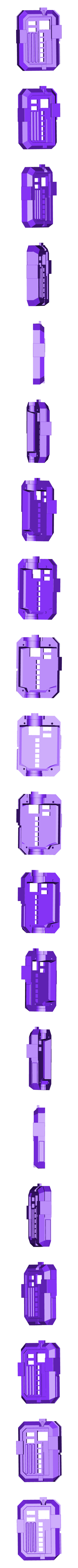

  • jaylah stick_4.stl
  • jaylah stick_5.stl

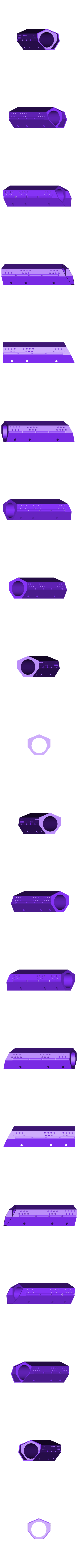

  • jaylah stick_barrel.stl

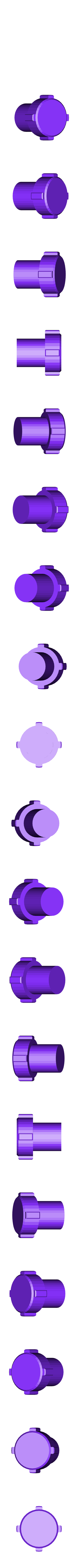

  • jaylah stick_end.stl
  • jaylah stick_handle_1.stl

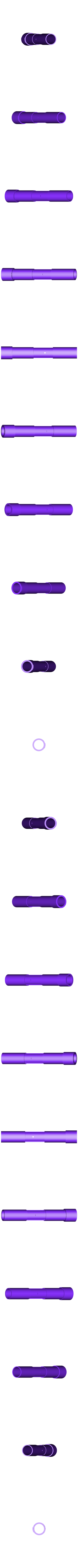

  • jaylah stick_middle-cylinder_part_in_one_part.stl

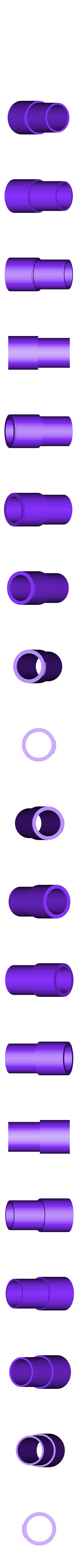

  • jaylah stick_middle-cylinder_part_in_two_parts_1.stl
  • jaylah stick_middle-cylinder_part_in_two_parts_2.stl

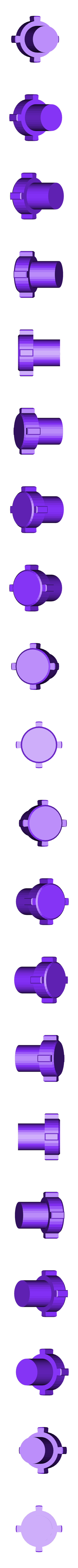

  • jaylah stick_middle_1.stl

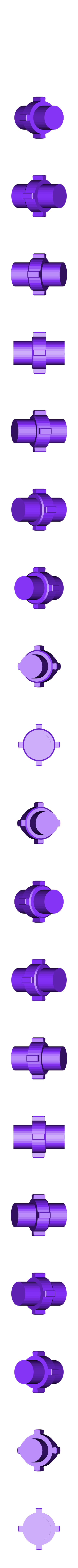

  • jaylah stick_middle_2.stl
  • jaylah stick_pole_longest_part_in_one_part.stl

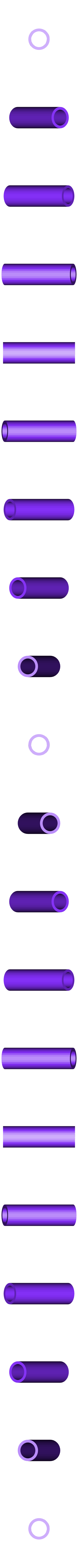

  • jaylah sticktrubka_stock.stl

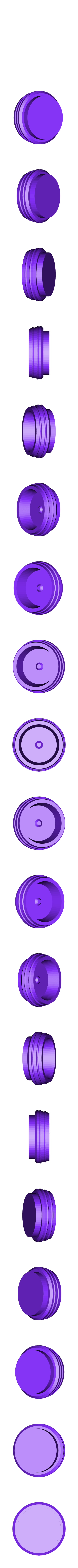

  • jaylah stickust__barrel.stl
  • jaylah stickz_mek_middle.stl

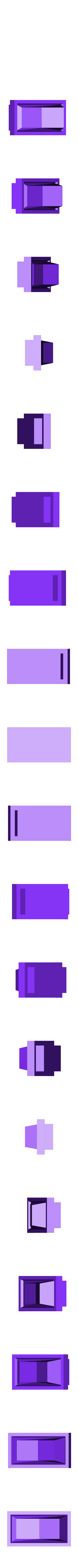

  • jaylah stickzap_n__print.stl
  • jaylah_handle_under_display_part_in_one_part.stl

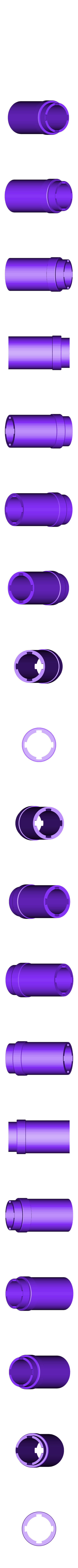

  • jaylah_handle_under_display_part_in_two_parts_1.stl
  • jaylah_handle_under_display_part_in_two_parts_2.stl

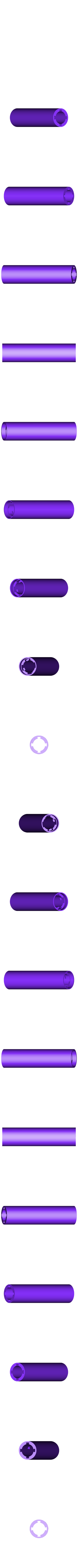

  • jaylah_stick_pole_longest_part_in_two_parts_1.stl

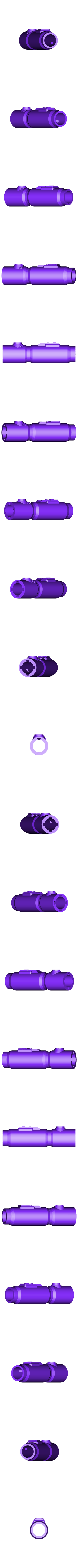

  • jaylah_stick_pole_longest_part_in_two_parts_2.stl

Learn more about the formats
Publication date
Design number 57054
3D-mon

3D-mon

Certified account
Issue with this design? Report a problem.

3D printer file info

3D model description

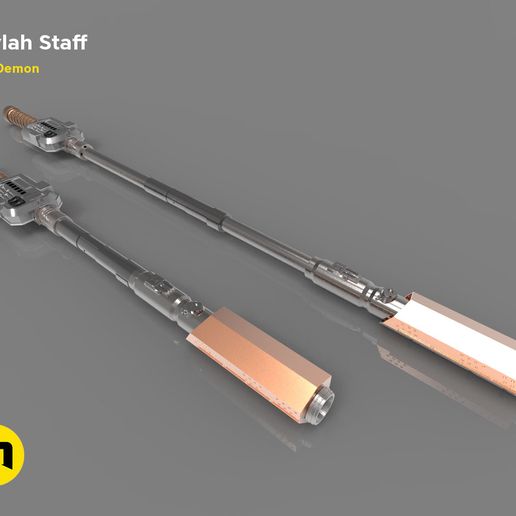

Jaylah - Staff - Star Trek Beyond

In time, Jaylah became a formidable warrior, skilled in martial arts and in wielding a quarterstaff that doubled as a rifle. (Star Trek Beyond)

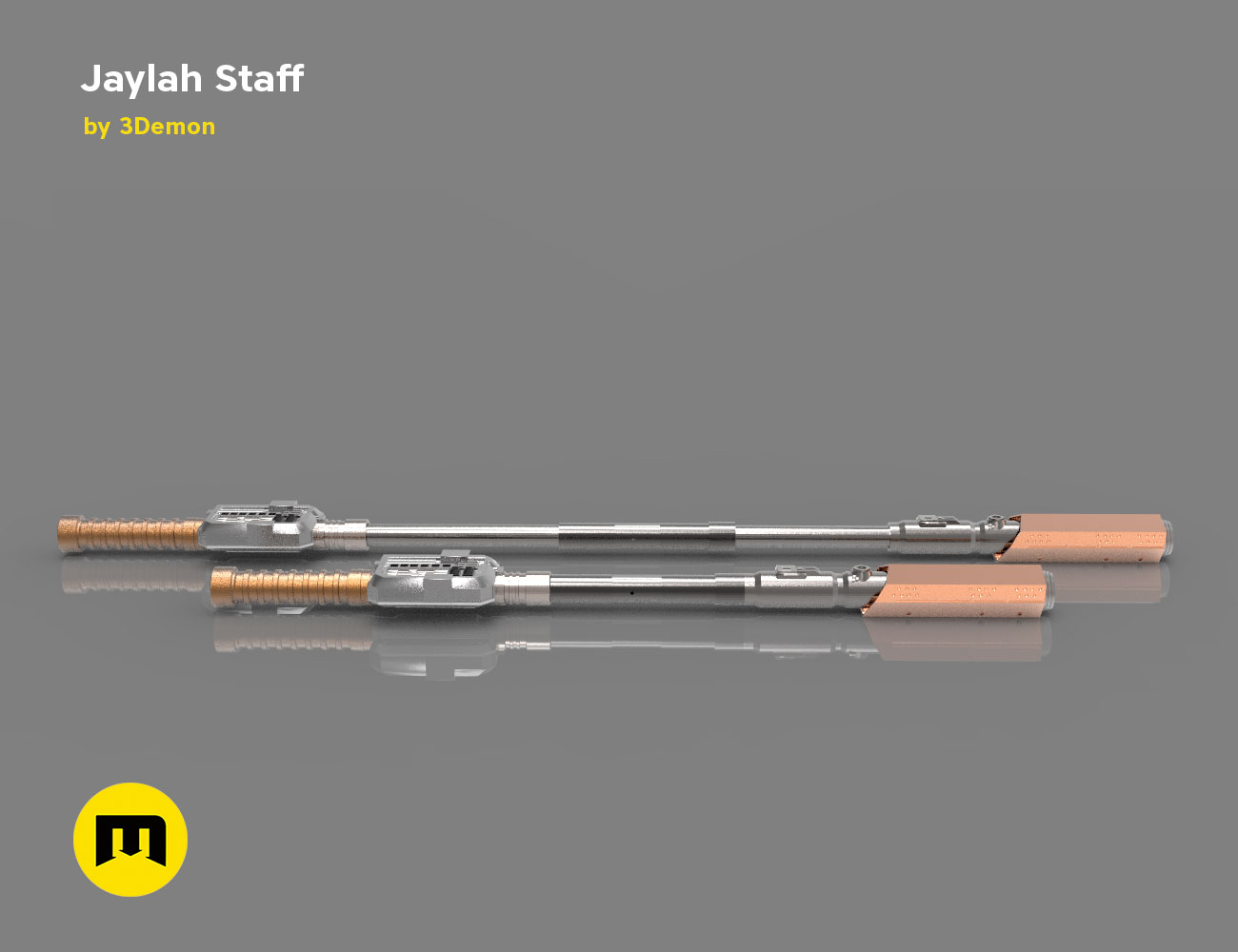

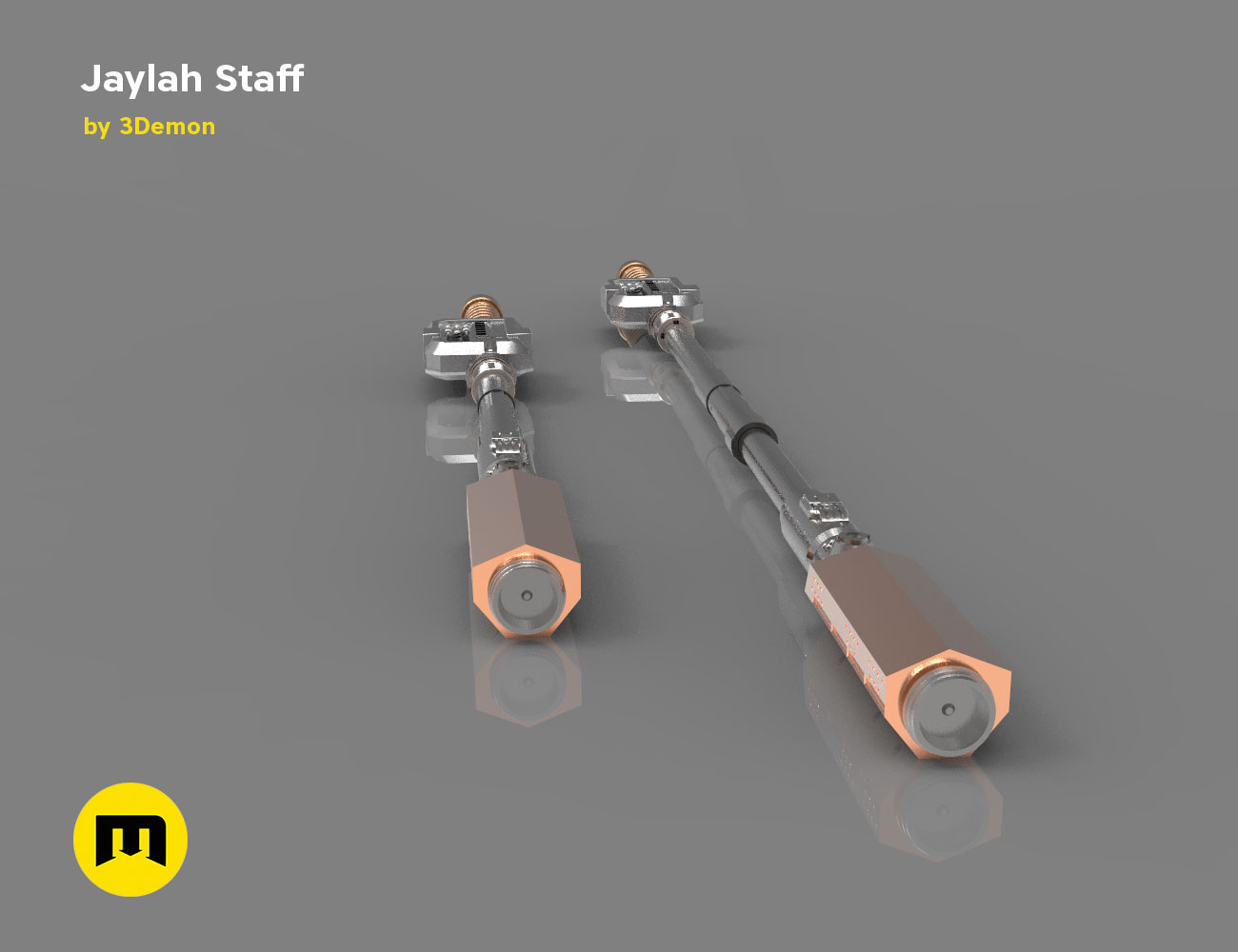

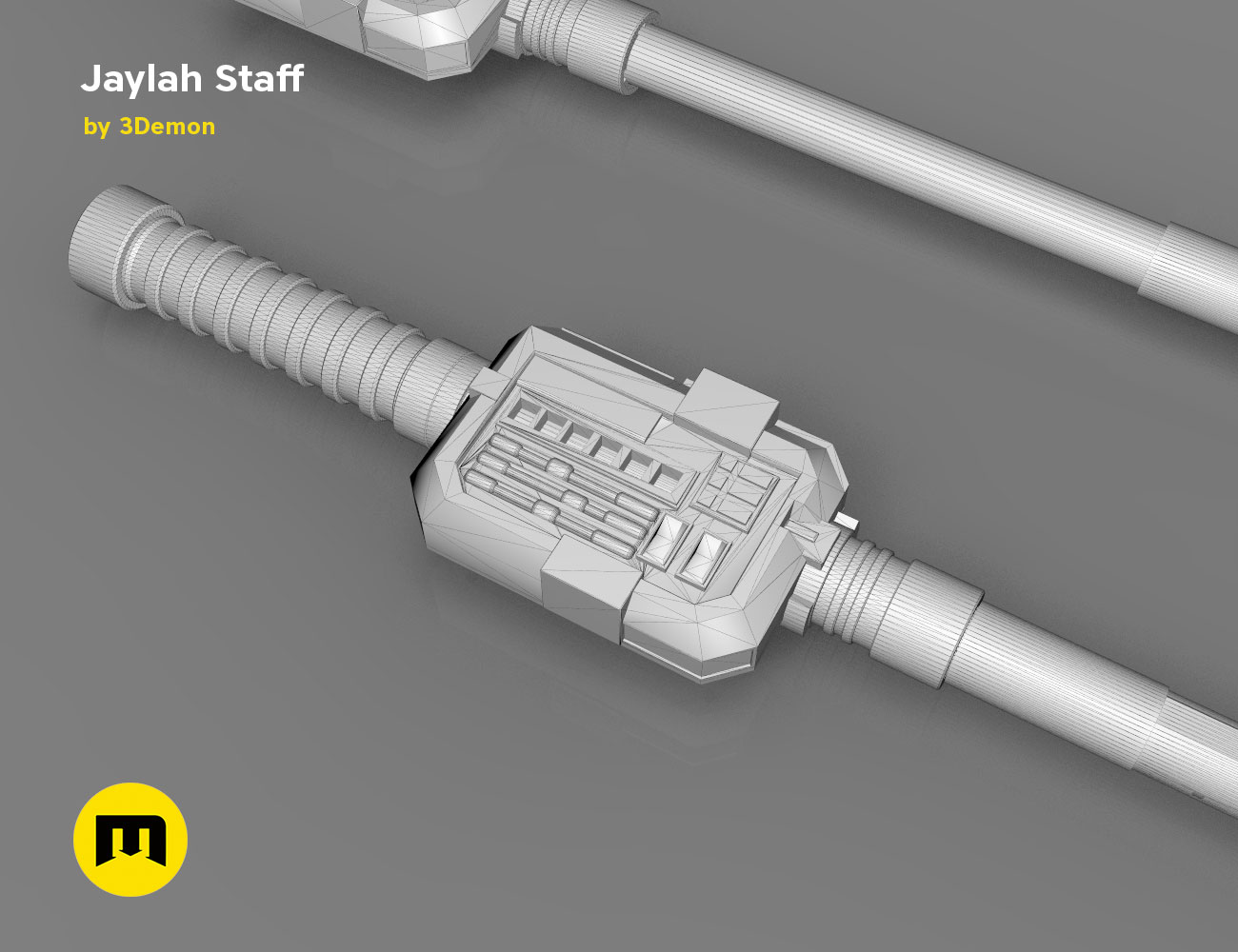

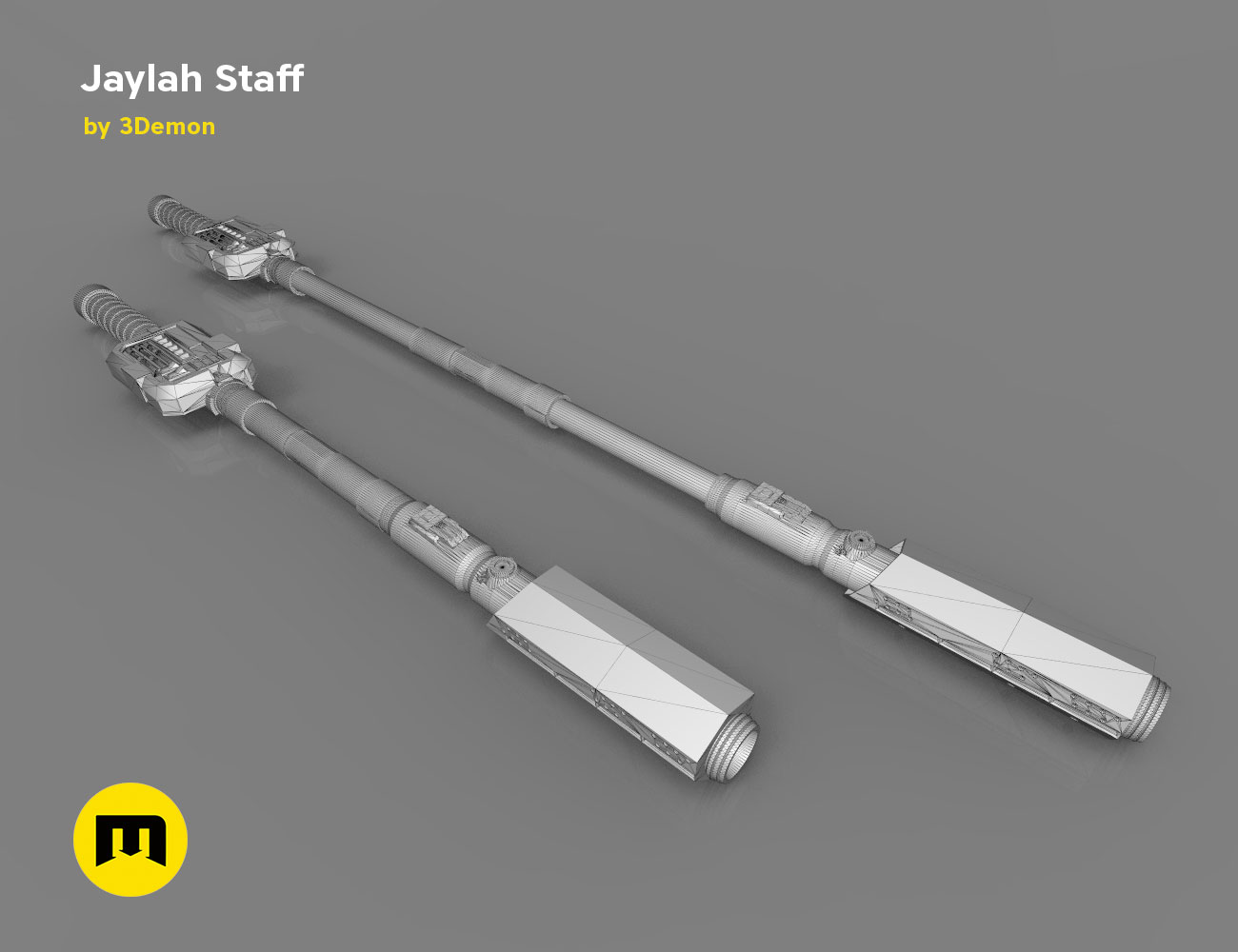

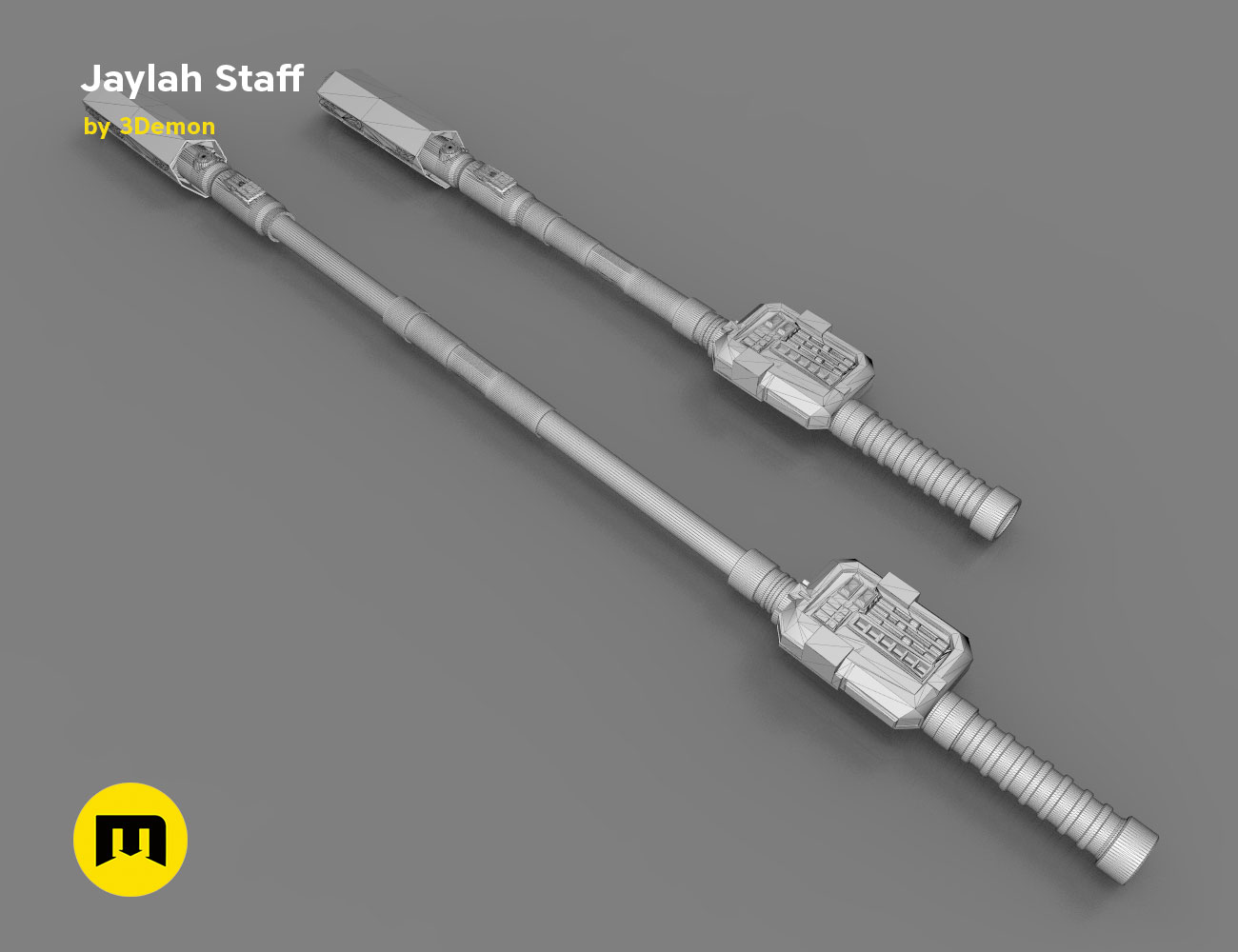

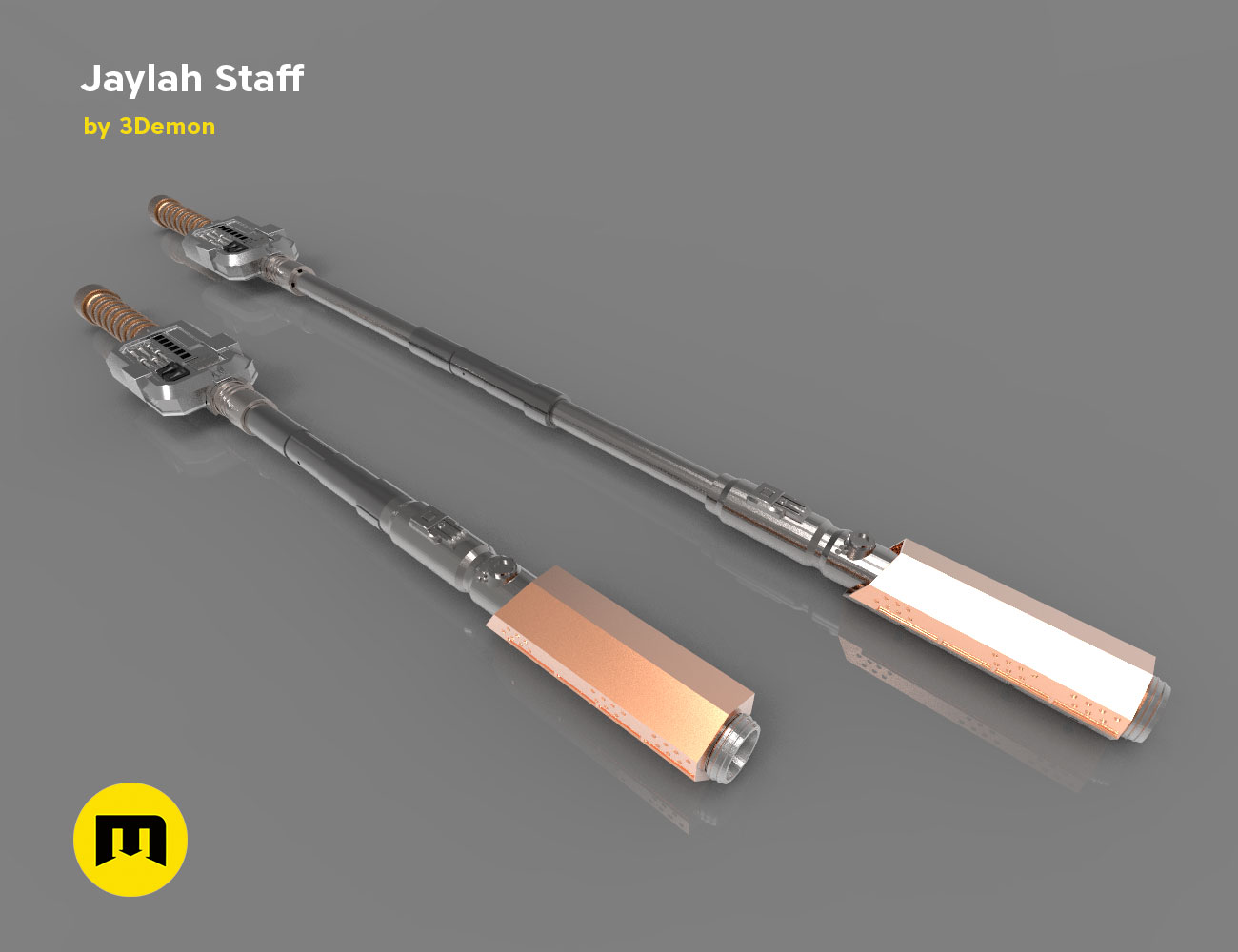

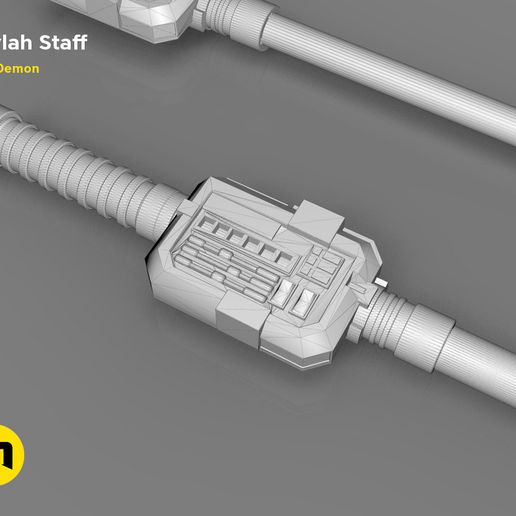

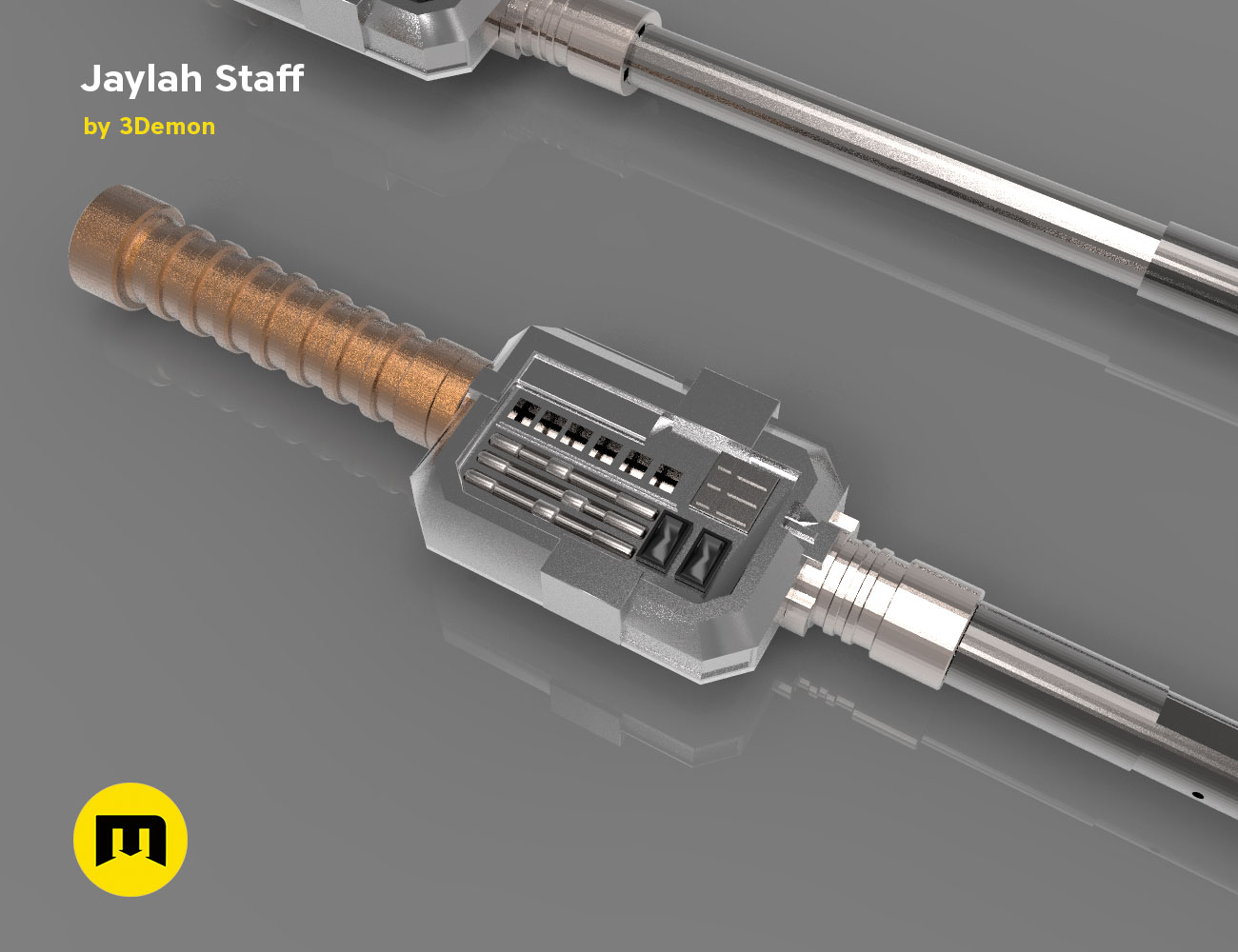

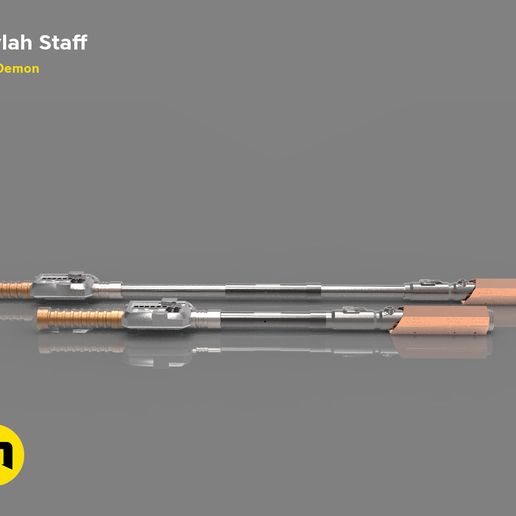

This model is an extendable staff of Jaylah. The large pole does not have to be 3D printed and a standard 3/4 inch pipe can be used (26.67mm). There is a mechanism which allows the parts to lock in place in the shortest and longest position. Depending on the quality of the print it made need a bit of tweaking on order to work properly. Inside the control panel is enough space for electronics. The buttons are also separate so they can be made into working buttons.

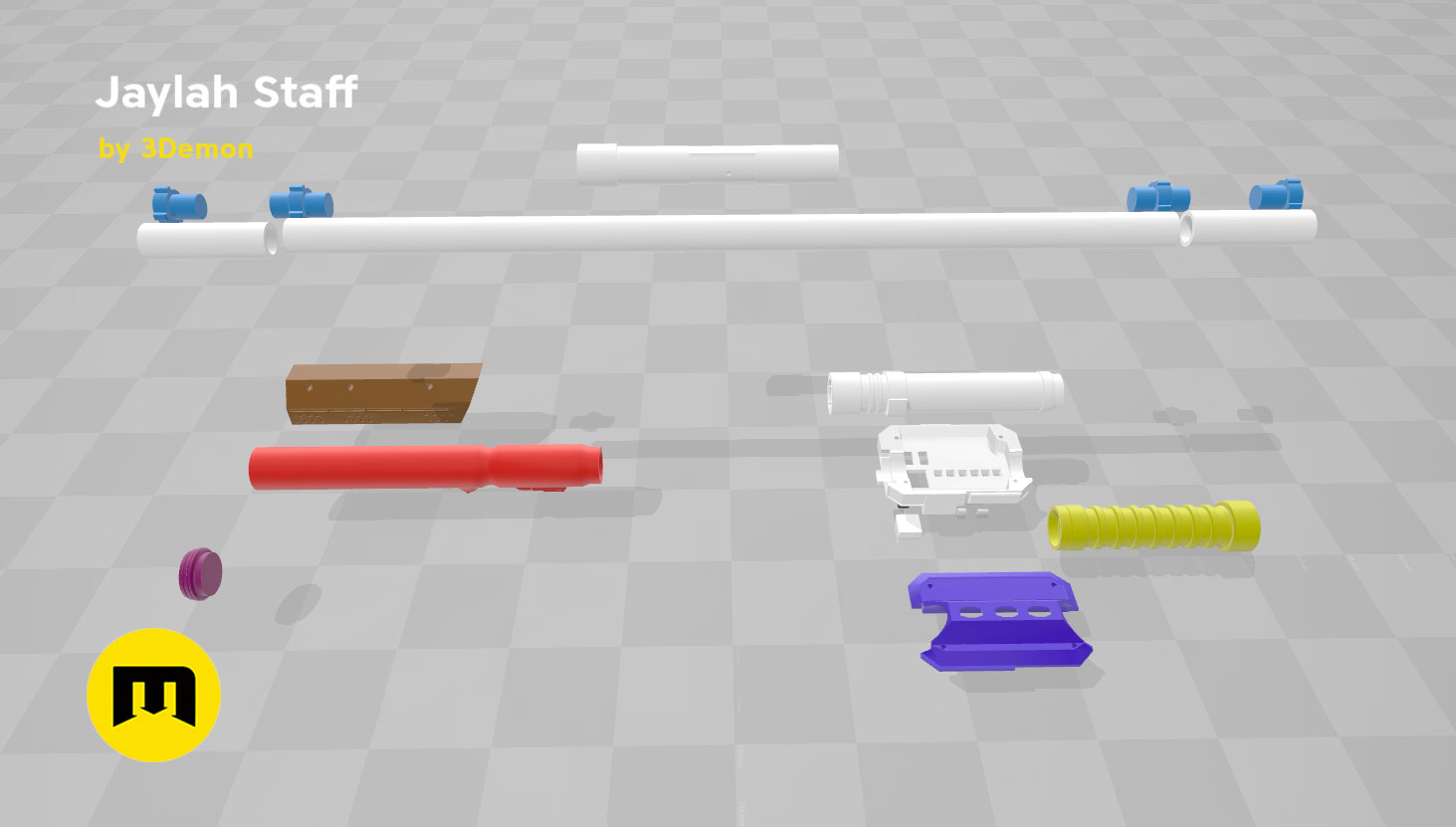

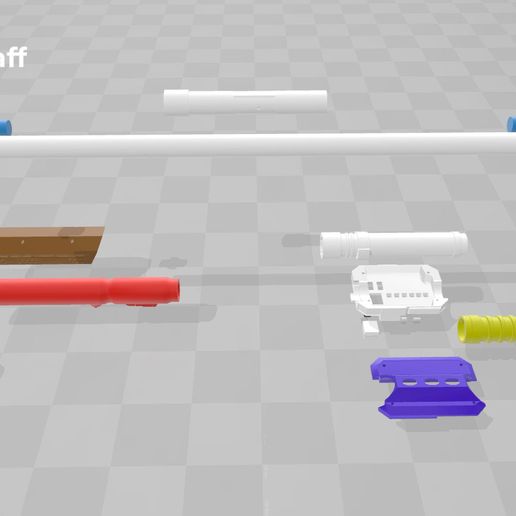

Files contain pieces of the staff ready to be 3D printed and a file where the parts are aligned so that you know where to place them after you print them.

SCALE

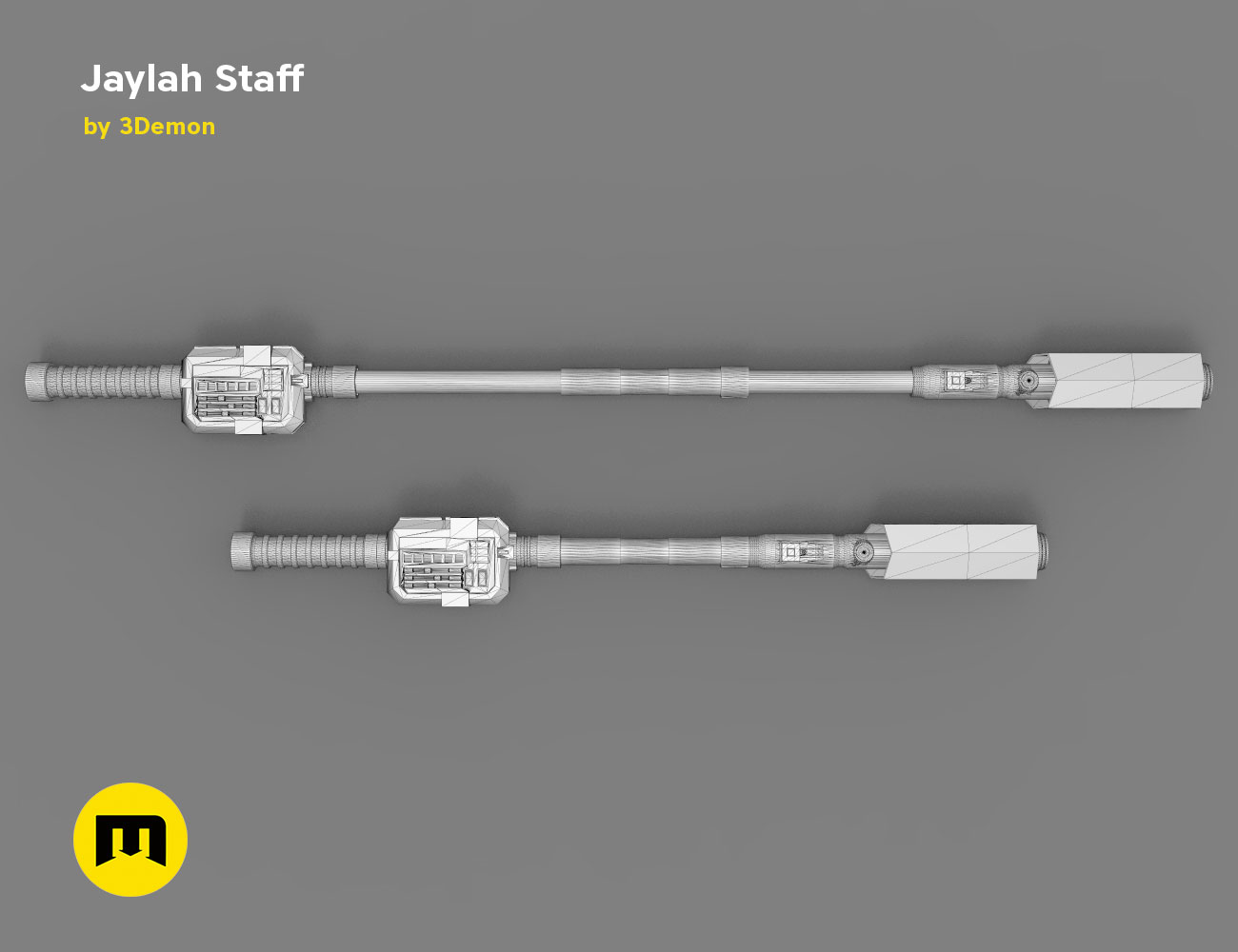

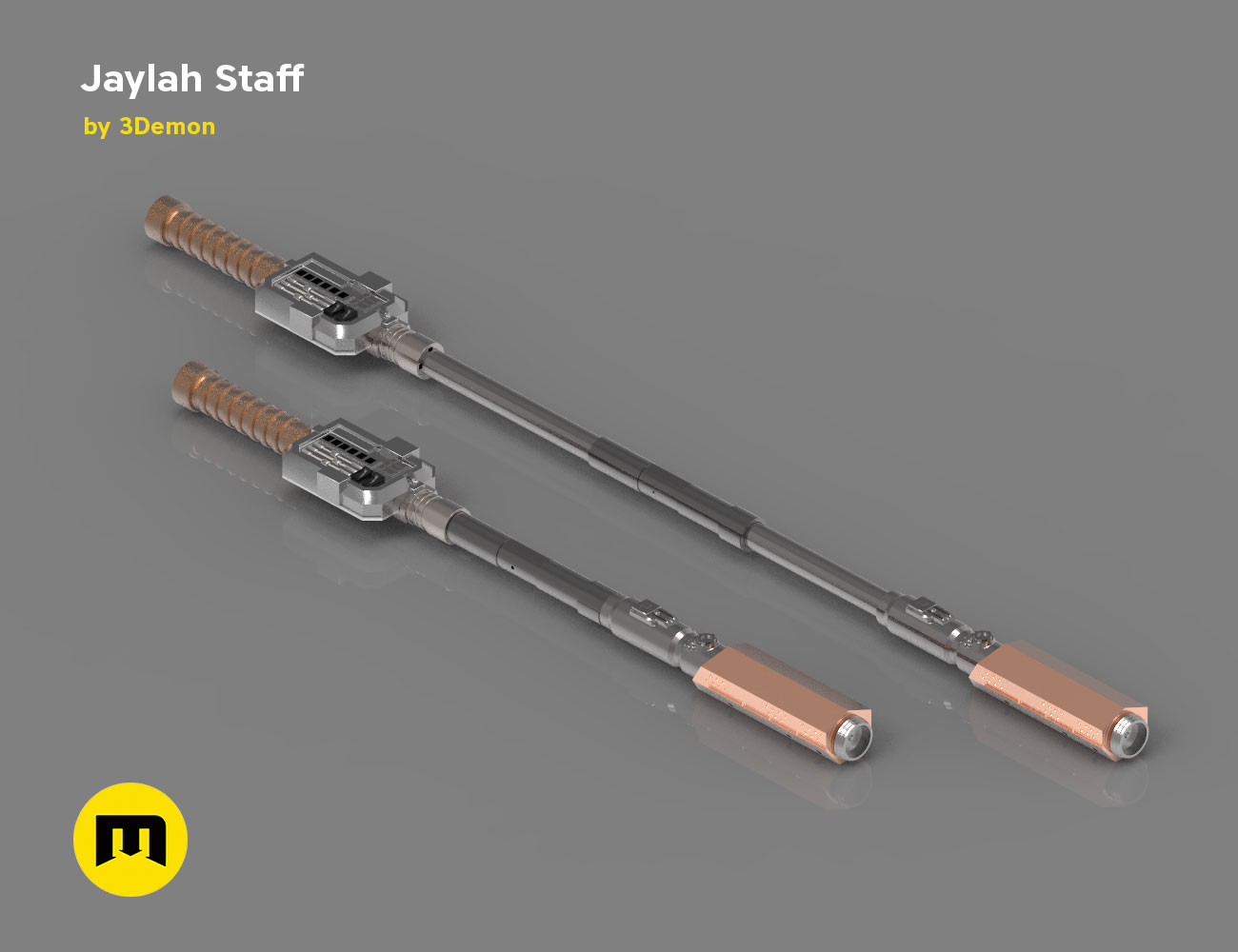

At 100% scale when the staff is extended it is 1326 mm long, when retracted it is 945 mm. None of the parts exceed 200 mm (except for the pole which can be switched out for a 3/4 inch (26.67mm) pipe.

Do you like the model and don't have a 3D printer? There are lots of people who offer 3D printing services these days. Try searching for someone who offers them in your area.

This fan-made model was brought to life by 3Demon. We are a group of modeling and 3D printing enthusiasts based in Prague, Czech Republic.
Here are some links to our website and social media where you can see more of our creations:

https://3d-mon.com/links/

3D printing settings

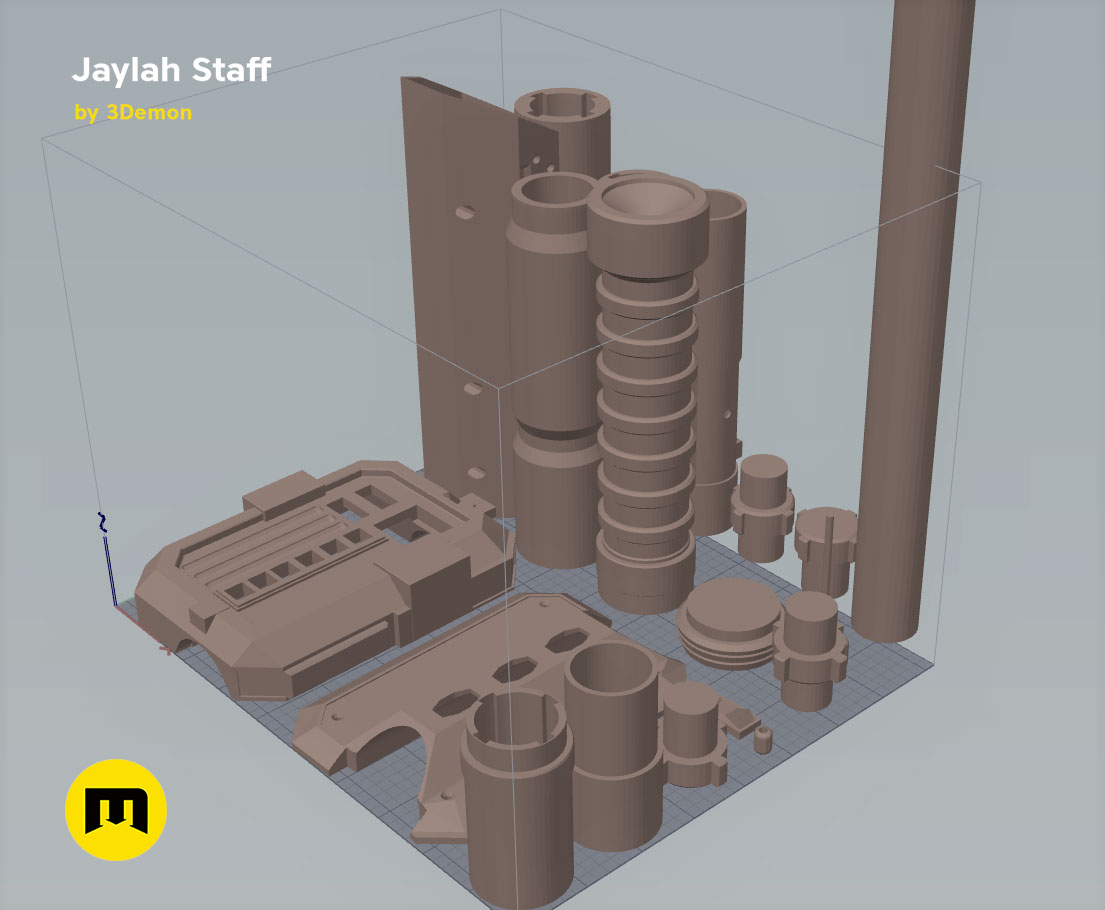

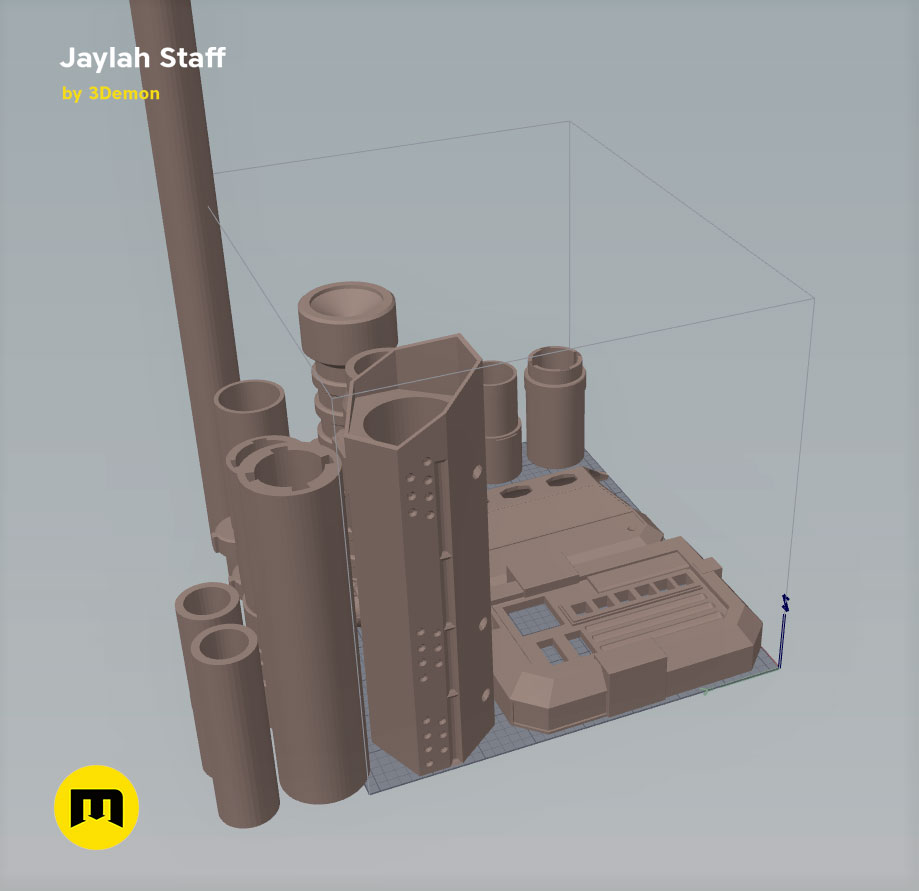

The staff is quite big, it is meant to be post-processed. We recommend a layer height of 0.1 to 0.3 mm on FDM printers. All parts are aligned to the printing platform for easy manipulation. Most of the parts need minimal or no use of printing supports to save printing time and filament. For reliable printing, we also recommend setting a brim to the thinner parts, because of their height and low thickness. It will ensure, that the parts will not come off the printing platform during the printing process. Printing settings will vary greatly depending on your specific printer.
