Pivoting protective visor

Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.



3D model description

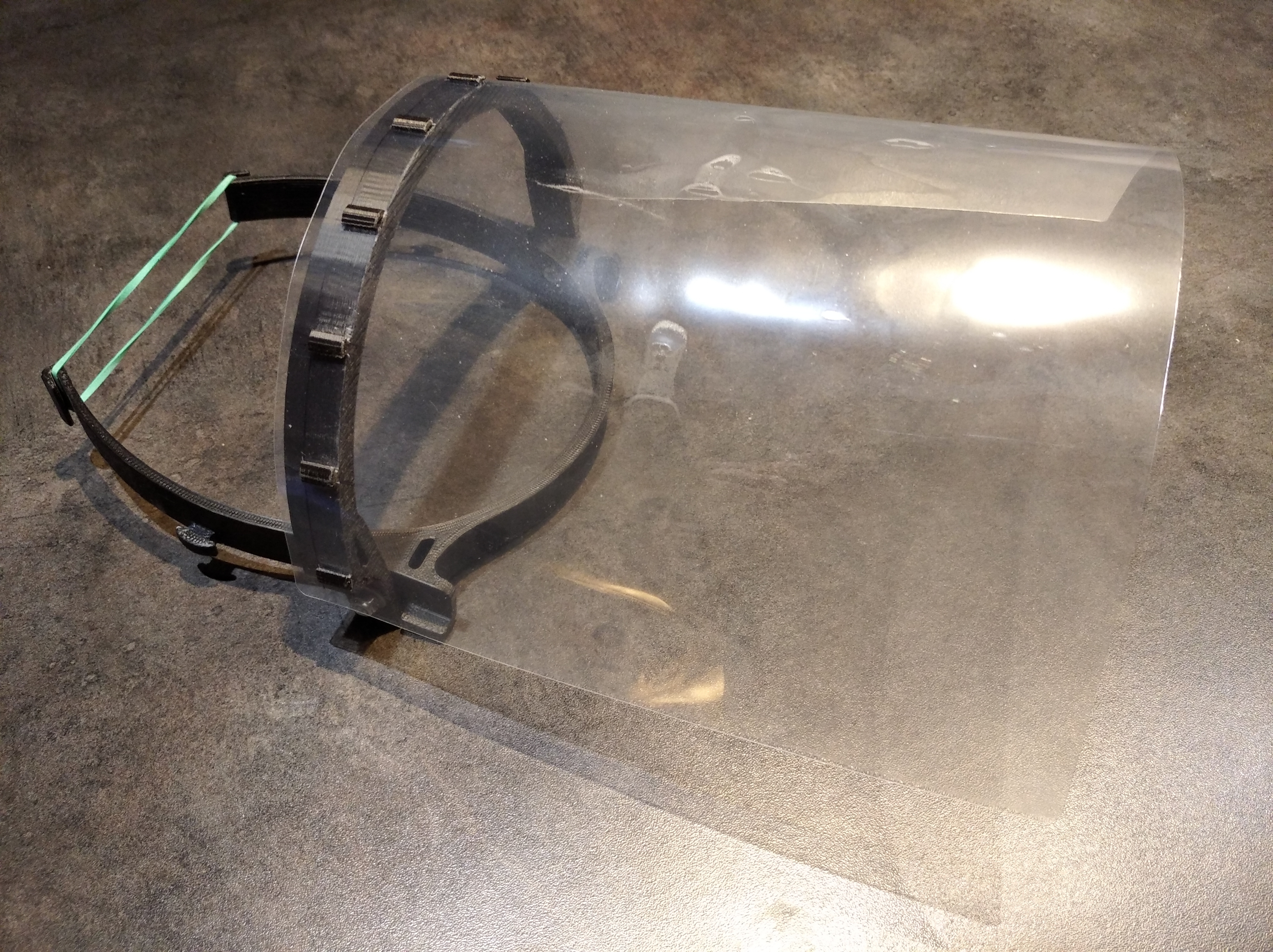

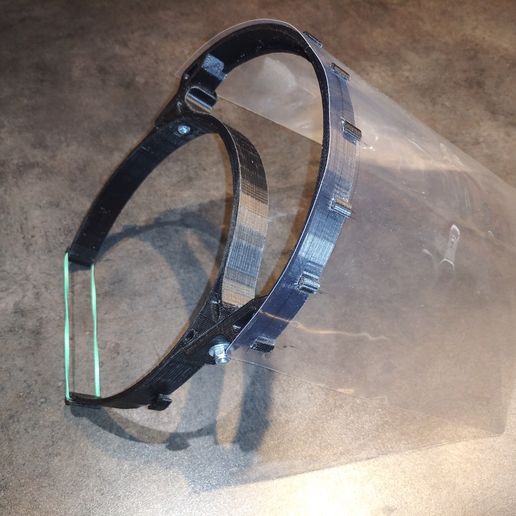

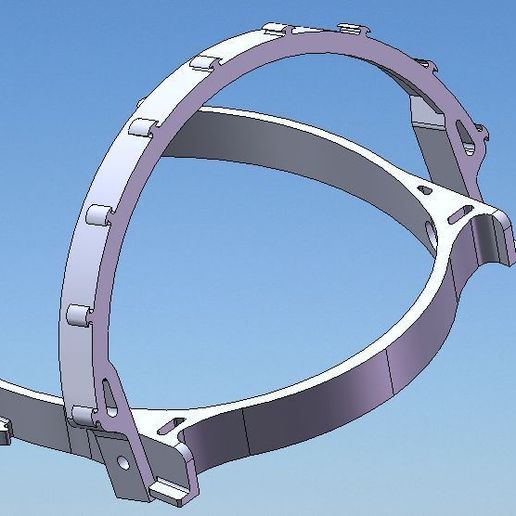

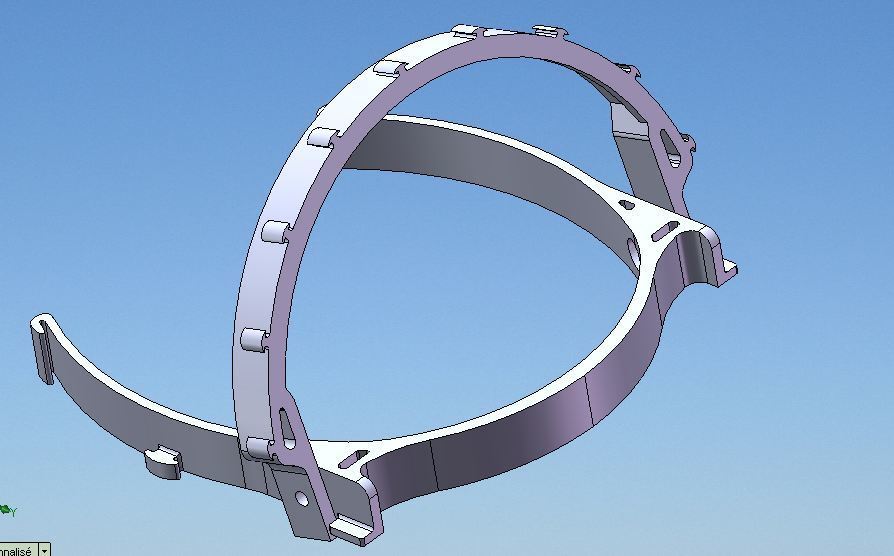

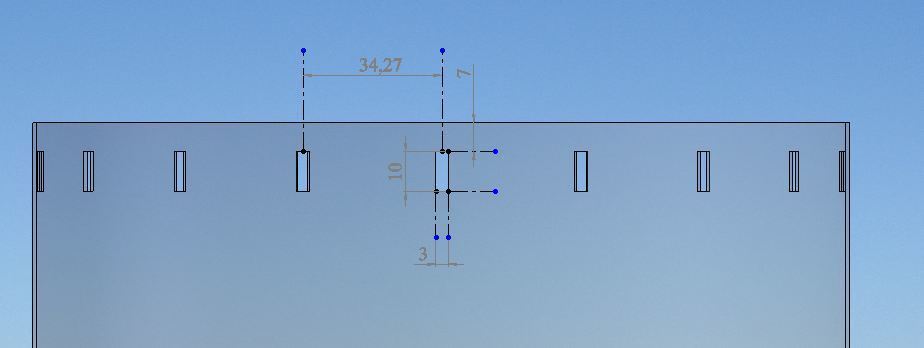

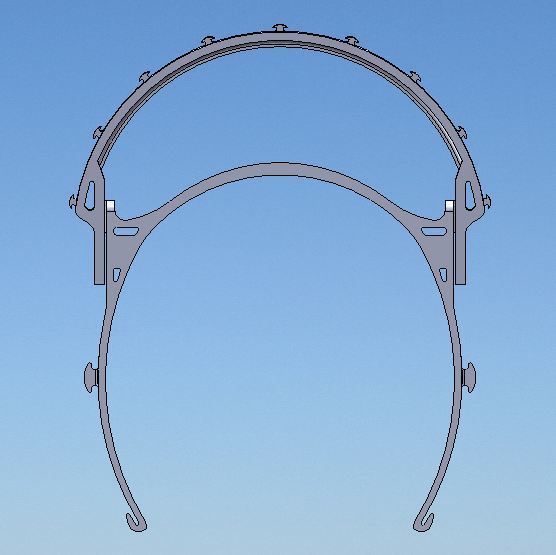

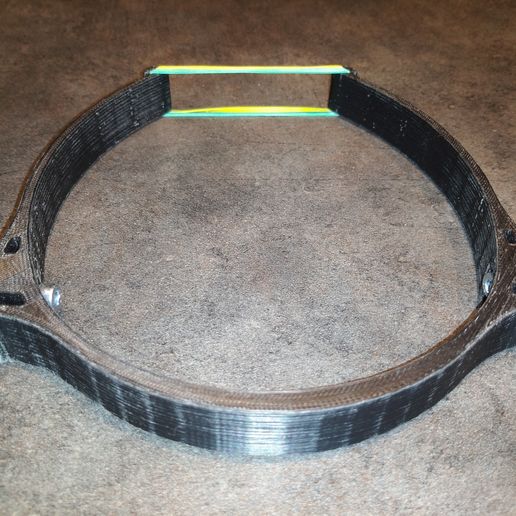

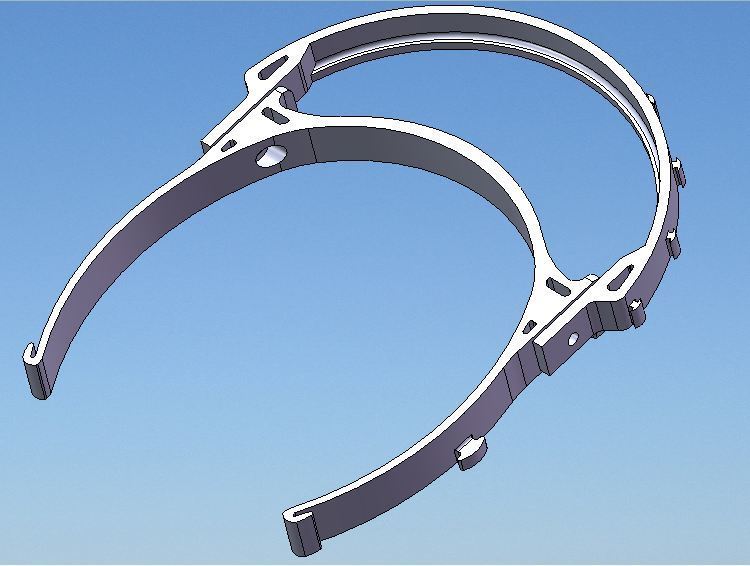

Pivoting visor. Assembled in two parts with 5x20 chc btr screw and M5 nylstop nut. Tighten just enough to avoid splitting the plastic. If you don't have screws at your disposal, two slt files "3" and "4" allow you to finalize a suitable assembly. Visor in a laminating pouch, mounted on the length (303 mm). Small description to make the perforations for mounting on the frame of the visor. Quite robust realization, therefore the manufacturing time is quite consequent, 2 and 3 hours in 50/50 filling. Provide a finish by sanding and cutting with a cutter. Maintained at the back by elastic "bracelet".

Designed for my darling, caregiver in EPHAD ... and for the need of a larger number.

3D printing settings

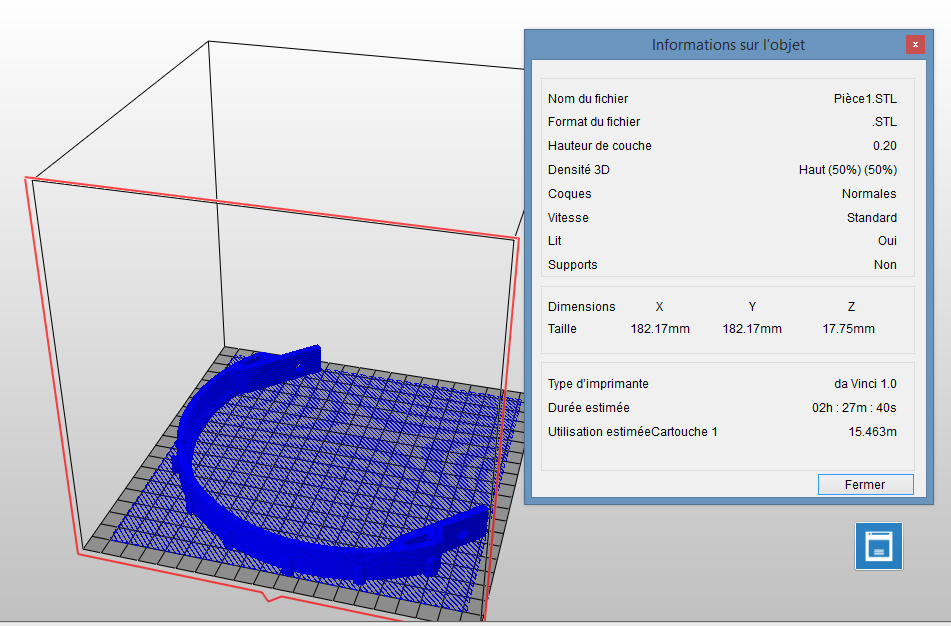

For a 200 x 200 printing tray. black ABS material.

Finishes: "excellent".

Density: 50/50

Layer height: 0.2

Hull: normal

Speed: standard

Supports: bed

3D printer file information

  • Design number: 124230
  • 3D design format: STL Folder details Close
    • 3.STL
    • 4.STL
    • Pièce 2.STL
    • Pièce1.STL

    Learn more about the formats

  • Publication date: 2020-03-27 at 14:14


CULTS CU-ND - Commercial Use - No Derivative
