Q-Modeling Stiletto Nose Cone

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 102 views
  • 2 downloads

3D model description

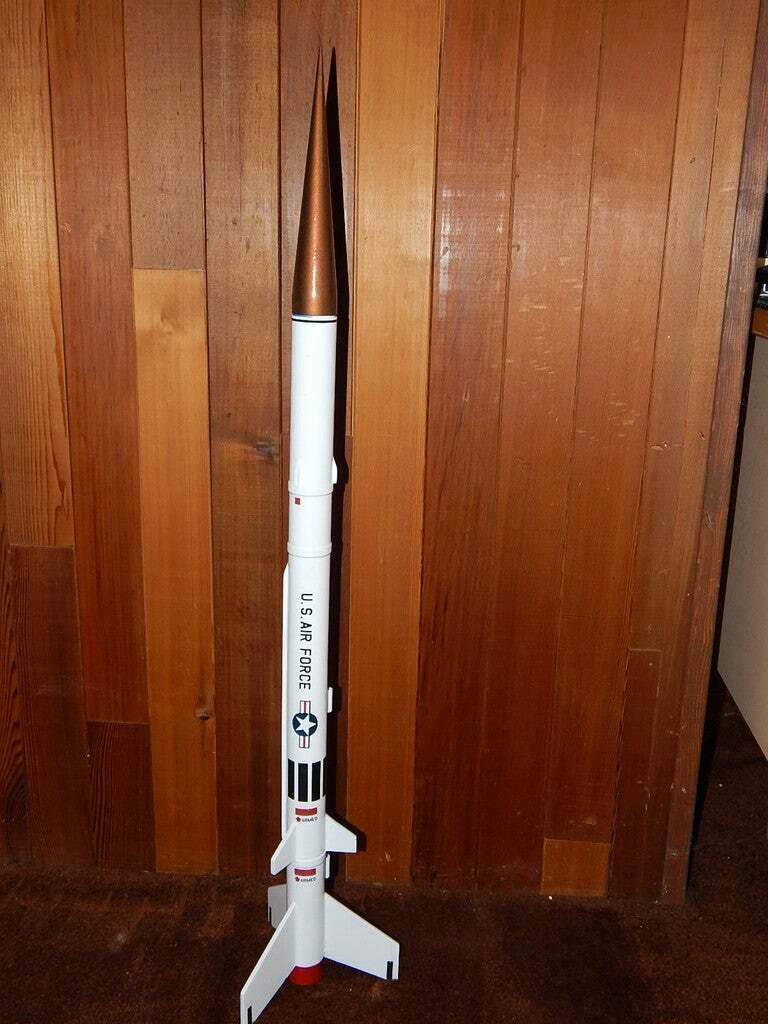

This is a nose cone I have designed for the Q-Modeling Stiletto model rocket kit that was produced in the 2000s that will fit BT-60 airframe tubing. The kit is an 1.68x upscale of the Estes Stiletto (kit #1323) that was produced from 1979 to 1983. It was modeled after original Estes nose cone/simulated nozzle combo listed on the kit build instructions as part # PNC-50BB or just the nose cone only as PNC-50V.

List of out-of-production kits that use the PNC-50BB or PNC-50V nose cone:
Estes Vega (kit #1320),
Estes Meteor (kit #1370),
Estes Maverick (kit #1904),
Estes Stiletto (kit # 1323) ,

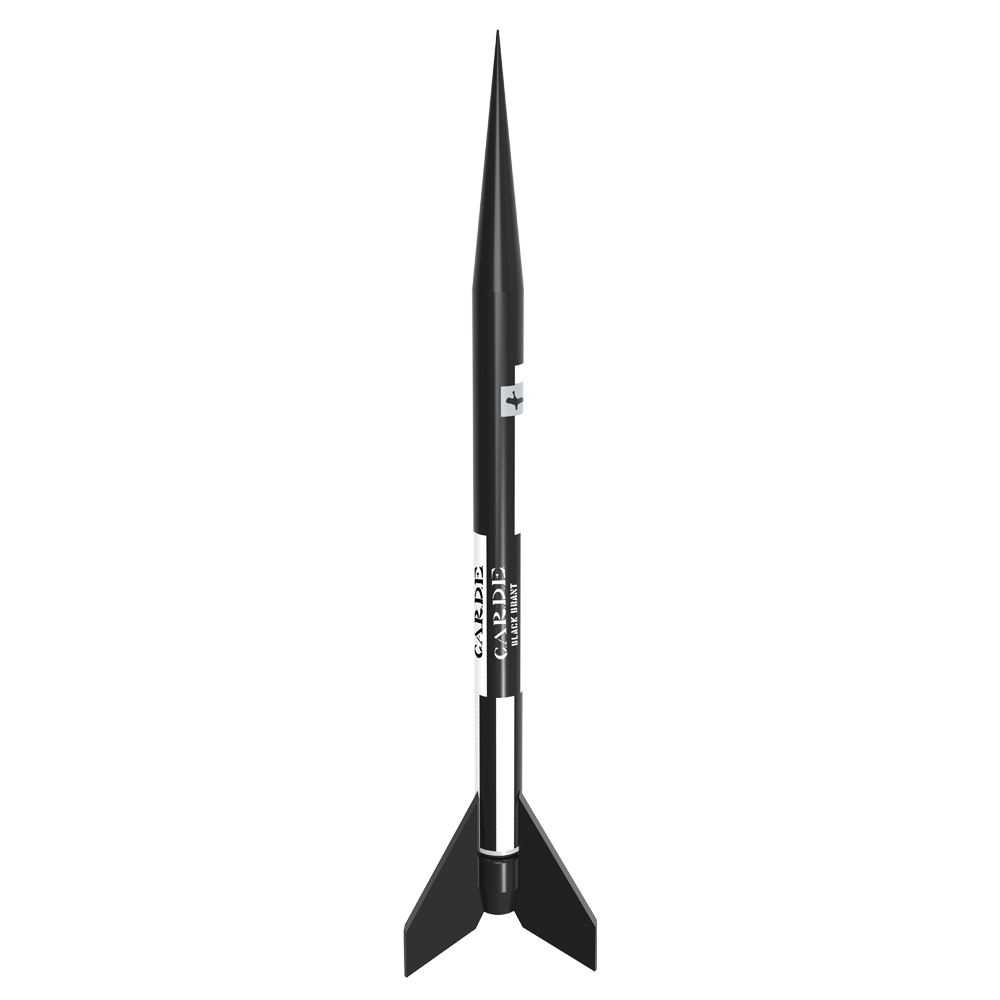

Estes Black Brant II (kit #1958) (currently back in production as kit #7243)
Estes Black Brant III (kit #1293) (currently back in production),
Estes Satellite Interceptor (kit #1296),
Estes Black Hole Space Probe (kit #1426), and

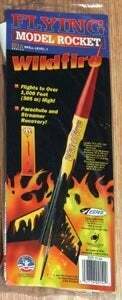

Estes WildFire (kit #2154).

Currently in production:

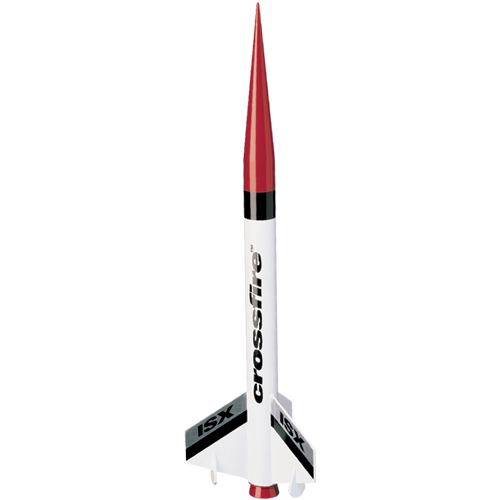

Estes Crossfire ISX (kit #7220)

This nose cone can be used for upscales for the above kits if you use the BT-60 airframe tubing.

You can also scale this nose cone up or down to fit whatever scale you need using your slicer or CAD software.

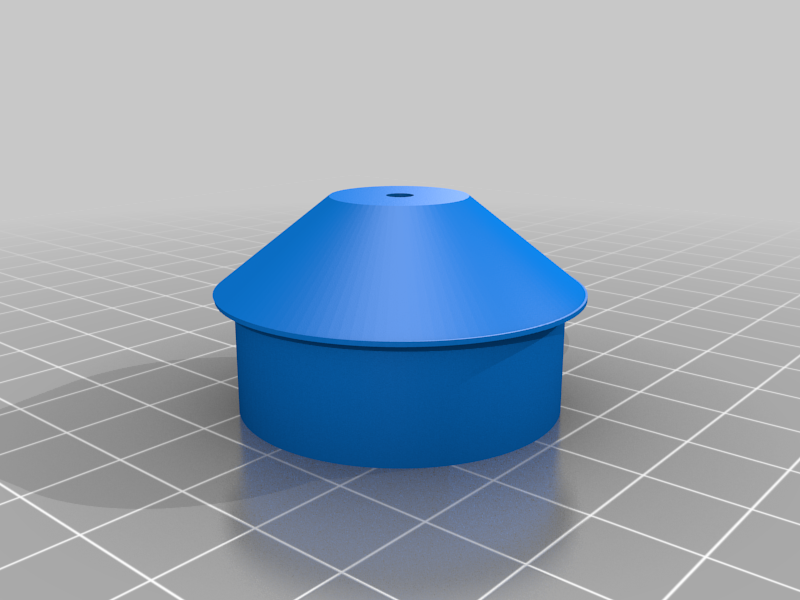

There are two pieces - one for the nose cone with integrated shoulder coupler and the end cap that has a 3mm diameter hole for mounting threaded screw-eye bolt.

https://web.archive.org/web/20060203161916/http://www.qmodeling.com/
https://estesrockets.com/

3D printing settings

-

  • 3D file format: STL

Tags

Creator

License

CC BY
