Patriot Missile Conduit BT-80 16.25% Scale

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

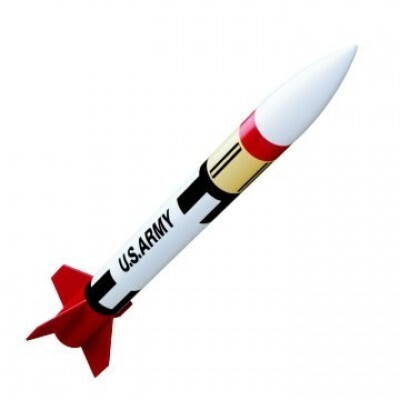

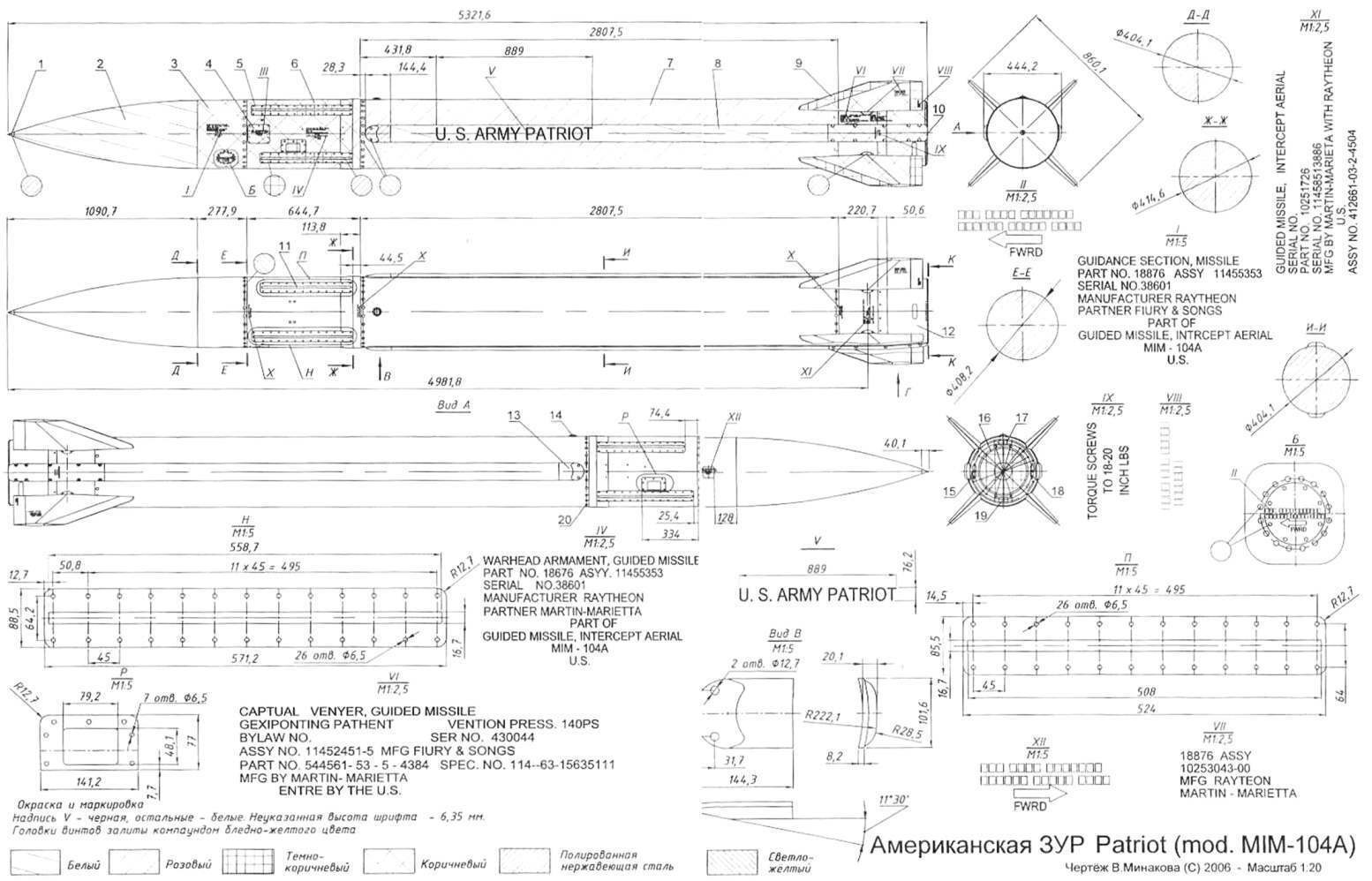

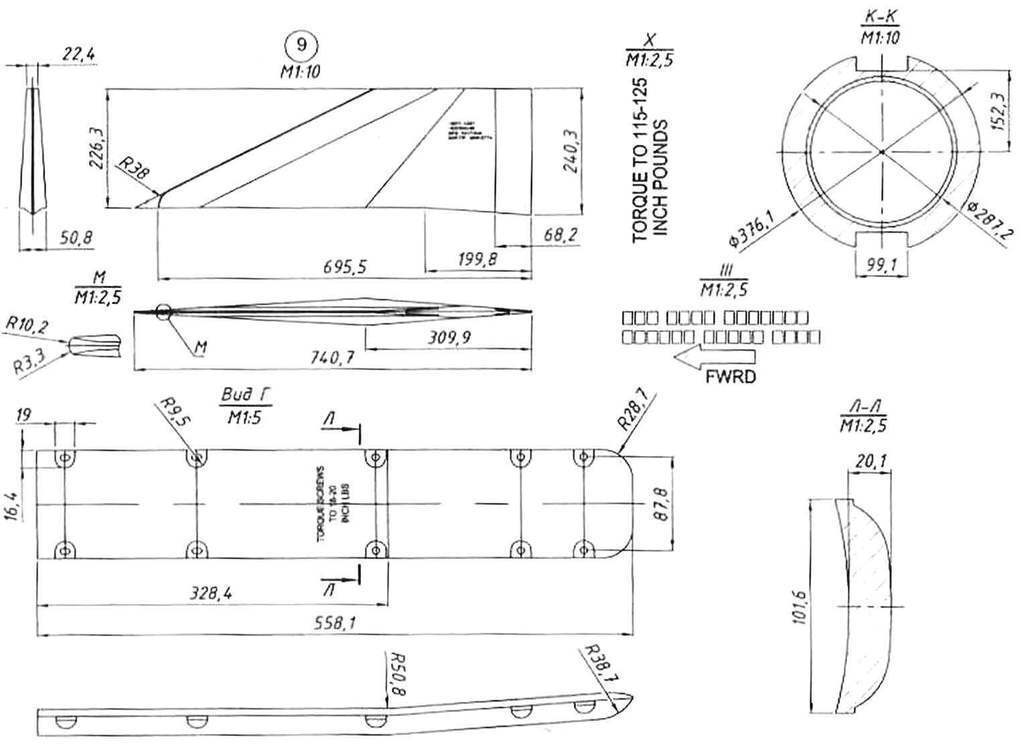

This is a model of the conduit for the Patriot Missile (MIM-104) that is scaled down to 16.25% of the actual rocket that fits Estes BT-80 tubing. It runs along the outside of the airframe.

There are six files.

1) The whole conduit that is 532.51mm long,

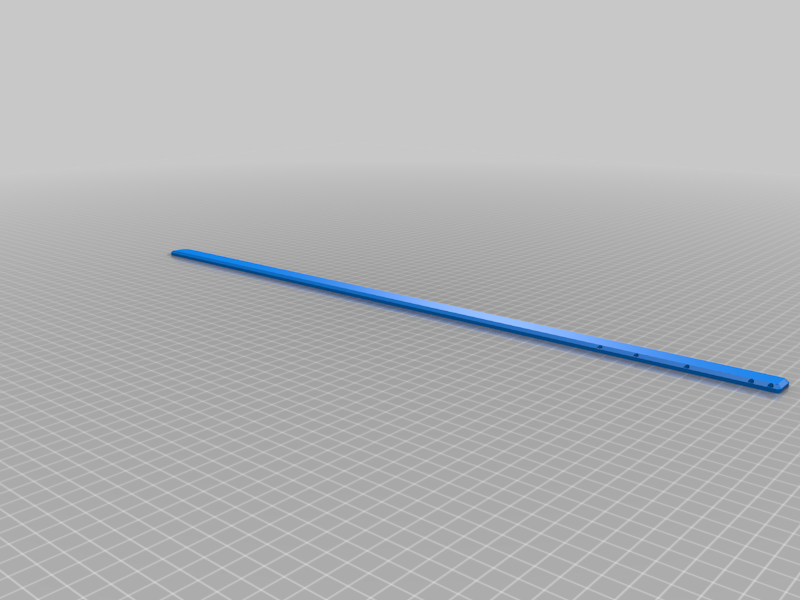

2) The whole conduit that is 532.51mm long and is conformal to Estes BT-80 tubing,

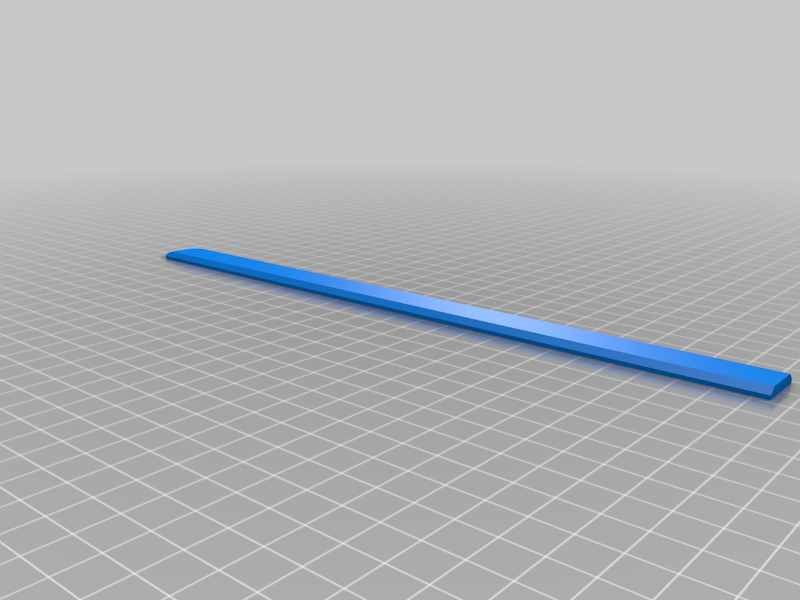

3) Upper half of the conduit that is 266.255mm long,

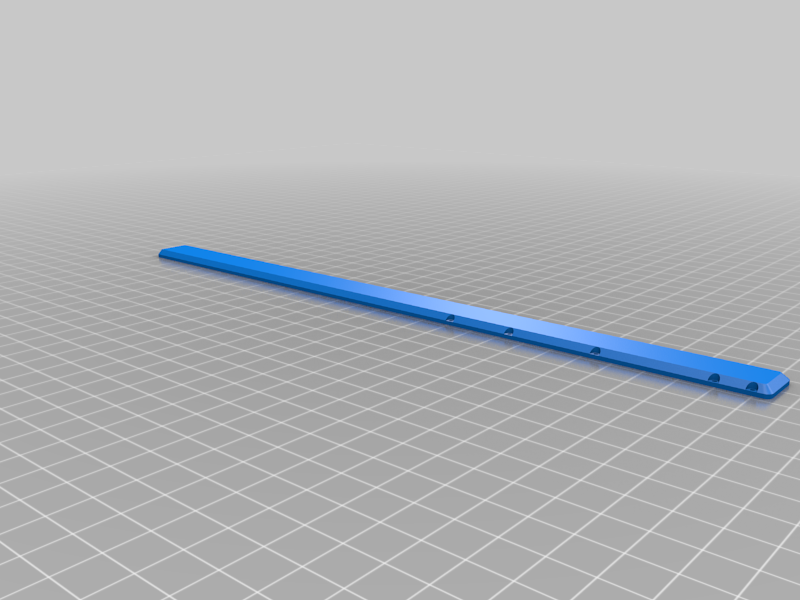

4) Lower half of the conduit that is 266.255mm long,

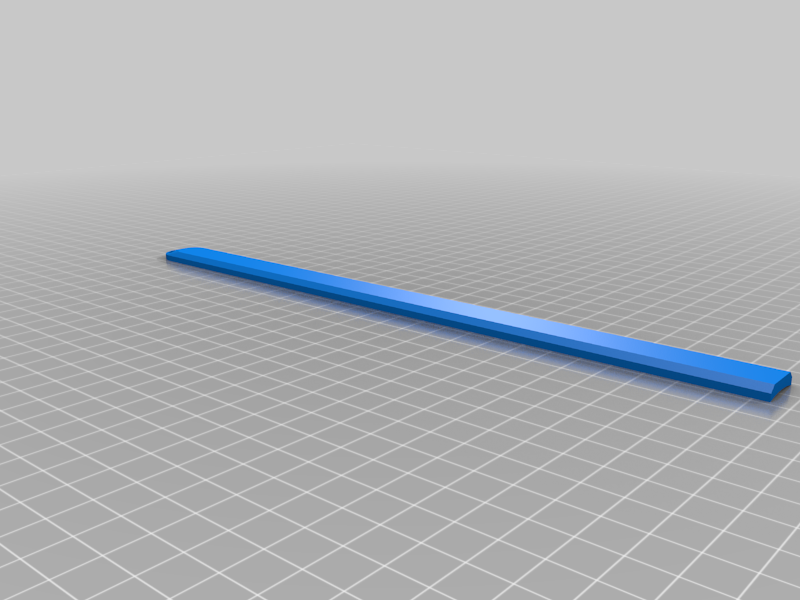

5) Upper half of the conduit that is 266.255mm long and is conformal to Estes BT-80 tubing,

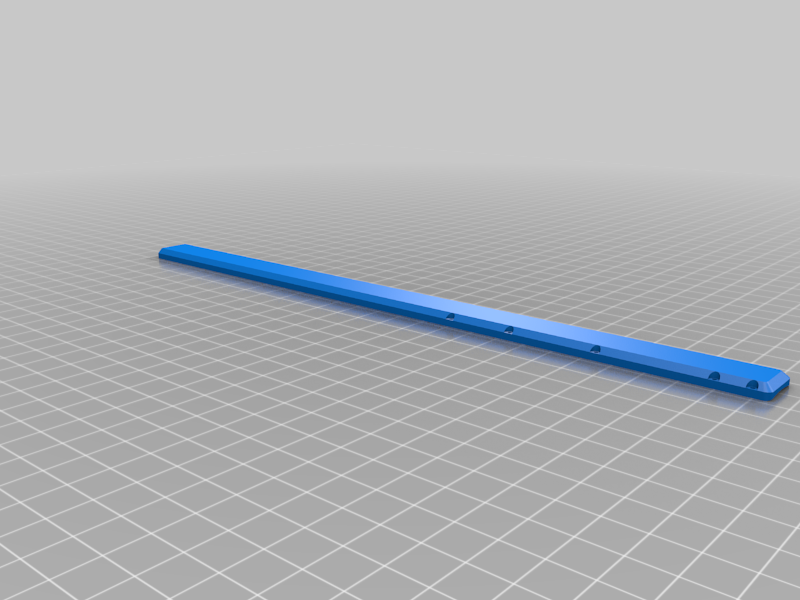

6) Lower half of the conduit that is 266.255mm long and is conformal to Estes BT-80 tubing.


3D printing settings

-

3D printer file information

  • 3D design format: STL Folder details Close
    • Patriot_Missile_Conduit_16.25_Percent.stl
    • Patriot_Missile_Conduit_16.25_Percent_Conformal_BT-80.stl
    • Patriot_Missile_Conduit_16.25_Percent_Conformal_BT-80_Lower.stl
    • Patriot_Missile_Conduit_16.25_Percent_Conformal_BT-80_Upper.stl
    • Patriot_Missile_Conduit_16.25_Percent_Lower.stl
    • Patriot_Missile_Conduit_16.25_Percent_Upper.stl

    Learn more about the formats

  • Publication date: 2022-03-15 at 01:02
    ?
    Published to Thingiverse on: 2022-03-14 at 02:35

License

CC BY
