Gyrotourbillon

?
Creation's quality: 4.4/5 (5 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 23.7k views
  • 147 likes
  • 1.1k downloads

3D model description

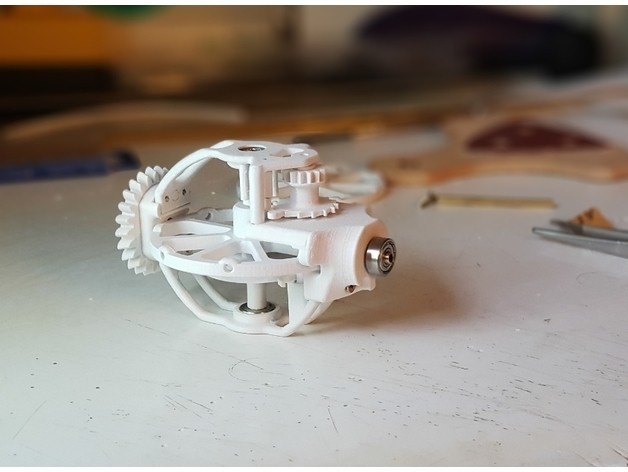

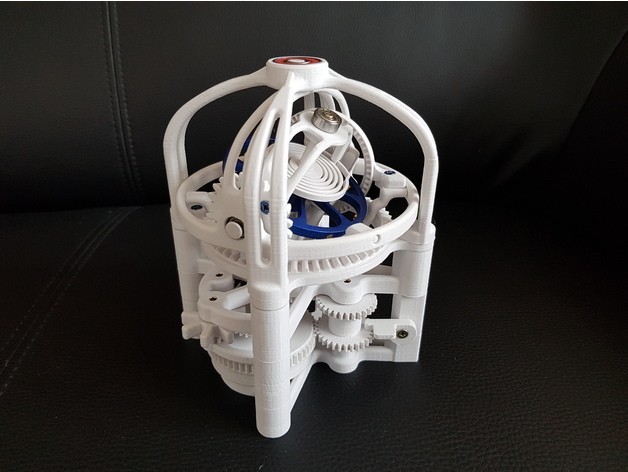

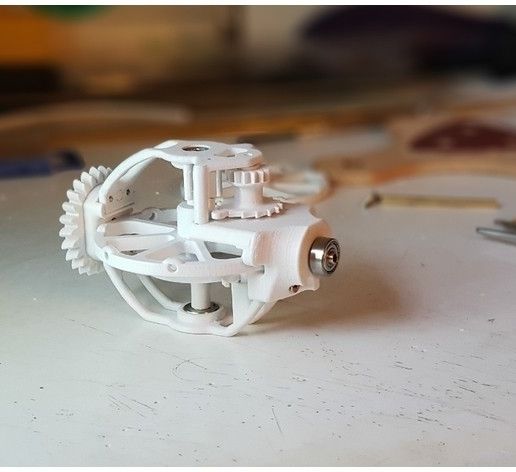

I was inspired by the watch model of Jaeger Lecoultre Gyrotourbillon.

For me the most beautiful watch... 490,000 € anyway.

I wanted to do only the cage rotation mechanism.

It will take a lot of patience to finish the product, and consider a lot of adjustments.

I will create a complete nomenclature with photos.

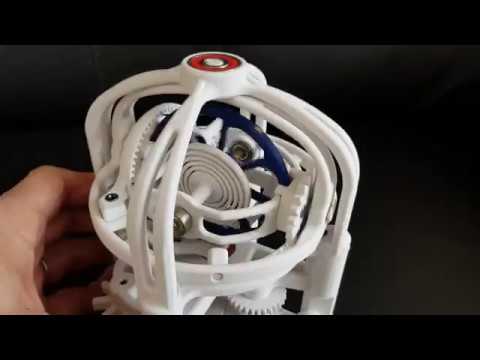

https://www.youtube.com/watch?v=DDE_oqEuyxM&feature=youtu.be

NB: Additions

I just added the file

small bevel gear mod

he hadn't stopped by.

I just added the dwg of the set, assembly gyrotourbillon.dwg

-I just corrected two files, trainer balance.stl and washer10&11.stl, there was a problem with downloading too large a scale.

I just added the files of the large cages WITHOUT SUPPORT, at the request of several. This way you can put the support you want.

upper cage -SP

first cage 1 - SP

first cage 2 - mod - SP

I just added the file of the anchor finished version "anchor-def-impr.stl" to the order of several people.

I just added the references of the bearings and number.

gyrotourbillon nomenclature accessories

2 bearings 608 ZZ - 22x8 ep7

5 bearings 624 Z -13x4 ep 5

wooden screws M3x16

wooden screws M3x8

wooden screws M3x40

brass axis dia 3 mm

brass tube dia 4 mm

brass tube dia 2 mm

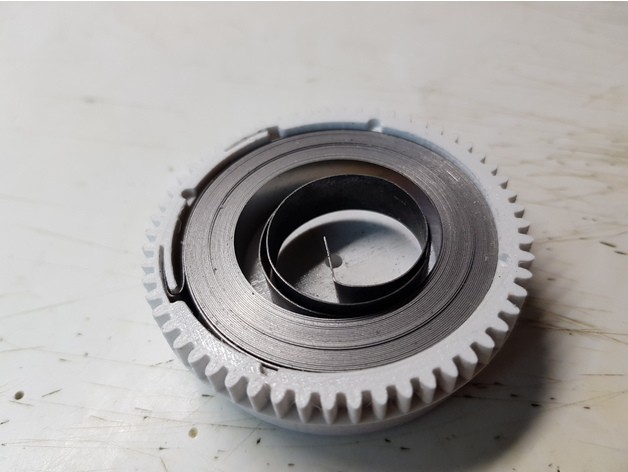

steel spring taken from ALI express

ref -spiral flat wire coil with constant force, 0.25x8x5000mm, type27


3D printing settings

Printer Brand:

Ultimaker

Printer:

Ultimaker 2

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • Assemblage_gyrotourbillon.dwg.zip

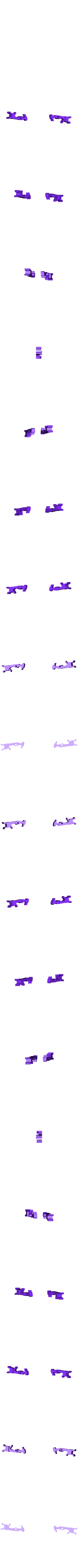

    • ancre__-_def.stl
    • ancre__-_def_-_impr.stl
    • axe_bout.stl
    • balancier_-_def.stl
    • cage_ext_basse_1_.stl

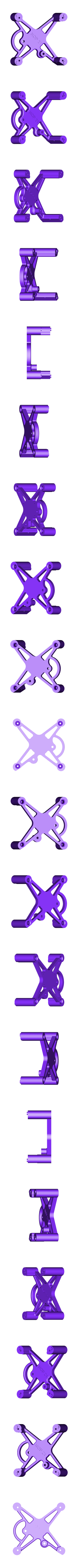

    • cage_ext_basse_2.stl

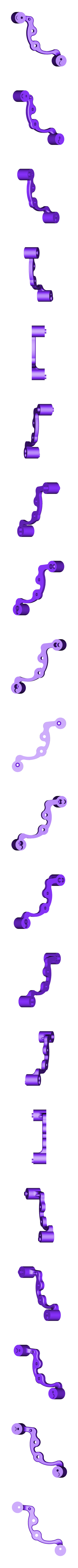

    • cage_ext_basse_3.stl

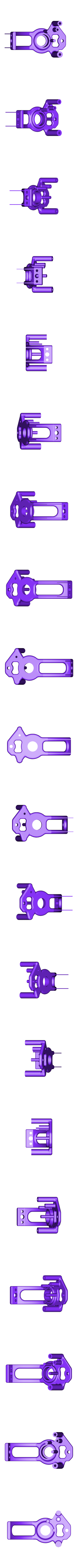

    • cage_inter_A_mod.stl

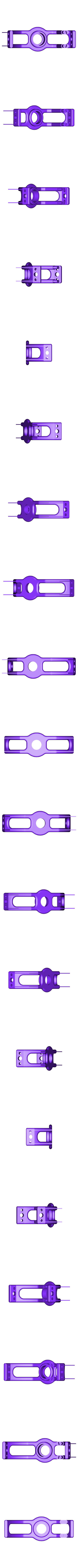

    • cage_inter_B_mod.stl
    • cage_supérieure.stl
    • cage_supérieure_-_SP.stl

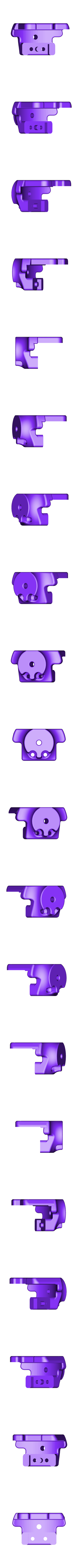

    • carter_inter_C.stl
    • clip_pignon_entrainement.stl
    • cliquet_.stl

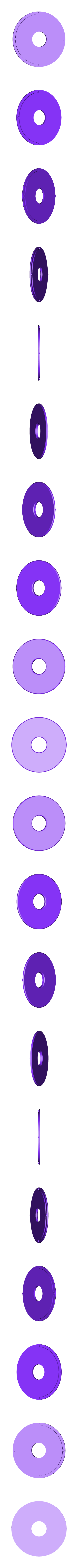

    • couvercle_de_barillet.stl
    • entraineur_balancier.stl
    • entretoise_b.stl

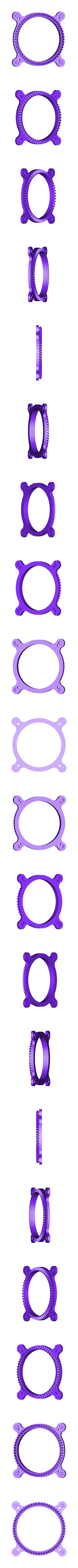

    • grand_pignon_conique_mod.stl

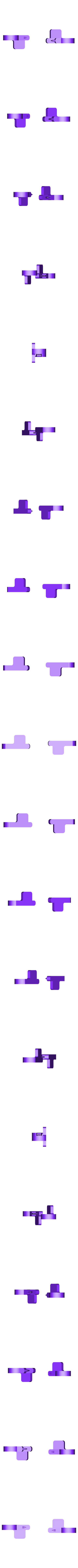

    • loquet.stl

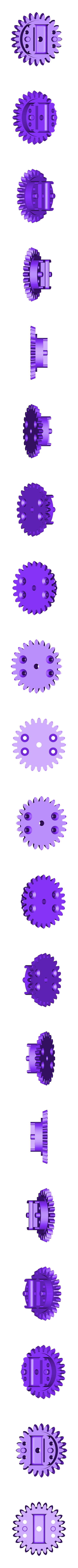

    • petit_pignon_conique_mod.stl

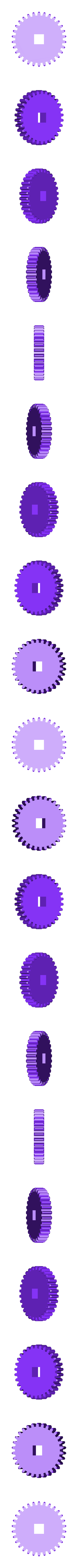

    • petit_pignon_entrainement_bas_-_MOD.stl

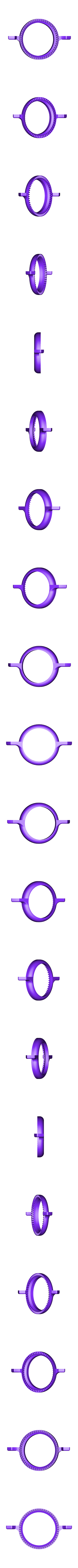

    • pignon_90.stl
    • pignon_intermédiaire.stl

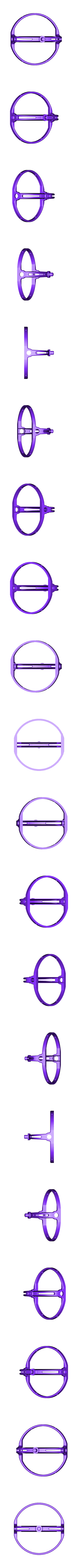

    • première_cage_1.stl
    • première_cage_1_-_SP.stl

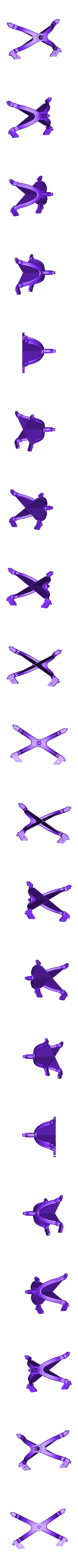

    • première_cage_2_-_mod.stl
    • première_cage_2_-_mod_-_SP.stl

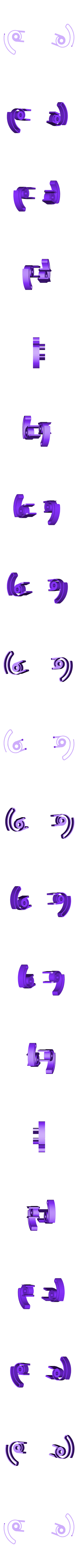

    • ressort_de_cliquet_-_mod.stl

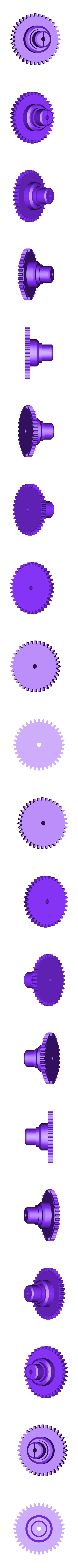

    • rochet.stl
    • rondelle_10__11.stl

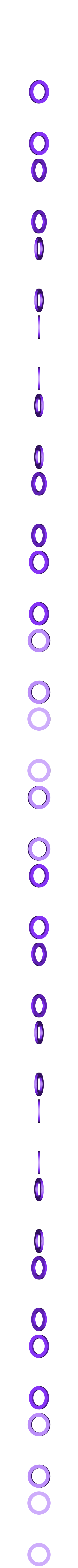

    • rondelle_20.stl

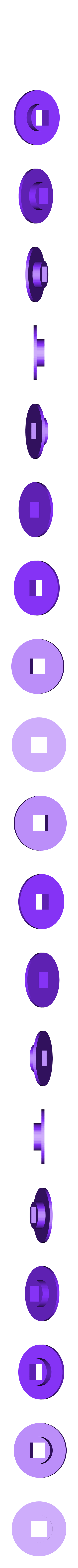

    • rondelle_30.stl
    • rondelle_70.stl

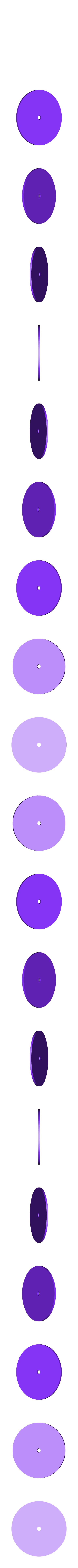

    • rondelle_80.stl
    • roue_de_couronne.stl

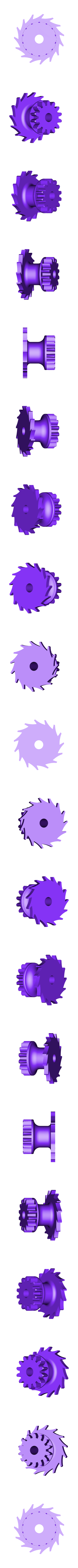

    • roue_echappement_gyro.stl

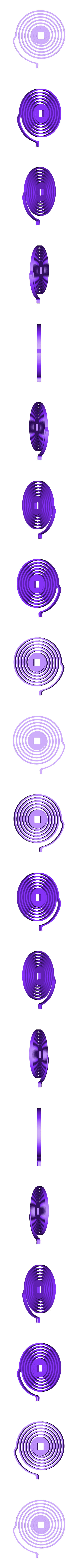

    • spiral_.stl

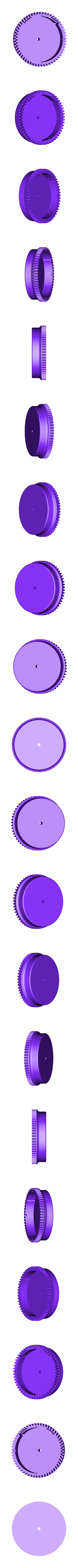

    • tambour_de_barillet.stl

    Learn more about the formats

  • Last update: 2018/12/20 at 17:09
  • Publication date: 2018/06/28 at 18:04

License

CC BY NC ND

Creator

Designs 267
Downloads 45.3k
Sales US$15
Followers 931

Ancien chef d'entreprise, aujourd'hui à la retraite. Passionné d'impression 3D
