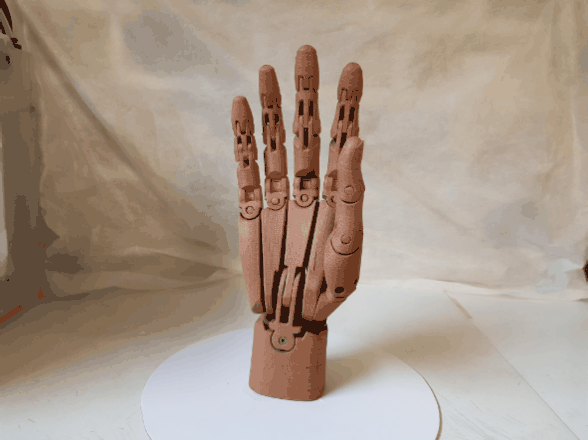

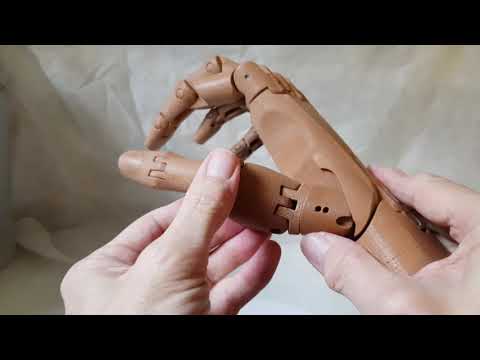

Articulated hand - Articulated hand

https://www.youtube.com/watch?v=a5FTwvX_dHI&feature=youtu.be

Nomenclature :

1 x base plate

1 x wrist def

1 x wrist hand strap

1 x metacarpal base - major - Mod

1 x hinge hub wrist hinge A

1 x hinge hub wrist hinge B

1 x metacarpal base - index

1 x hinge pin on top hand 1

1 x Meracarp base - annular

1 x hinge pin on top hand 2

1 x metacarpal base - auricular

1 x axis above hand 3

1 x hinge connection pin inch

1 x inch - metacarpal 3A

1 x inch - metacarpal 2

1 x inch - metacarpal 1

5 x phal axis 4

1 x inch - phalangine

1 x inch - phalangette

1 x finger hinge on top index finger

1 x finger hinge on top major

1 x finger hinge on top of ring finger

1 x finger hinge on top of ear

1 x axis on top of finger 1

2 x axis above finger 2

1 x axis above finger 4

1 x index - phalanx

1 x major - phalanx

1 x annular - phalanx

1 x little finger - phalanx

6 x phal axis 2

1 x index - phalangine

1 x major - phalangine

1 x annular - phalangine

1 x little finger - phalangine

4 x phal axis 1

1 x index finger - phalangette

1 x major - phalangette

1 x annular - phalangette

1 x little finger - phalanx

Accessories Accessories

1 x wooden screw M3x20

2 x wooden screws M3x16

19 x screw M 1.6 x 15

https://www.amazon.fr/Pitch-M1-6-hexagonale-Socket-100-pcs/dp/B00XP4P3EG/ref=sr_1_3/260-0336114-1942305?ie=UTF8&qid=1552812252&sr=8-3&keywords=vis+1%2C6+x14

4 x screw M 1.6 x 12

NOTE: NOTE

I just added the file

wrist hand link - A

that hadn't passed.
